BUX98AP
View detailed images (12)

BUX98AP

SKU: BUX98AP

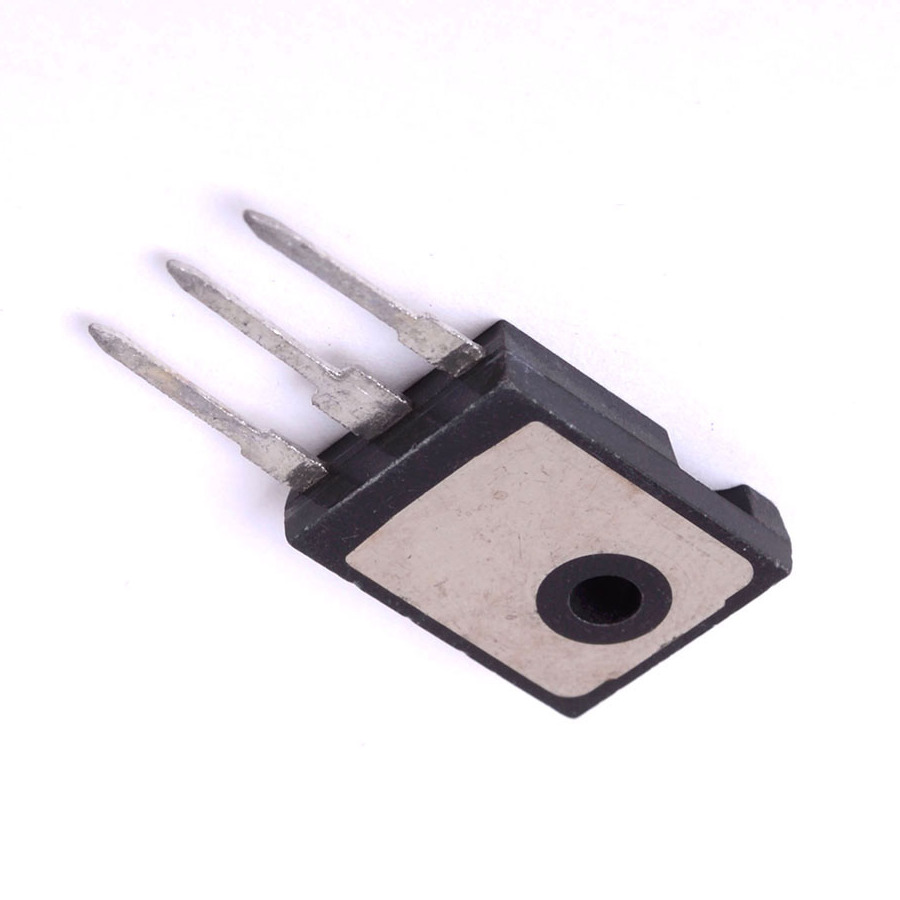

BUX98AP Transistor Silicon NPN CASE: SOT93 MAKE: ST Microelectronics - STM
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BUX98AP Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT93
Manufacturer ST Microelectronics - STM
Polarity NPN
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Collector Current |Ic max| 24 A
Max. Operating Junction Temperature (Tj) 200 °C
Forward Current Transfer Ratio (hFE), MIN 10
SKU 139909
