BUZ47A
View detailed images (13)

BUZ47A

SKU: BUZ47A

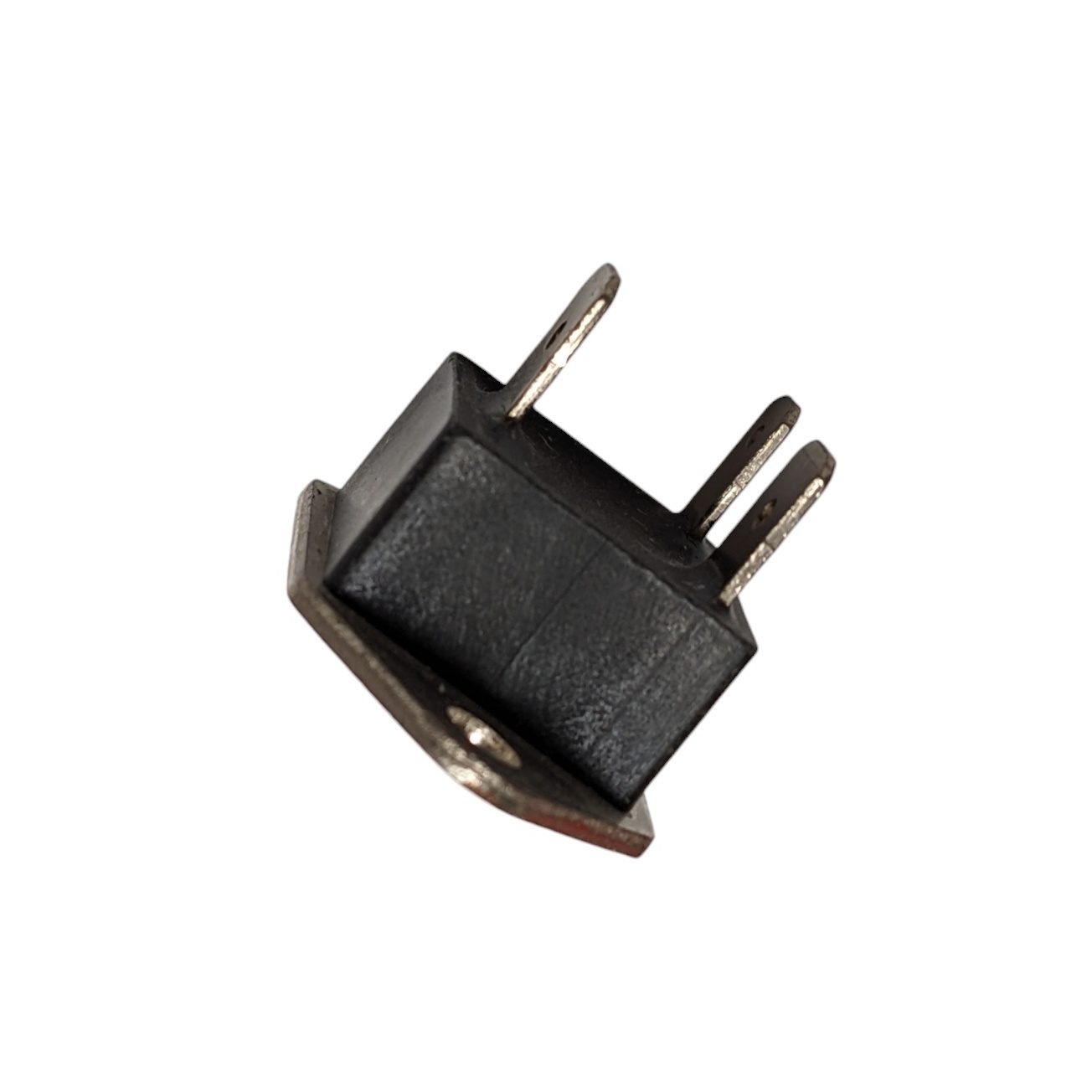

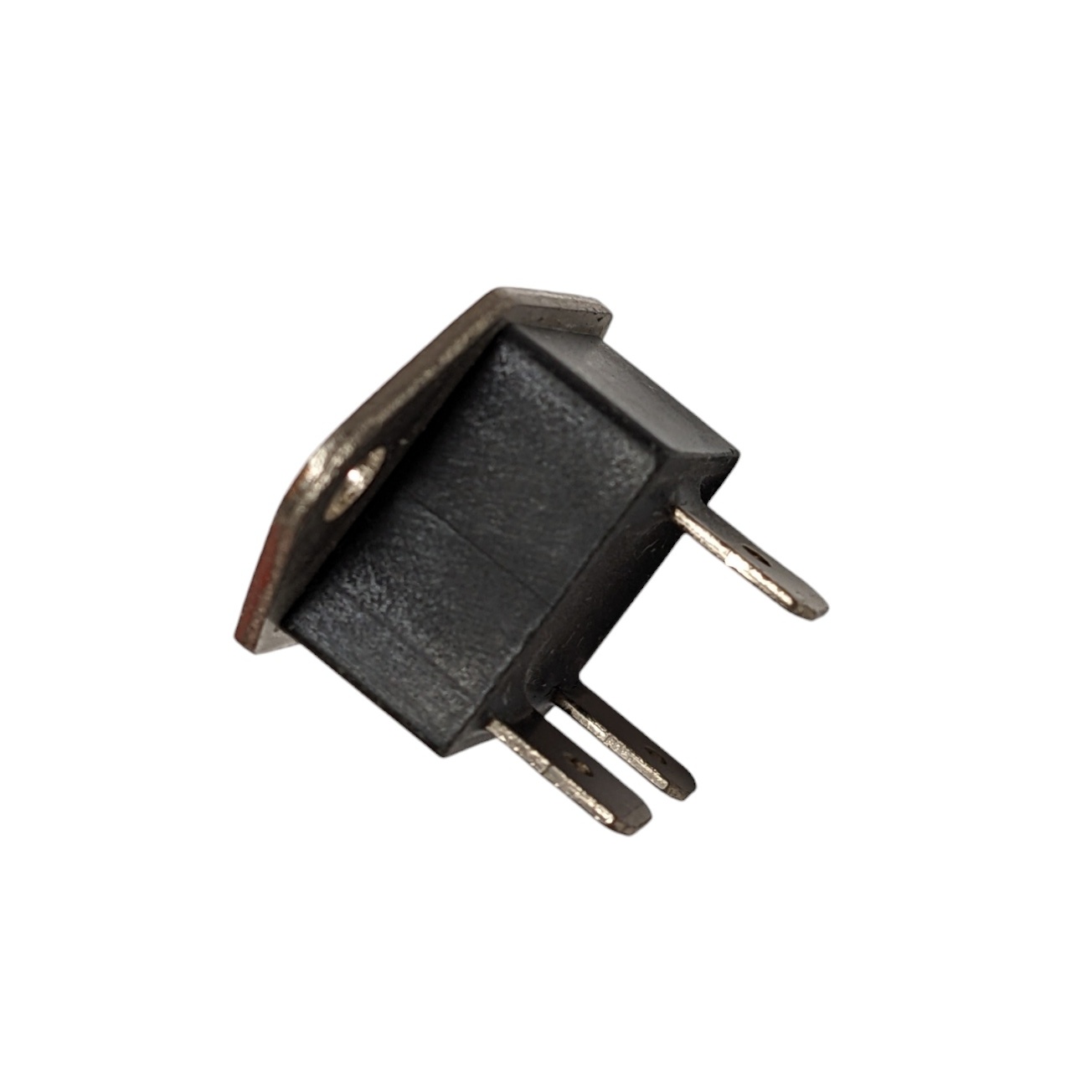

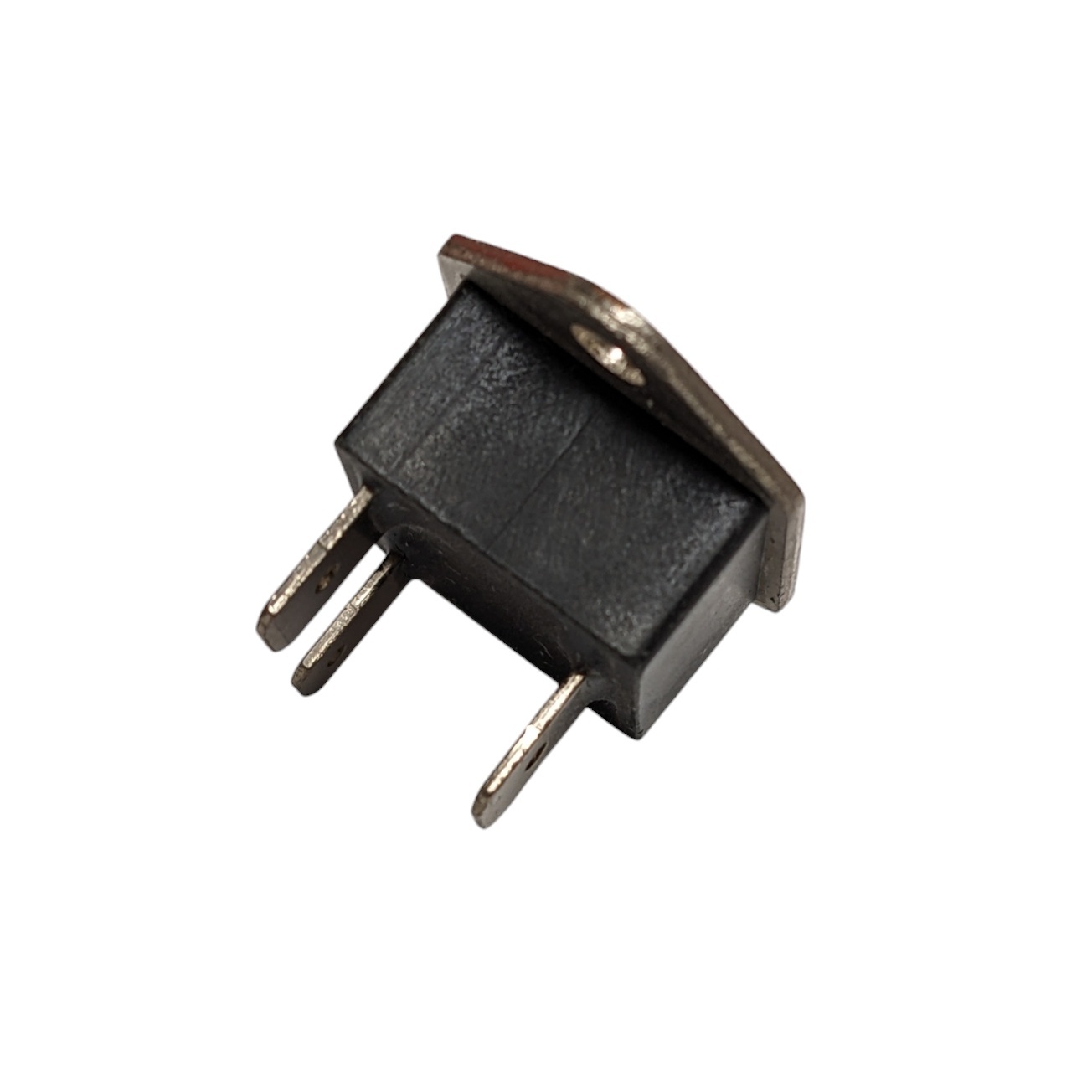

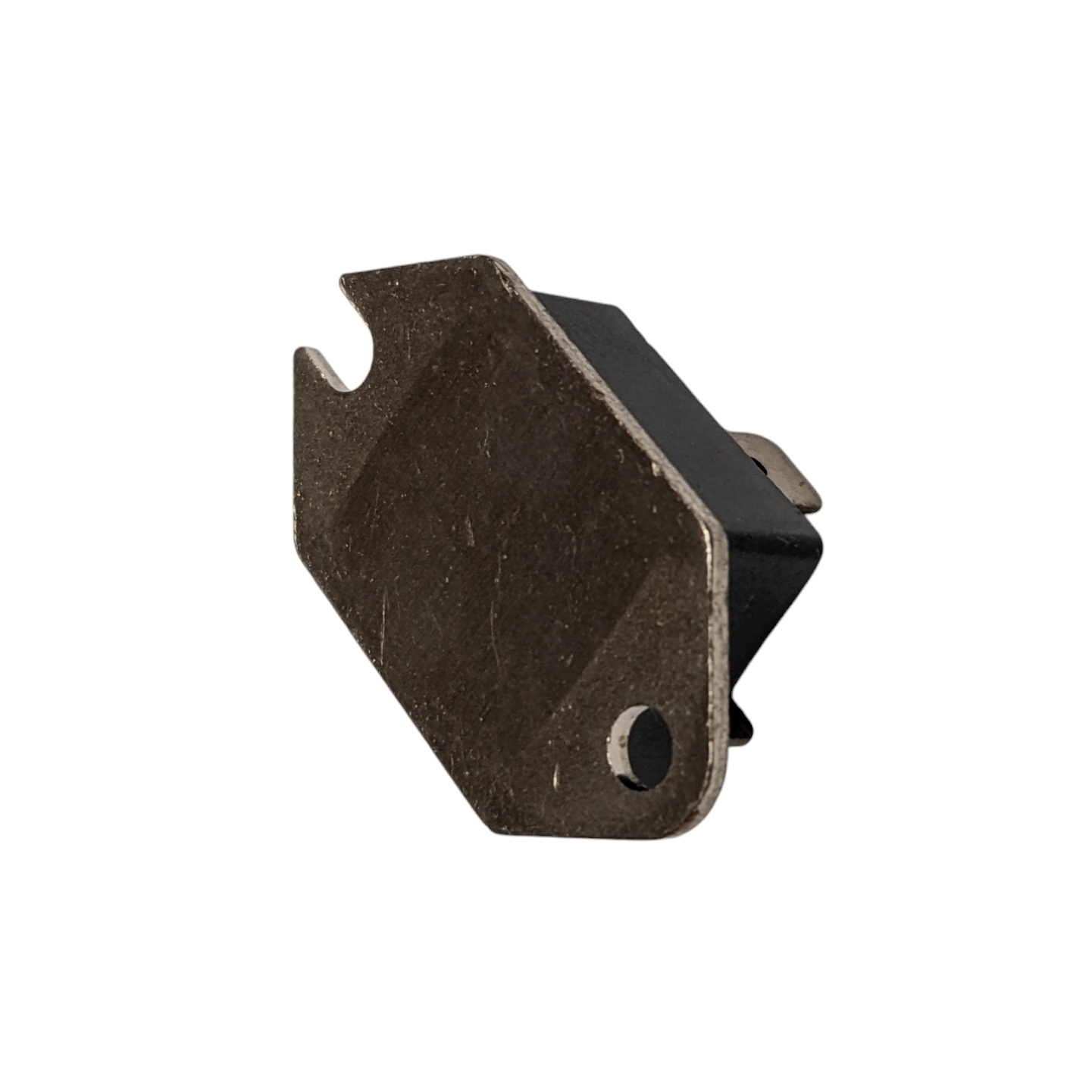

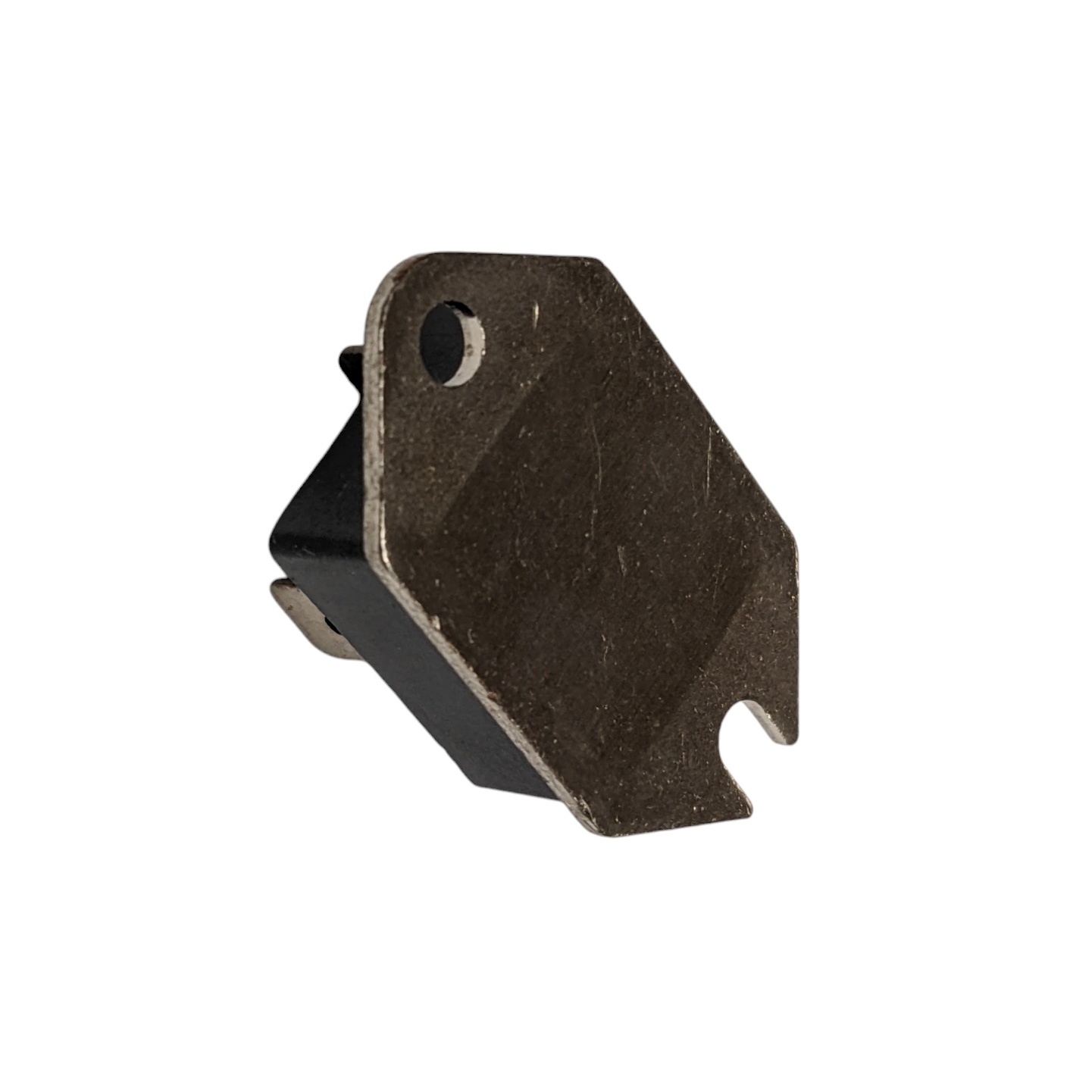

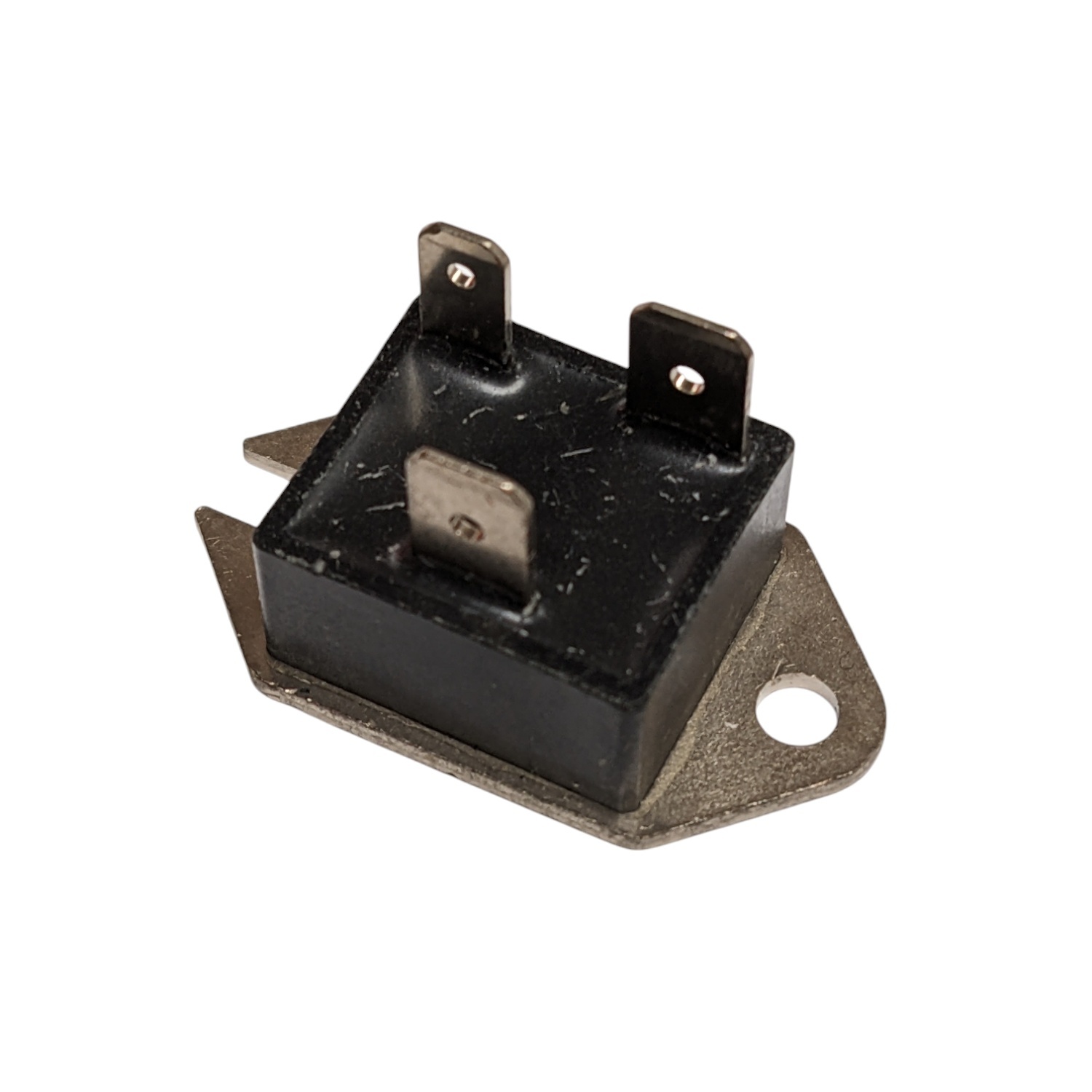

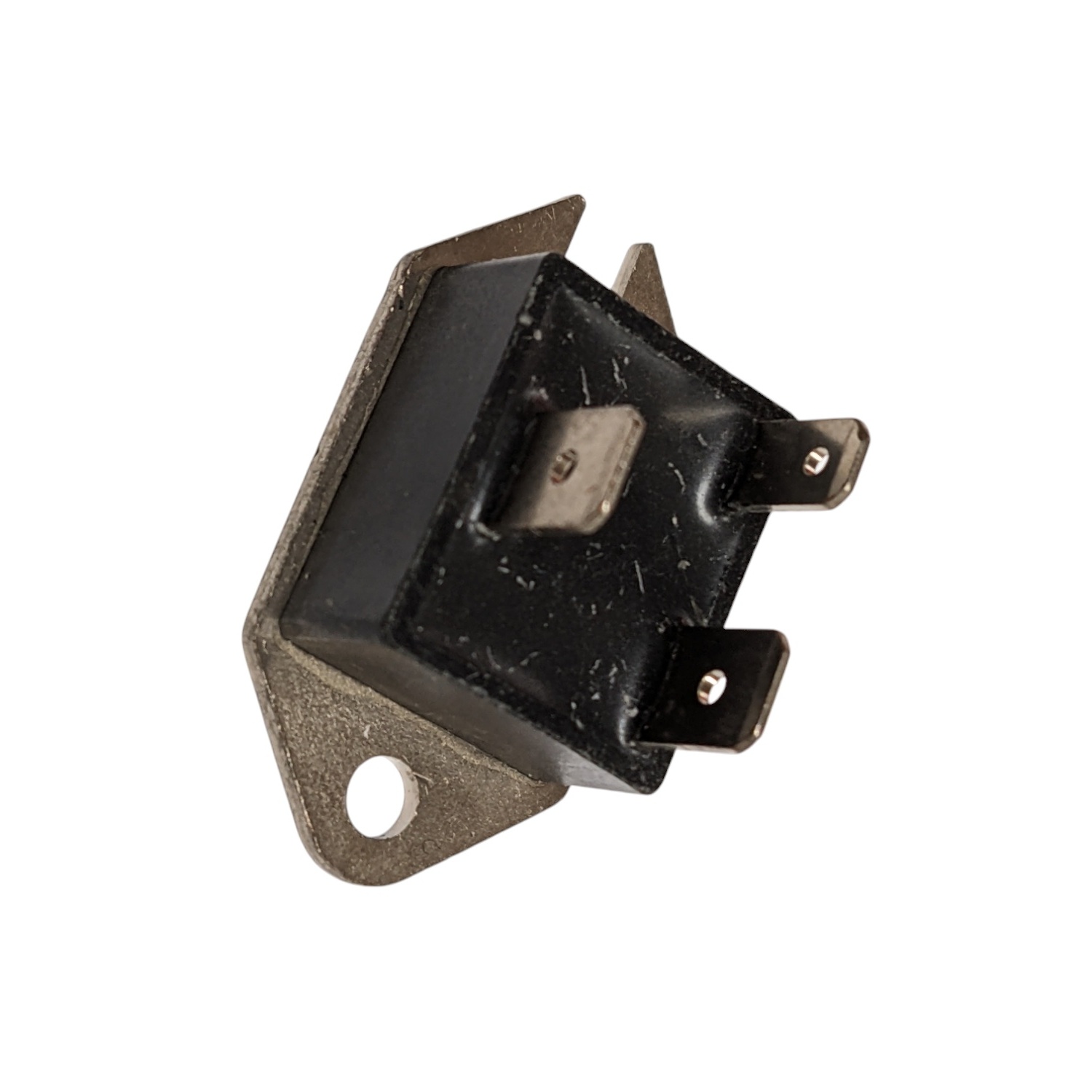

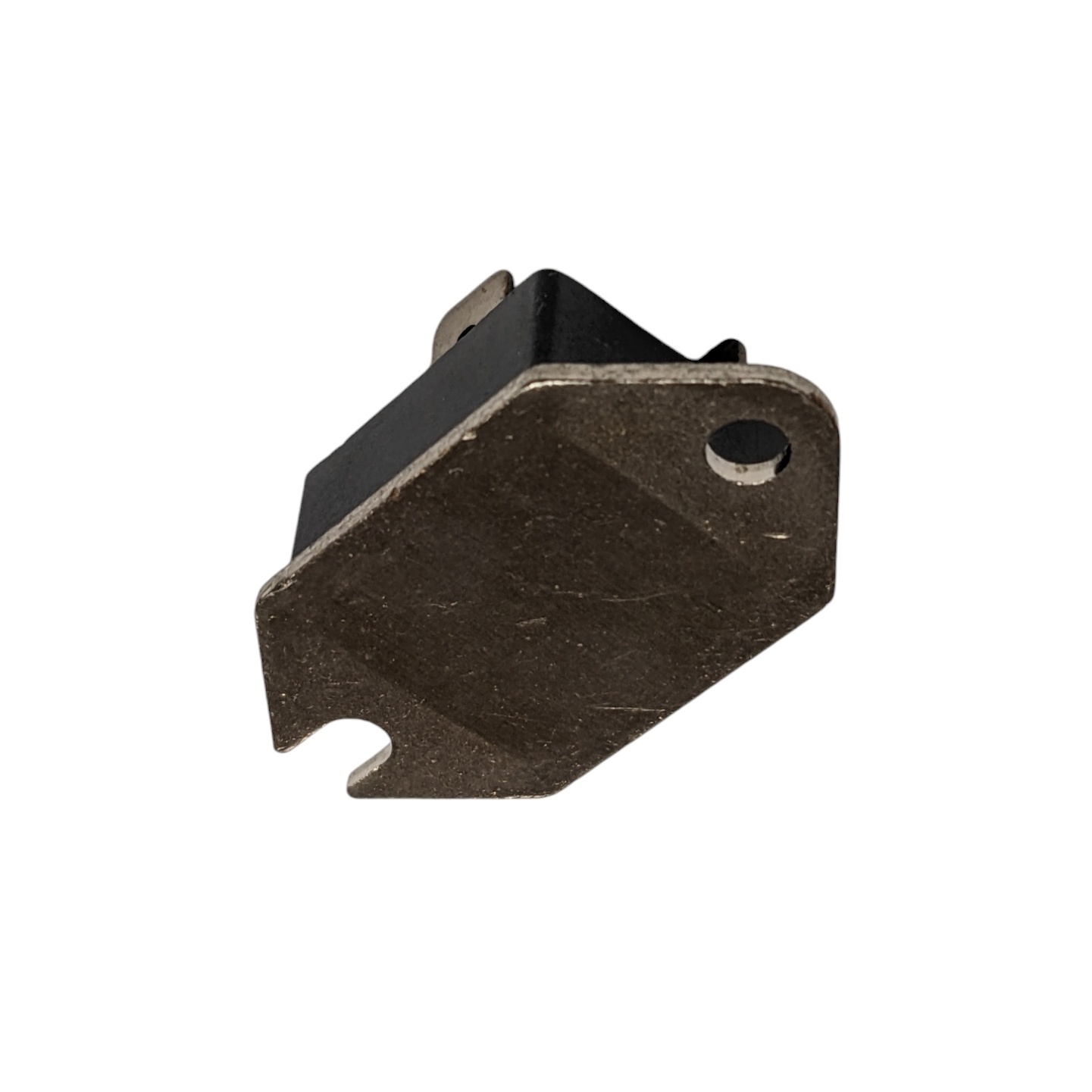

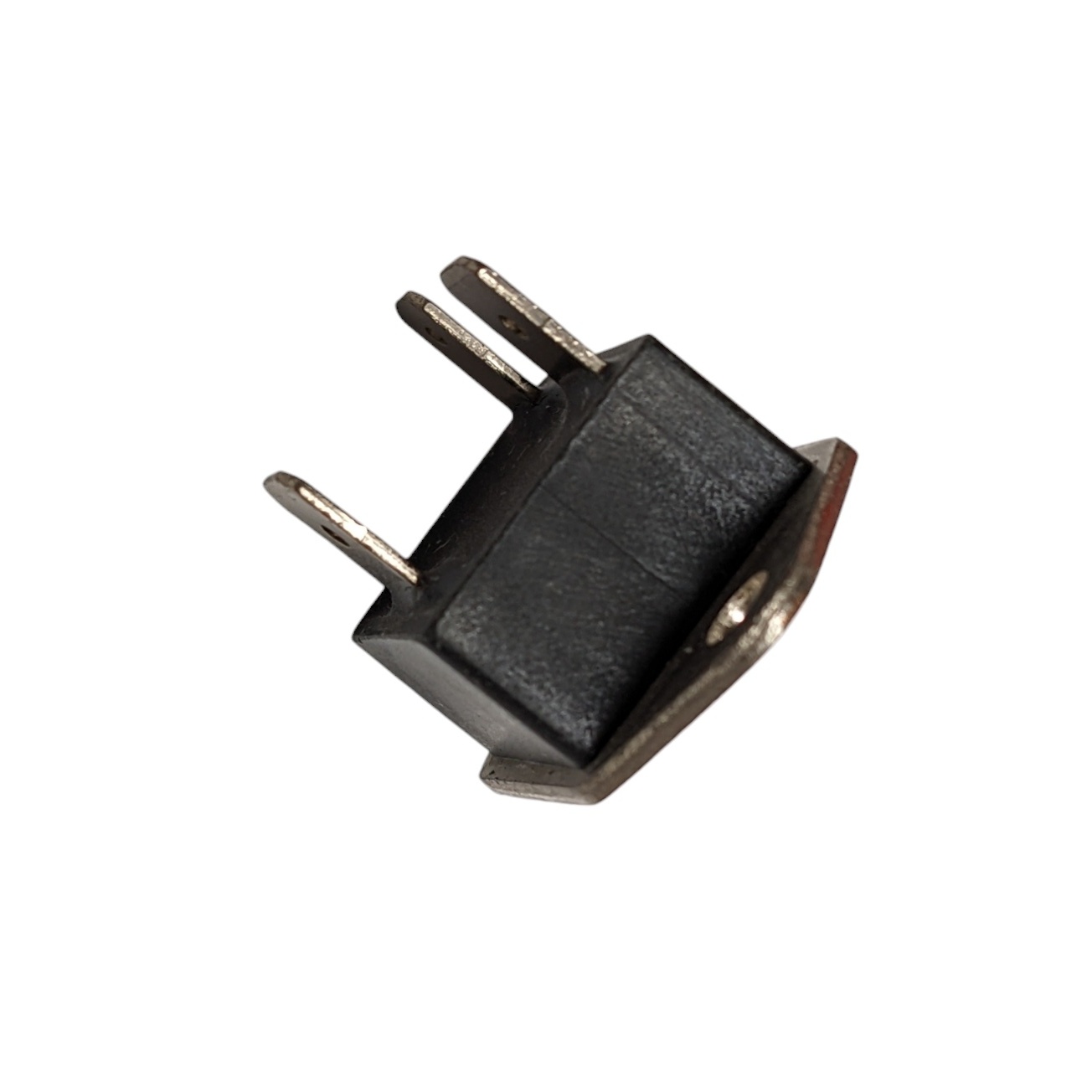

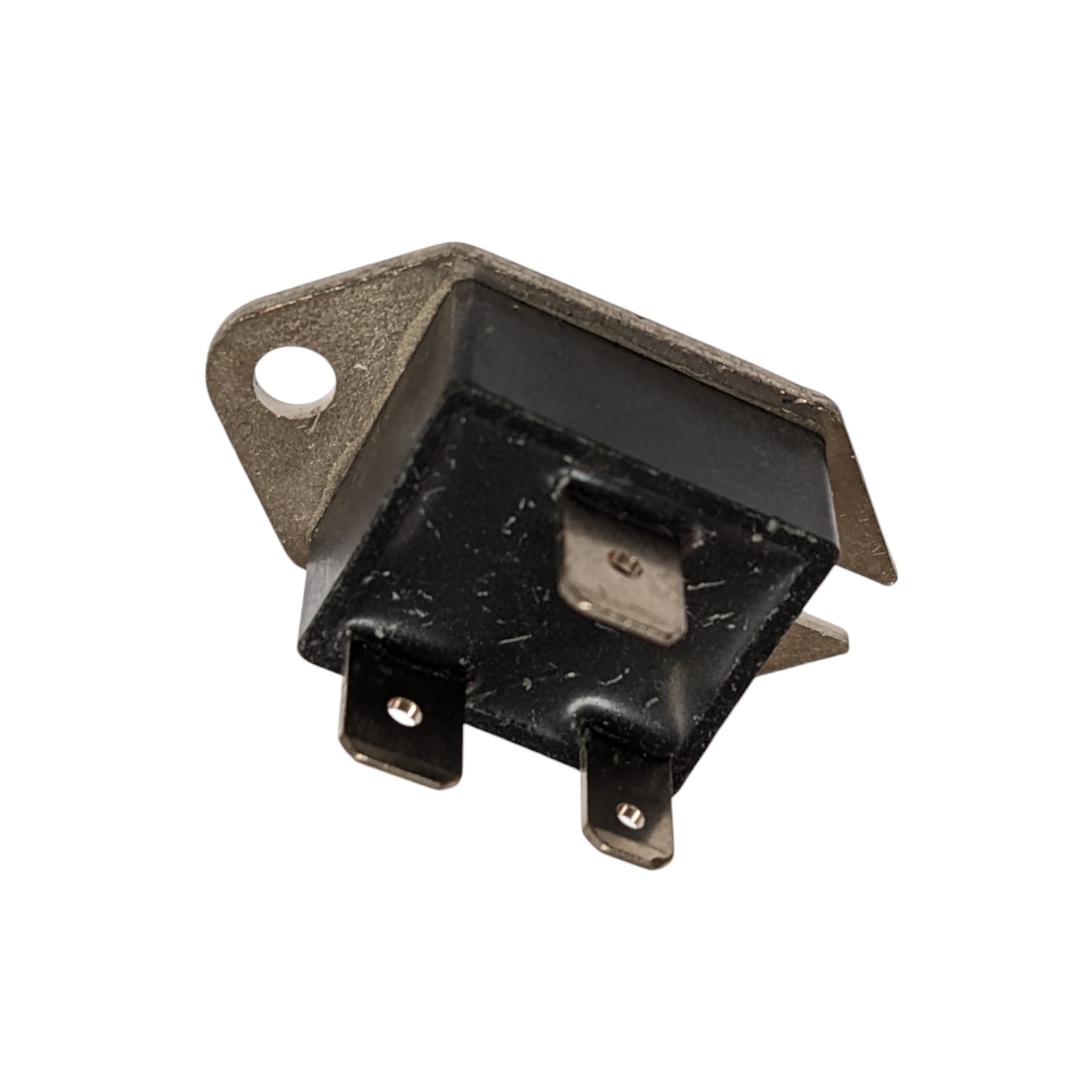

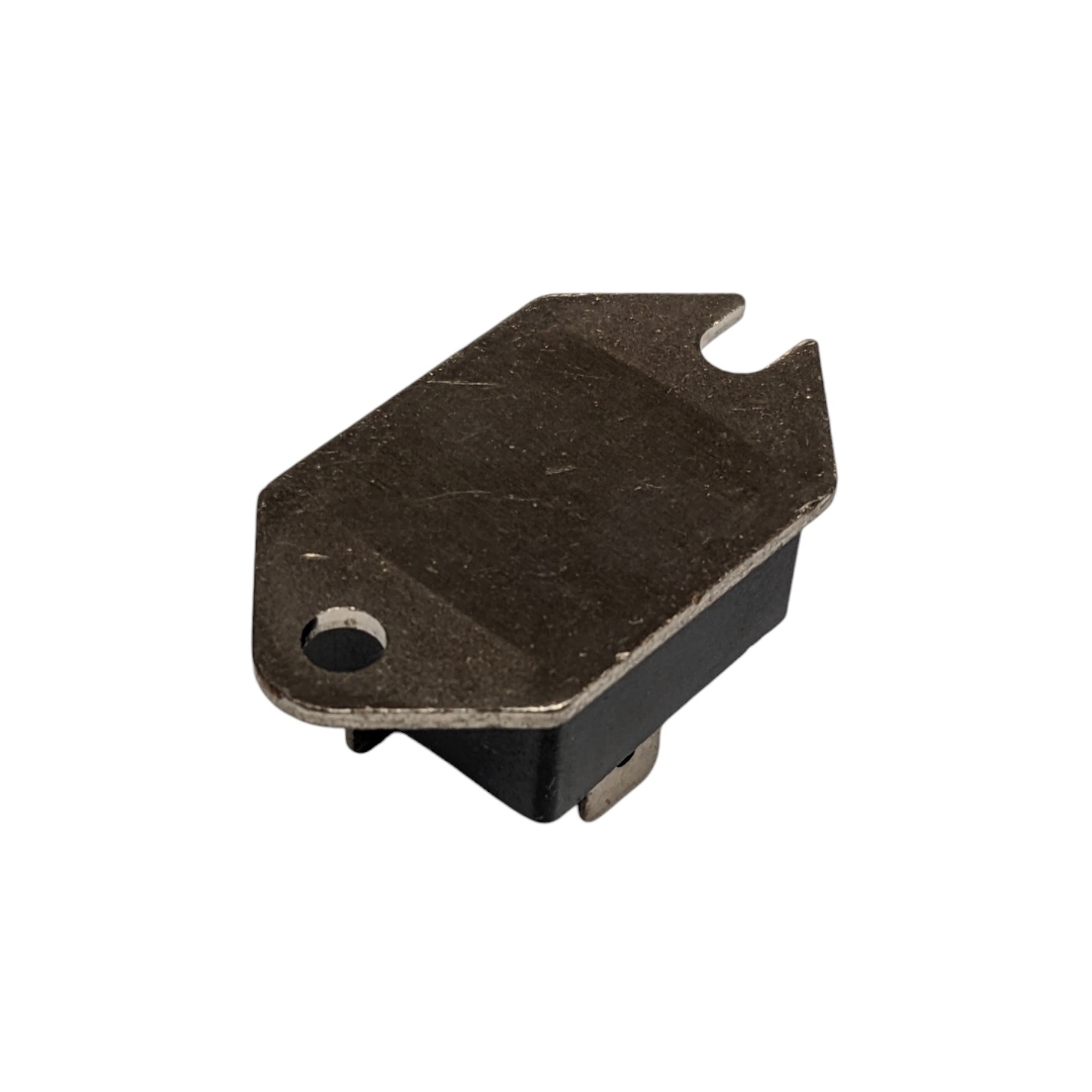

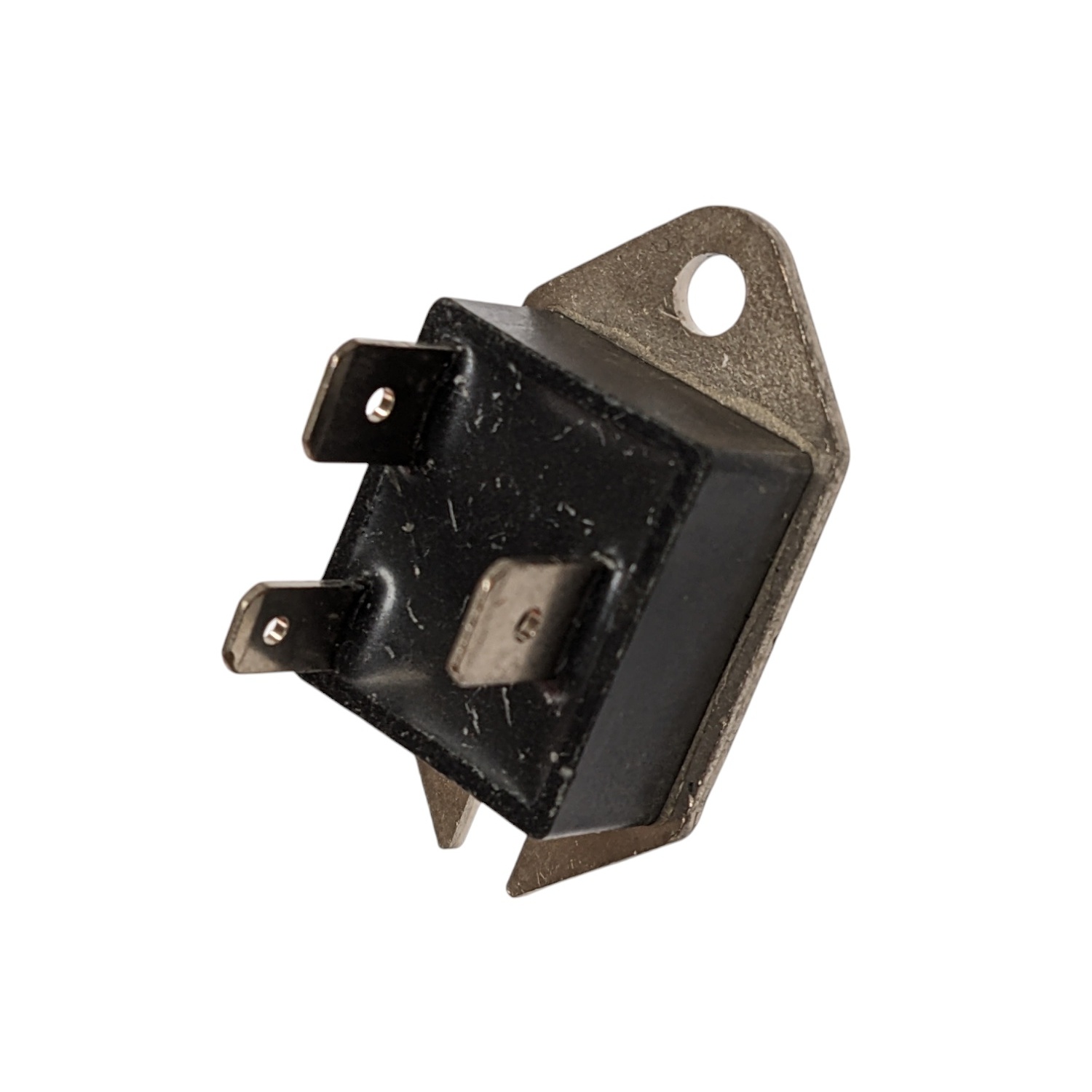

BUZ47A Transistor CASE: TO238 MAKE: Siemens Semiconductors
Datasheet
BUZ47A Datasheet
Product specifications
Equivalent BUZ47
Type Transistor
Case TO238
Manufacturer Siemens Semiconductors
Vbr DSS 500
Max. PD (W) 70
Ciss Max. (F) 2.0n
Derate (Amb) (W/°C) 400m
t(f) Max. (S) 65n
gfs Max. 2.5-
gfs Min 1.5
Id Max. (A) 3.9
Idss Max. (A) 250u
I(d) for G(fs) 2.5
Tr Max. (s) 60n
R(ds) On (Û) 2.0
Vp Max. 4.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-19
Surface Mounted Yes/No NO
SKU 577516
