BY214-600
View detailed images (12)

BY214-600

SKU: BY214-600

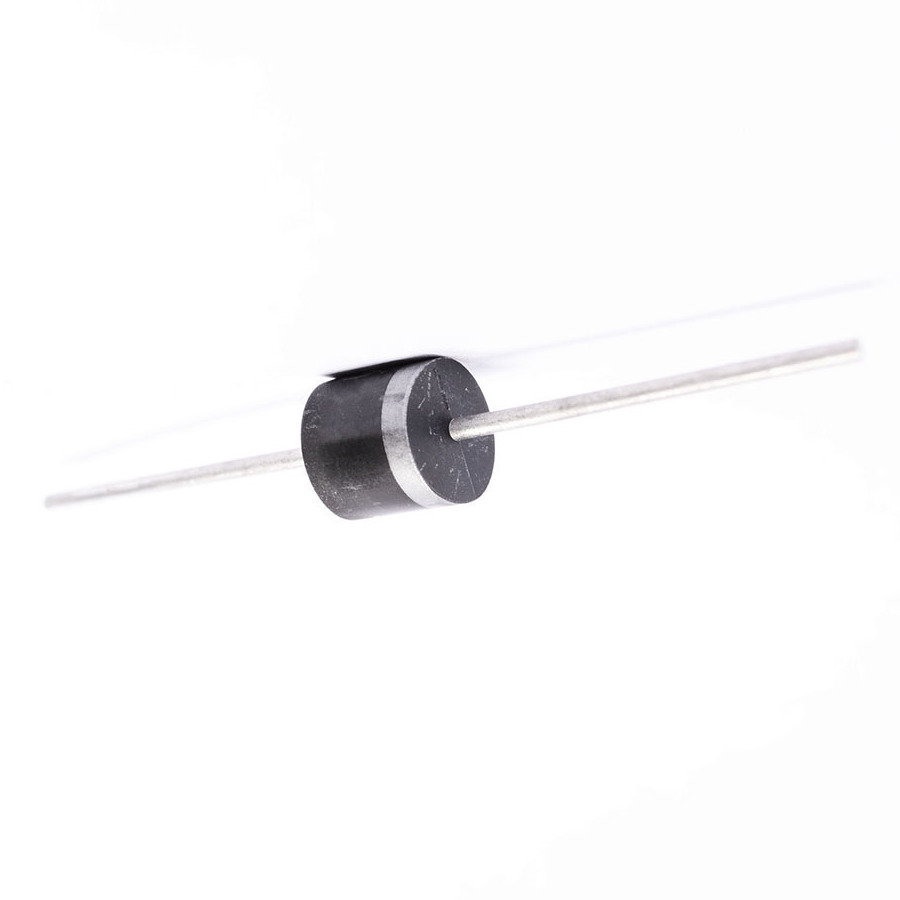

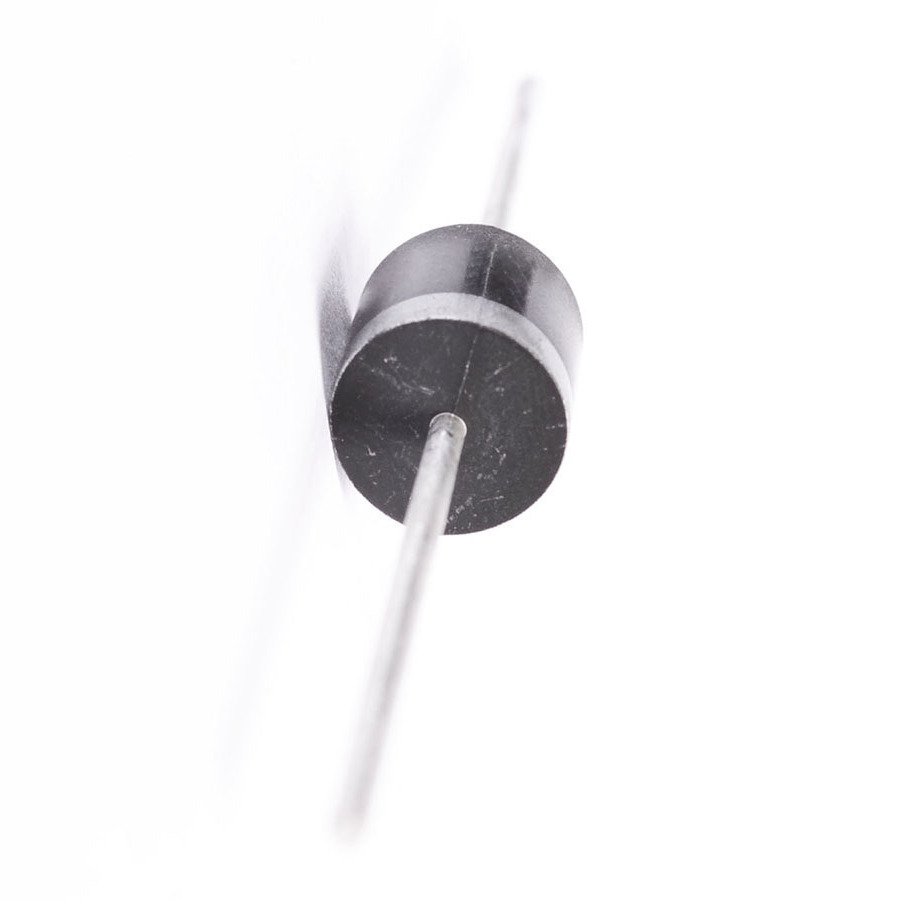

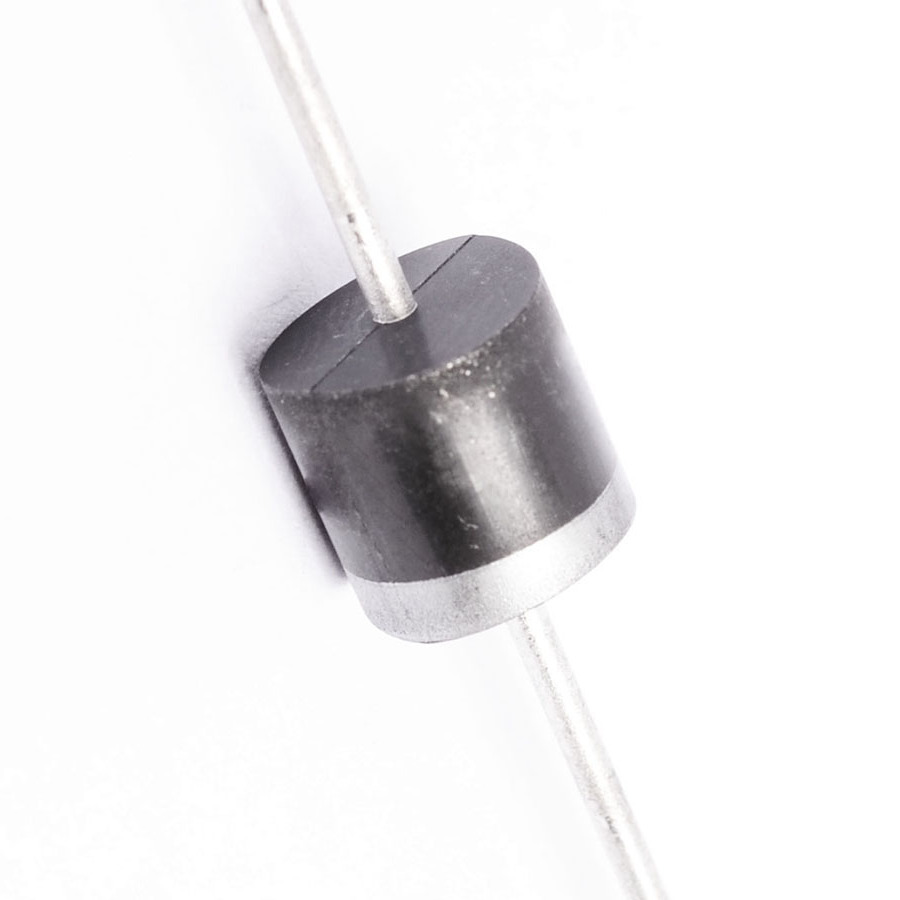

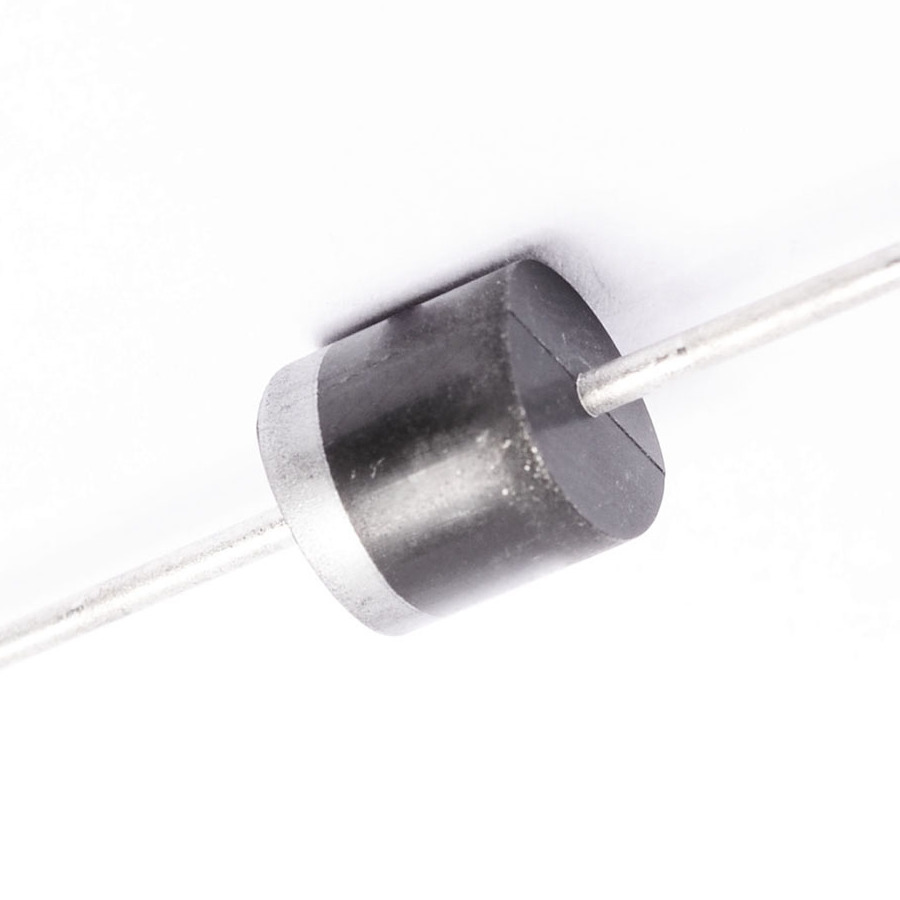

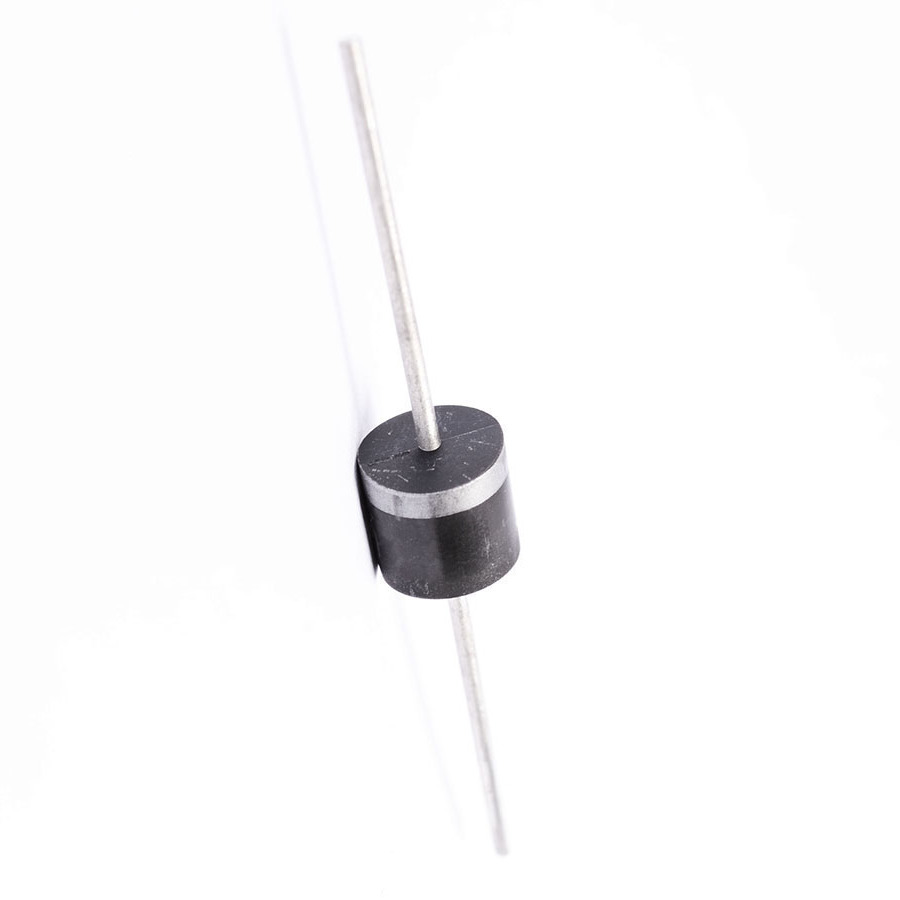

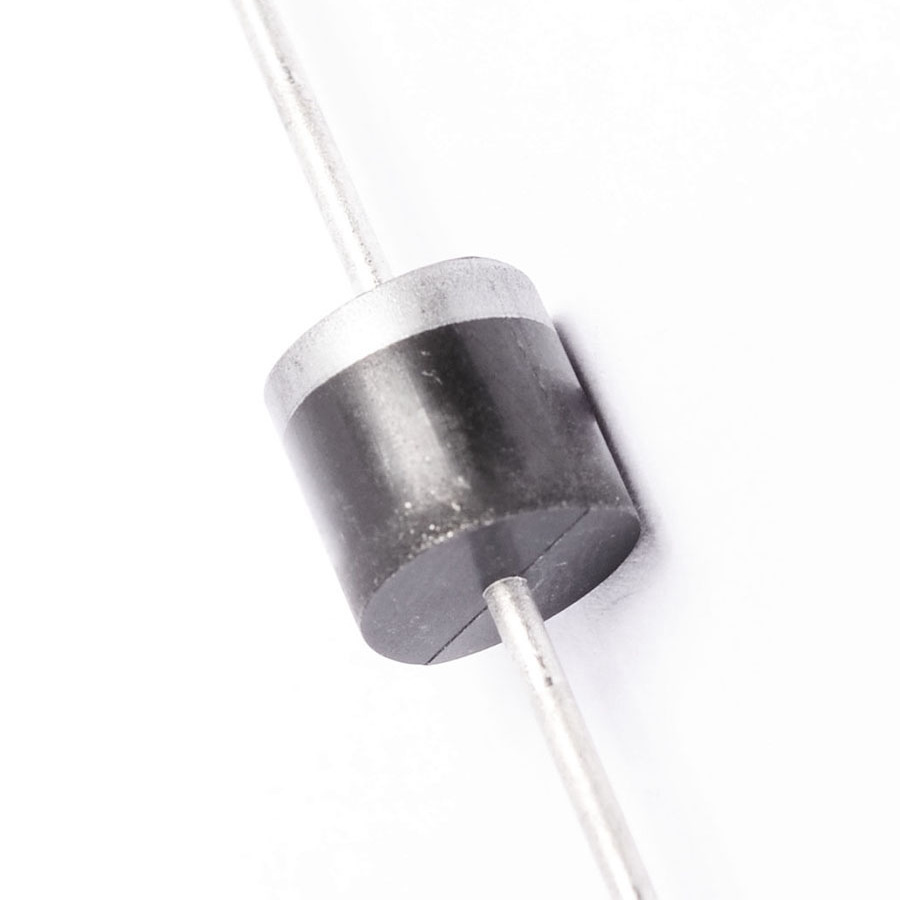

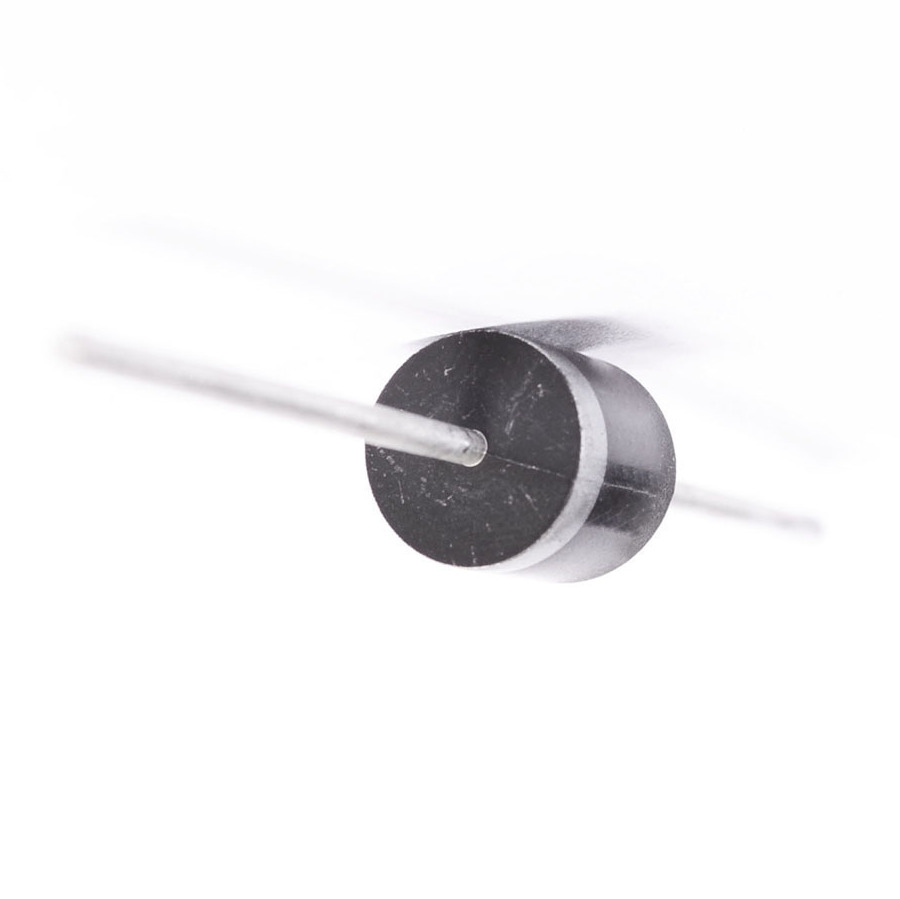

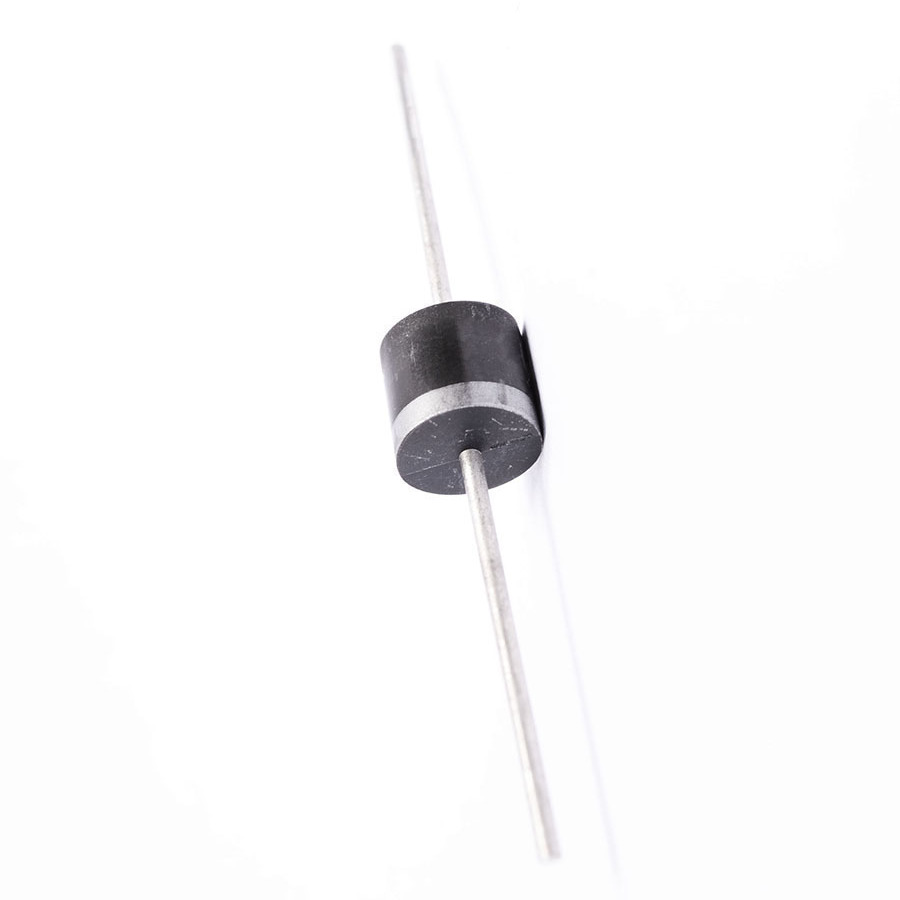

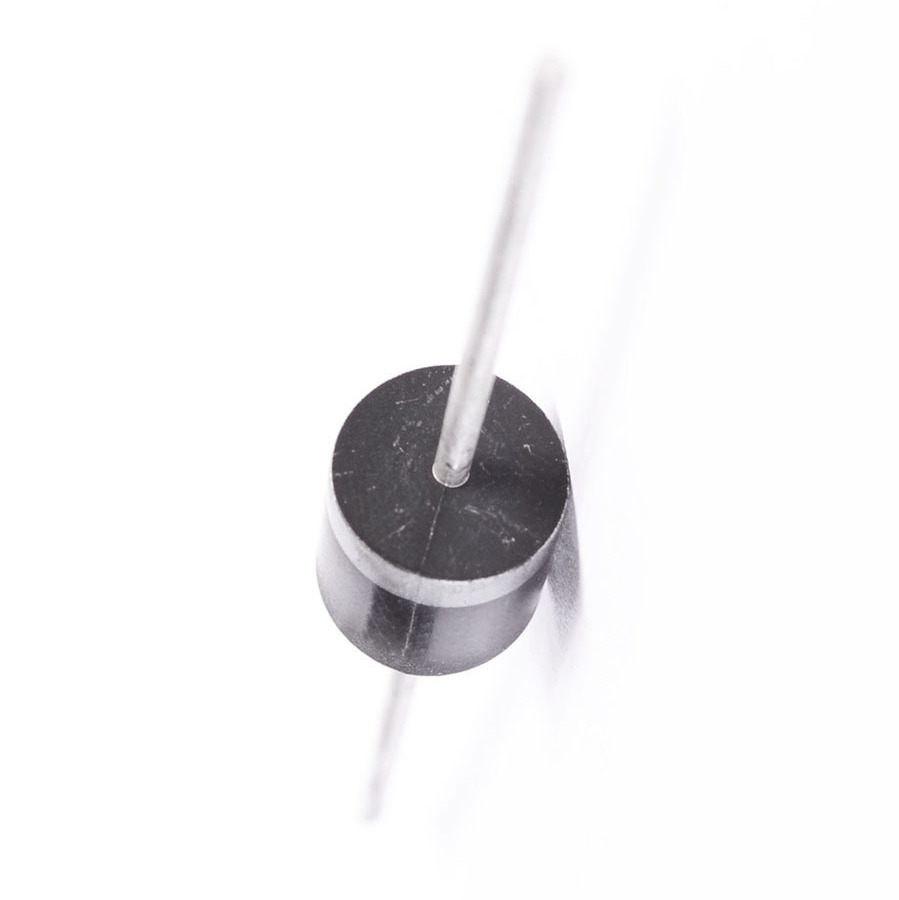

BY214-600 is a standard rectifier diode supplied in an AG plastic axial package. It provides 600 V repetitive peak reverse voltage, 6 A average forward current and a maximum forward voltage of 1.2 V at 20 A. It features high surge-current capability and low forward-voltage drop.
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • Last 30 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
BY214-600 Datasheet
Product specifications
Type Diode
Case DO26
Manufacturer ST Microelectronics - STM
@Temp. (test) (°C) 90
Ir @ Diff. Temp (A) 250u
VRRM 600
1-Cycle Surge Current (A) 400
@Temp (test) (°C) 100
Vf Max. 1.2
I(out) (If AVG) Max. 6.0
@Volts (test) (V) 600
@If (test) 20
Oper. Temp (°C) Max. 150
Surface Mounted Yes/No NO
SKU 79579
