C155N

C155N

SKU: C155N

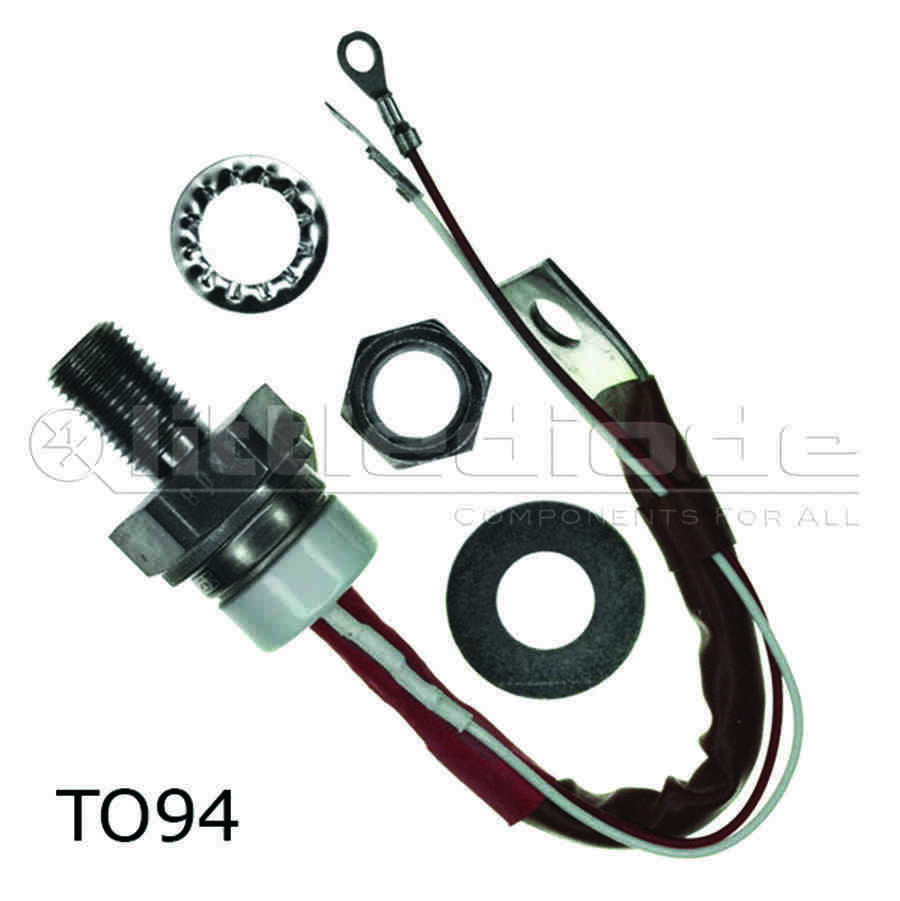

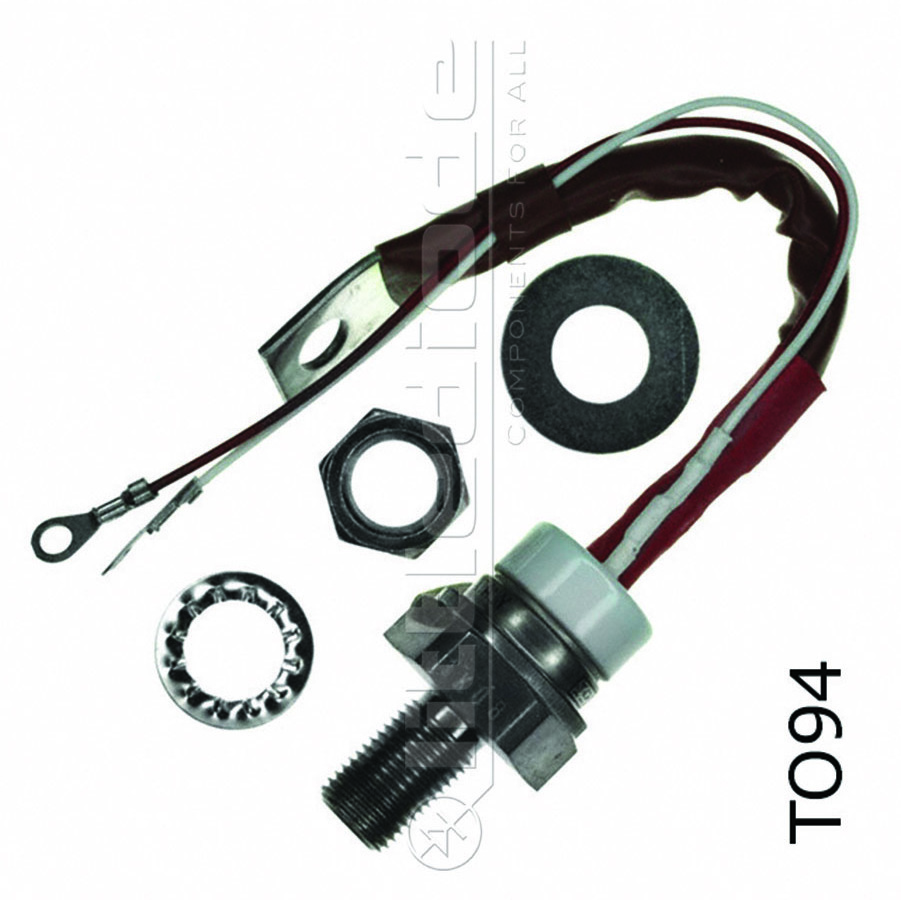

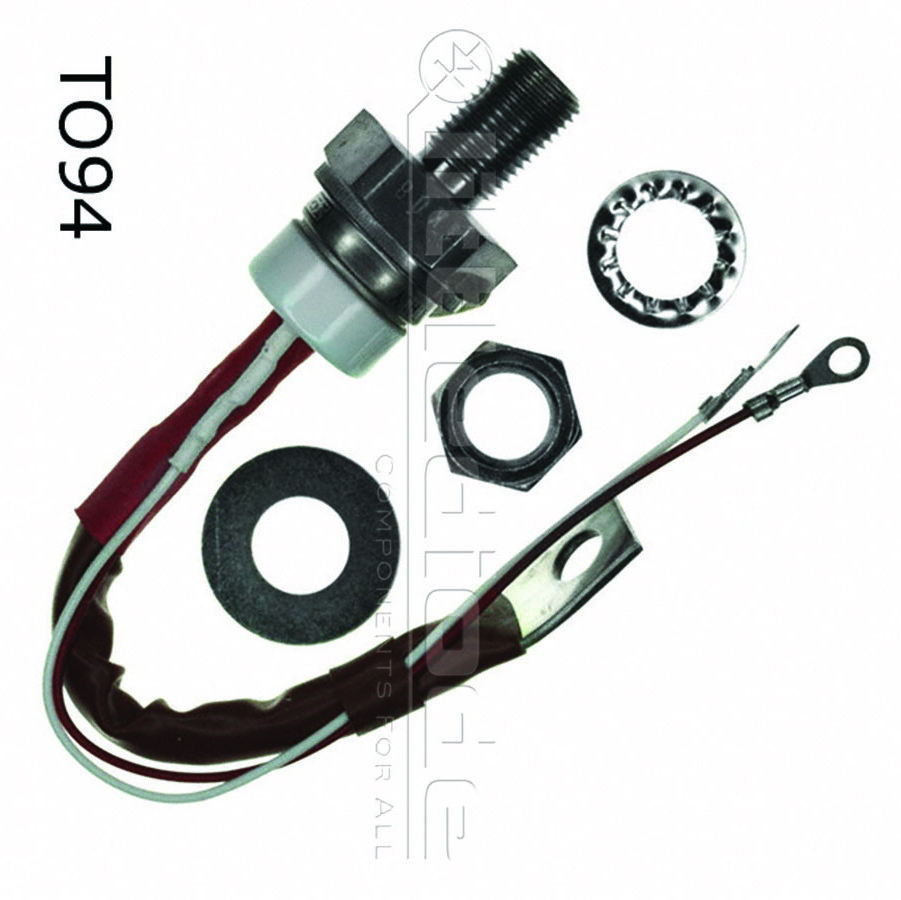

C155N Semiconductor CASE: TO94 MAKE: Generic
Product specifications
Type Semiconductor
Case TO94
Manufacturer Generic
Vbr CEO 25
Max. PD (W) 800m
Dv/Dt Worst Case 200
Firing Char-Igt Max. 150m
Firing Char-Vgt Max. 3.0
hfe 50
Ic Max. (A) 2.0
Polarity PNP
Supp Curr. I(TSM) 1.8k
V(drm) Max. 800
V(T) Max. 3.0
Trans. Freq (Hz) Min. 120M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 125
@It (A) 500
@Ic (A) 100m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.8 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 120 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 1305498
