CA3250F
View detailed images (4)

CA3250F

SKU: CA3250F

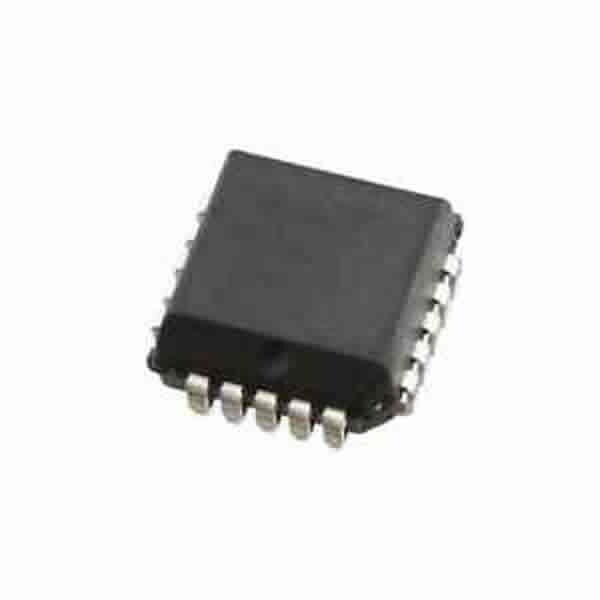

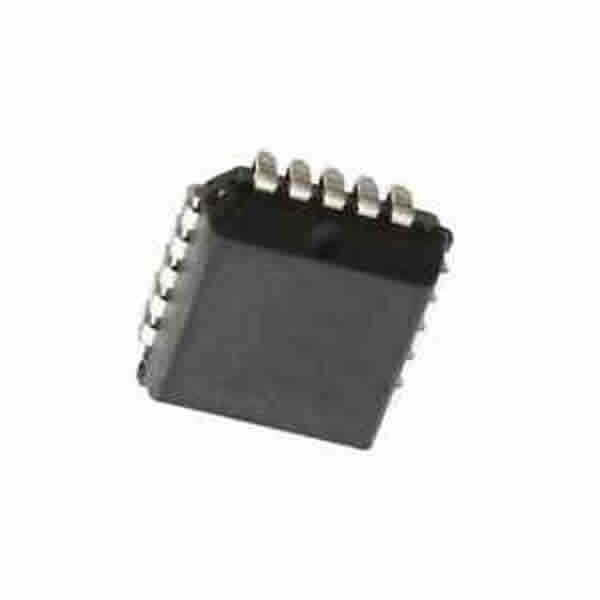

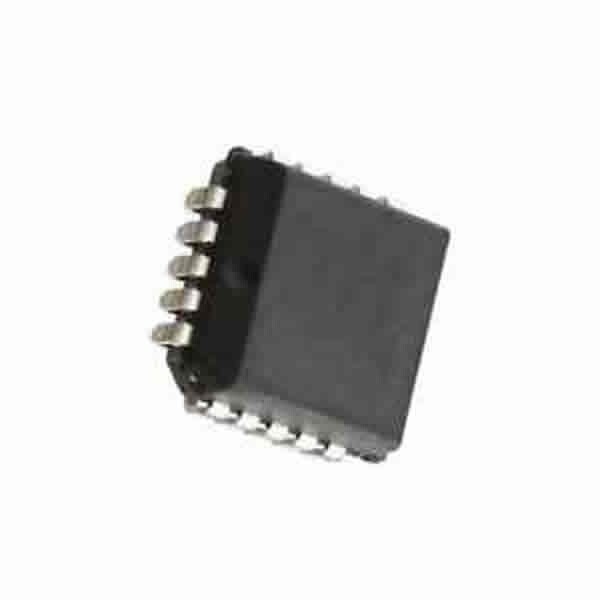

CA3250F Integrated Circuit - Case: PLCC20 Make: RCA - Harris
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN - PNP
Case PLCC20
Manufacturer RCA - Harris
Min hFE 30
Polarity NPN*PNP
PD Max. (W) 750m
@VCE (test) (V) 500m
@Ic (test) 30m
Ic Max. 100m
Vceo Max. 16
Pinout Equivalence Number 18-13
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Emitter Voltage |Vce| 16 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 30
SKU 410474
