CD4049UBE
View detailed images (4)

CD4049UBE

SKU: CD4049UBE

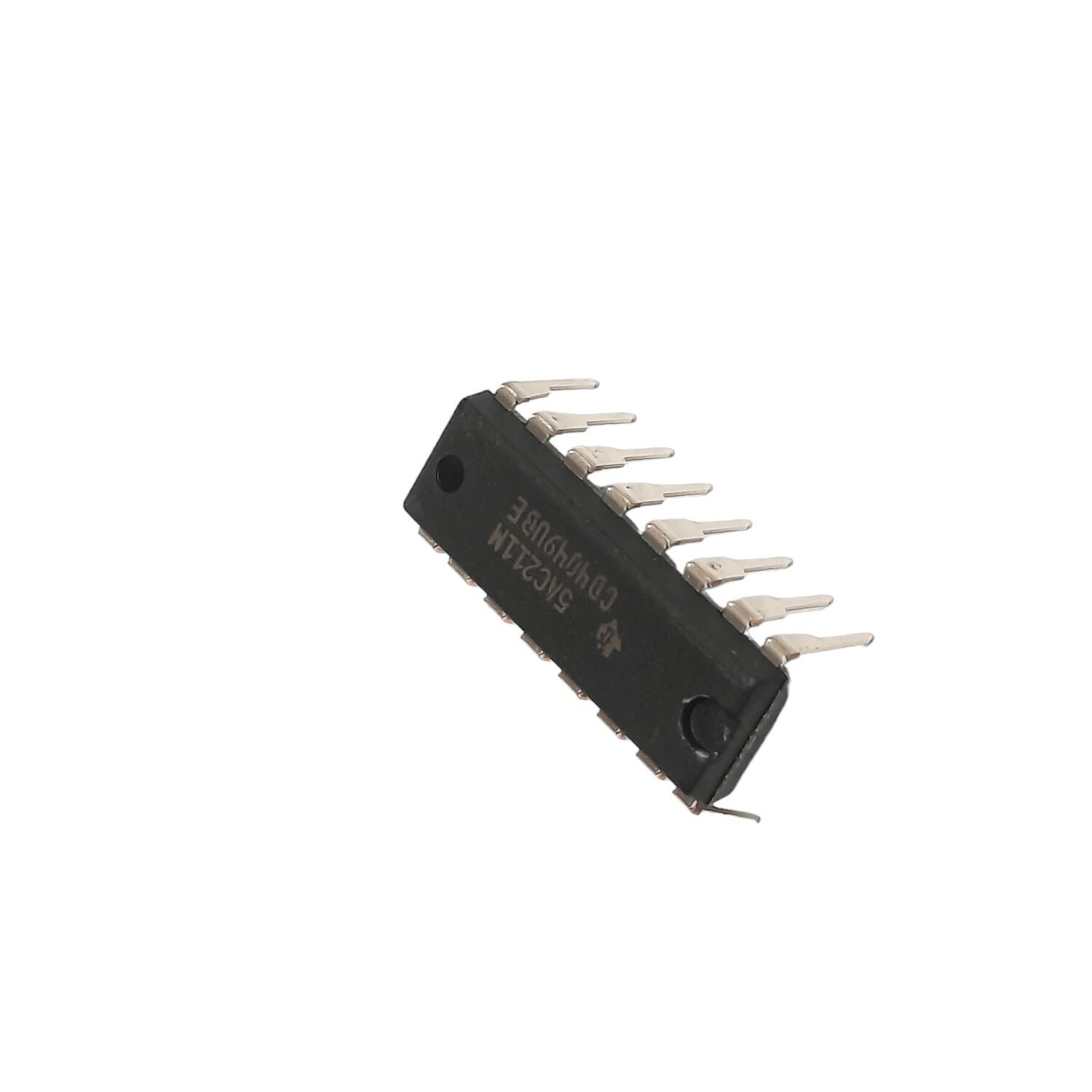

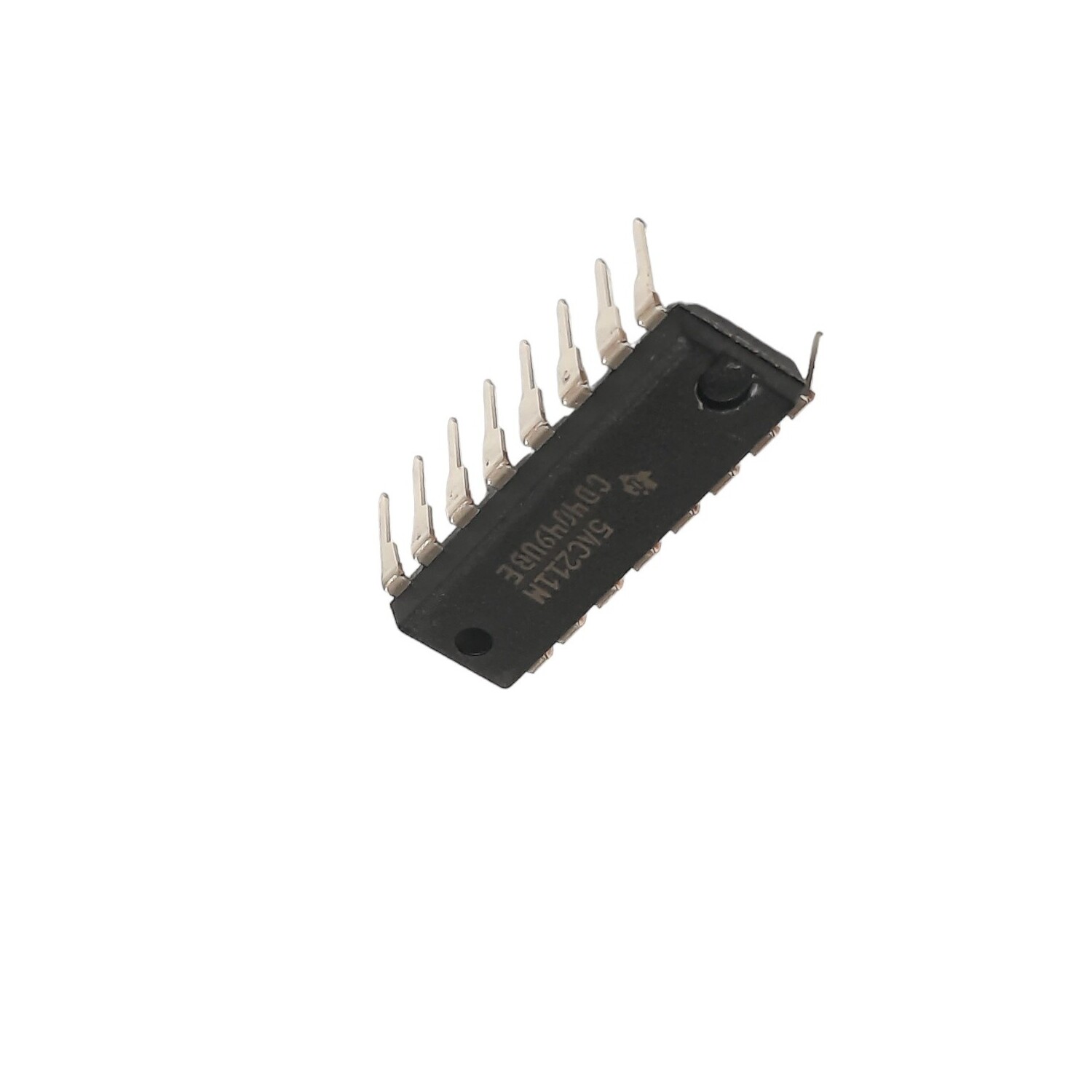

CD4049UBE Semiconductor - Case: DIP16 Make: Texas Instruments
Price: £7.99
+ VAT 20% for UK purchases
£7.99
Qty
+ VAT 20% for UK purchases
  • 305 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Logic IC
Case DIP16
Manufacturer Texas Instruments
Ckts Per Dev. 6
Conv. To TTL
Vih Min (V) 4
Vil Max. (V) 1
Logic Funct. INV
Logic Inputs Per Ckt 1
VOL Max. 0.4
PD Max. (W) 500m
tPD Max. (S) 120n
Nom. Neg Supp 0
Nom. Pos. Supp 5
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@Iol (A) 2.4m
Pinout Equivalence Number 16-278
Surface Mounted Yes/No NO
SKU 75304
