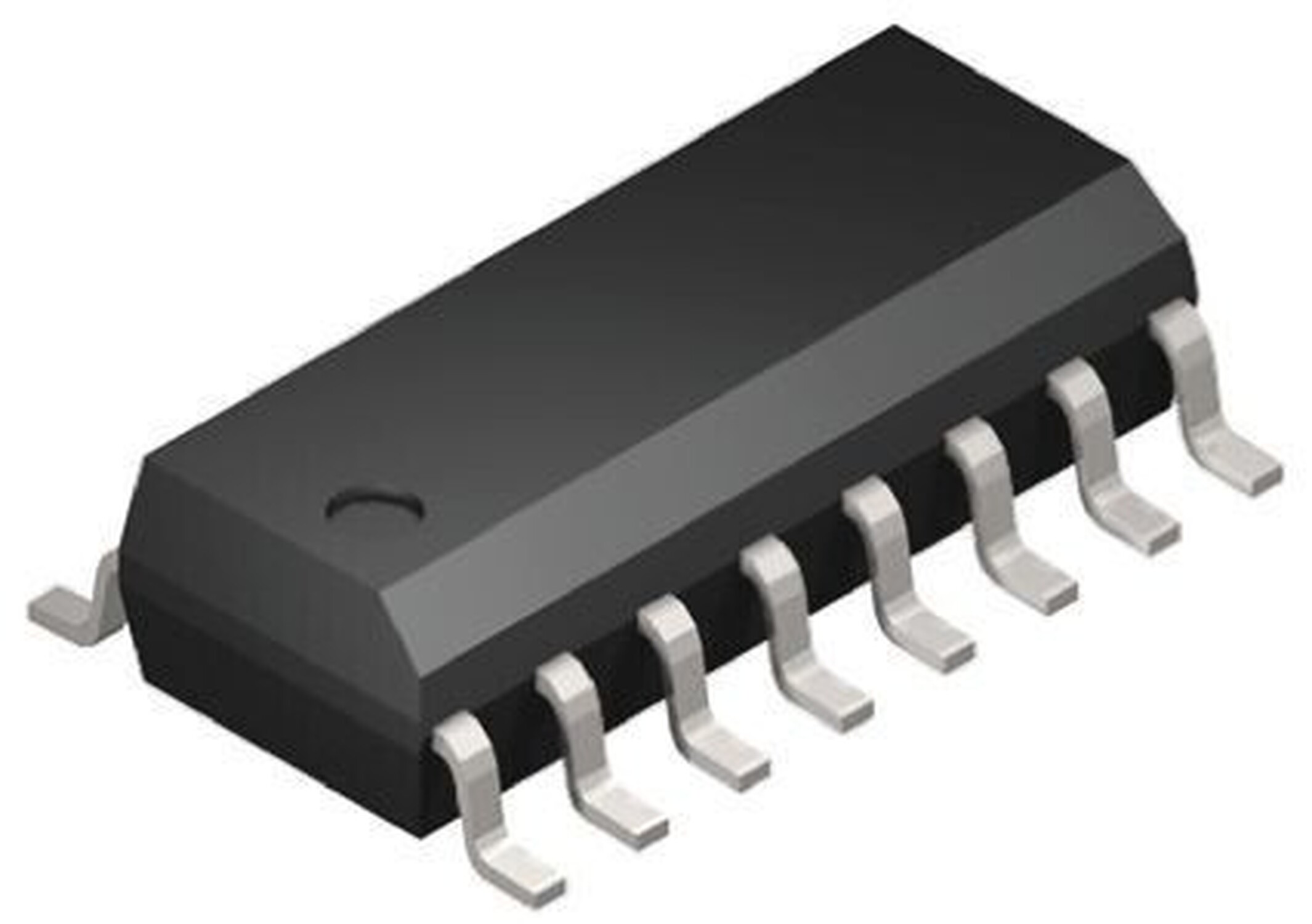

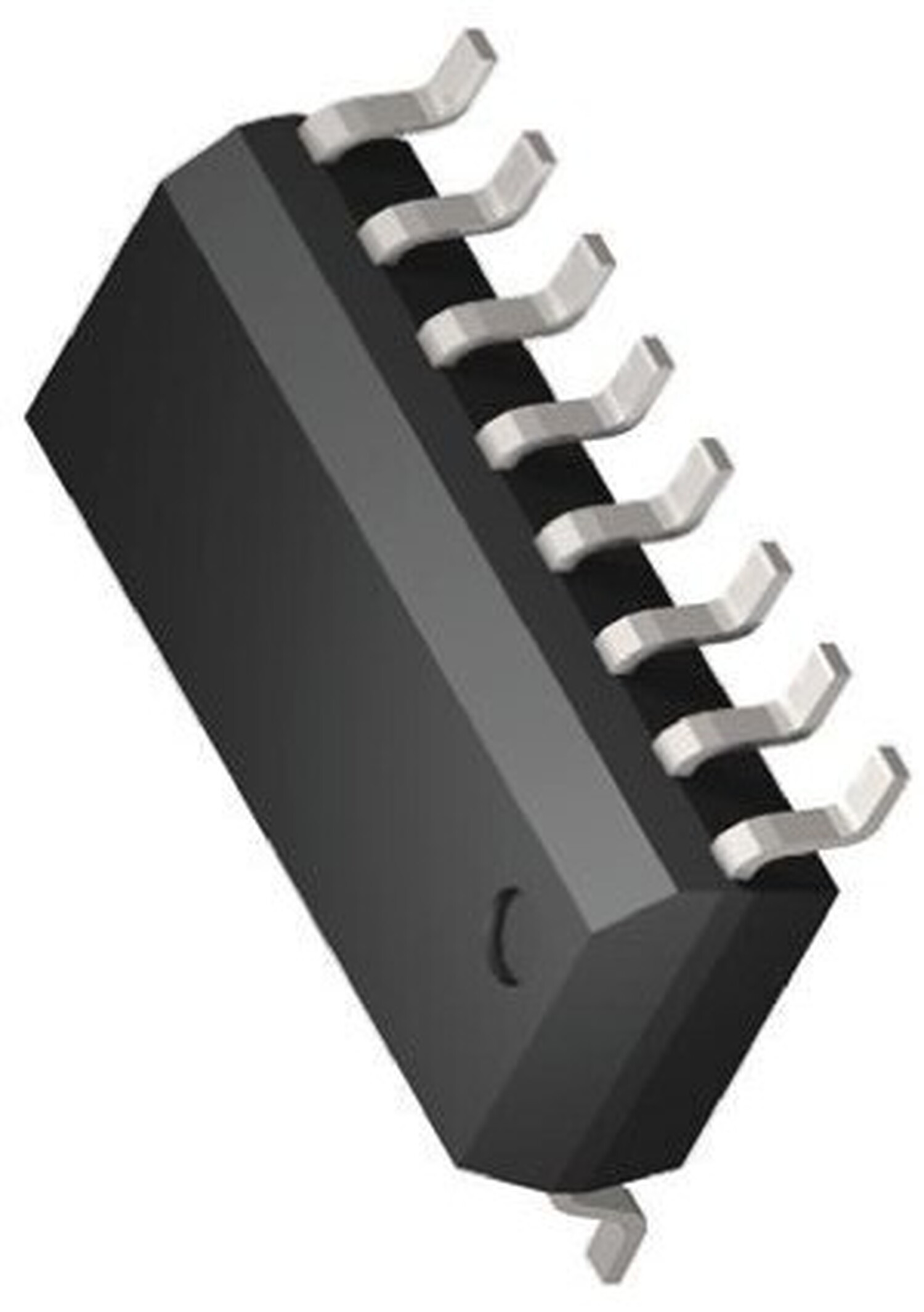

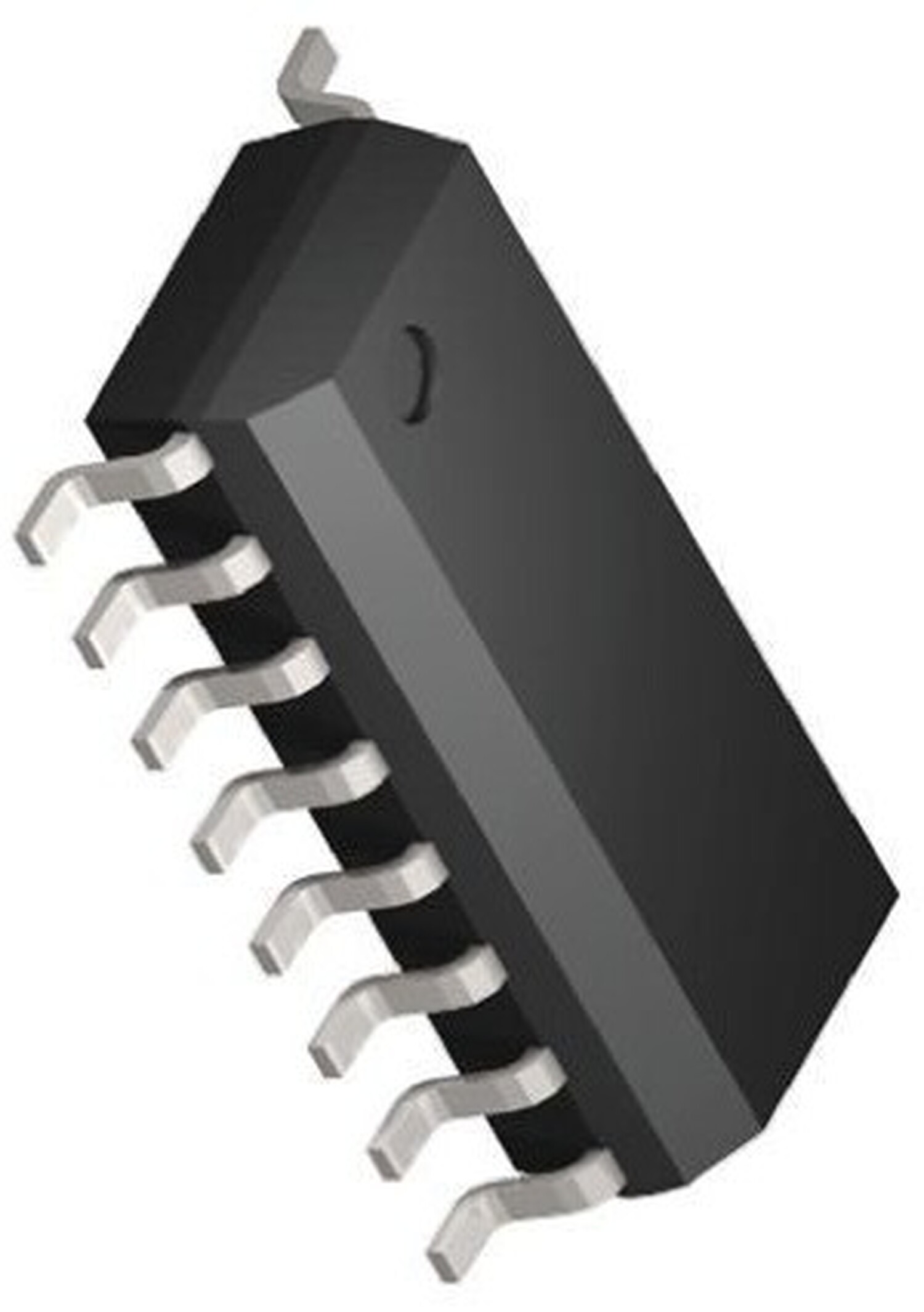

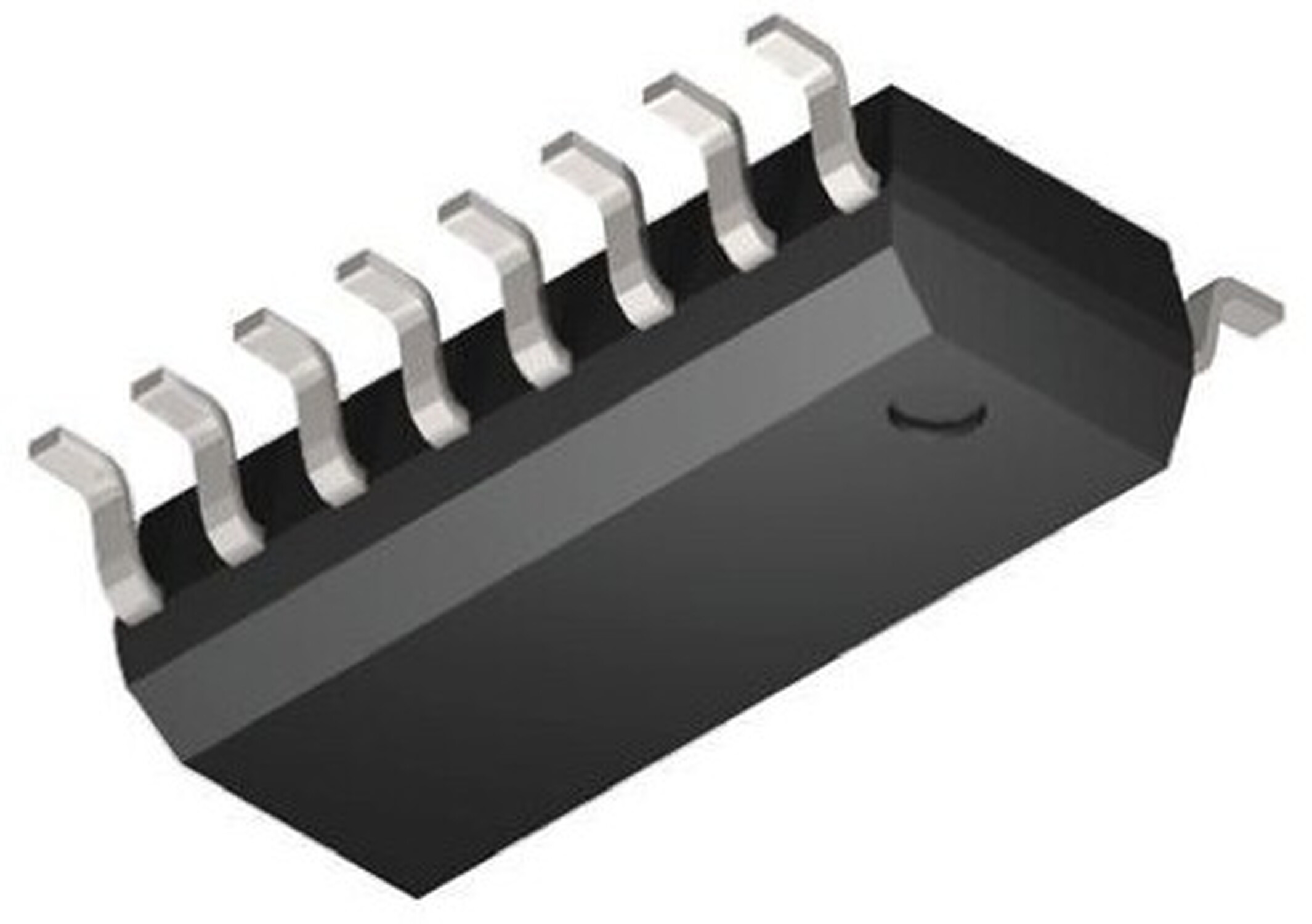

CD4050BD

CD4050BD

SKU: CD4050BD
CD4050BD Logic IC CASE: Standard MAKE: Texas Instruments
Product specifications
Type Logic IC
Case Standard
Manufacturer Texas Instruments
Ckts Per Dev. 6
Conv. To TTL
Vih Min (V) 3.5
Vil Max. (V) 1.5
Logic Funct. NINV
Logic Inputs Per Ckt 1
VOL Max. 0.4
PD Max. (W) 500m
tPD Max. (S) 140n
Nom. Neg Supp 0
Nom. Pos. Supp 5
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@Iol (A) 2.1m
Pinout Equivalence Number 16-279
Surface Mounted Yes/No NO
SKU 146924
