CD4503BM

CD4503BM

SKU: CD4503BM

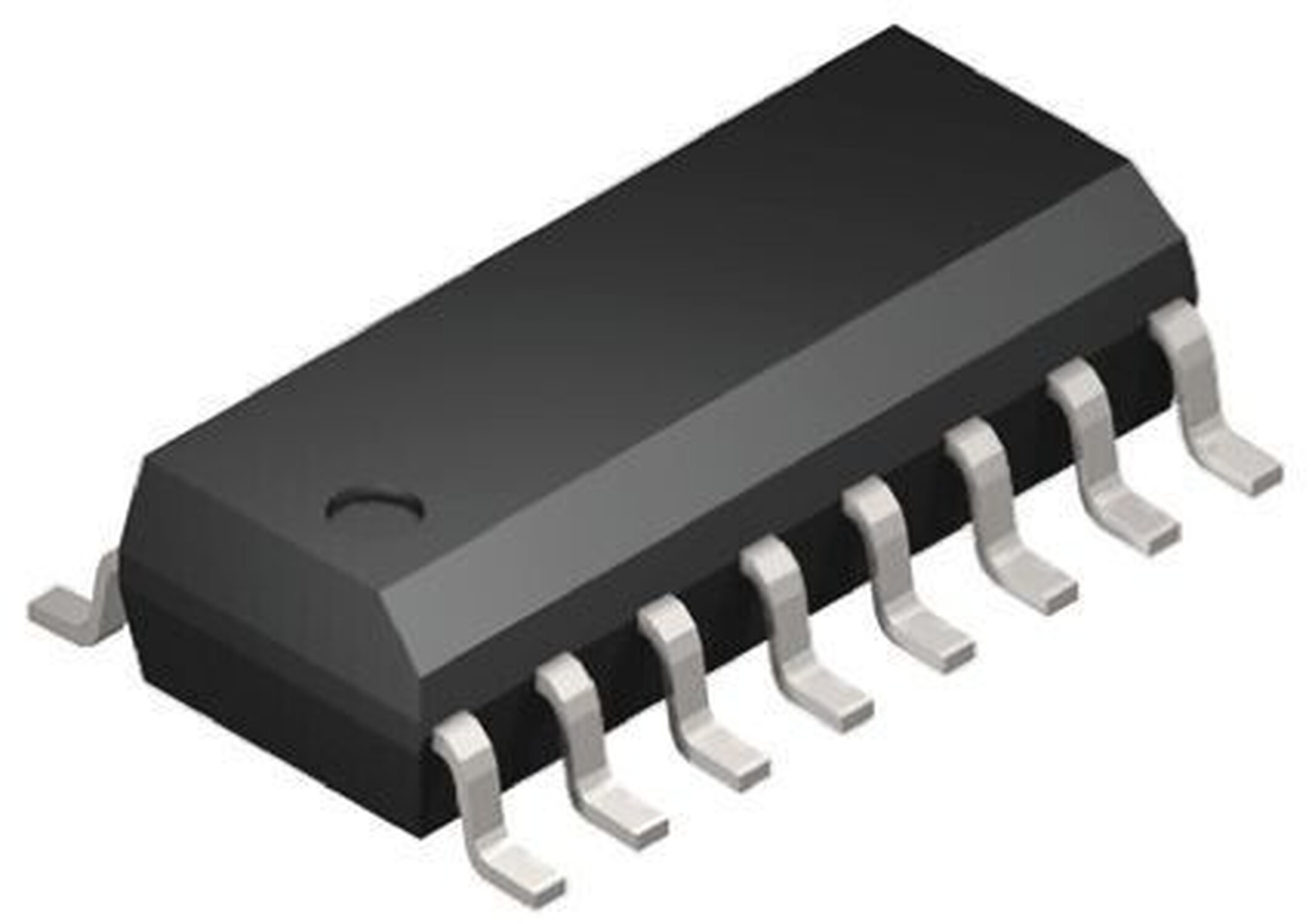

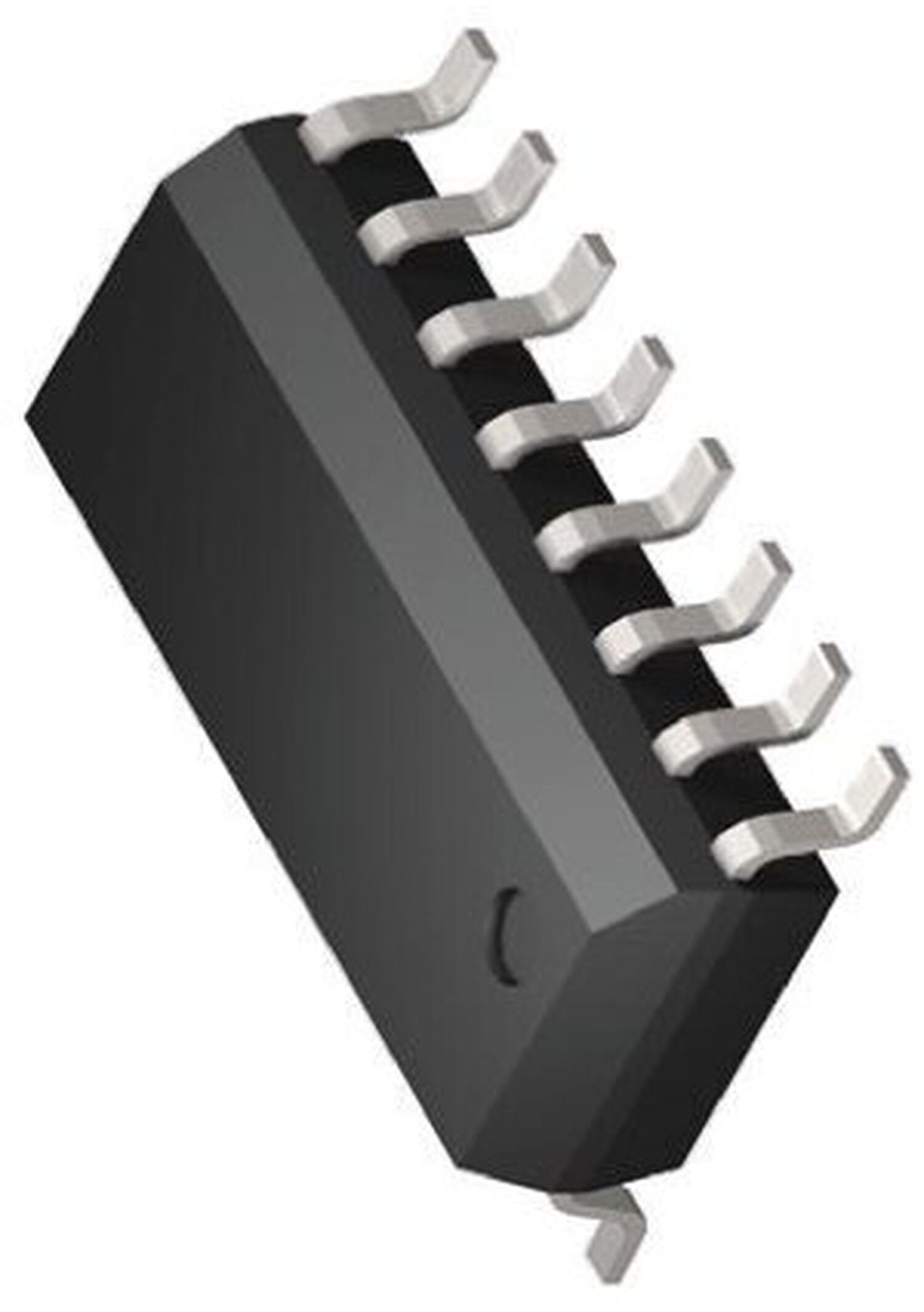

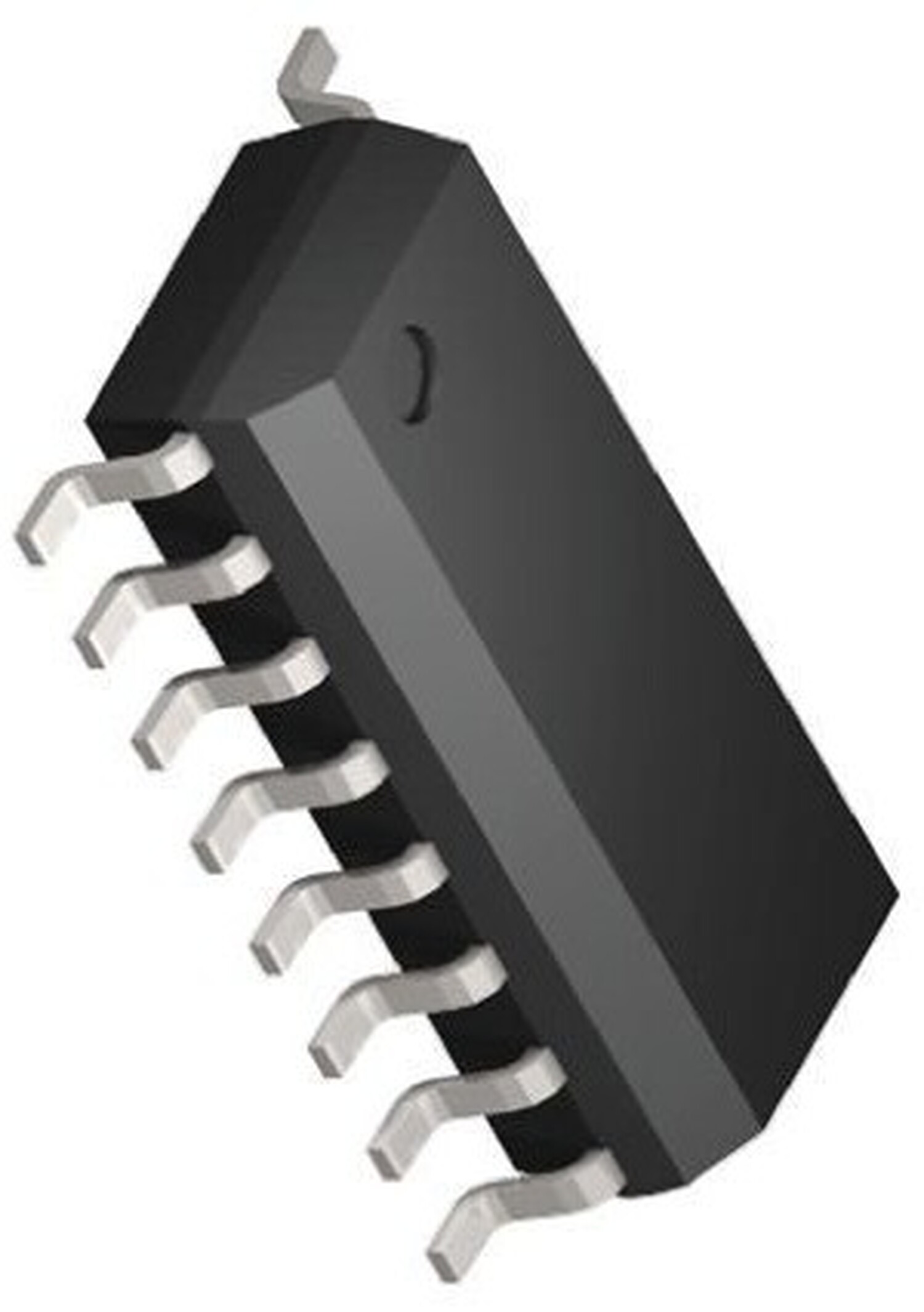

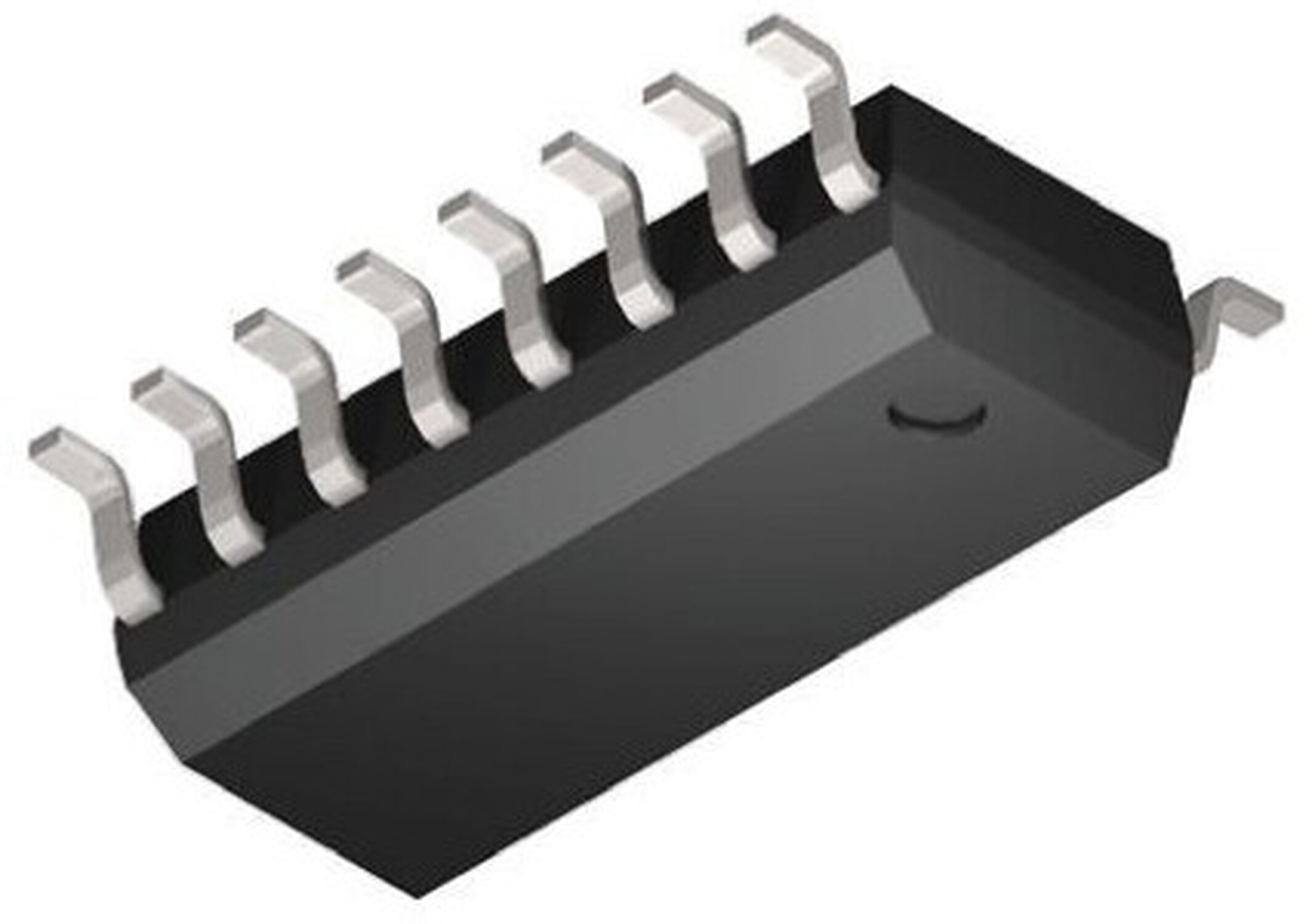

CD4503BM Logic IC CASE: SOIC MAKE: Harris Semiconductor
Datasheet
CD4503BM Datasheet
Product specifications
Type Logic IC
Case SOIC
Manufacturer Harris Semiconductor
Ckts Per Dev. 6
Vih Min (V) 11
Vil Max. (V) 4.0
Inp Per Ckt 1
Output Config 3-State
VOL Max. 0.5
tPD Max. (S) 40n
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@Iol (A) 7.0m
Pinout Equivalence Number 16-492
Surface Mounted Yes/No NO
SKU 988293
