Home / Integrated Circuit / CD74HC04M
CD74HC04M

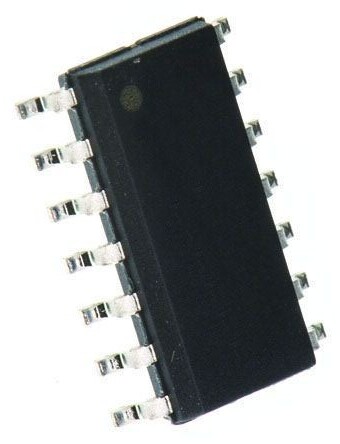

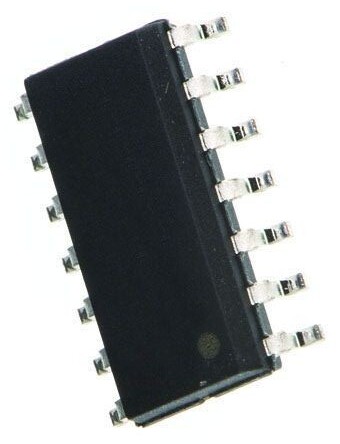

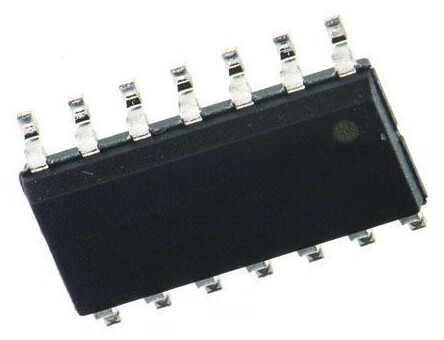

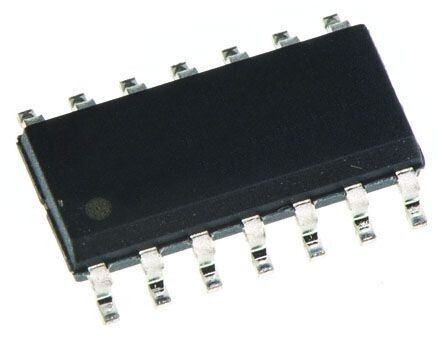

View detailed images (4)

CD74HC04M

SKU: CD74HC04M
CD74HC04M Integrated Circuit - Case: Standard Make: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case Standard
Manufacturer Texas Instruments
Ckts Per Dev. 6
Vih Min (V) 3.15
Vil Max. (V) 1.35
Inp Per Ckt 1
Output Config Totem-Pole
VOL Max. 0.1
tPD Max. (S) 6n
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 20u
Pinout Equivalence Number 14-307
Surface Mounted Yes/No YES
SKU 527599
