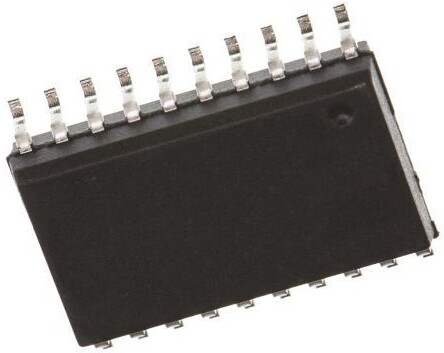

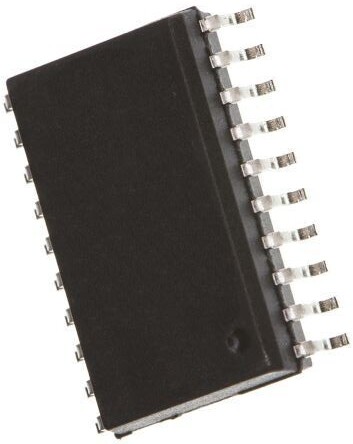

CD74HC245M

CD74HC245M

SKU: CD74HC245M
CD74HC245M Logic IC CASE: SO20 MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SO20
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 3.15
Inp Thrshld Lo (V) 1.35
Mode I/O D or S Single-End
tPD Max. (S) 28n
Nom. Neg Supp 0.0
Nom. Pos. Supp 6.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@IOL (A) 6.0m
VOL Max. (Drvr) 0.4
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 3.7
Pinout Equivalence Number 20-133
No. of Pins 20
Surface Mounted Yes/No YES
SKU 373631
