CD74HC4016E

CD74HC4016E

SKU: CD74HC4016E

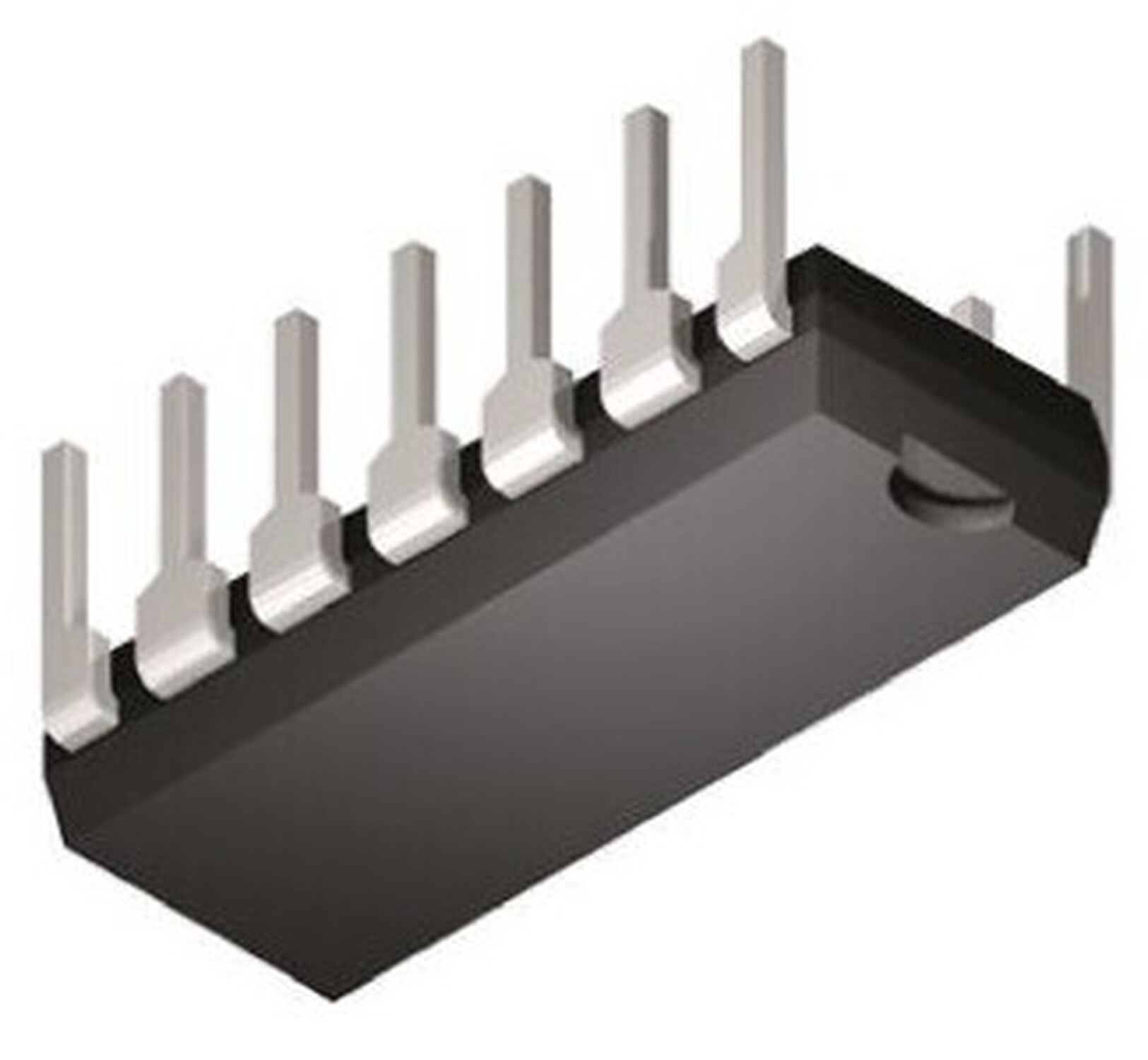

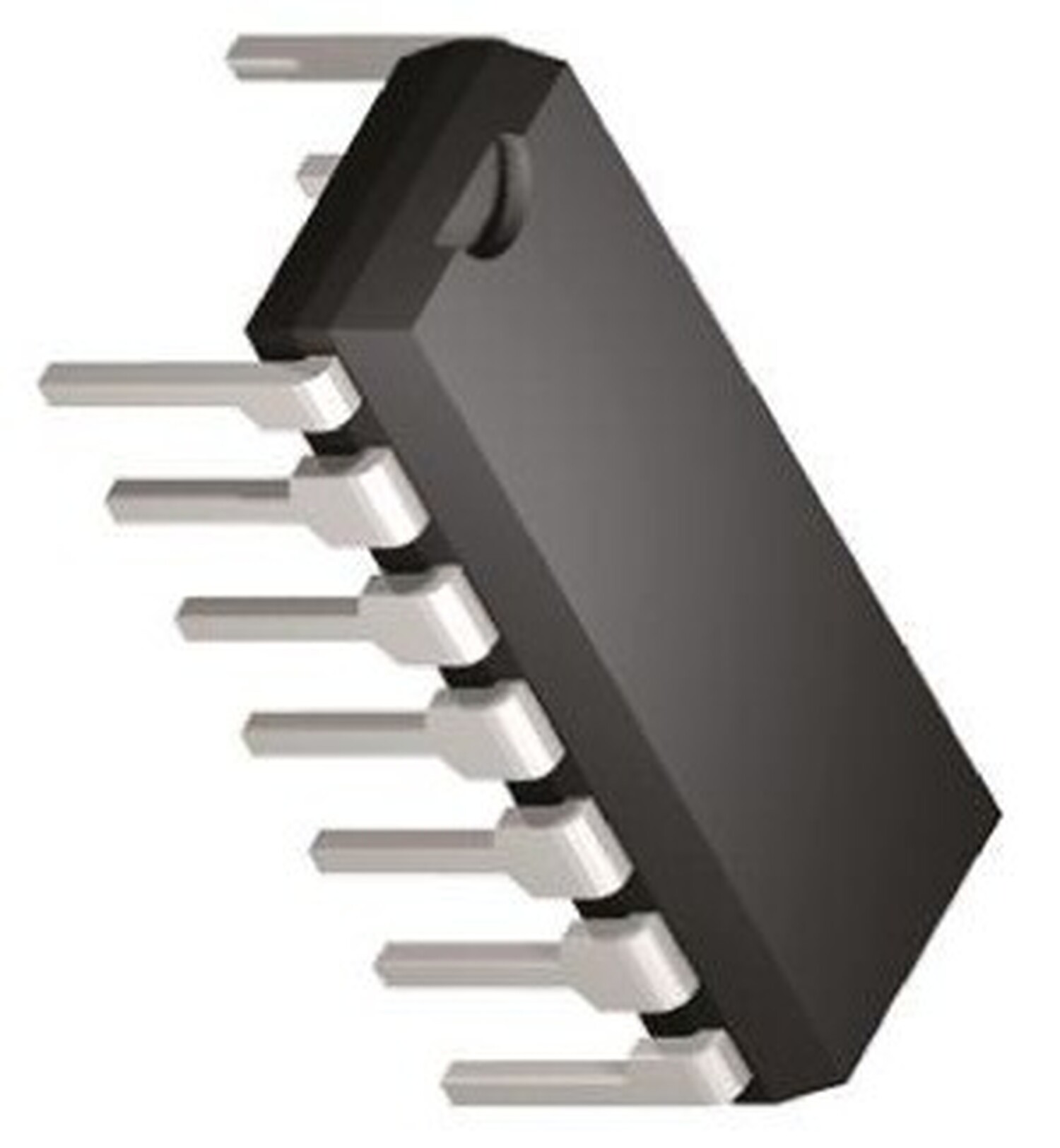

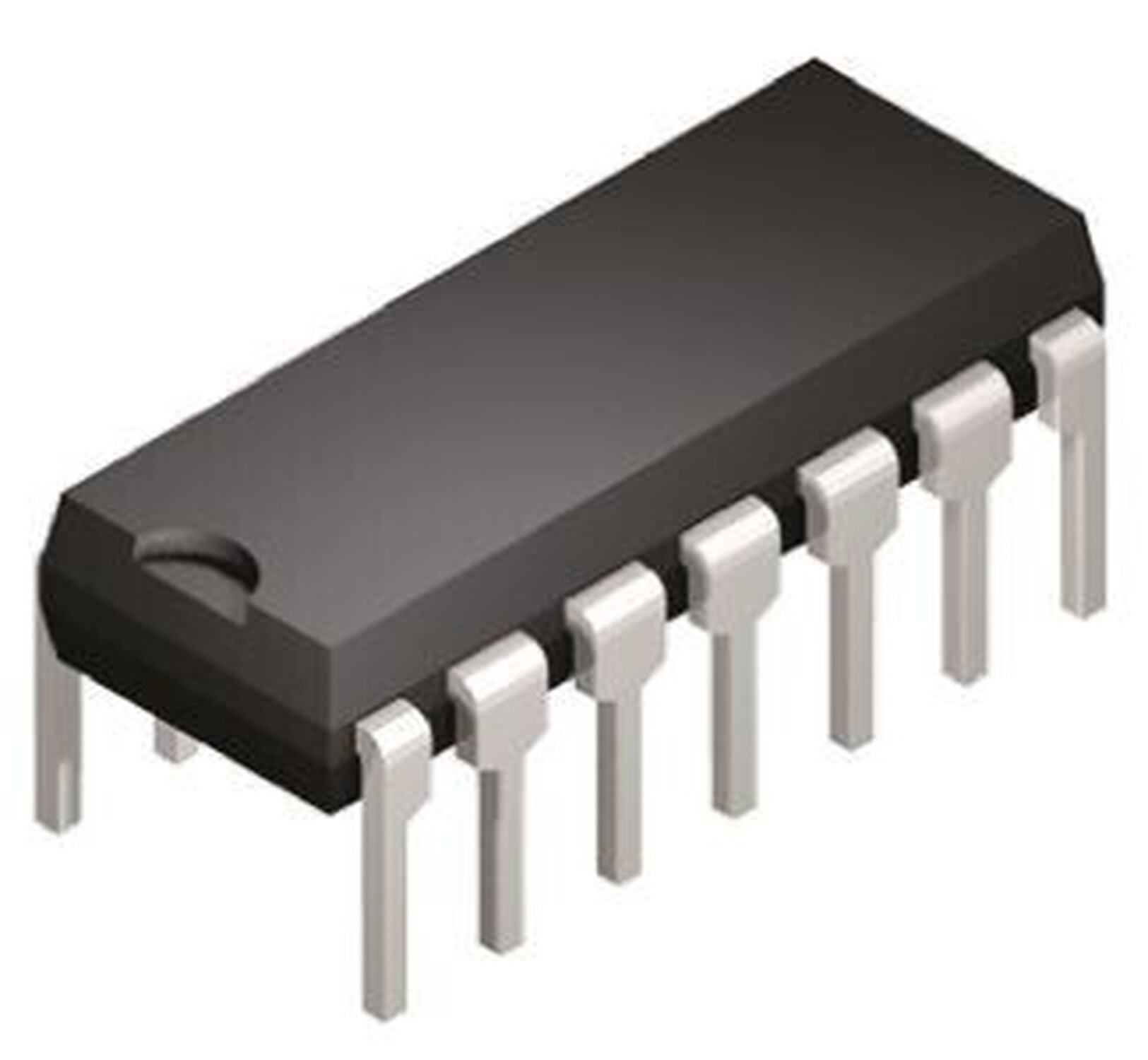

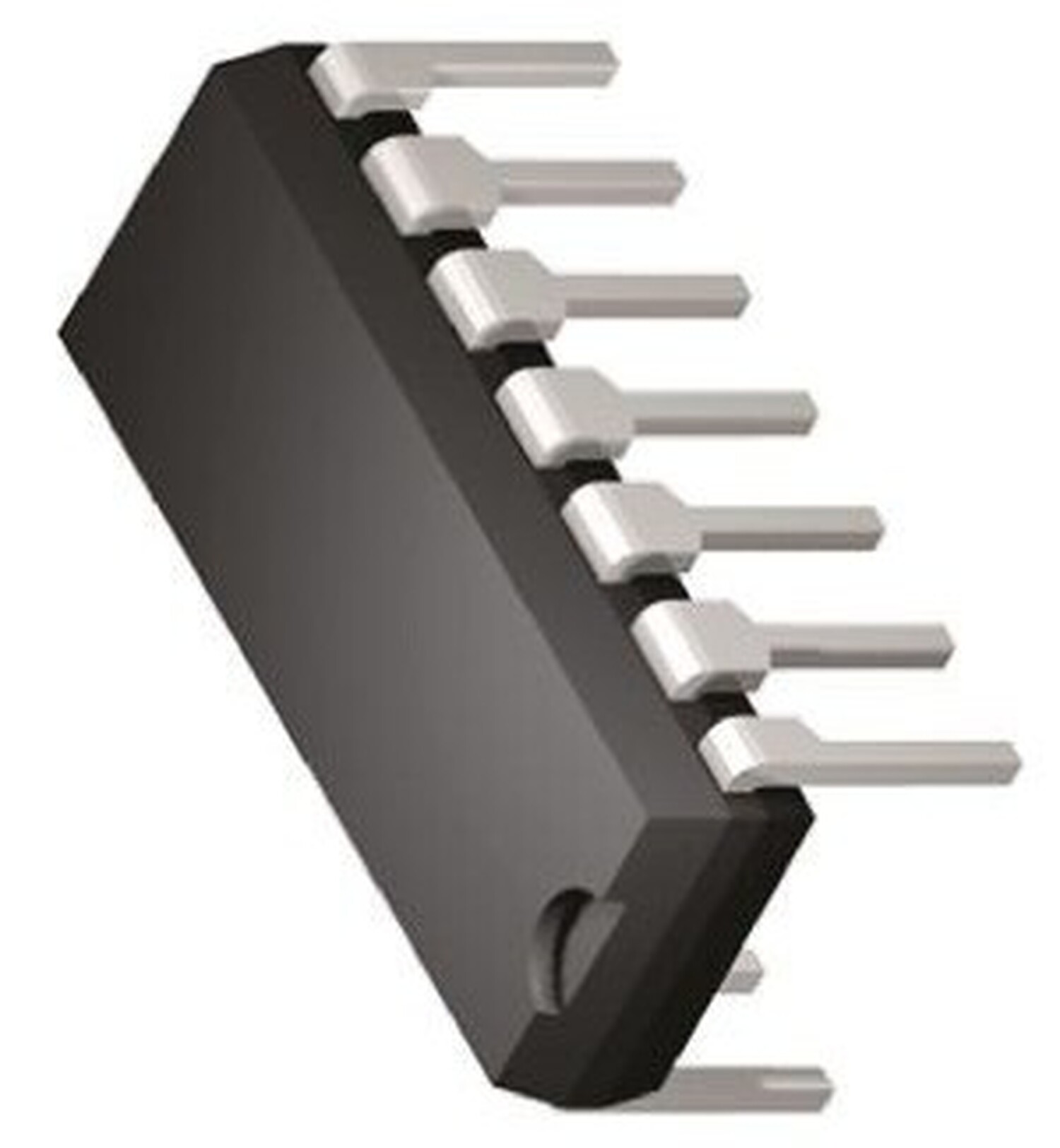

CD74HC4016E Logic IC CASE: DIP MAKE: Texas Instruments
Product specifications
Type Logic IC
Case DIP
Manufacturer Texas Instruments
Ckts Per Dev. 4
Vcntl (Hi) (V) 4.2
Vcntl (Lo) (V) 1.8
Features Norm Open
@Is (test) (A) 1.0m
PD Max. (W) 500m
Nom. Neg Supp 0.0
Nom. Pos. Supp 6.0
R(ds) On (Û) 360
Analog Sw. Cur. P-P Max. 20m
Sw. Volt P-P Max.(V) 3.0
Tech. CMOS Integrated Circuit
t(on) Max. (S) 41n
@Vd (test) (V) 6.0
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 14-129
Surface Mounted Yes/No NO
SKU 611360
