CD74HC540M

CD74HC540M

SKU: CD74HC540M

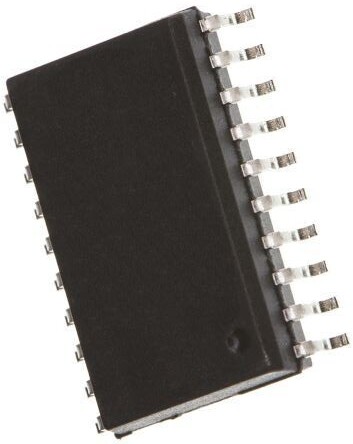

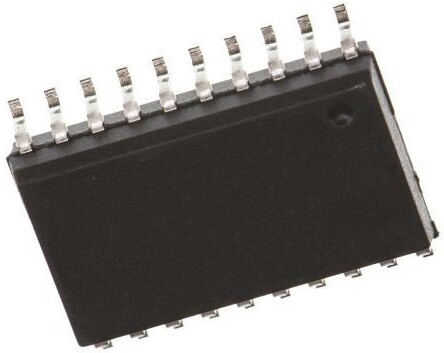

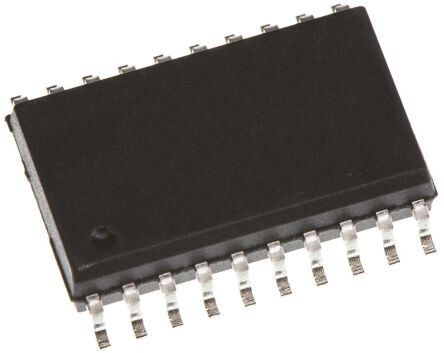

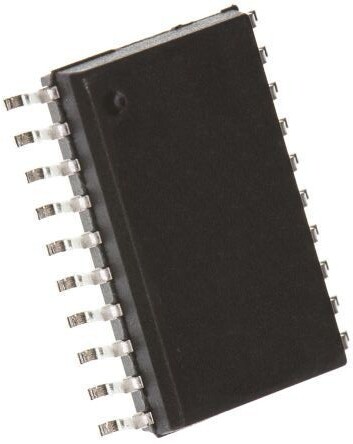

CD74HC540M Logic IC CASE: SO20 MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SO20
Manufacturer Texas Instruments
Ckts Per Dev. 8
Vih Min (V) 3.15
Vil Max. (V) 1.35
Inp Per Ckt 1
Output Config 3-State
VOL Max. 0.4
tPD Max. (S) 28n
Nom. Supp (V) 6.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 6.0m
Pinout Equivalence Number 20-134
No. of Pins 20
Surface Mounted Yes/No YES
SKU 411483
