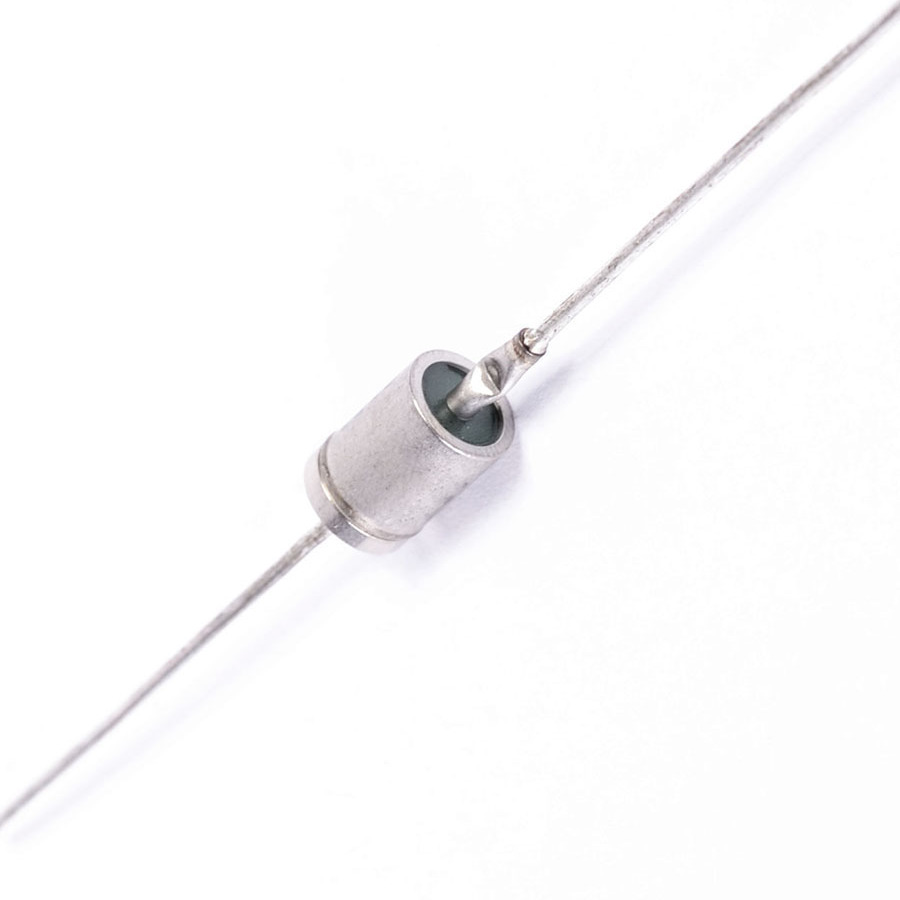

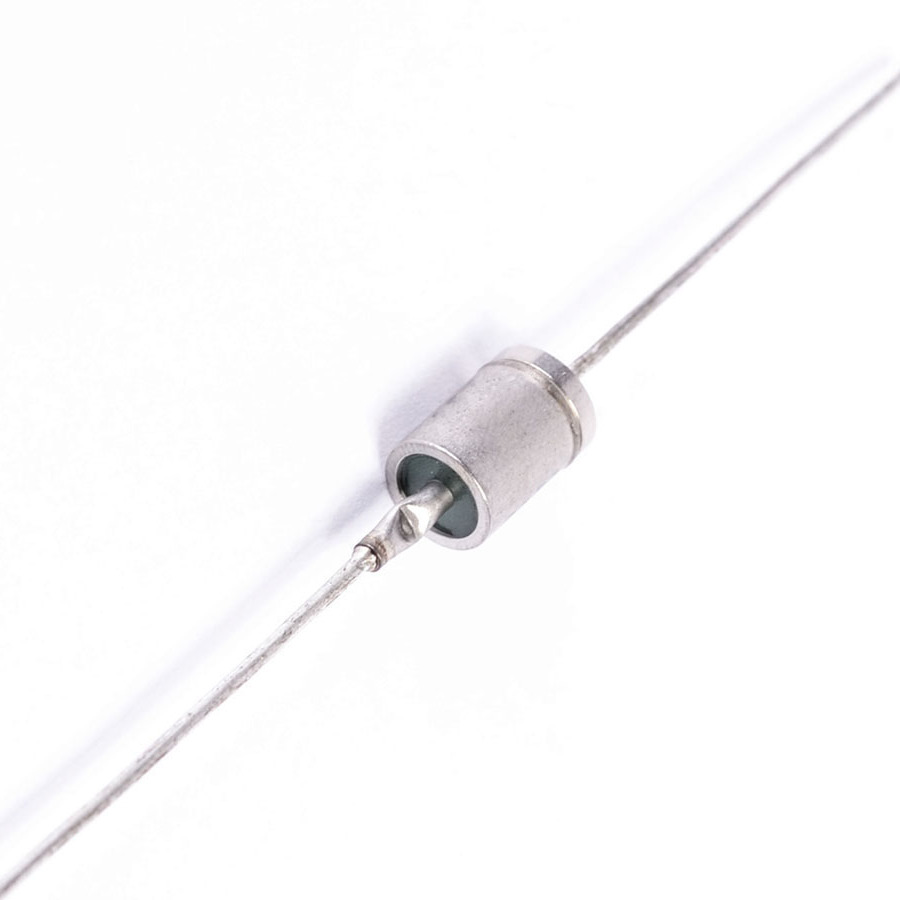

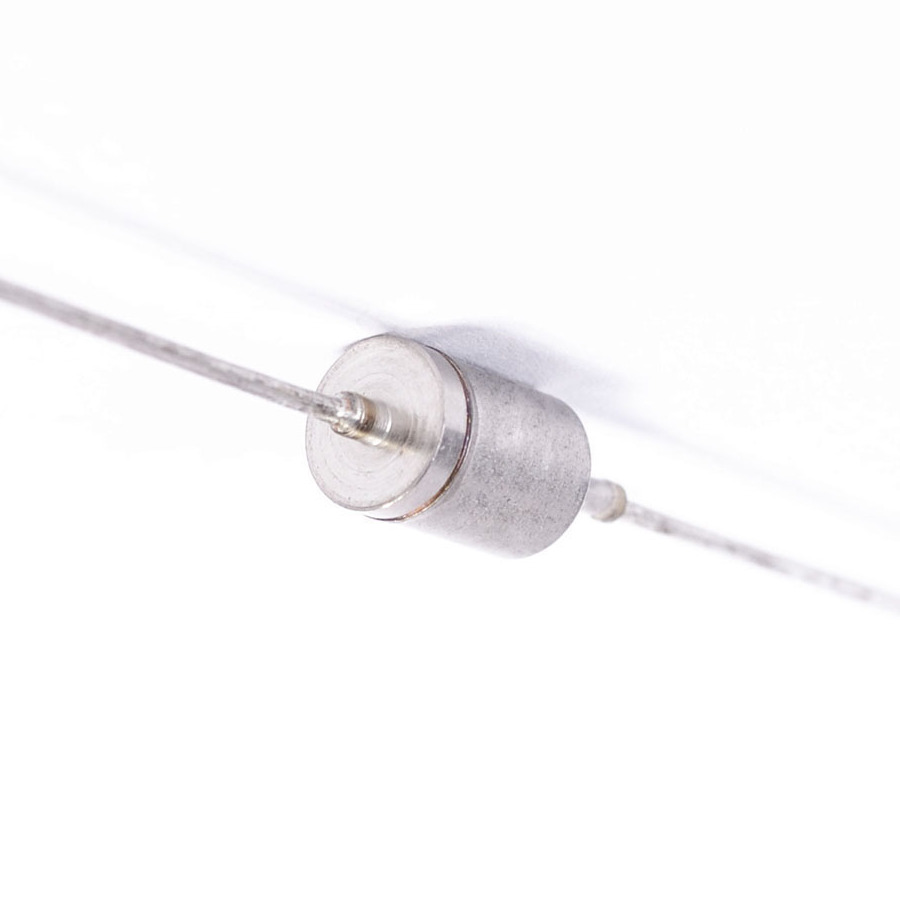

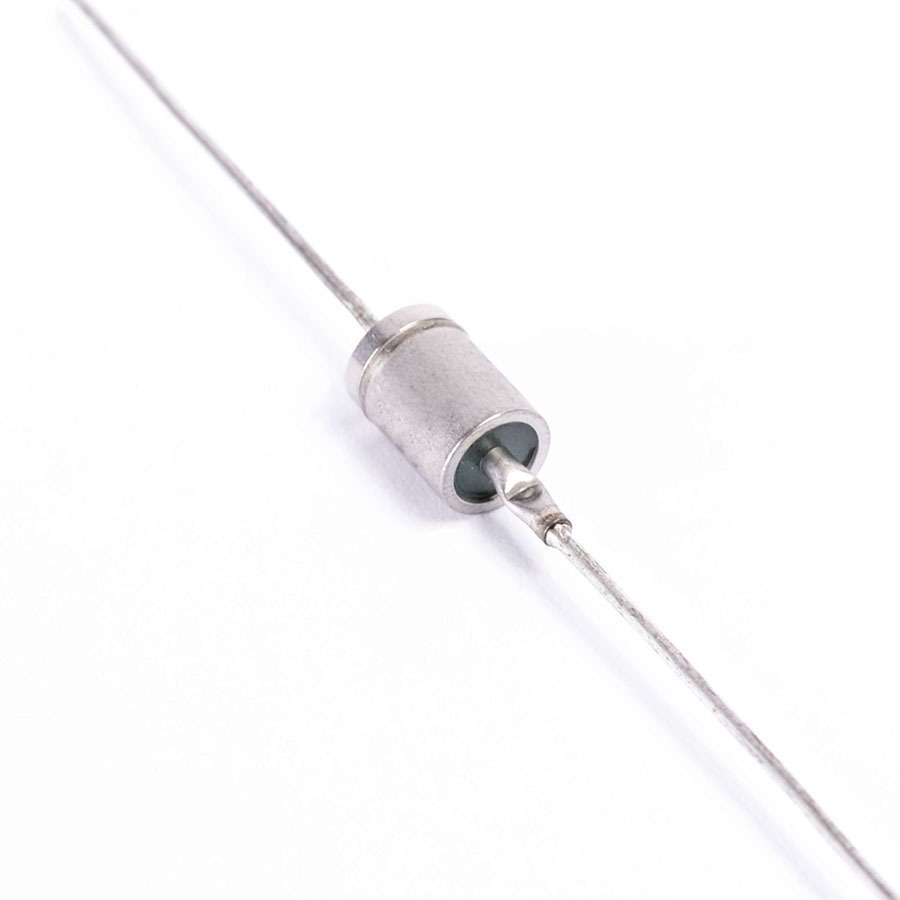

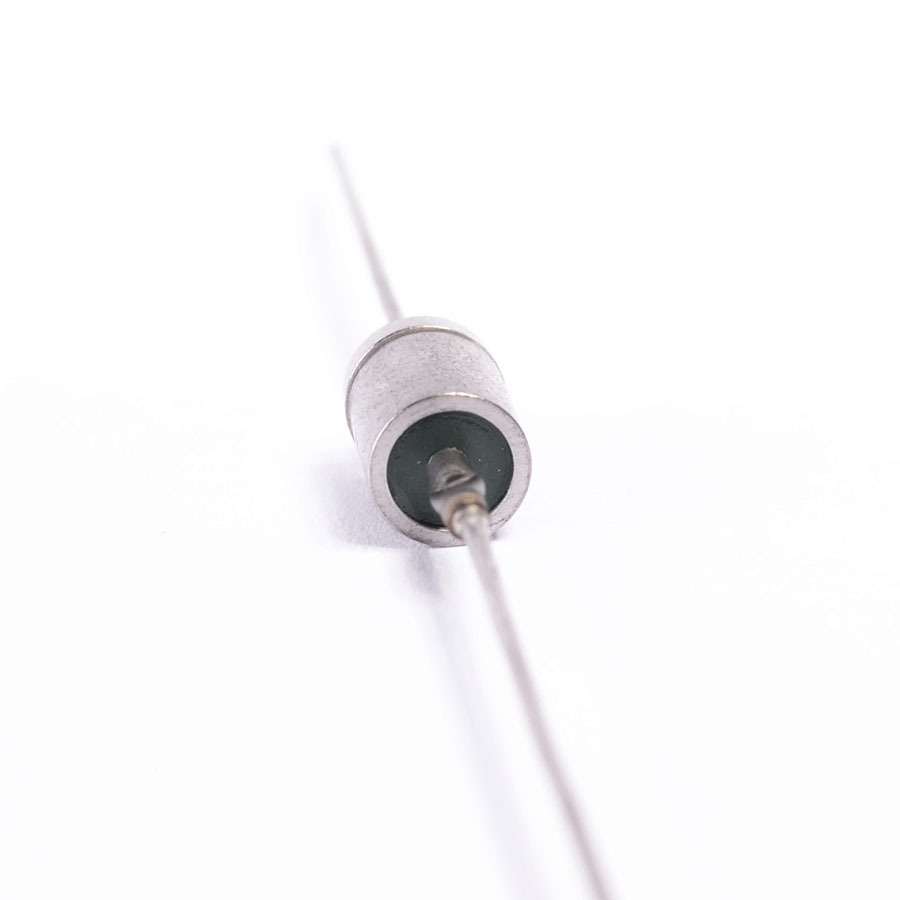

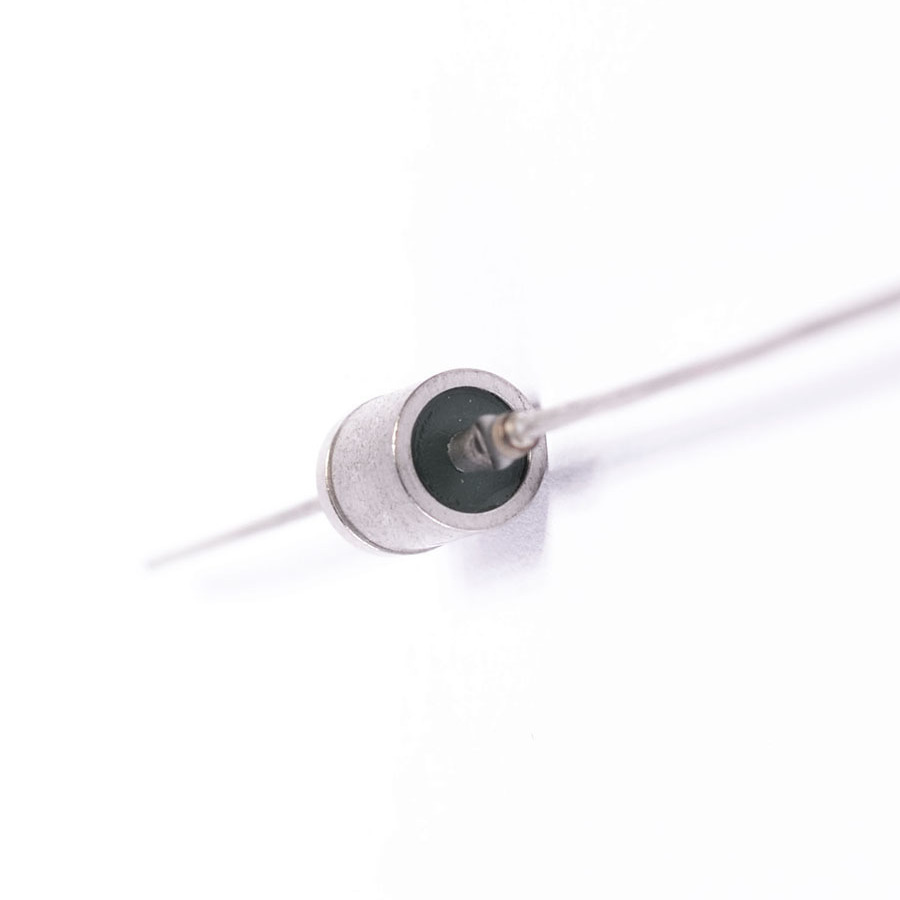

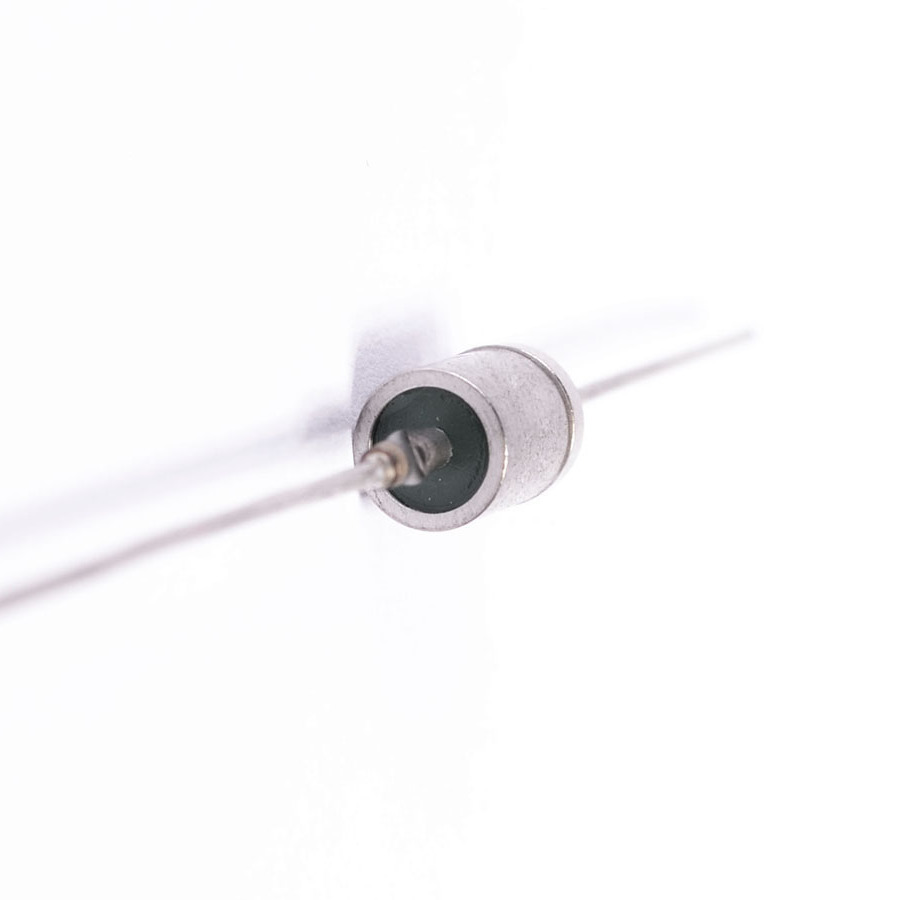

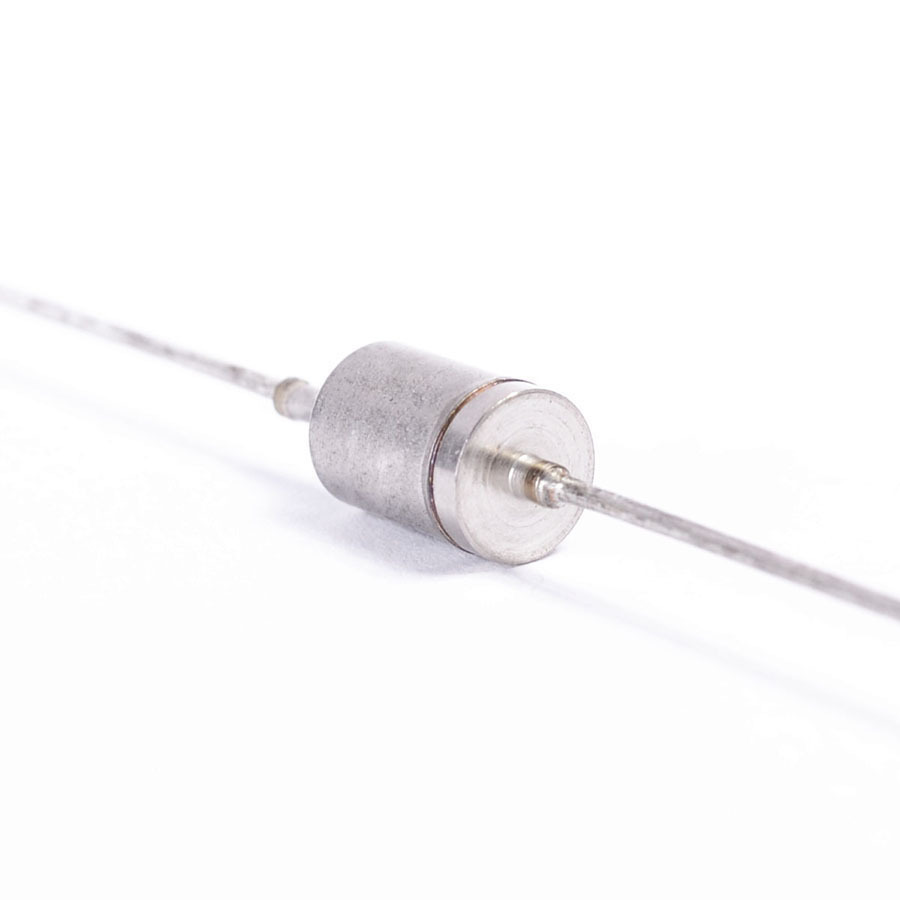

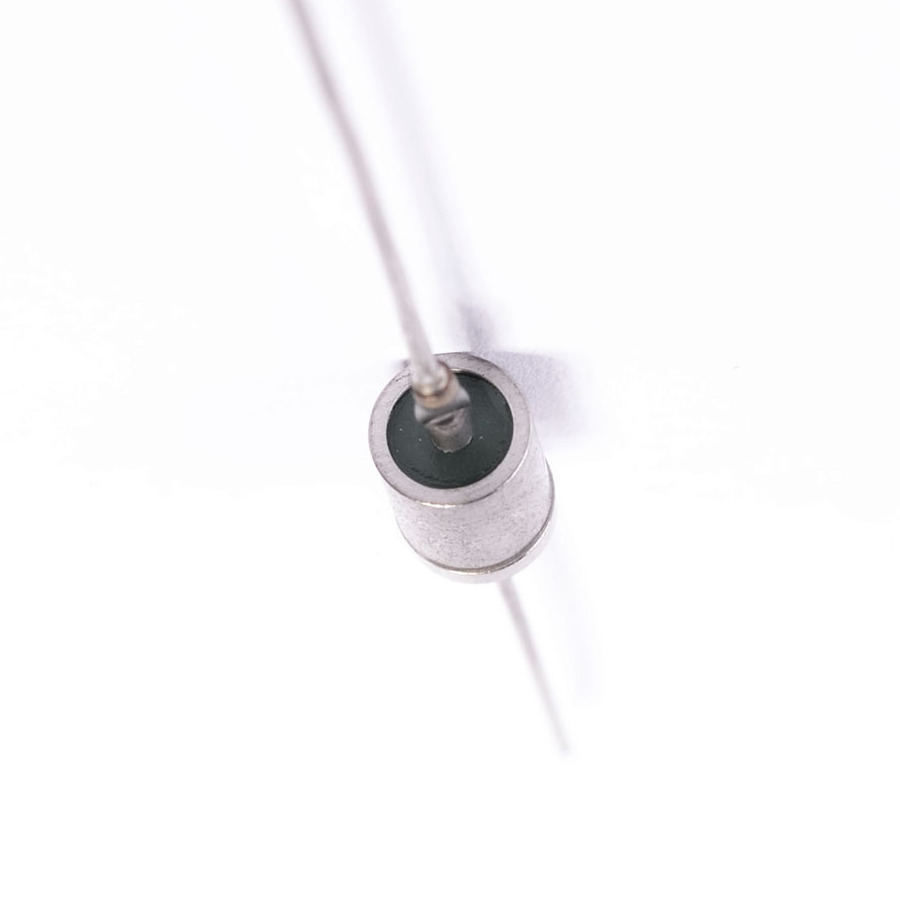

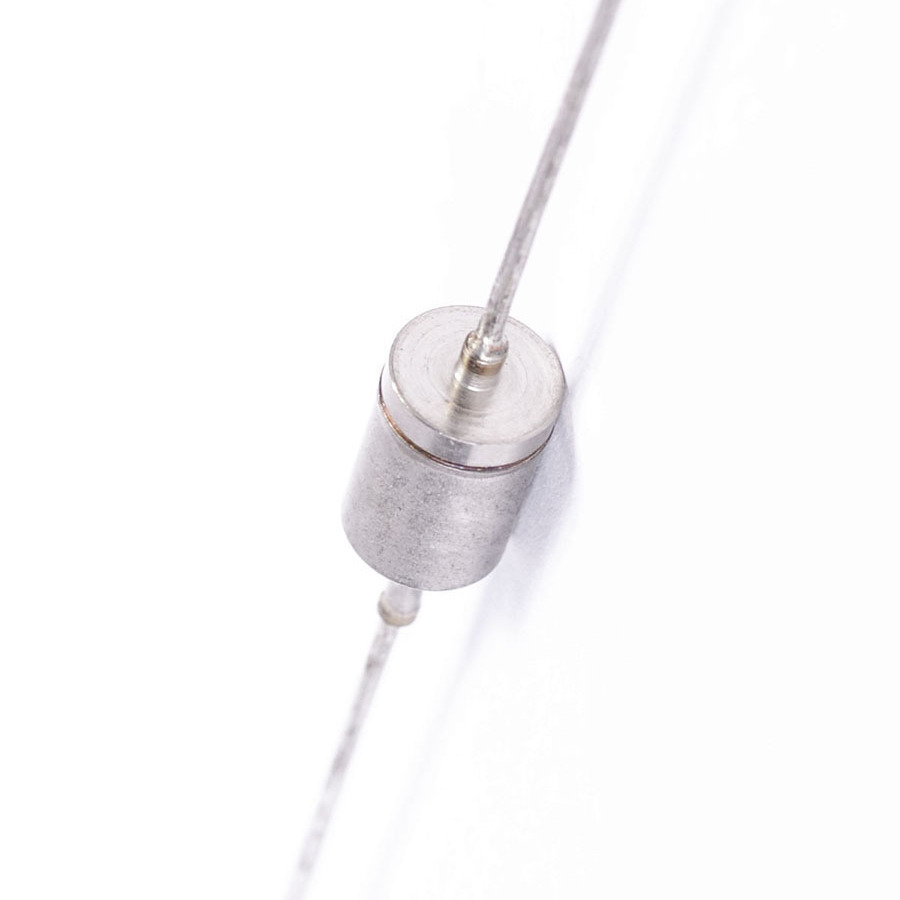

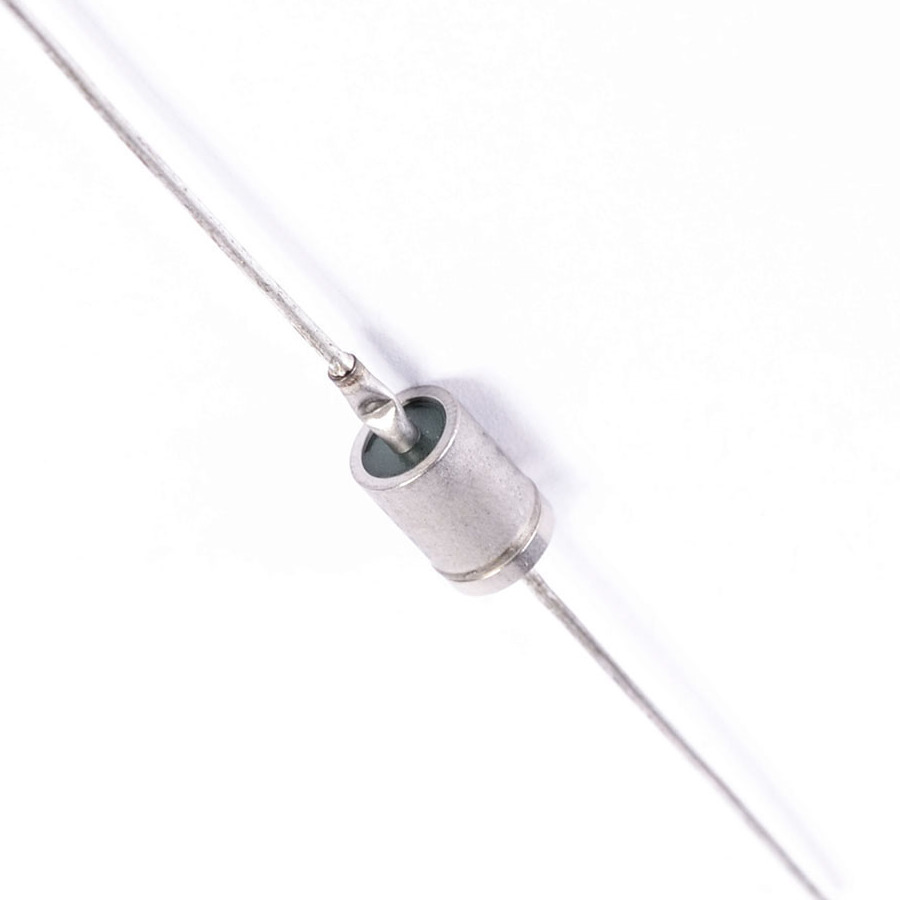

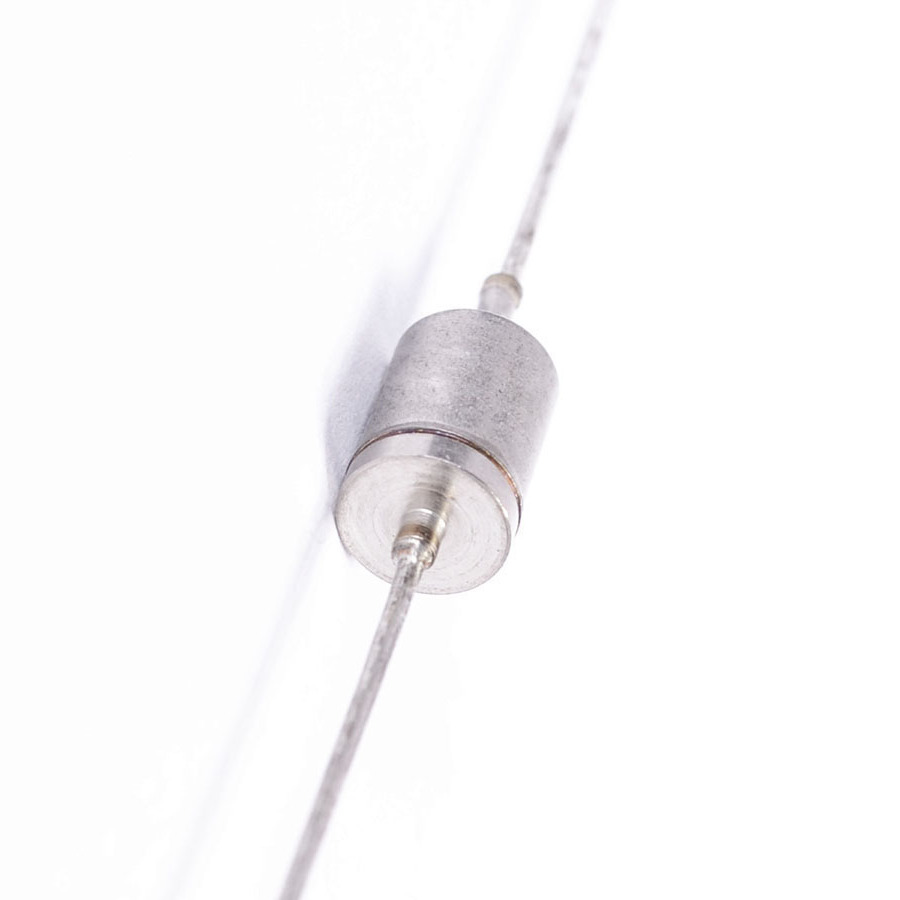

CDB7.5
View detailed images (12)

CDB7.5

SKU: CDB7.5
CDB7.5 Semiconductor CASE: DO13 MAKE: CSD
Product specifications
Type Semiconductor
Case DO13
Manufacturer CSD
Dyn. Zmax (Û) 6
@Temp. (test) (°C) 75
Ir @ Diff. Temp (A) 150u
VRRM 7.5k
PD Max. (W) 1.5
Nom. Ref. Volt 7.5
1-Cycle Surge Current (A) 100
@Temp (test) (°C) 100
@Temp. (test) for Vf) 25
Temp Coef pp/10k 5
Test Current 50m
Tol. (%) 5
Vf Max. 12
Ir @25°C 5.0u
I(out) (If AVG) Max. 1.33
@Volts (test) (V) 7.5k
@If (test) 0.7
Oper. Temp (°C) Max. 125
Surface Mounted Yes/No NO
SKU 814638
