CDD7.5

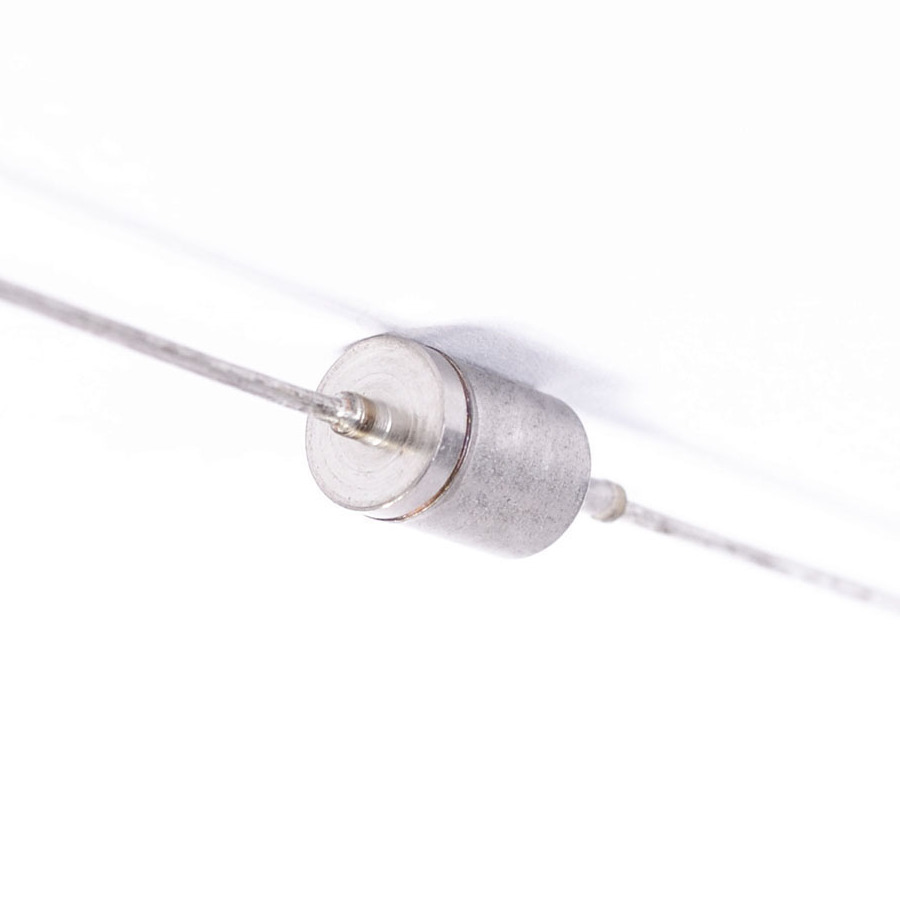

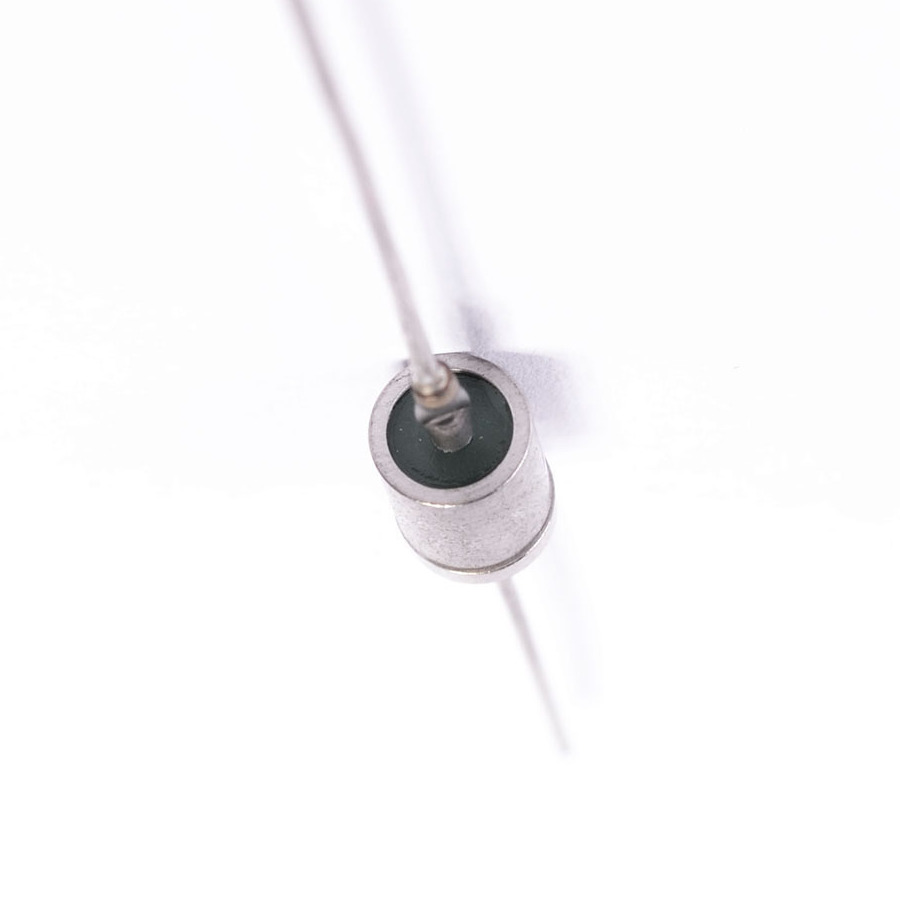

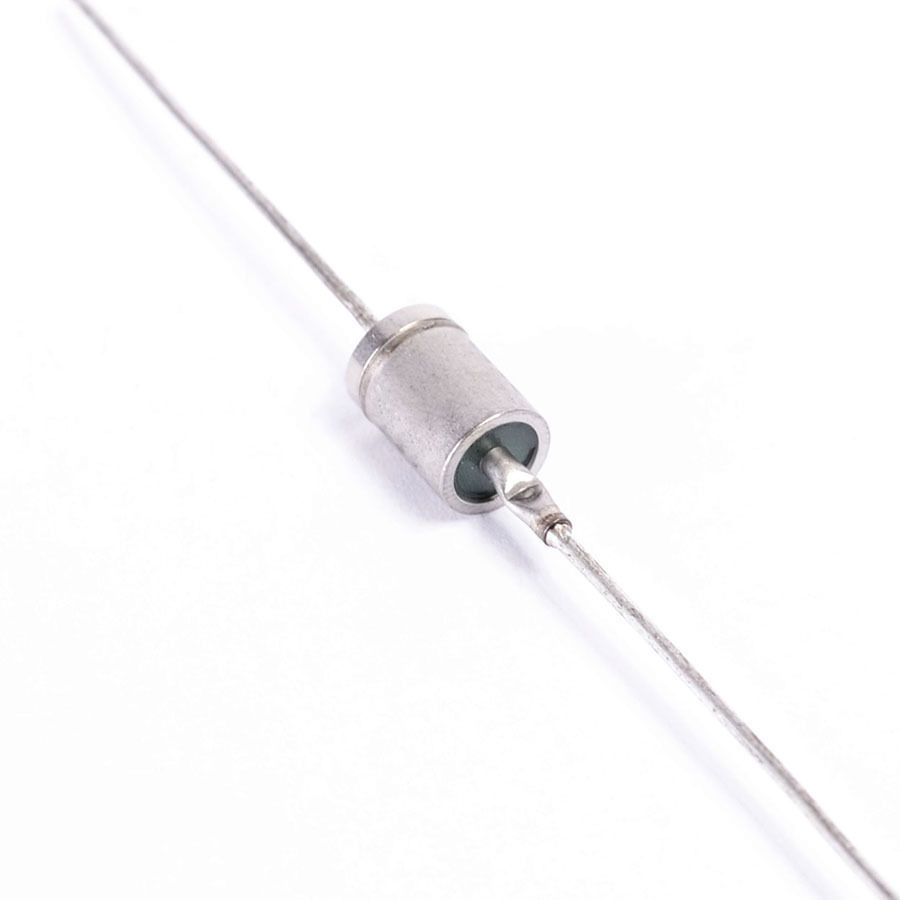

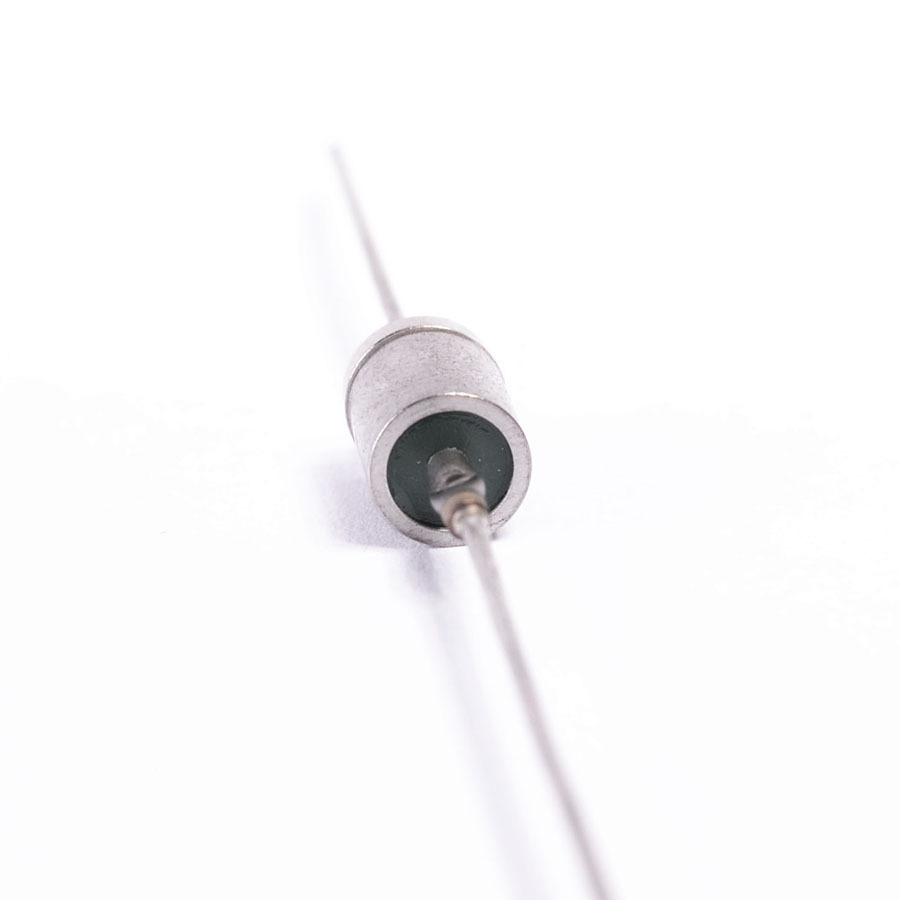

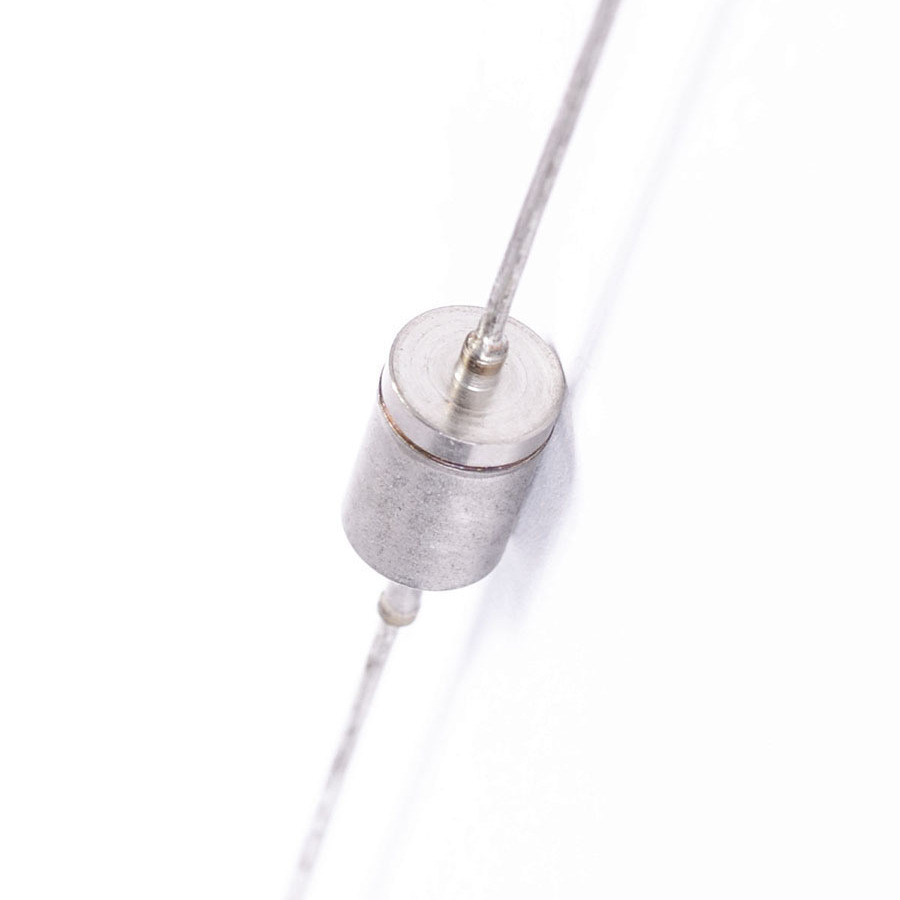

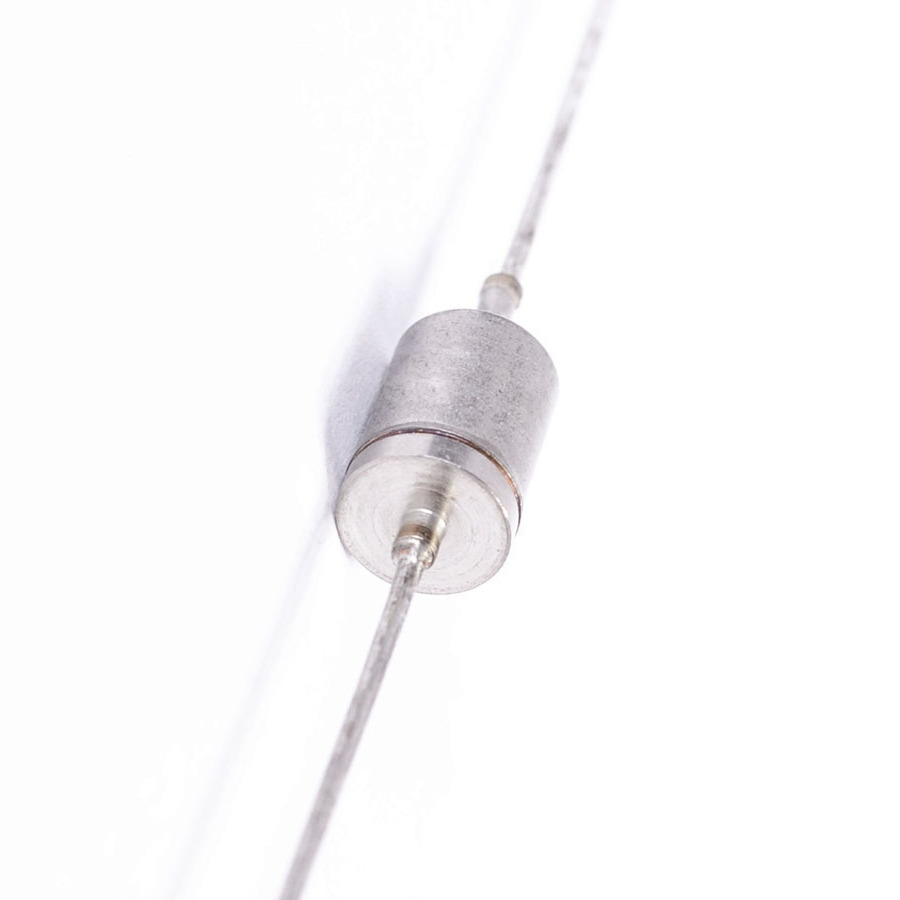

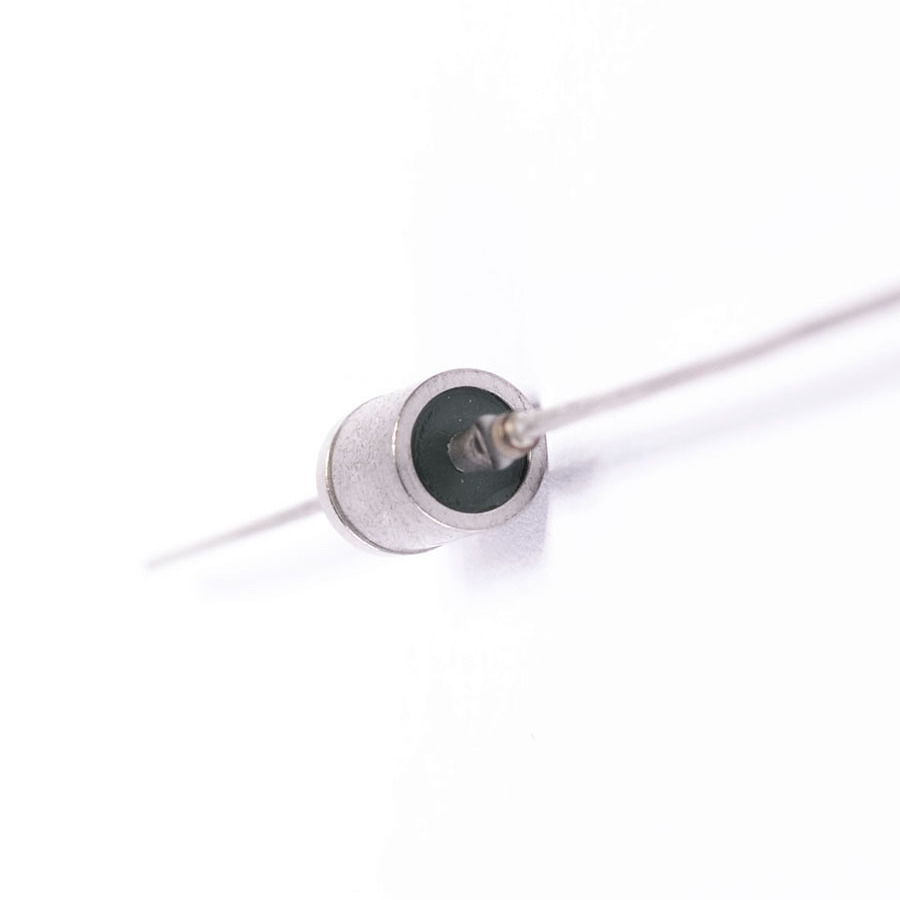

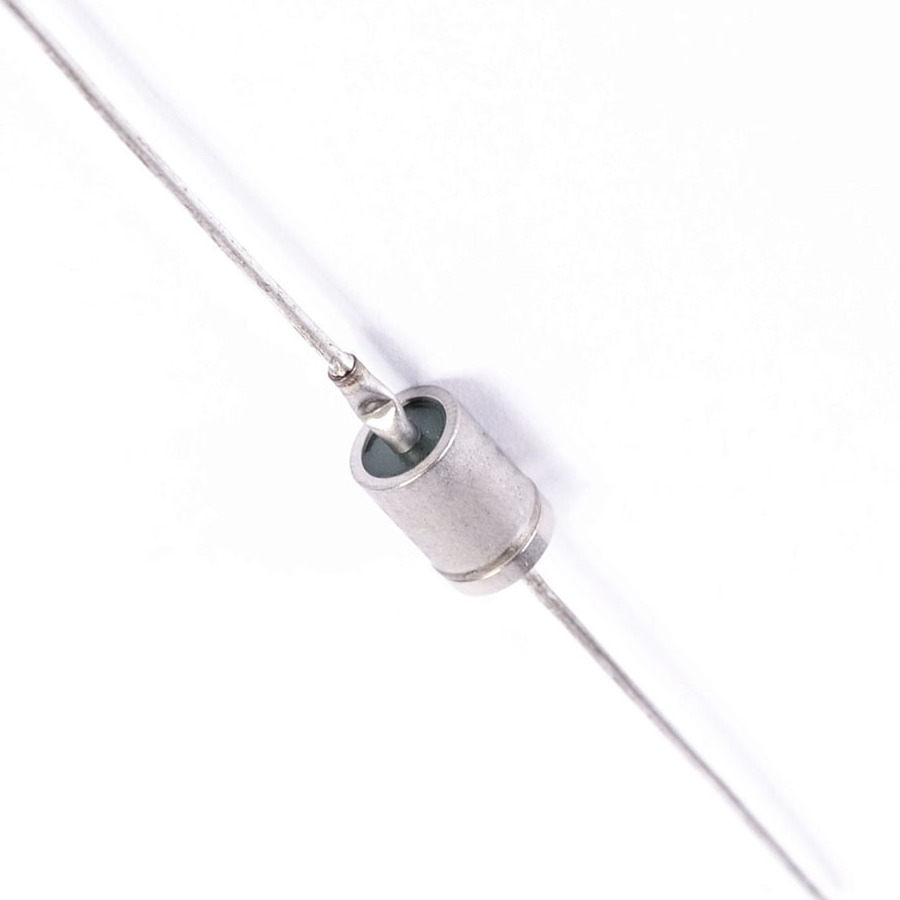

View detailed images (12)

CDD7.5

SKU: CDD7.5

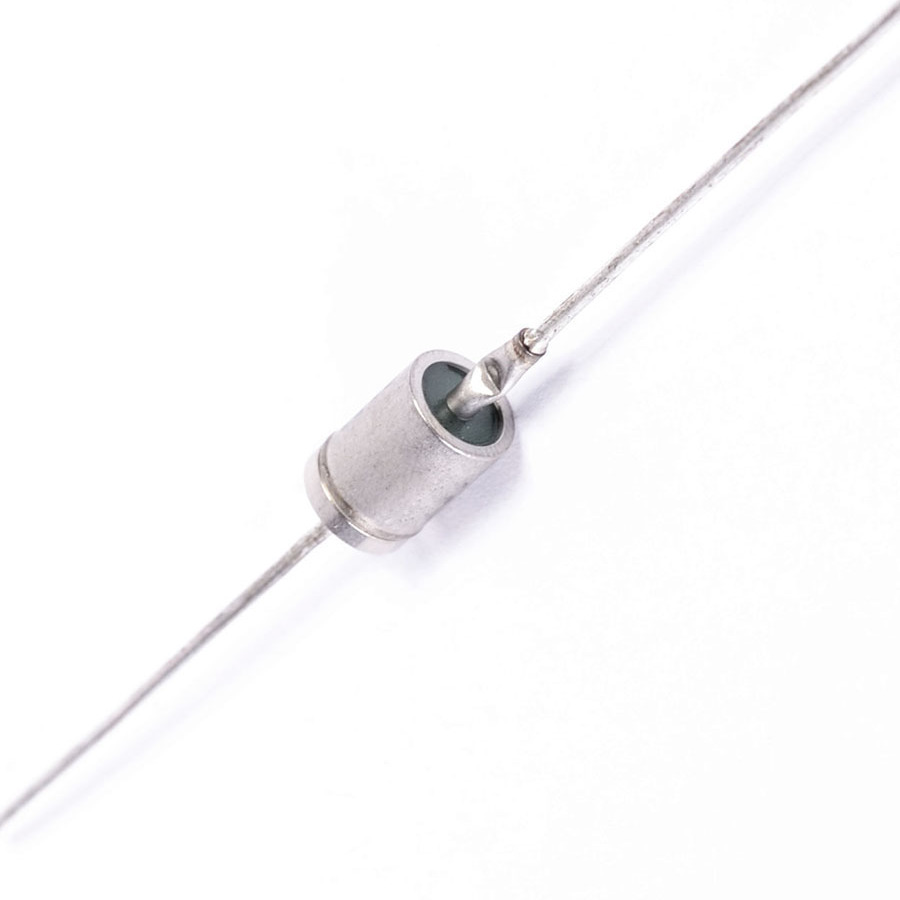

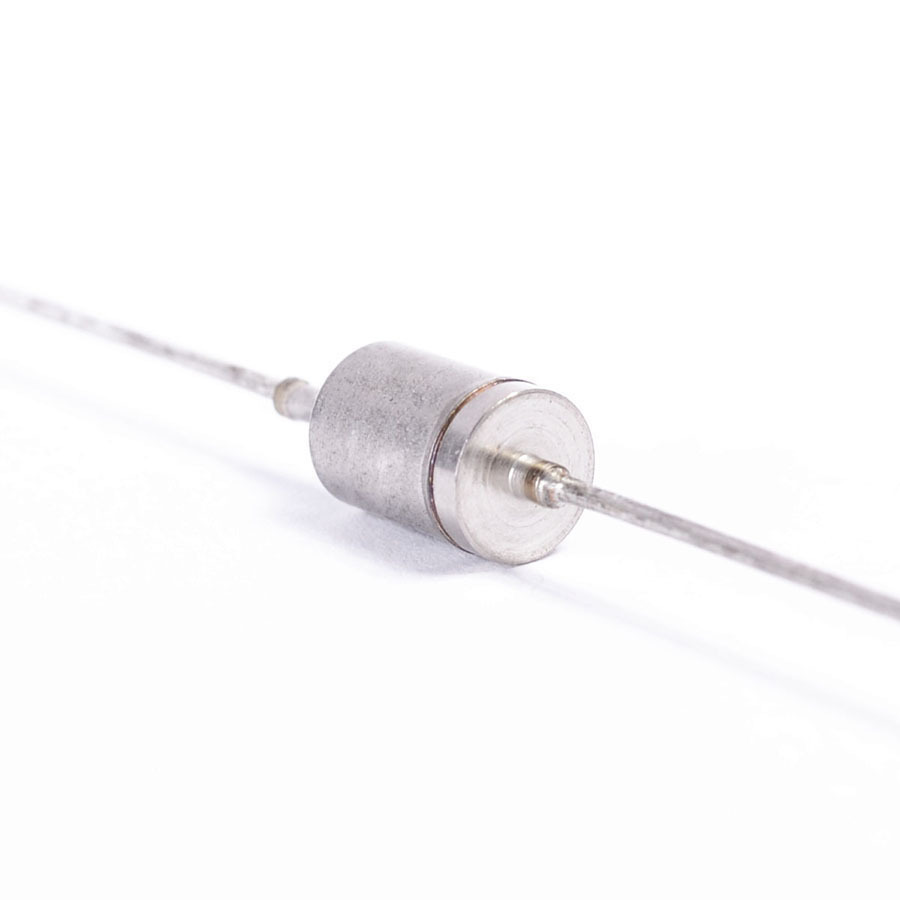

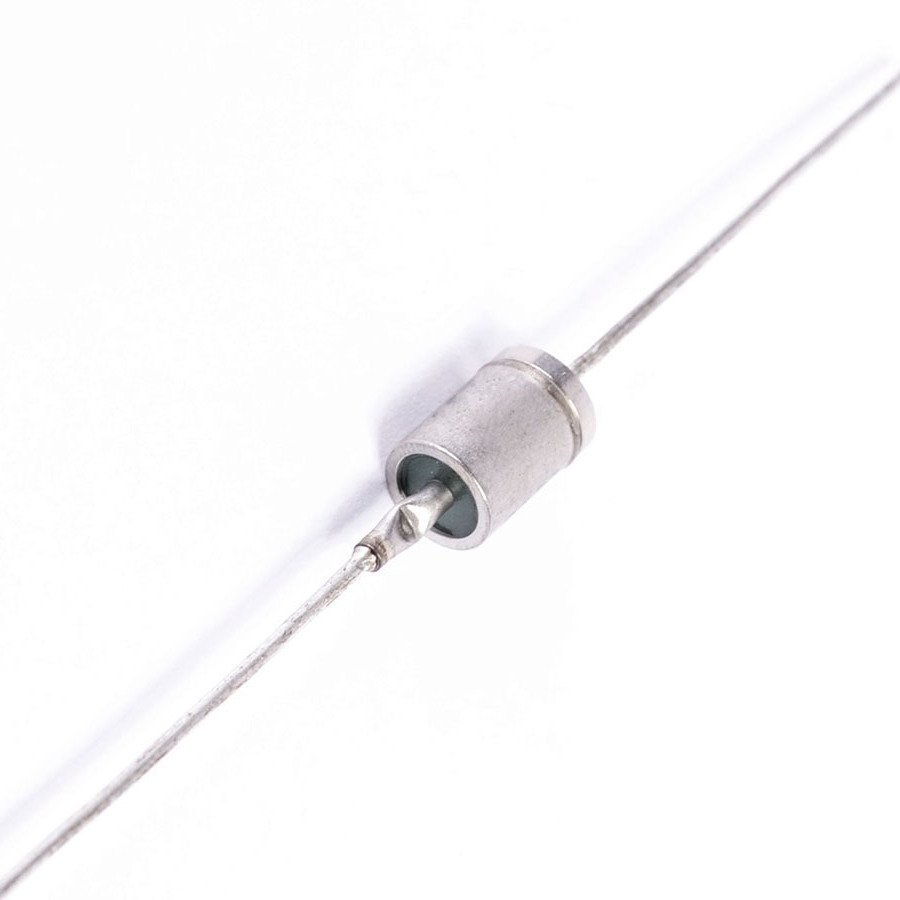

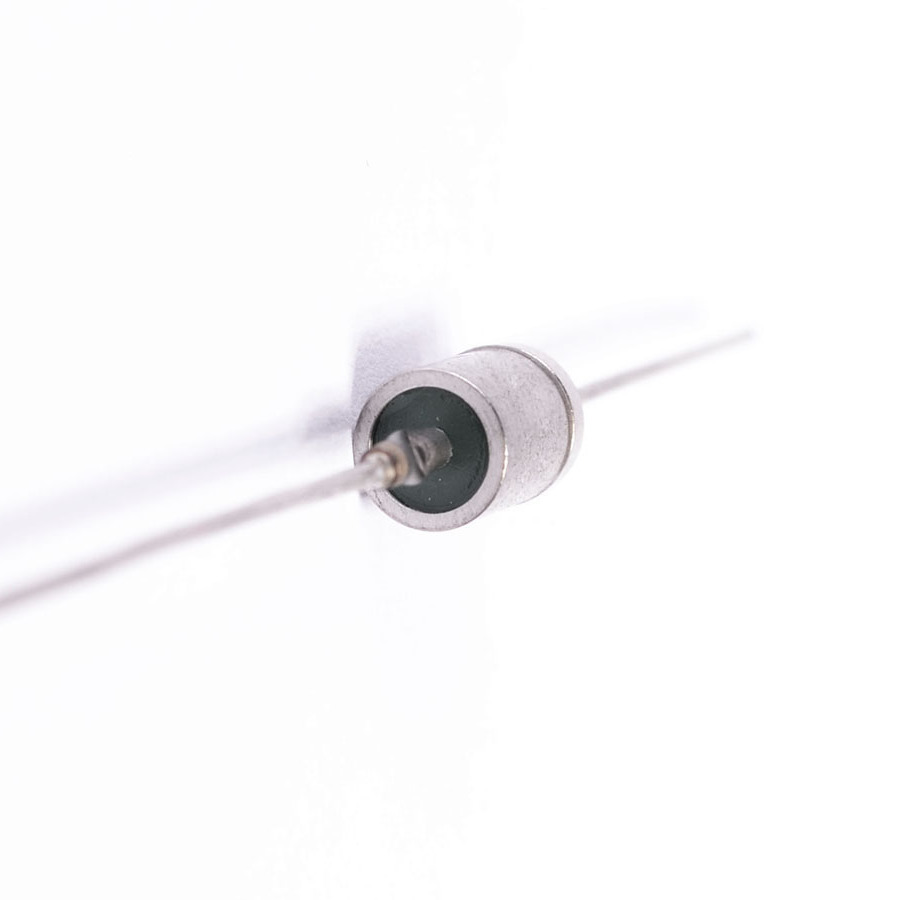

CDD7.5 Semiconductor CASE: DO13 MAKE: CSD
Product specifications
Type Semiconductor
Case DO13
Manufacturer CSD
Dyn. Zmax (Û) 6
Ir @ Diff. Temp (A) 175u
Mat. Silicon Logic
VRRM 7.5k
PD Max. (W) 1.5
Nom. Ref. Volt 7.5
t(rr) (S) 350n
@Temp (test) (°C) 100
Temp Coef pp/10k 5
Test Current 50m
Tol. (%) 15
Vf Max. 17
Ir @25°C 2.5u
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 7.5k
@If (test) 0.5
@If (test) 500m
Oper. Temp (°C) Max. 125
@Ir (A) 1.0
Surface Mounted Yes/No NO
SKU 814640
