Home / Integrated Circuit / CDP1802ACQ

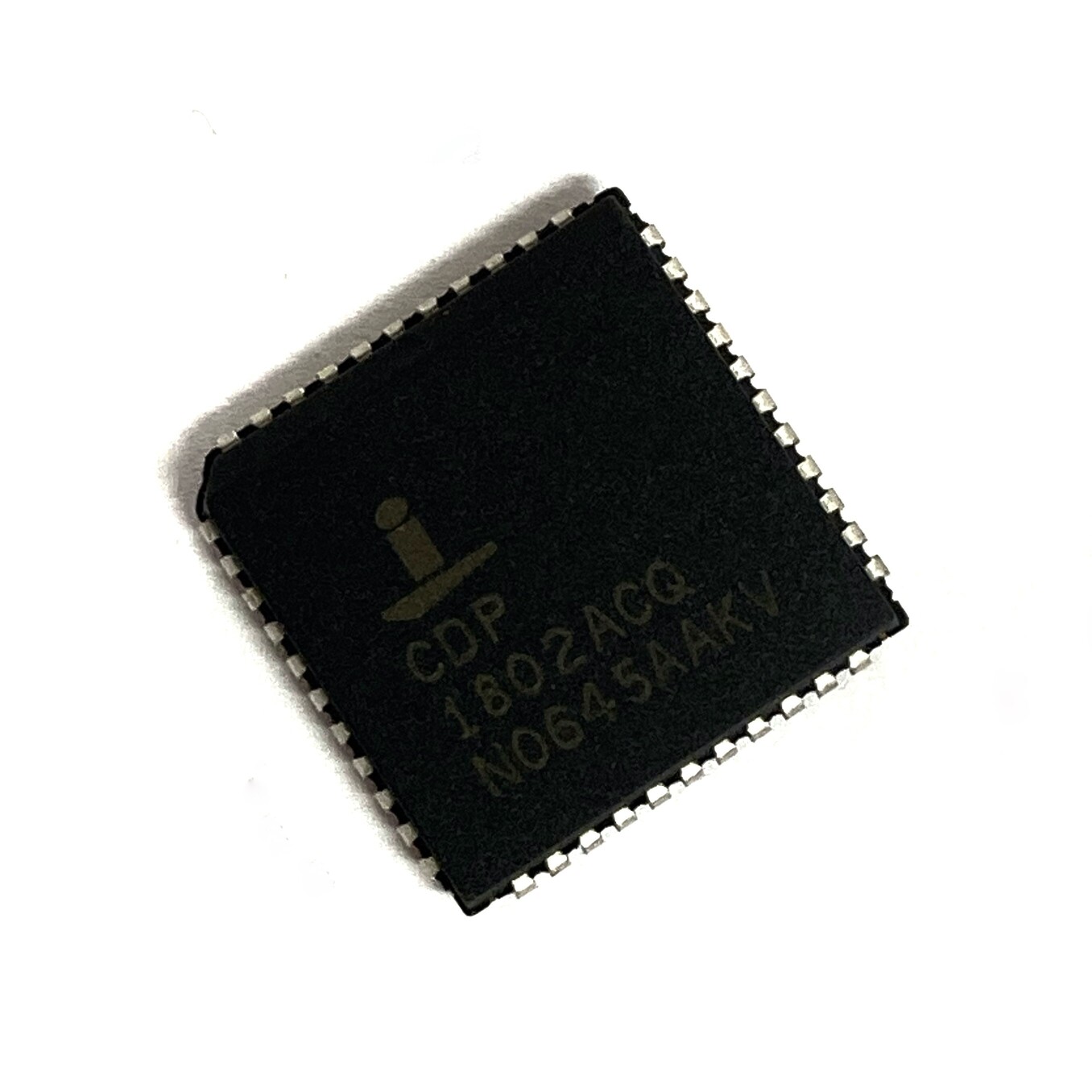

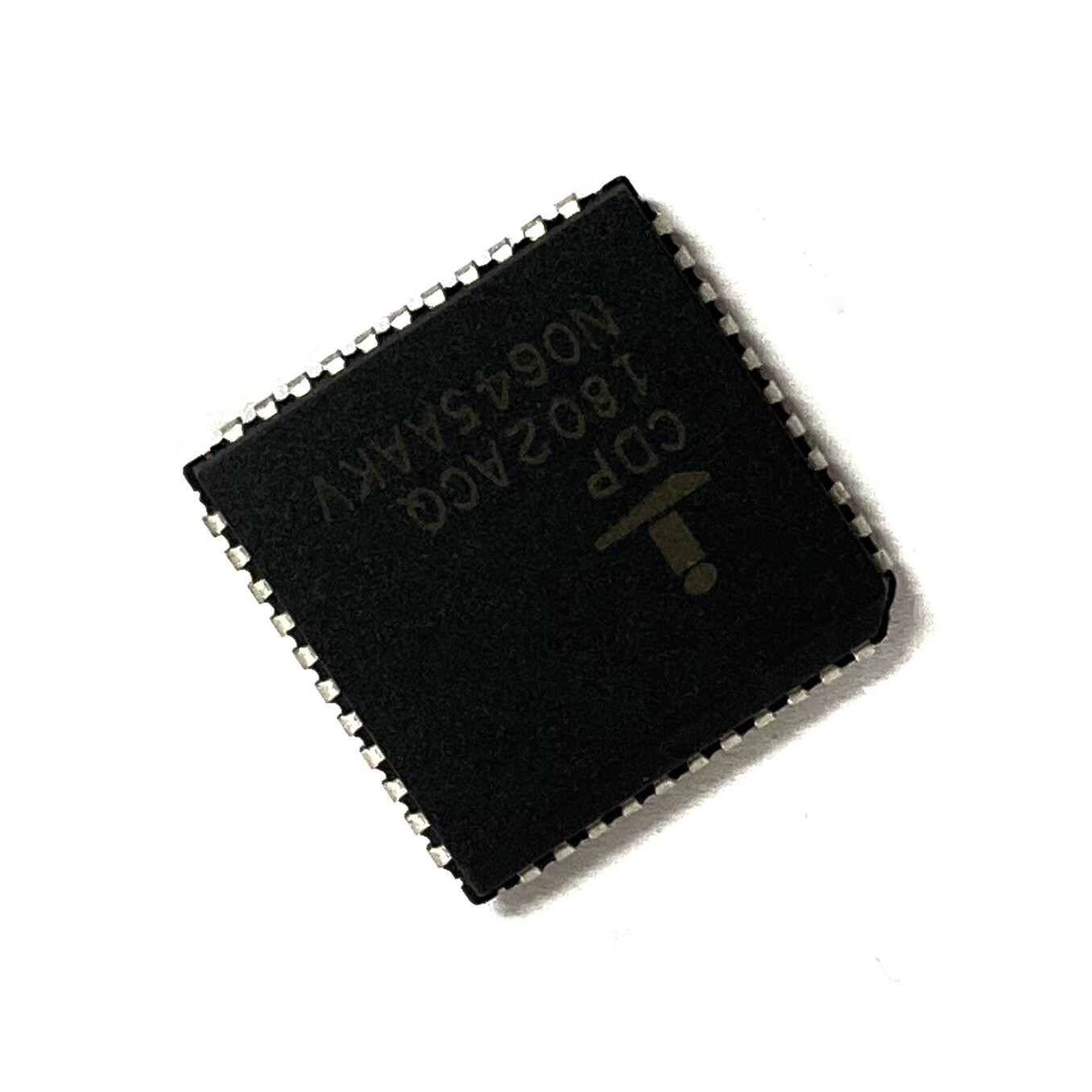

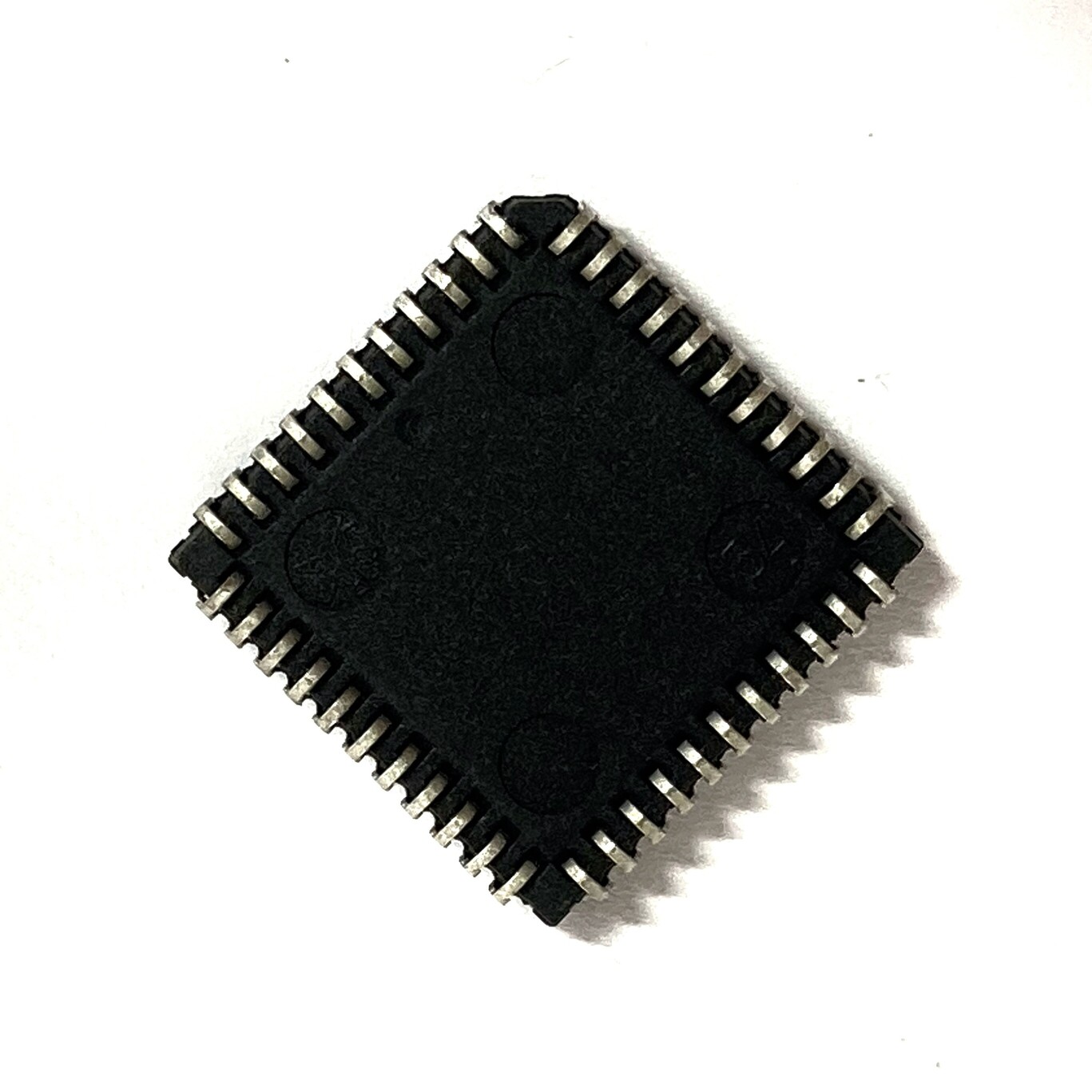

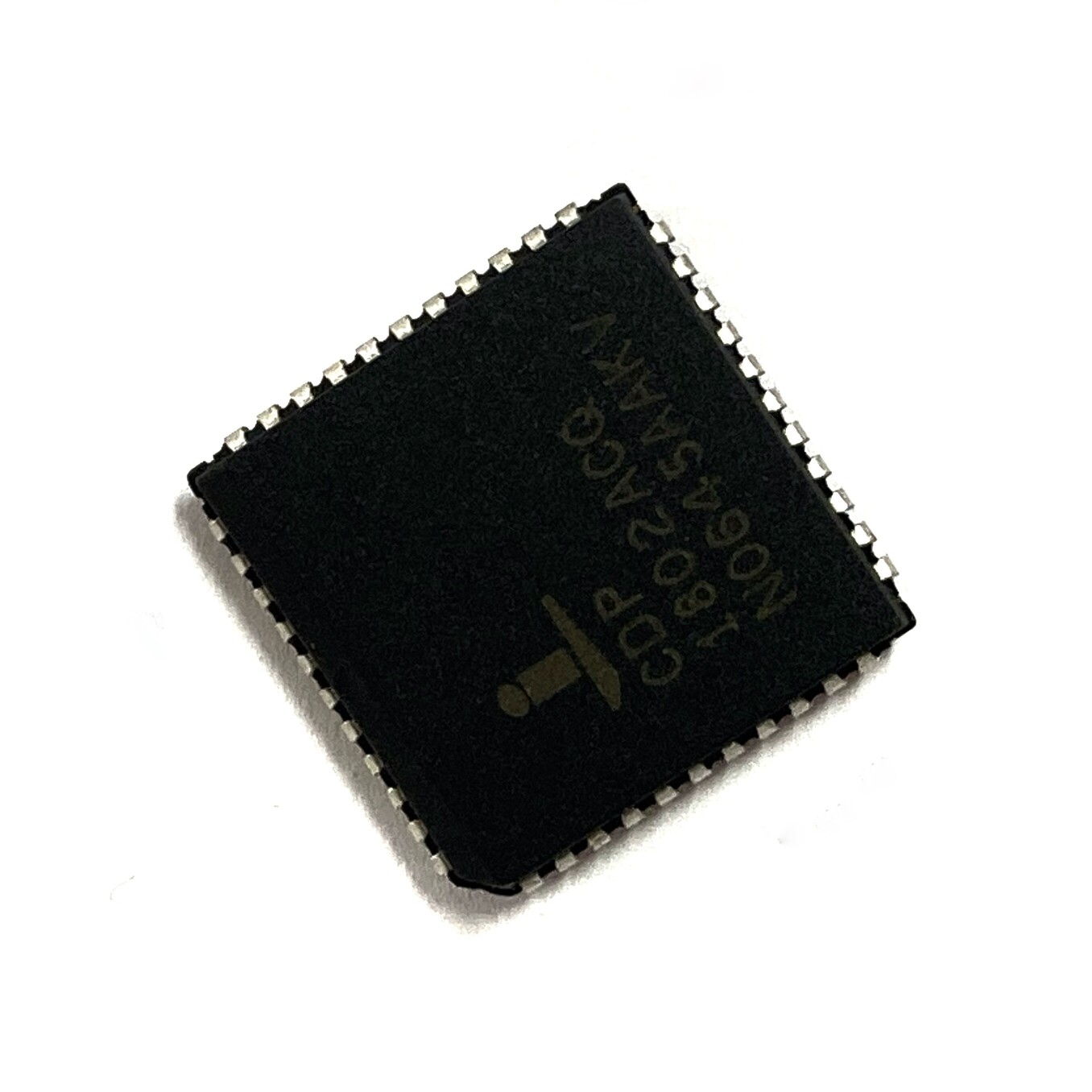

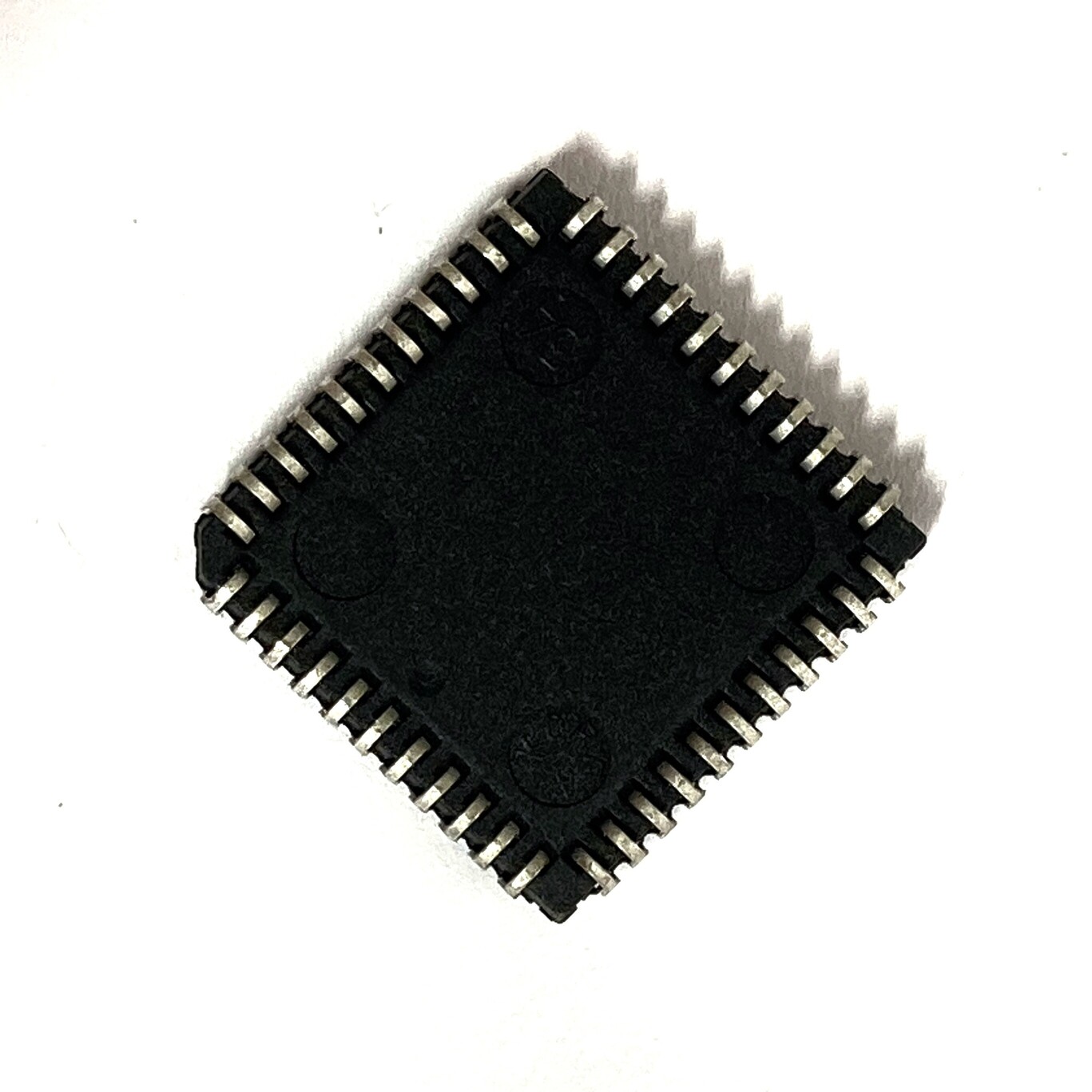

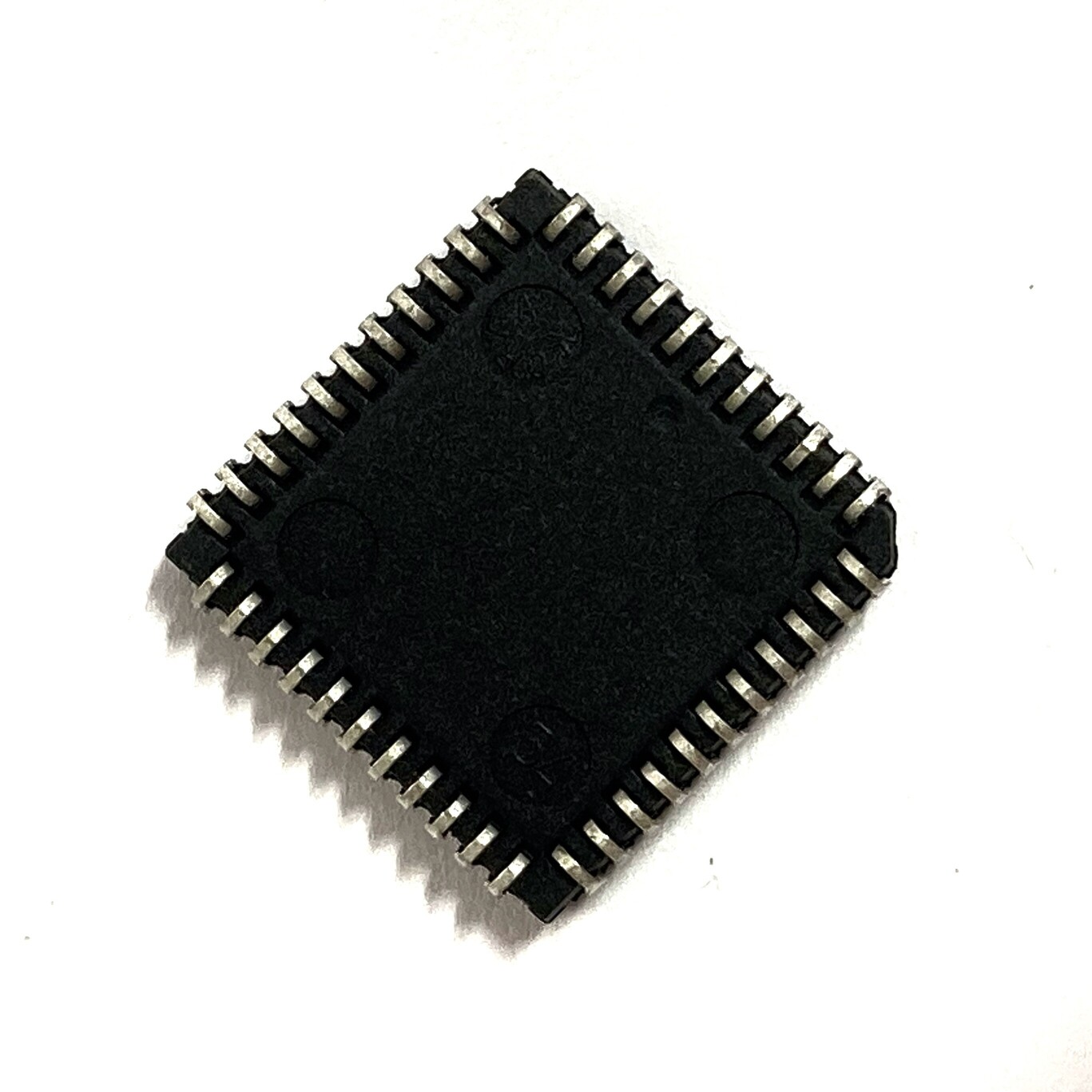

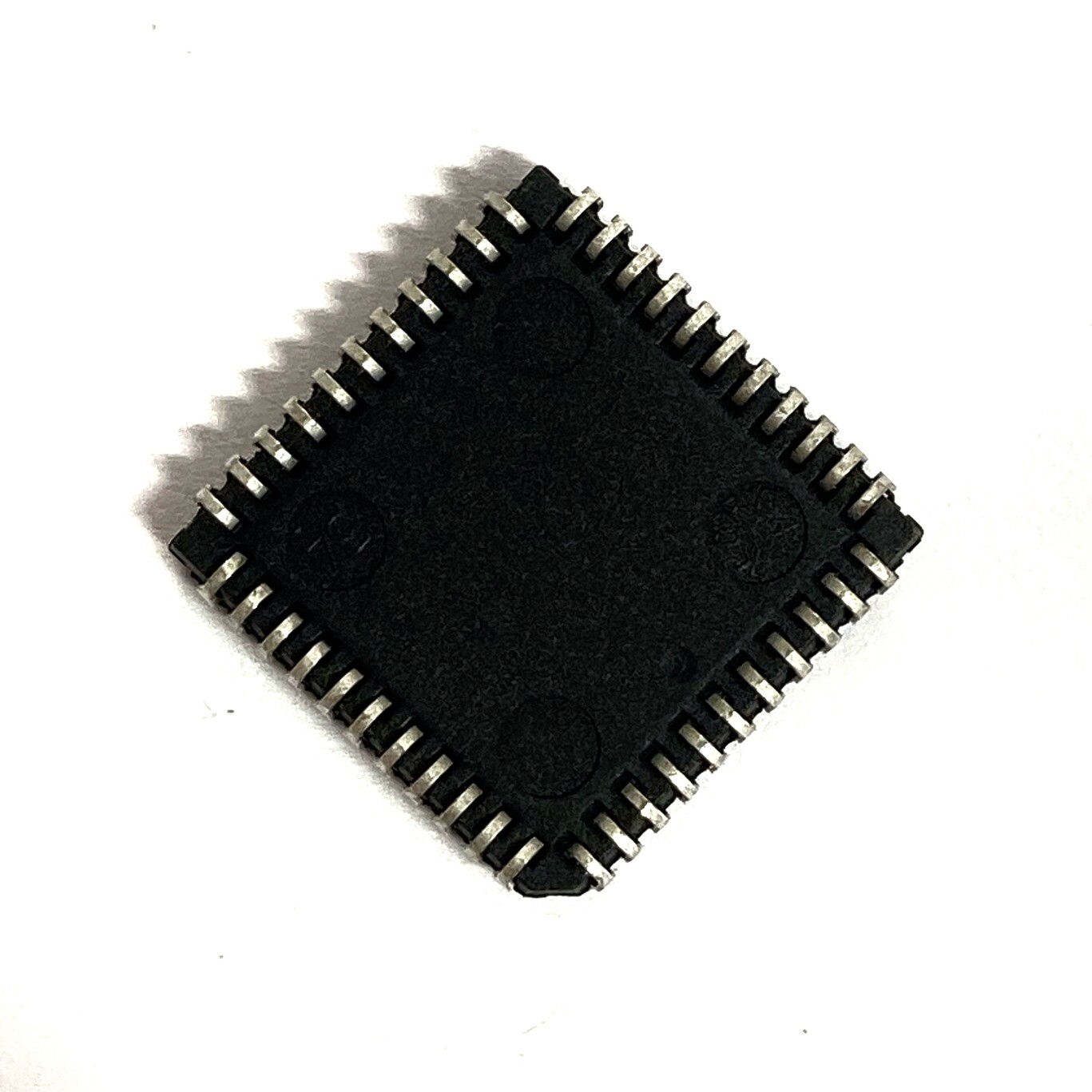

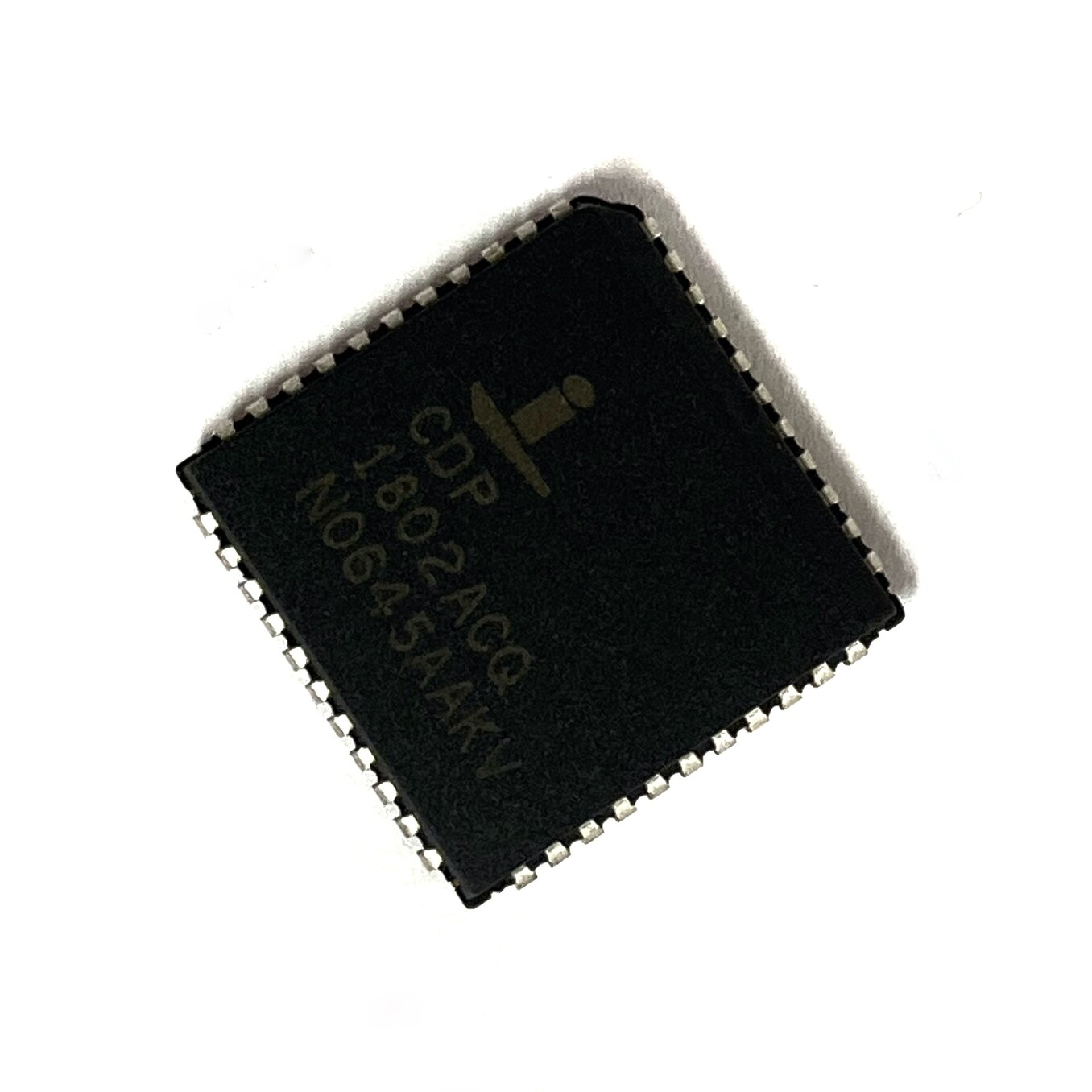

CDP1802ACQ
View detailed images (9)

CDP1802ACQ

SKU: CDP1802ACQ
CDP1802ACQ Integrated Circuit CASE: PLCC44 MAKE: Harris Semiconductor
Price:
£28.79 Inc. VAT (£23.99 Ex. VAT)
£28.79 Inc. VAT (£23.99 Ex. VAT)
Qty
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
CDP1802ACQ Datasheet
Product specifications
Type Integrated Circuit
Case PLCC44
Manufacturer Harris Semiconductor
Mem. Addr Rnge 64k
No. of I/O Lines 1
I/O Line Types Serial
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
Intrpt Types Extern Vec
No. of Intrpt (mask) 1
fClk Max. (Hz) 4.0M
No. of I/O Ports 1
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 44-142
Descript On-chip DMA
No. of Pins 44
Surface Mounted Yes/No YES
SKU 411604
