CHUMC4GP
View detailed images (5)

CHUMC4GP

SKU: CHUMC4GP
CHUMC4GP Transistor Silicon Pre-Biased-NPN - PNP CASE: SOT353 MAKE: Generic
Product specifications
Type Transistor Silicon Pre-Biased-NPN - PNP

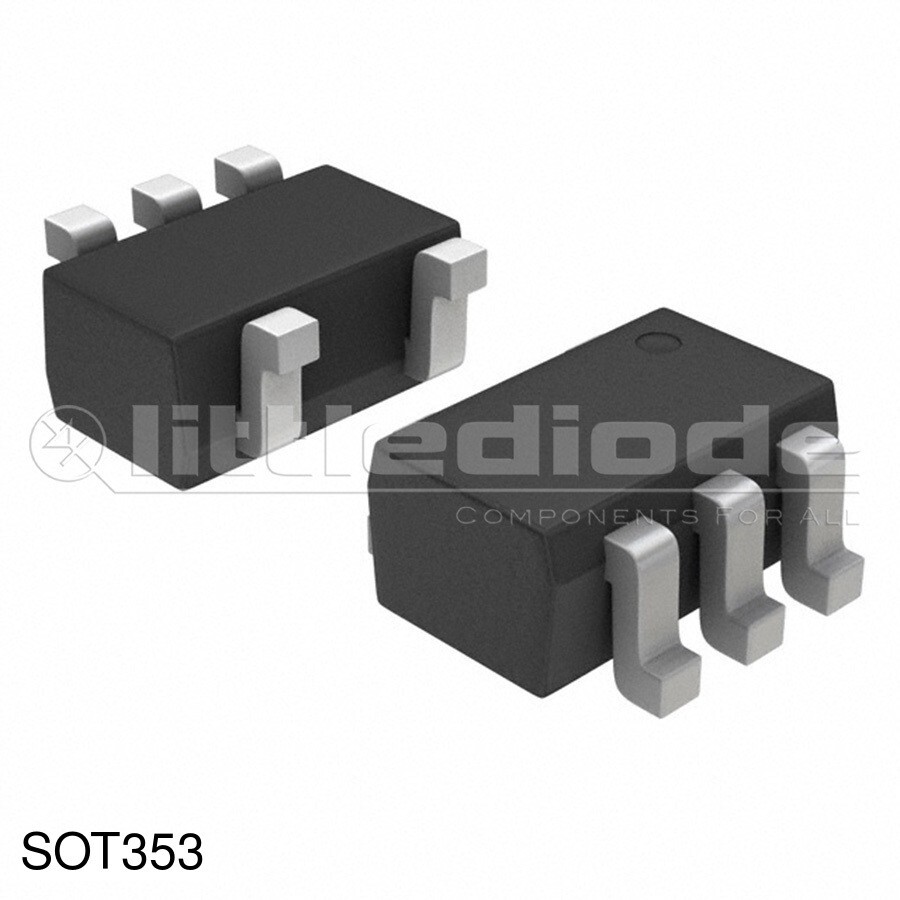

Case SOT353
Manufacturer Generic
Polarity Pre-Biased-NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 68
SMD Transistor Code UC4
Built in Bias Resistor R1 10 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 0.21
SKU 1427567
