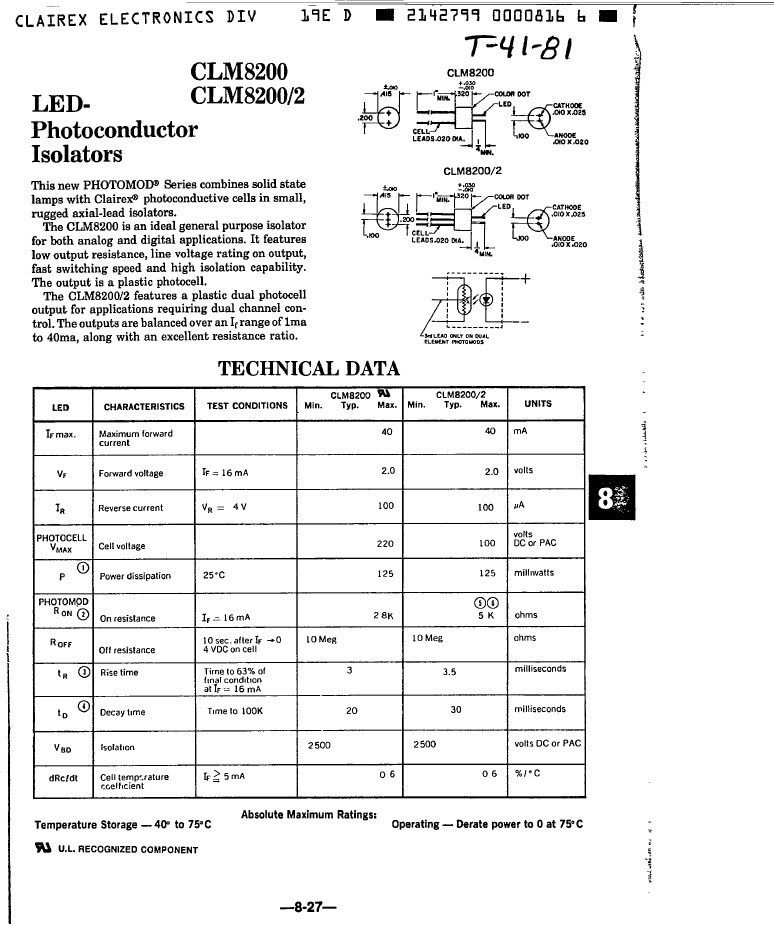

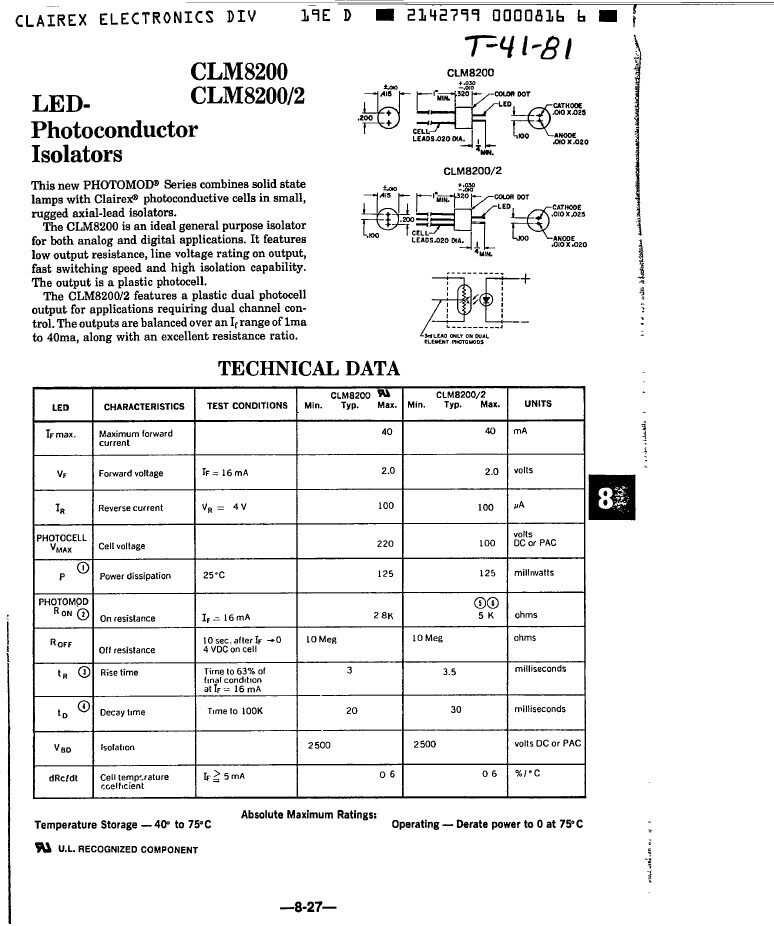

CLM8200-2

The CLM8200-2 is an LED photoconductor isolator. This new PHOTOMOD® Series combines solid state lamps with Clairex® photoconductive cells in small, rugged axial-lead isolators.

The CLM8200 is an ideal general purpose isolator for both analog and digital applications. It features low output resistance, line voltage rating on output, fast switching speed and high isolation capability. The output is a plastic photocell.

The CLM8200/2 features a plastic dual photocell output for applications requiring dual channel control. The outputs are balanced over an I range of 1ma to 40ma, along with an excellent resistance ratio.
