CM05
View detailed images (12)

CM05

SKU: CM05

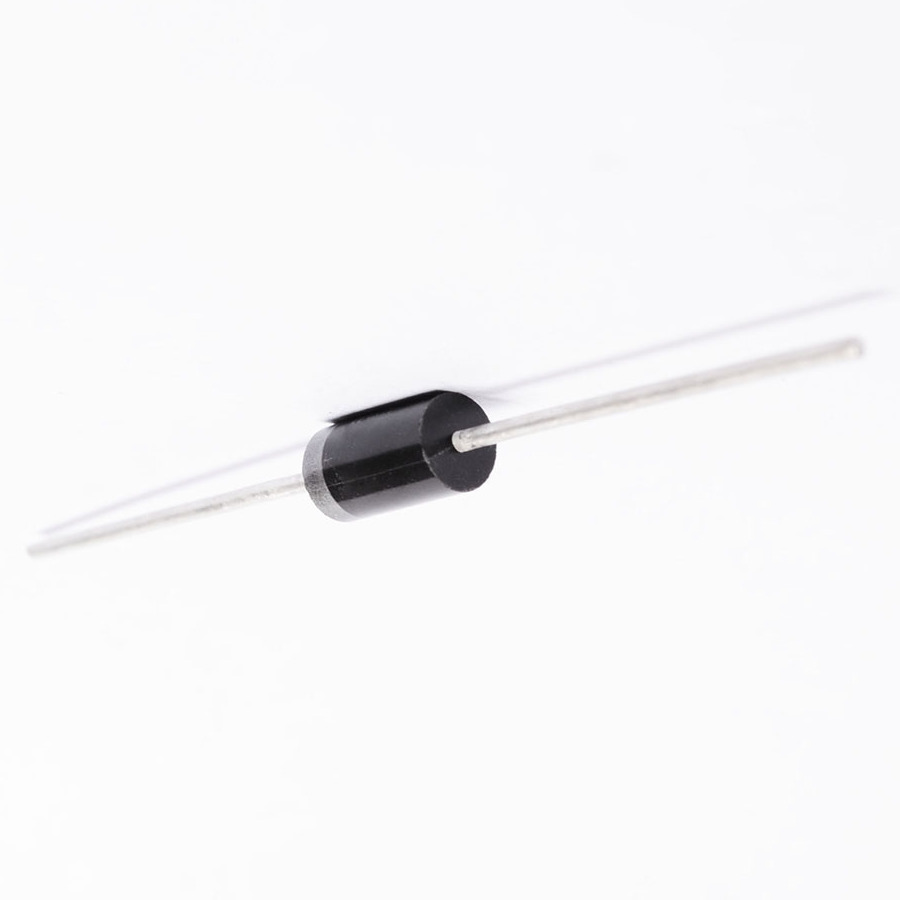

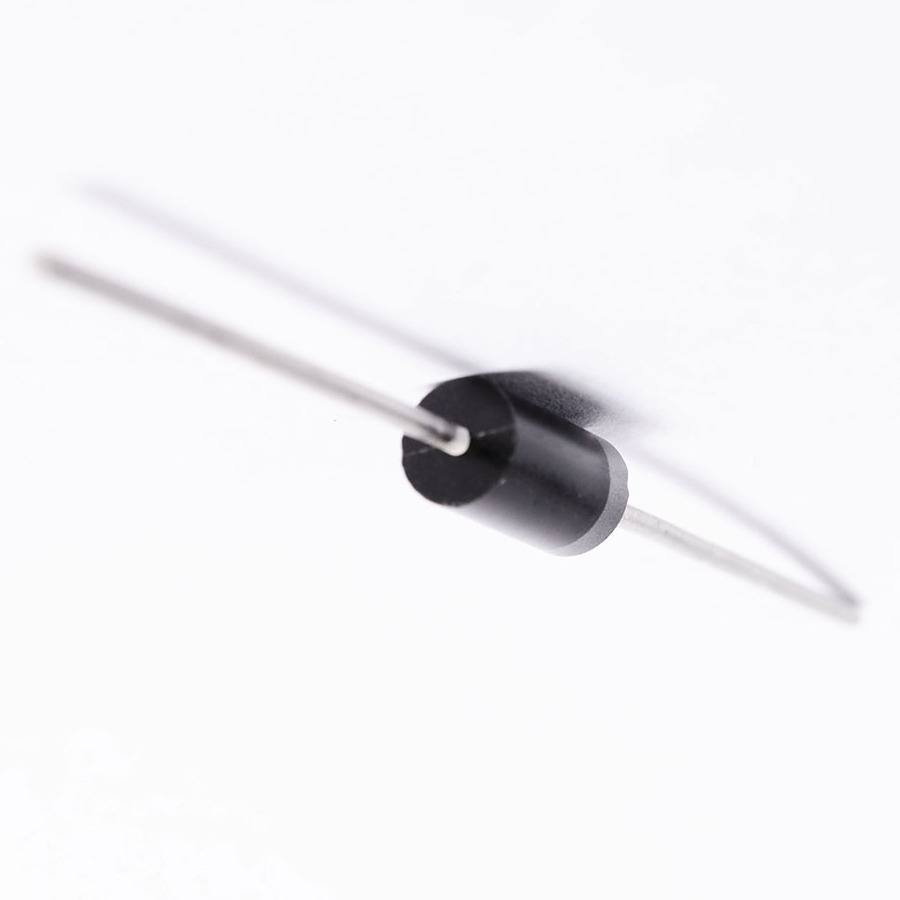

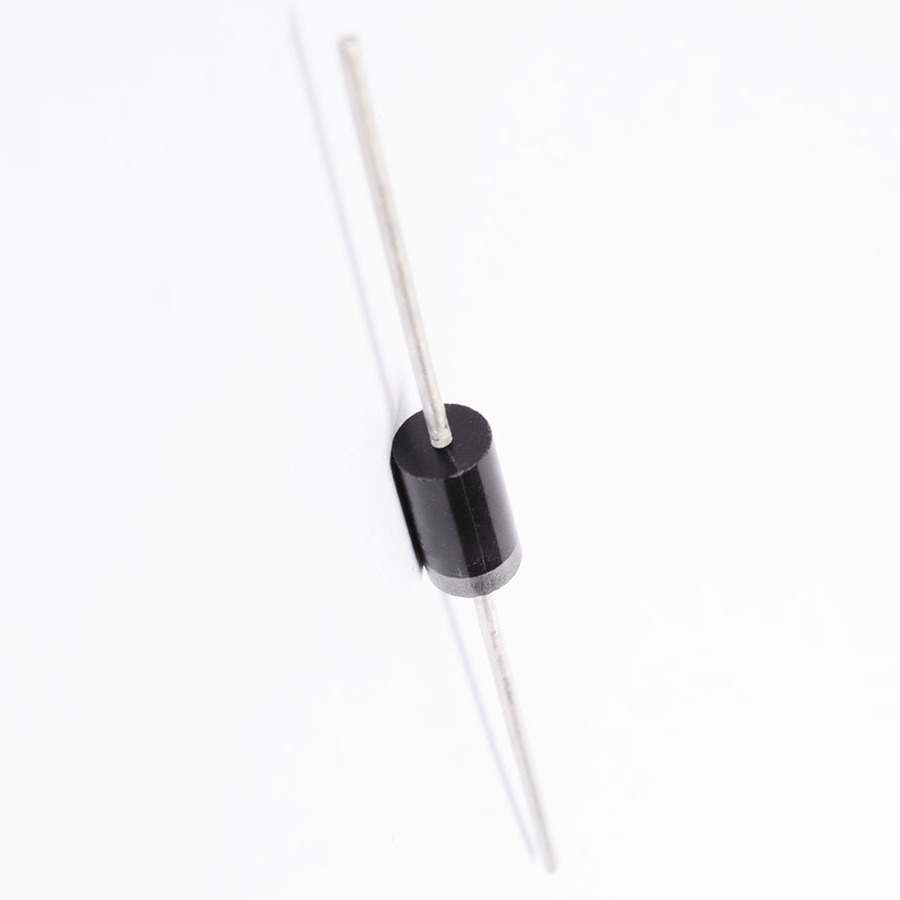

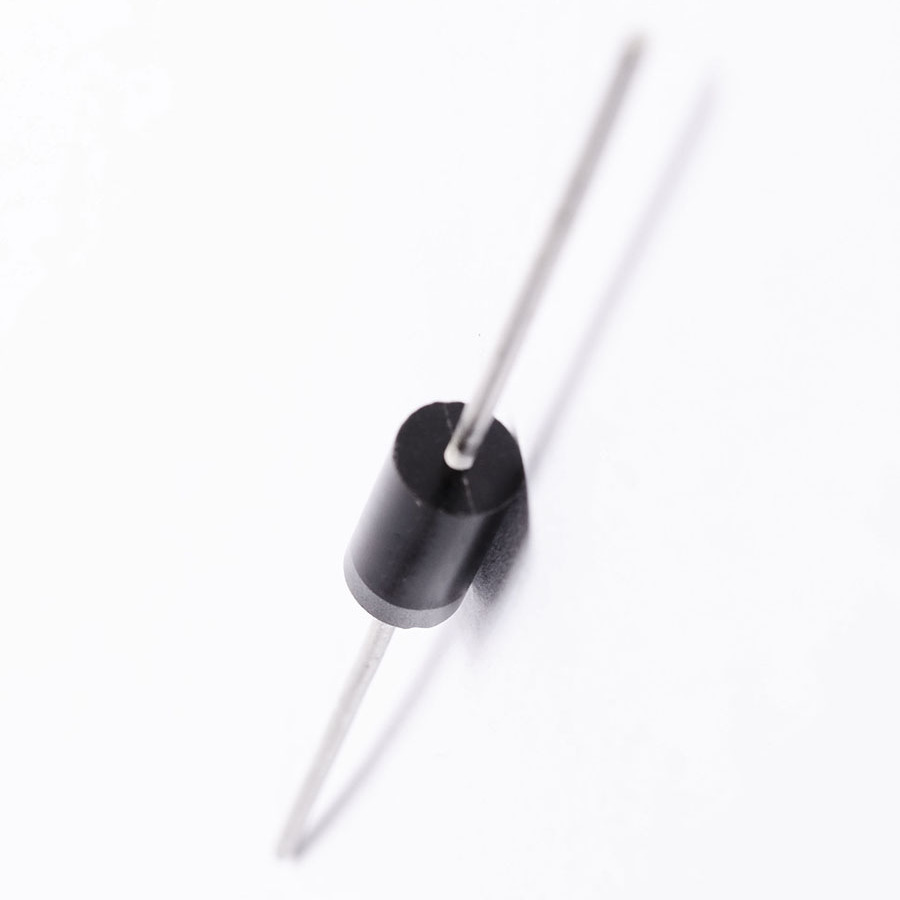

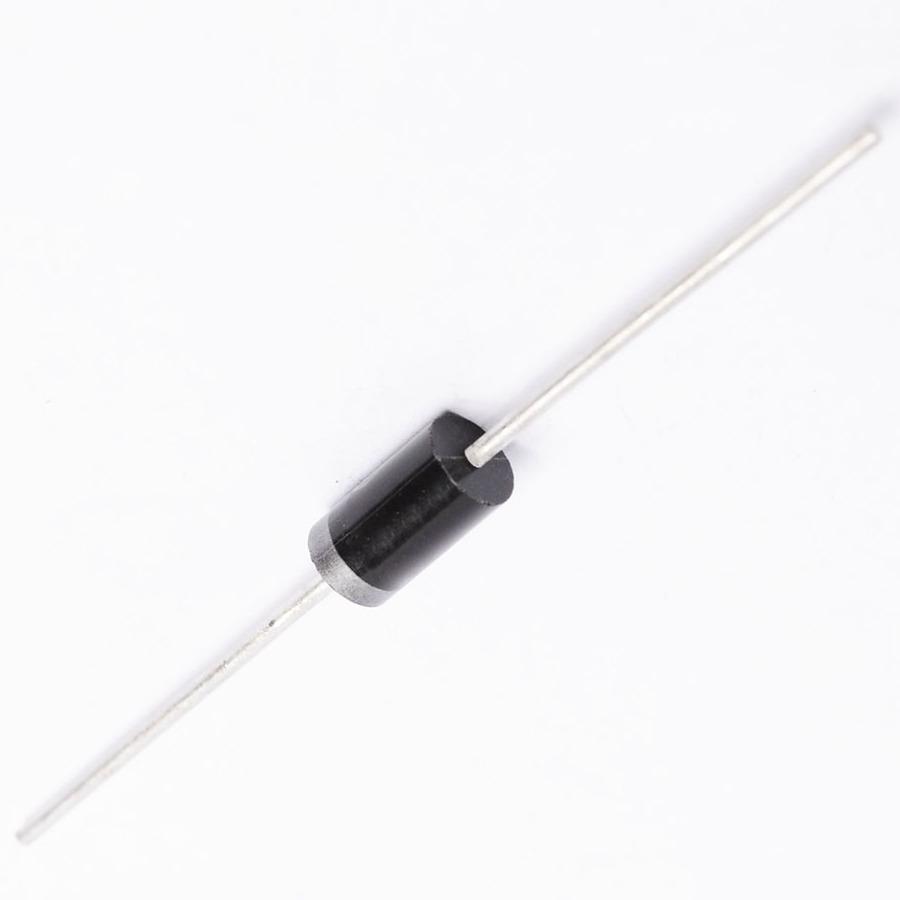

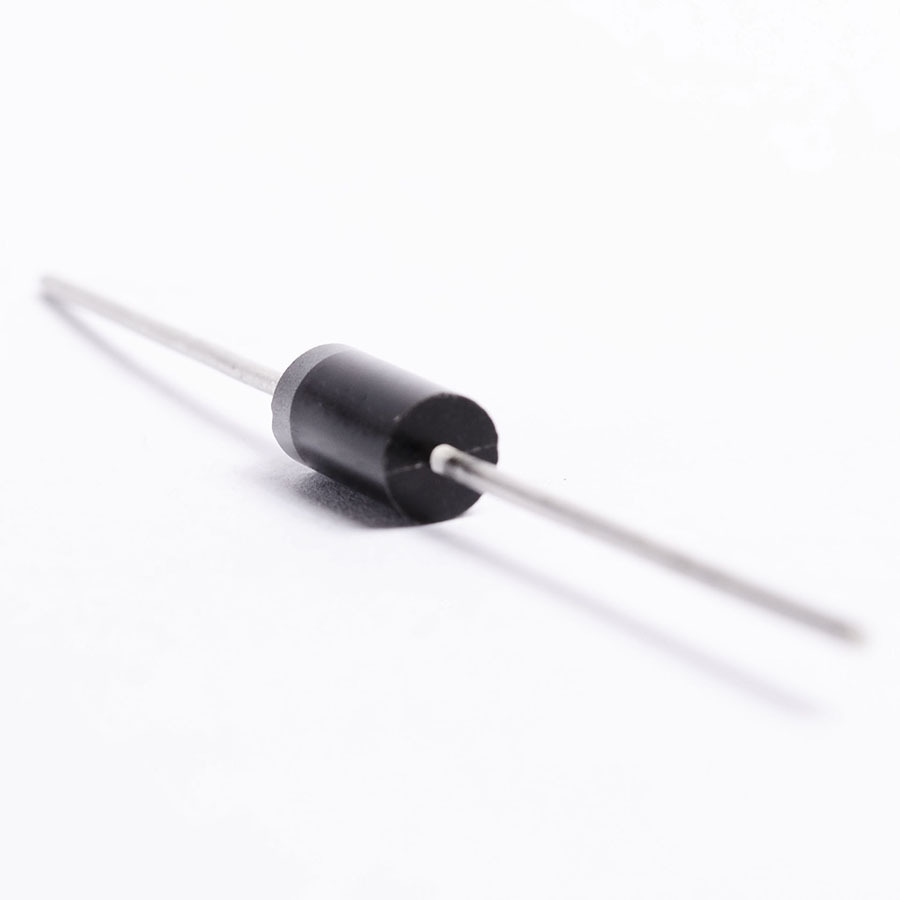

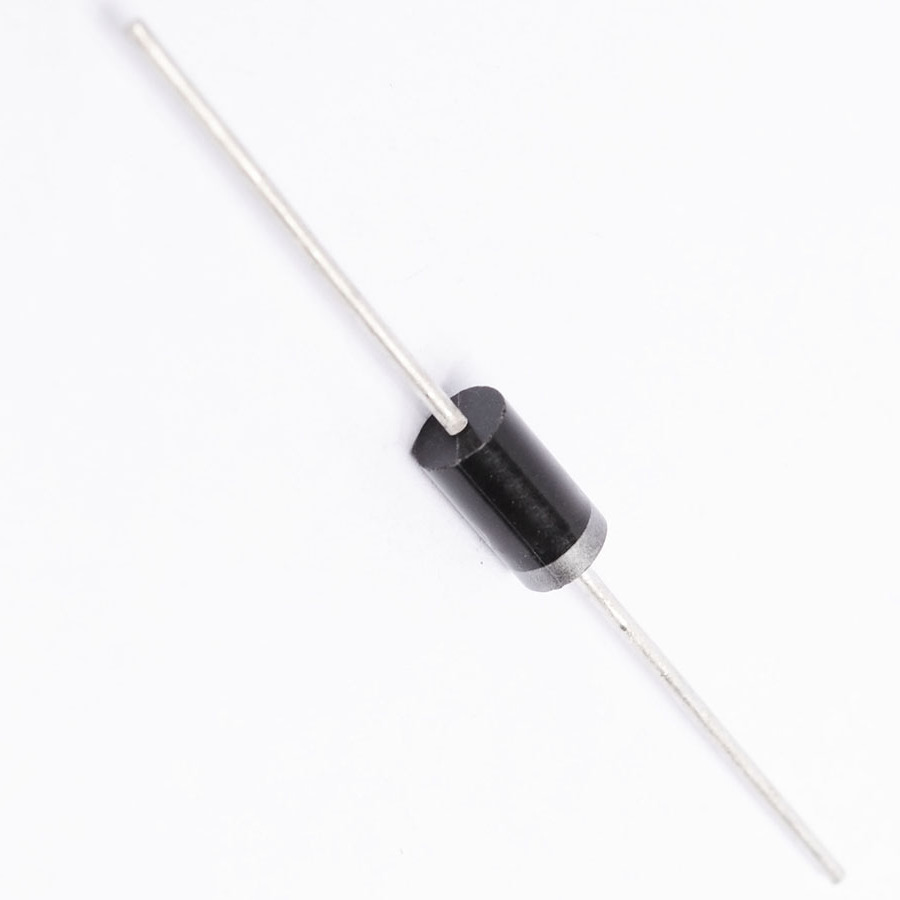

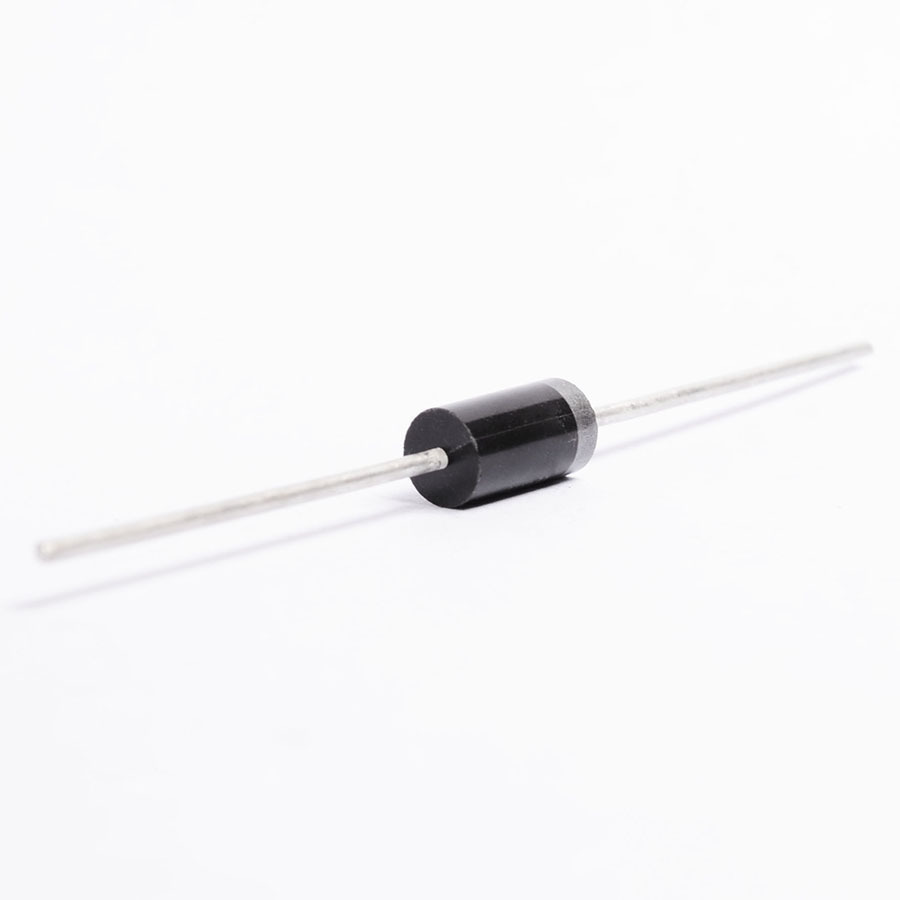

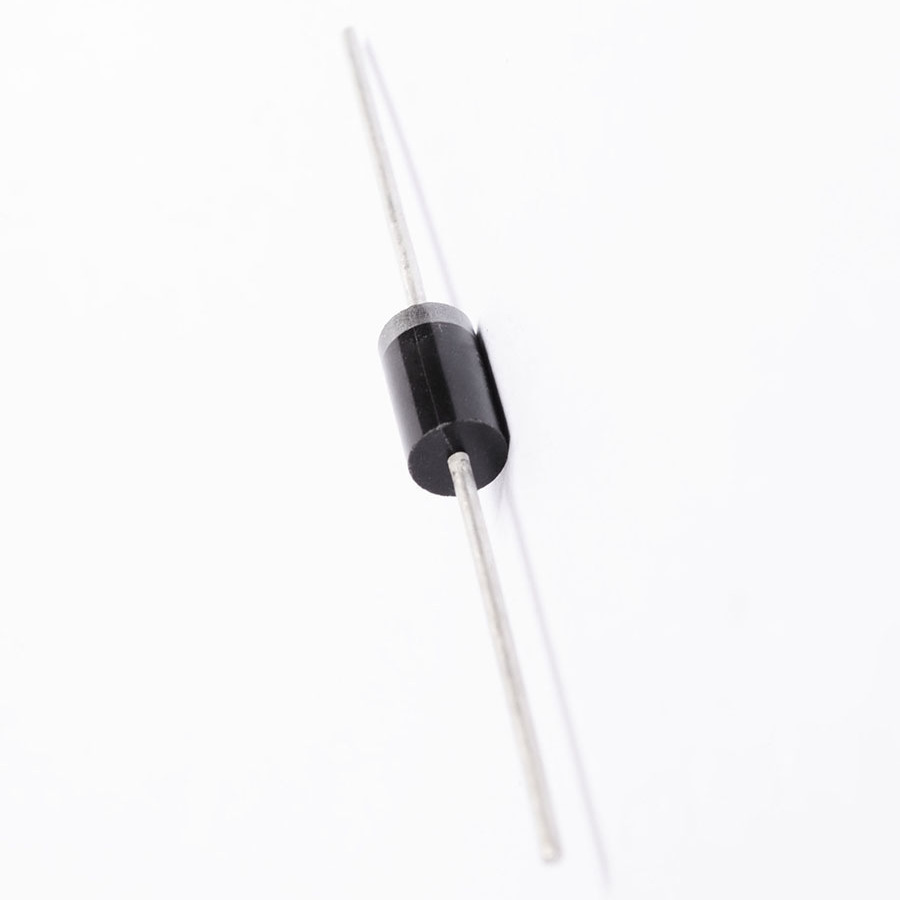

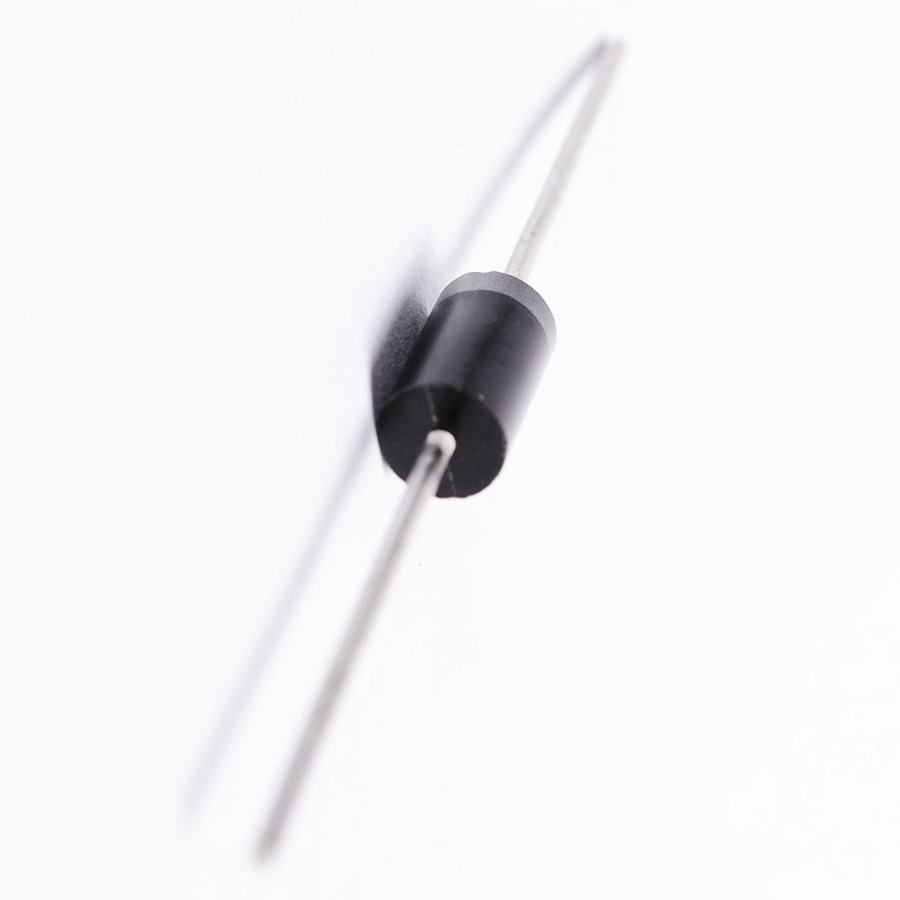

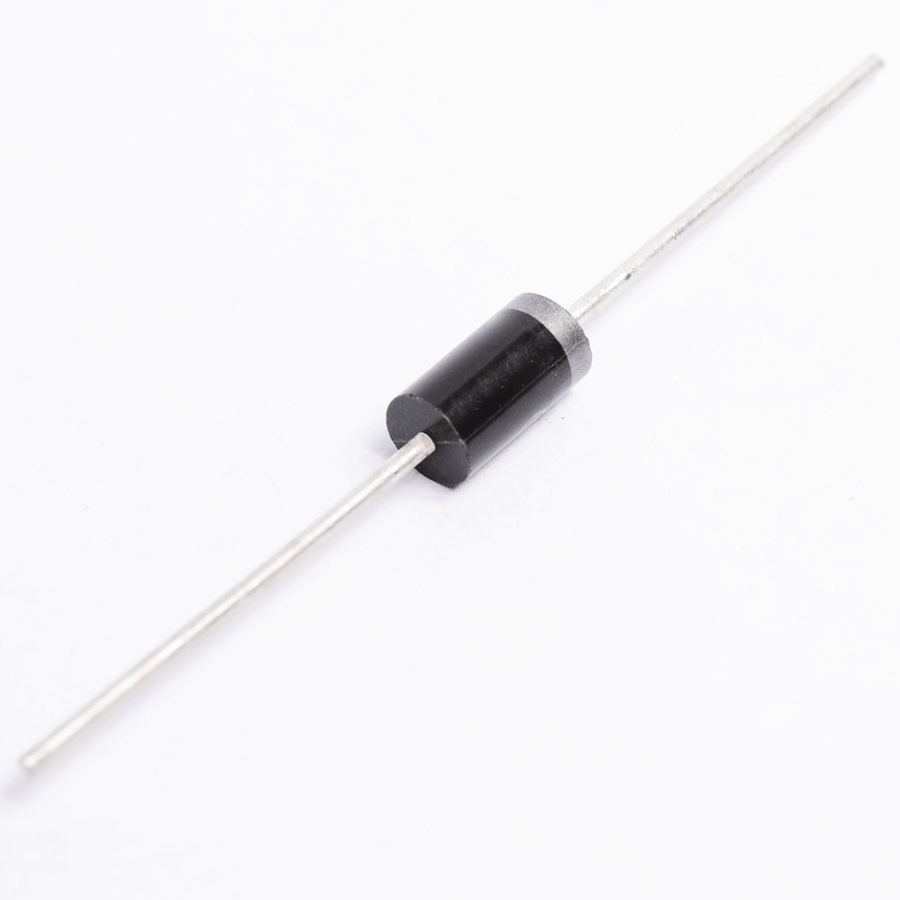

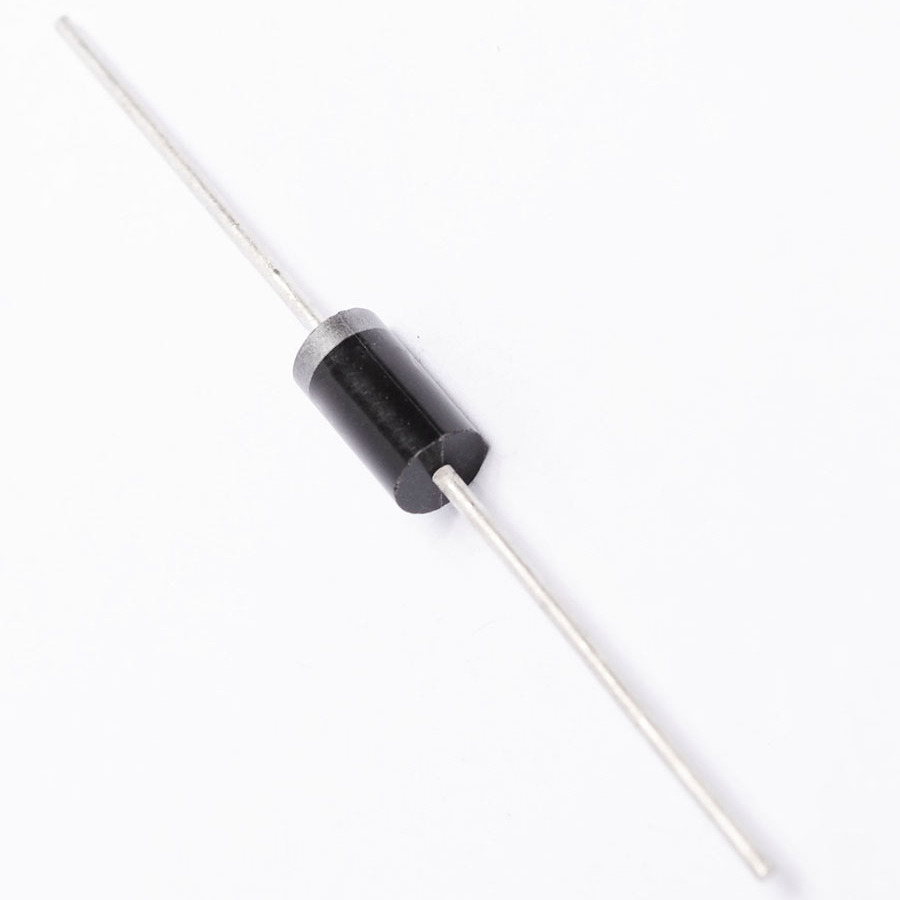

CM05 SemiConductor CASE: DO27 MAKE: Yageo
Product specifications
Type SemiConductor
Case DO27
Manufacturer Yageo
Vbr DSS 200
Ckts Per Dev. 4
Max. PD (W) 125
Id Max. (A) 18
Idss Max. (A) 250u
Igss Max. (A) 100n
@Temp. (test) (°C) 50
Ir @ Diff. Temp (A) 200u
VRRM 50
R(ds) On (Û) 180m
1-Cycle Surge Current (A) 50
@Temp (test) (°C) 100
@Temp. (test) for Vf) 50
Therm Res. (J-C) 1.0
Vf Max. 1.1
Ir @25°C 5.0u
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 60
@If (test) 1.0
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 12-5
Surface Mounted Yes/No NO
SKU 727529
