Home / Integrated Circuit / COP8781CWM
COP8781CWM

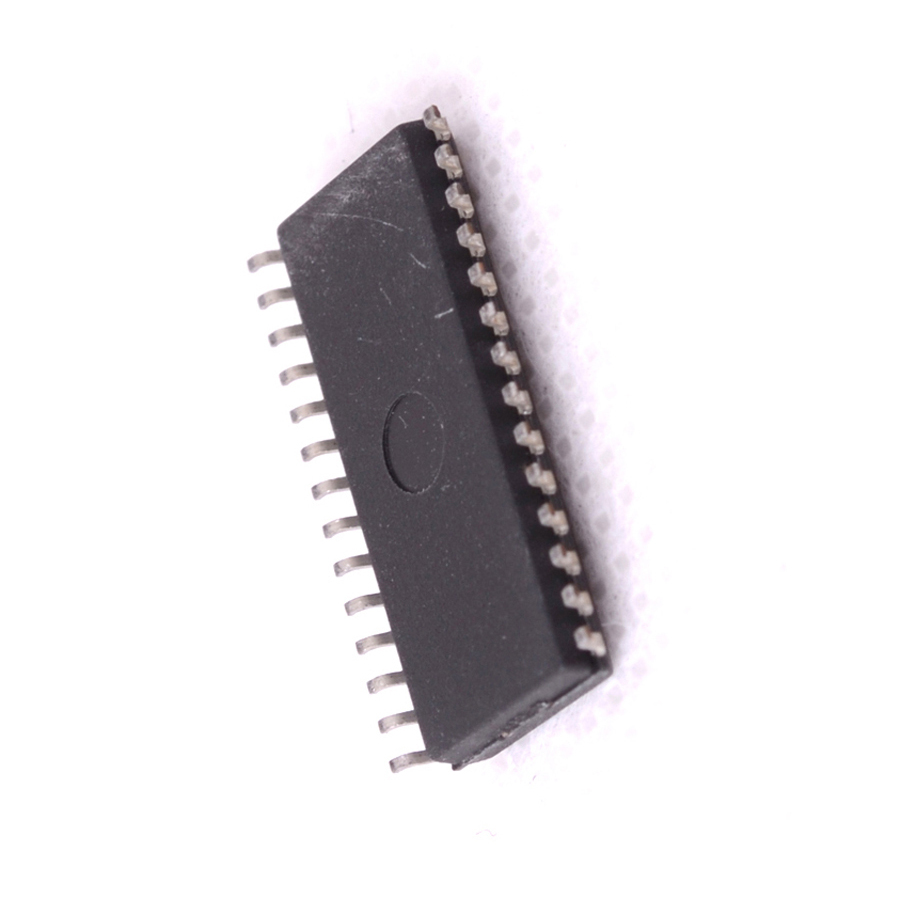

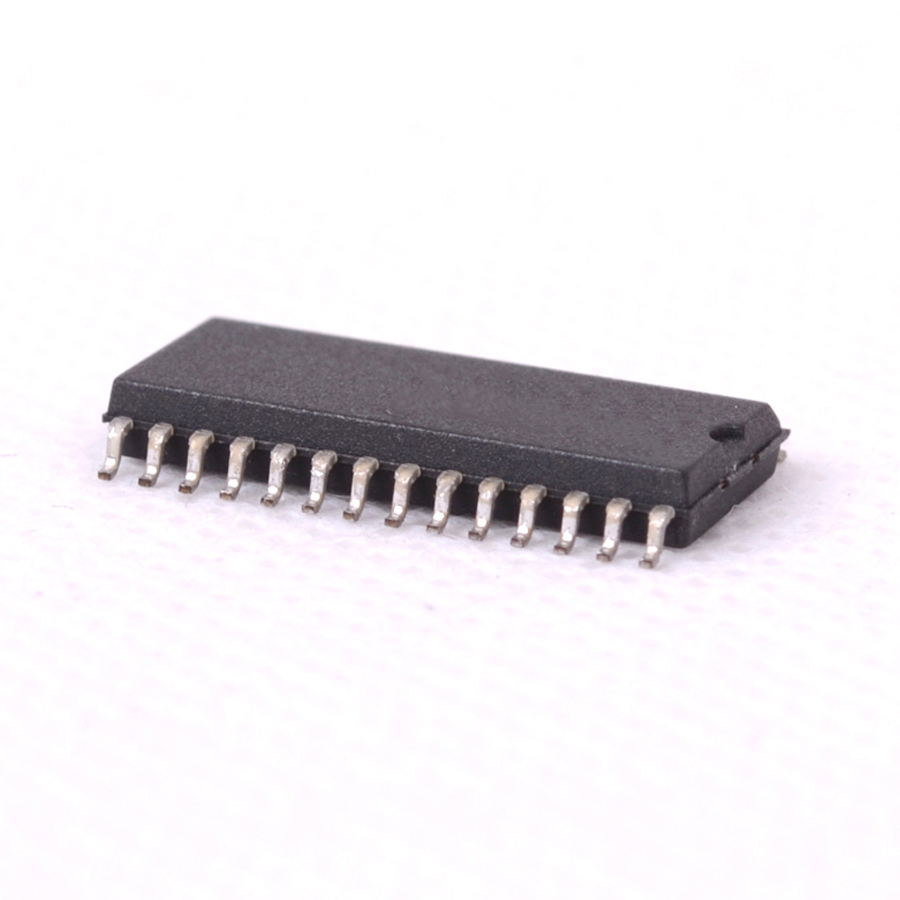

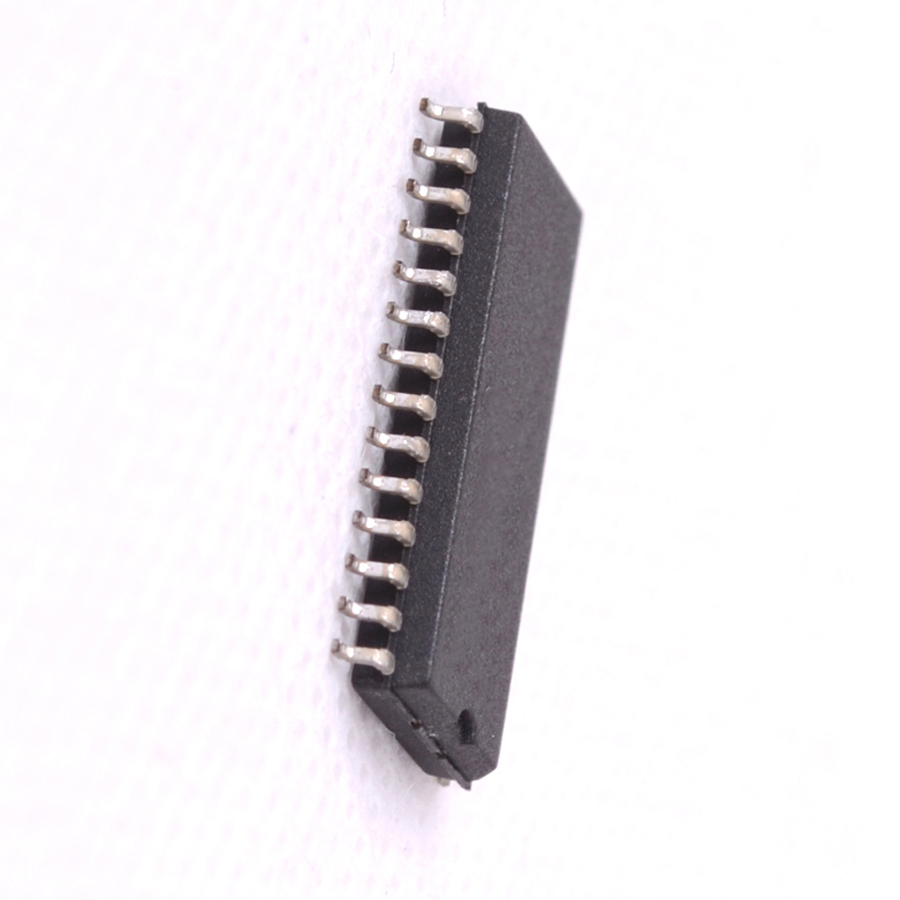

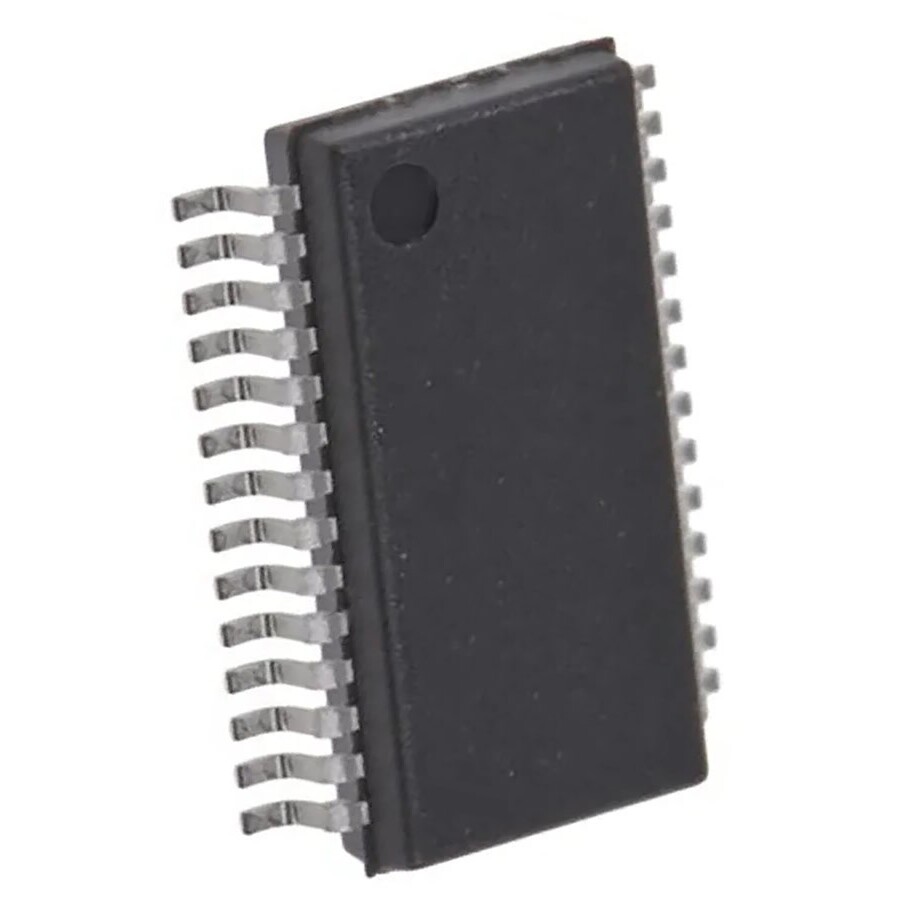

View detailed images (12)

COP8781CWM

SKU: COP8781CWM

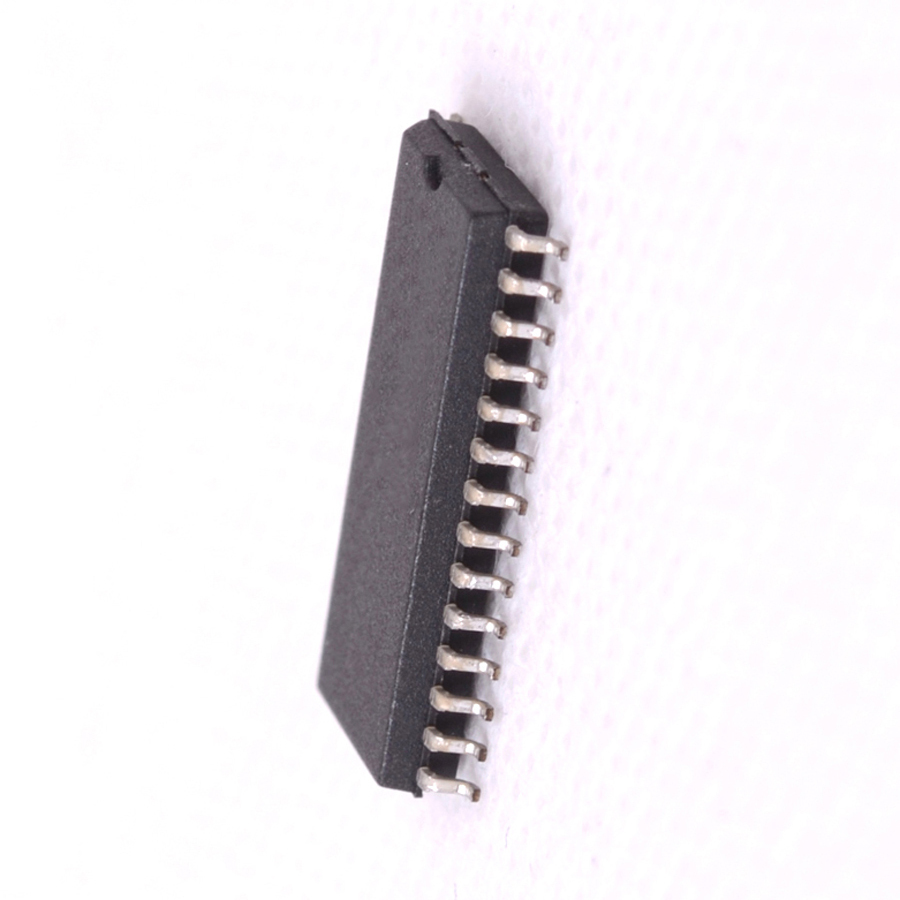

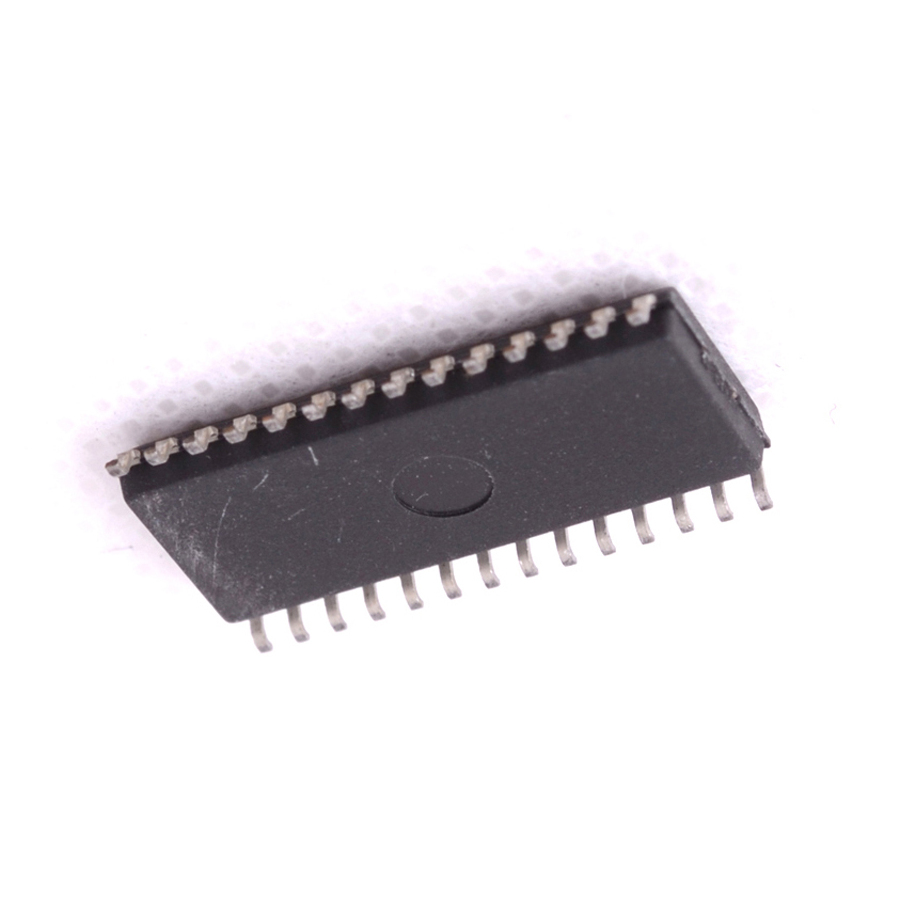

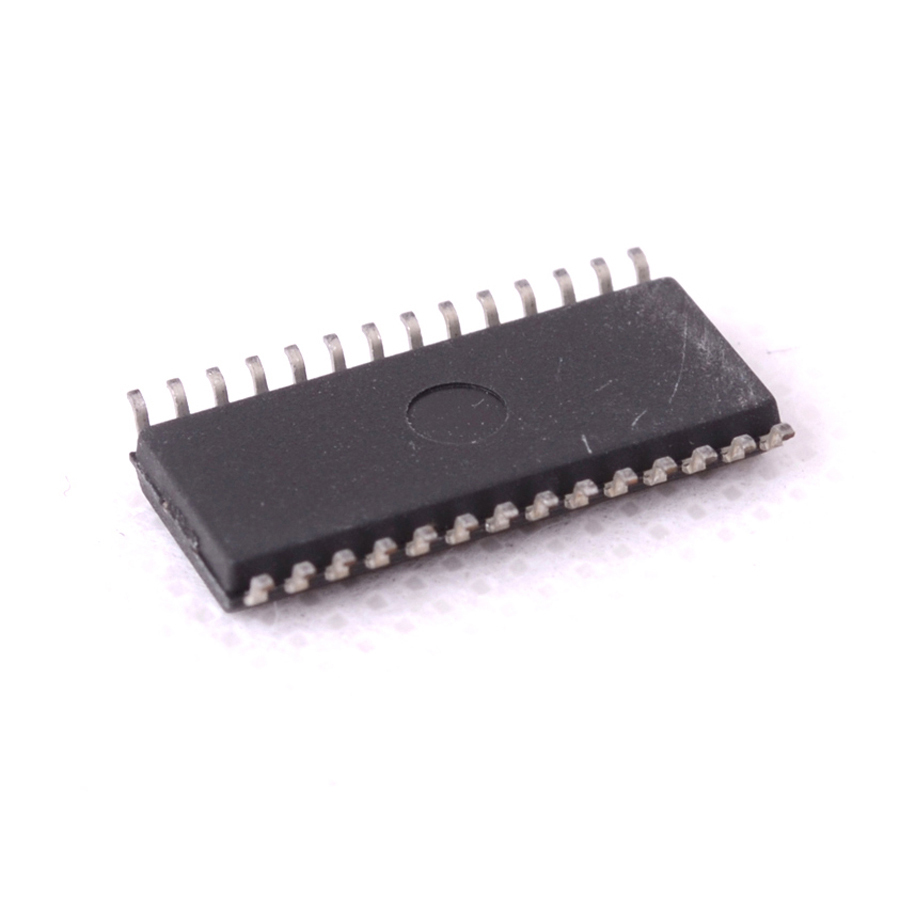

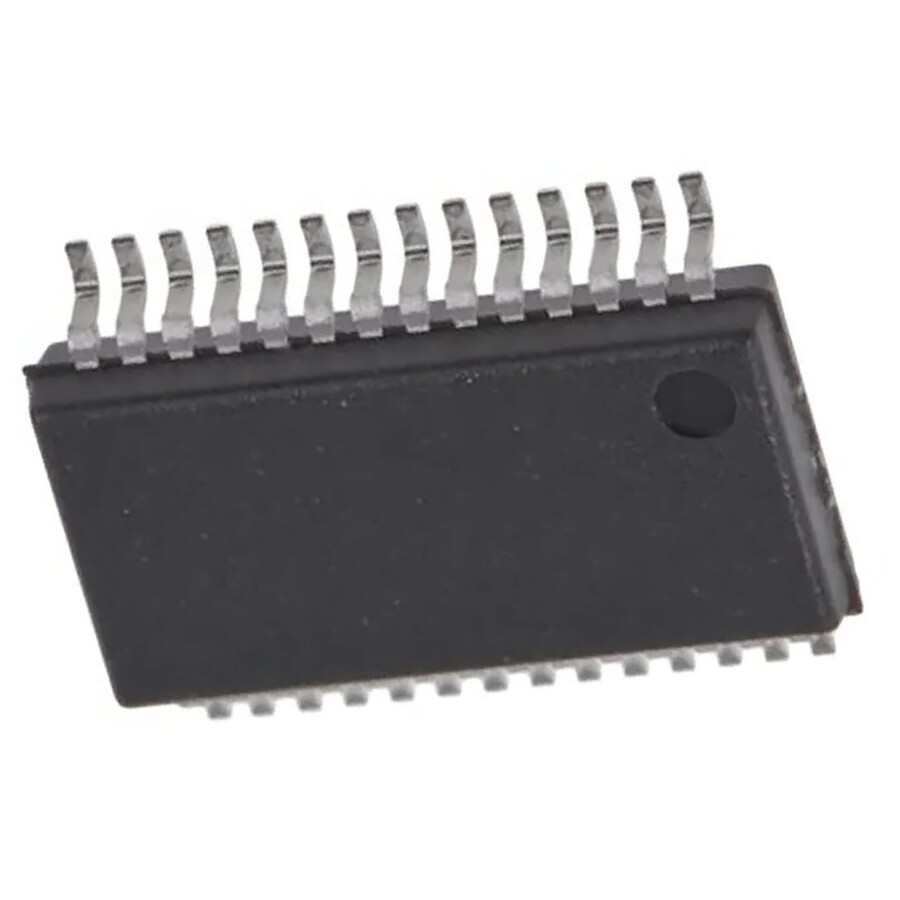

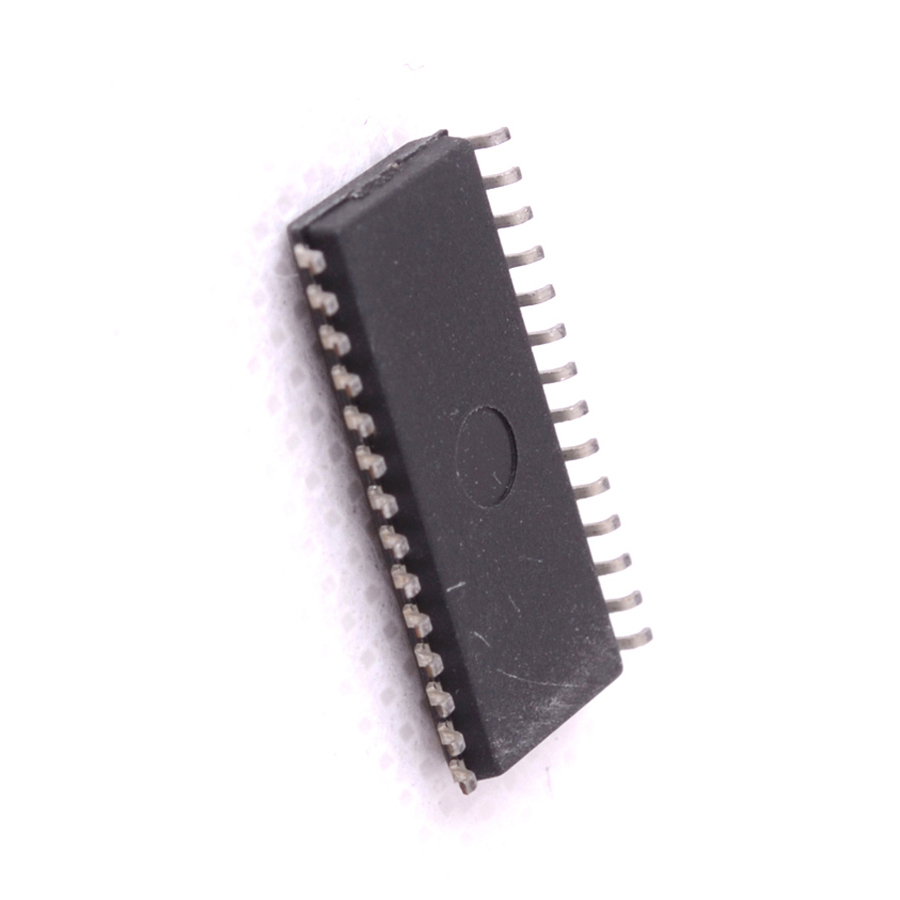

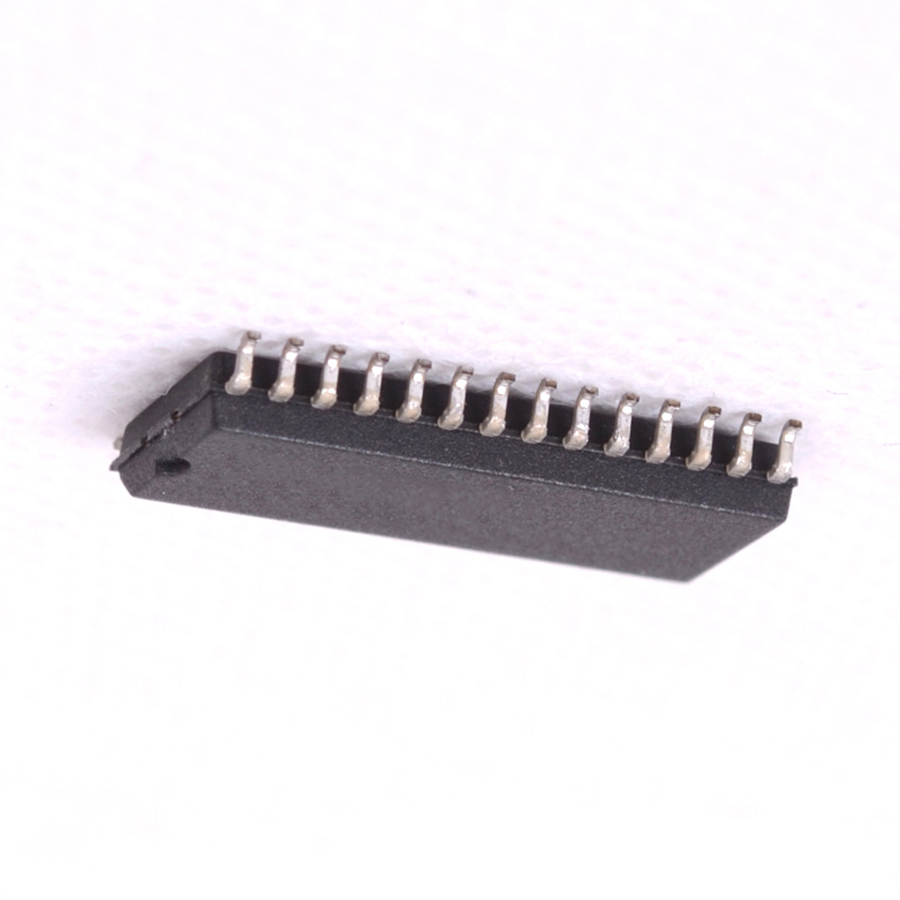

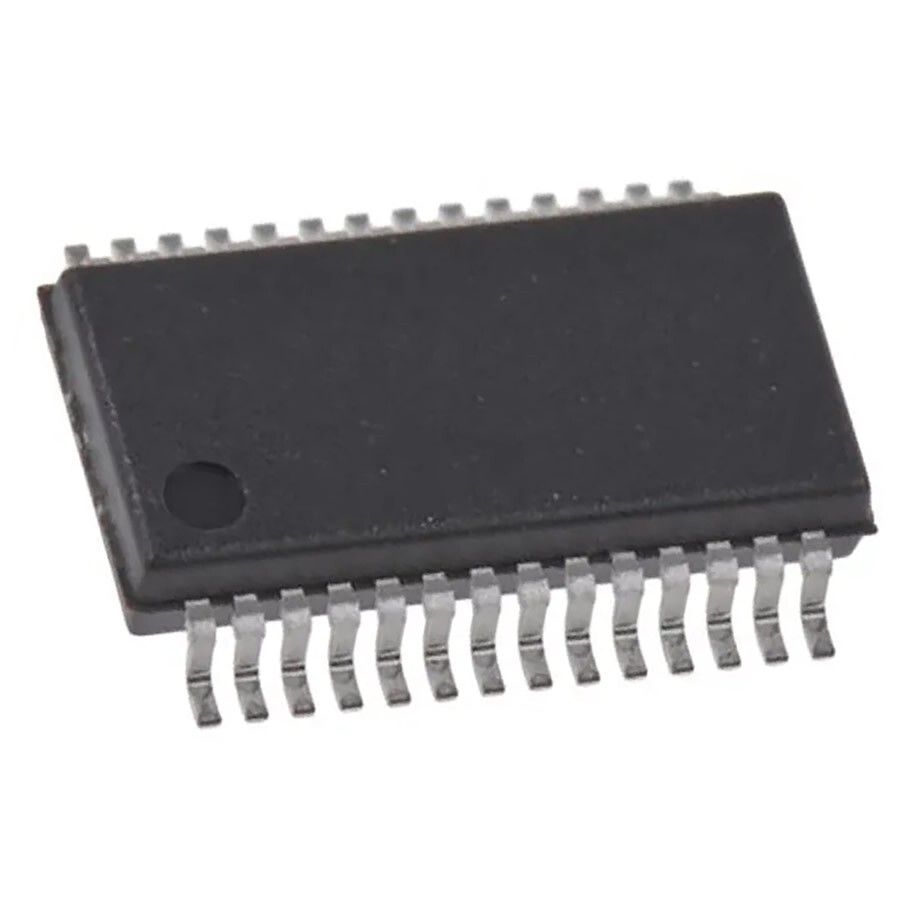

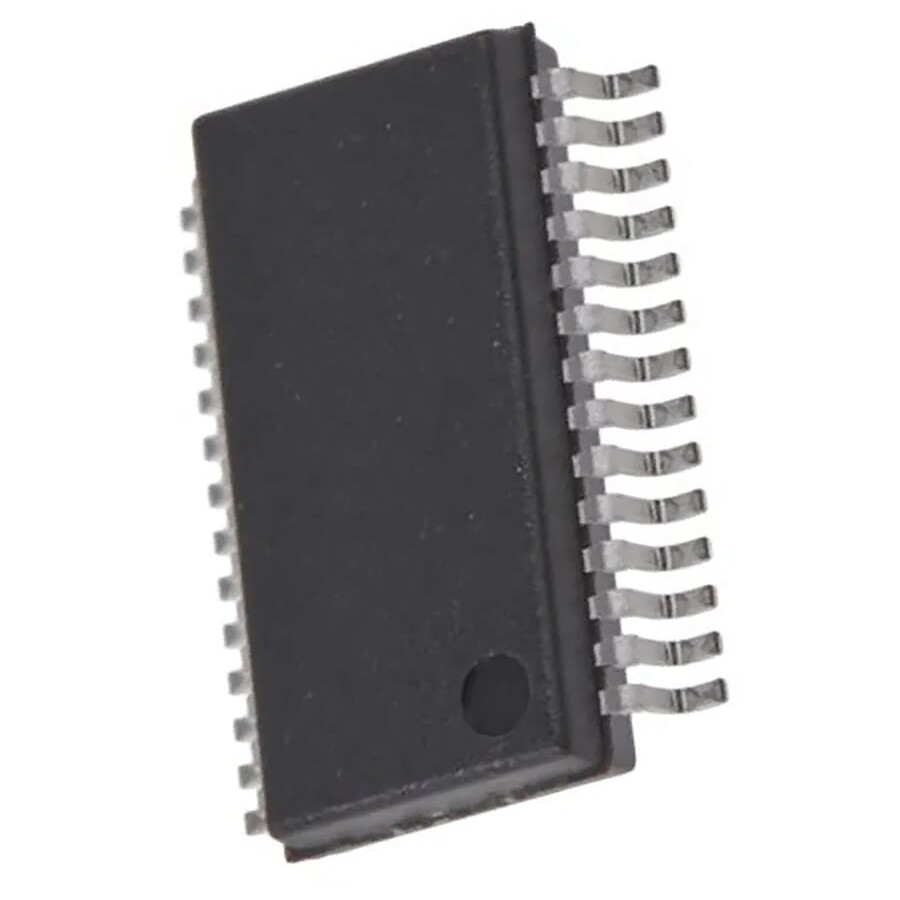

COP8781CWM Integrated Circuit CASE: SOP28 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case SOP28
Manufacturer National Semiconductor - NSC
No.of Addr. Modes 5
No. of I/O Lines 24
I/O Line Types Byte
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
No. of Intrpt (NMI) 1
Intrpt Types Maskab/Non
No. of Intrpt (mask) 2
fClk Max. (Hz) 10M
No. of I/O Ports 4
On-Chip ROM (bytes) 4k
Nom. Supp Volt 5
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 128
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 28-622
Descript OTP;Emulates COP881C,840C and 820C
No. of Pins 28
Surface Mounted Yes/No YES
SKU 157010
