CS298

CS298

SKU: CS298

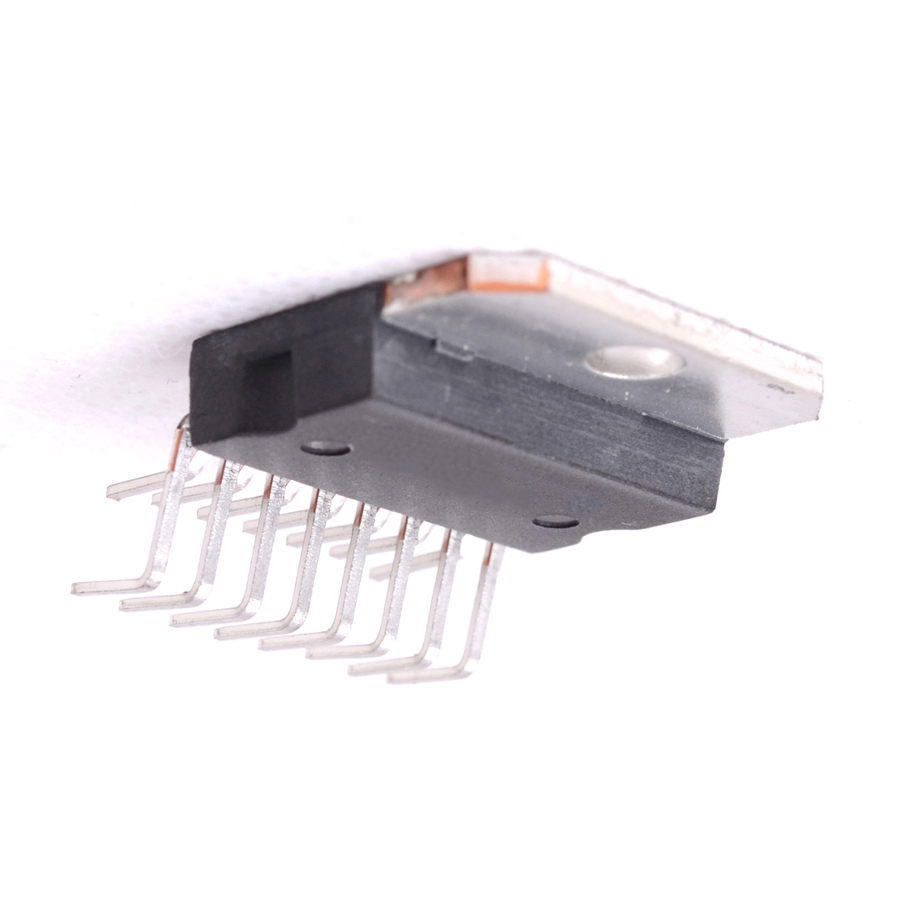

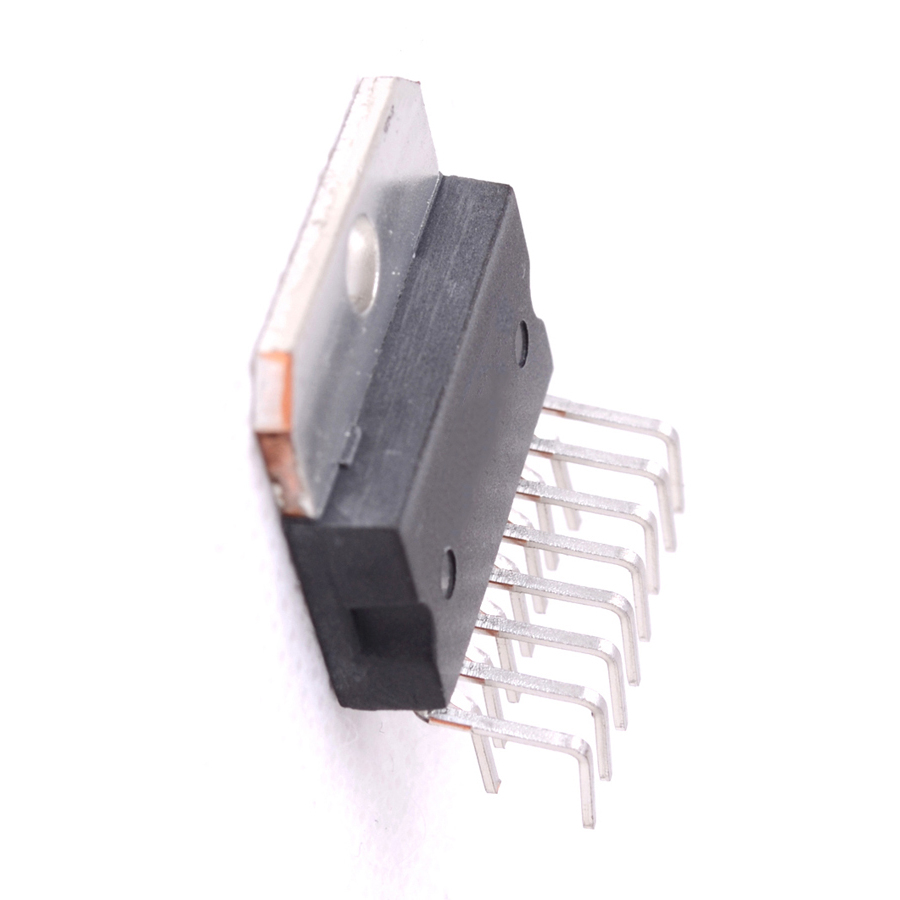

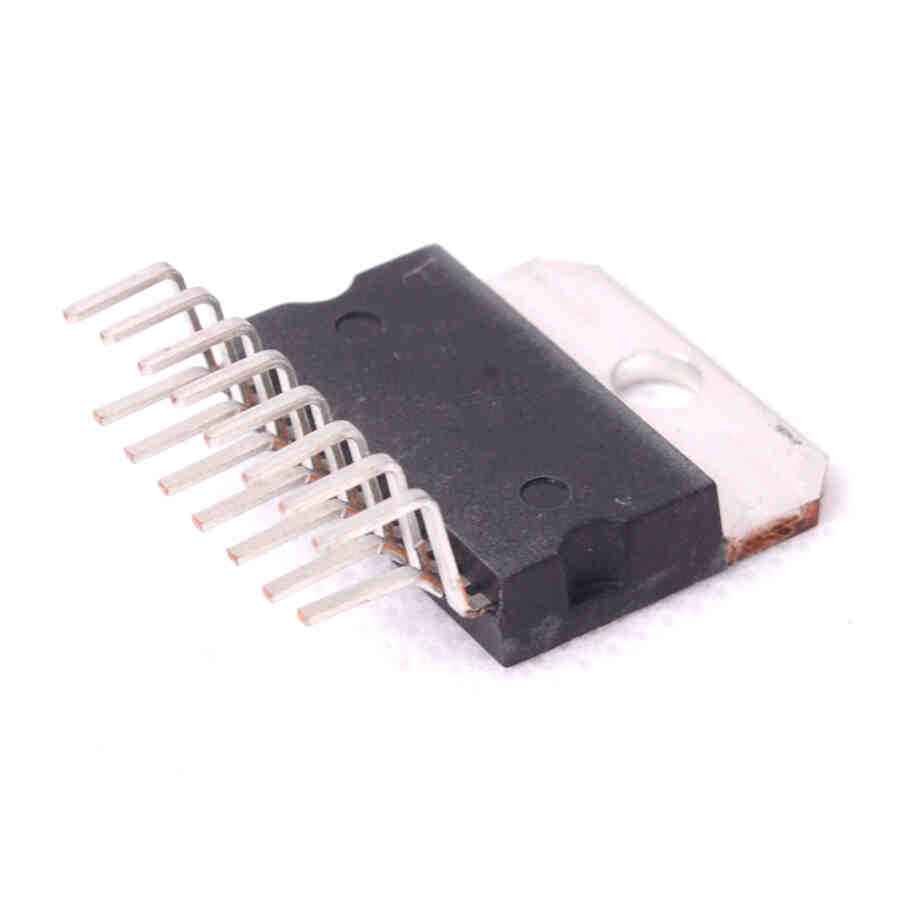

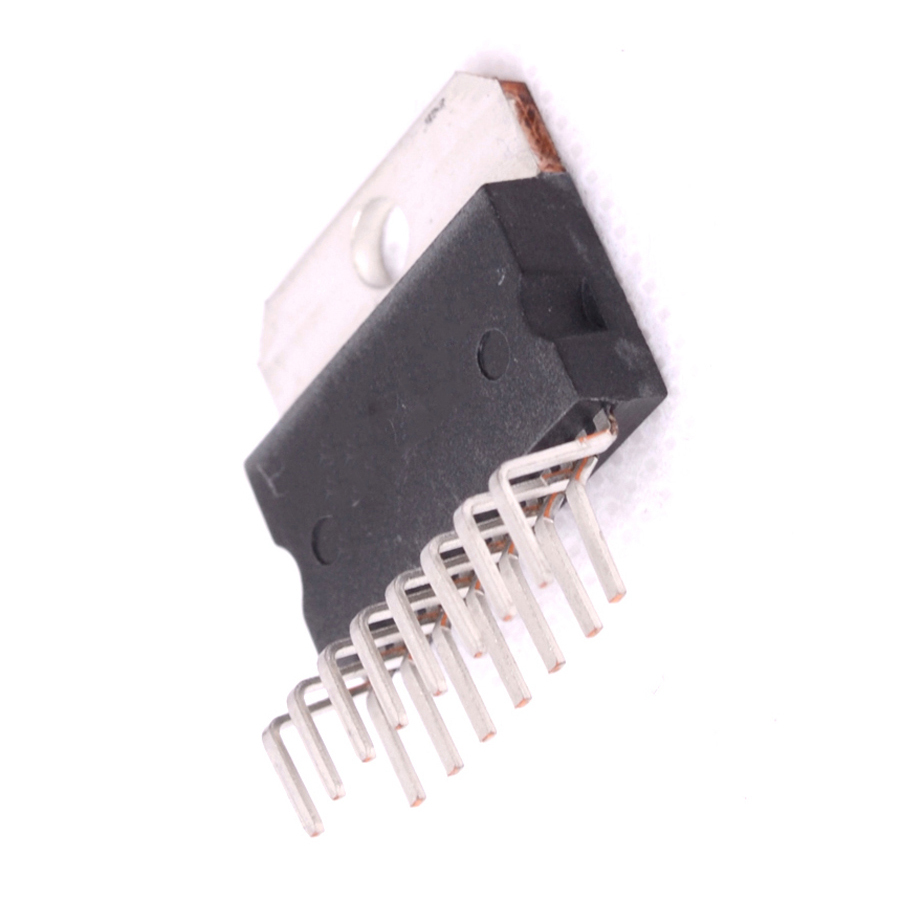

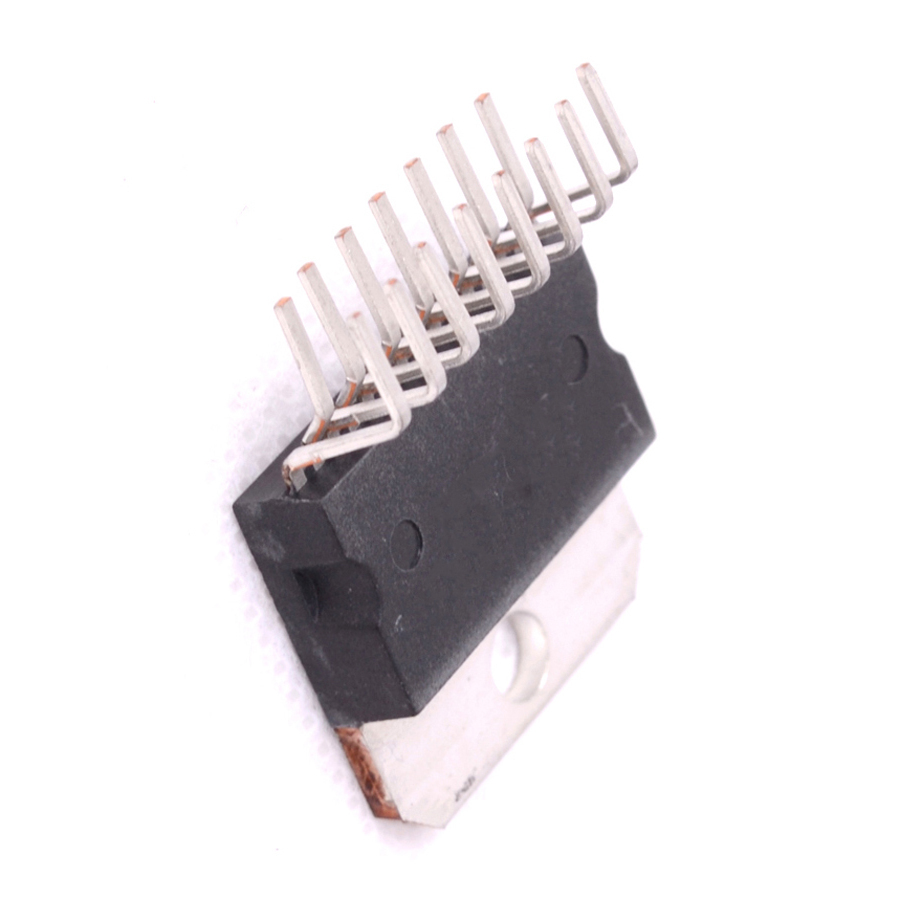

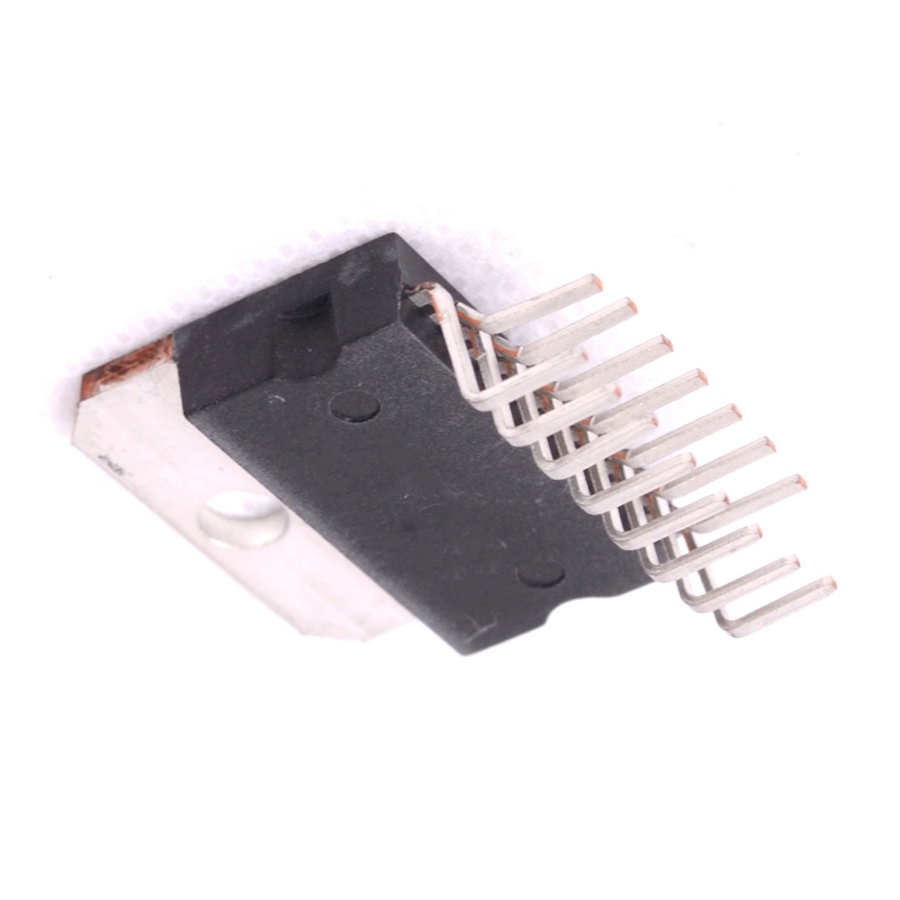

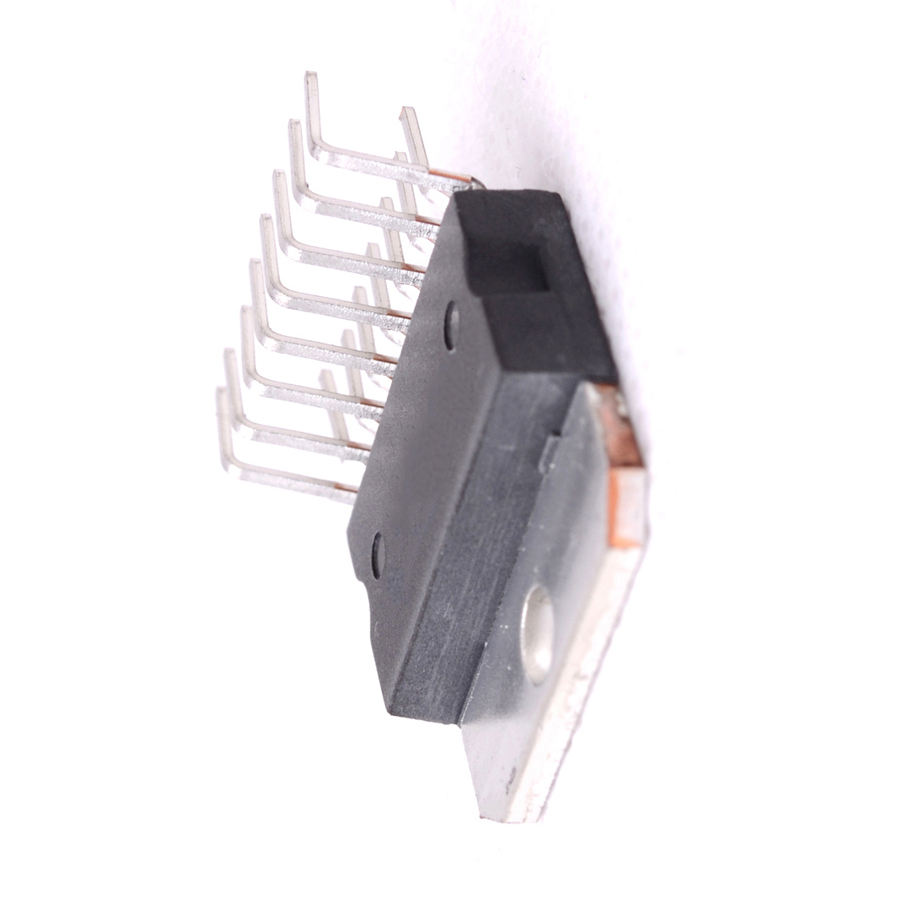

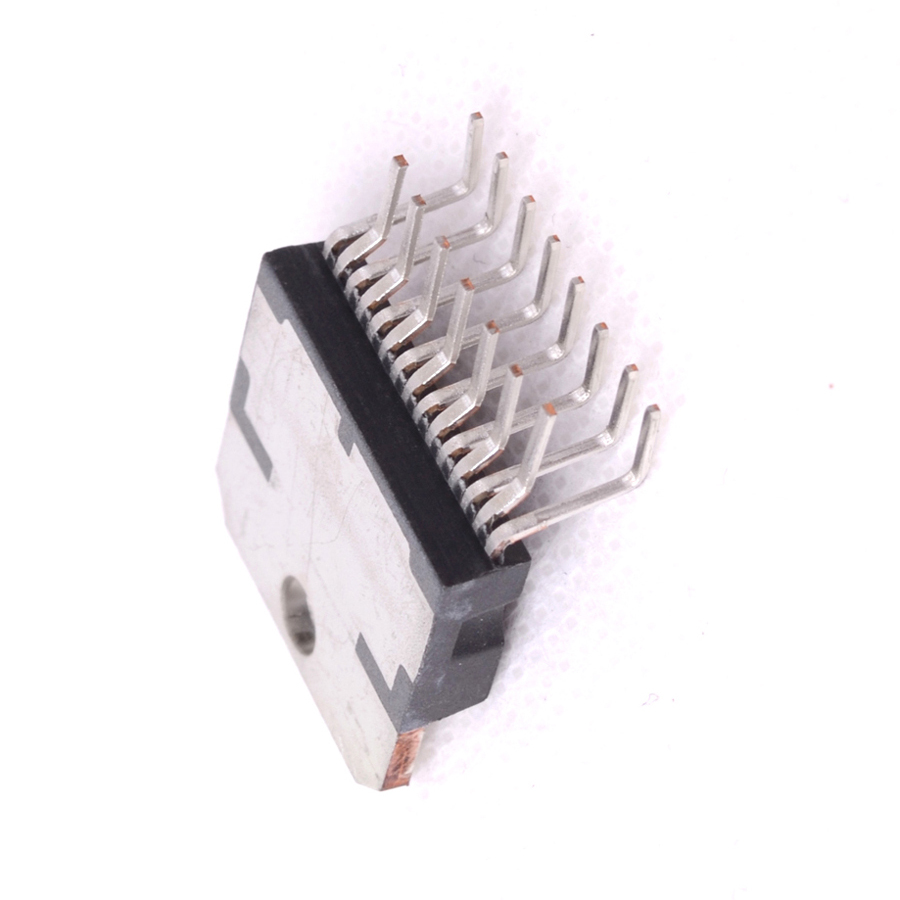

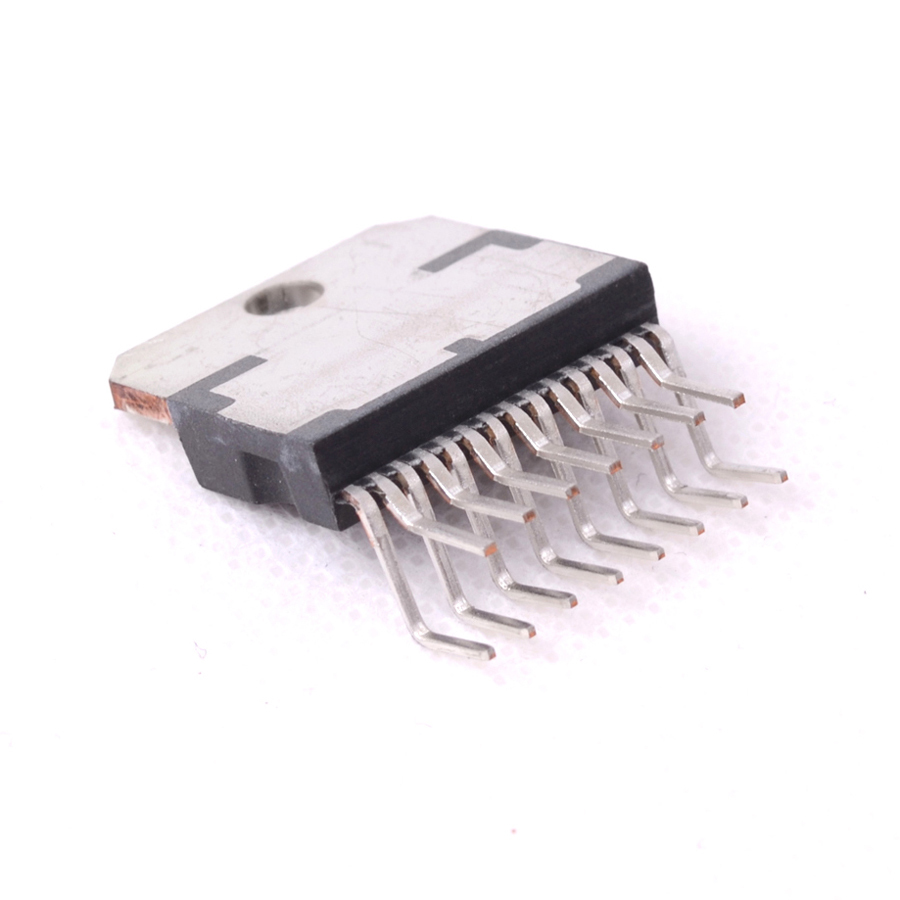

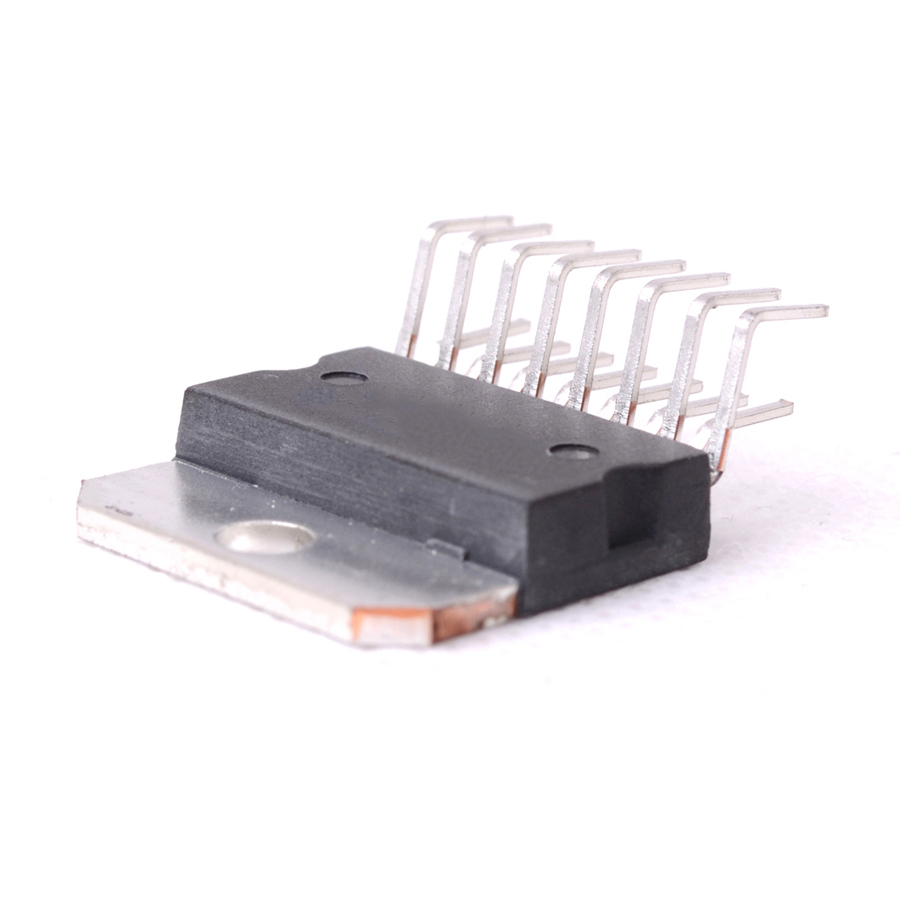

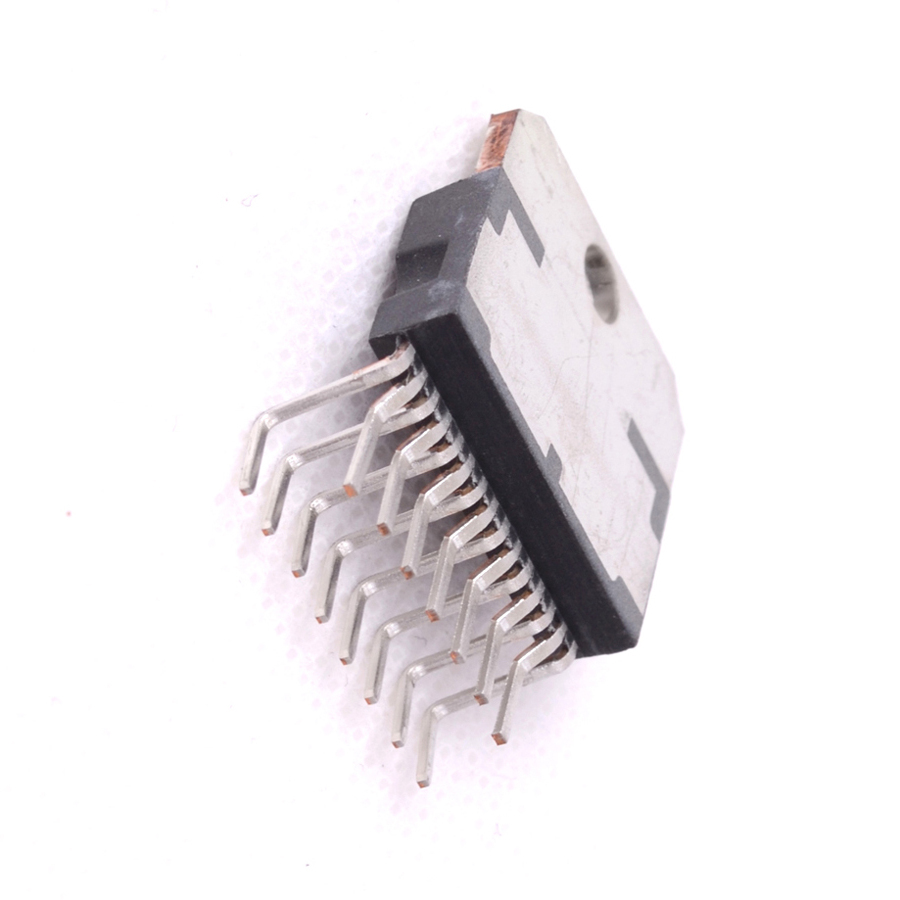

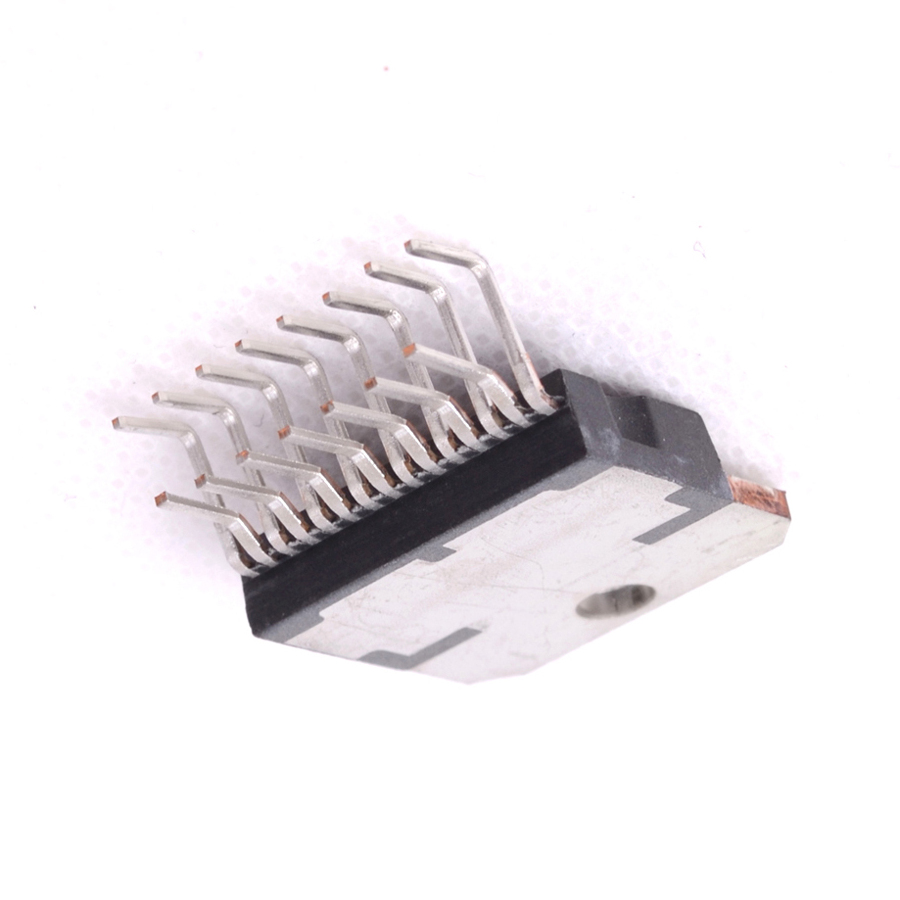

CS298 Semiconductor CASE: SQIL15 MAKE: Cherry Semiconductor
Product specifications
Type Semiconductor
Case SQIL15
Manufacturer Cherry Semiconductor
Vih Min (V) 2.3
Vil Max. (V) 1.5
Inp Logic Family TTL
Output Config Totem-Pole
VOL Max. 0.5
Outp Transis. Ion Max. 2.0
PD Max. (W) 25
tPD Max. (S) 2.5u
Tech. Bipolar Semiconductor
Logic Funct. Inv/Noninv
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 46
Pinout Equivalence Number 15-5
Surface Mounted Yes/No NO
SKU 927847
