CS511-8RDW

CS511-8RDW

SKU: CS511-8RDW

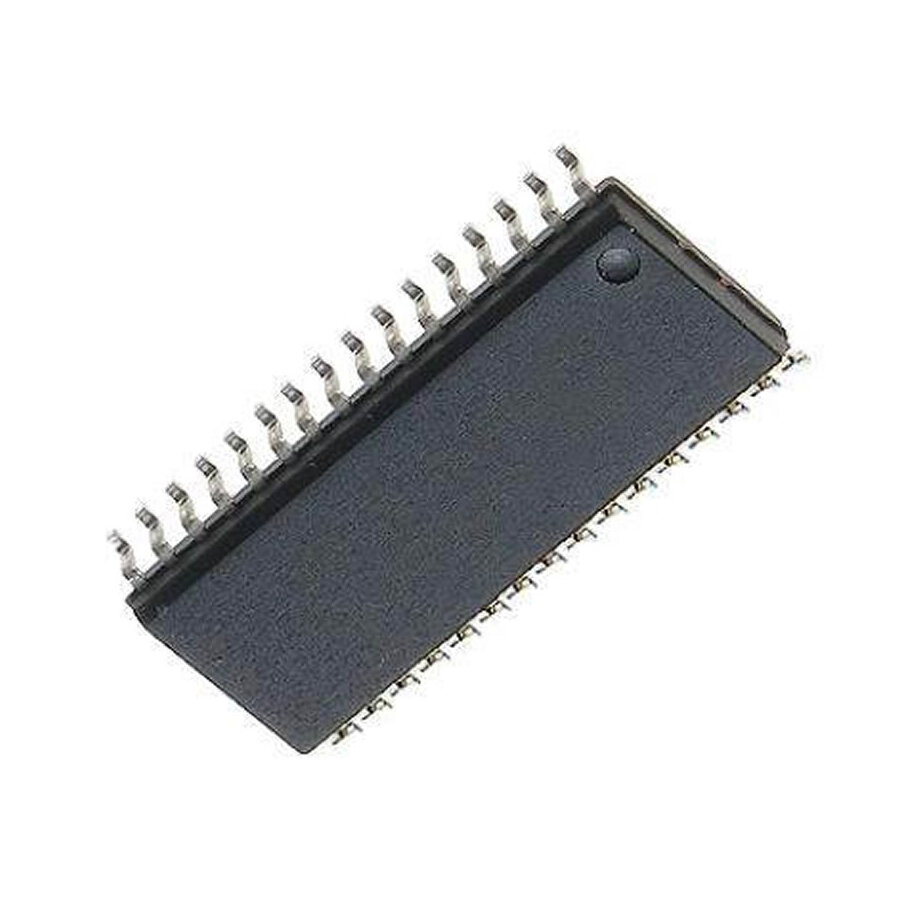

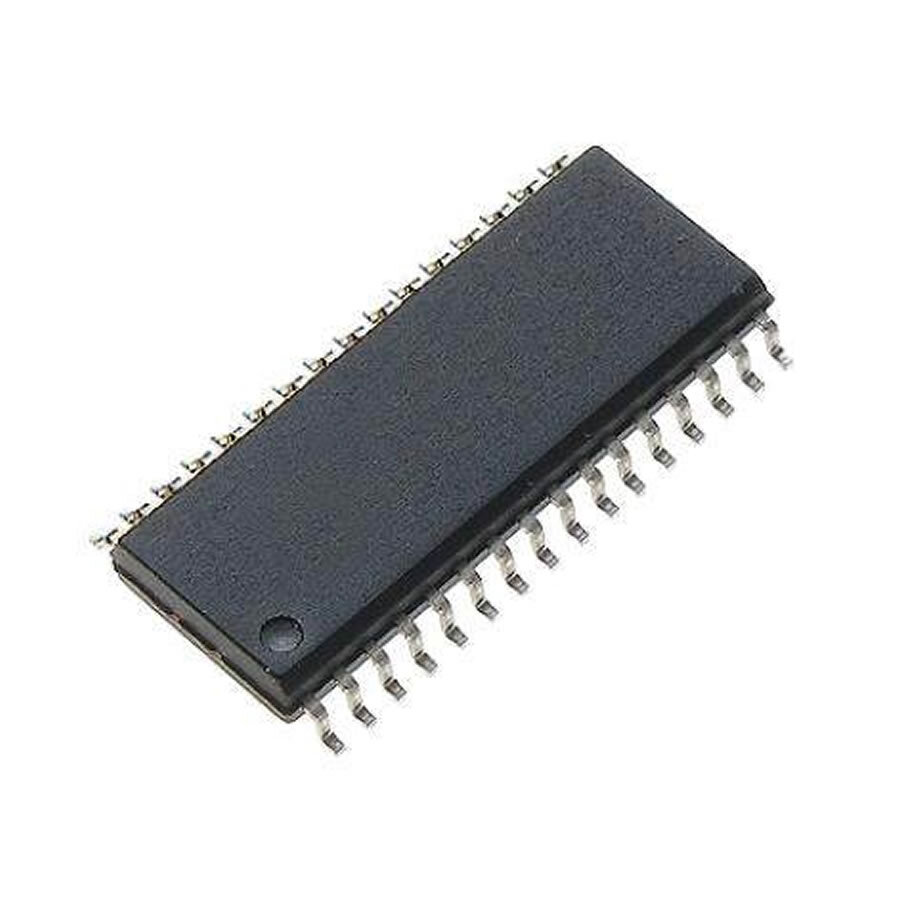

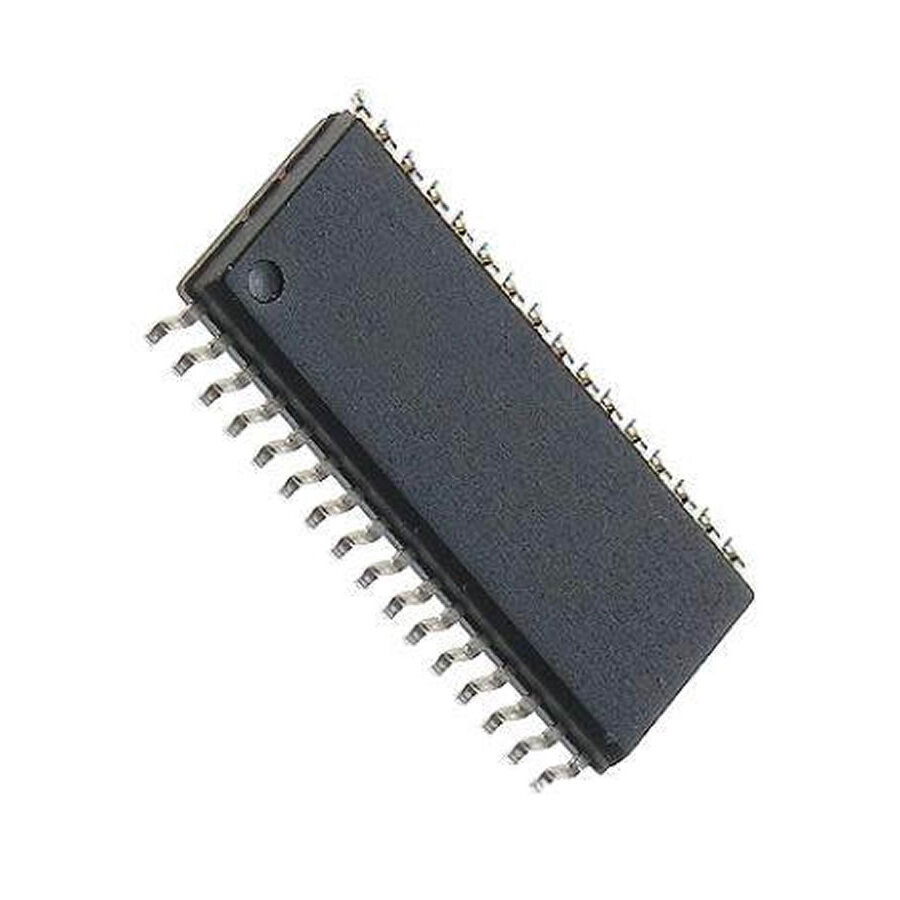

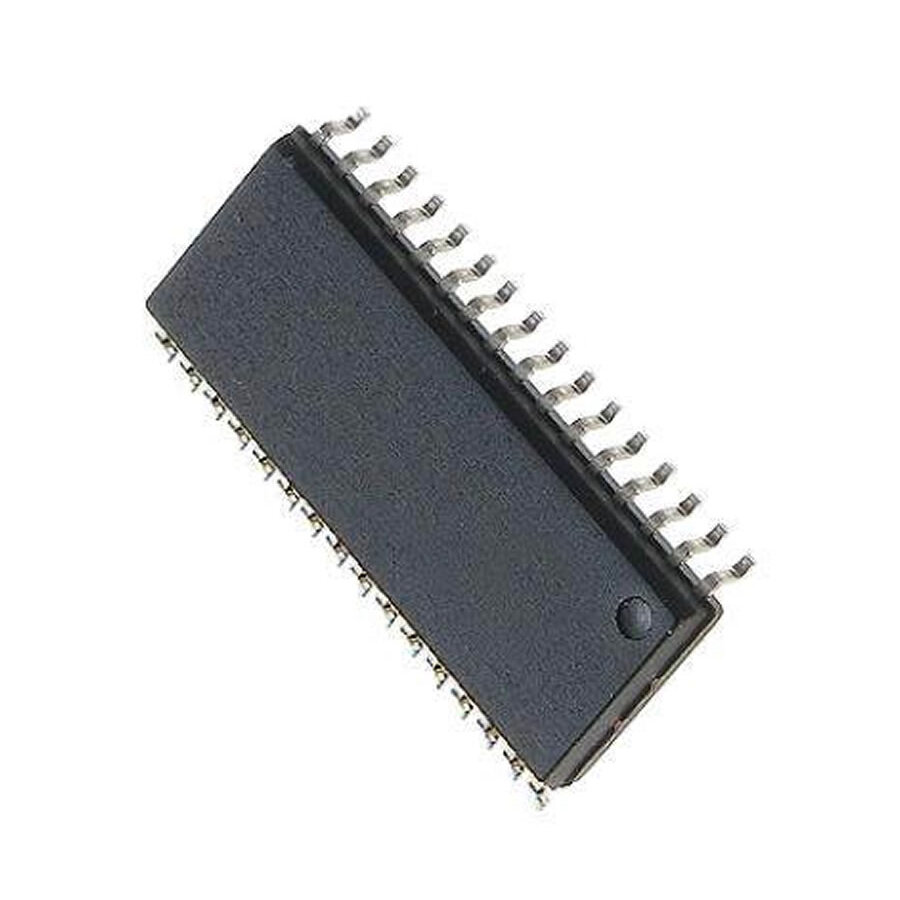

CS511-8RDW Integrated Circuit CASE: SOP32 MAKE: Cherry Semiconductor
Product specifications
Type Integrated Circuit
Case SOP32
Manufacturer Cherry Semiconductor
Ckts Per Dev. 1
Vcntl (Hi) (V) 2.0
Vcntl (Lo) (V) 0.8
@Is (test) (A) 10m
Input Chan./ Ckt 16
PD Max. (W) 800m
Nom. Neg Supp 0
Nom. Pos. Supp 12
R(ds) On (Û) 30
Tech. Bipolar Semiconductor
@Vd (test) (V) 12
Pinout Equivalence Number 32-94
No. of Pins 32
Surface Mounted Yes/No YES
SKU 158170
