CSBD135B
View detailed images (4)

CSBD135B

SKU: CSBD135B

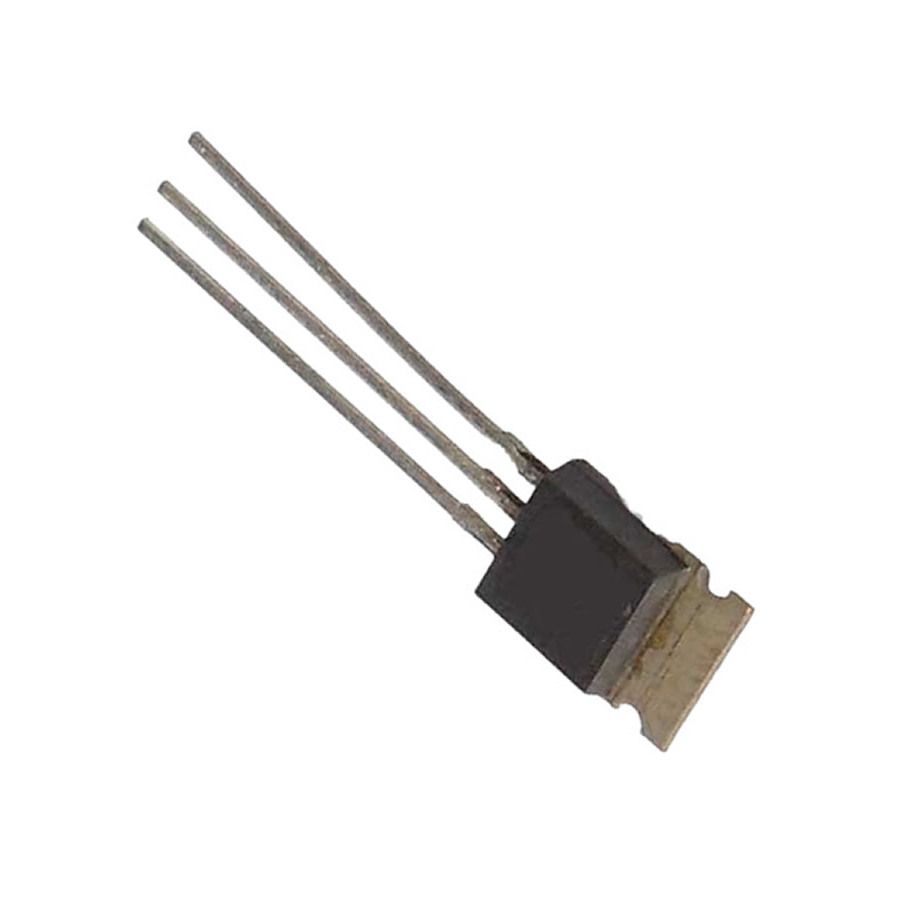

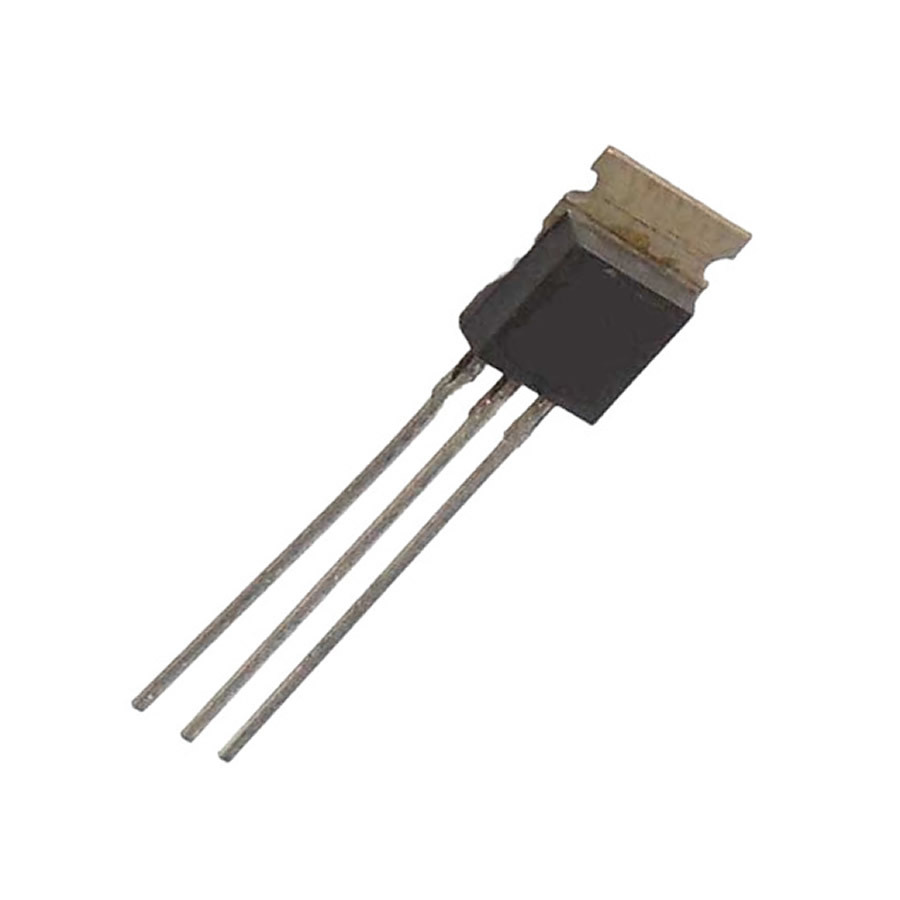

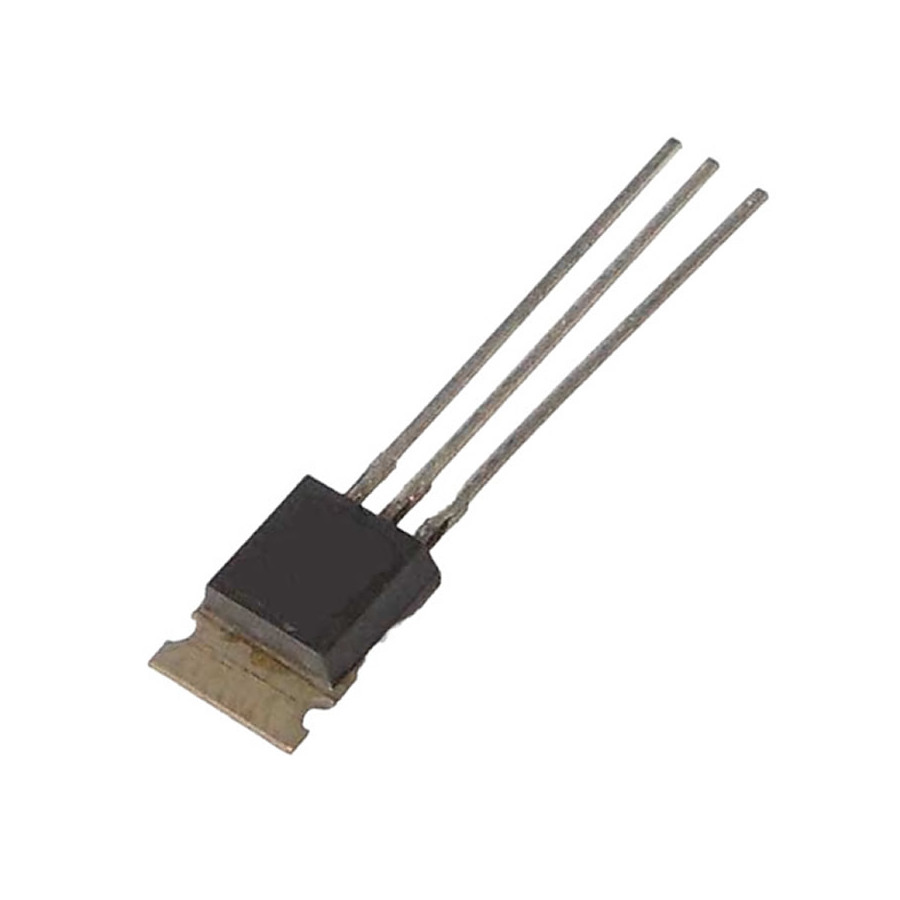

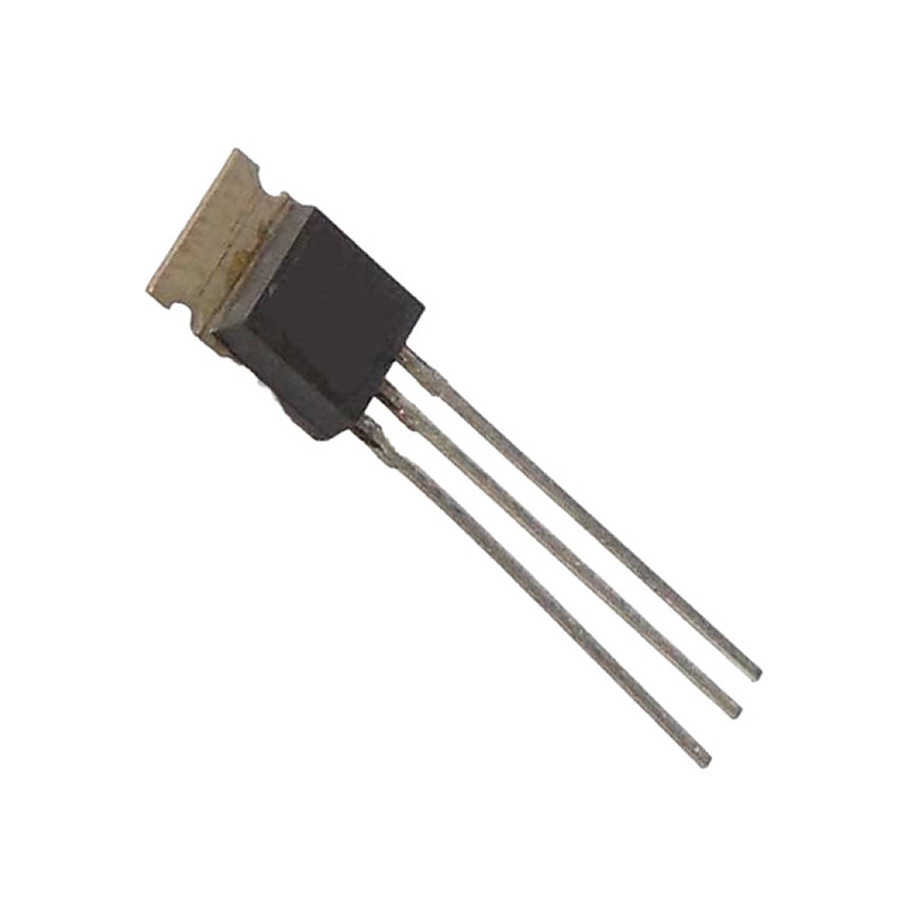

CSBD135B Transistor Silicon NPN CASE: TO237 MAKE: CAR
Product specifications
Type Transistor Silicon NPN
Case TO237
Manufacturer CAR
Vbr CBO 45
Vbr CEO 45
Max. PD (W) 1.2
Max. hFE 160
Min hFE 63
Ic Max. (A) 500m
@Ic (test) (A) 150m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
R(sat) (Û) 1.0
Trans. Freq (Hz) Min. 50M
@VCE (V) 2.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1.2 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 63
SKU 1269889
