CT48

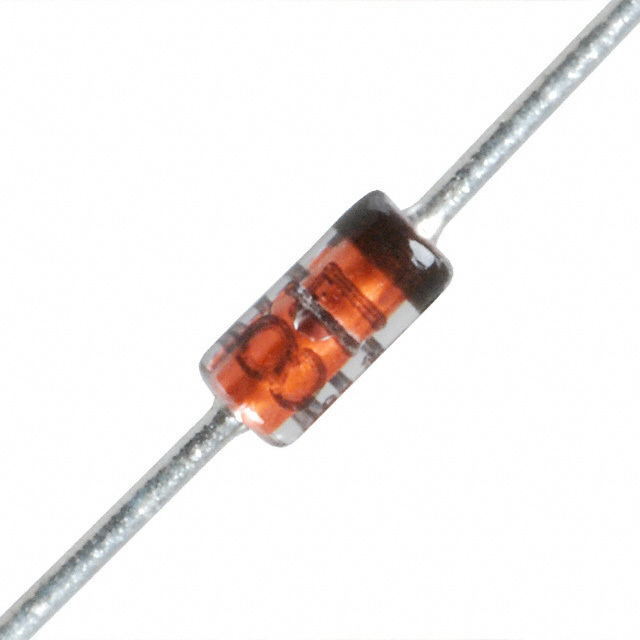

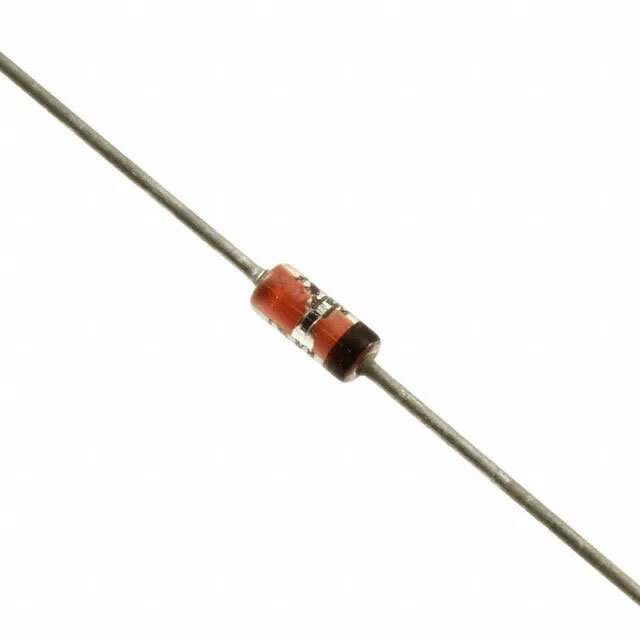

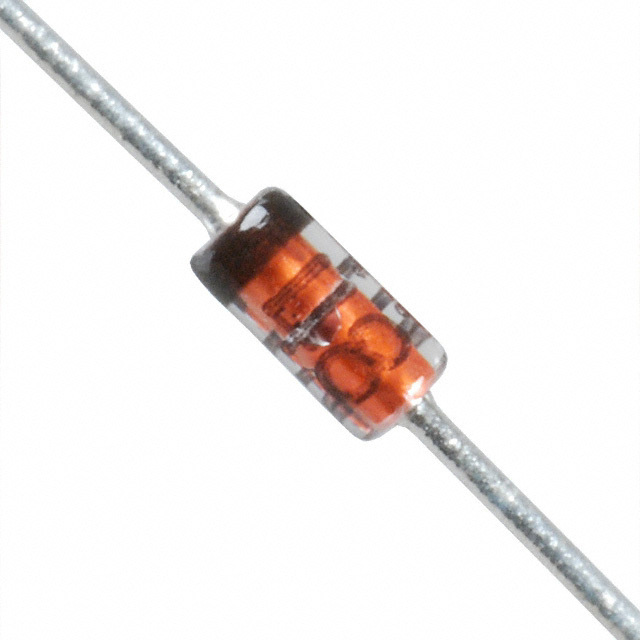

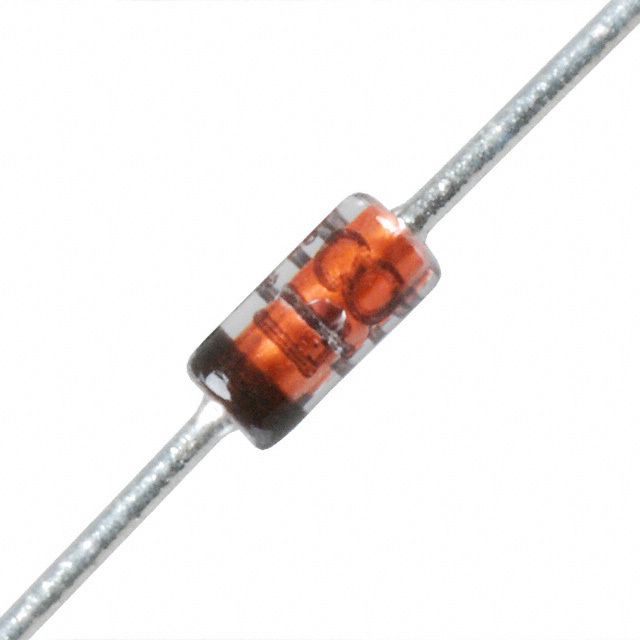

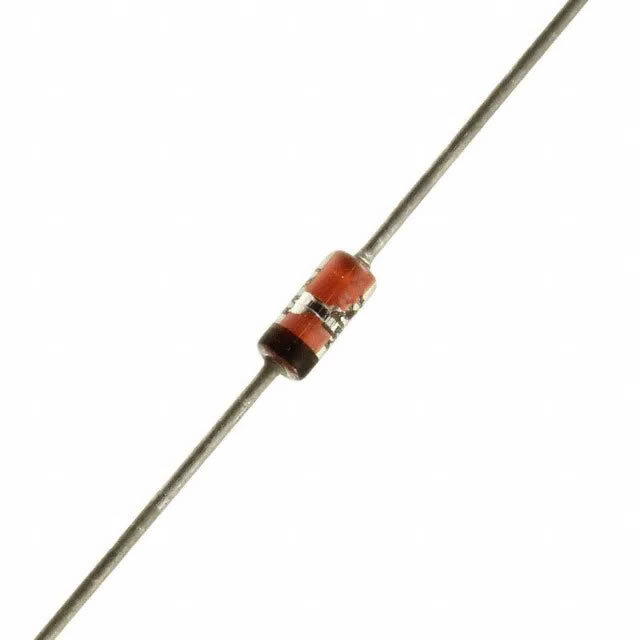

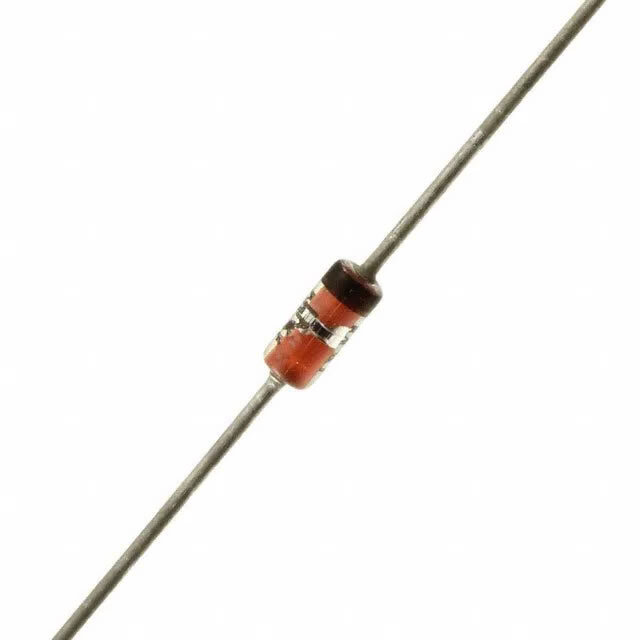

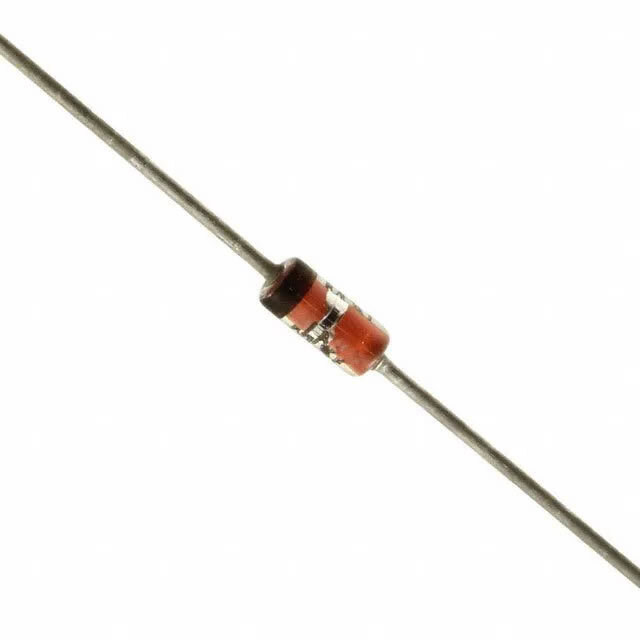

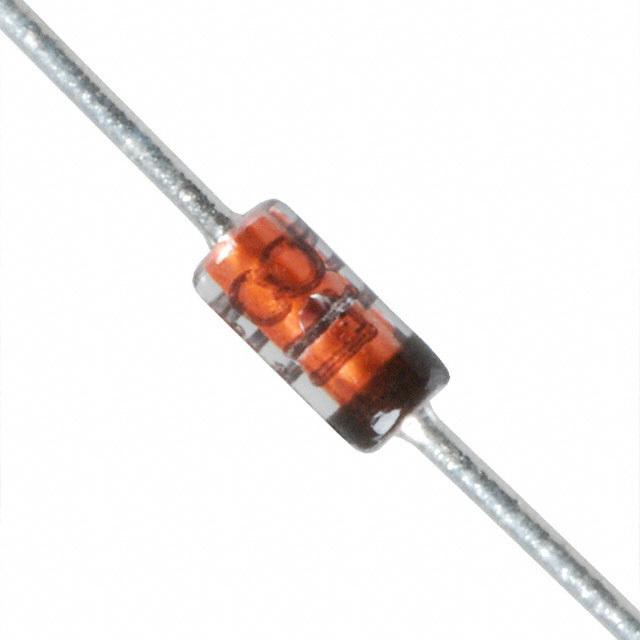

View detailed images (8)

CT48

SKU: CT48
CT48 SemiConductor CASE: DO35 MAKE: Compensated Devices Inc
Product specifications
Type SemiConductor
Case DO35
Manufacturer Compensated Devices Inc
Dv/Dt Worst Case 5.0-
Dv/Dt Worst Static 30-
Firing Char-Igt Max. 50m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 50m
Id(off) Max. (A) 2.0m
It(rms) Max. (A) 8.0
Mat. Silicon Logic
VRRM 75
t(rr) (S) 4.0n
Supp Curr. I(TSM) 80
V(drm) Max. 400
Vf Max. 1.0
Ir @25°C 5.0u
V(T) Max. 1.8
I(out) (If AVG) Max. 225m
@Volts (test) (V) 50
@If (test) 10m
@If (test) 20m
@Temp. (test) 100
@Temp. (test) 70#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 100
@It (A) 10
Surface Mounted Yes/No NO
SKU 534684
