CZT3904
View detailed images (8)

CZT3904

SKU: CZT3904

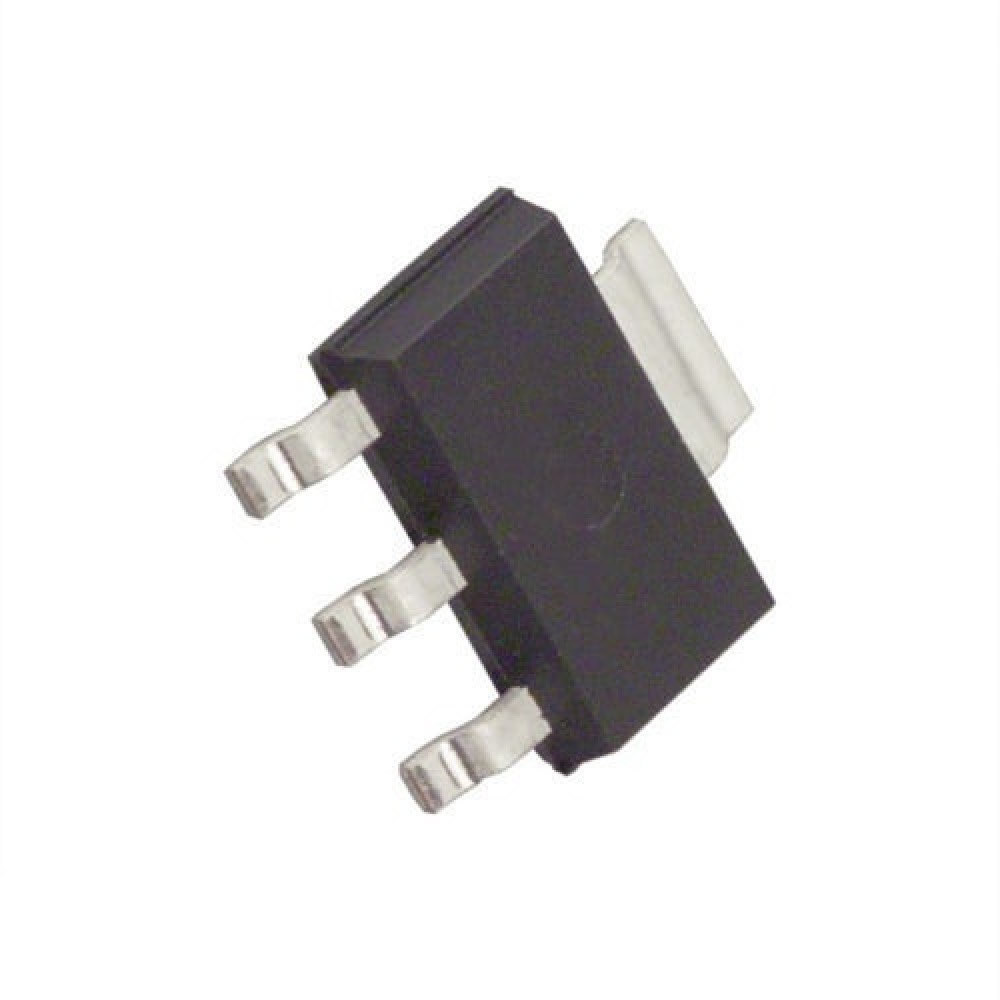

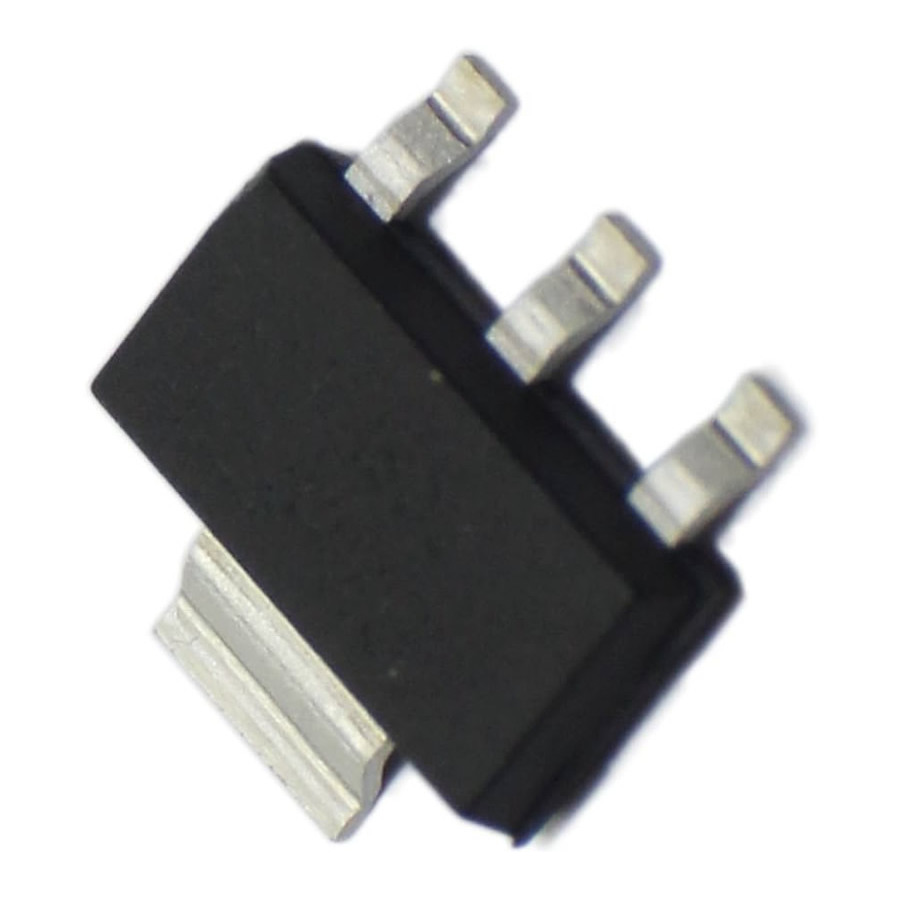

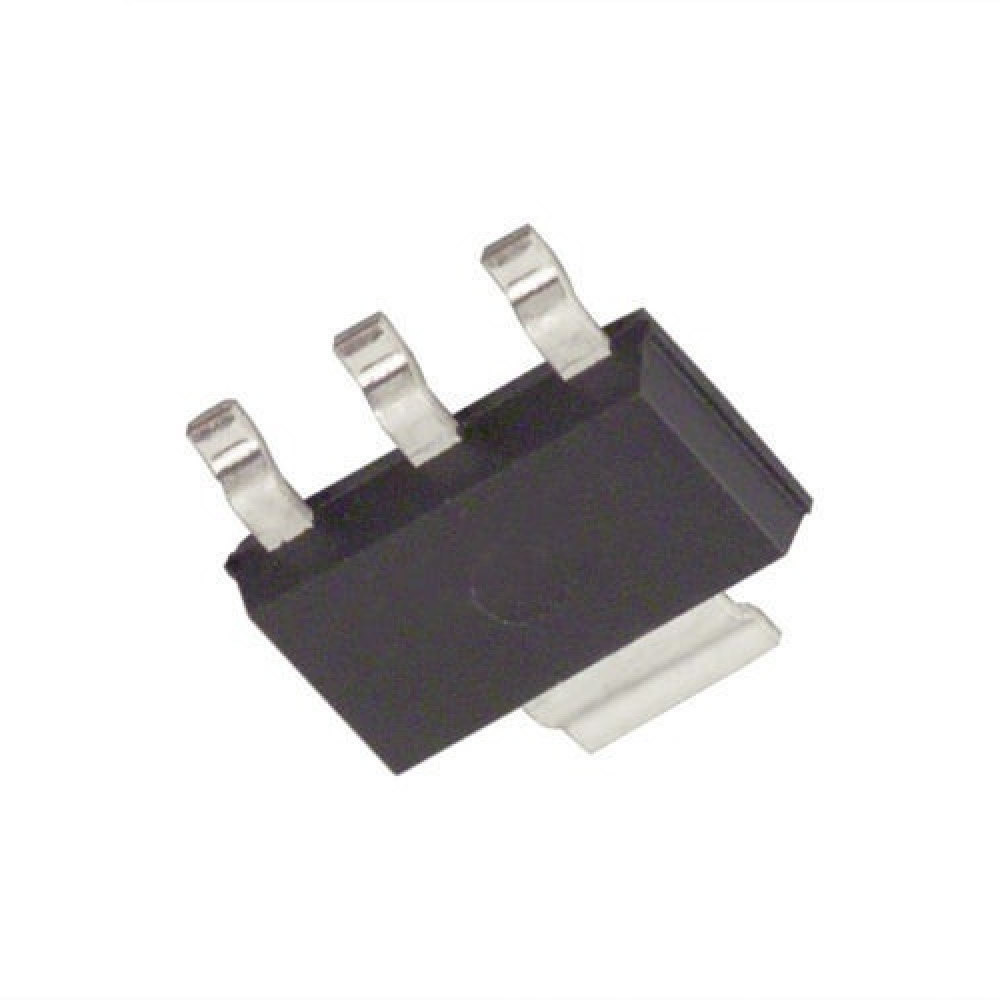

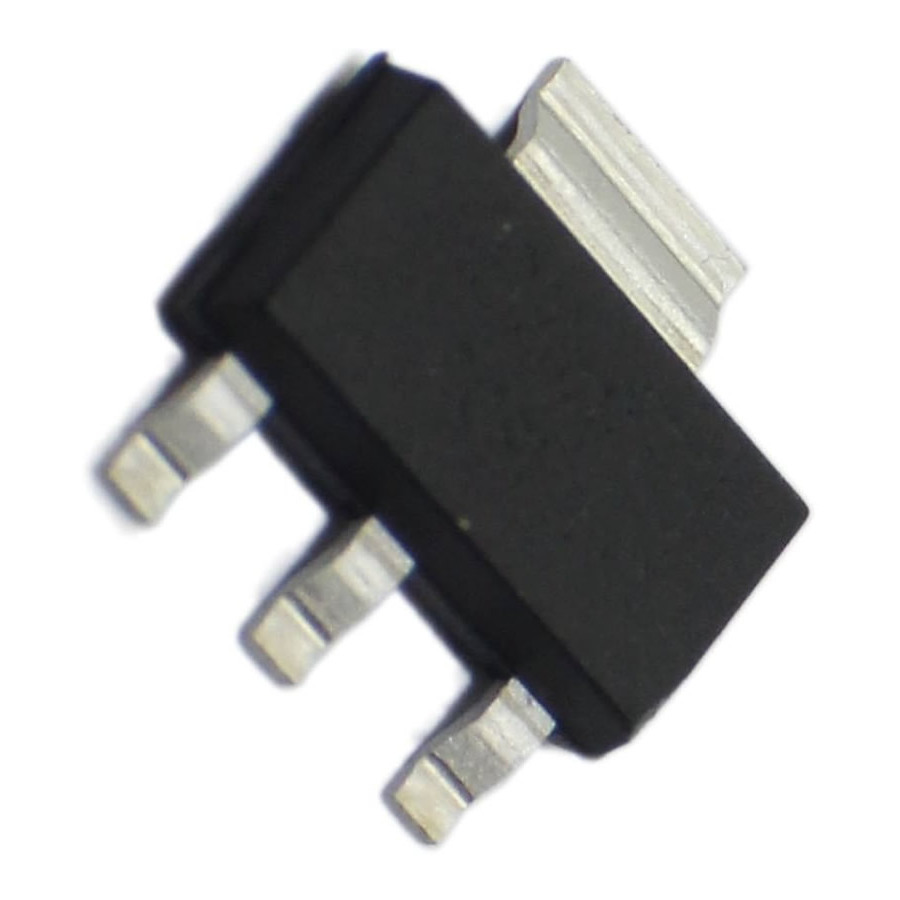

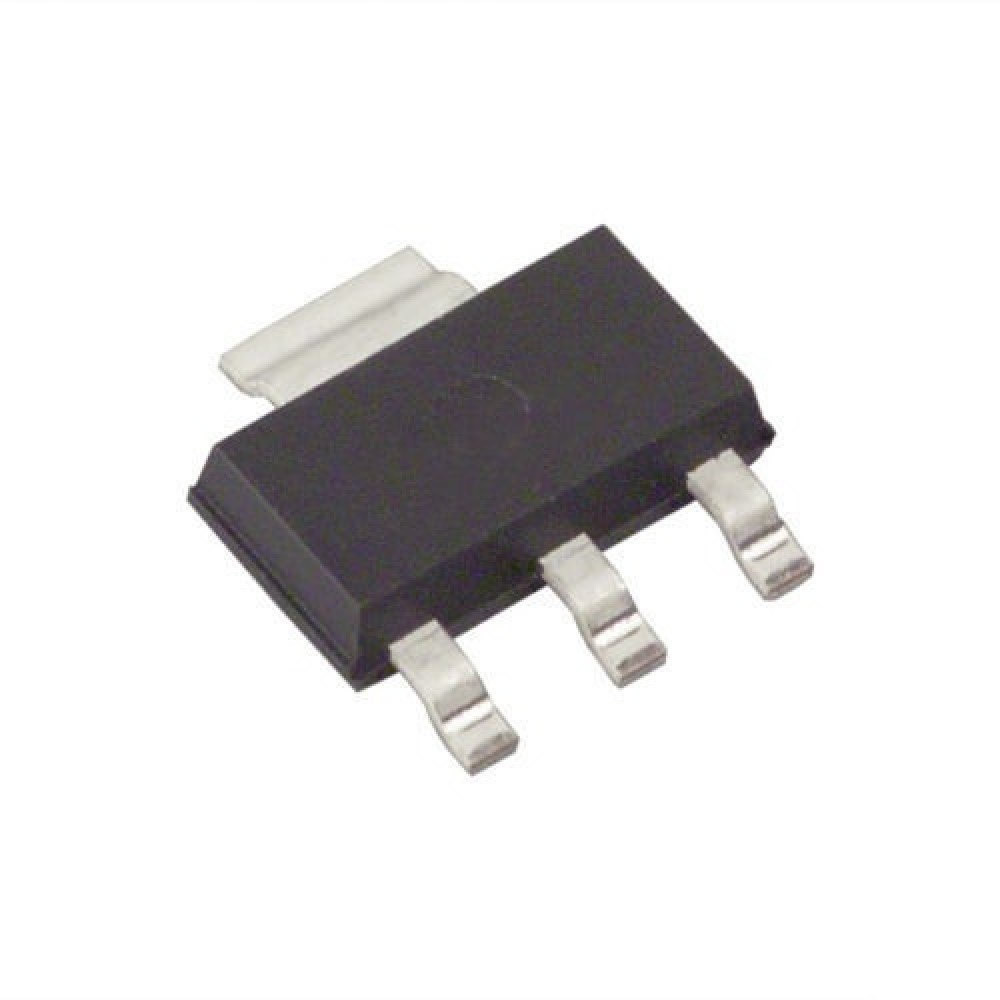

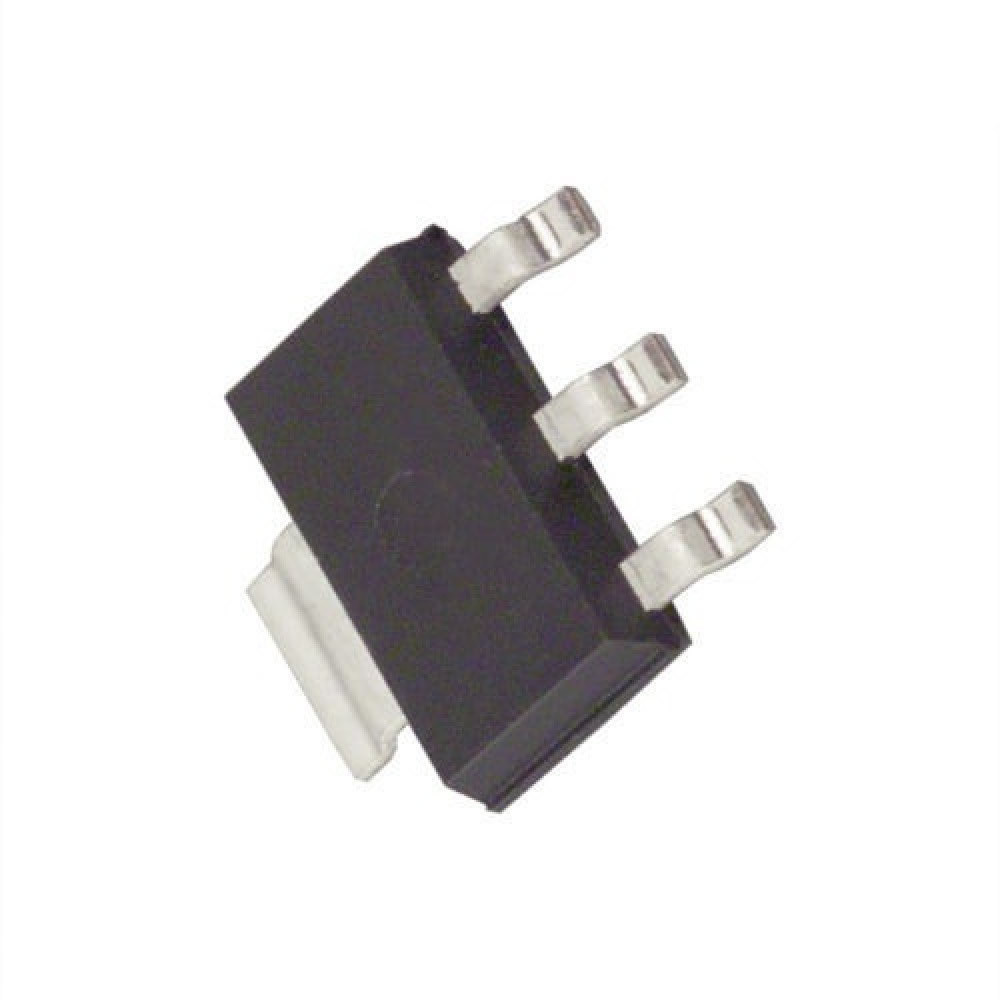

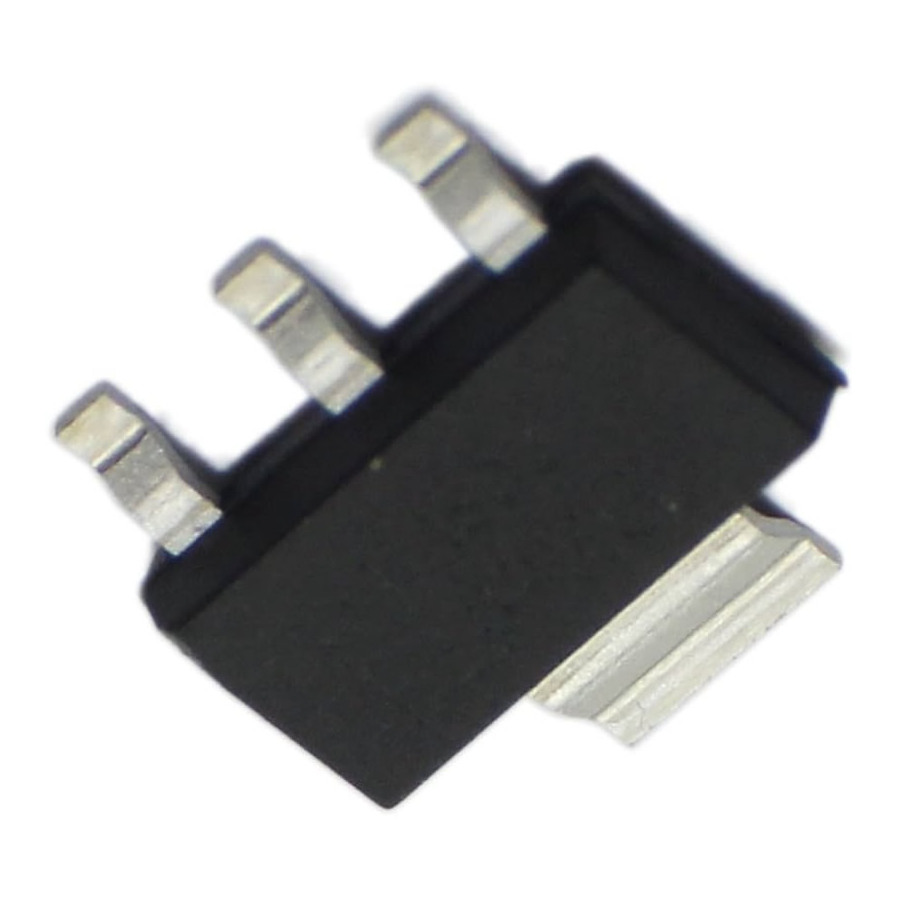

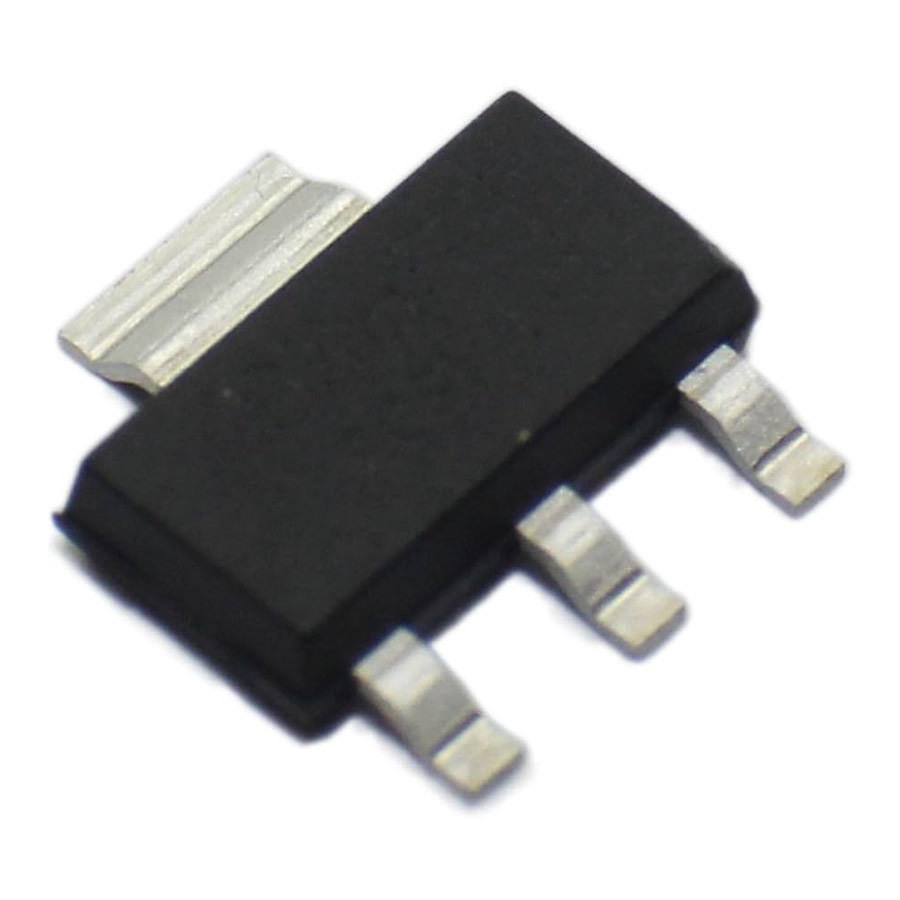

CZT3904 Transistor Silicon NPN CASE: SOT223 MAKE: Central Semiconductor
Datasheet
CZT3904 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer Central Semiconductor
Vbr CBO 60
Vbr CEO 40
Max. PD (W) 2.0
Max. hFE 300
Min hFE 100
@Ic (test) (A) 10m
Icbo Max. @Vcb Max. (A) 50n
Polarity NPN
Trans. Freq (Hz) Min. 300M
@VCE (V) 1.0
Pinout Equivalence Number 4-118
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 1283030
