CZT5338

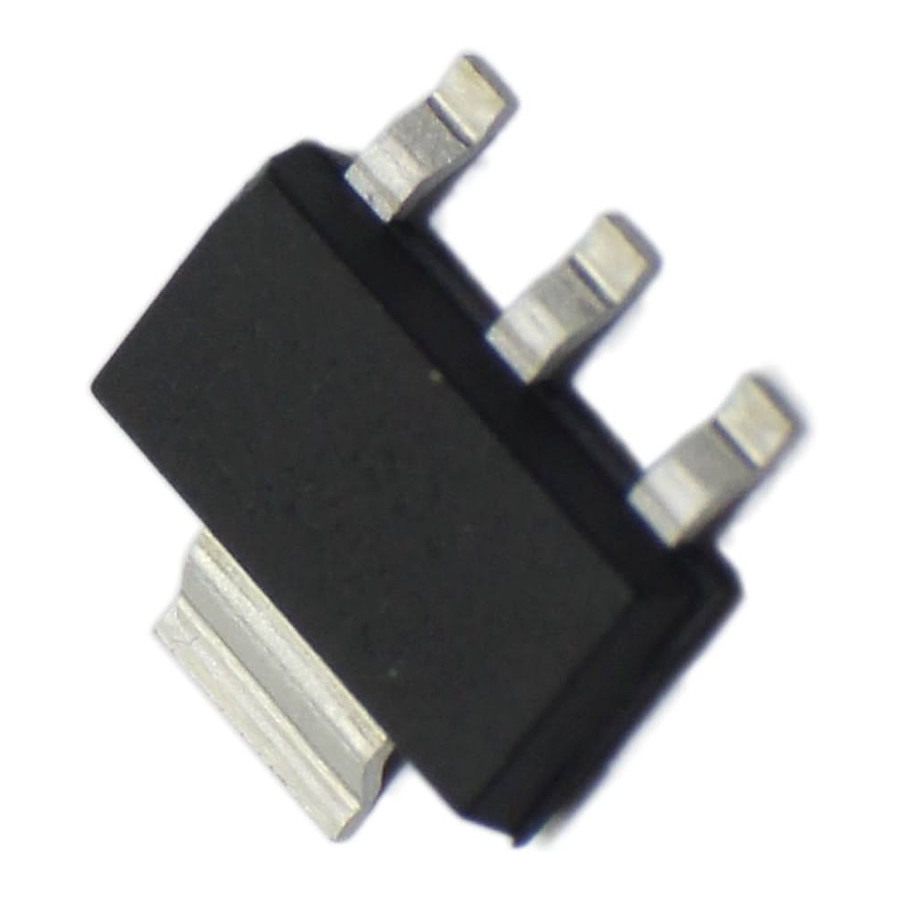

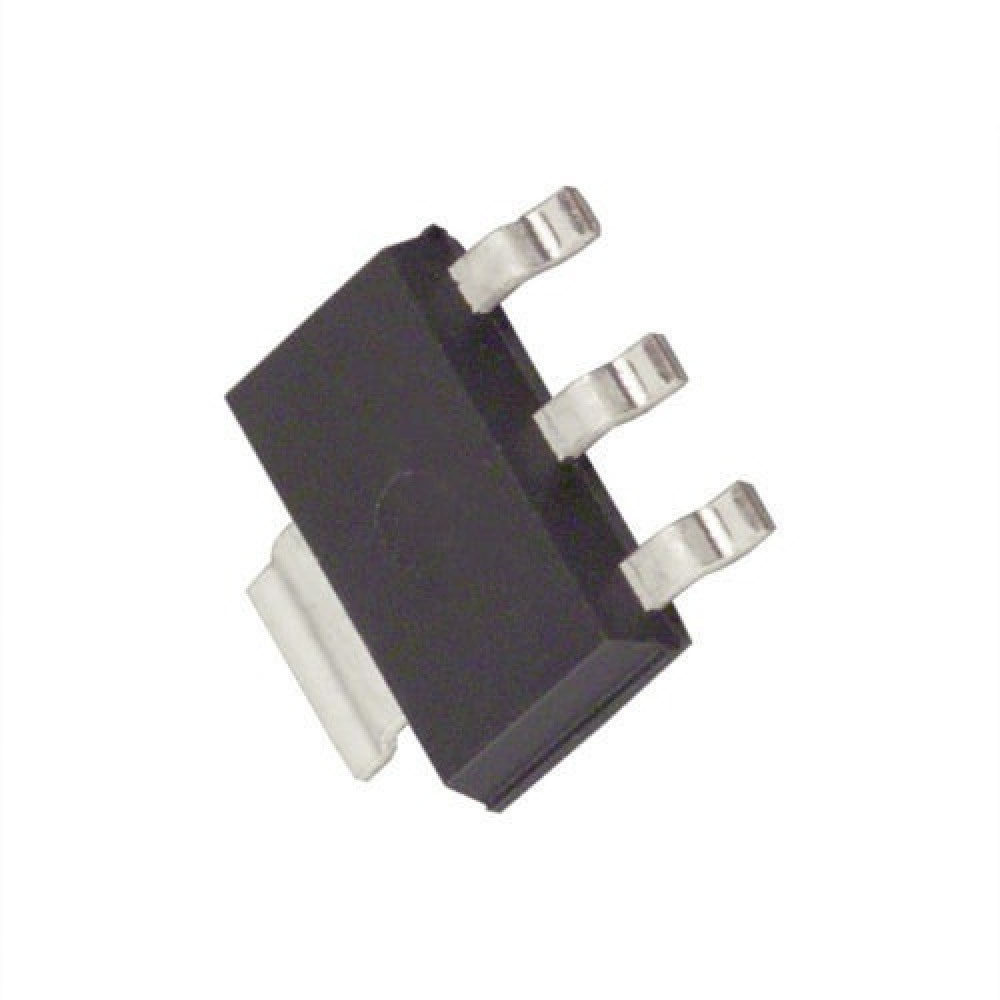

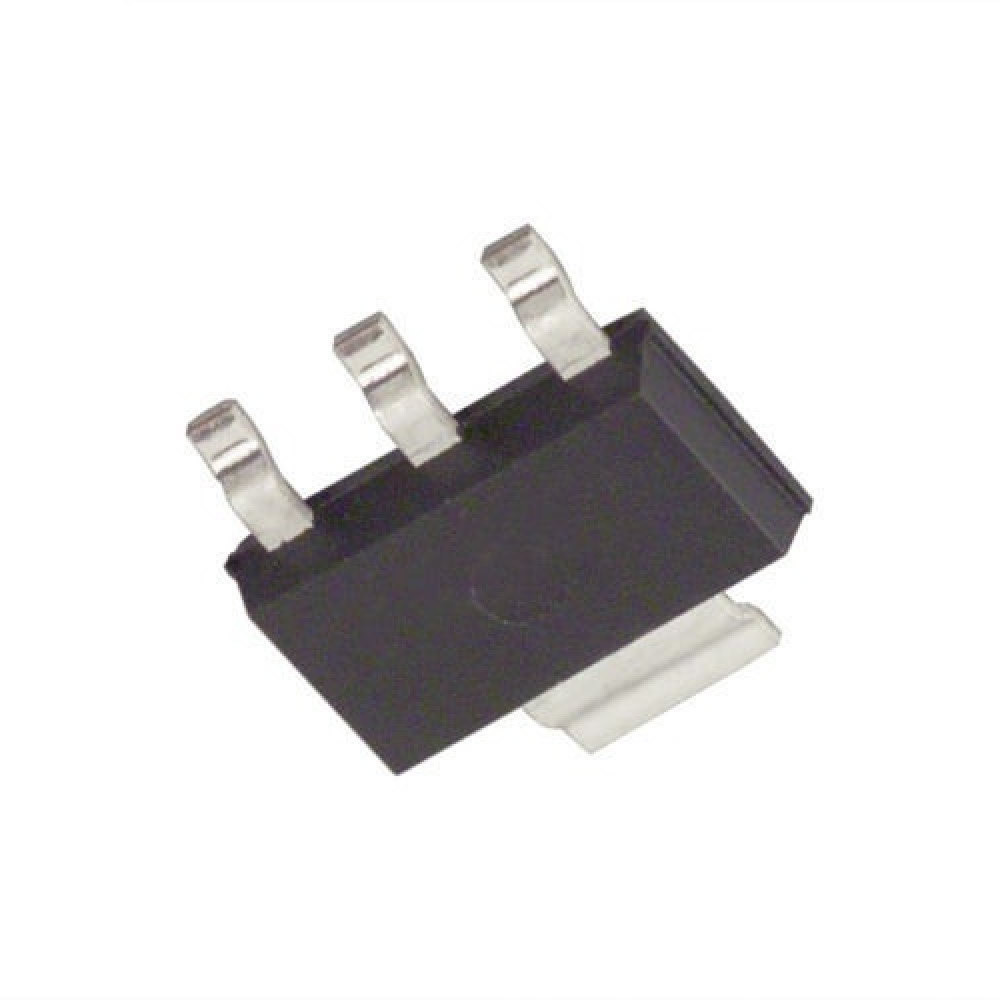

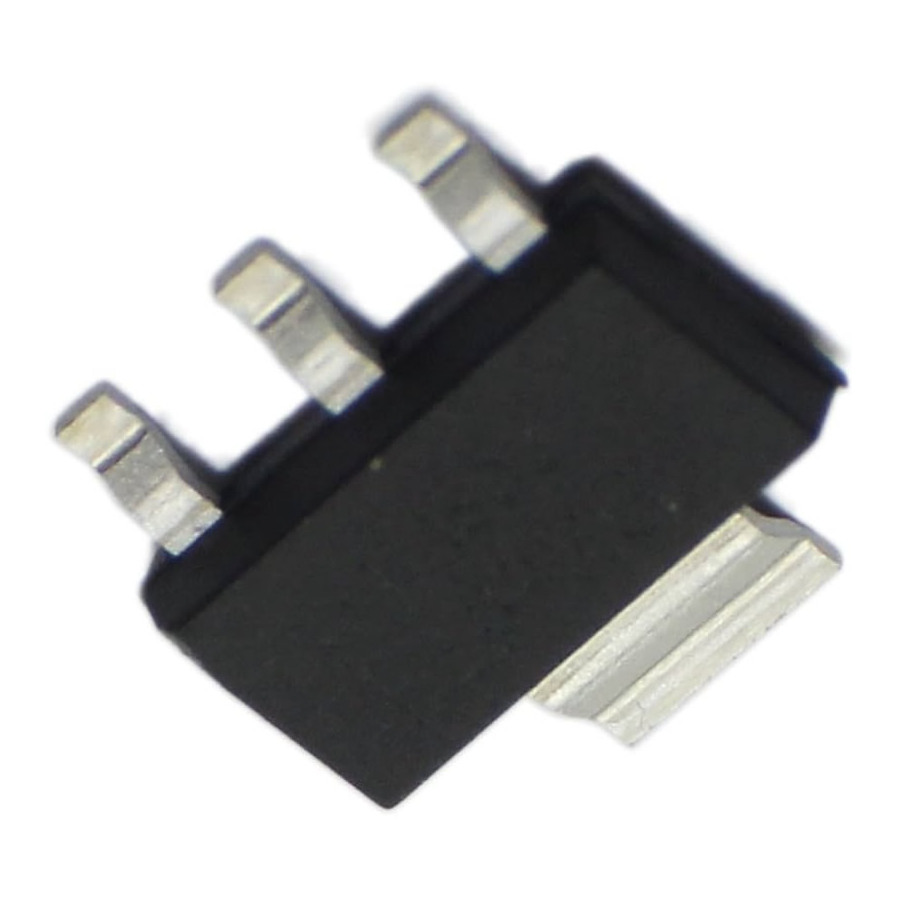

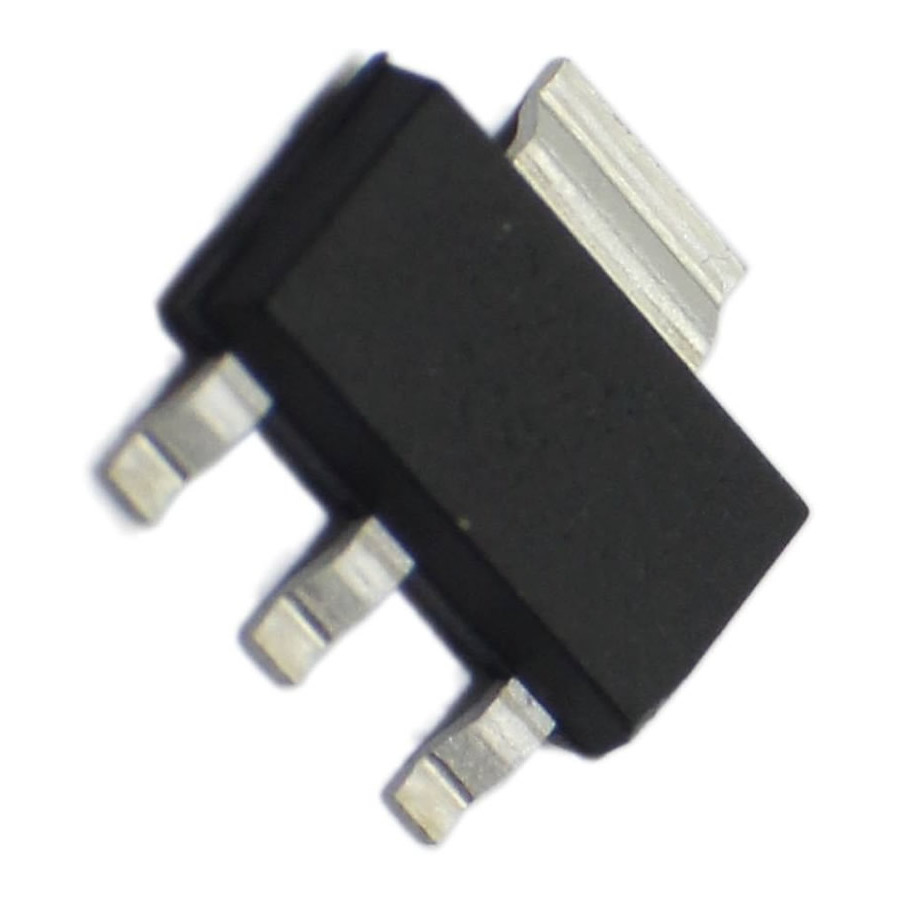

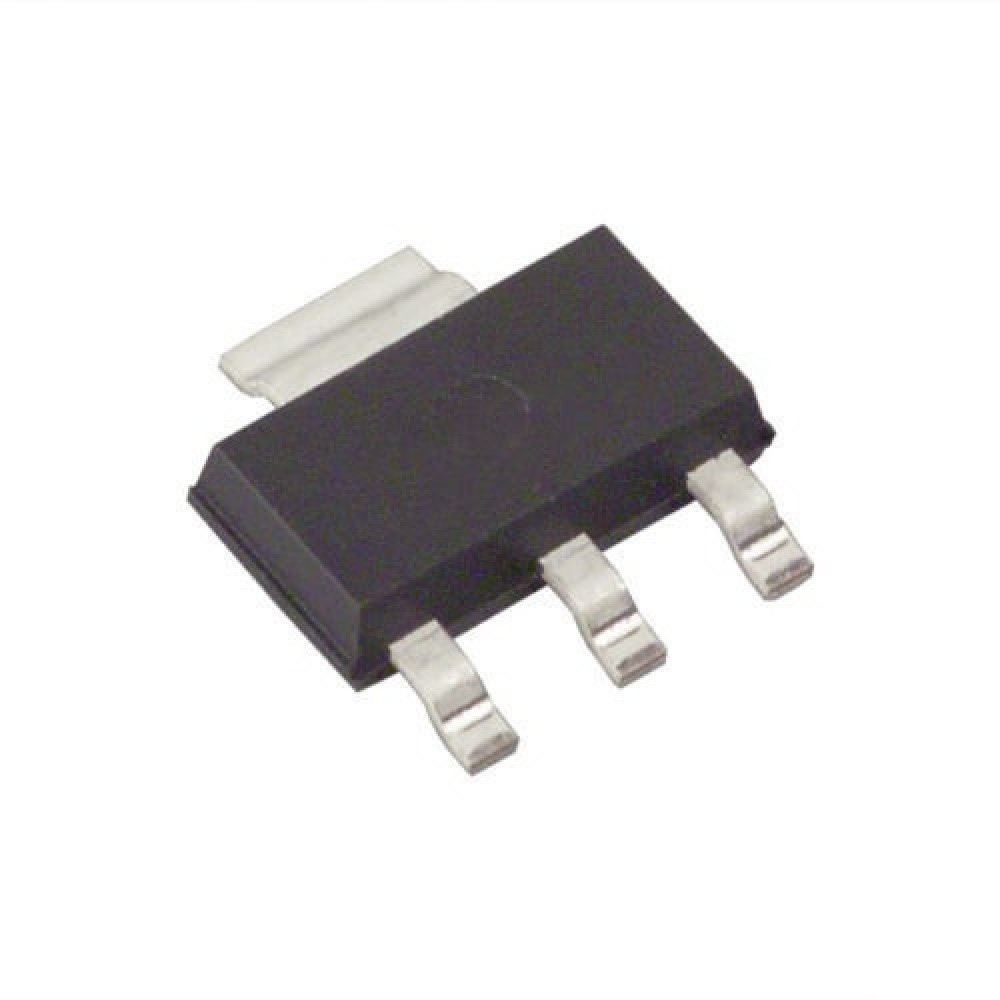

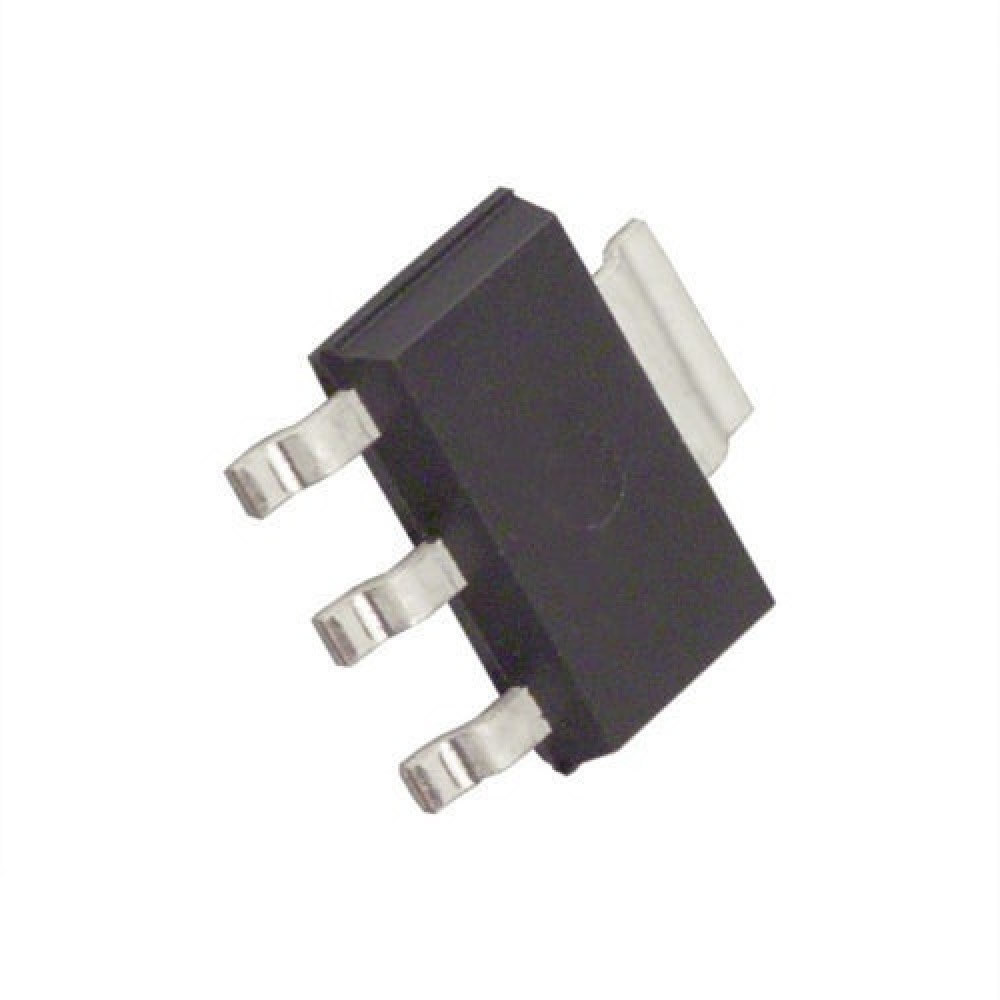

View detailed images (8)

CZT5338

SKU: CZT5338

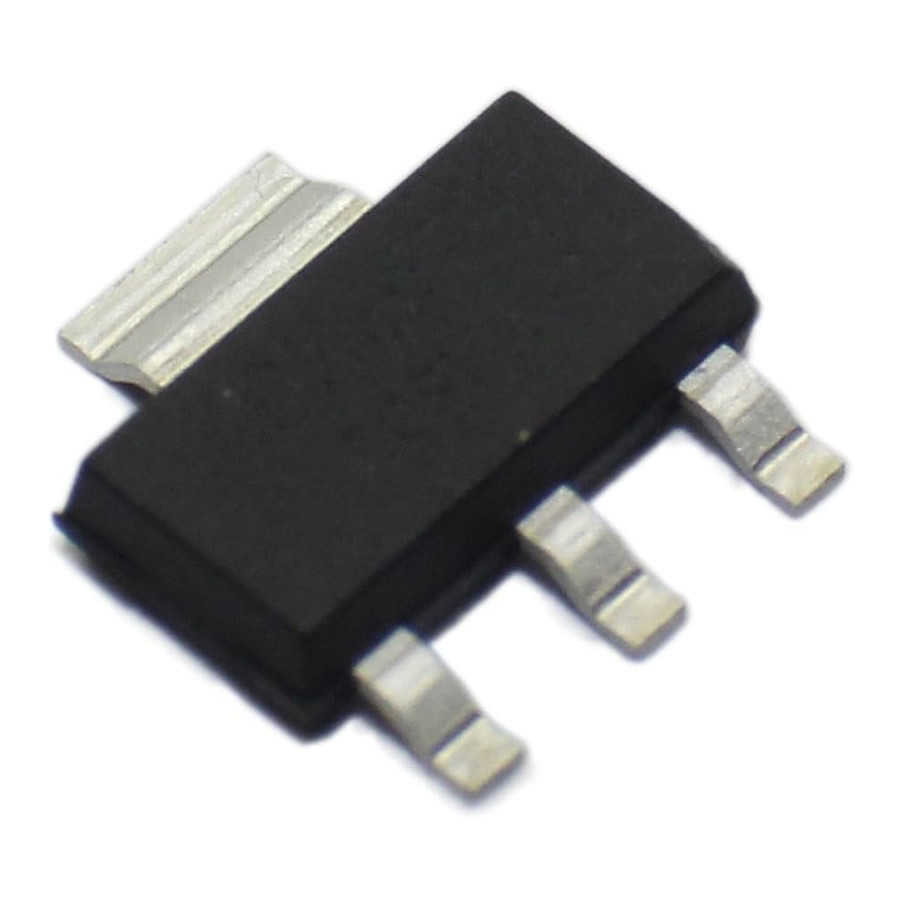

CZT5338 Transistor Silicon NPN CASE: SOT223 MAKE: Central Semiconductor
Datasheet
CZT5338 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer Central Semiconductor
Vbr CBO 100
Vbr CEO 100
Max. PD (W) 2.0
t(f) Max. (S) 200n
Max. hFE 120
Min hFE 20
Ic Max. (A) 5.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Tr Max. (s) 100n
Trans. Freq (Hz) Min. 30M=
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 4-179
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 1268482
