CZTA14
View detailed images (8)

CZTA14

SKU: CZTA14

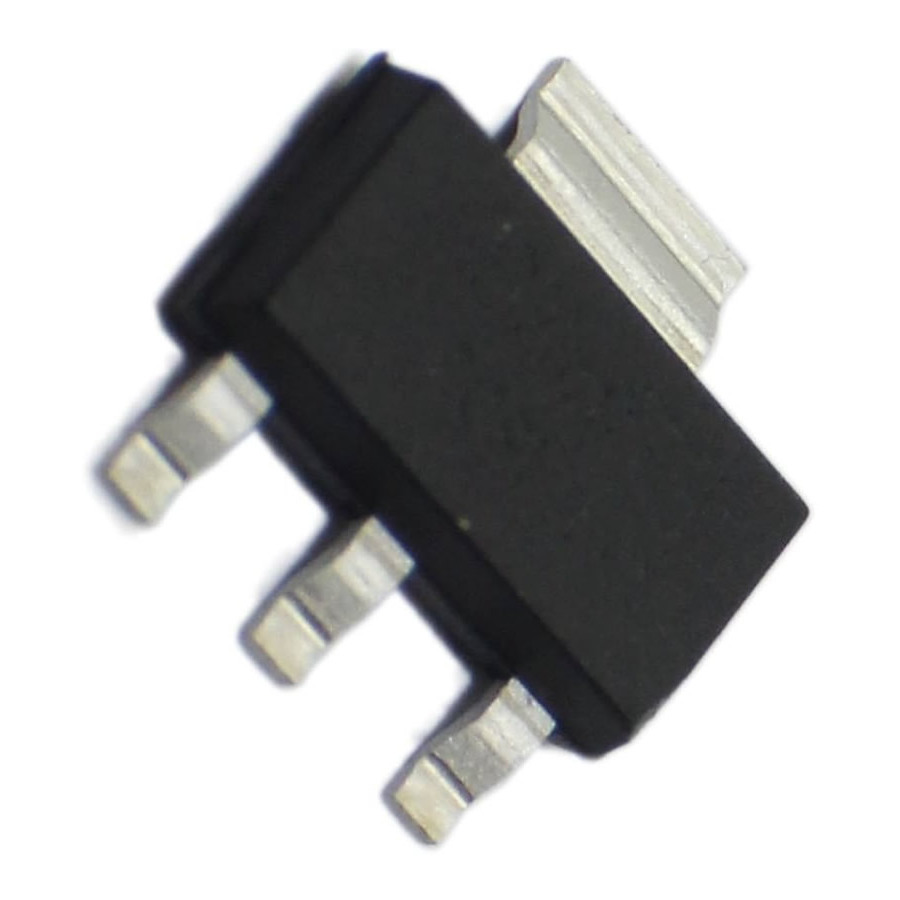

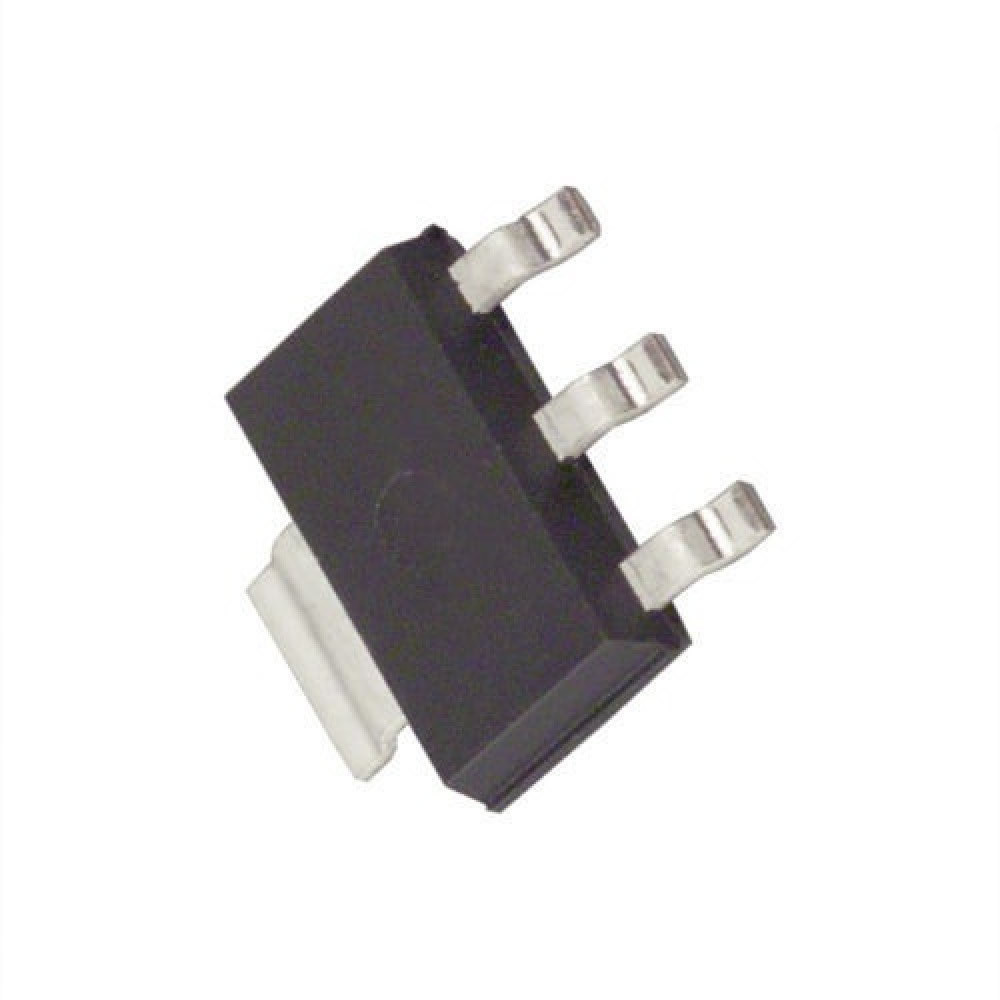

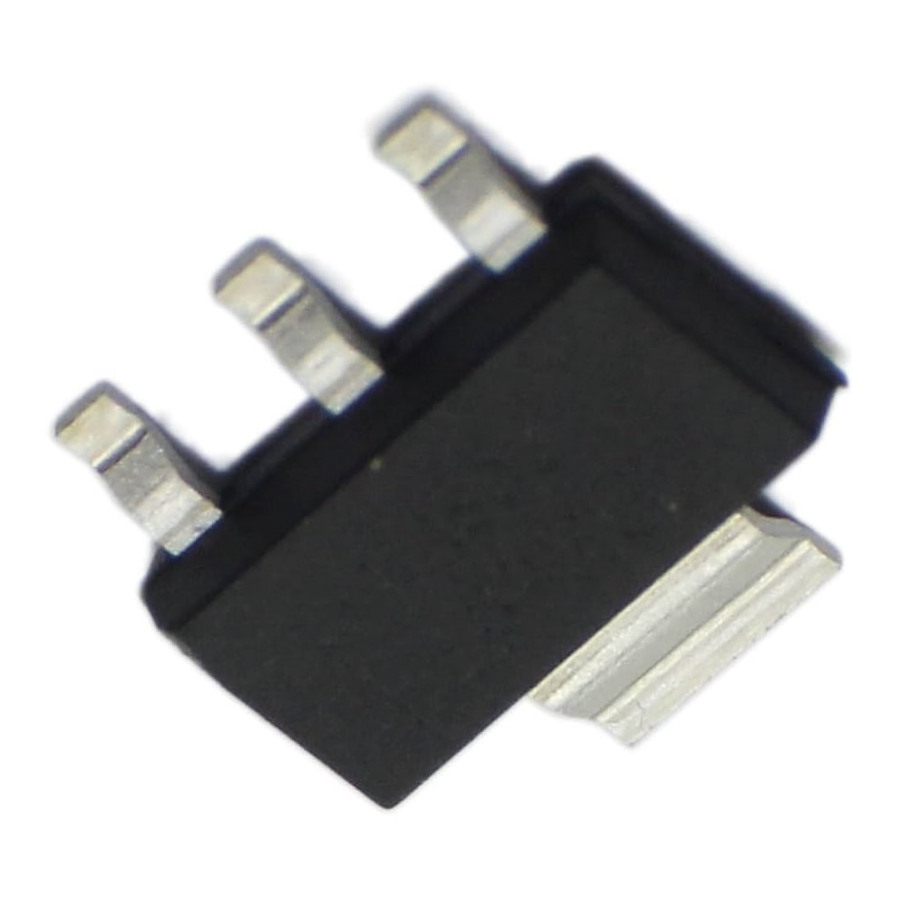

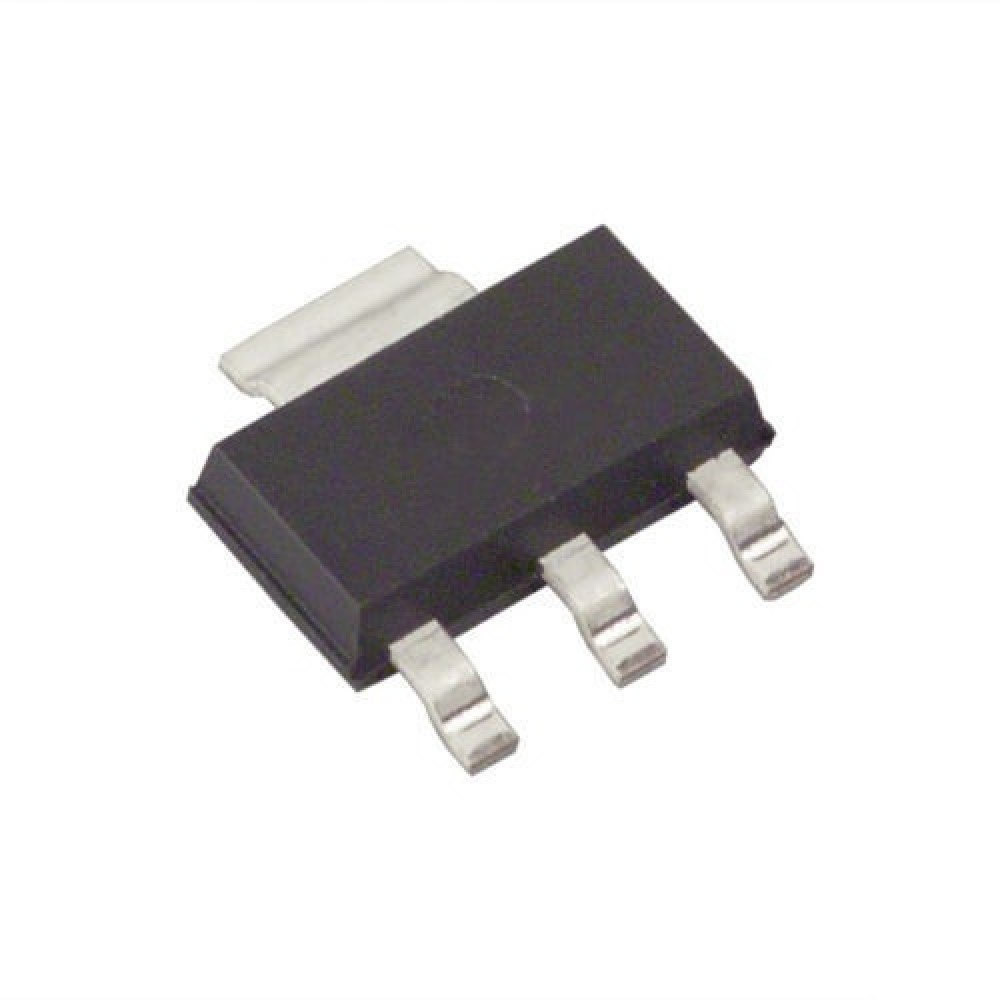

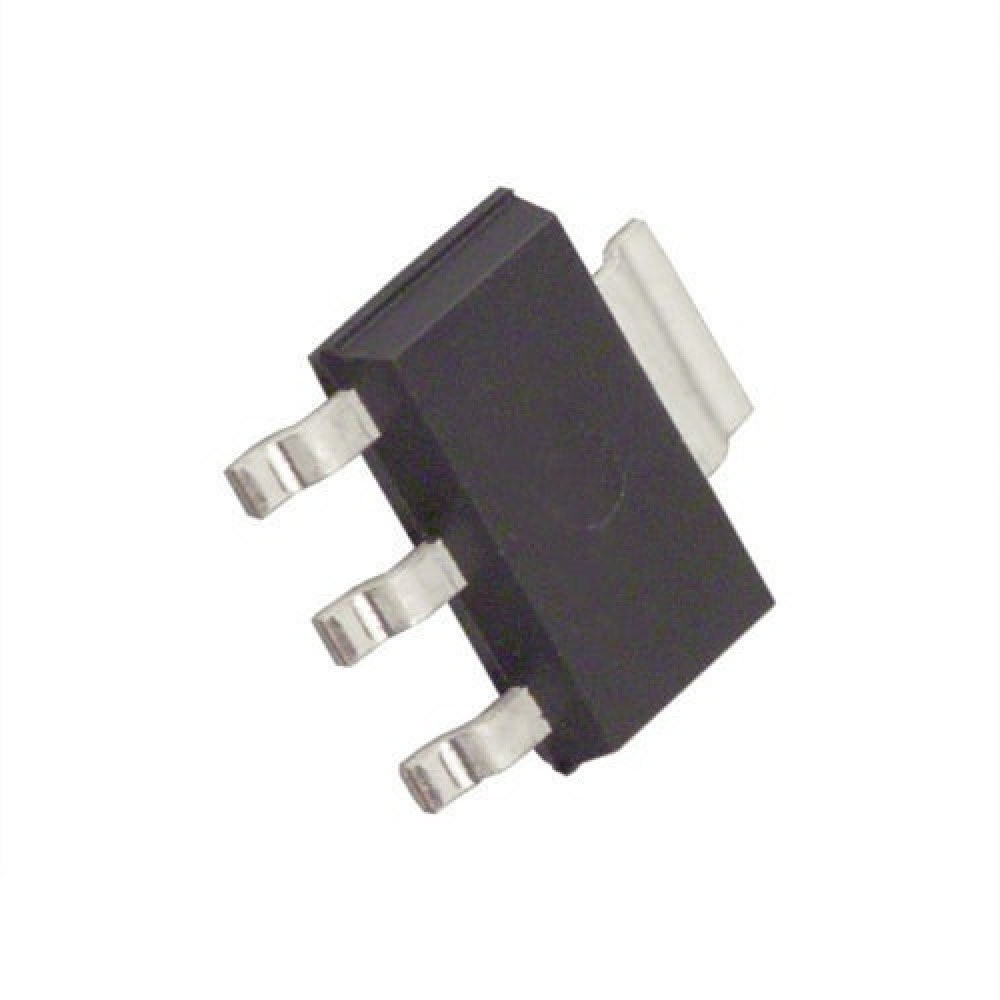

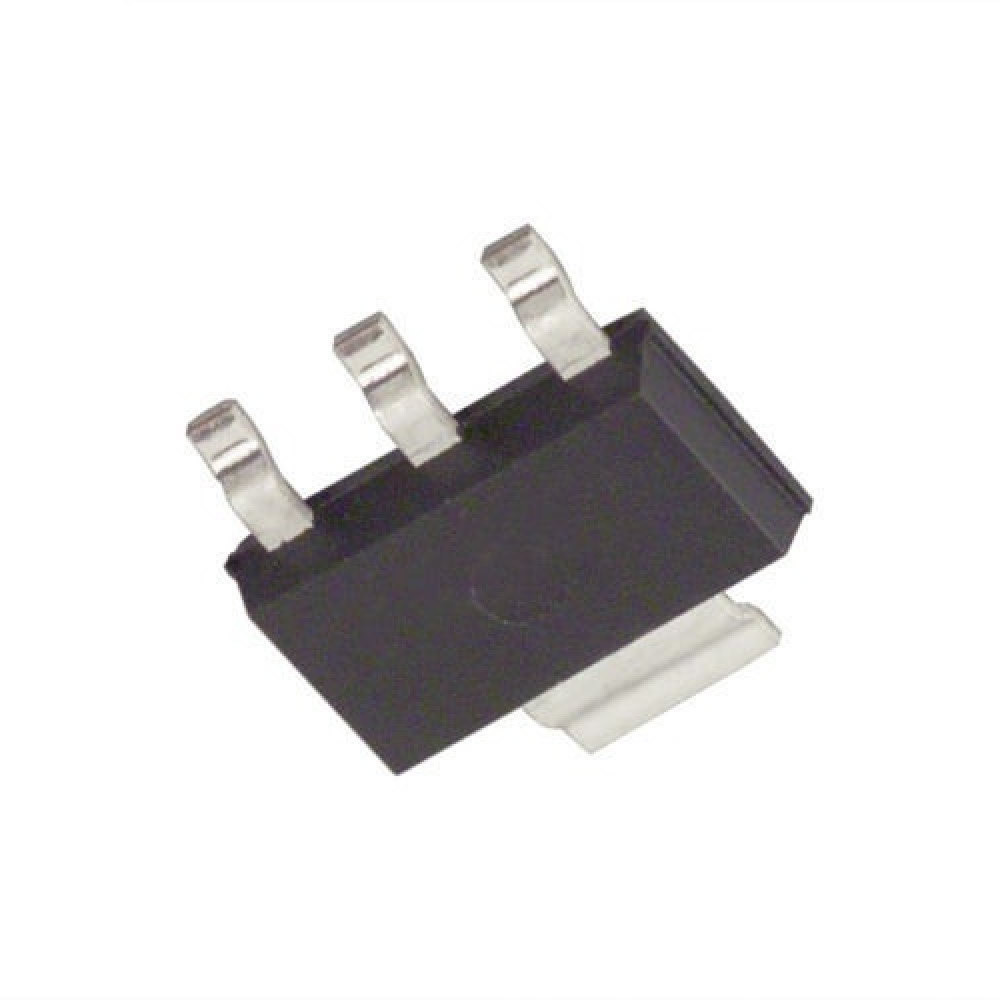

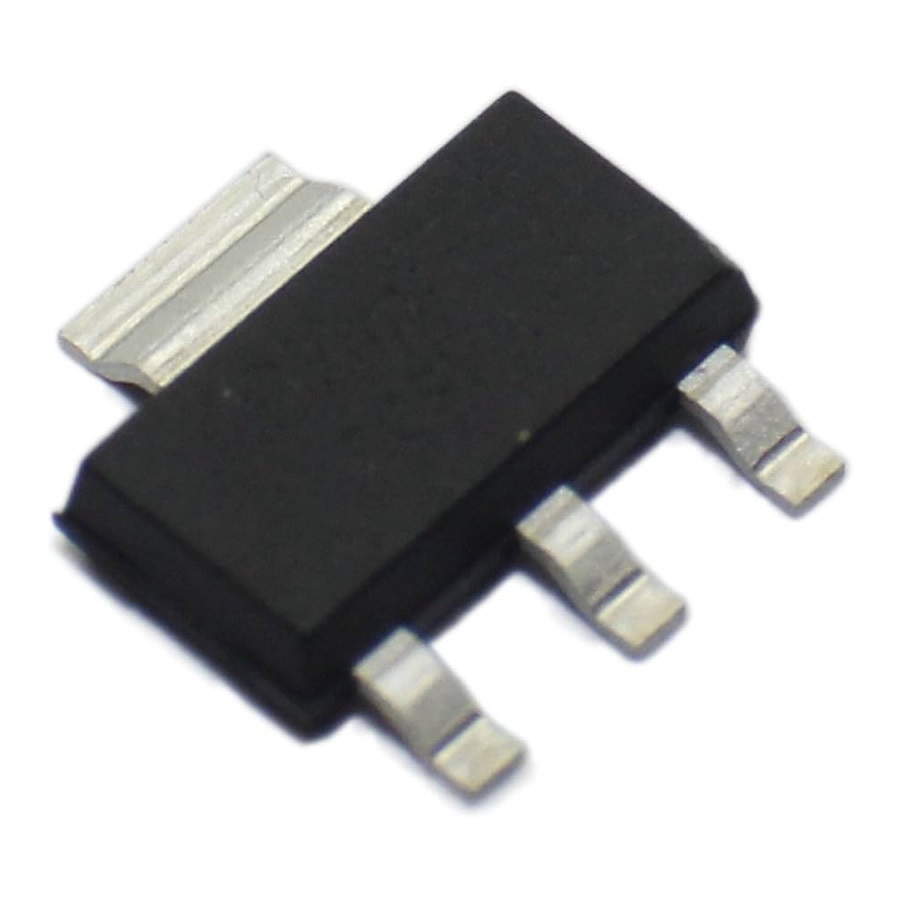

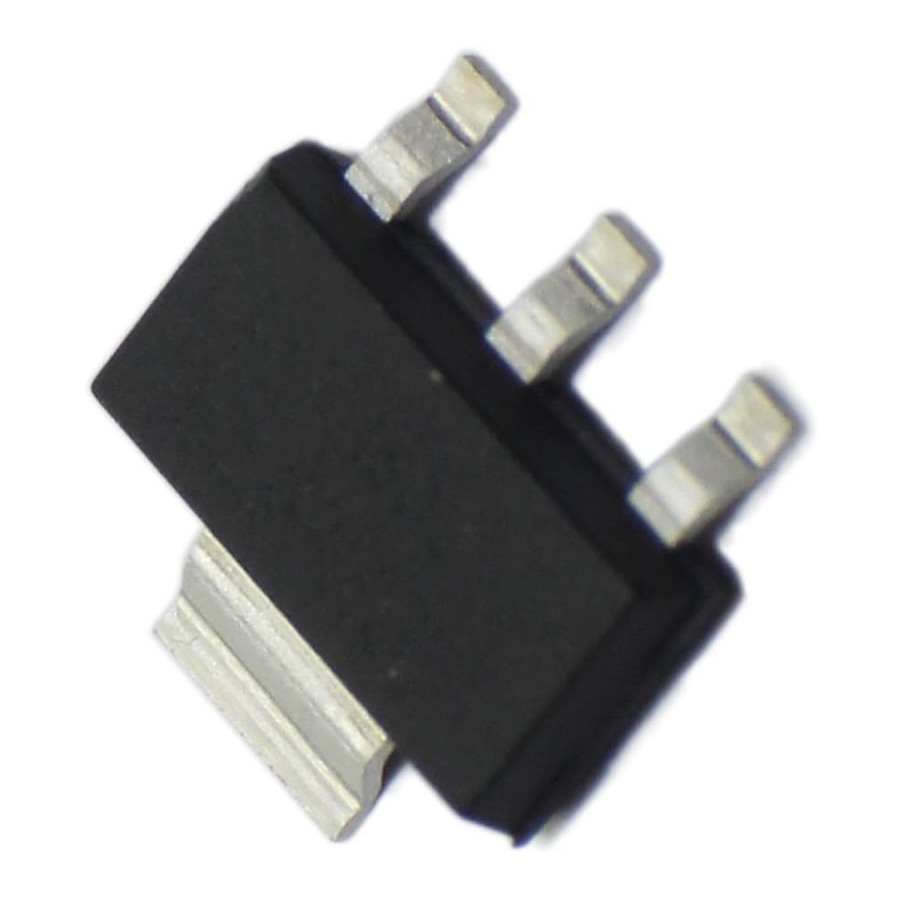

CZTA14 Transistor Silicon NPN CASE: SOT223 MAKE: Central Semiconductor
Datasheet
CZTA14 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer Central Semiconductor
Vbr CEO 30
Max. PD (W) 2.0
Min hFE 20k
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 125M
@VCE (test) 5.0
Pinout Equivalence Number 4-118
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 125 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 1277862
