D2601E

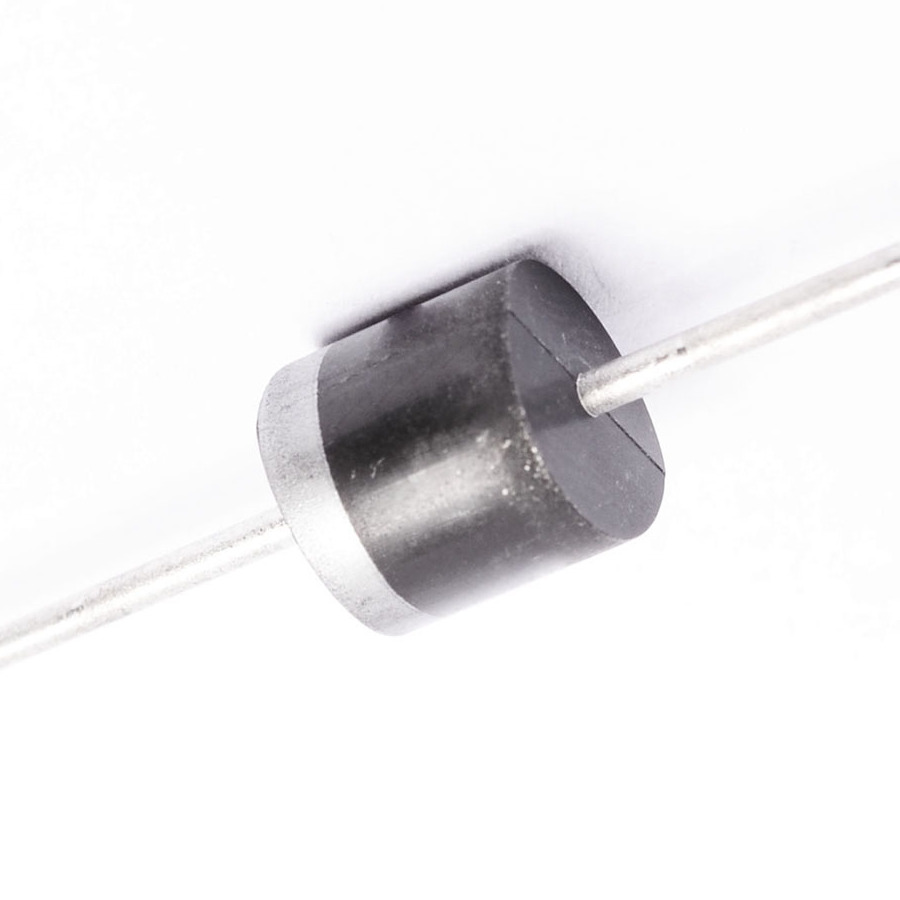

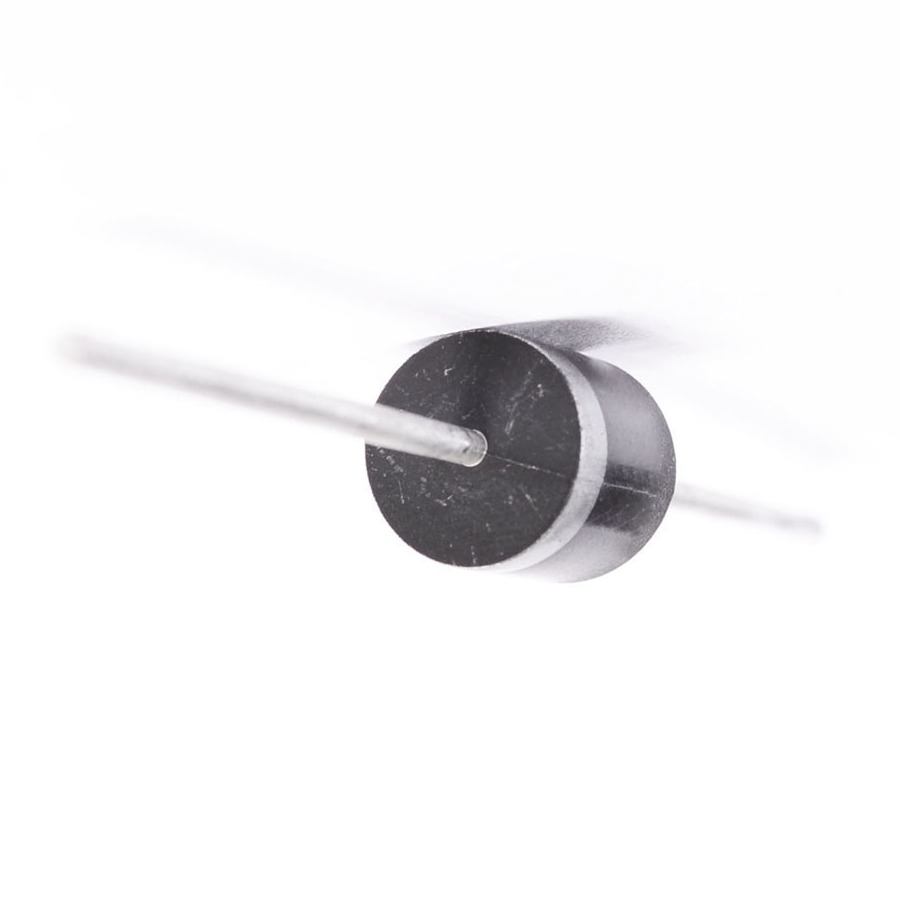

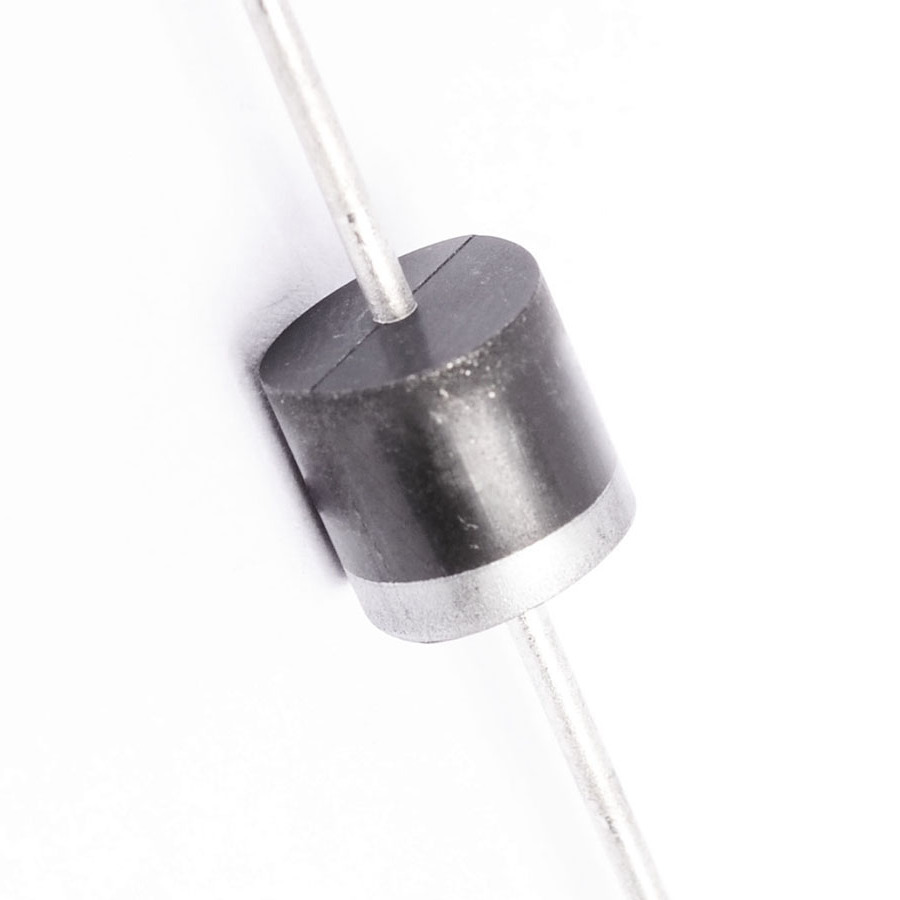

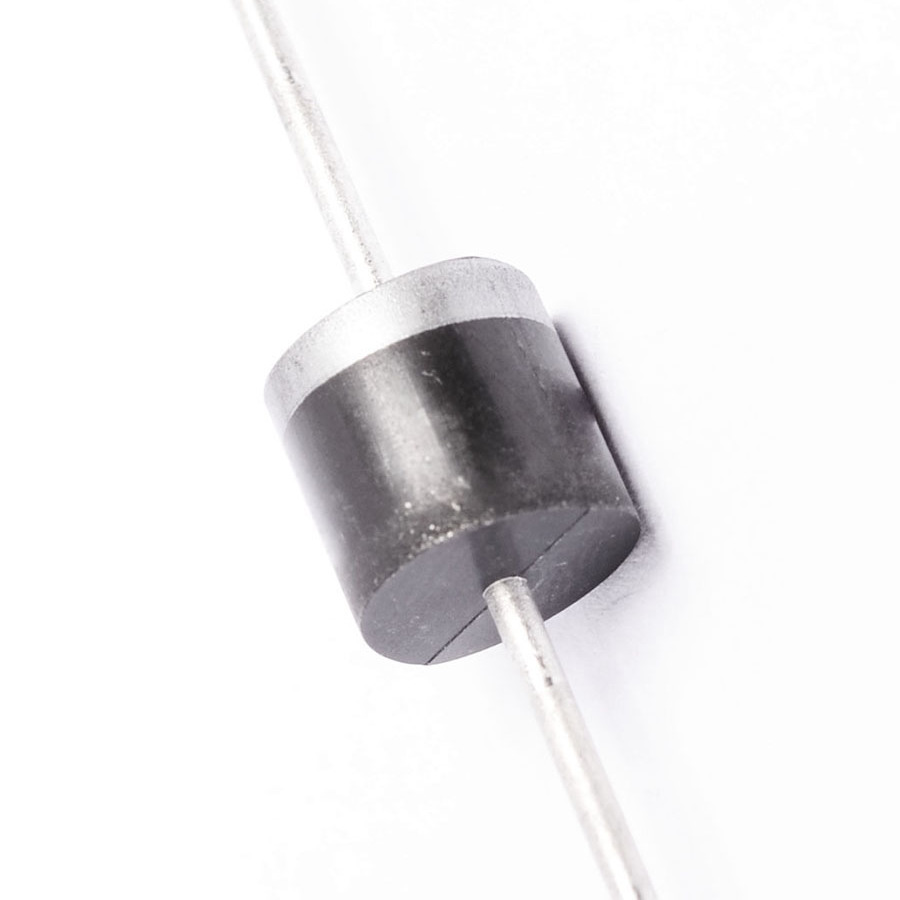

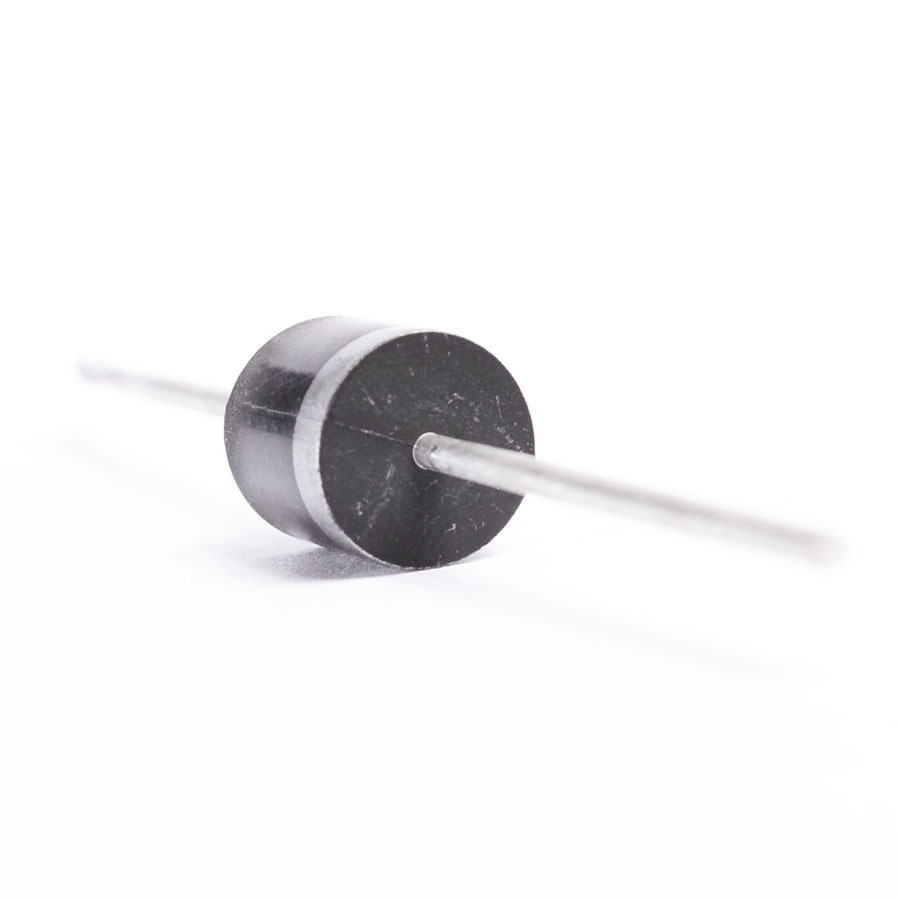

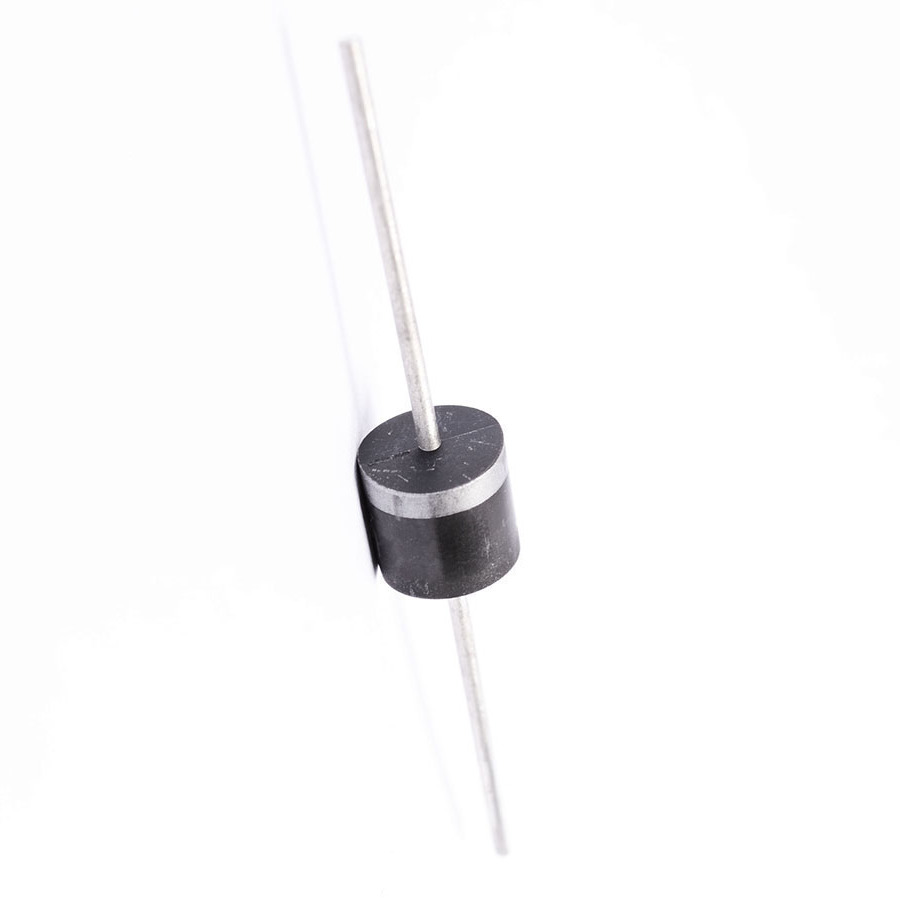

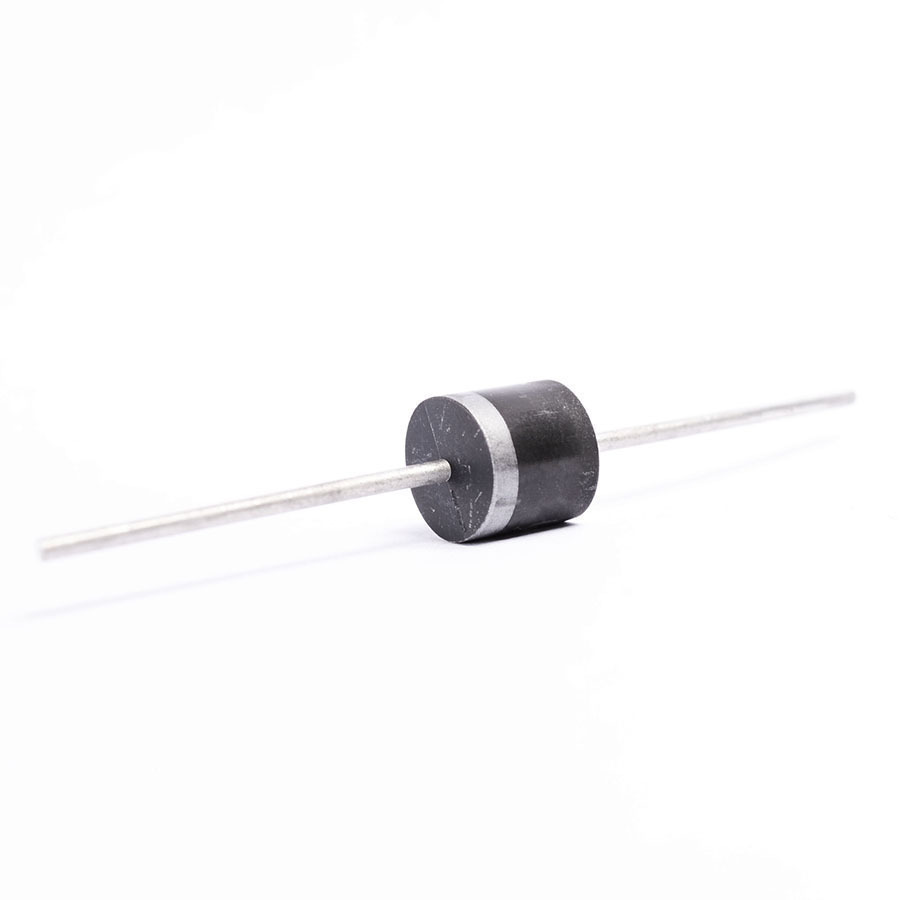

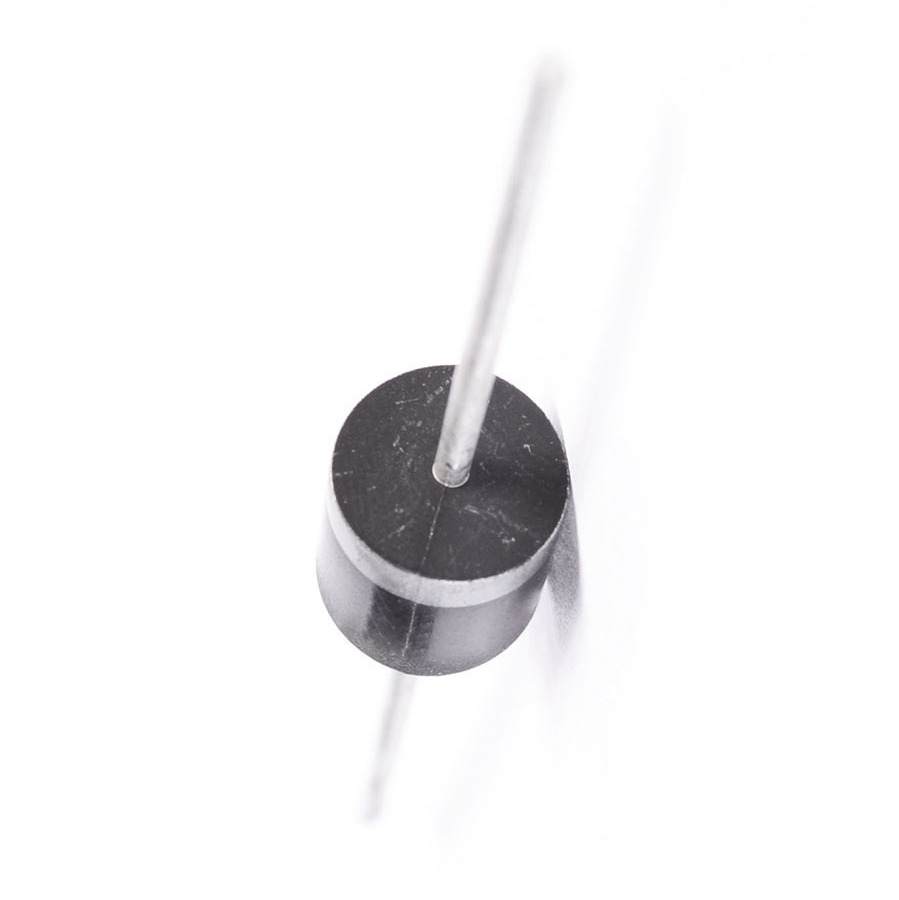

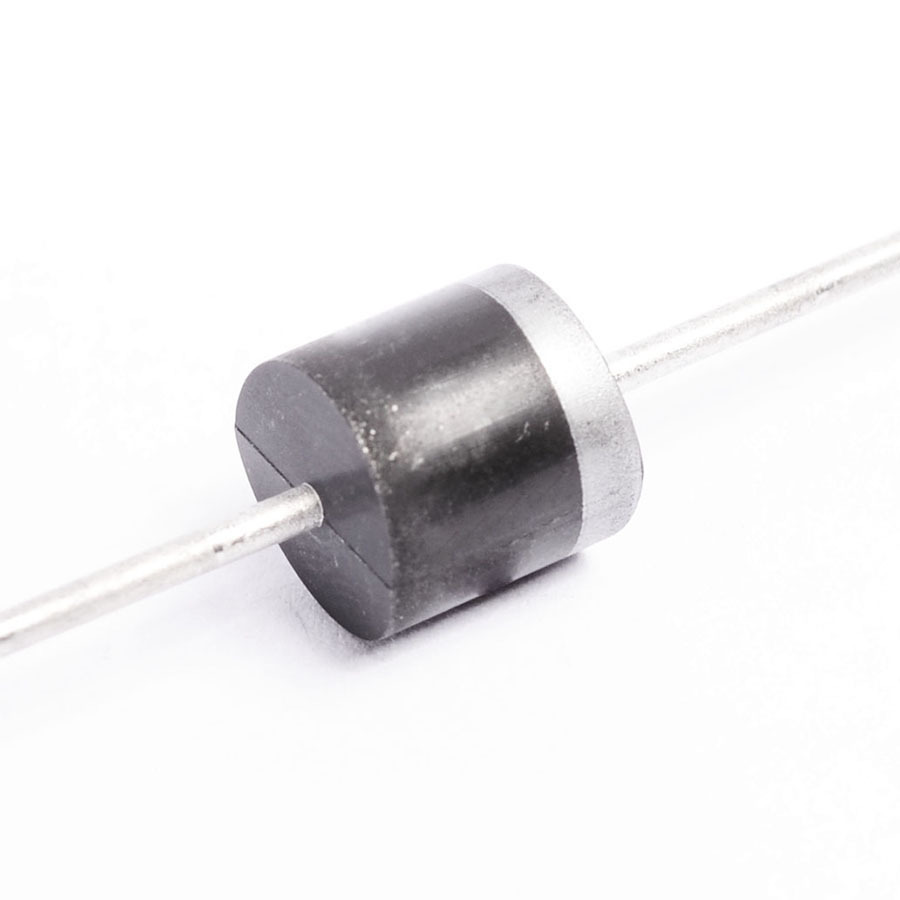

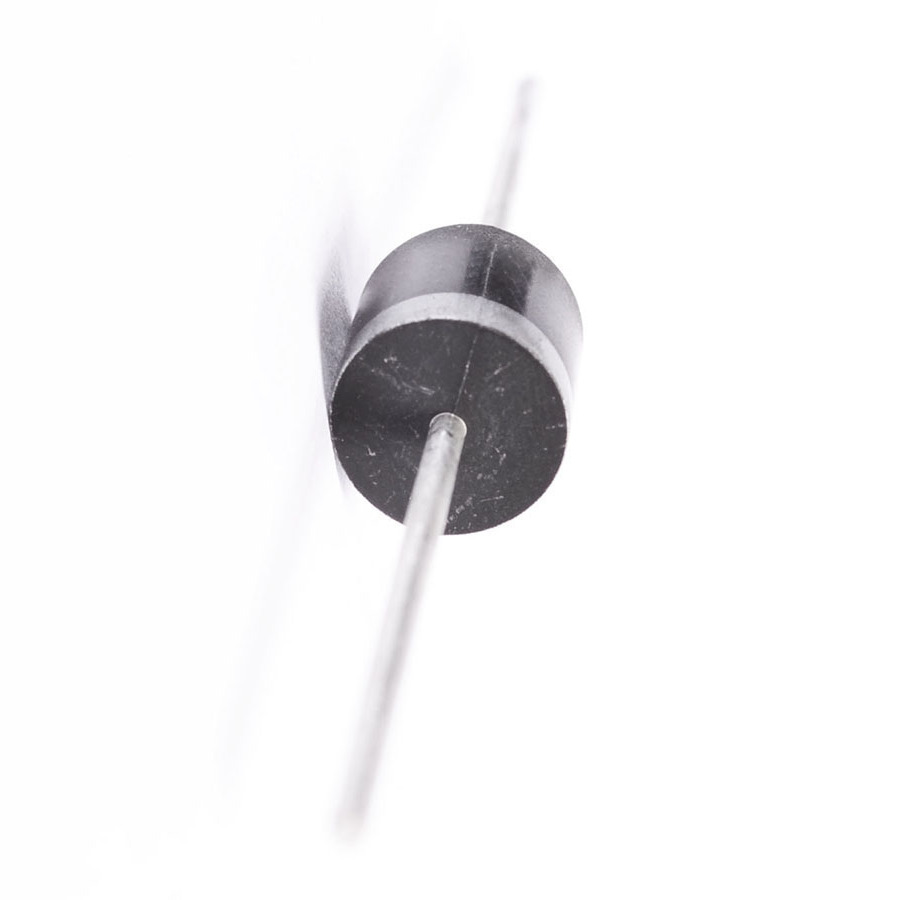

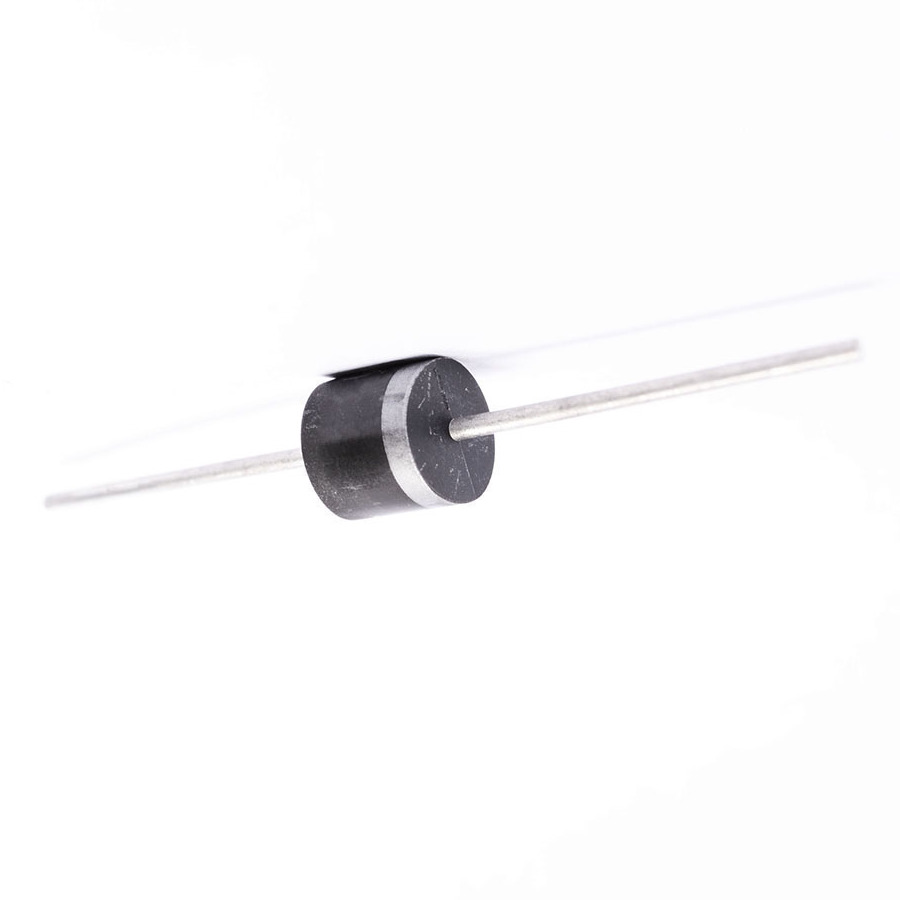

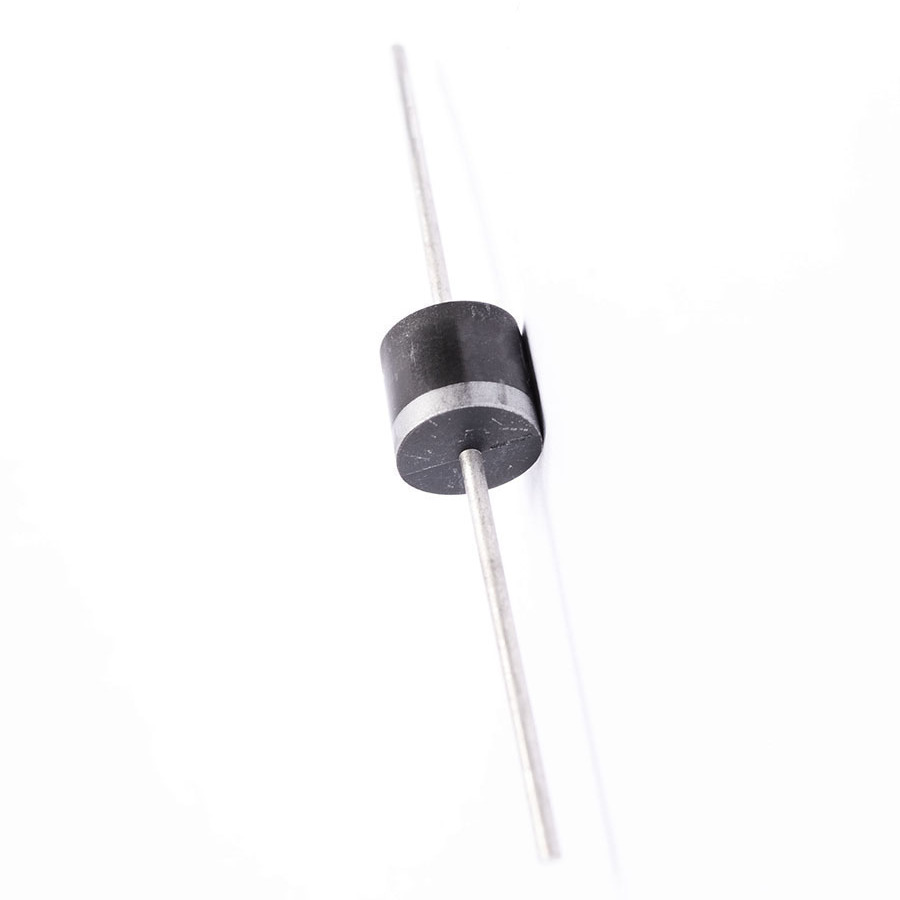

View detailed images (12)

D2601E

SKU: D2601E
D2601E SemiConductor CASE: DO26 MAKE: RCA - Harris
Product specifications
Equivalent D2601EF
Type SemiConductor
Case DO26
Manufacturer RCA - Harris
@Temp. (test) (°C) 45
Ir @ Diff. Temp (A) 250u
Mat. Silicon Logic
VRRM 500
t(rr) (S) 500n
1-Cycle Surge Current (A) 70
@Temp (test) (°C) 100
@Temp. (test) for Vf) 75
Vf Max. 1.9
Ir @25°C 15u
I(out) (If AVG) Max. 1.6
@Volts (test) (V) 500
@If (test) 20
@If (test) 4.0
Oper. Temp (°C) Max. 150
@Ir (A) 2.0
Surface Mounted Yes/No NO
SKU 565648
