D44R4
View detailed images (9)

D44R4

SKU: D44R4

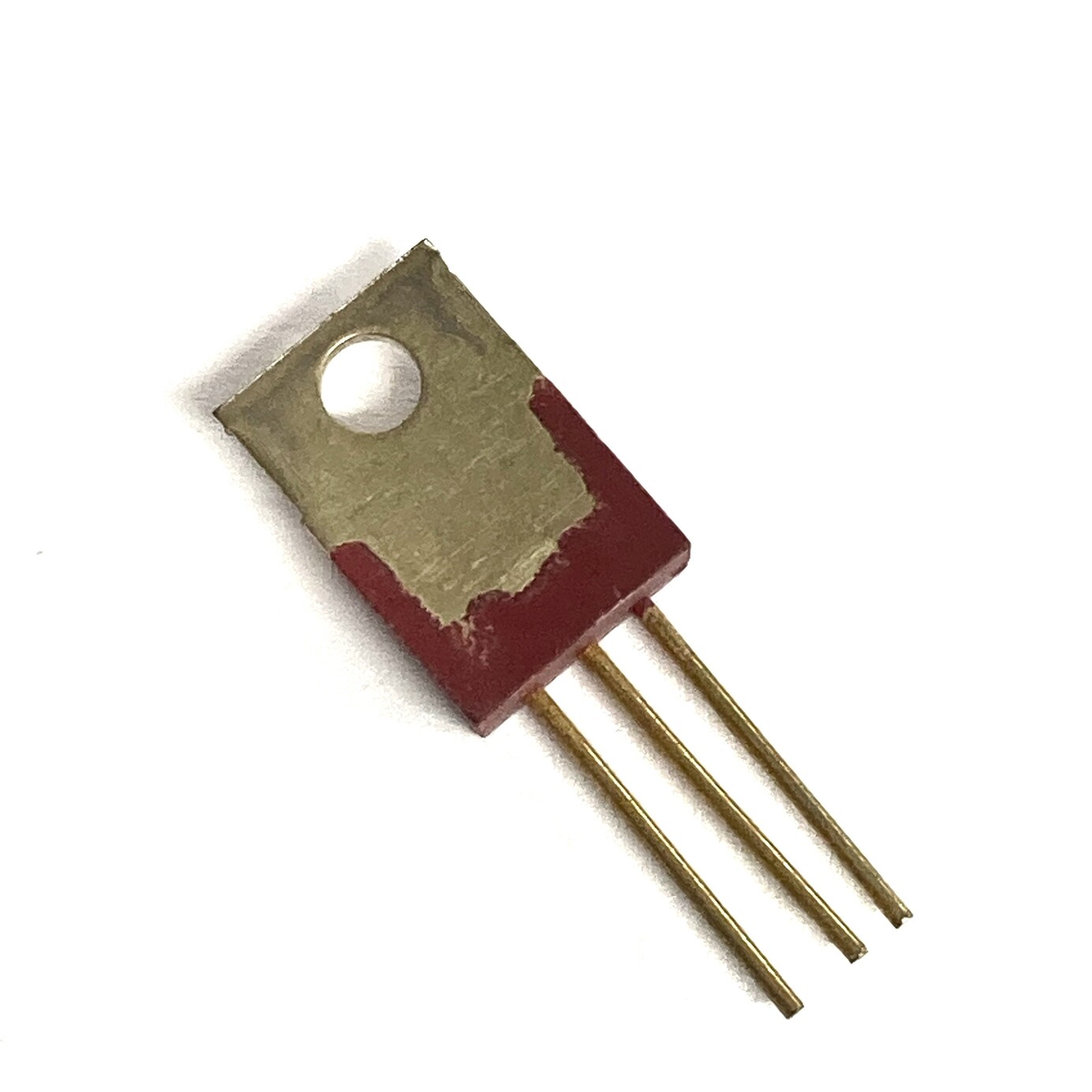

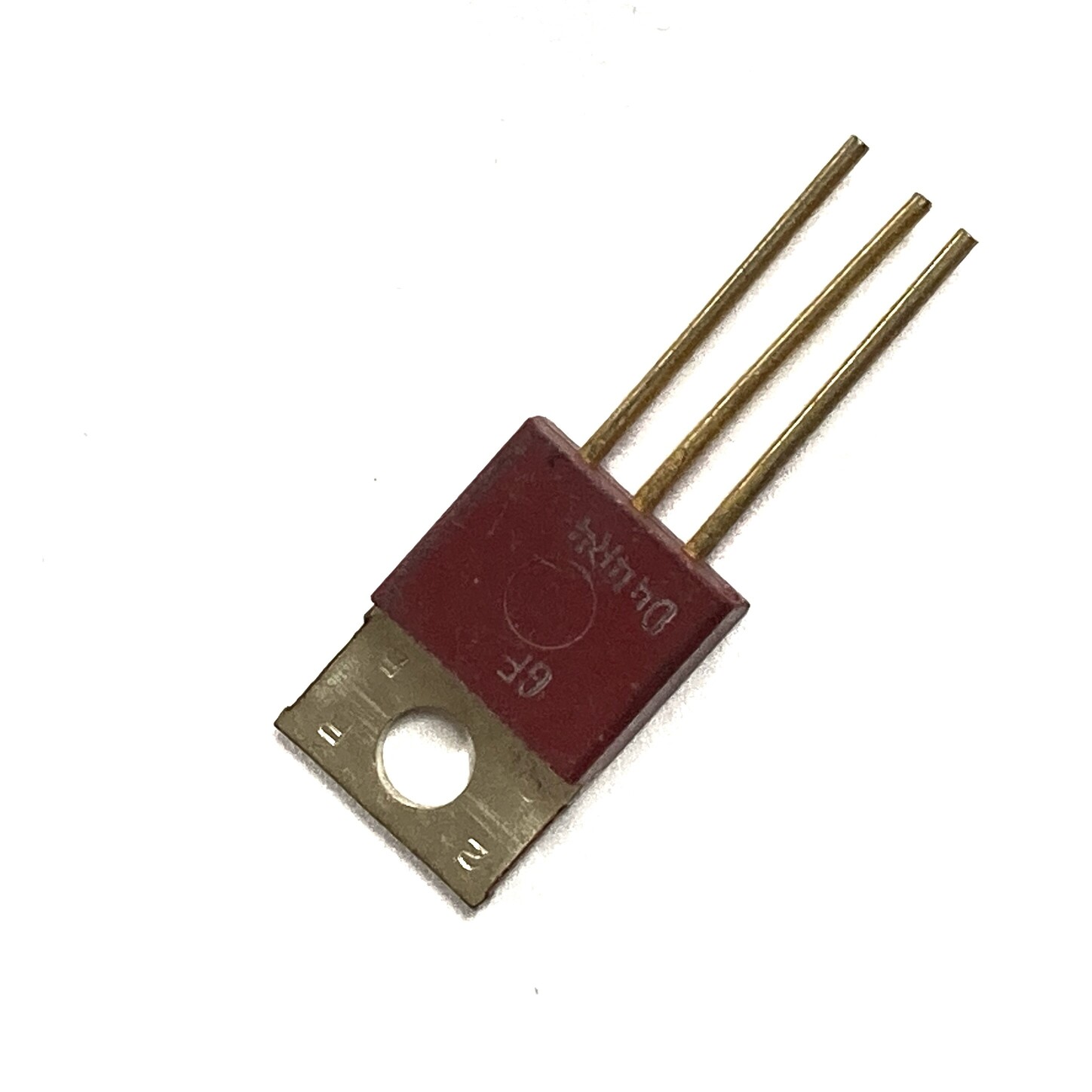

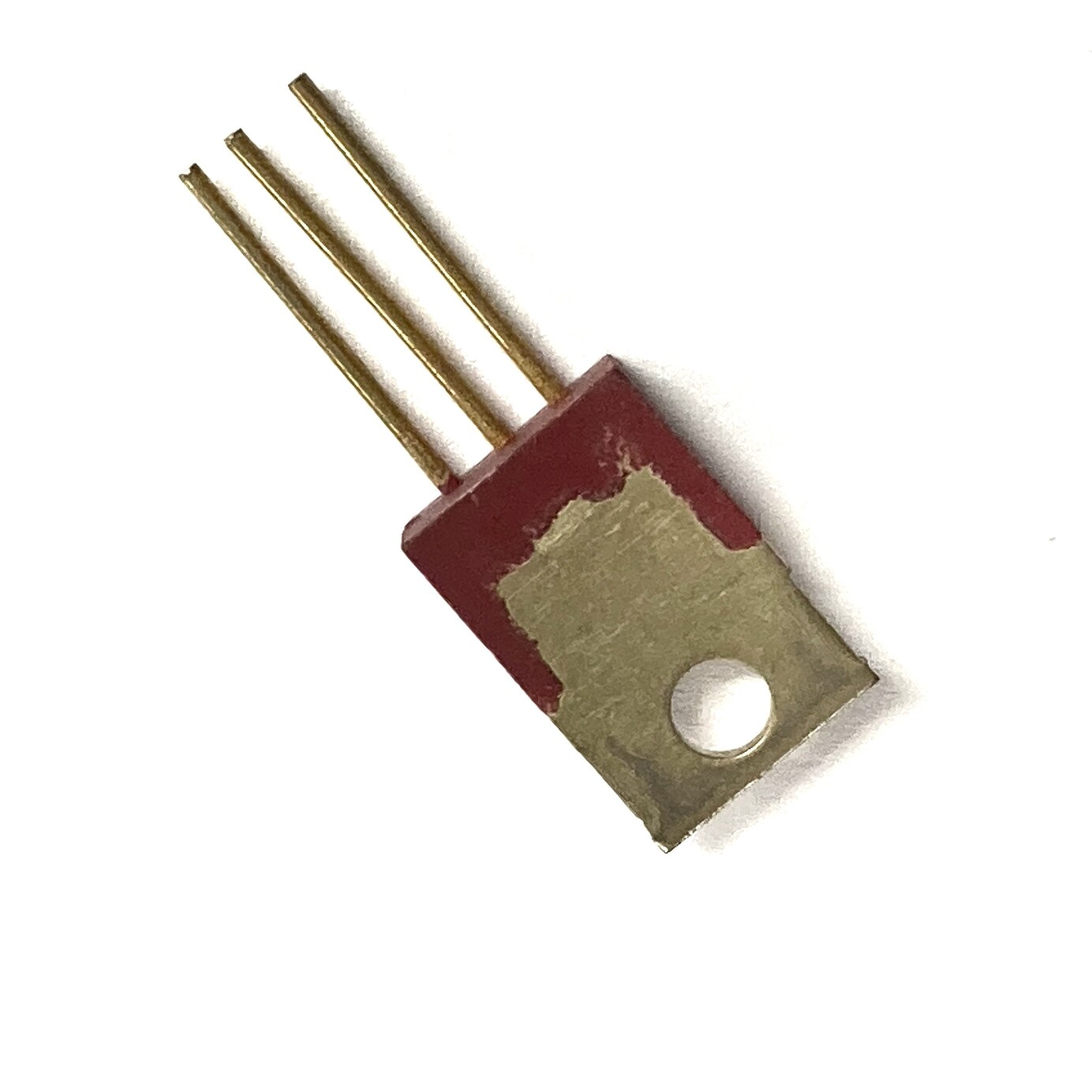

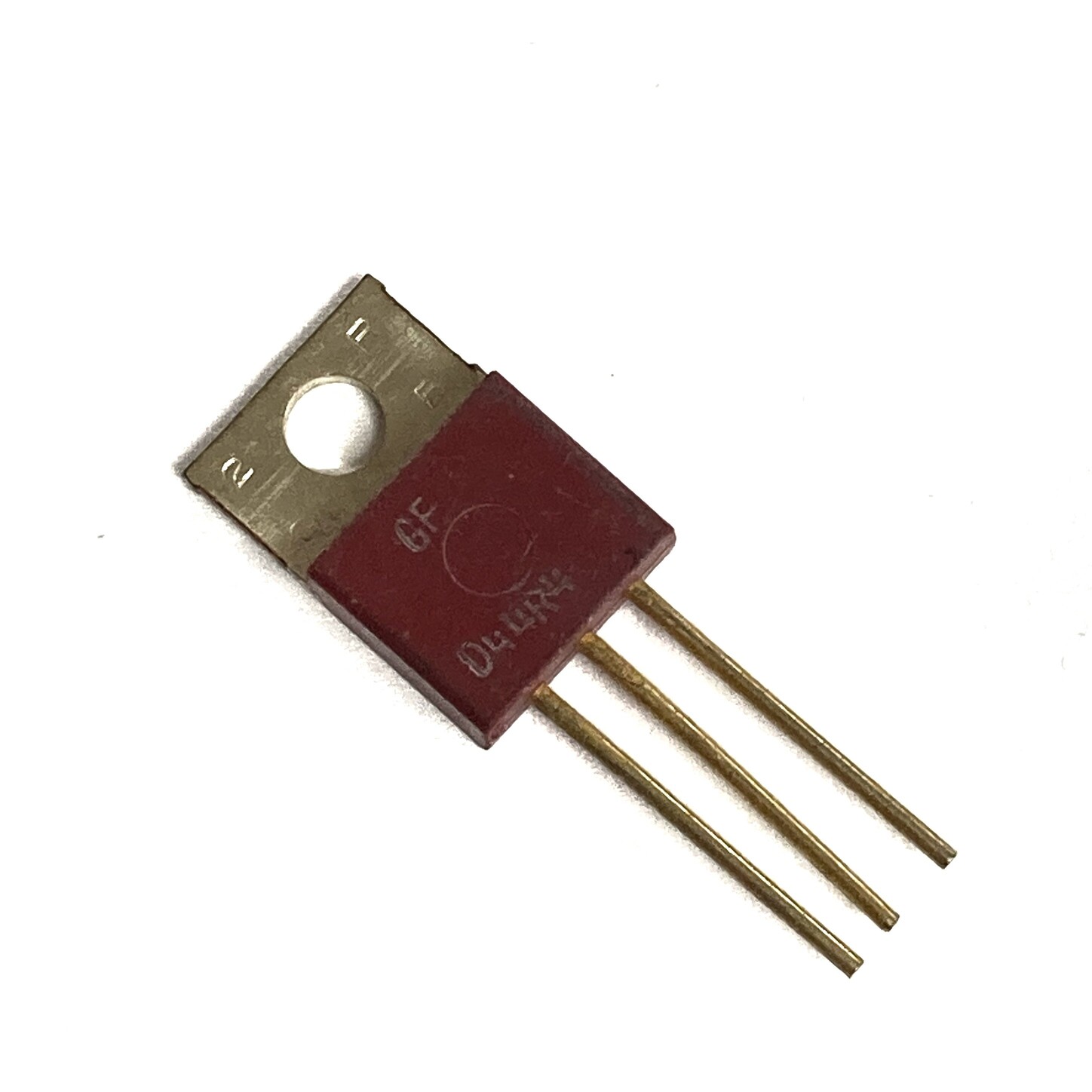

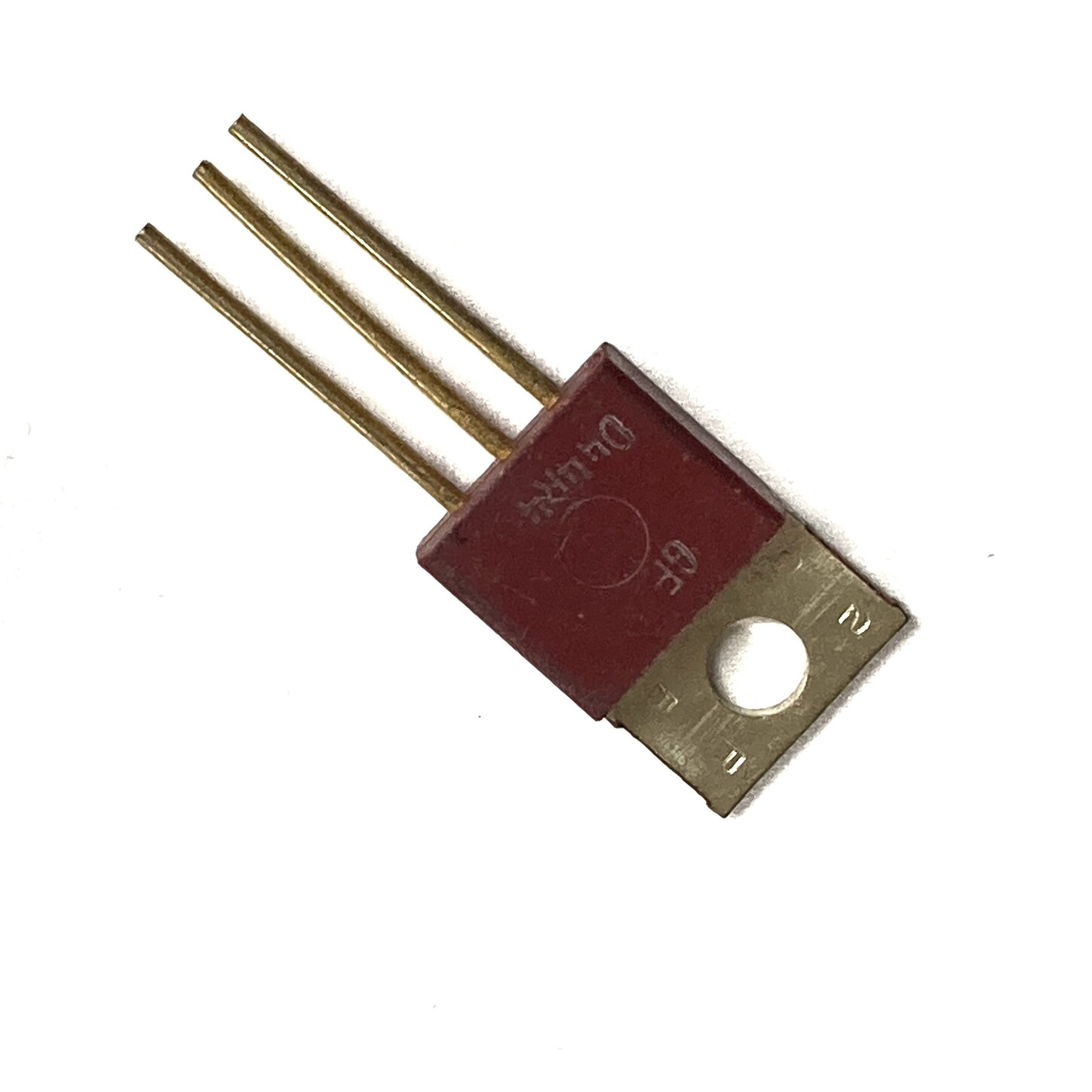

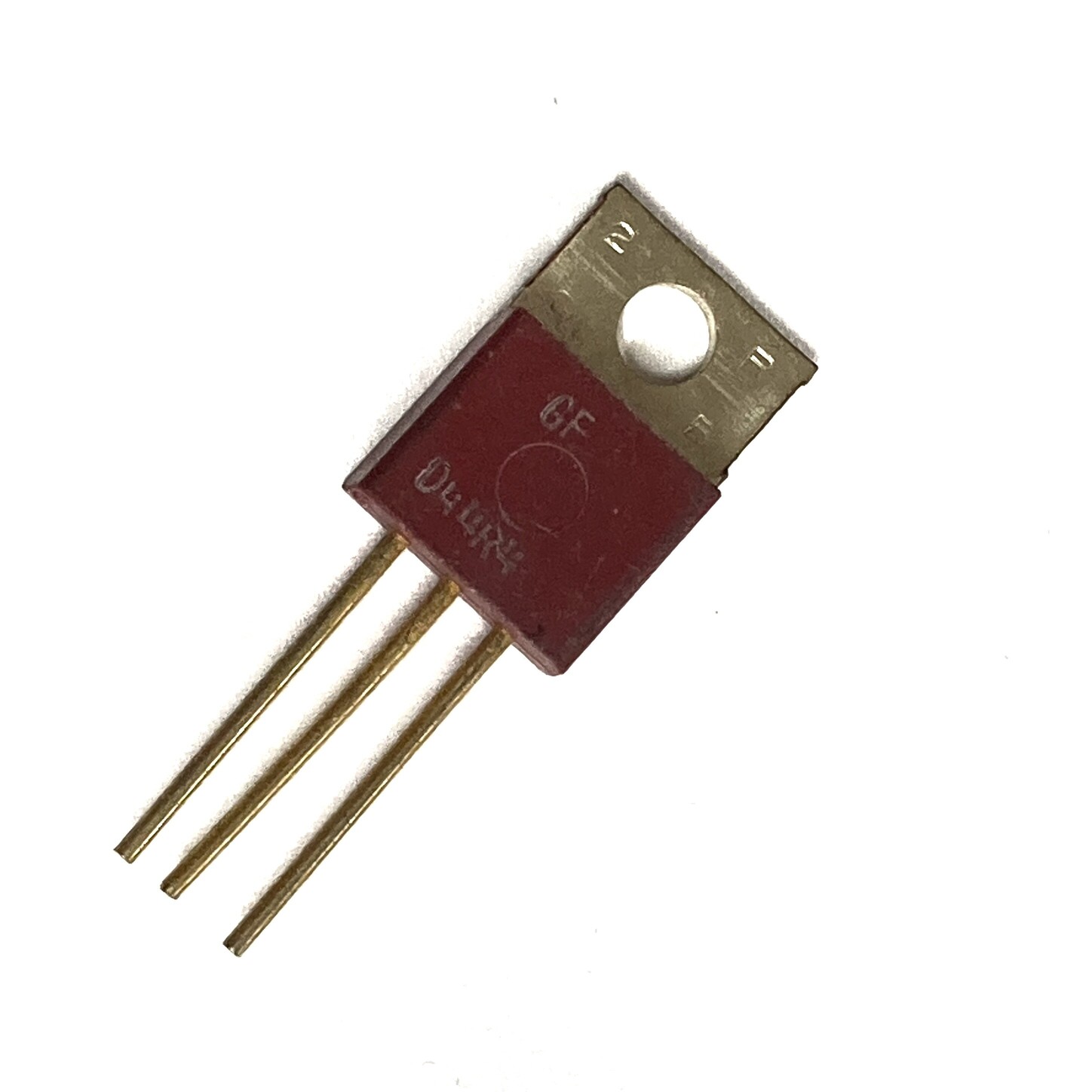

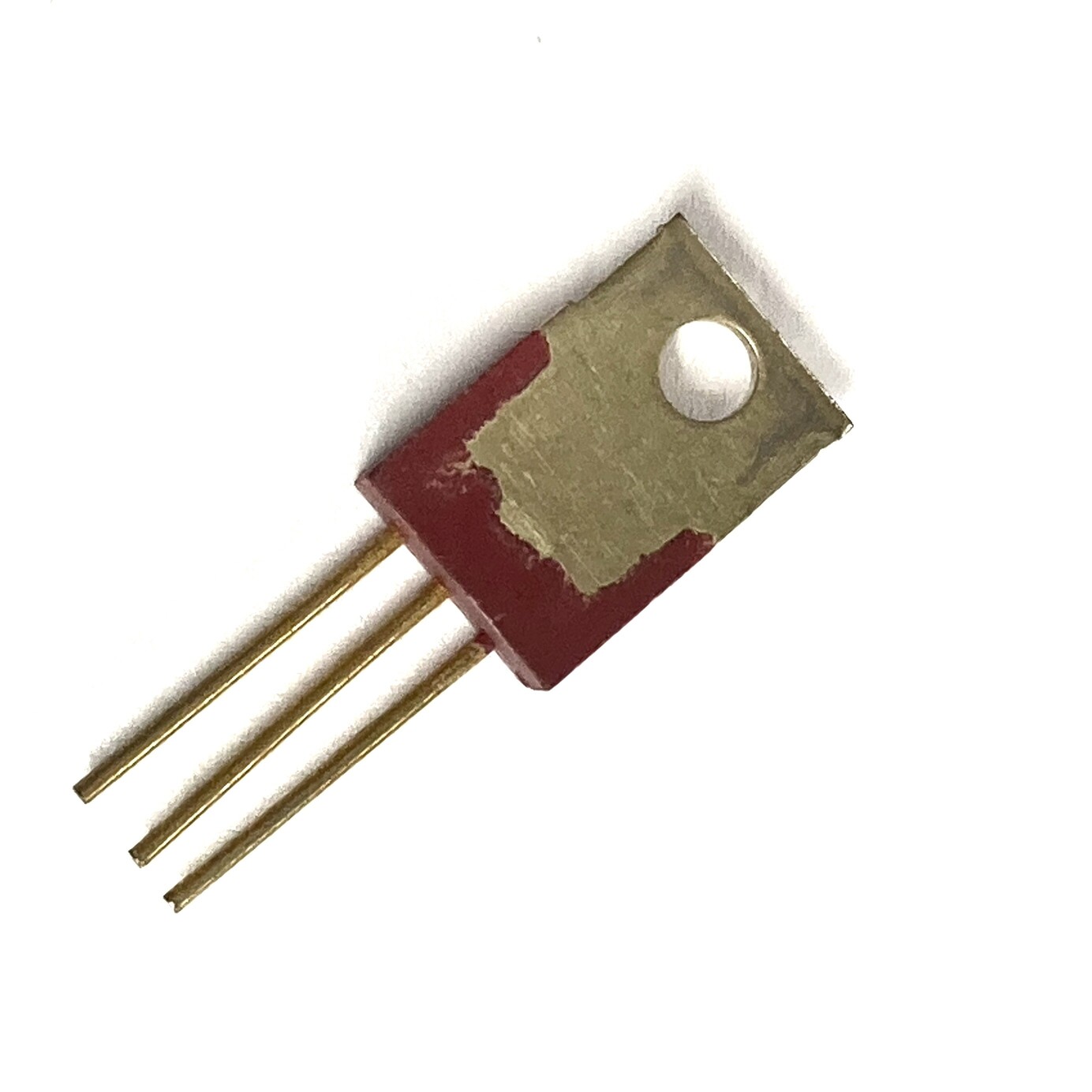

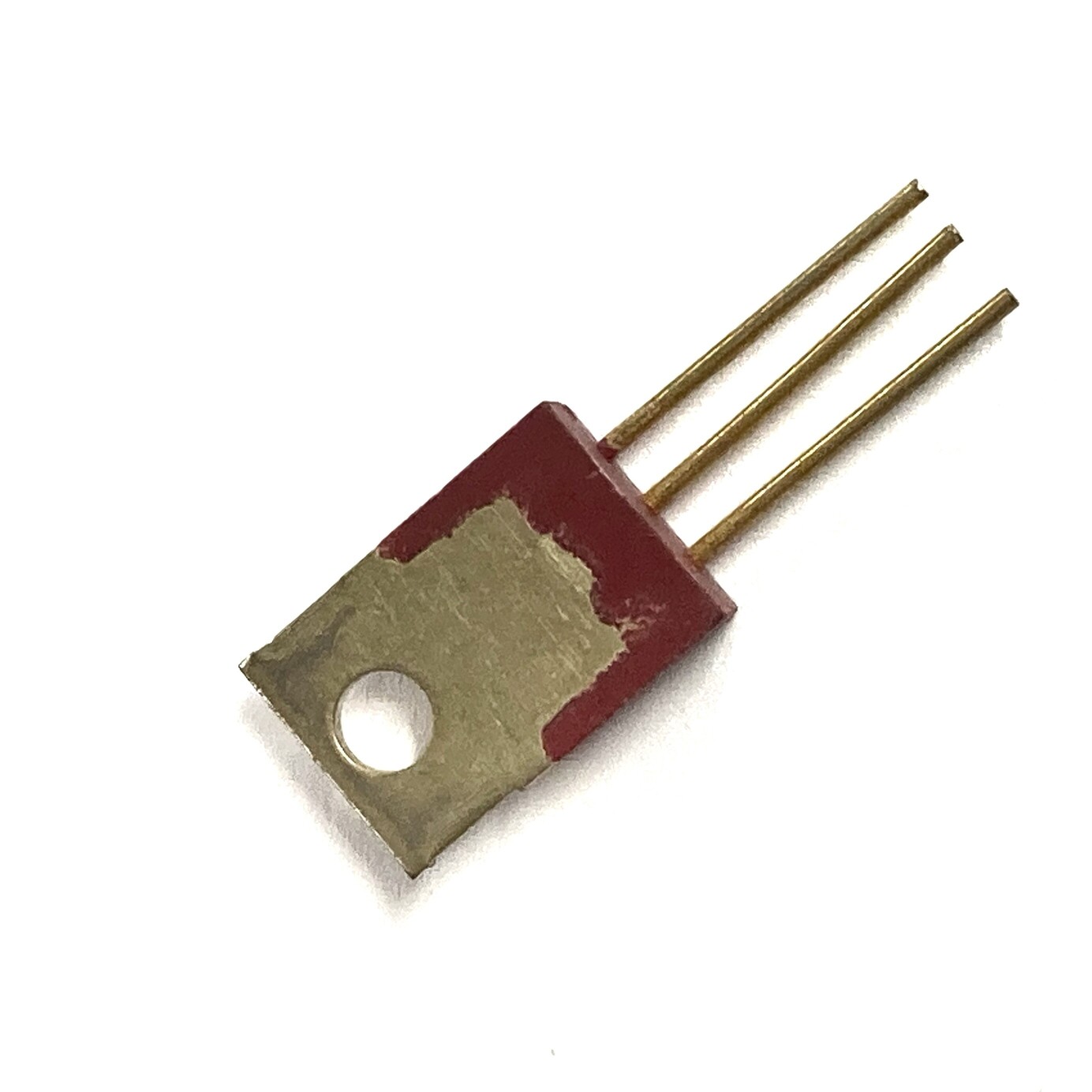

D44R4 Transistor Silicon NPN CASE: TO220 MAKE: General Electric
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO220
Manufacturer General Electric
Vbr CEO 300
Max. PD (W) 1.6
t(f) Max. (S) 1.6u
Max. hFE 175
Min hFE 75
Ic Max. (A) 1.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Derate Above 25°C 250m
Oper. Temp (°C) Max. 140
@VCE (V) 10
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 31 W
Maximum Collector-Base Voltage |Vcb| 500 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN 75
SKU 381304
