Home / Semiconductors / DAC1222LCD

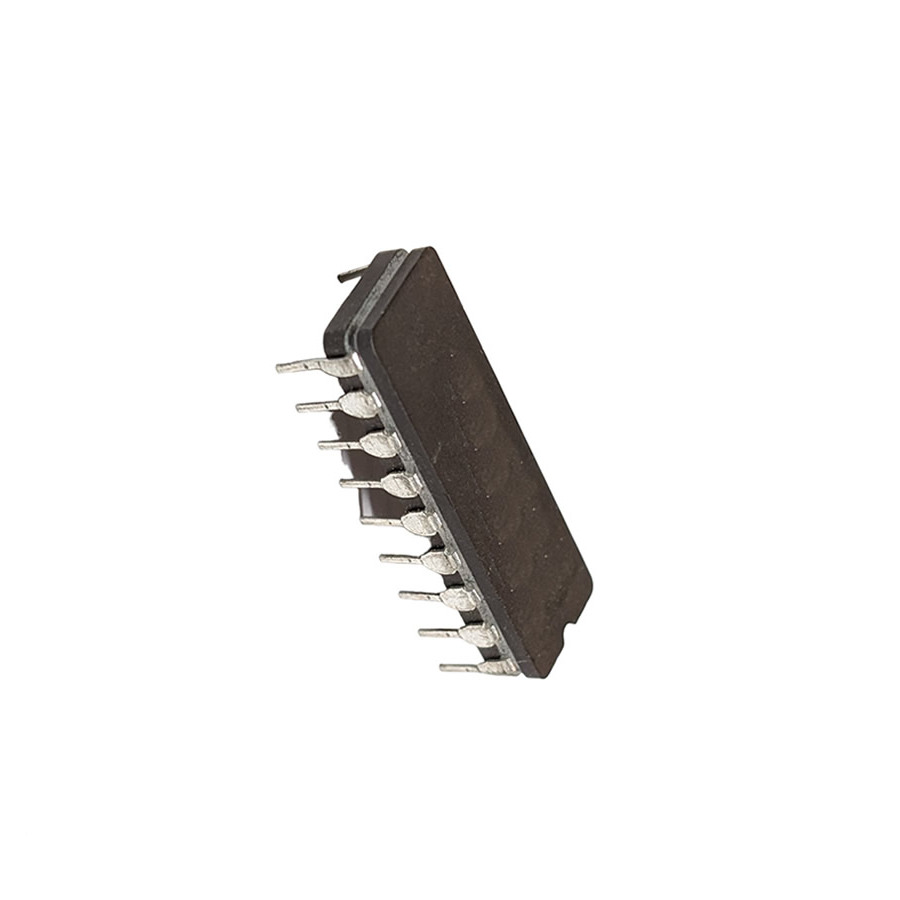

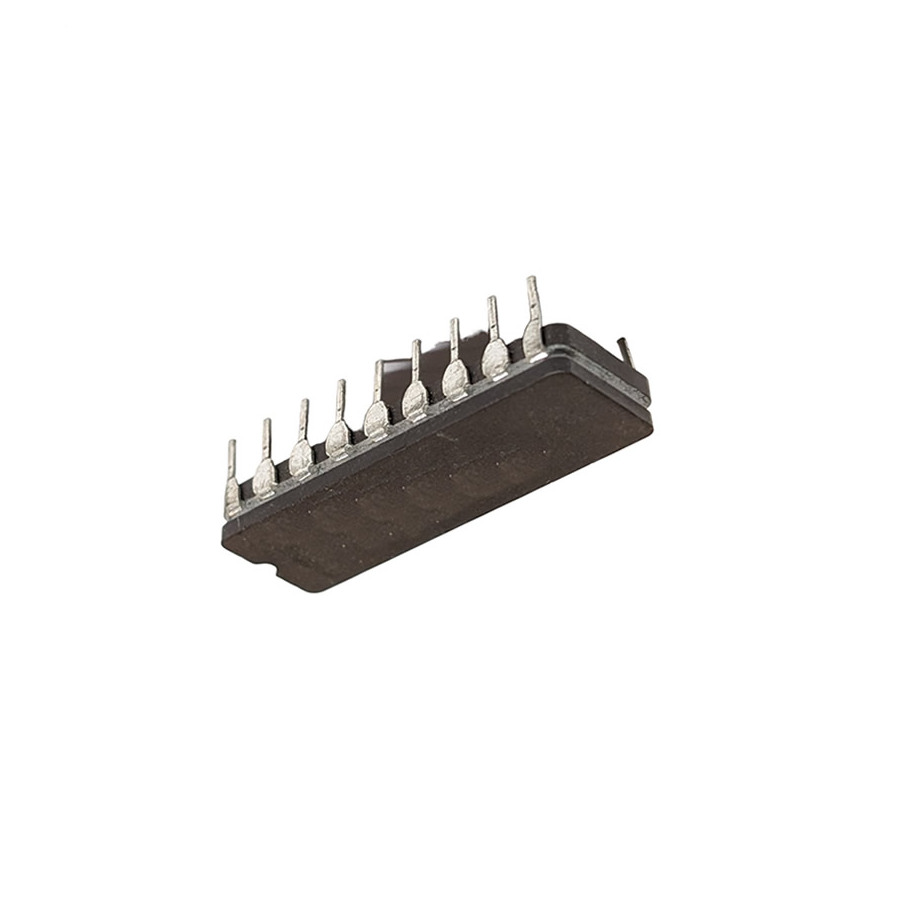

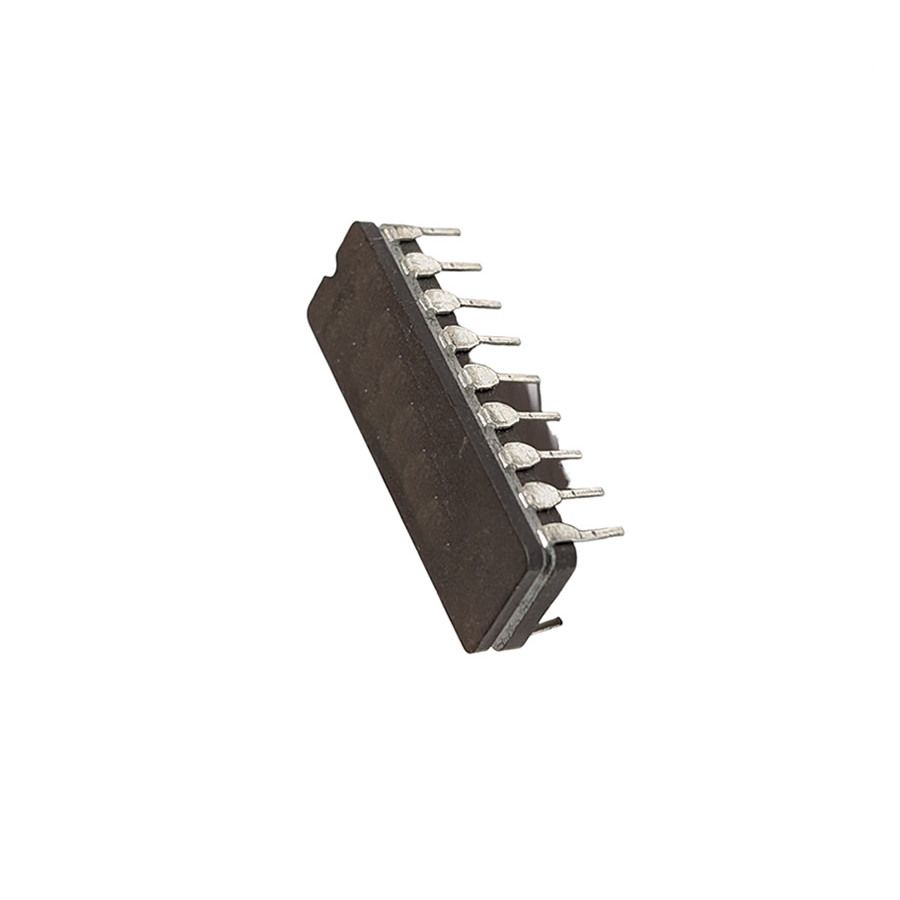

DAC1222LCD

DAC1222LCD

SKU: DAC1222LCD
DAC1222LCD Semiconductor CASE: DIC18 MAKE: National Semiconductor - NSC
Product specifications
Type Semiconductor
Case DIC18
Manufacturer National Semiconductor - NSC
FSR Error (LSB/%) 8.0
Inp Arith. Code A
Vih Min (V) 2.4
Vil Max. (V) 0.8
PD Max. (W) 30m
Nom. Neg Supp 0.0
Nom. Pos. Supp 15
Settling Time (S) 500n
Temp Drift Max. (ppm/°C) 10
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@ Accuracy (% FSR) 0.5
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 18-37
Surface Mounted Yes/No NO
SKU 947513
