Home / Integrated Circuit / DAC8043FZ

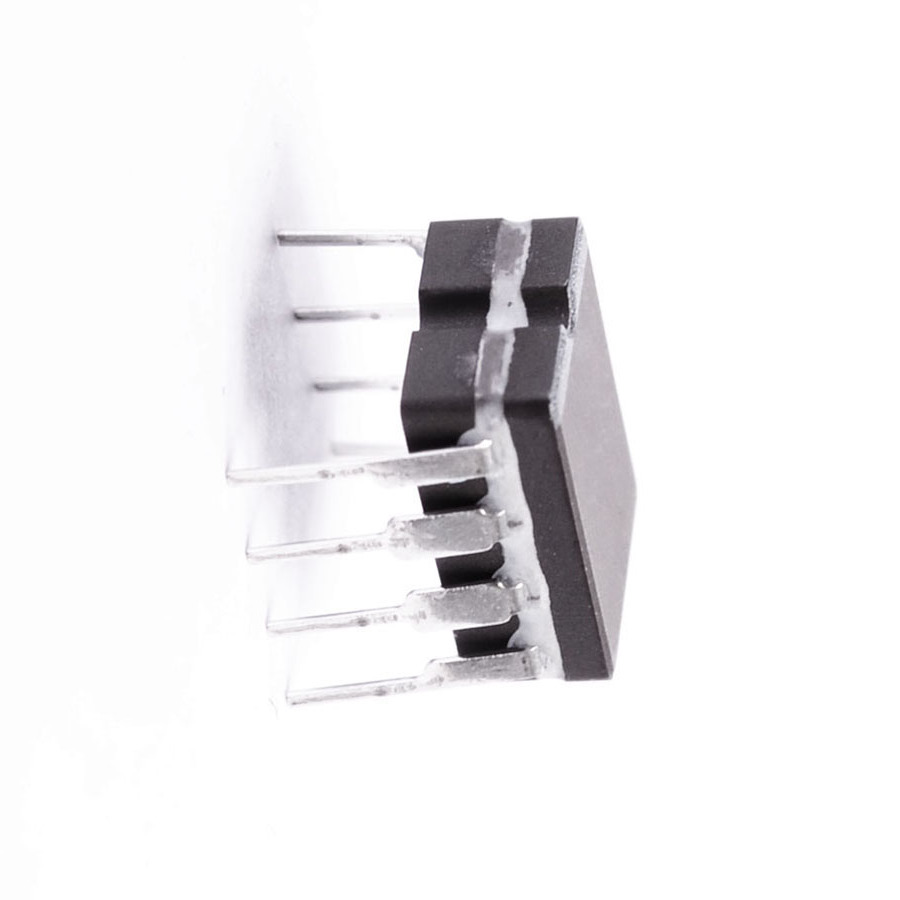

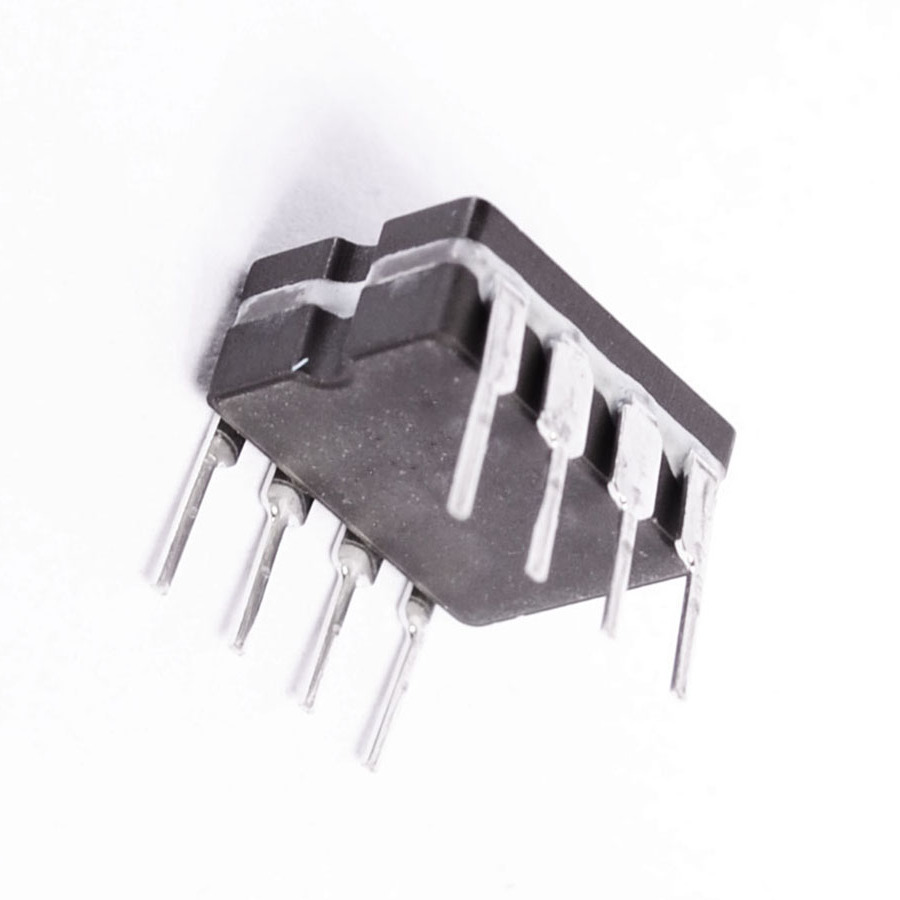

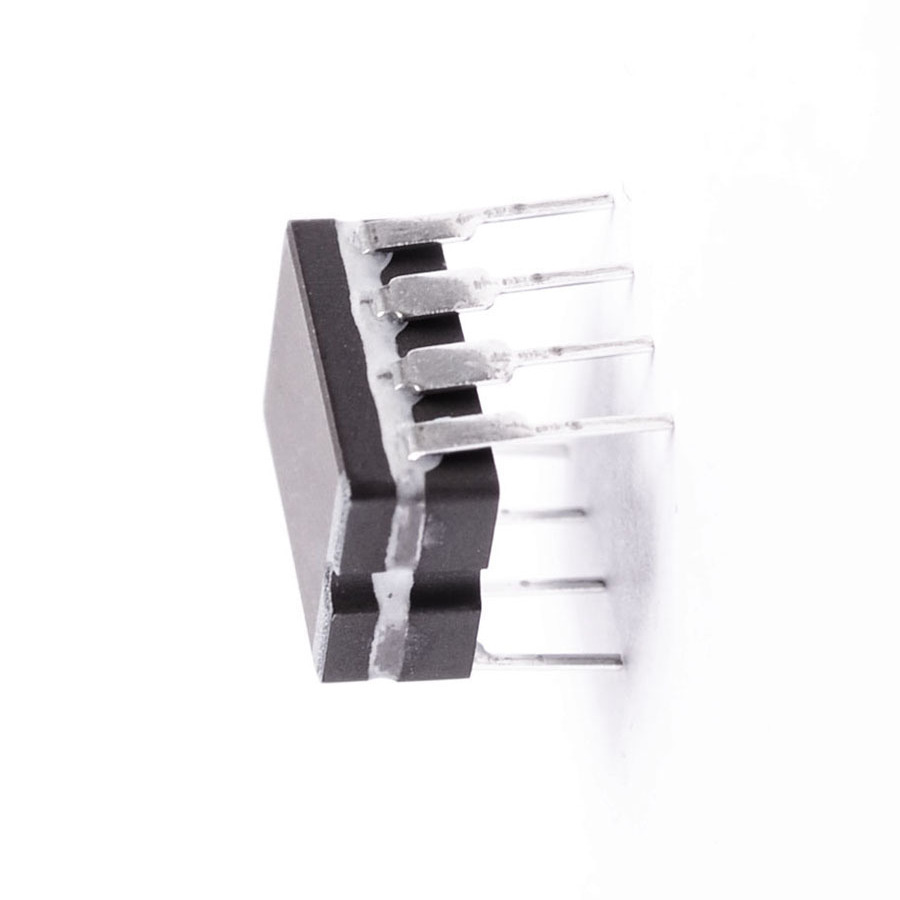

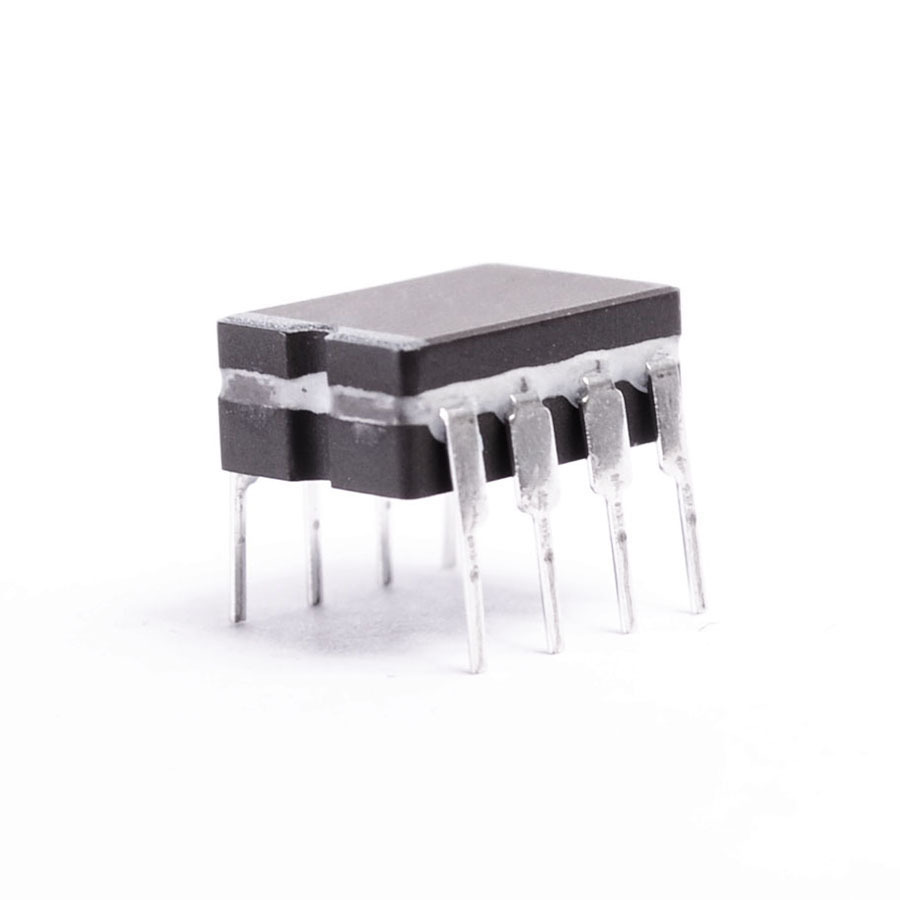

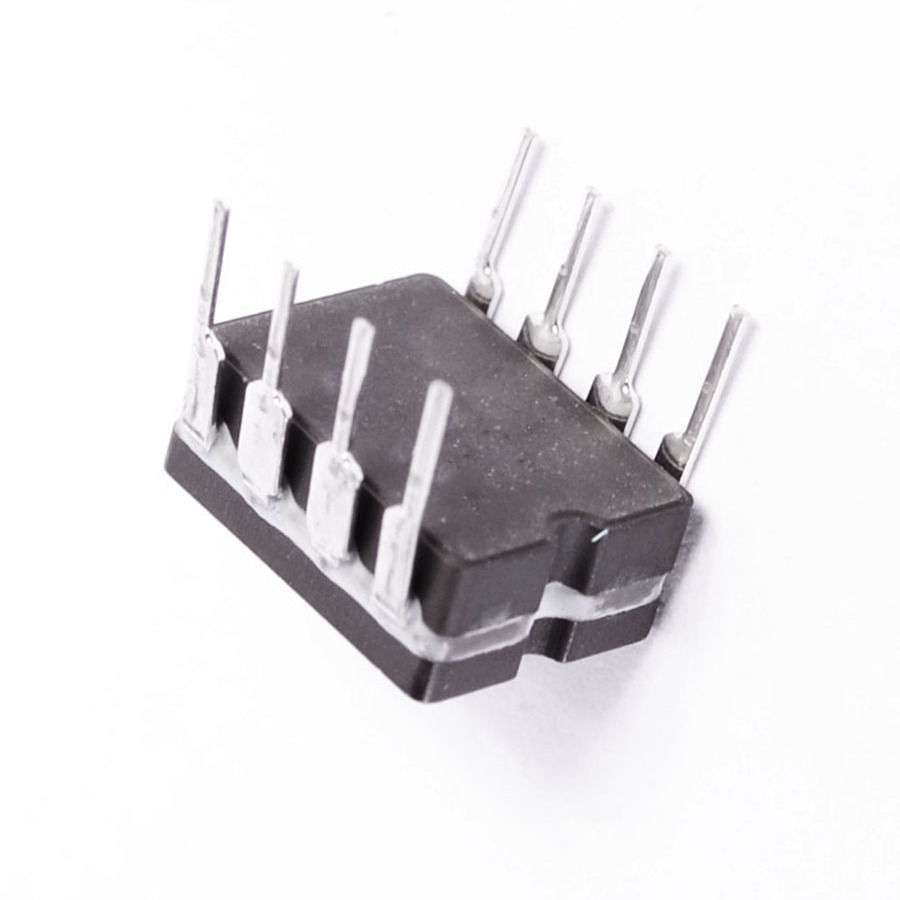

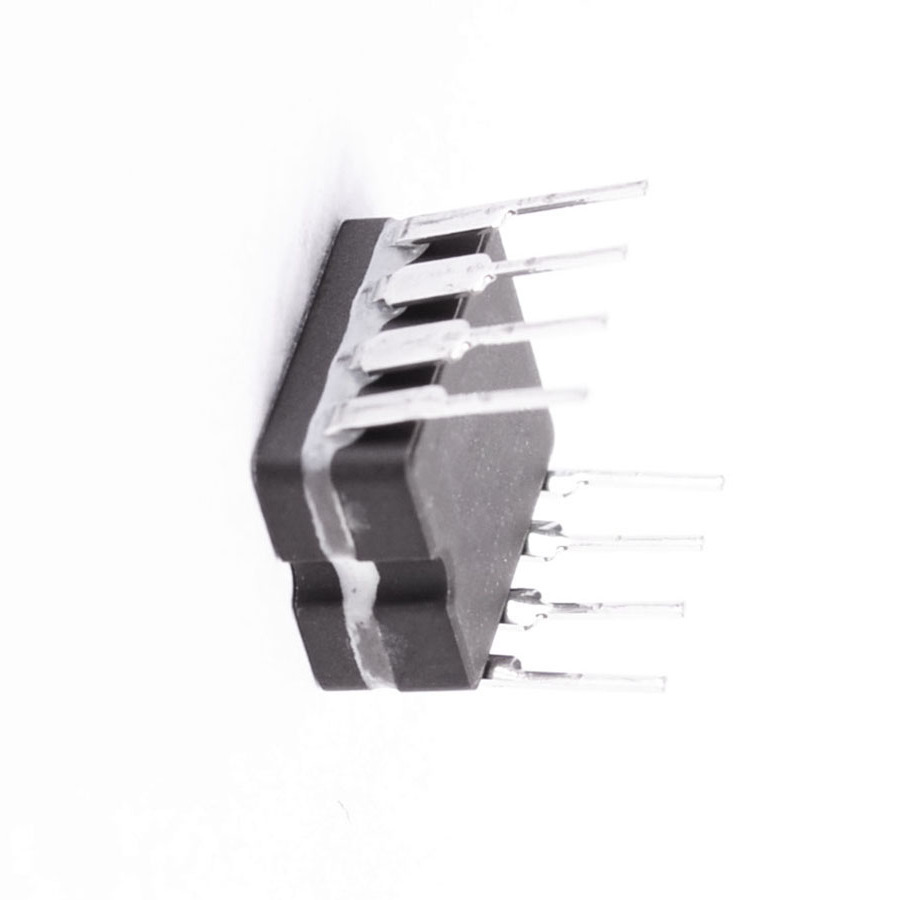

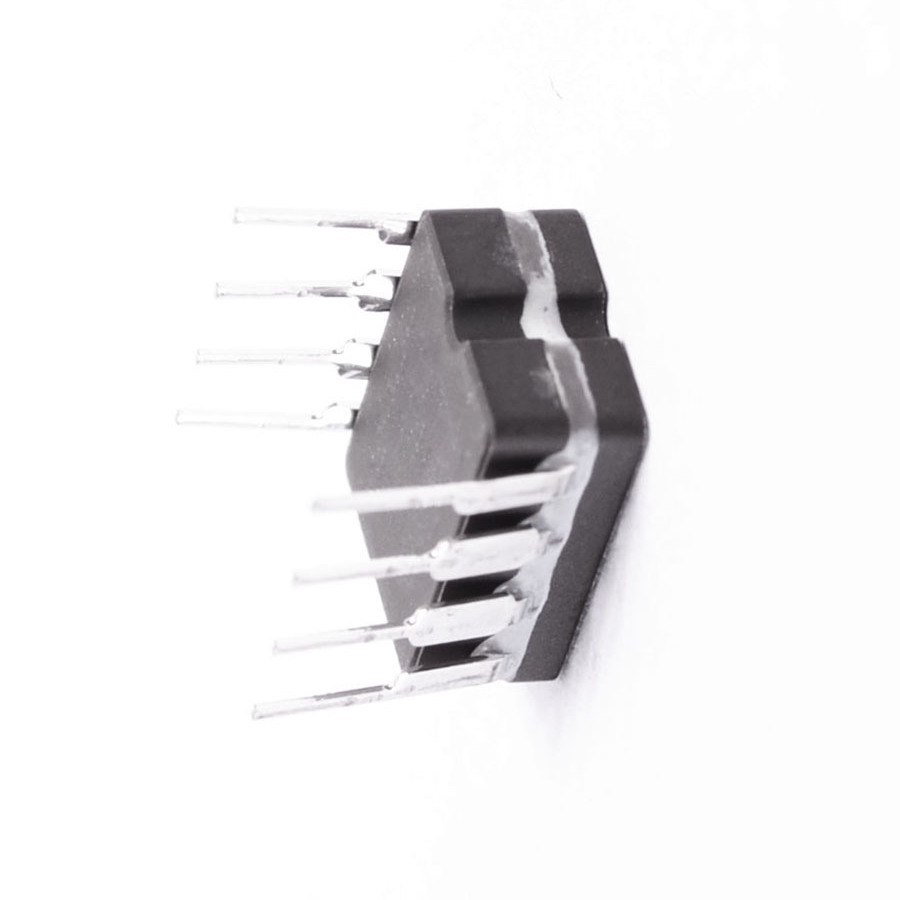

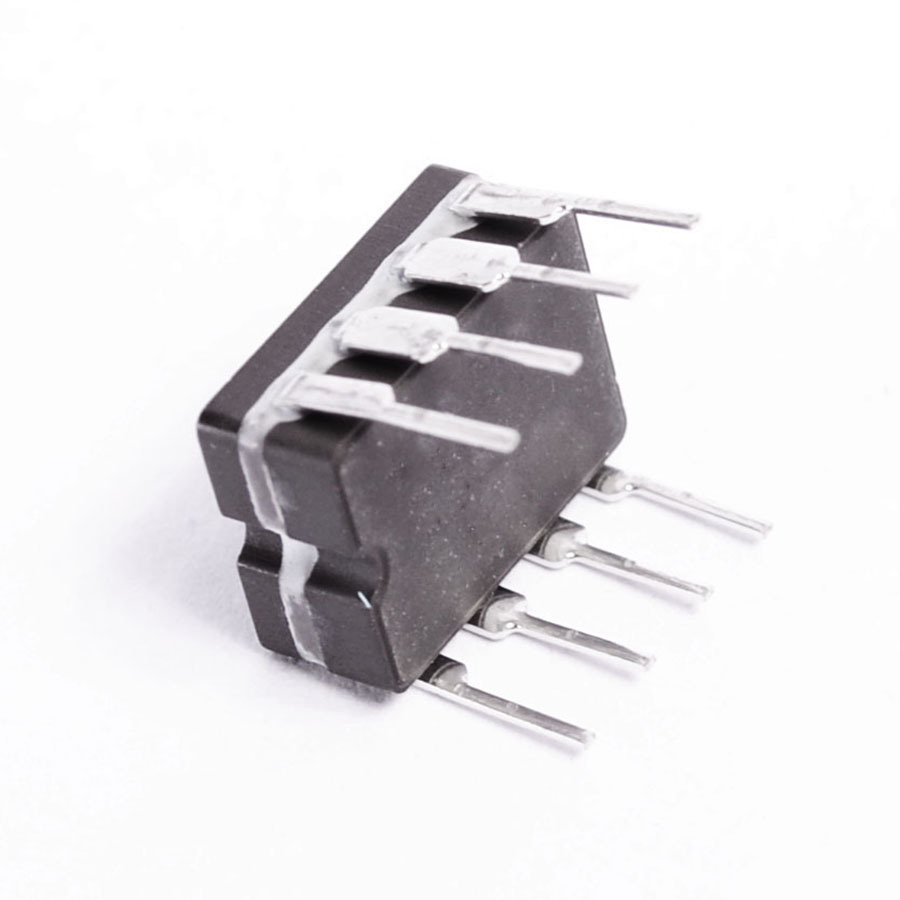

DAC8043FZ

DAC8043FZ

SKU: DAC8043FZ

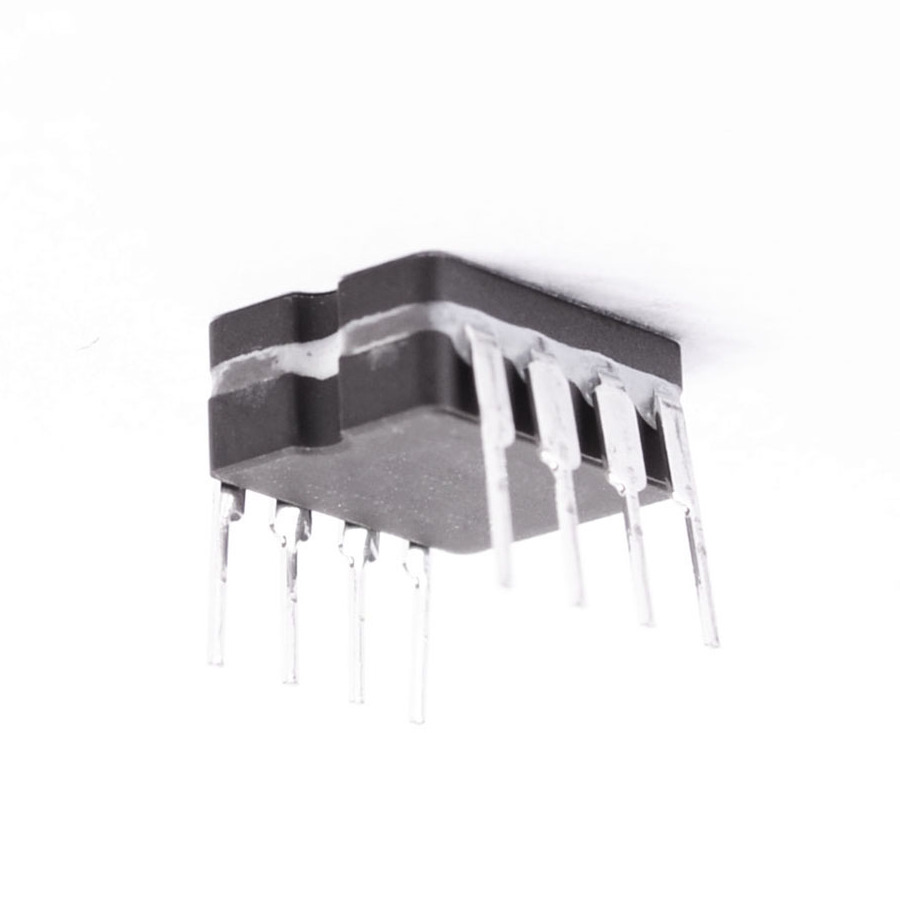

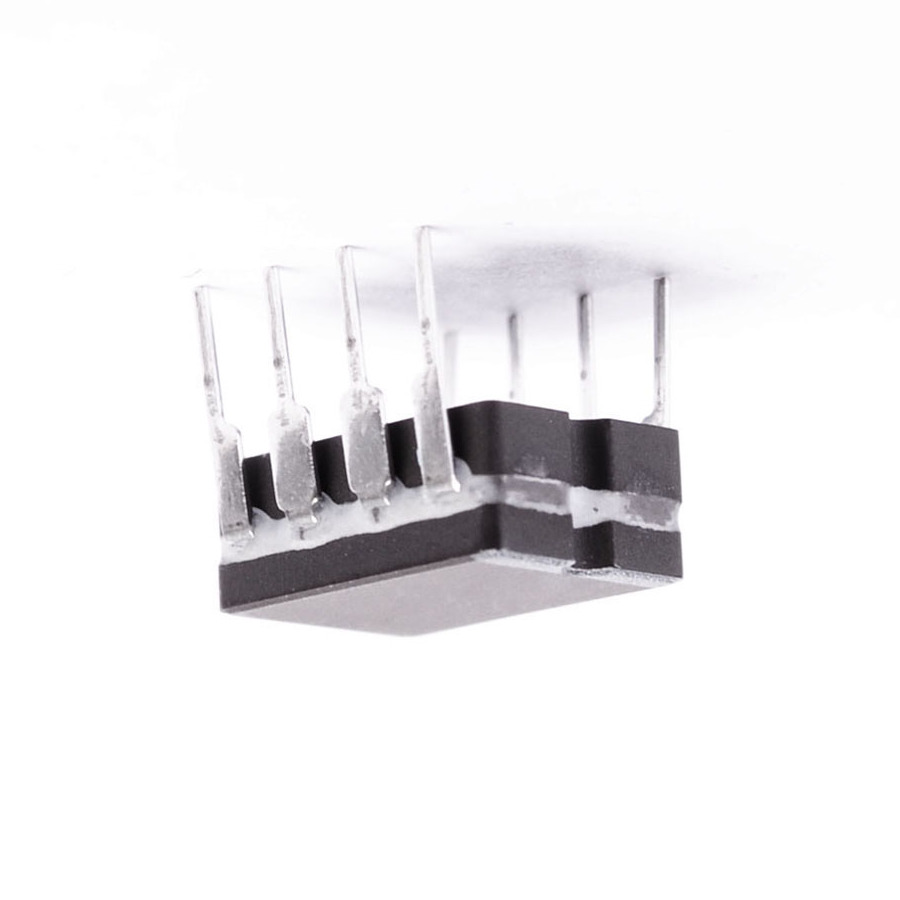

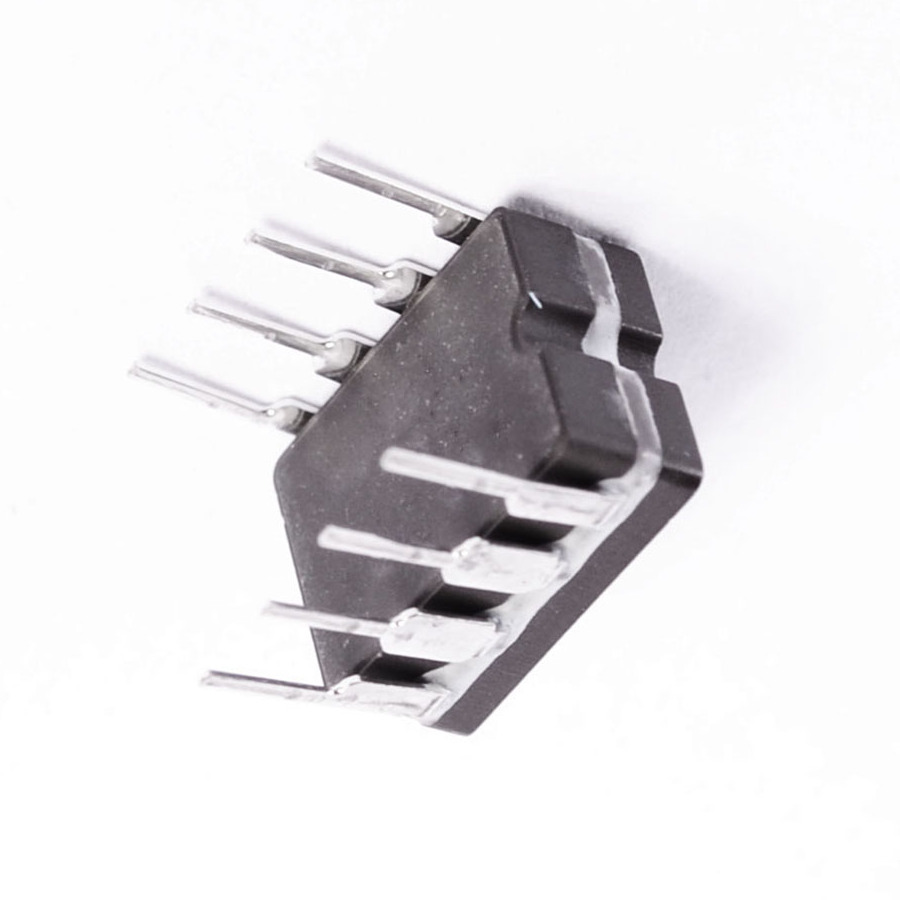

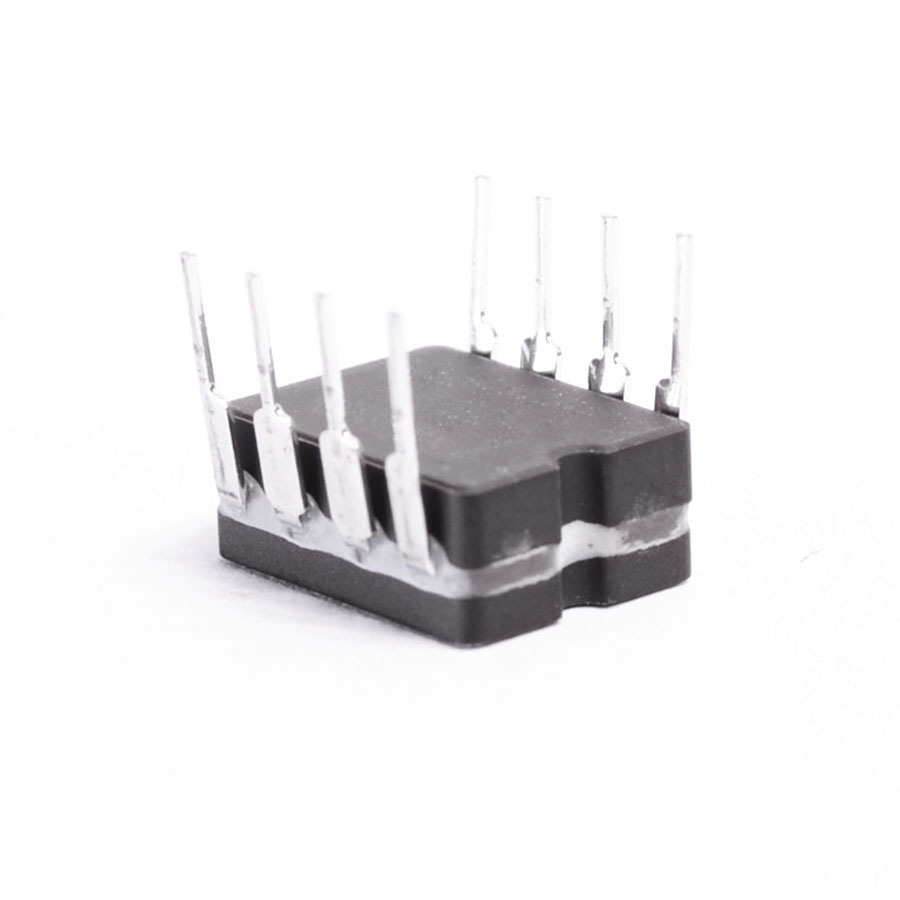

DAC8043FZ Integrated Circuit CASE: DIC8 MAKE: National Semiconductor - NSC
Datasheet
DAC8043FZ Datasheet
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer National Semiconductor - NSC
FSR Error (LSB/%) 1.0
Inp Arith. Code AC
Vih Min (V) 2.4
Vil Max. (V) 0.8
PD Max. (W) 450m
Nom. Pos. Supp 5.0
Settling Time (S) 1.0u
Tech. CMOS Integrated Circuit
Temp Drift Max. (ppm/°C) 5
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Volt or Cur. Mode Current
Logic Level Family TTL
Pinout Equivalence Number 8-173
Descript Max Gain Error 2 LSB
No. of Pins 8
Surface Mounted Yes/No NO
SKU 165863
