DAN803
View detailed images (12)

DAN803

SKU: DAN803

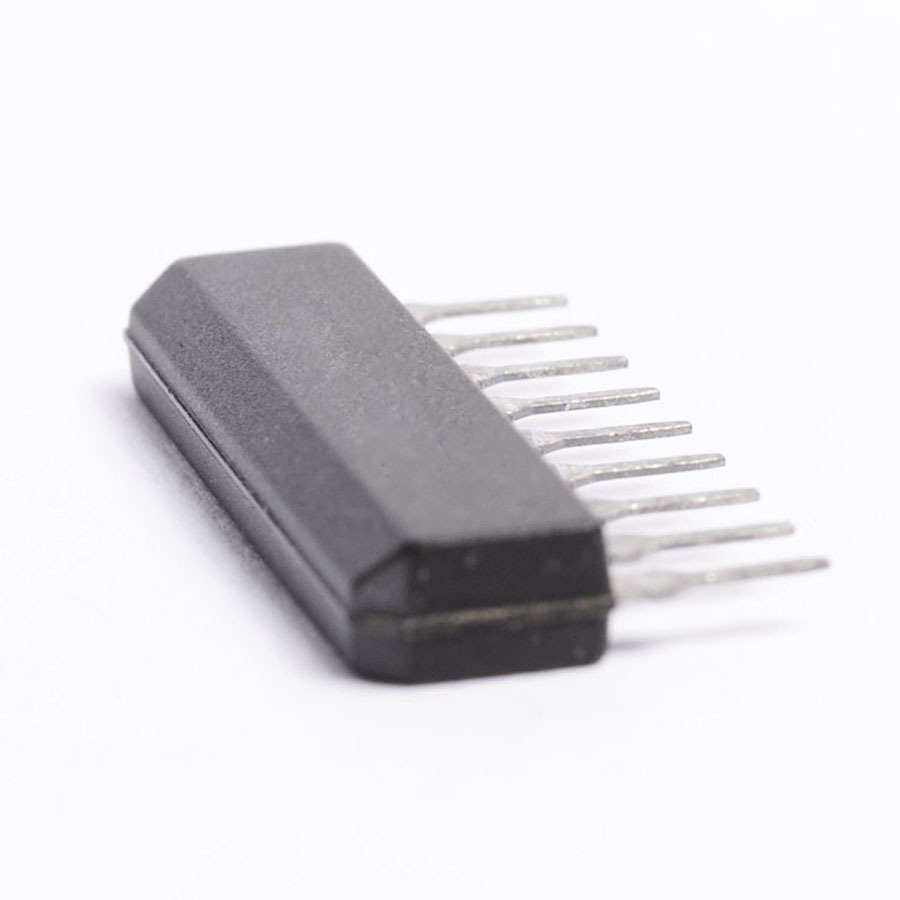

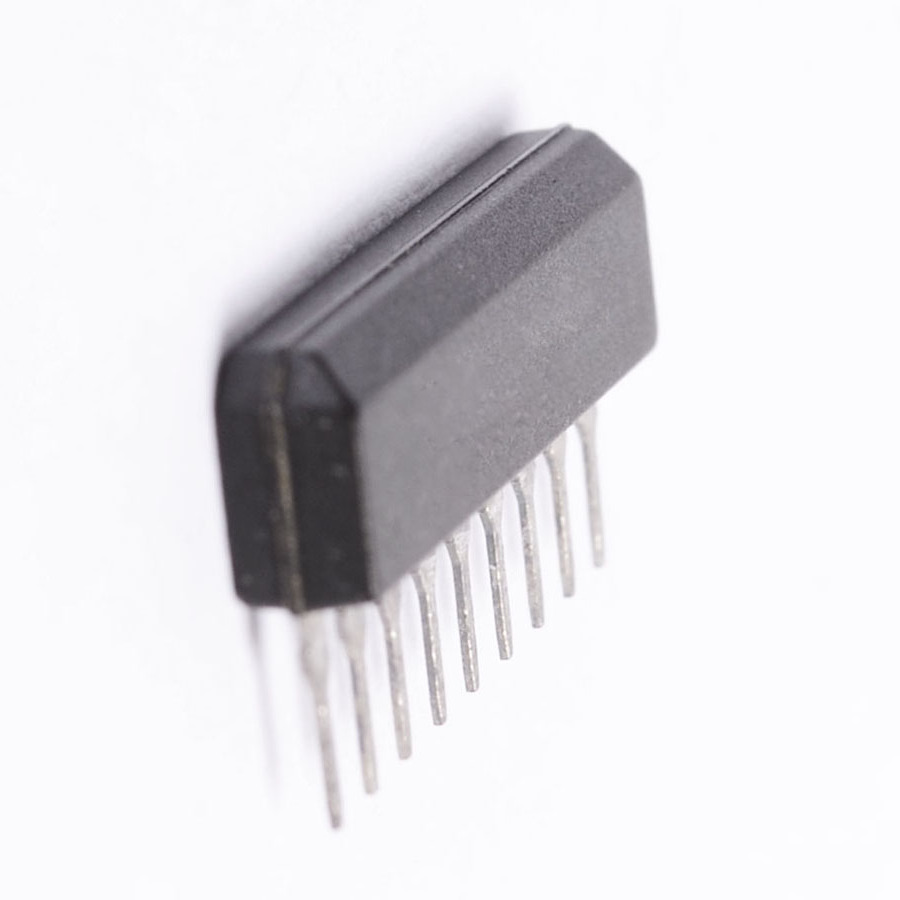

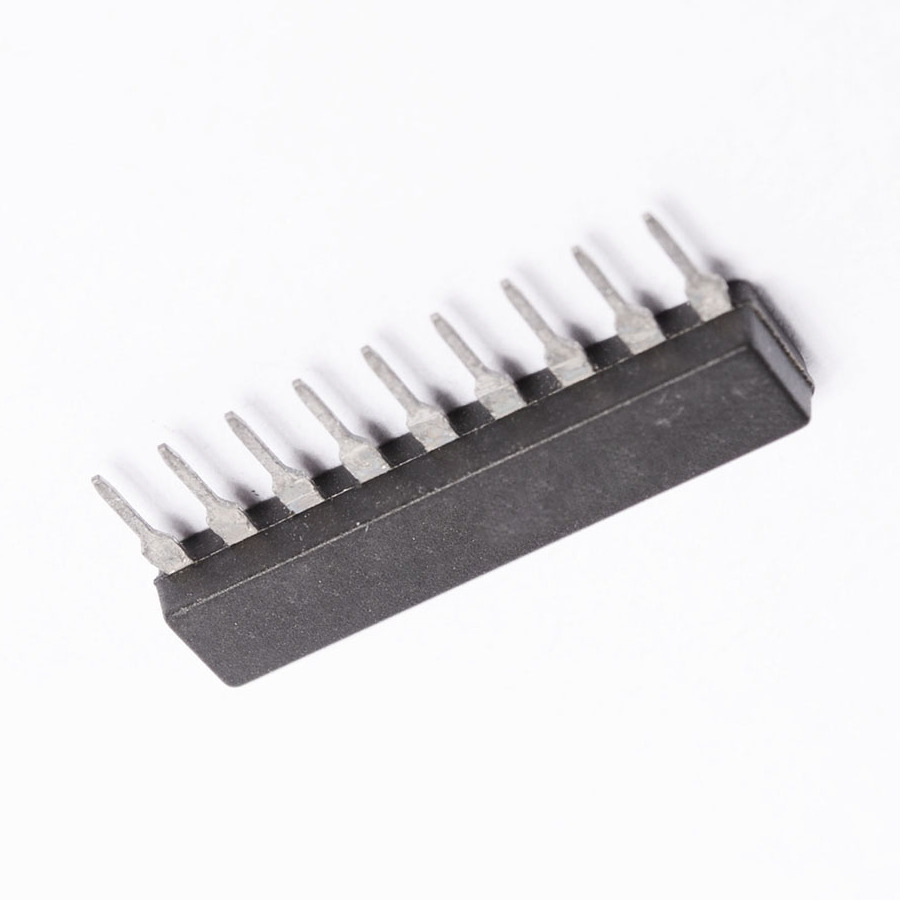

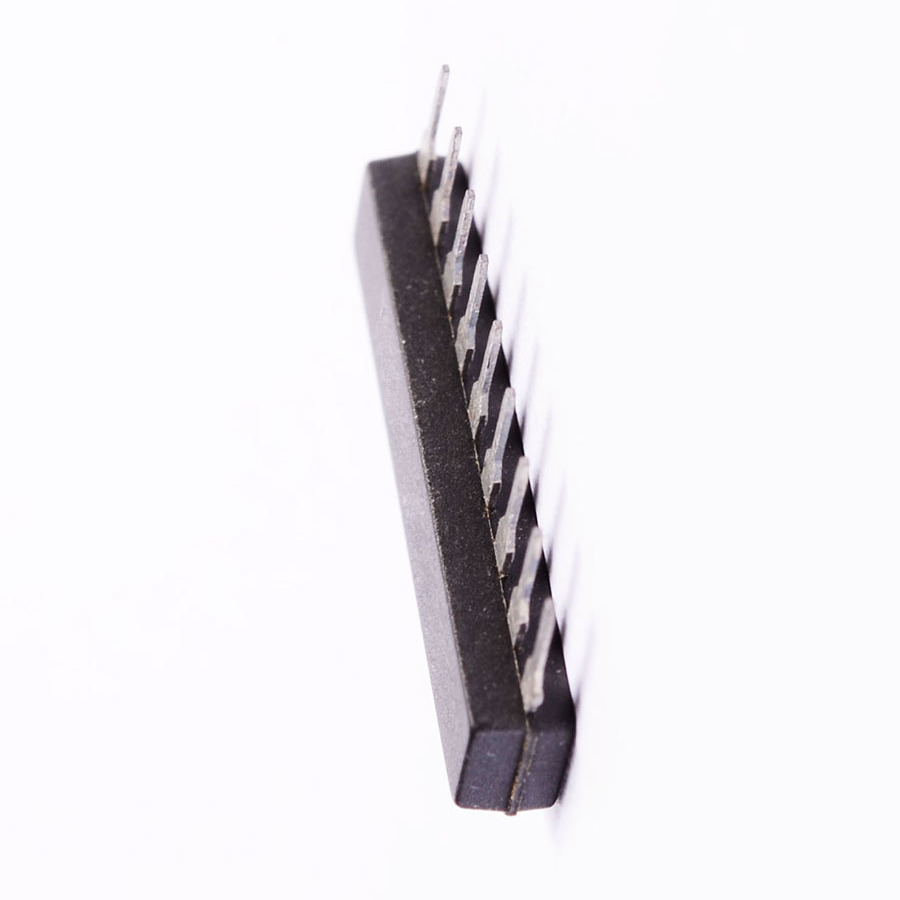

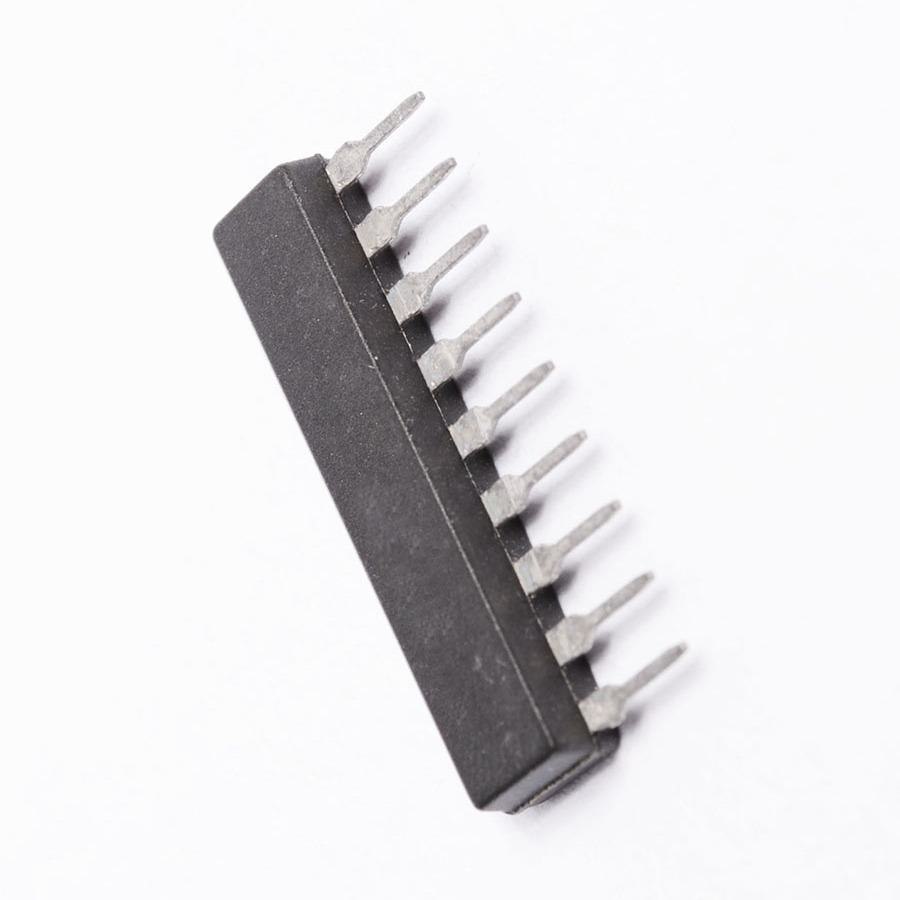

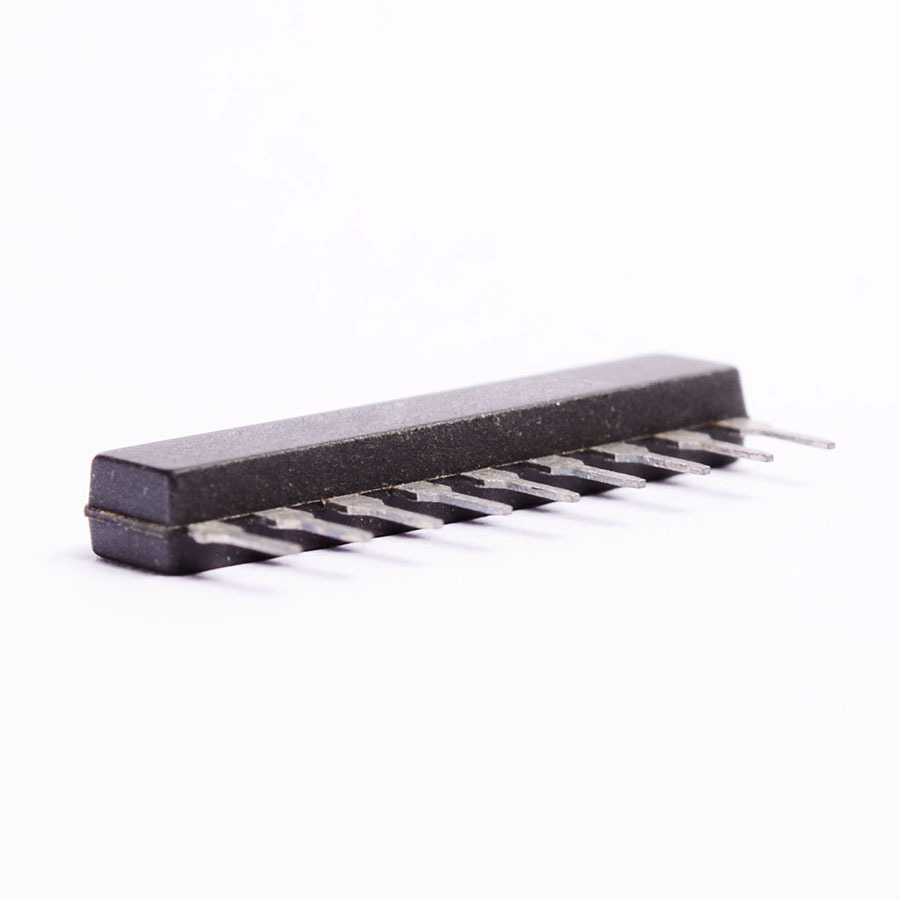

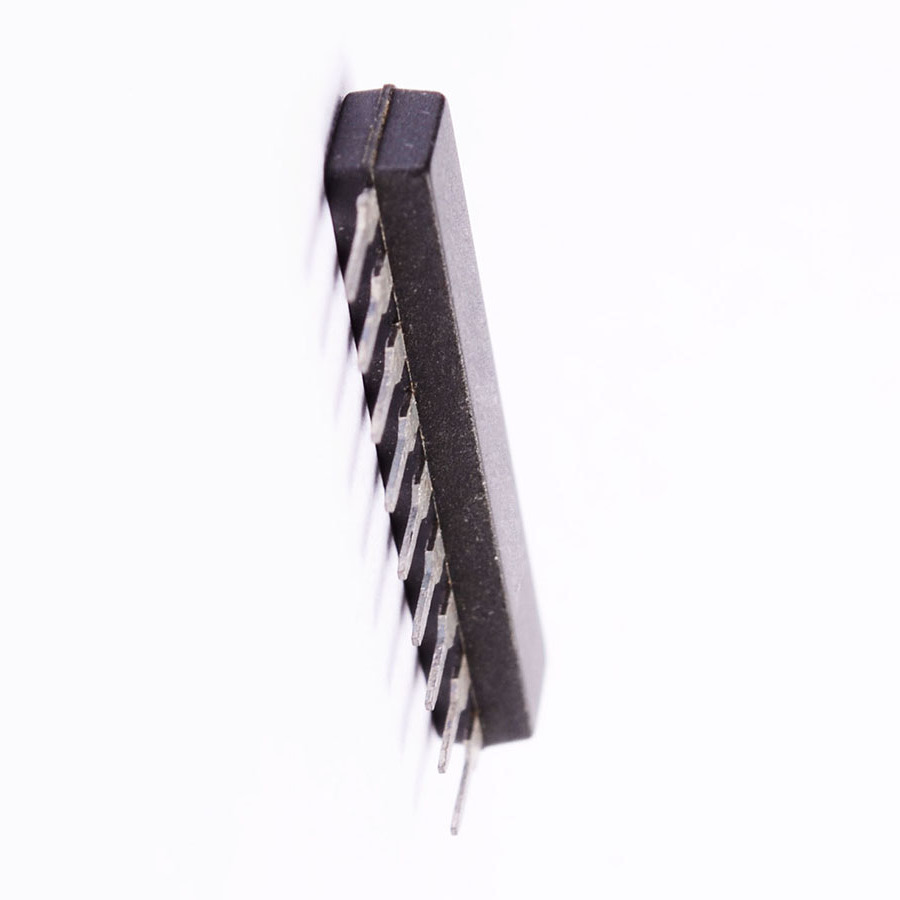

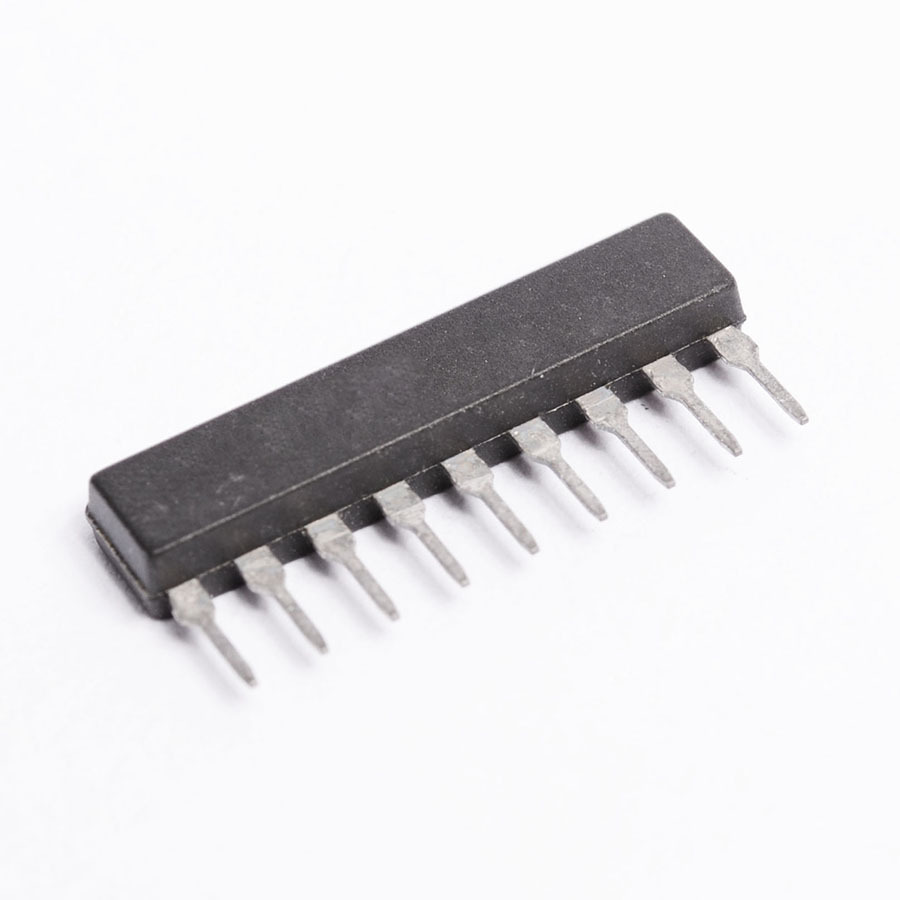

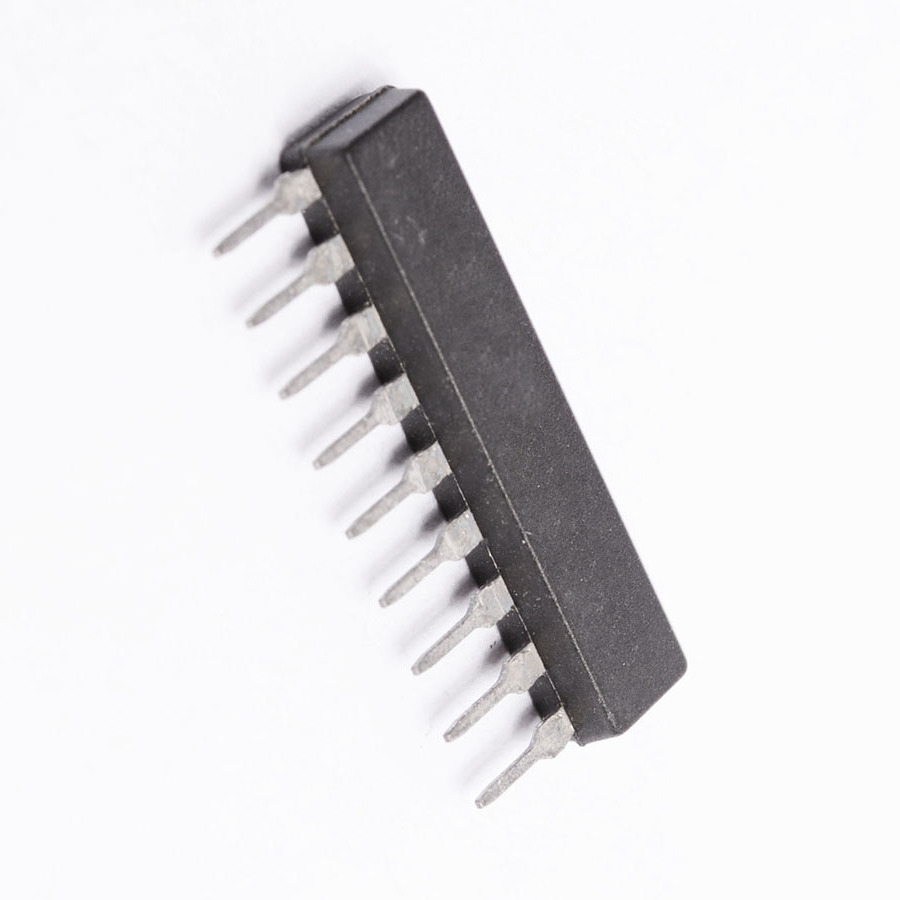

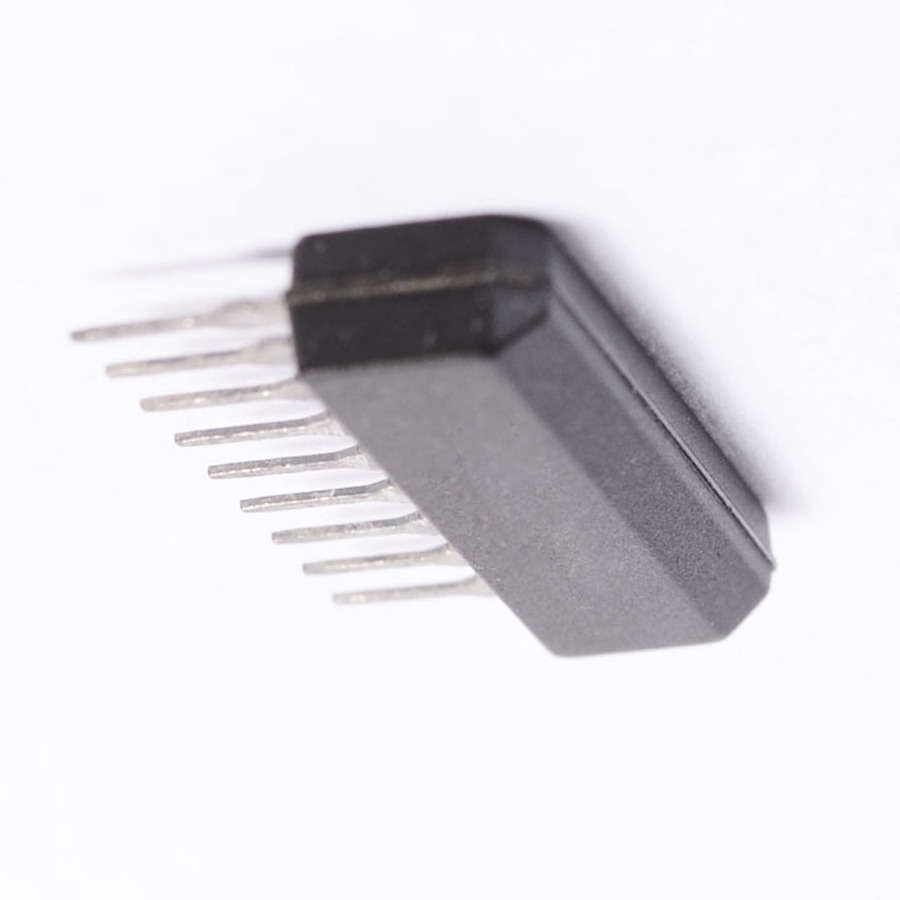

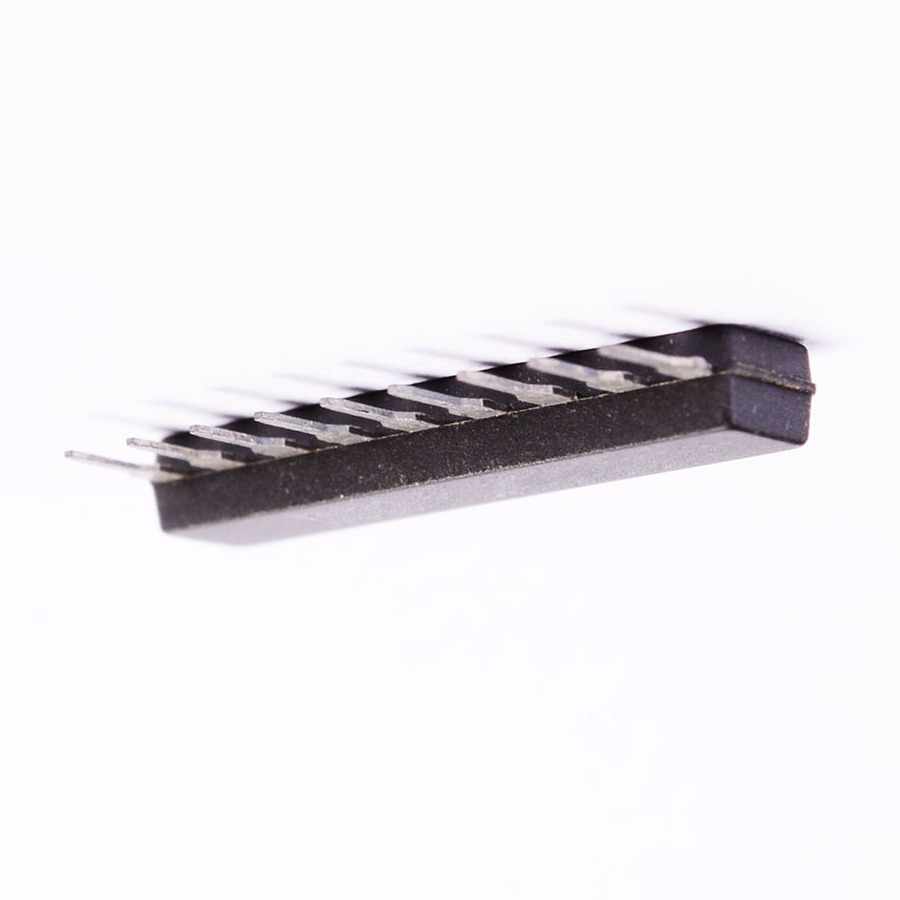

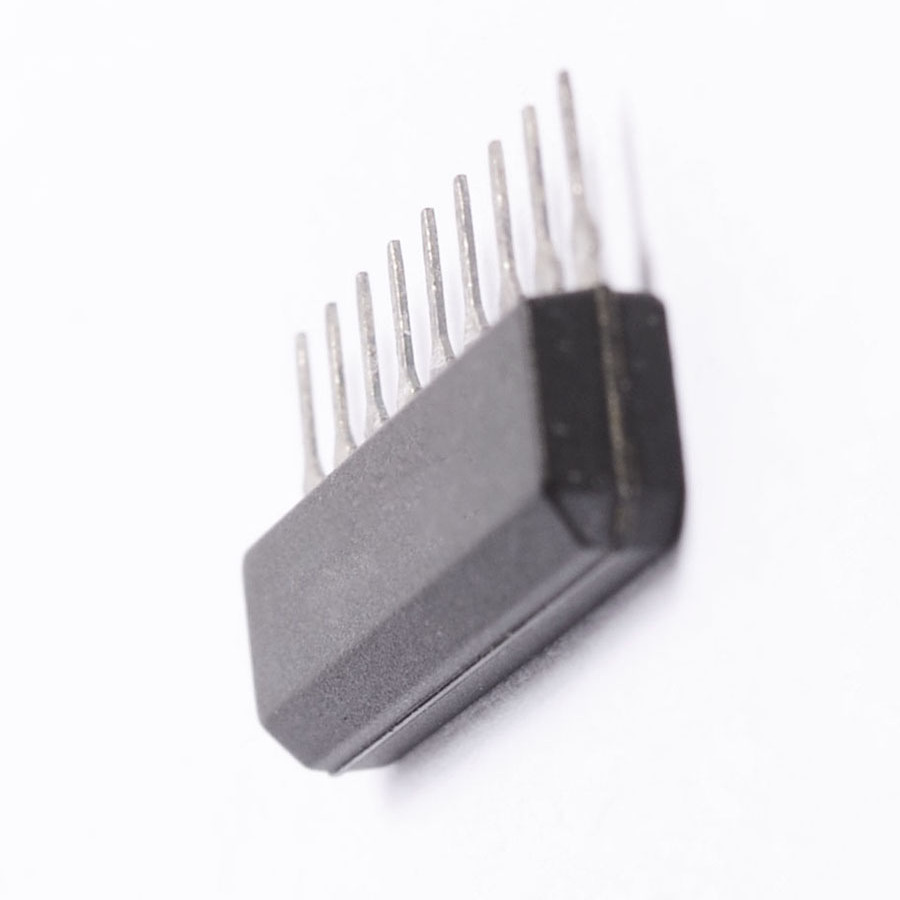

DAN803 Integrated Circuit CASE: SIP9 MAKE: Rohm Semiconductor
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
DAN803 Datasheet
Product specifications
Type Integrated Circuit
Case SIP9
Manufacturer Rohm Semiconductor
Ckts Per Dev. 1
Diodes Per Ckt 8
If Max. (A) 80m
@If (test) (A) 5.0m
Ir(stat) Max. (A) 0.1u
PD Max. (W) 200m
t(rr) Max. (S) 4.0n
Vf Max. 0.9
VRRM 80
@If (test) 5.0m
@Vr (test) 70
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 166095
