DCX124EK
View detailed images (5)

DCX124EK

SKU: DCX124EK

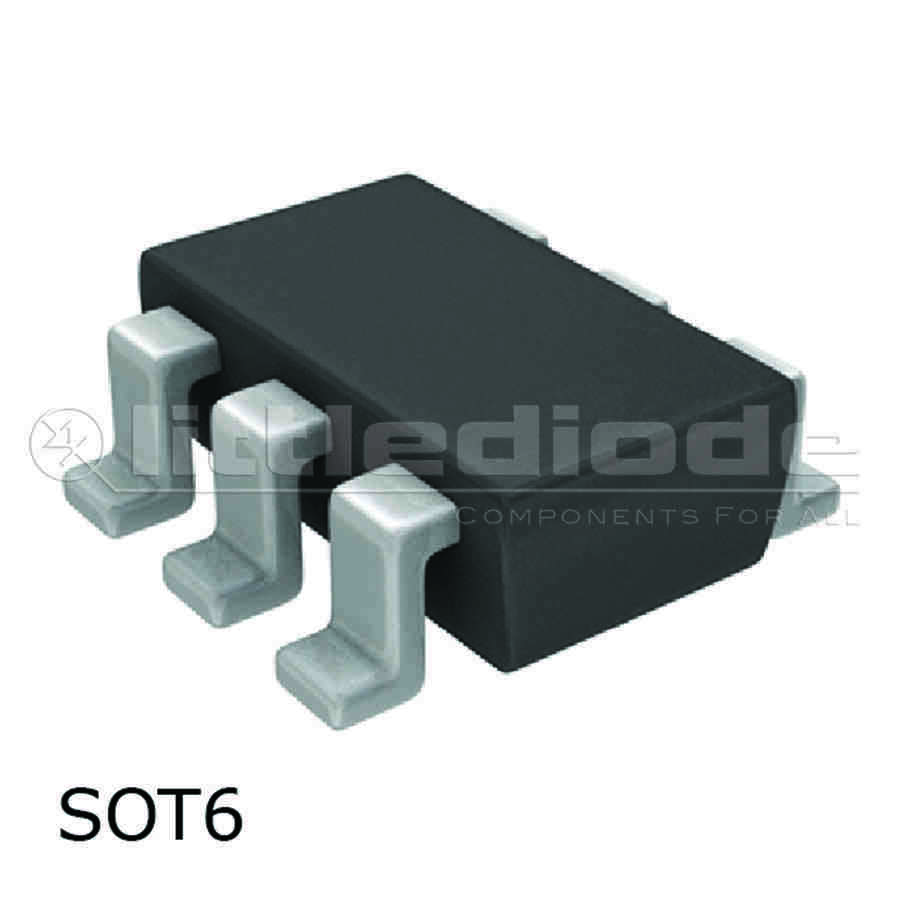

DCX124EK Transistor Silicon Pre-Biased-NPN - PNP CASE: SOT6 MAKE: Diodes Inc
Datasheet
DCX124EK Datasheet
Product specifications
Type Transistor Silicon Pre-Biased-NPN - PNP
Case SOT6
Manufacturer Diodes Inc
Polarity Pre-Biased-NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 56
SMD Transistor Code C17
Built in Bias Resistor R1 22 kOhm
Built in Bias Resistor R2 22 kOhm
Typical Resistor Ratio R1/R2 1
SKU 535462
