DDA114YK
View detailed images (5)

DDA114YK

SKU: DDA114YK

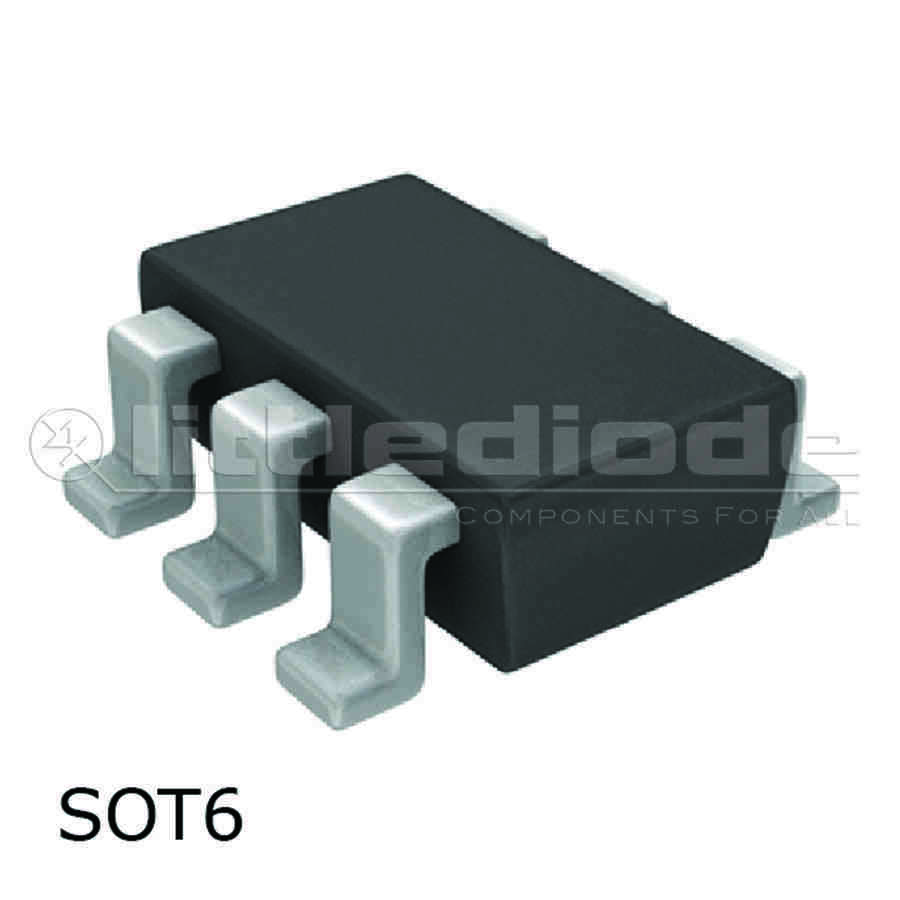

DDA114YK Transistor Silicon NPN CASE: SOT6 MAKE: Diodes Inc
Datasheet
DDA114YK Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT6
Manufacturer Diodes Inc
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Collector Current |Ic max| 0.07 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 68
SMD Transistor Code P14
Built in Bias Resistor R1 10 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 0.21
SKU 535485
