DDA144EK
View detailed images (5)

DDA144EK

SKU: DDA144EK

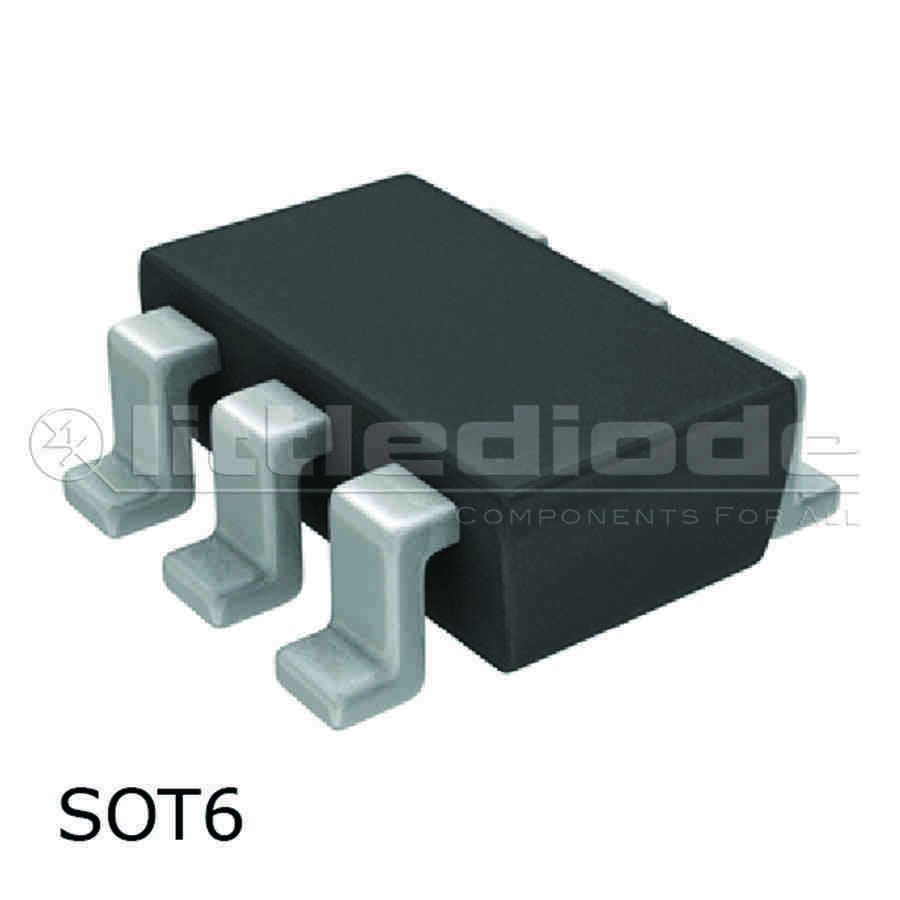

DDA144EK Transistor Silicon NPN CASE: SOT6 MAKE: Diodes Inc
Datasheet
DDA144EK Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT6
Manufacturer Diodes Inc
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 68
SMD Transistor Code P20
Built in Bias Resistor R1 47 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 1
SKU 535506
