DG301AAA
View detailed images (4)

DG301AAA

SKU: DG301AAA

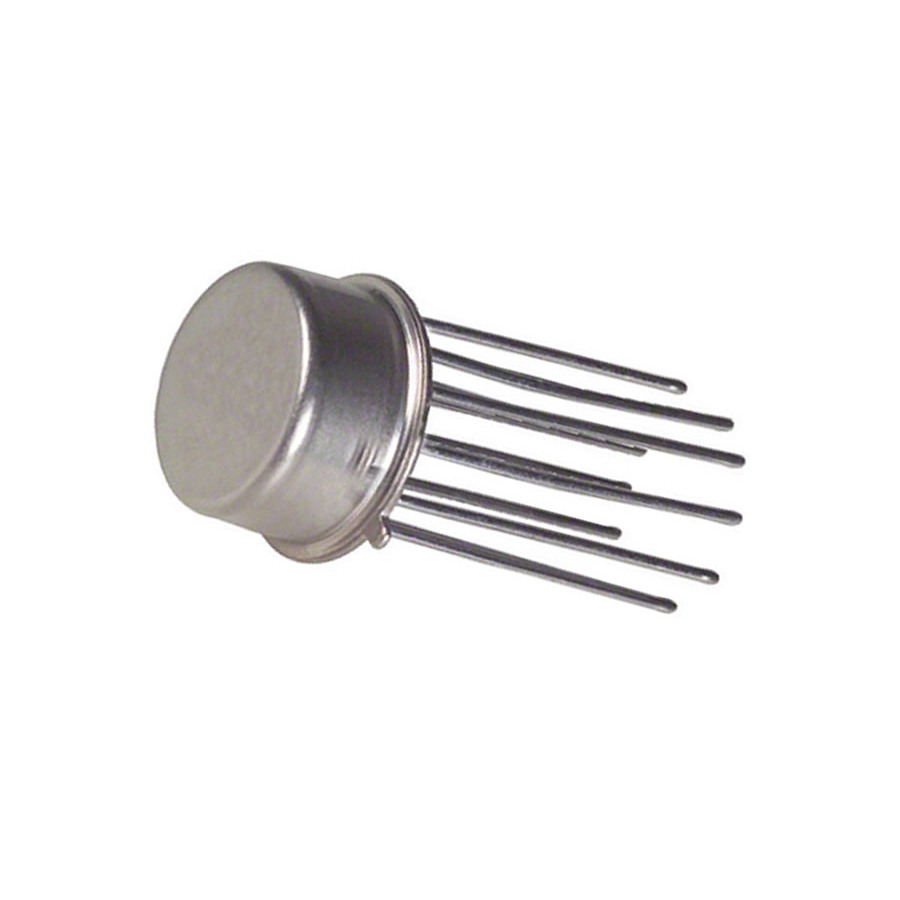

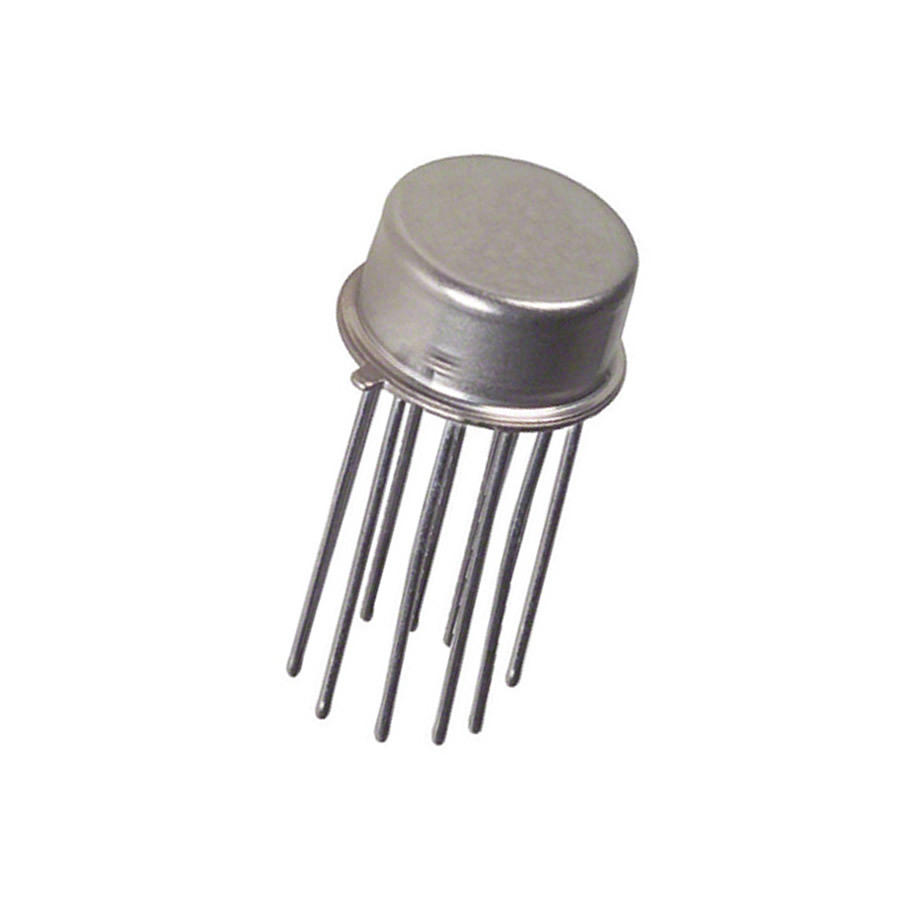

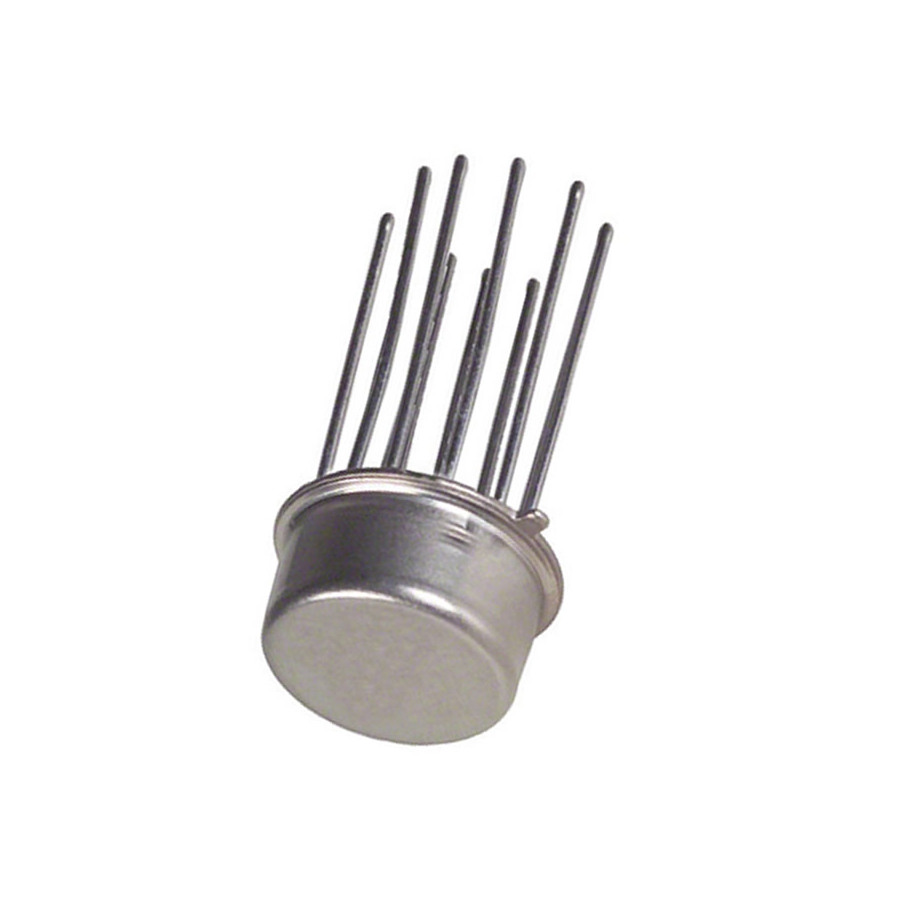

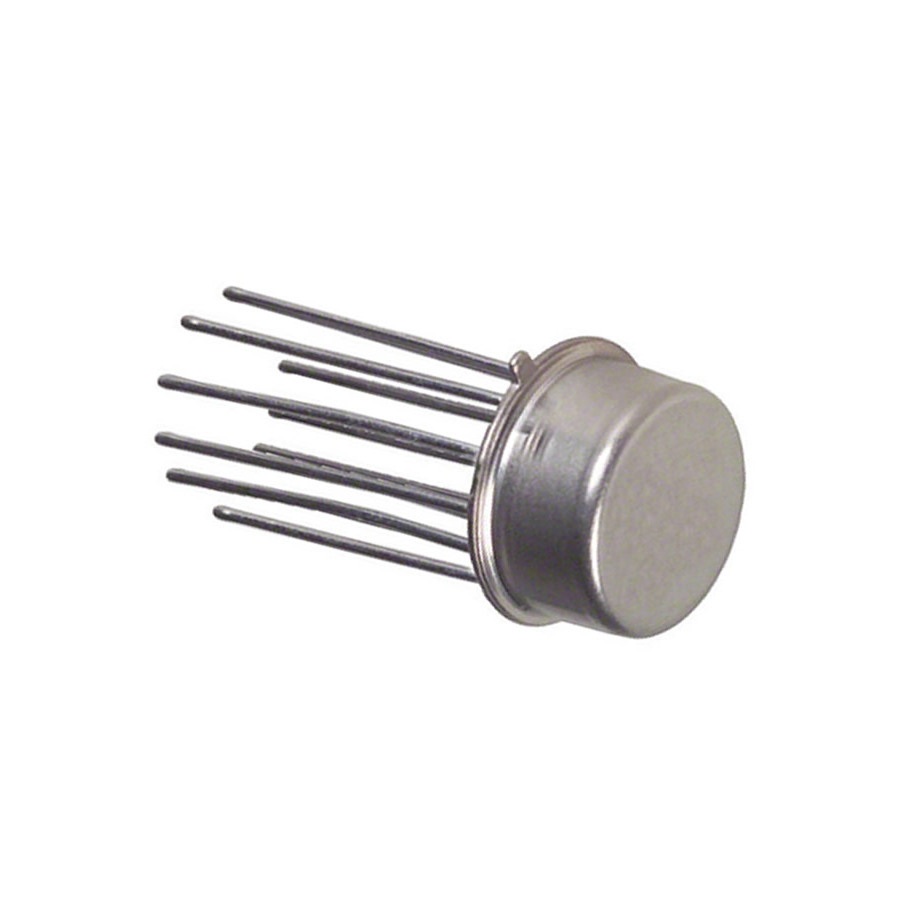

DG301AAA CMOS Logic IC CASE: TO100 MAKE: Siliconix
Product specifications
Type CMOS Logic IC
Case TO100
Manufacturer Siliconix
Ckts Per Dev. 1
Vcntl (Hi) (V) 4.0
Vcntl (Lo) (V) 0.8
@Is (test) (A) 10m
PD Max. (W) 450m
Nom. Neg Supp 15
Nom. Pos. Supp 15
R(ds) On (Û) 75
Analog Sw. Cur. P-P Max. 30m
Sw. Volt P-P Max.(V) 30
Tech. CMOS Integrated Circuit
t(on) Max. (S) 300n
@Vd (test) (V) 10
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 10-22
Surface Mounted Yes/No NO
SKU 107247
