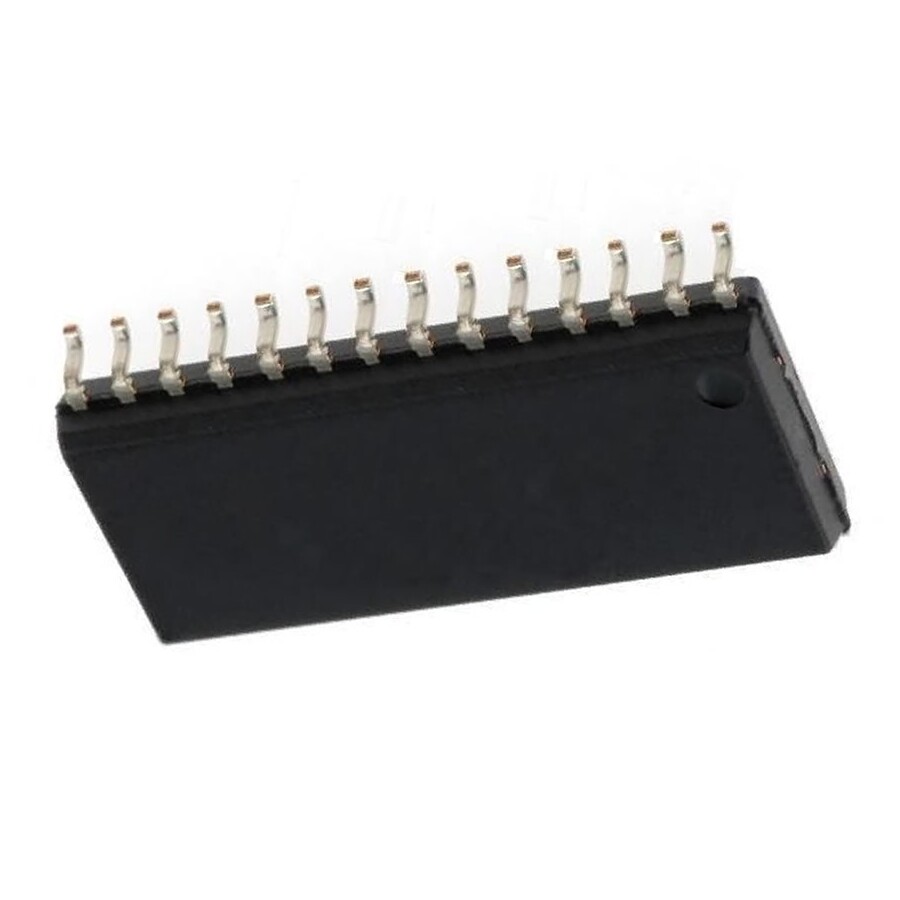

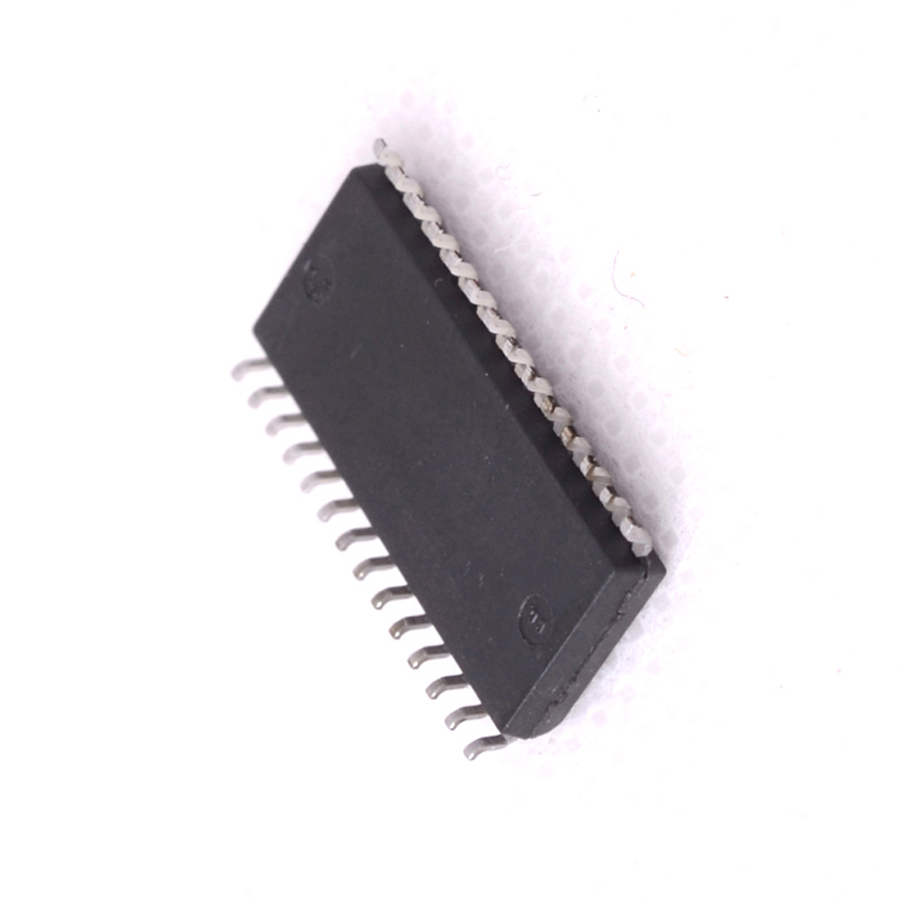

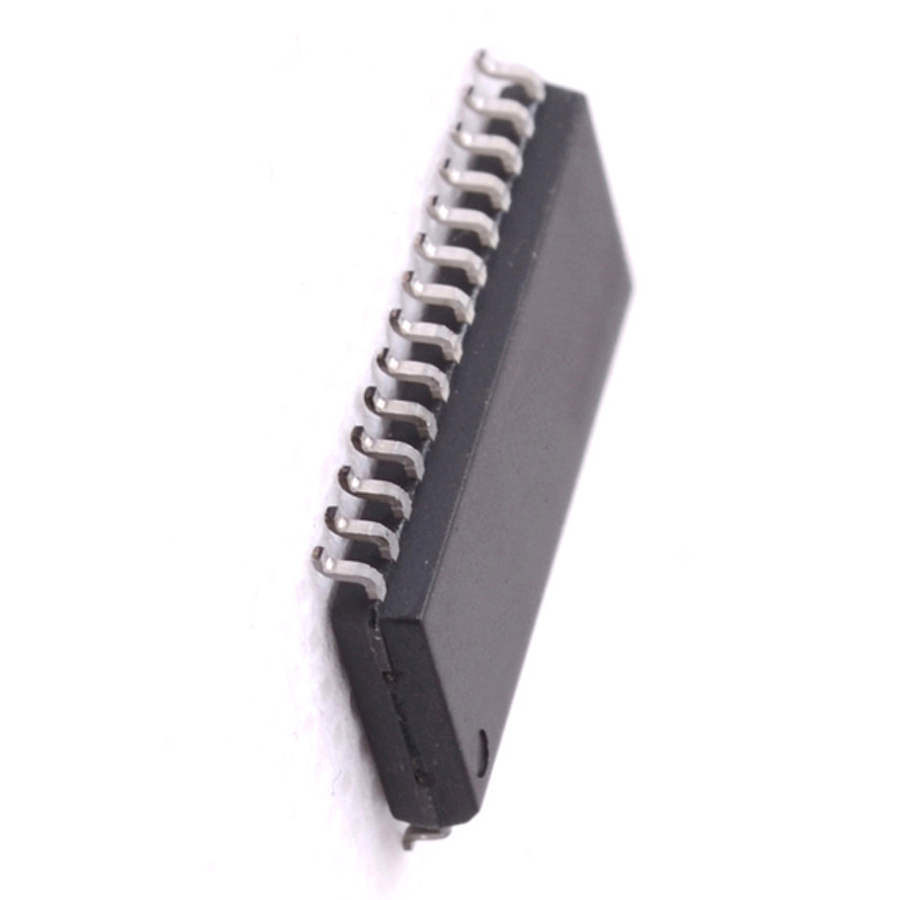

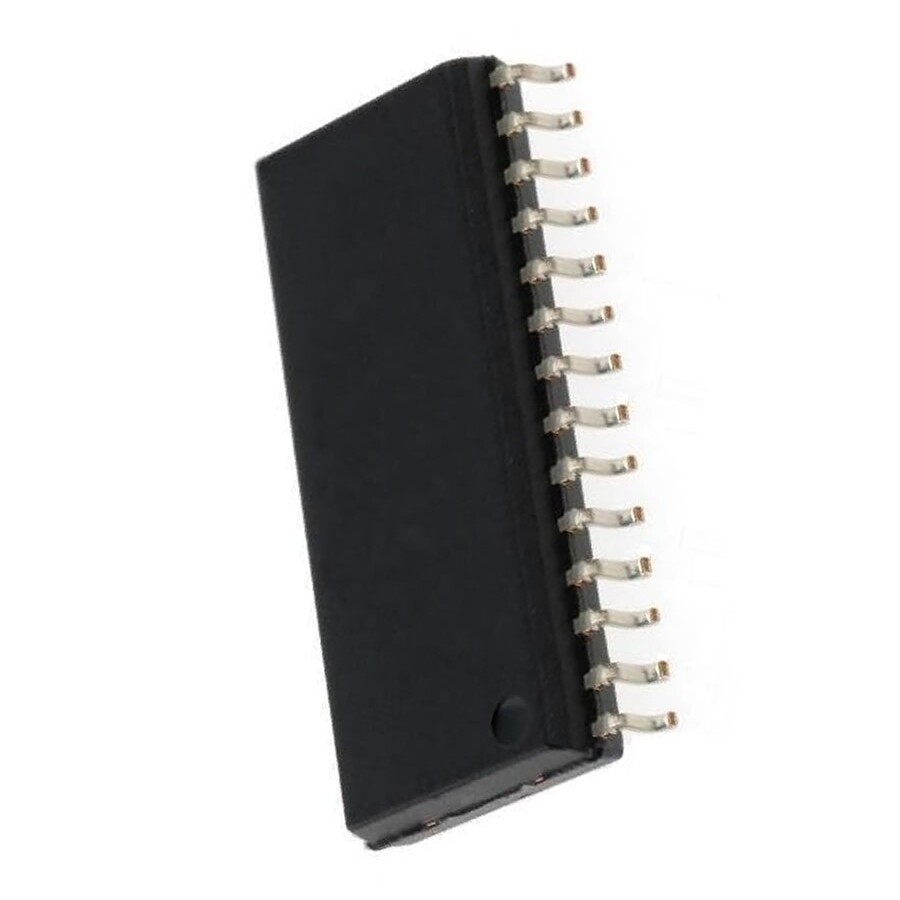

DG506ACY

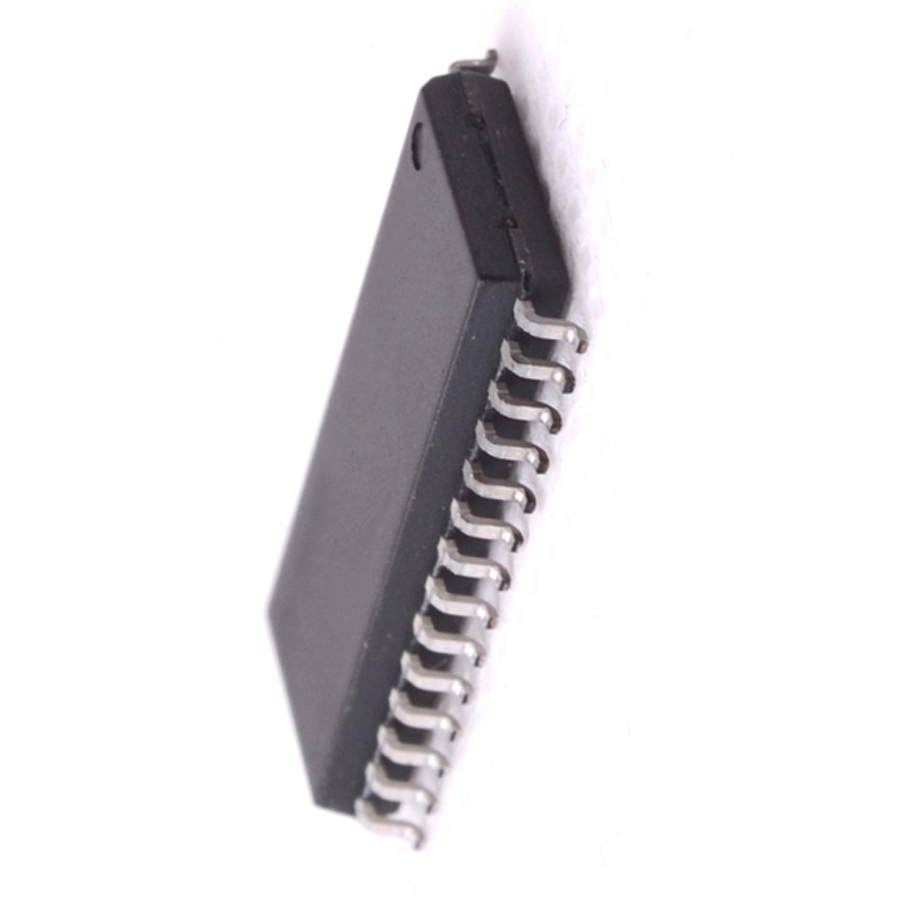

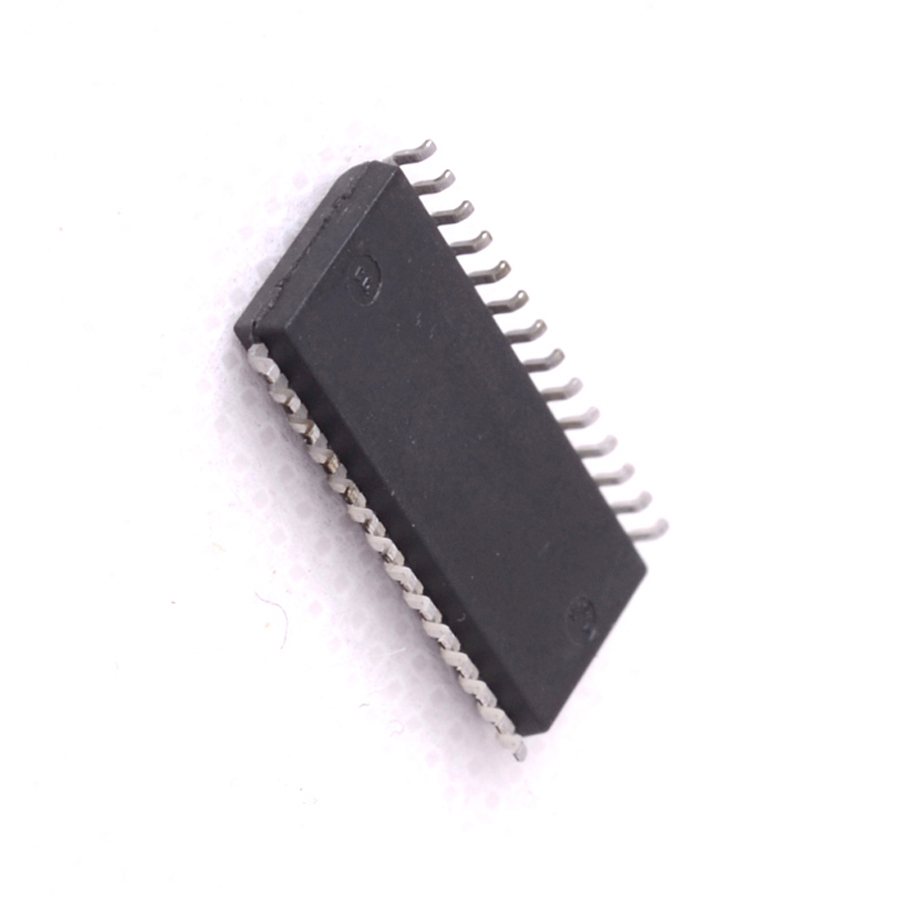

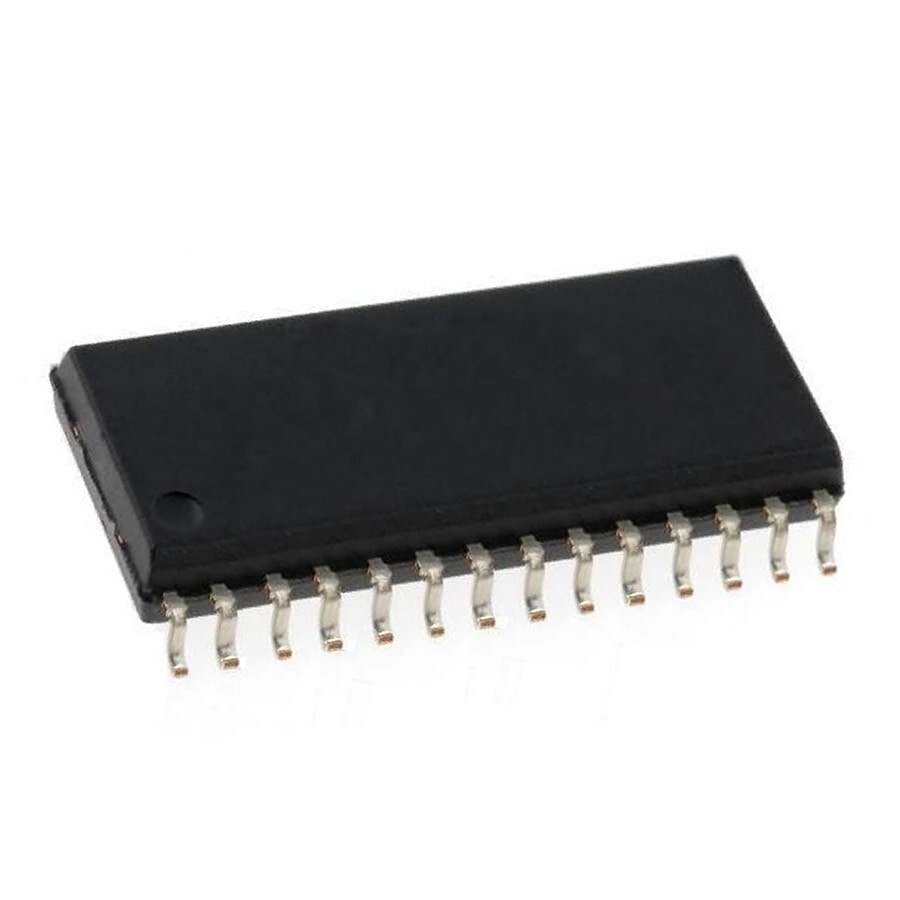

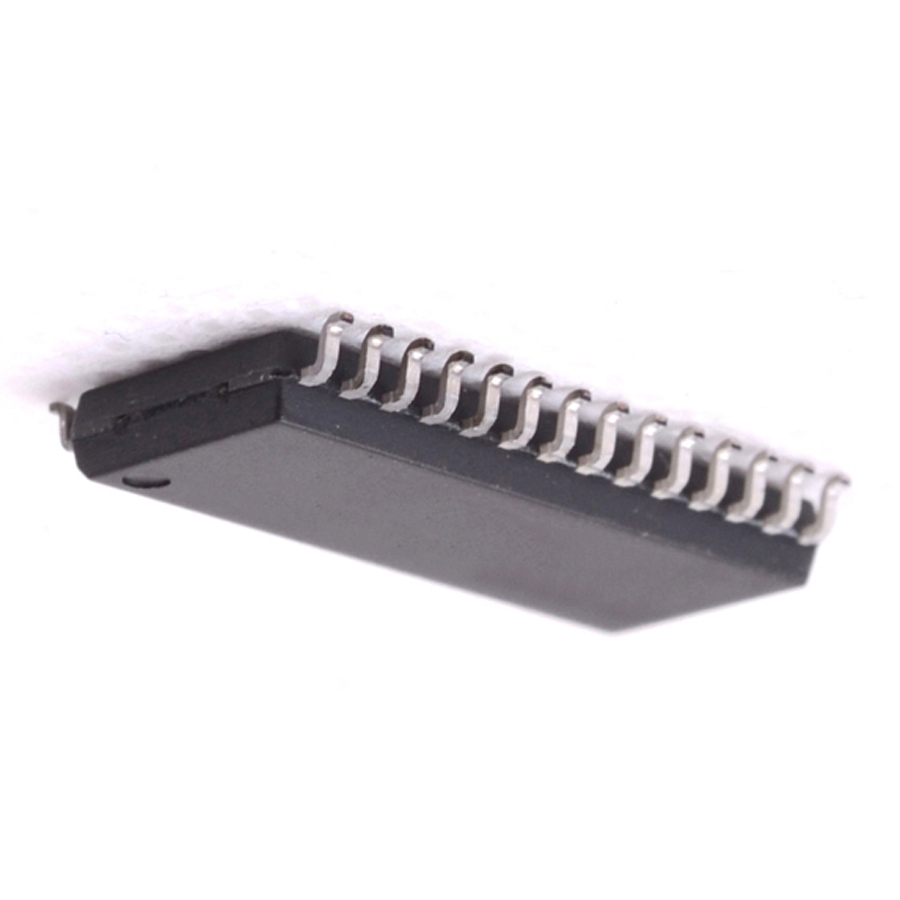

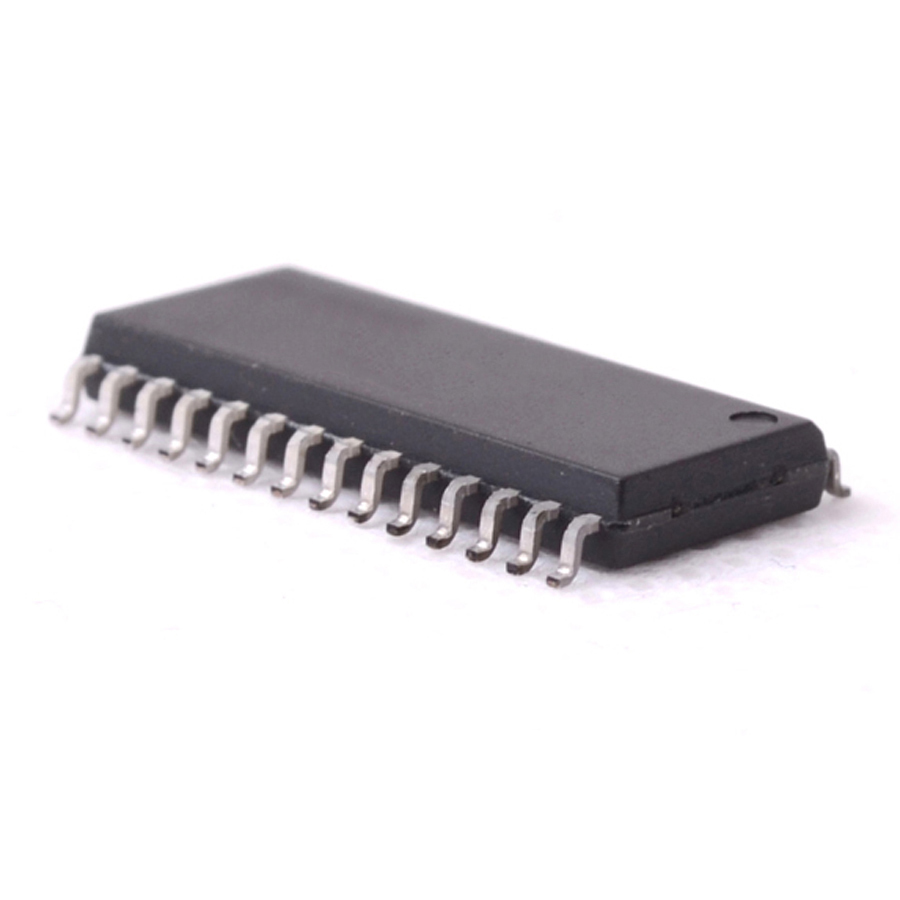

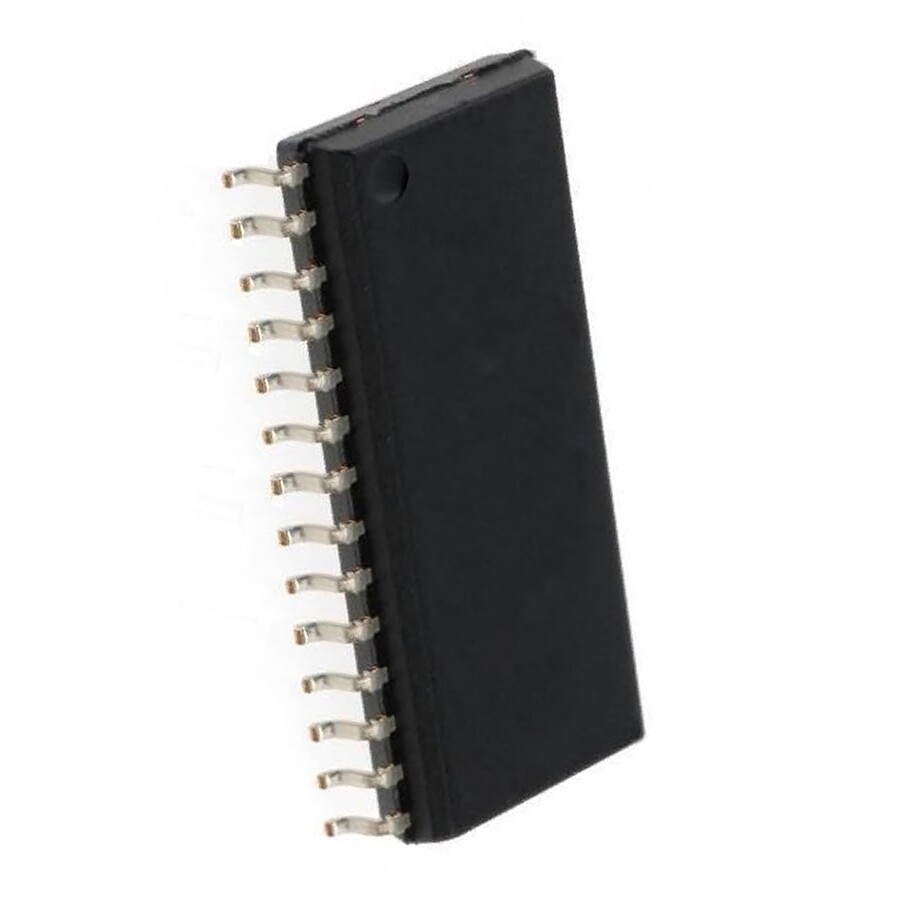

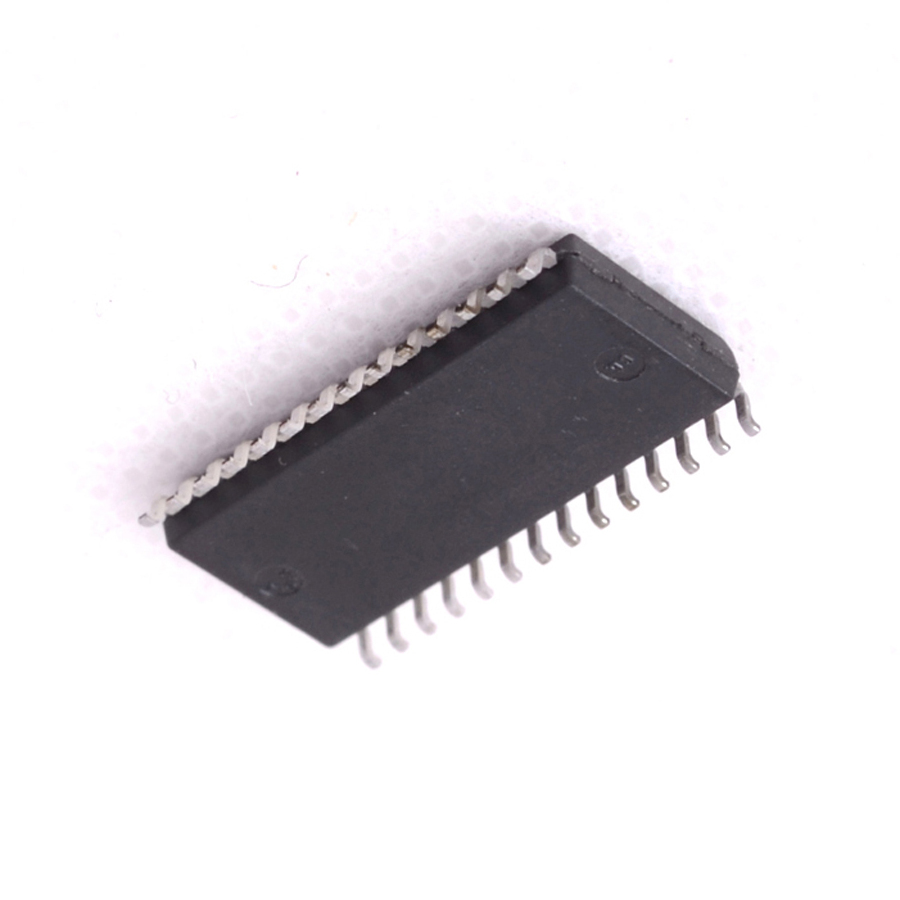

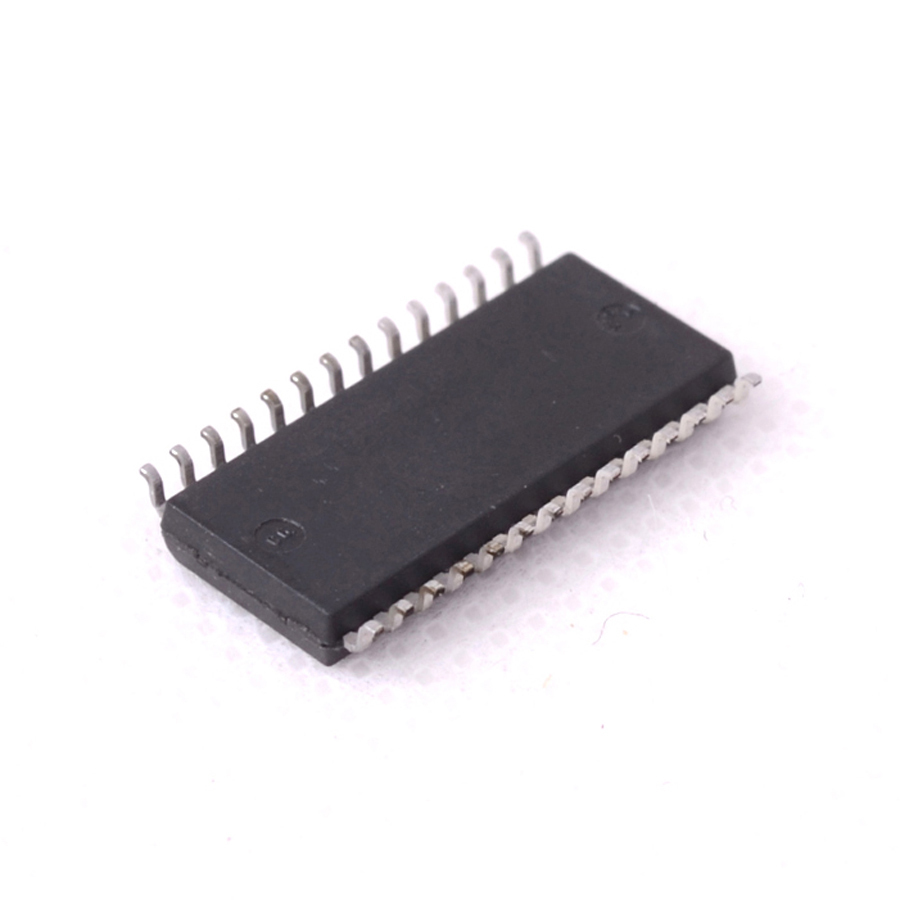

View detailed images (12)

DG506ACY

SKU: DG506ACY
DG506ACY Integrated Circuit CASE: SO28 MAKE: Intersil
Product specifications
Type Integrated Circuit
Case SO28
Manufacturer Intersil
Ckts Per Dev. 1
Vcntl (Hi) (V) 2.4
Vcntl (Lo) (V) 0.8
@Is (test) (A) 200u
Input Chan./ Ckt 16
tPD Max. (S) 1.0u
Nom. Neg Supp 15
Nom. Pos. Supp 15
R(ds) On (Û) 450
Analog Sw. Cur. P-P Max. 20m
Sw. Volt P-P Max.(V) 30
Tech. CMOS Integrated Circuit
@Vd (test) (V) 10
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 28-66
No. of Pins 28
Surface Mounted Yes/No YES
SKU 166846
