DG507ACWI
View detailed images (12)

DG507ACWI

SKU: DG507ACWI

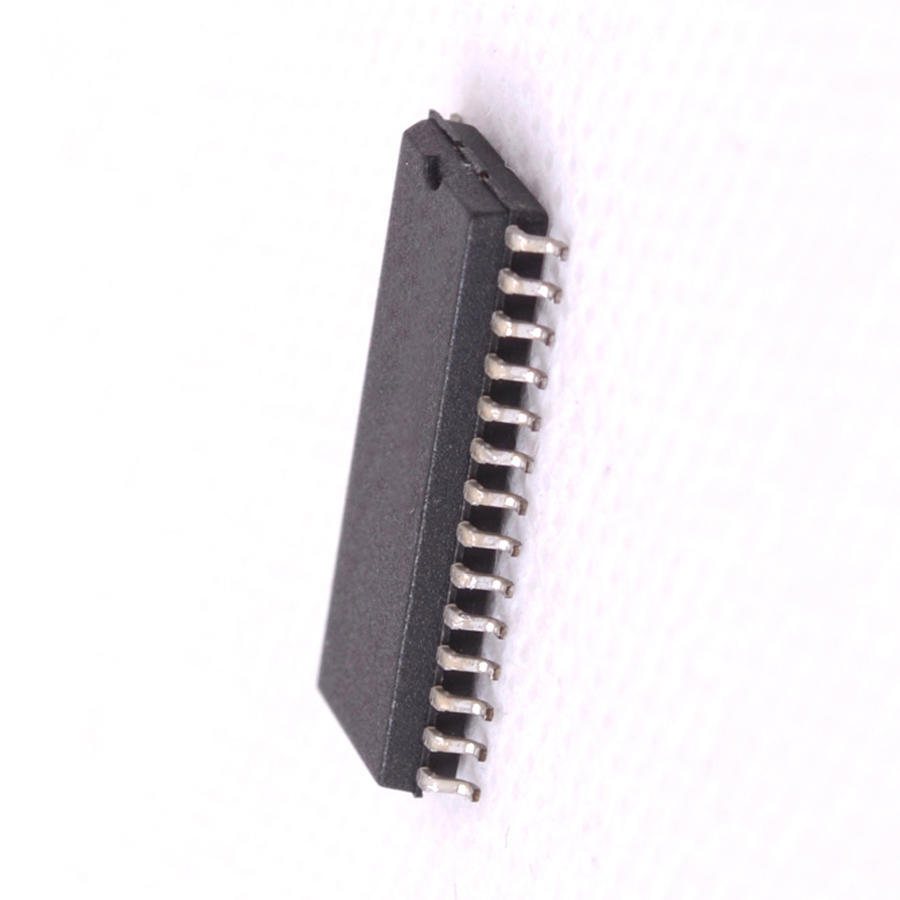

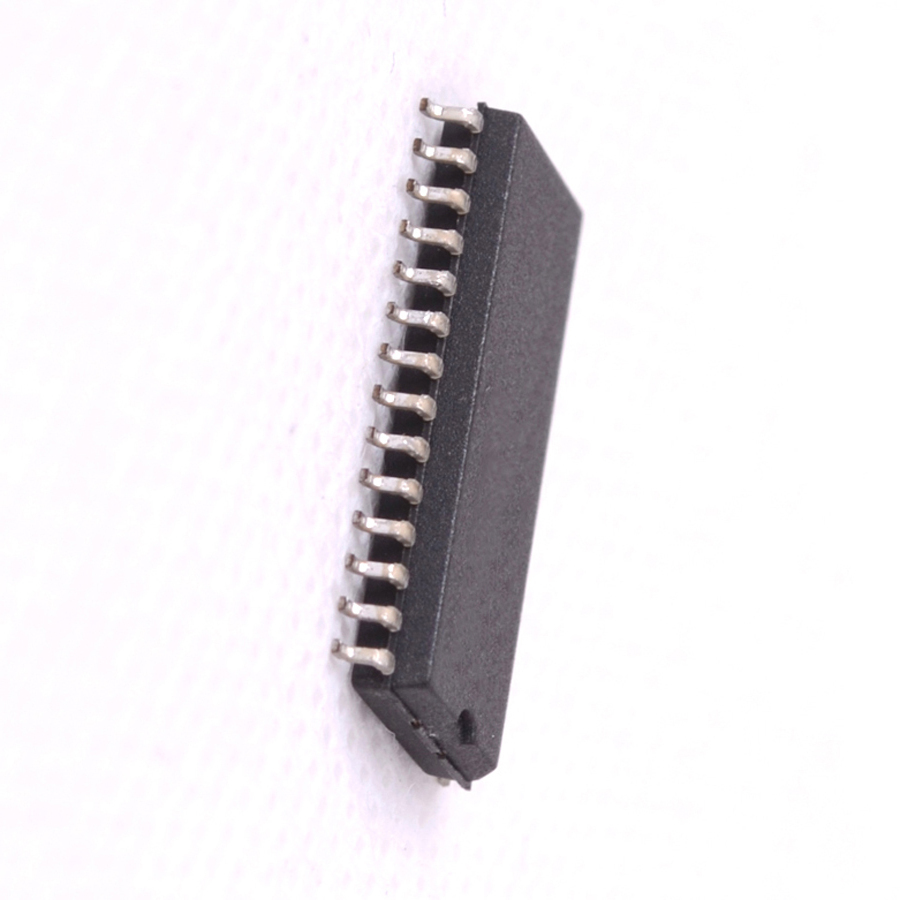

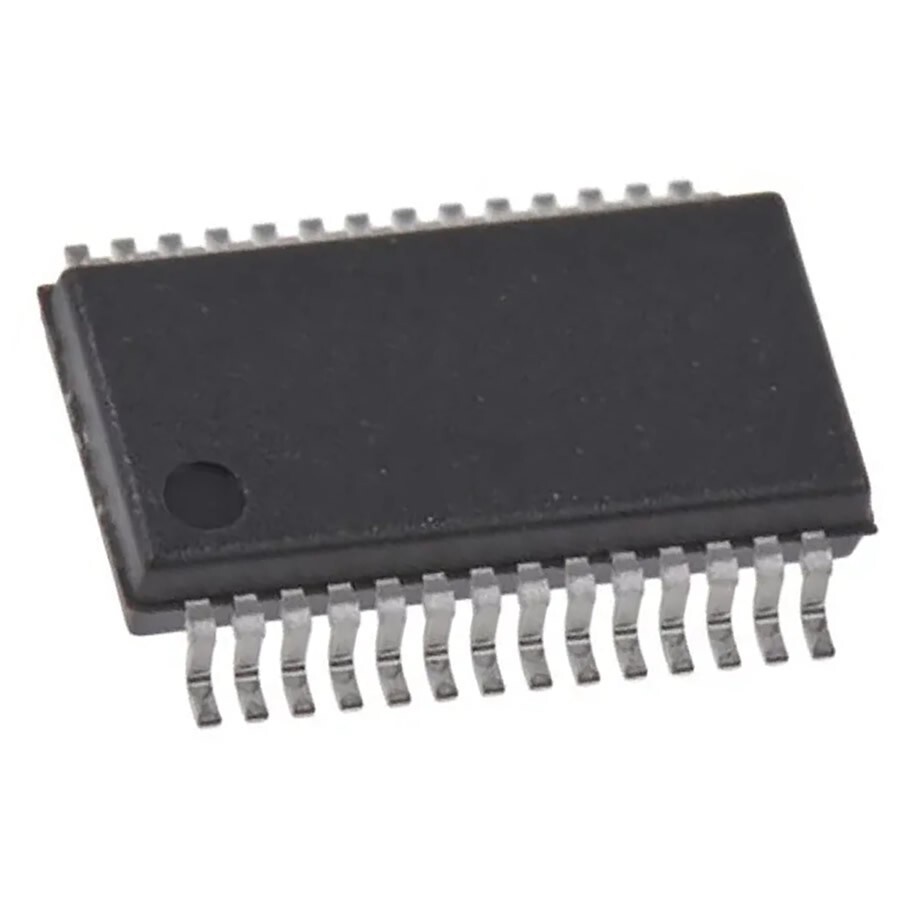

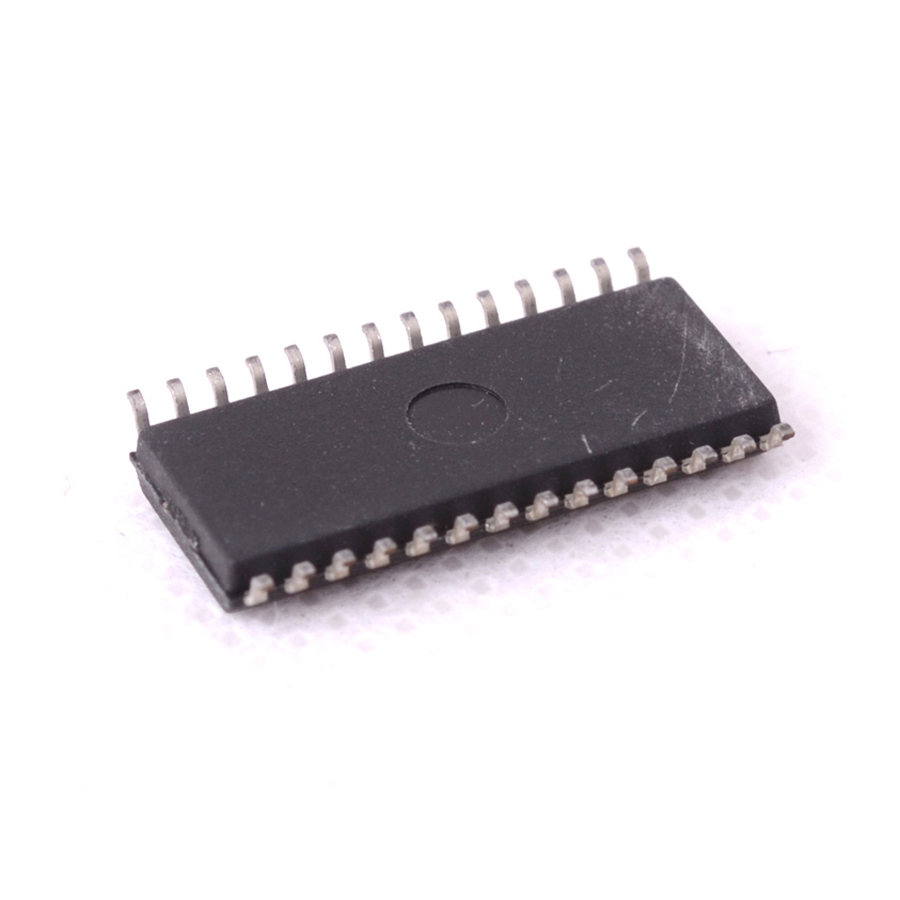

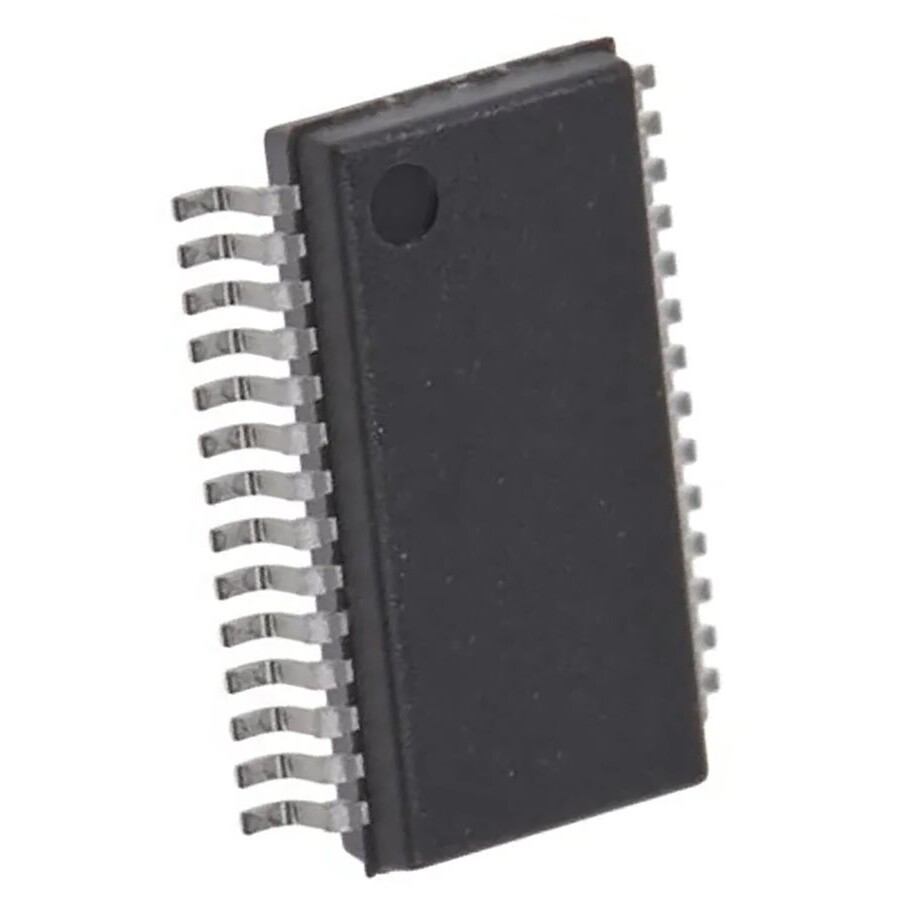

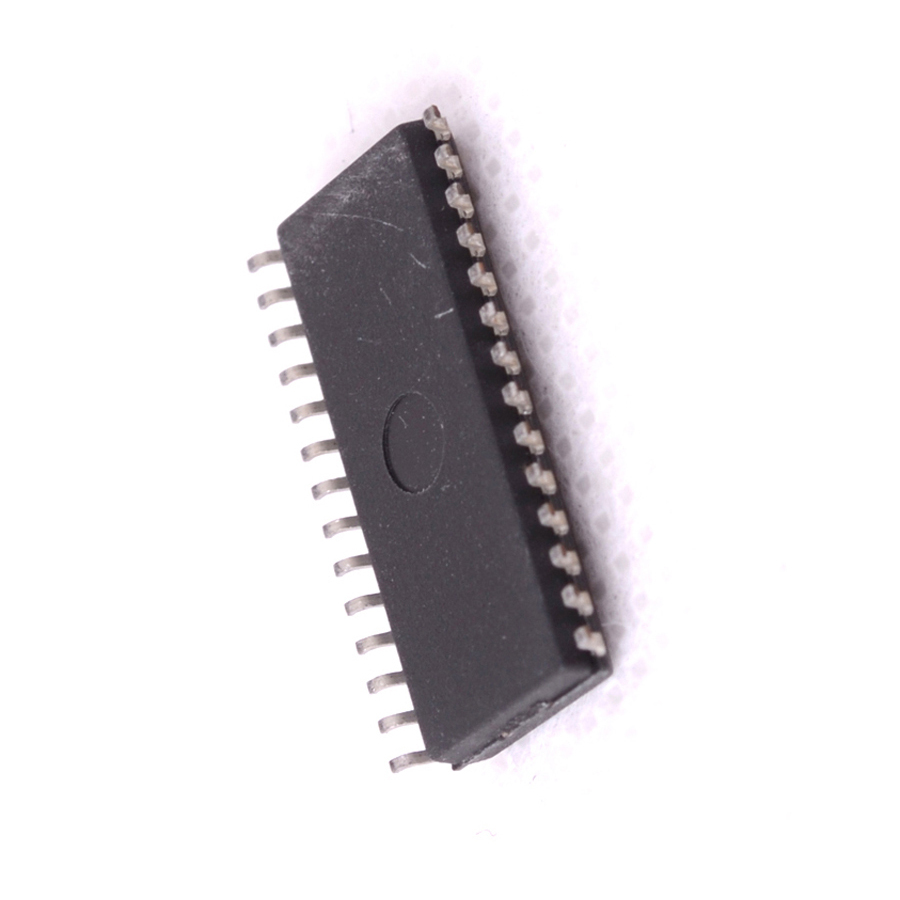

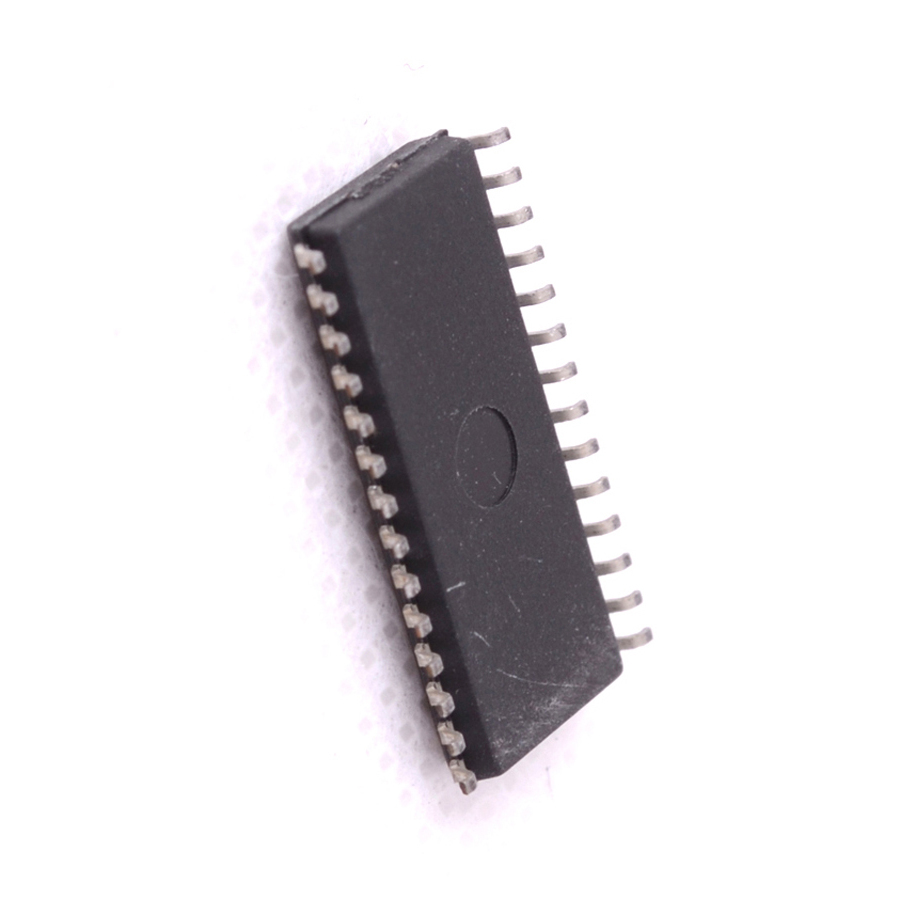

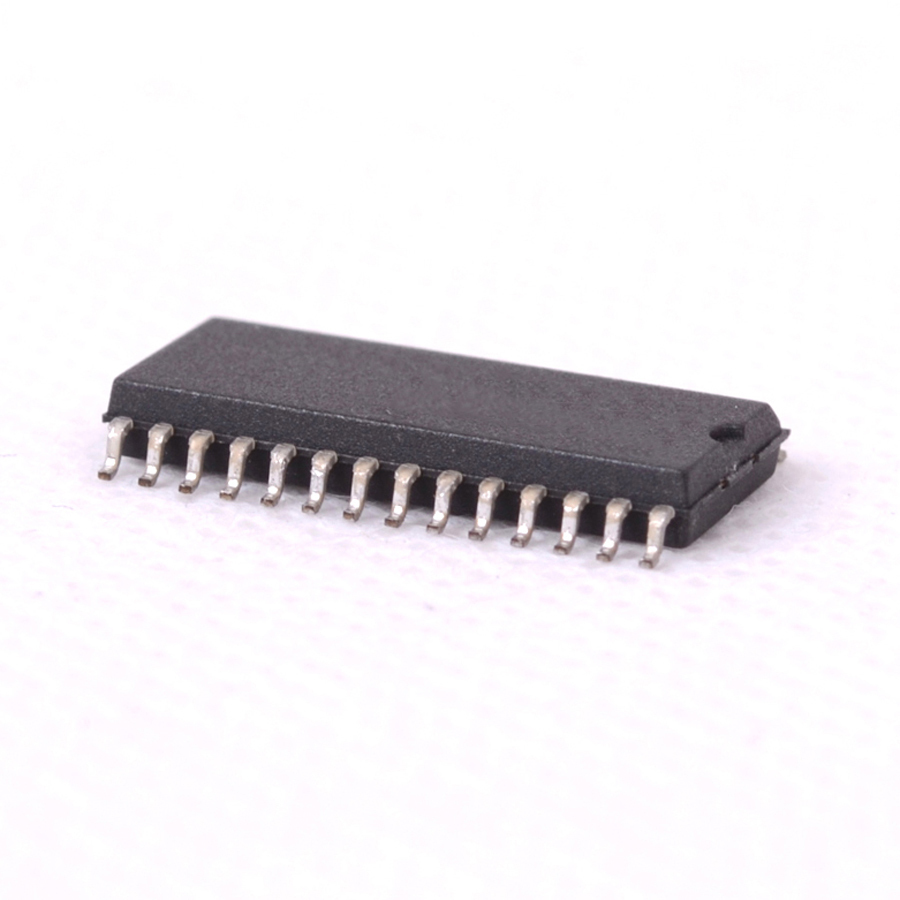

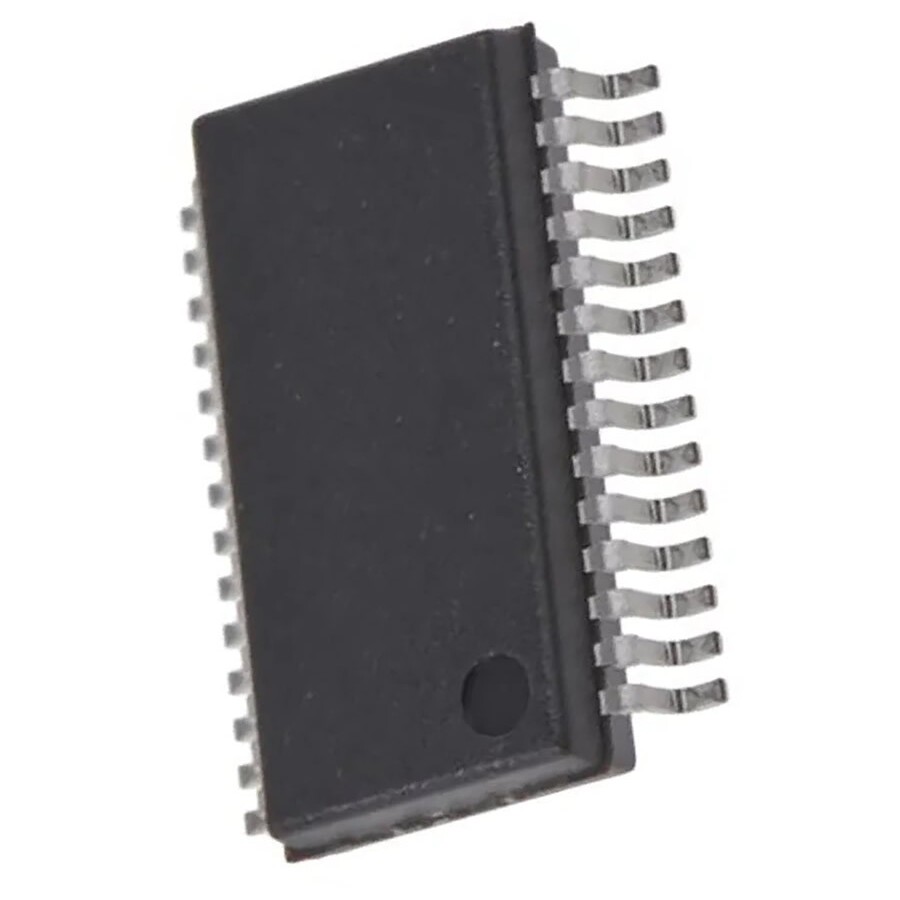

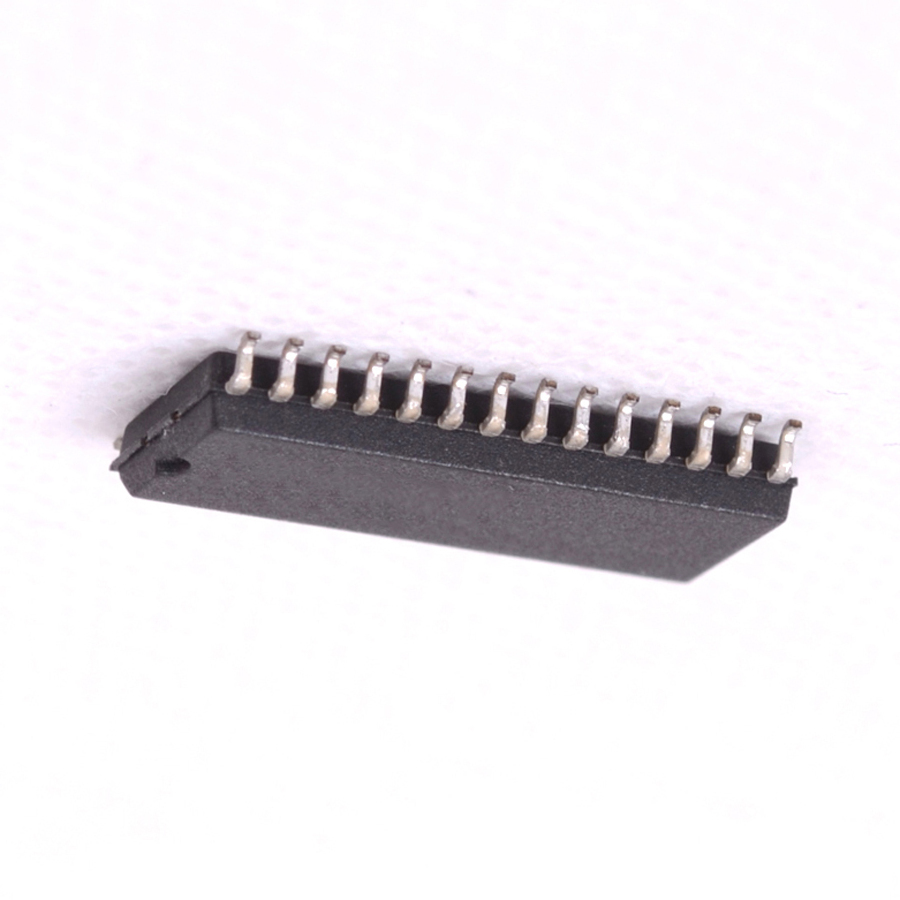

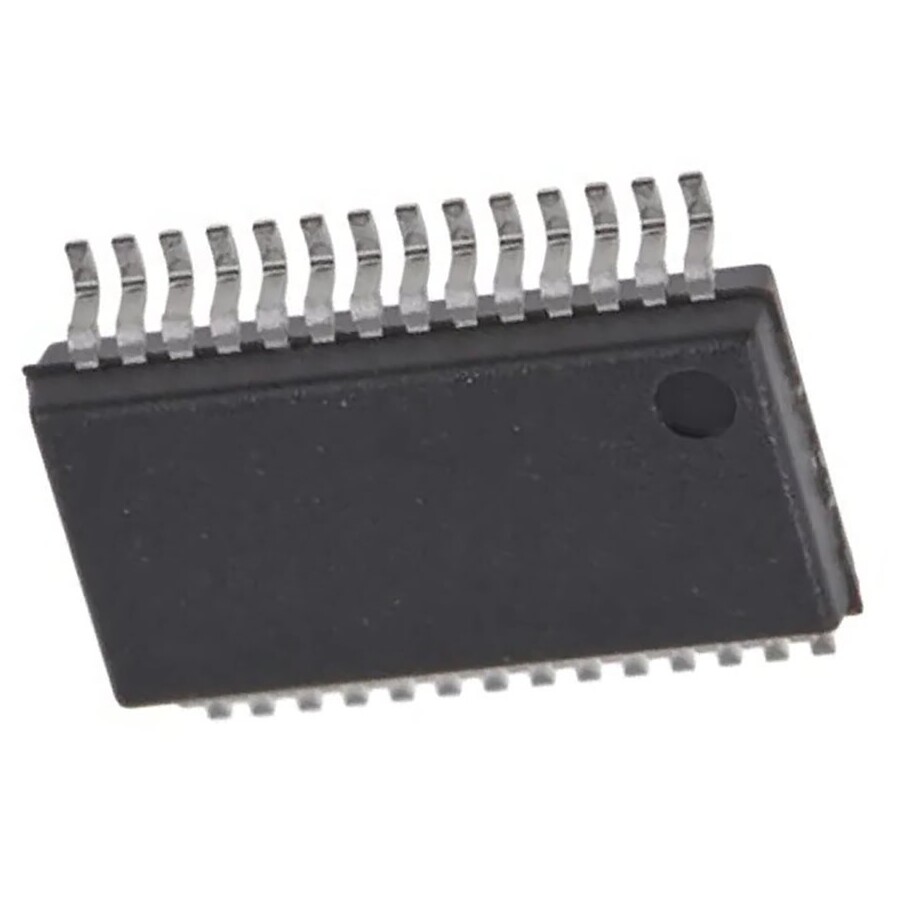

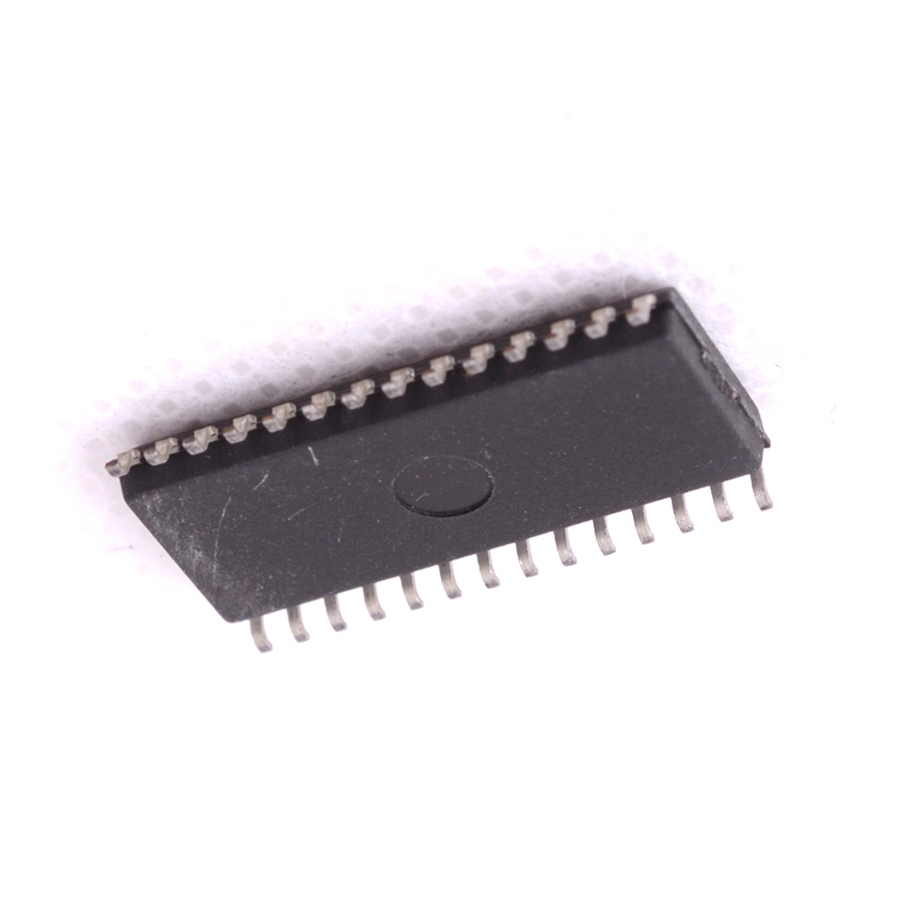

DG507ACWI Integrated Circuit CASE: SOP28 MAKE: MXM
Product specifications
Type Integrated Circuit
Case SOP28
Manufacturer MXM
Ckts Per Dev. 1
Vcntl (Hi) (V) 2.4
Vcntl (Lo) (V) 0.8
@Is (test) (A) 200u
Input Chan./ Ckt 8
PD Max. (W) 625m
tPD Max. (S) 1.0u
Nom. Neg Supp 15
Nom. Pos. Supp 15
R(ds) On (Û) 450
Analog Sw. Cur. P-P Max. 30m
Sw. Volt P-P Max.(V) 30
Tech. CMOS Integrated Circuit
@Vd (test) (V) 10
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 28-108
No. of Pins 28
Surface Mounted Yes/No YES
SKU 957359
