DIMD10A
View detailed images (5)

DIMD10A

SKU: DIMD10A

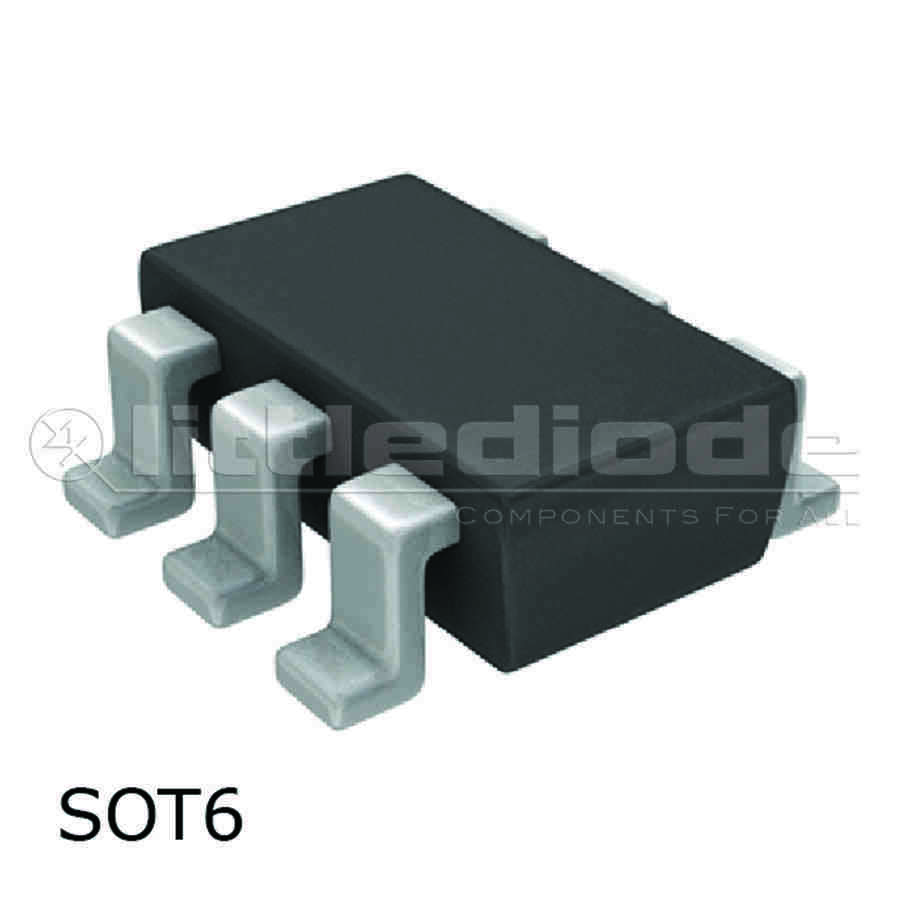

DIMD10A Transistor Silicon Pre-Biased-NPN - PNP CASE: SOT6 MAKE: Dionics Inc
Datasheet
DIMD10A Datasheet
Product specifications
Type Transistor Silicon Pre-Biased-NPN - PNP
Case SOT6
Manufacturer Dionics Inc
Polarity Pre-Biased-NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 68
SMD Transistor Code C73
Built in Bias Resistor R1 0.1 kOhm
Built in Bias Resistor R2 10 kOhm
Typical Resistor Ratio R1/R2 0.01
SKU 535373
