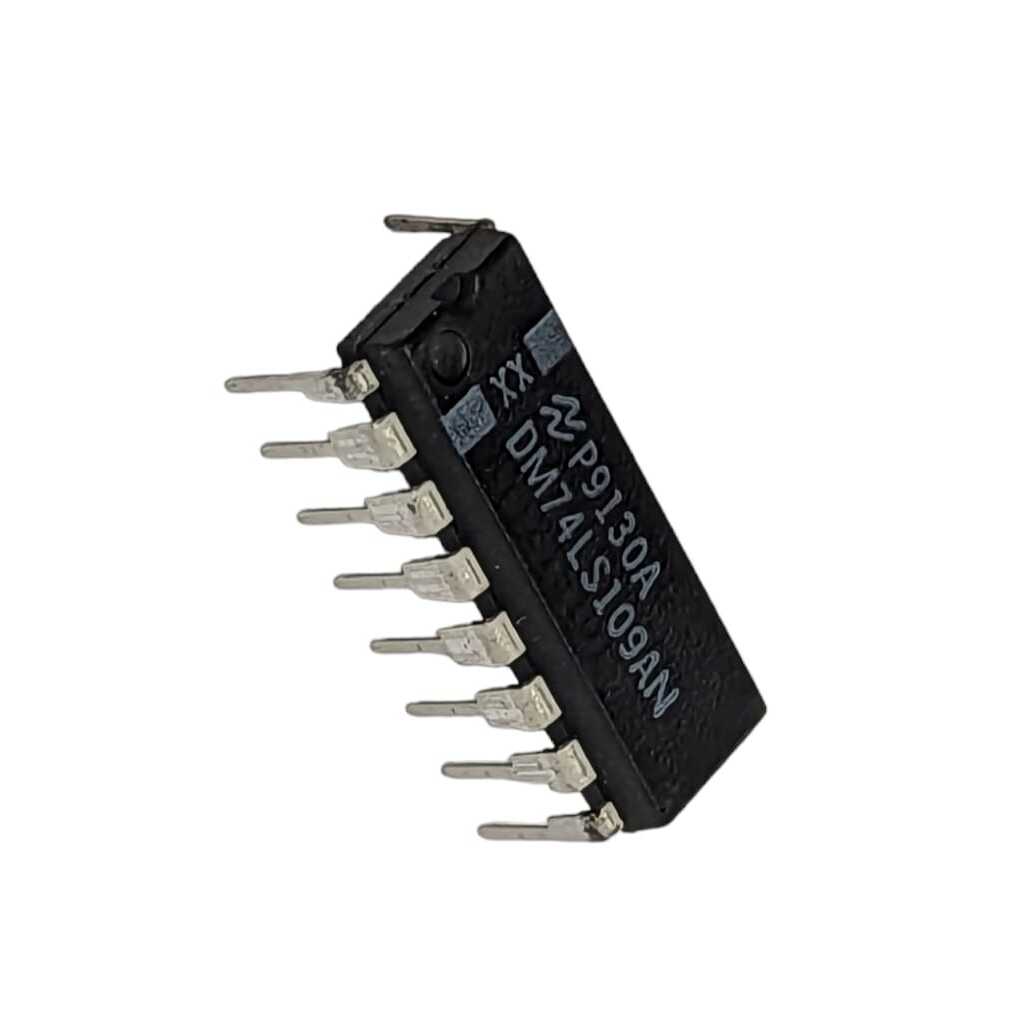

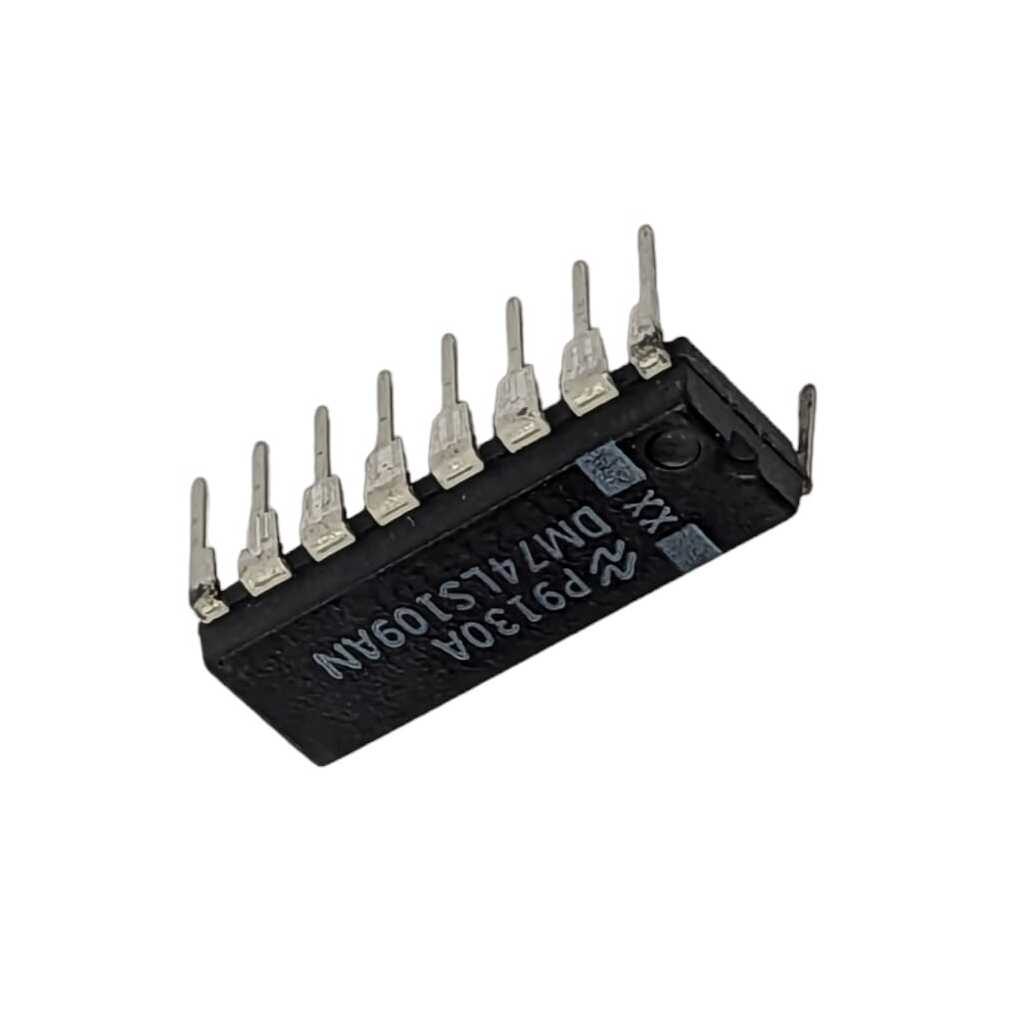

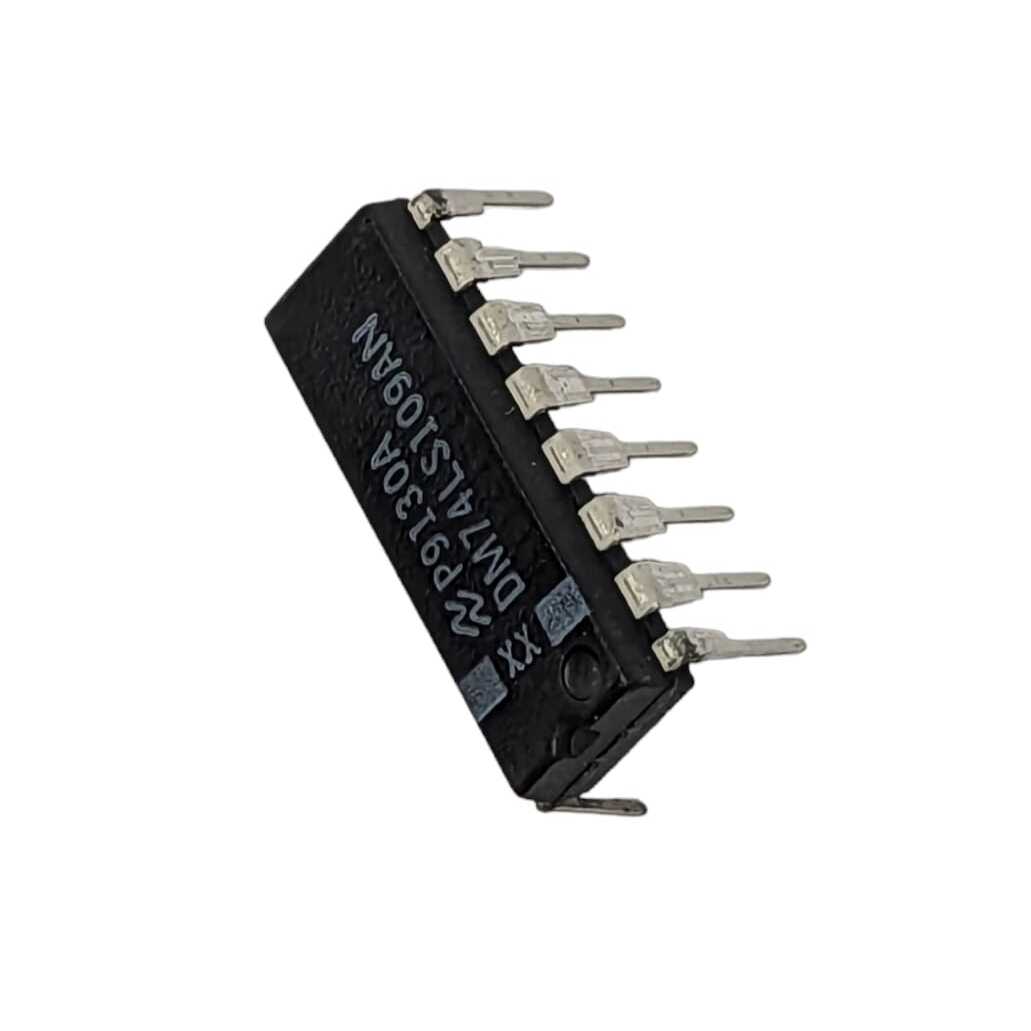

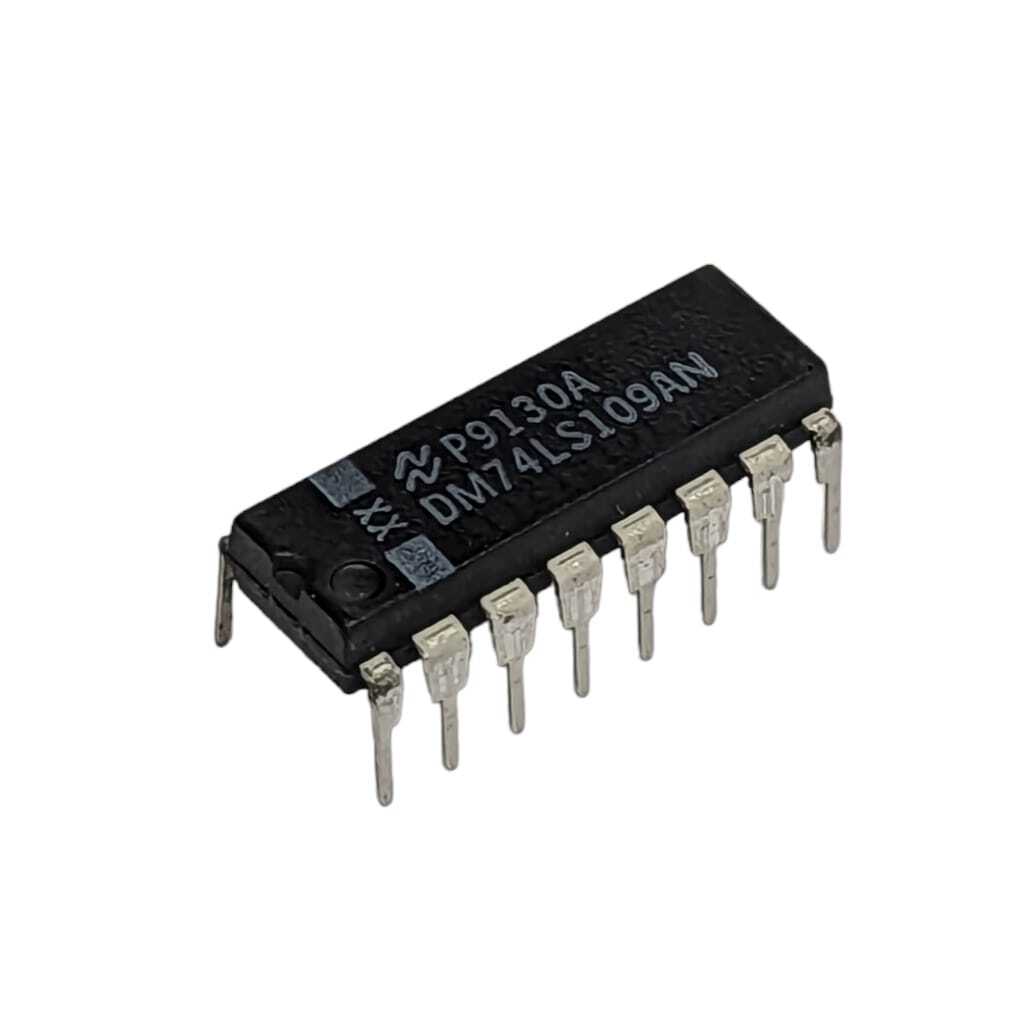

DM74LS109AN

DM74LS109AN

SKU: DM74LS109AN
DM74LS109AN Logic IC CASE: DIP16 MAKE: National Semiconductor - NSC
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • 245 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
DM74LS109AN Datasheet
Product specifications
Type Logic IC
Case DIP16
Manufacturer National Semiconductor - NSC
f(oper) Max. (Hz) 25M
Output Config Totem-Pole
tPD Max. (S) 30n
Nom. Supp Volt 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Clear (Y/N) Yes
Preset (Y/N) Yes
Pinout Equivalence Number 16-422
Surface Mounted Yes/No NO
SKU 612623
