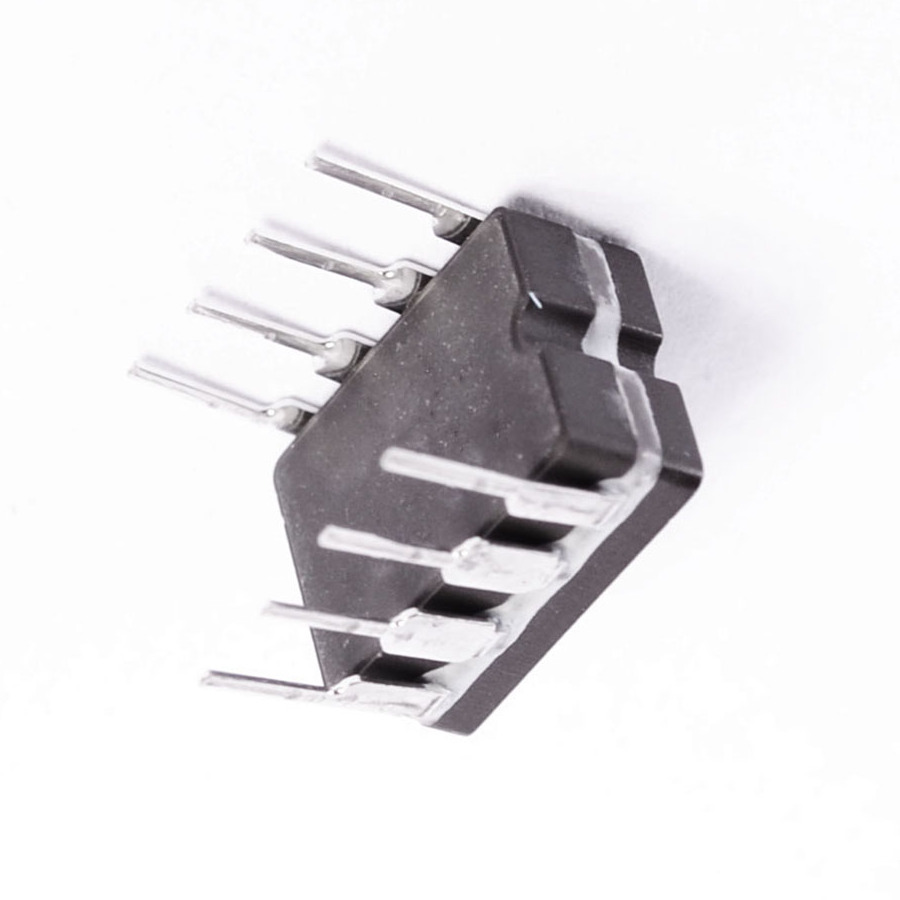

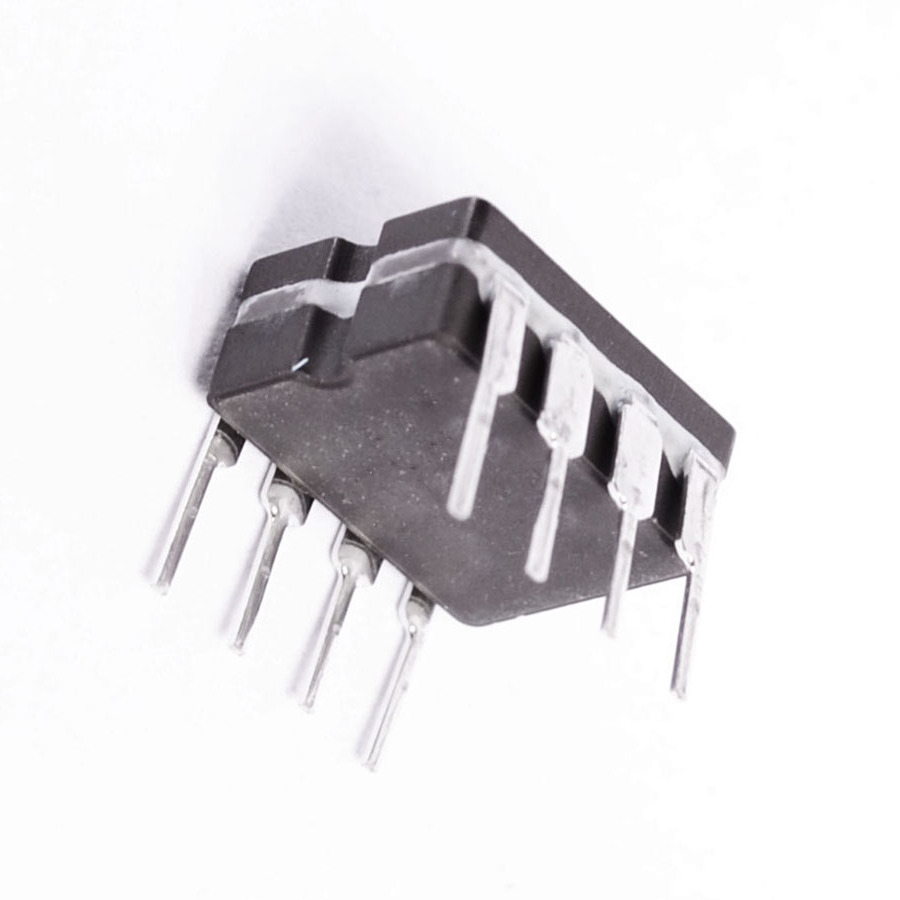

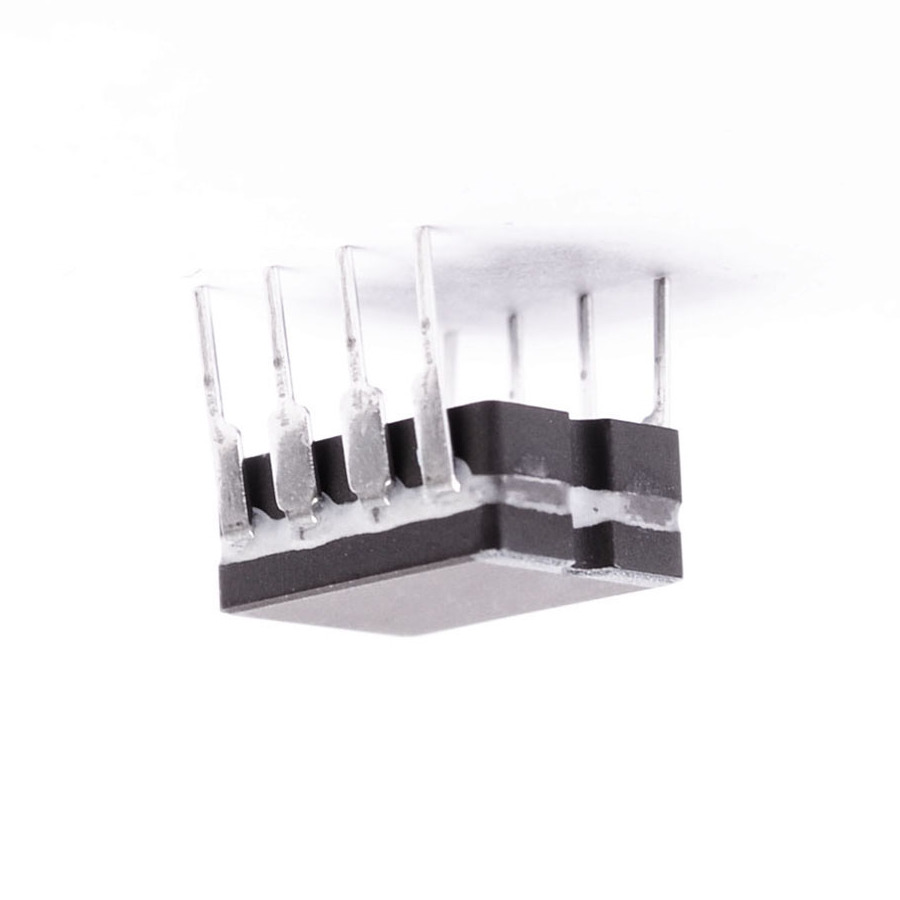

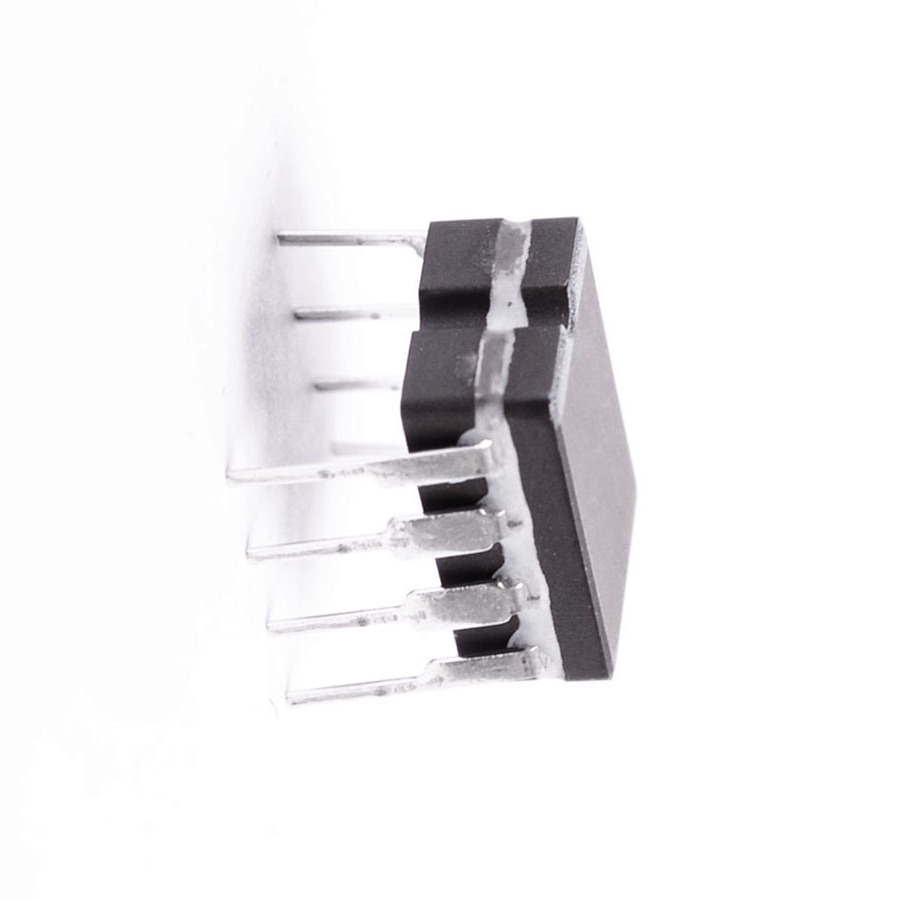

DS1631J

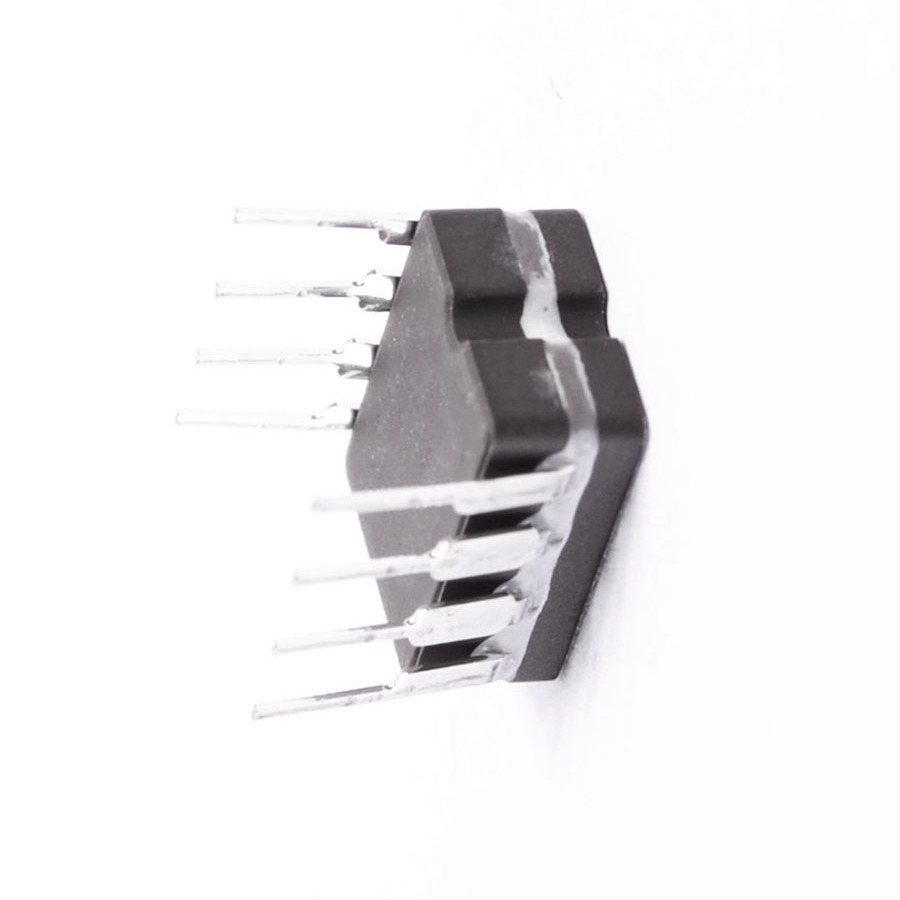

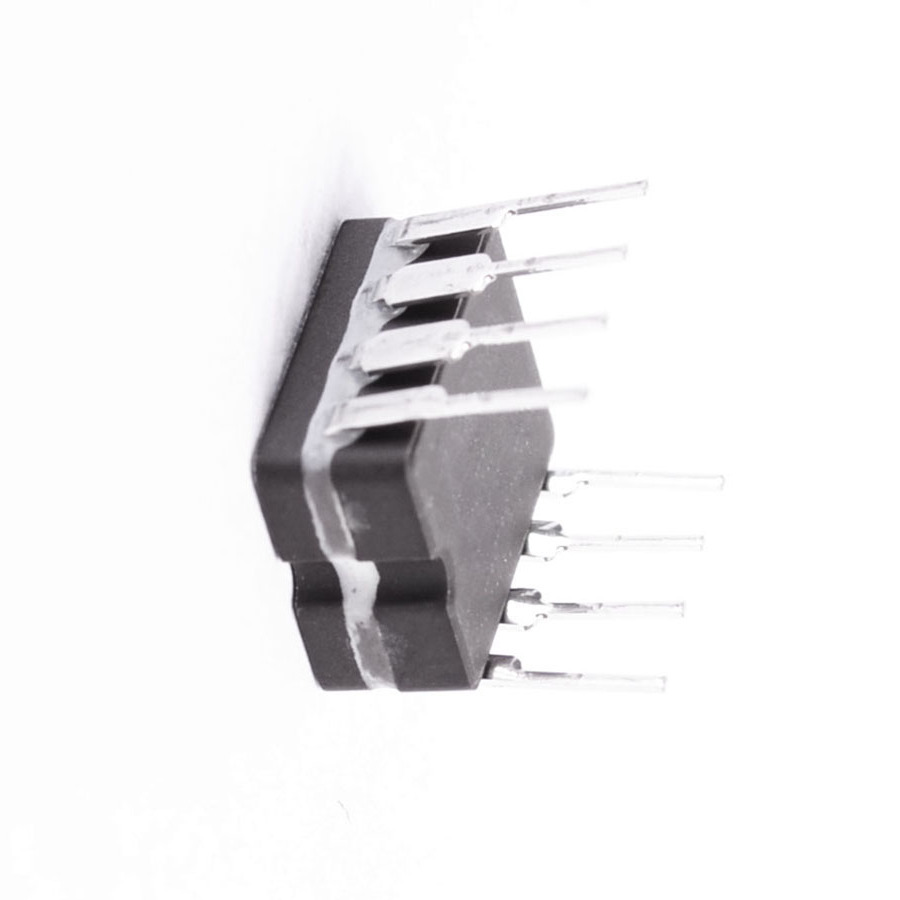

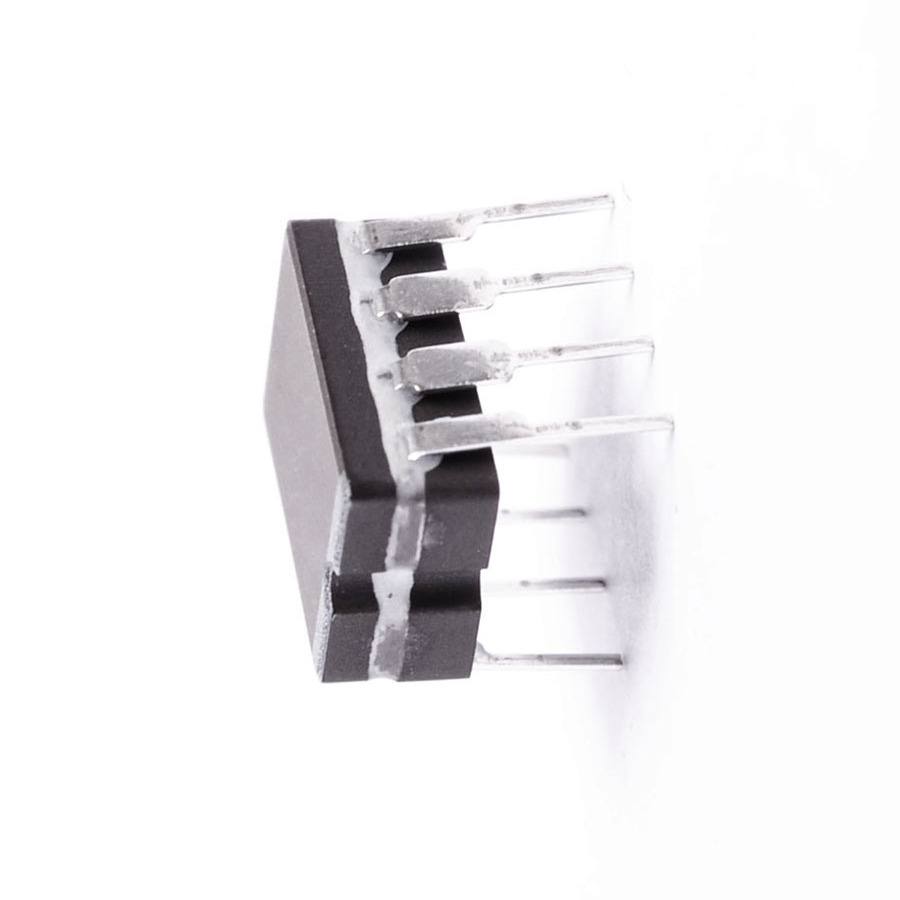

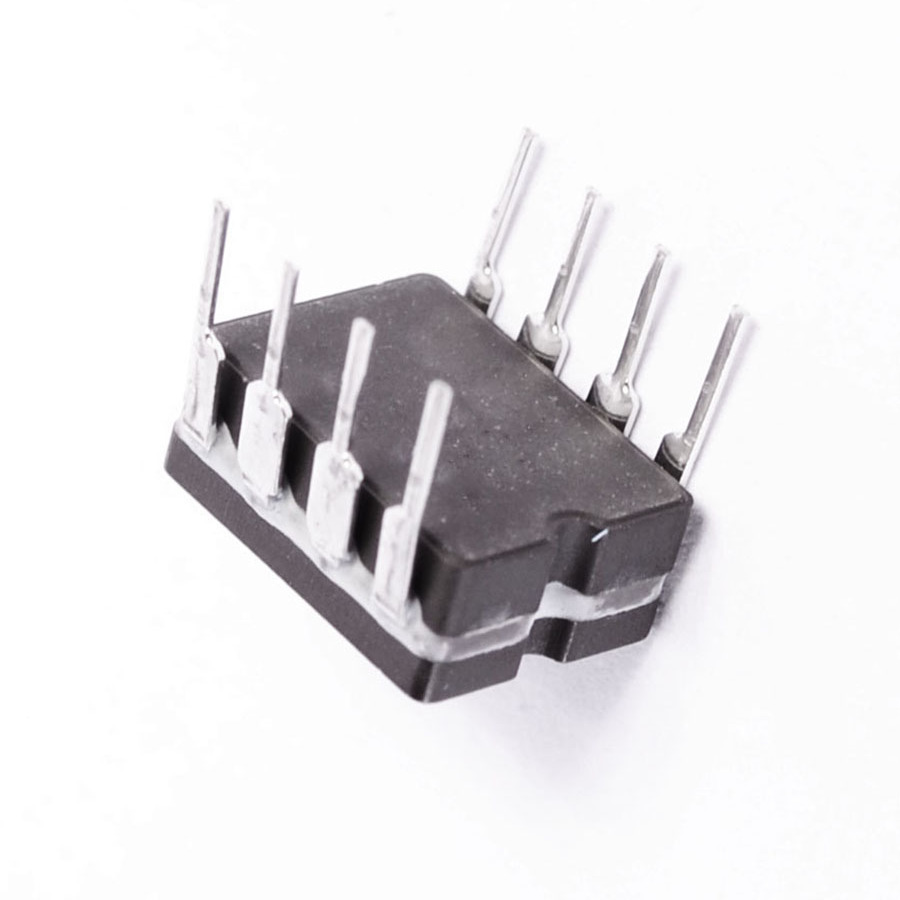

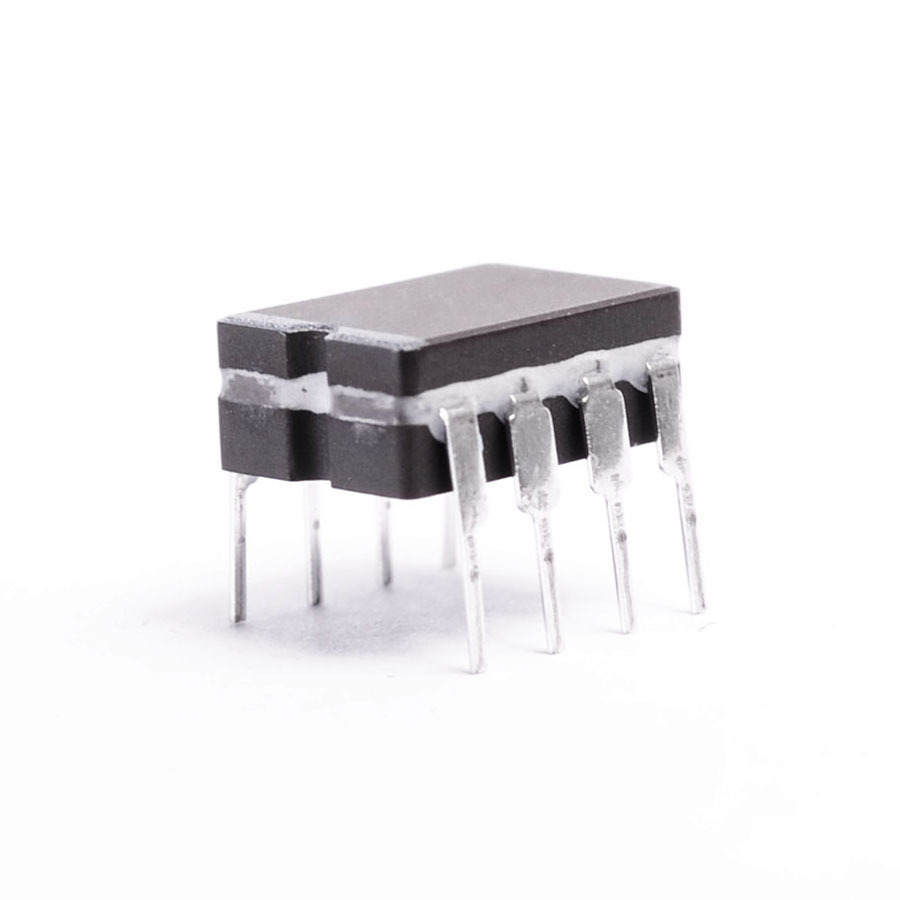

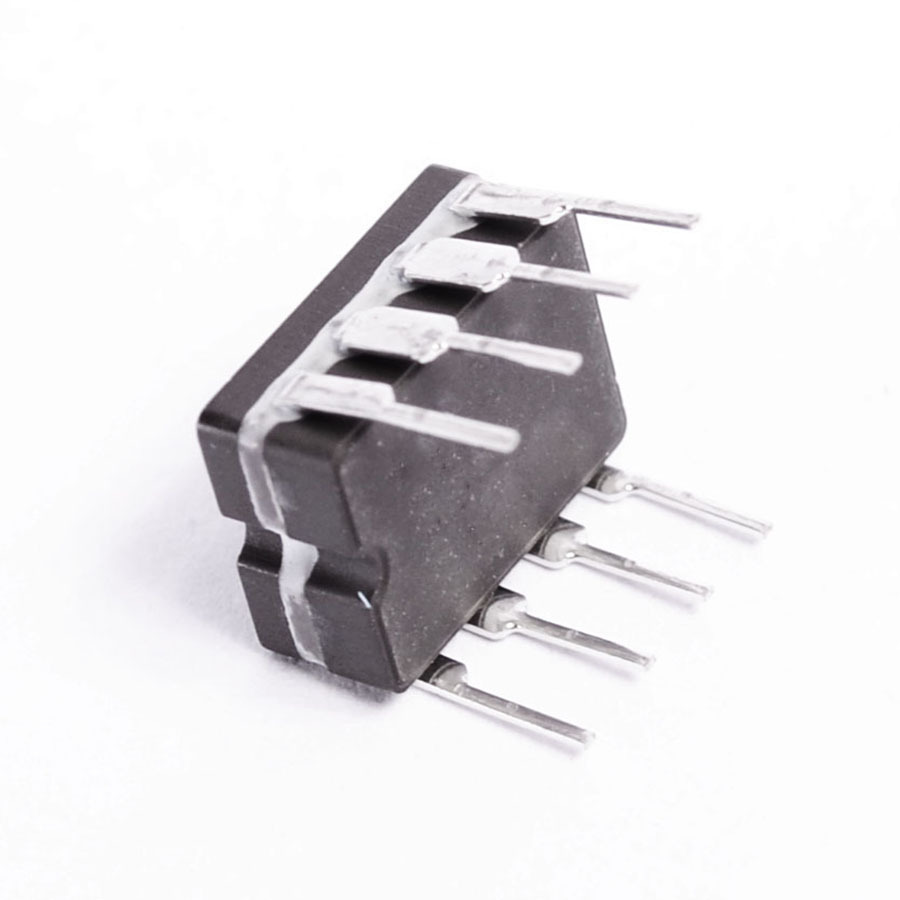

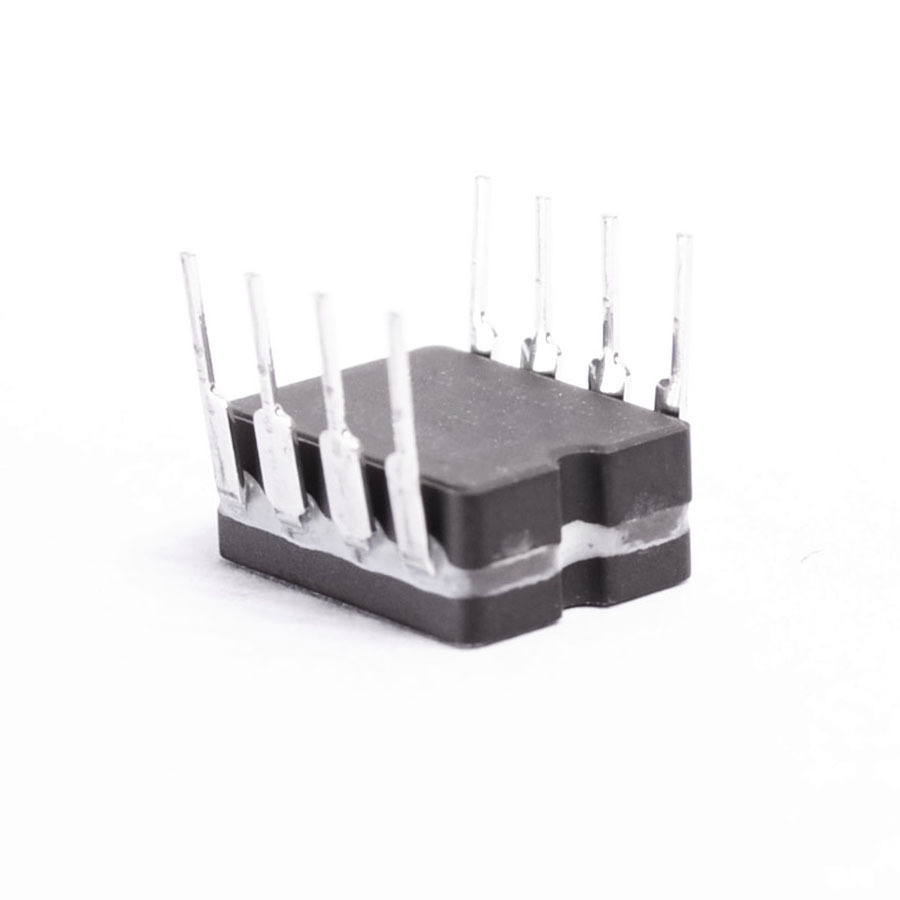

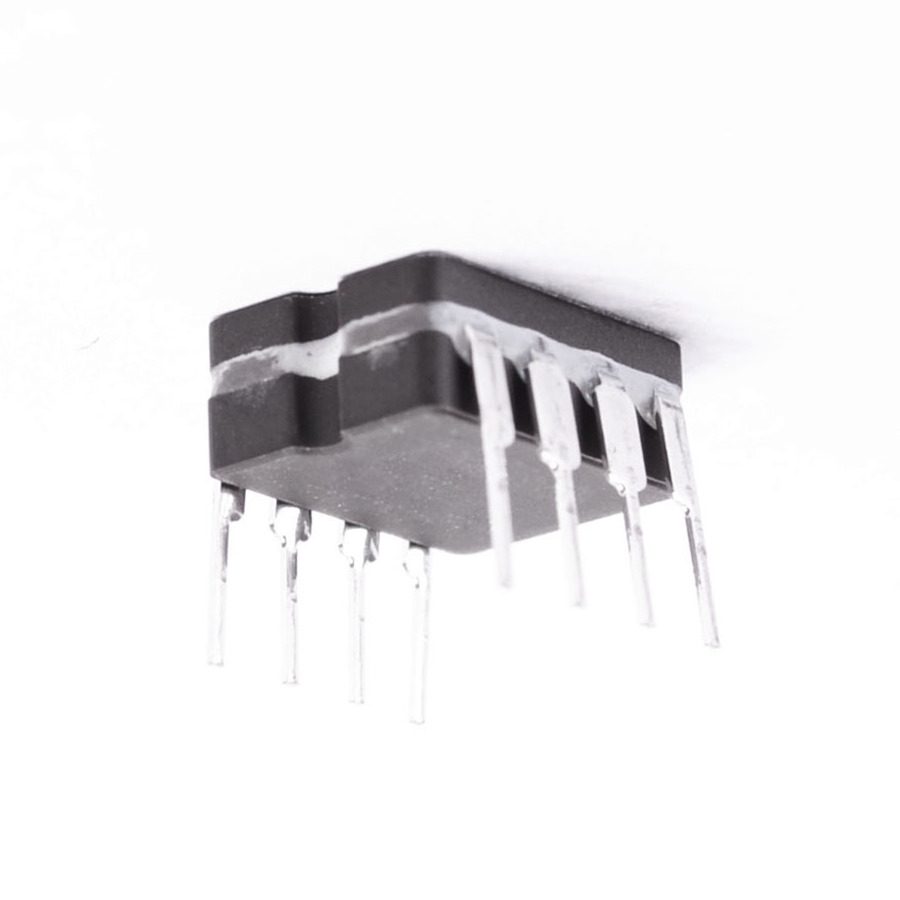

View detailed images (12)

DS1631J

SKU: DS1631J
DS1631J Integrated Circuit CASE: DIC8 MAKE: National Semiconductor - NSC
Price:
£62.39 Inc. VAT (£51.99 Ex. VAT)
£62.39 Inc. VAT (£51.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer National Semiconductor - NSC
Vih Min (V) 12.5
Vil Max. (V) 2.5
Inp Logic Family C/PMOS,D/T
Output Config Open-Coll.
VOL Max. 1.1
Outp Transis. Ion Max. 300m
PD Max. (W) 210m
tPD Max. (S) 200n
Tech. CMOS Integrated Circuit
Logic Funct. AND
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
VOH Max. 56
@Iol (A) 300m
Pinout Equivalence Number 8-38
No. of Pins 8
Surface Mounted Yes/No NO
SKU 94385
