DS1633H
View detailed images (4)

DS1633H

SKU: DS1633H

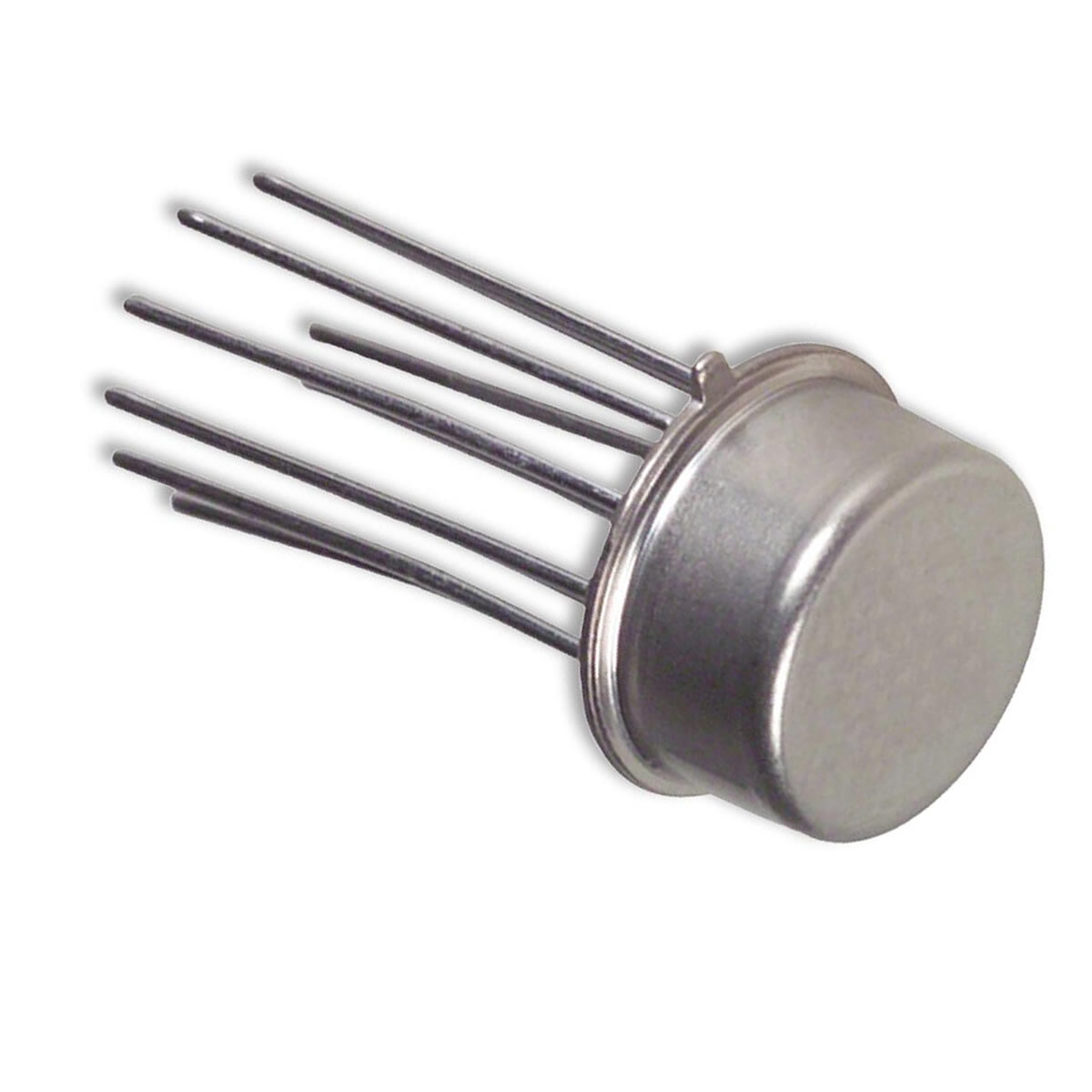

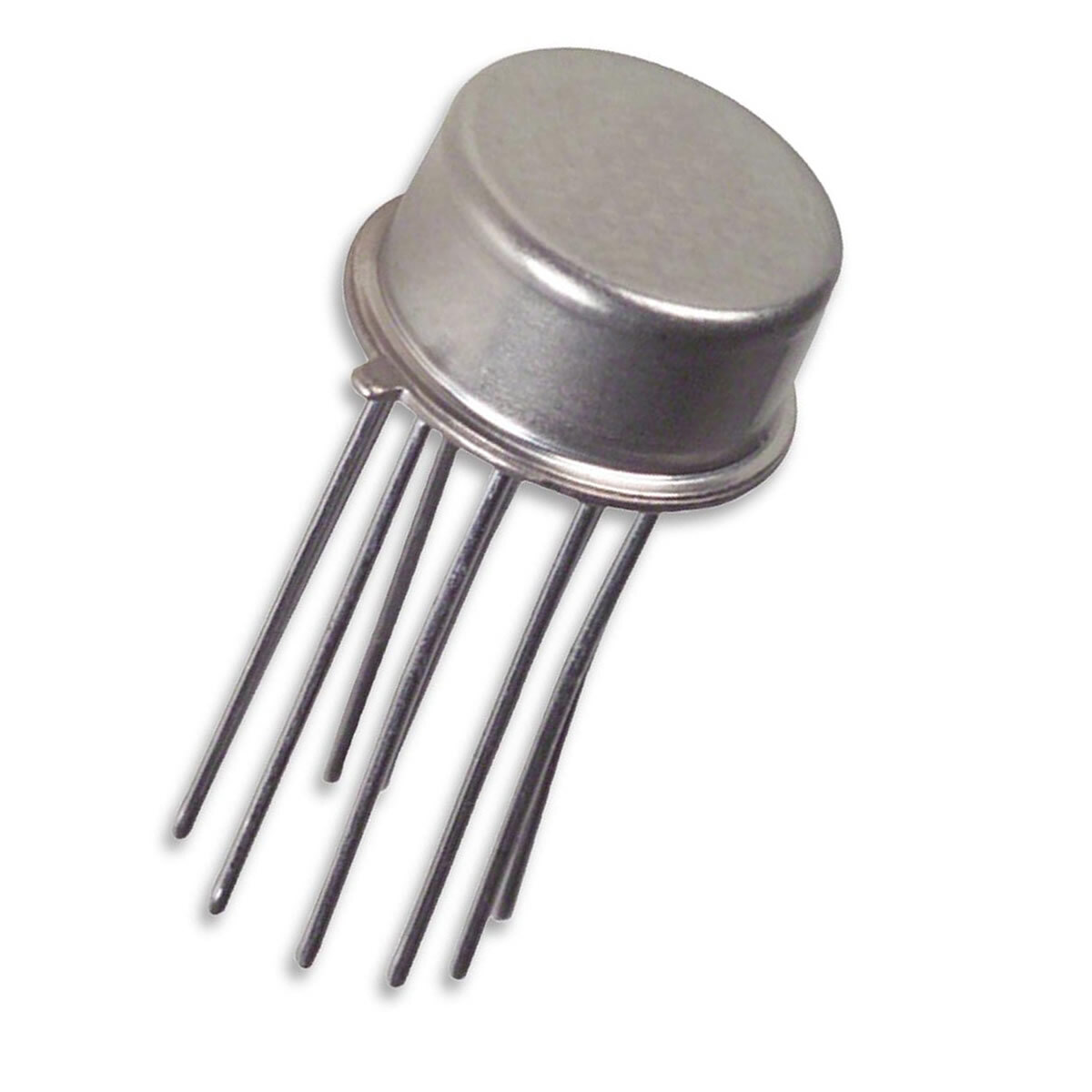

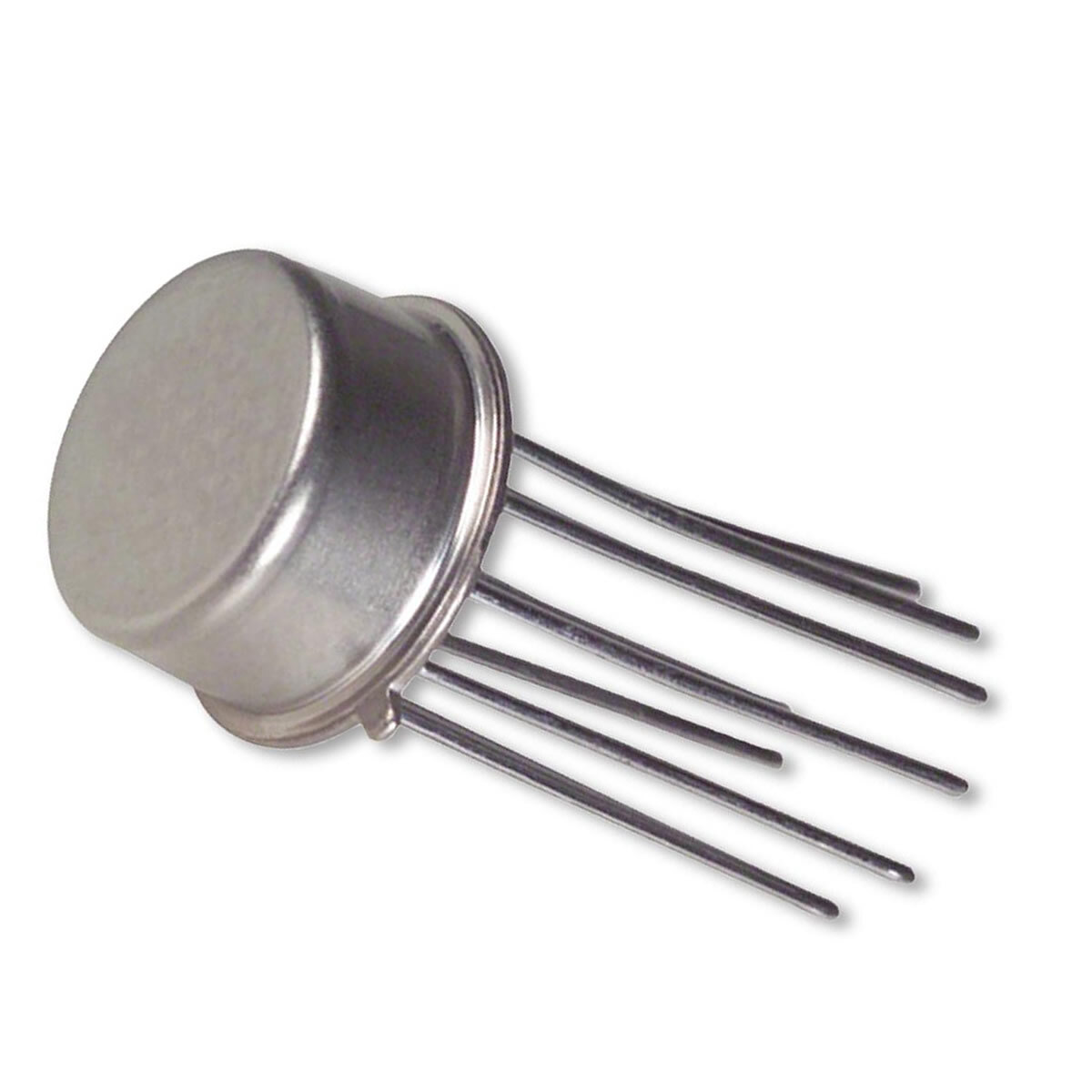

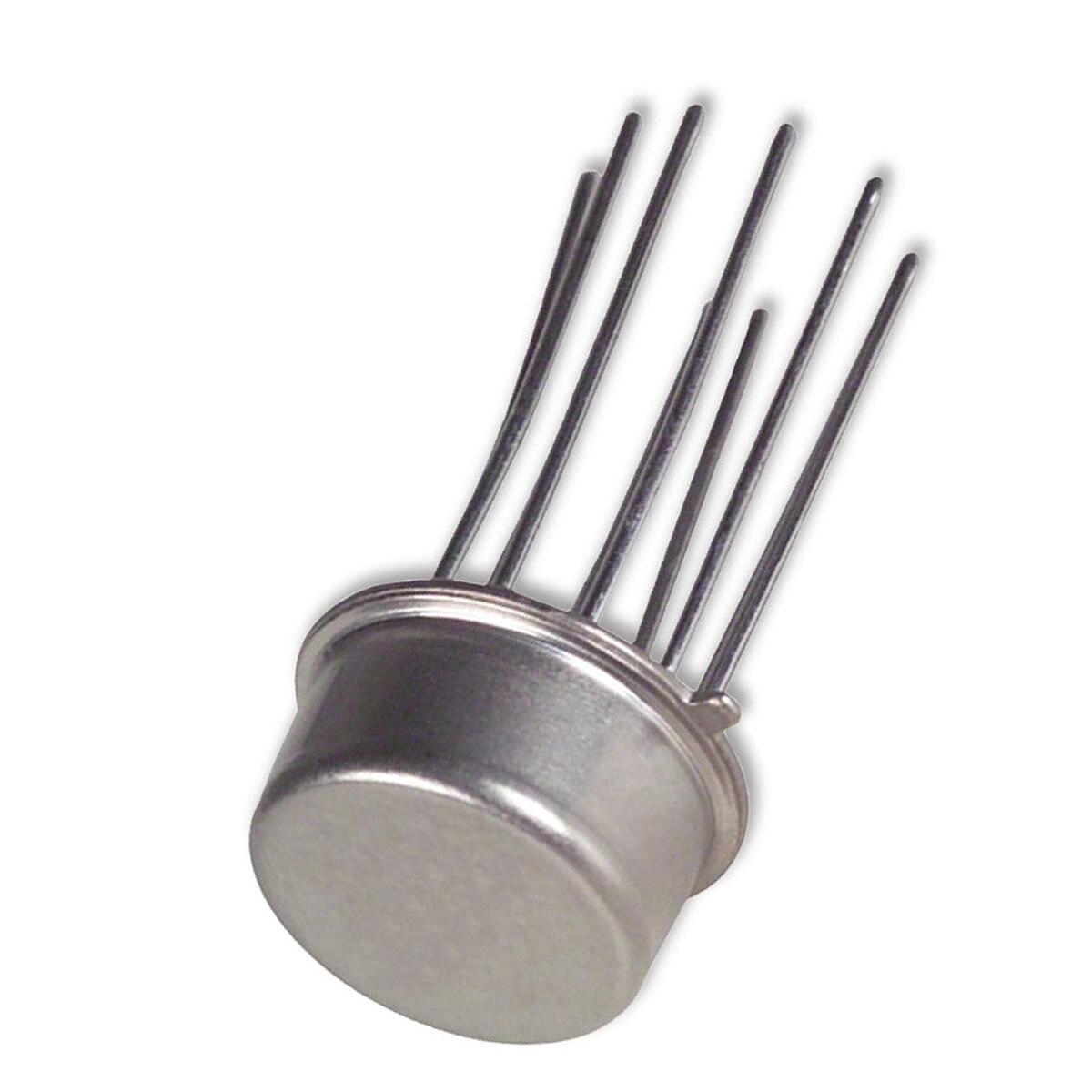

DS1633H Integrated Circuit CASE: TO99-8 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case TO99-8
Manufacturer National Semiconductor - NSC
Vih Min (V) 12.5
Vil Max. (V) 2.5
Inp Logic Family C/PMOS,D/T
Output Config Open-Coll.
VOL Max. 1.1
Outp Transis. Ion Max. 300m
PD Max. (W) 240m
tPD Max. (S) 200n
Tech. CMOS Integrated Circuit
Logic Funct. OR
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
VOH Max. 56
@Iol (A) 300m
Pinout Equivalence Number 8-40
No. of Pins 8
Surface Mounted Yes/No NO
SKU 98752
