DS1687H

DS1687H

SKU: DS1687H

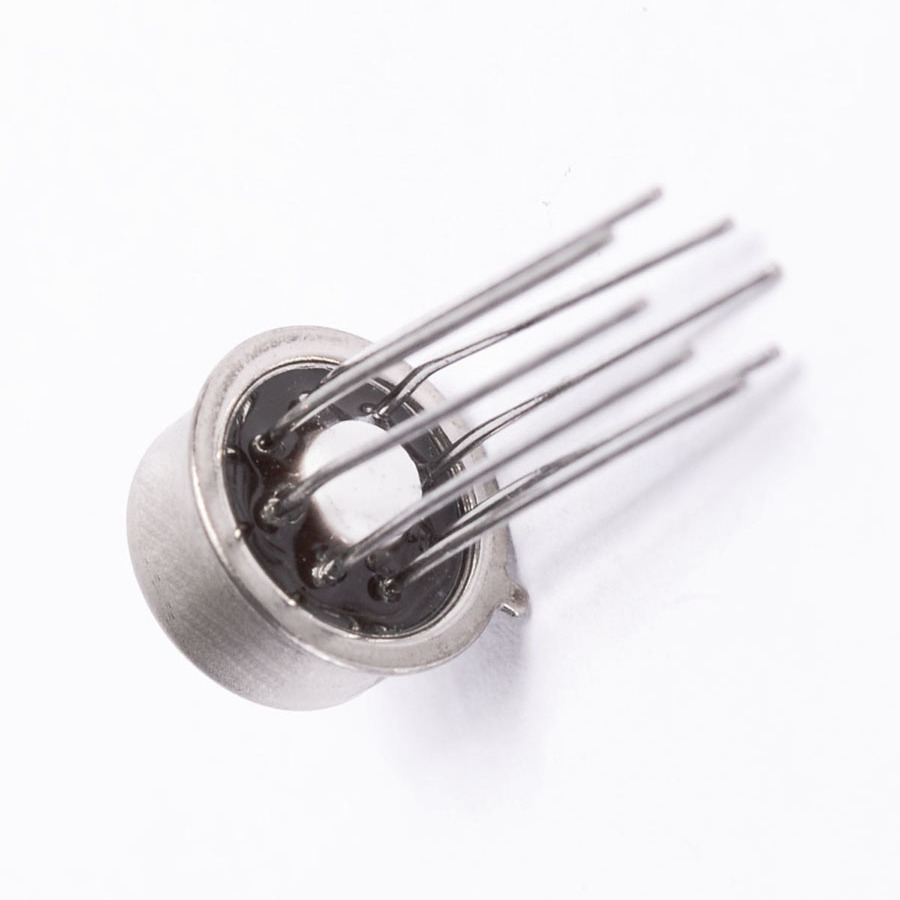

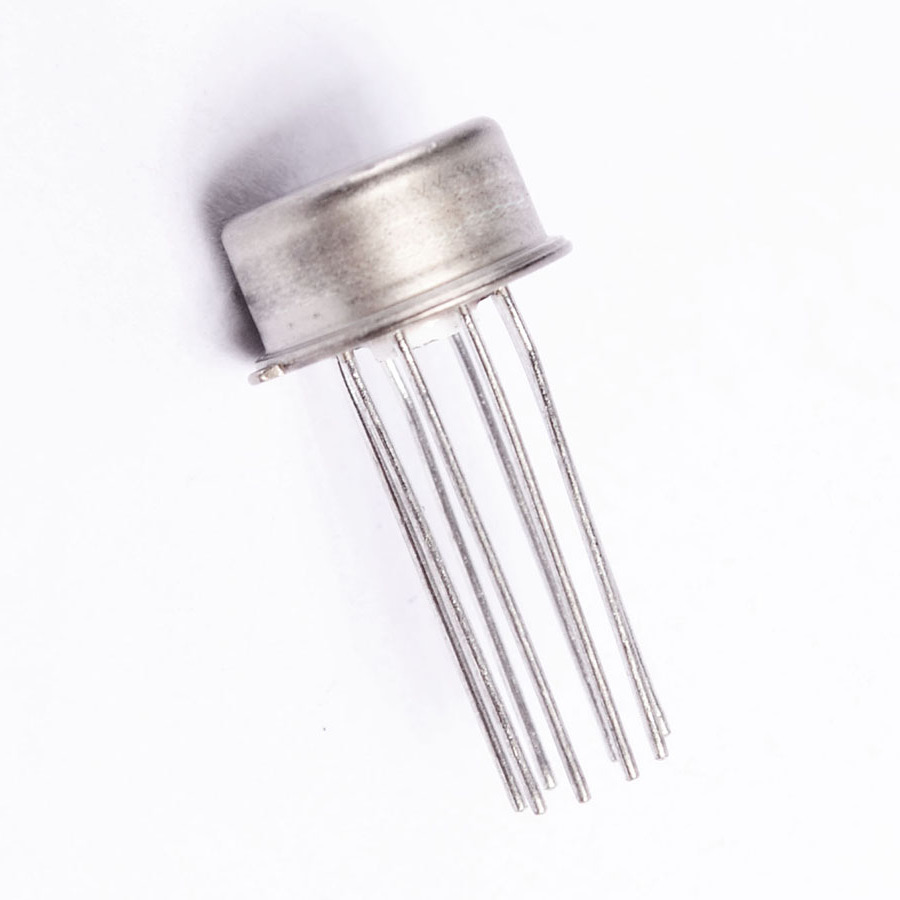

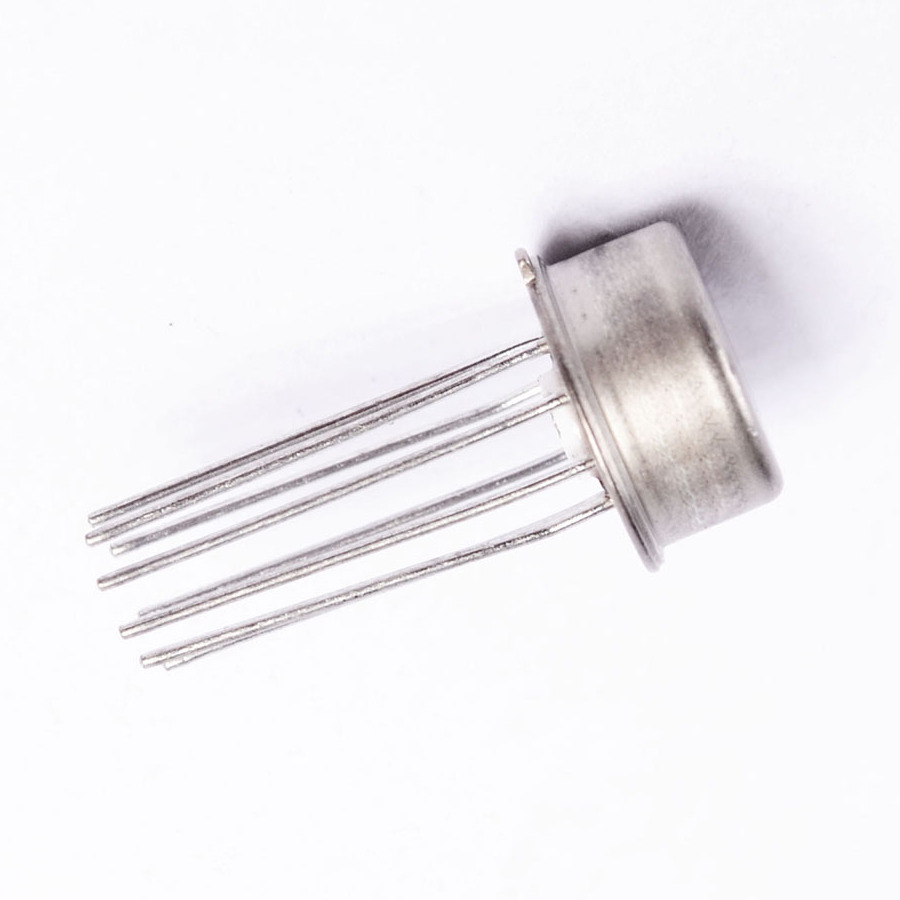

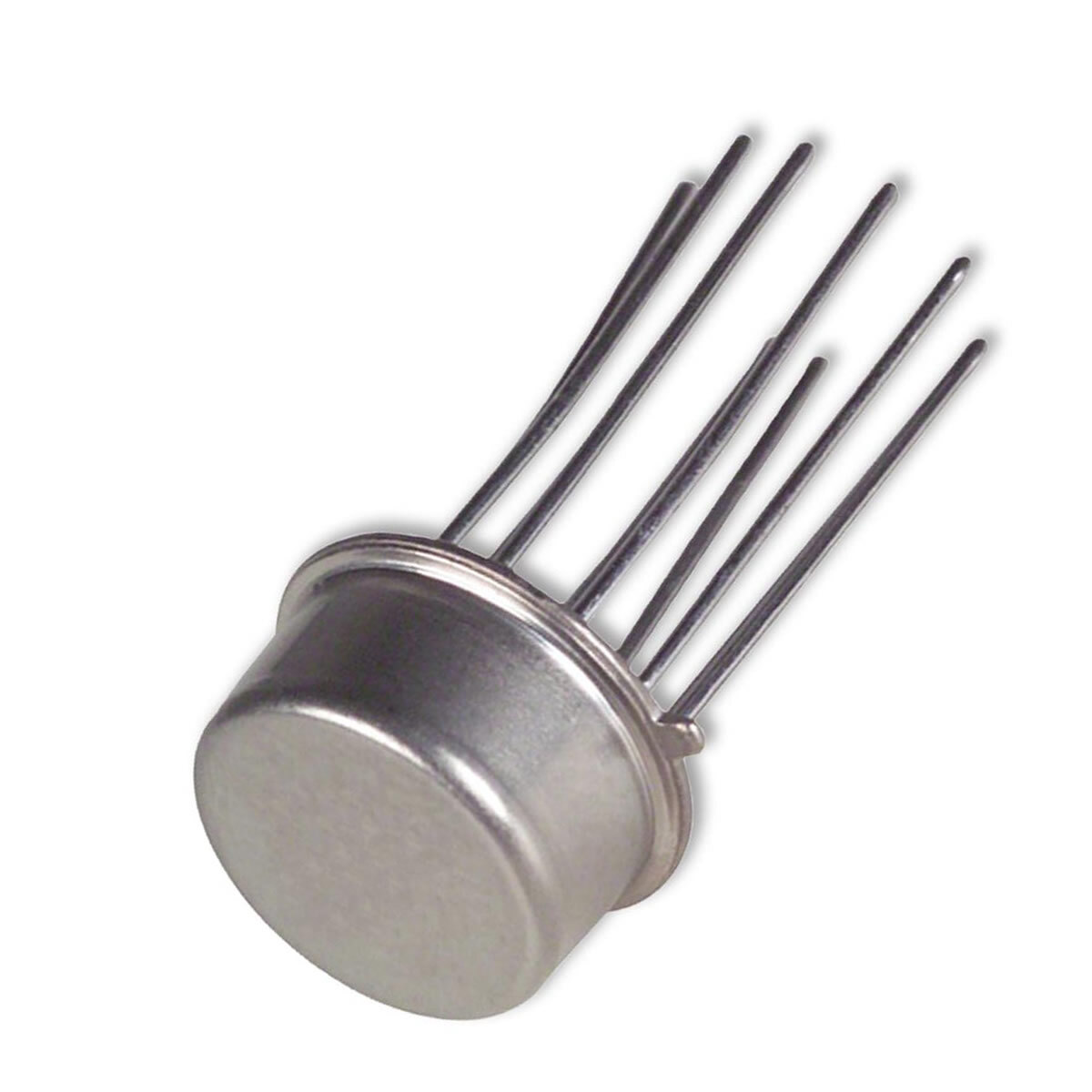

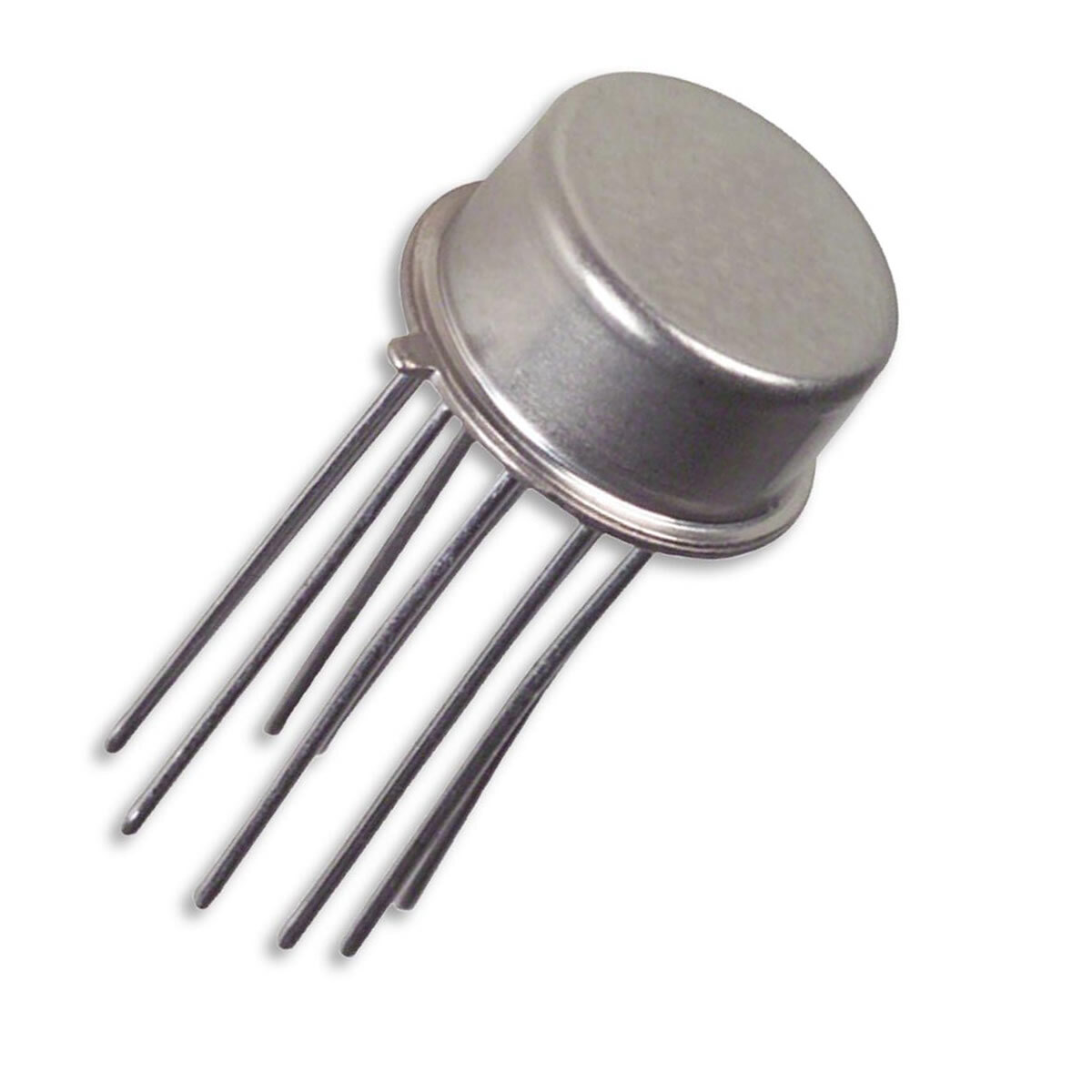

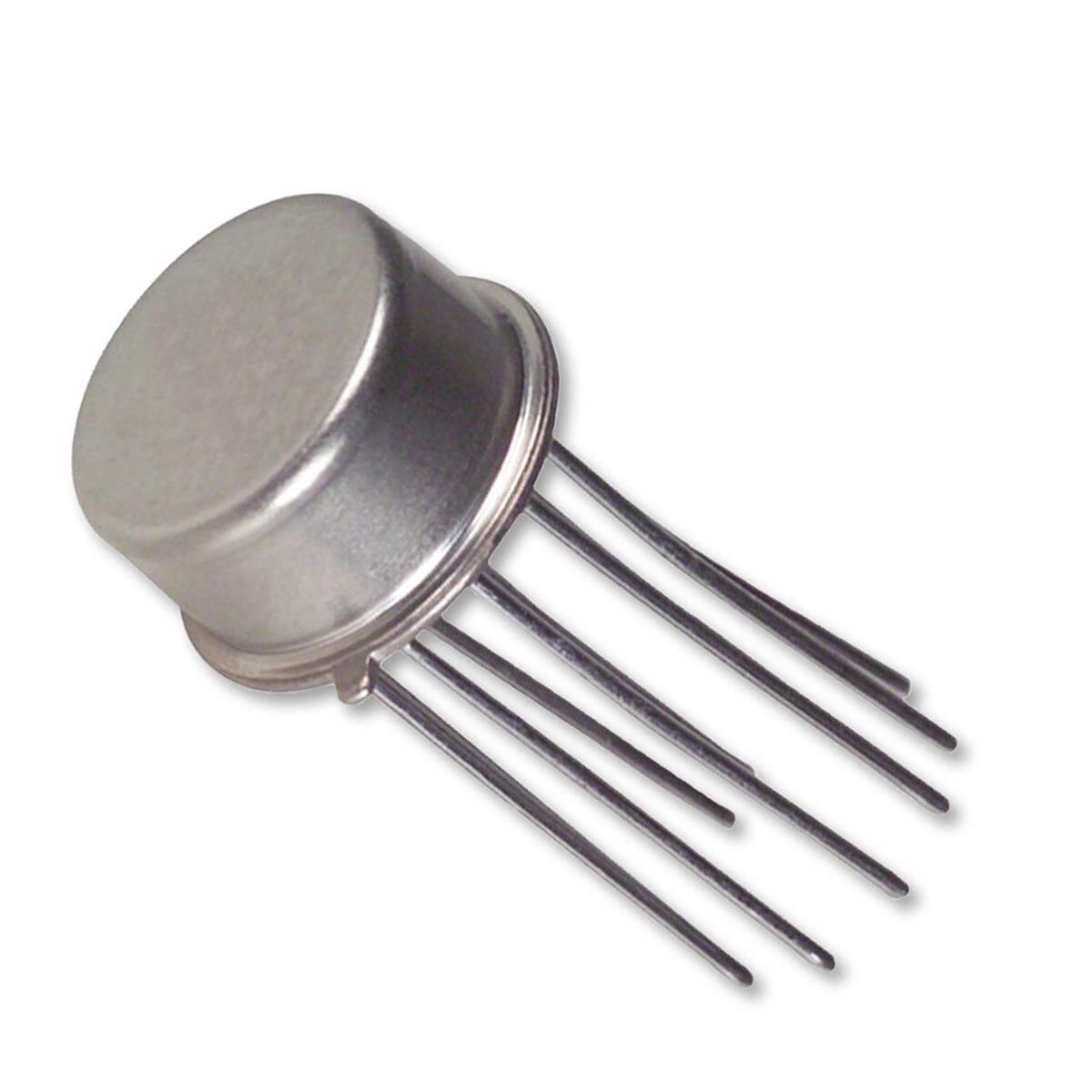

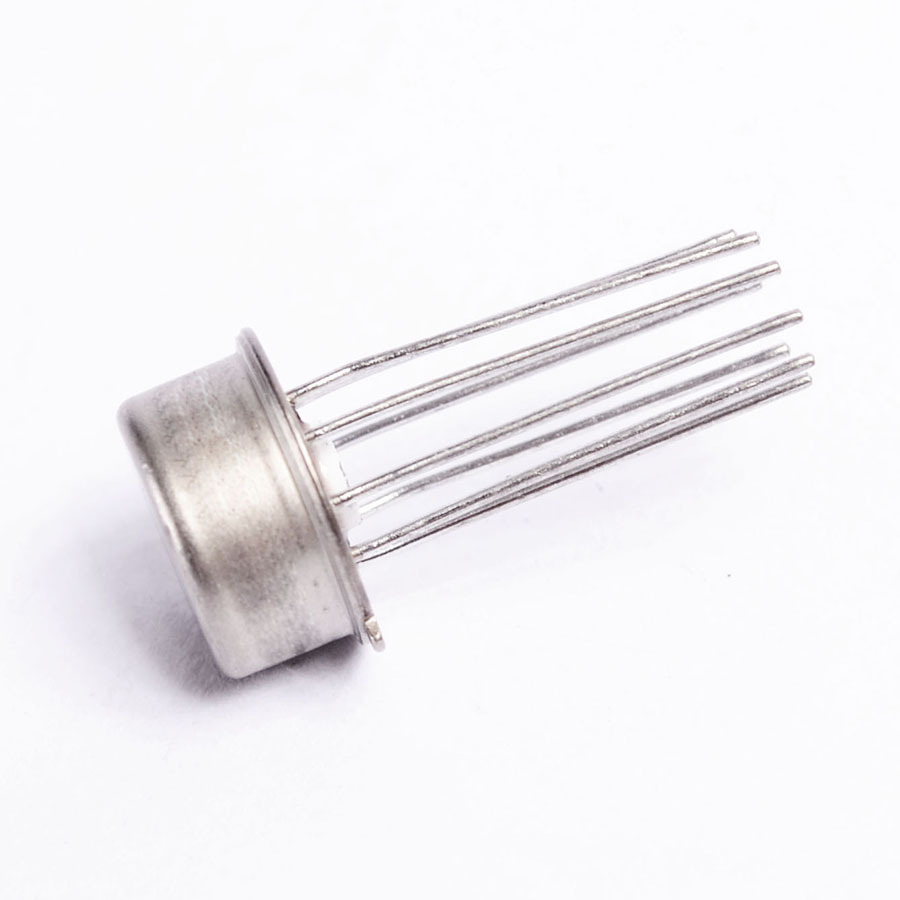

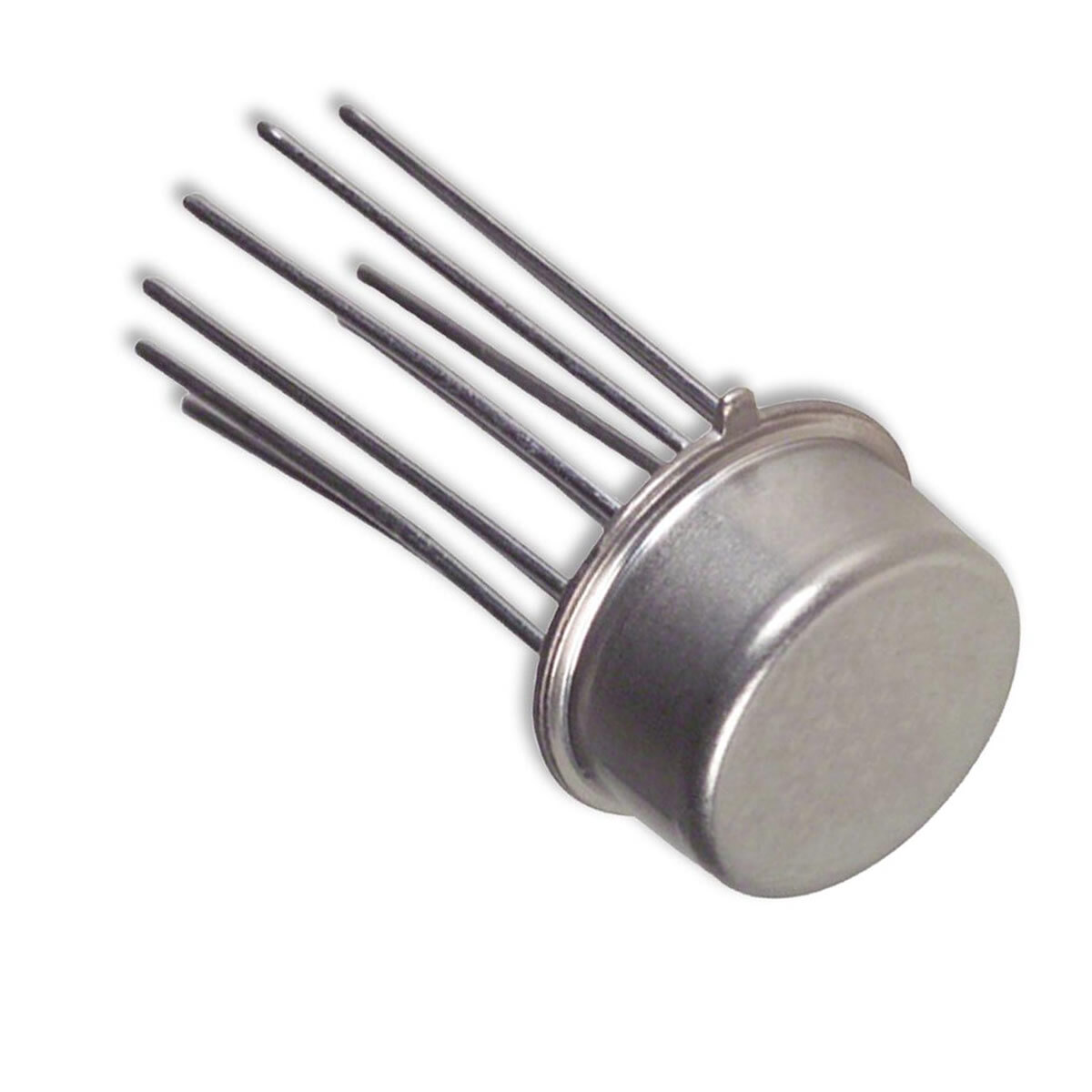

DS1687H Integrated Circuit CASE: TO99 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case TO99
Manufacturer National Semiconductor - NSC
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family C/PMOS,D/T
Output Config Open-Coll.
VOL Max. 1.3
Outp Transis. Ion Max. 300m
PD Max. (W) 140m
tPD Max. (S) 1.0u
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
VOH Max. 56
@Iol (A) 300m
Pinout Equivalence Number 8-42
No. of Pins 8
Surface Mounted Yes/No NO
SKU 927382
