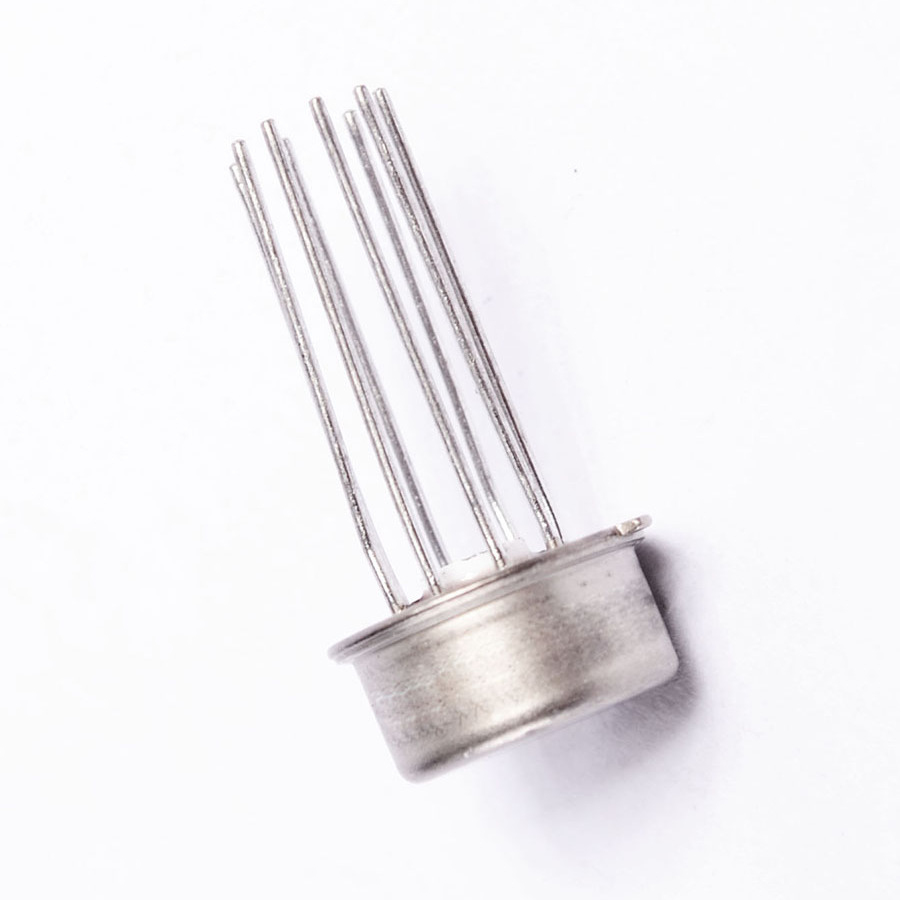

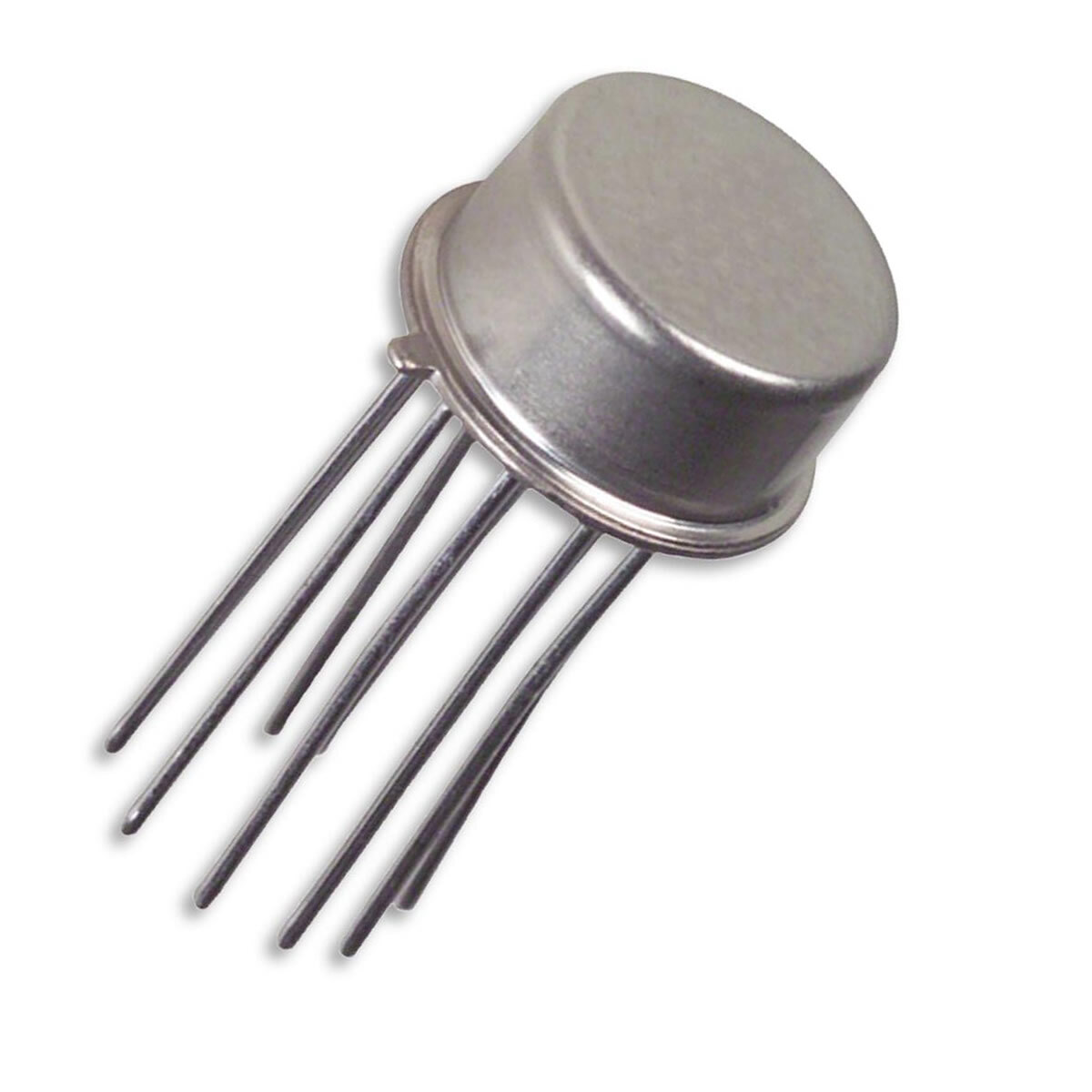

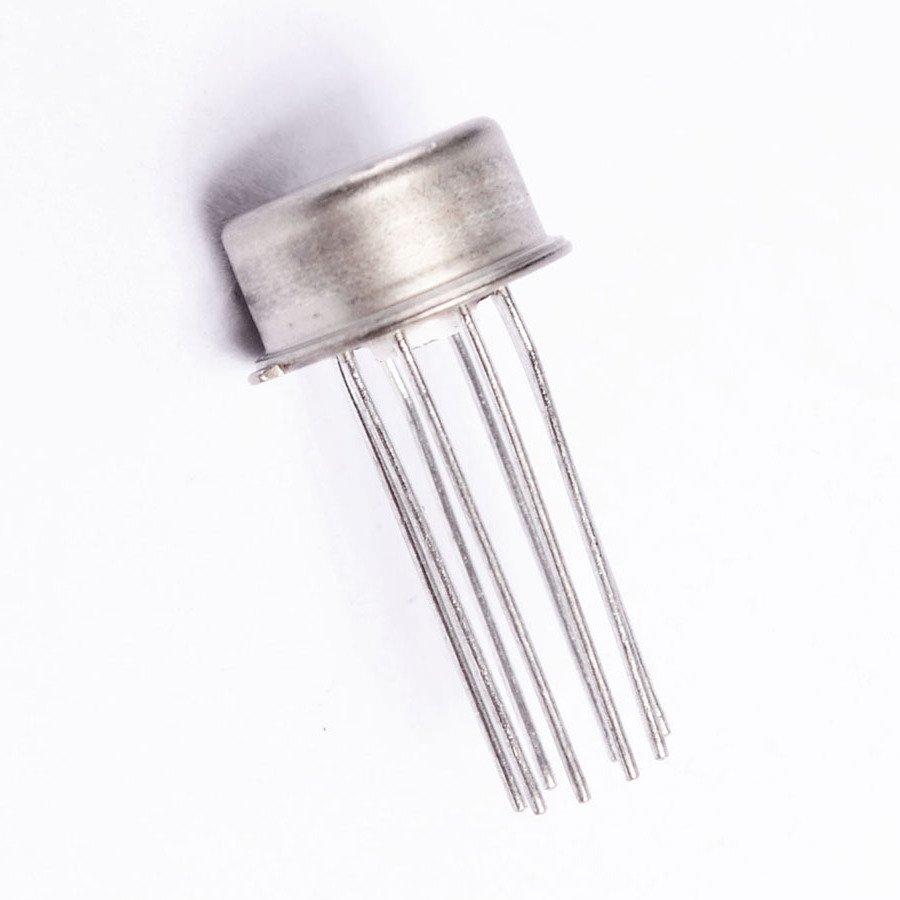

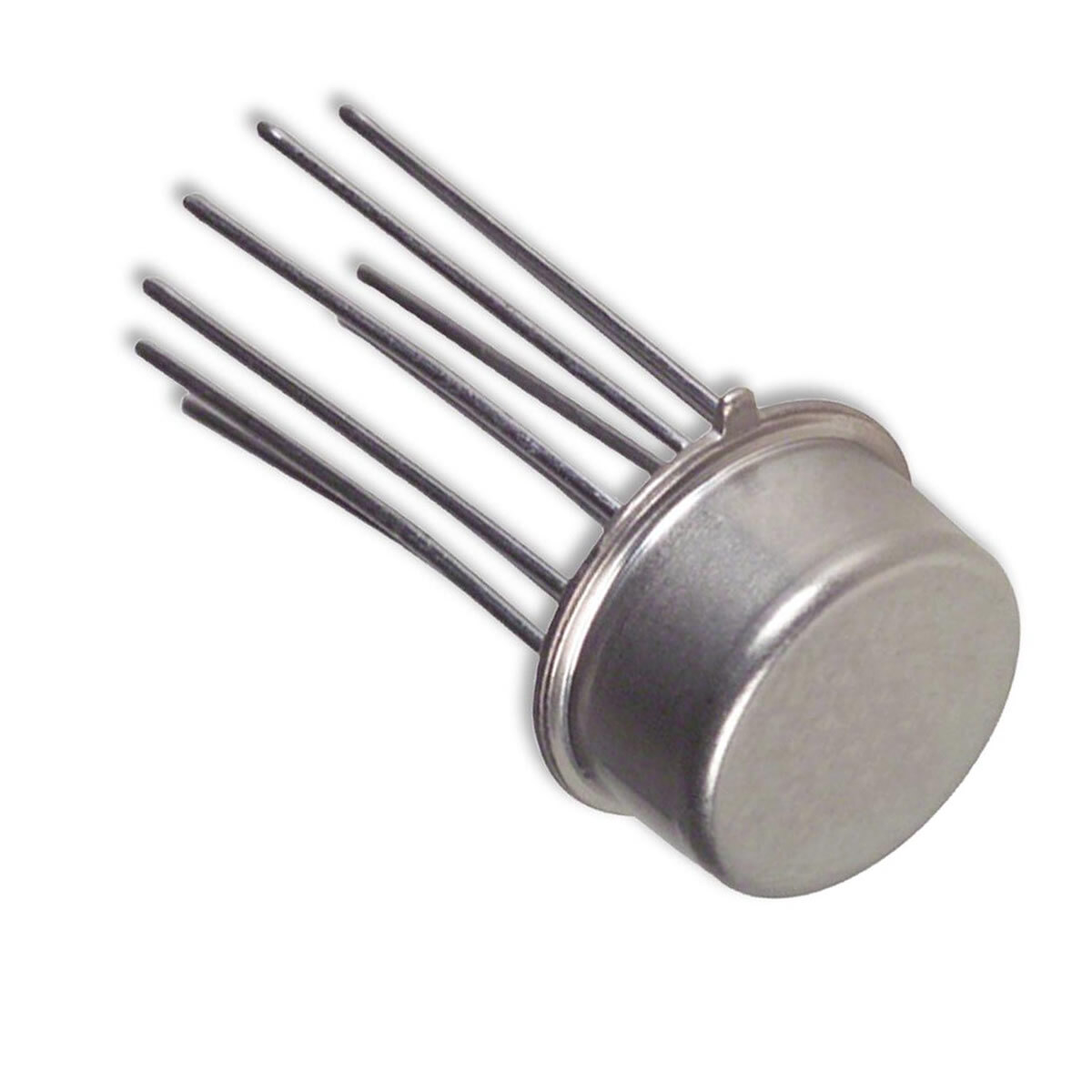

DS3614H Integrated Circuit CASE: TO99 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case TO99
Manufacturer National Semiconductor - NSC
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 300m
PD Max. (W) 395m
tPD Max. (S) 220n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NOR
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 80
@Iol (A) 300m
Pinout Equivalence Number 8-37
No. of Pins 8
Surface Mounted Yes/No NO
SKU 927476
