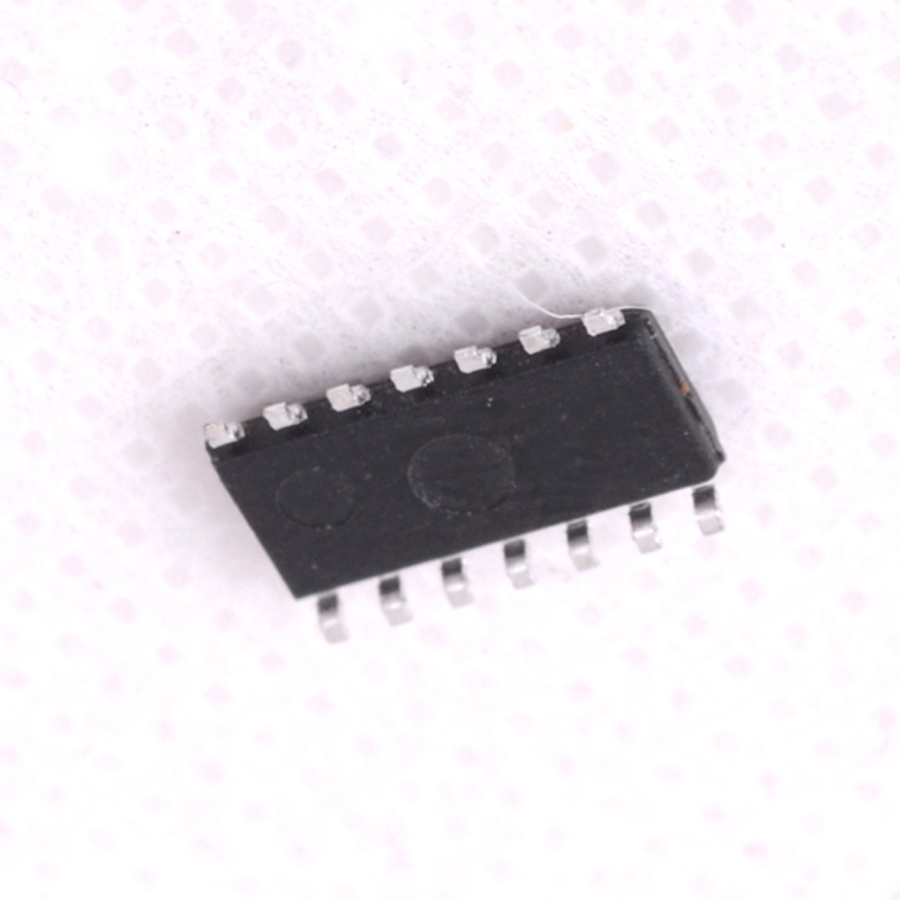

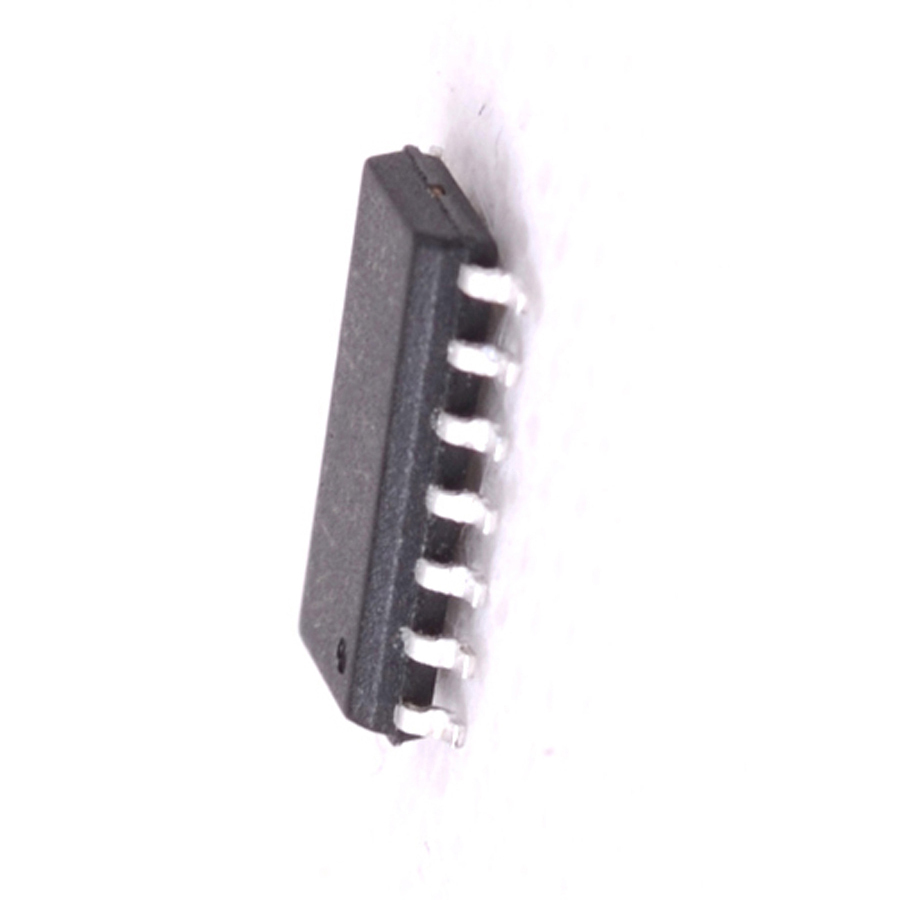

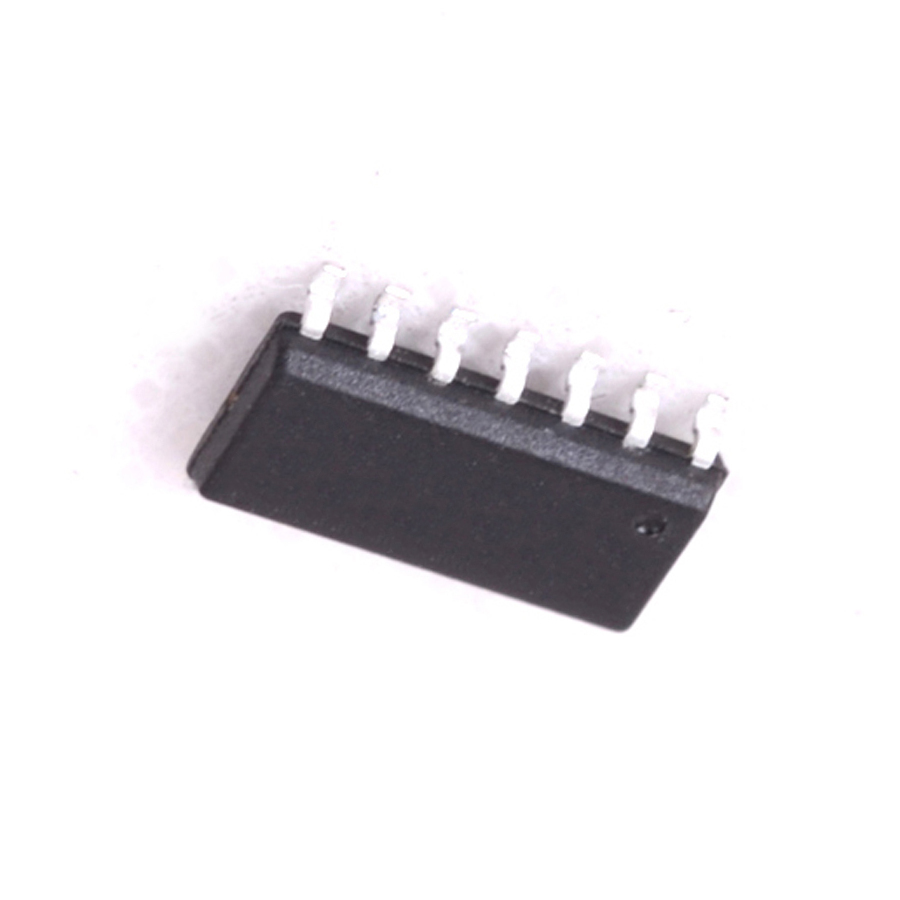

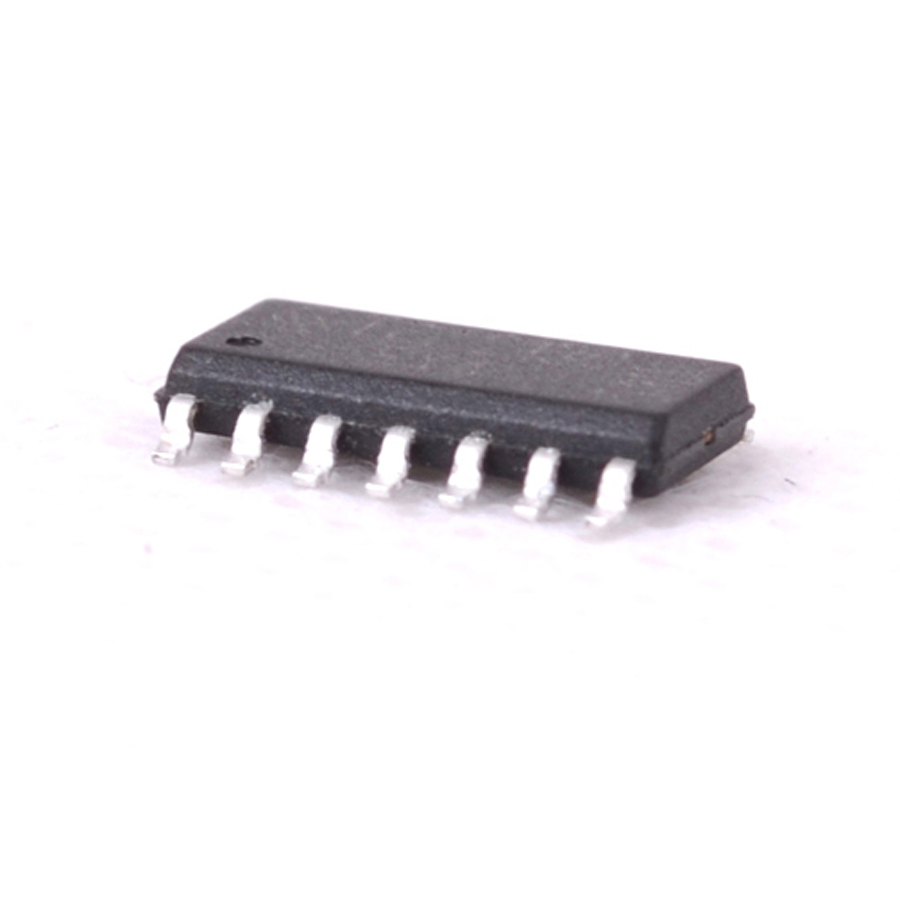

DS3680M Integrated Circuit CASE: SO14 MAKE: National Semiconductor - NSC
Datasheet
DS3680M Datasheet
Product specifications
Type Integrated Circuit
Case SO14
Manufacturer National Semiconductor - NSC
Vih Min (V) 1.3
Vil Max. (V) 0.8
Inp Logic Family Mospec Semiconductor
Output Config Open-Emit.
VOL Max. 2.1
Outp Transis. Ion Max. 50m
PD Max. (W) 1.4
tPD Max. (S) 10u
Tech. TTL Integrated Circuit
Logic Funct. Inv/Noninv
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
@Iol (A) 50m
Pinout Equivalence Number 14-212
Surface Mounted Yes/No YES
SKU 169394
