DS3680N

DS3680N

SKU: DS3680N

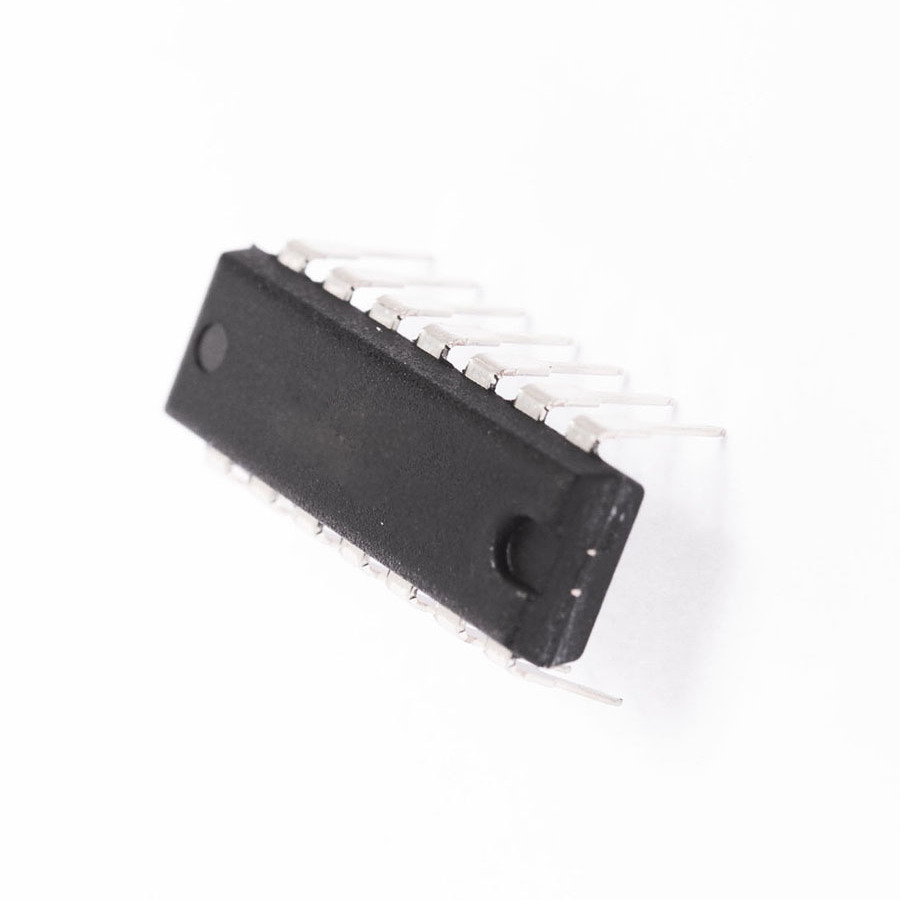

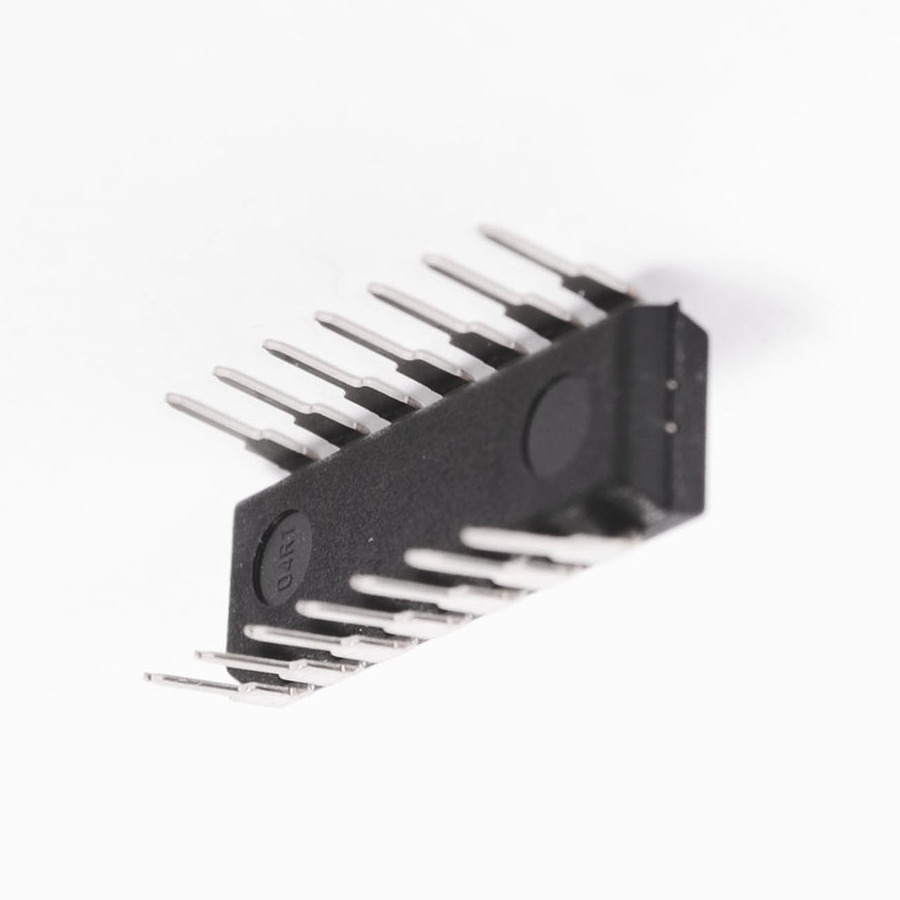

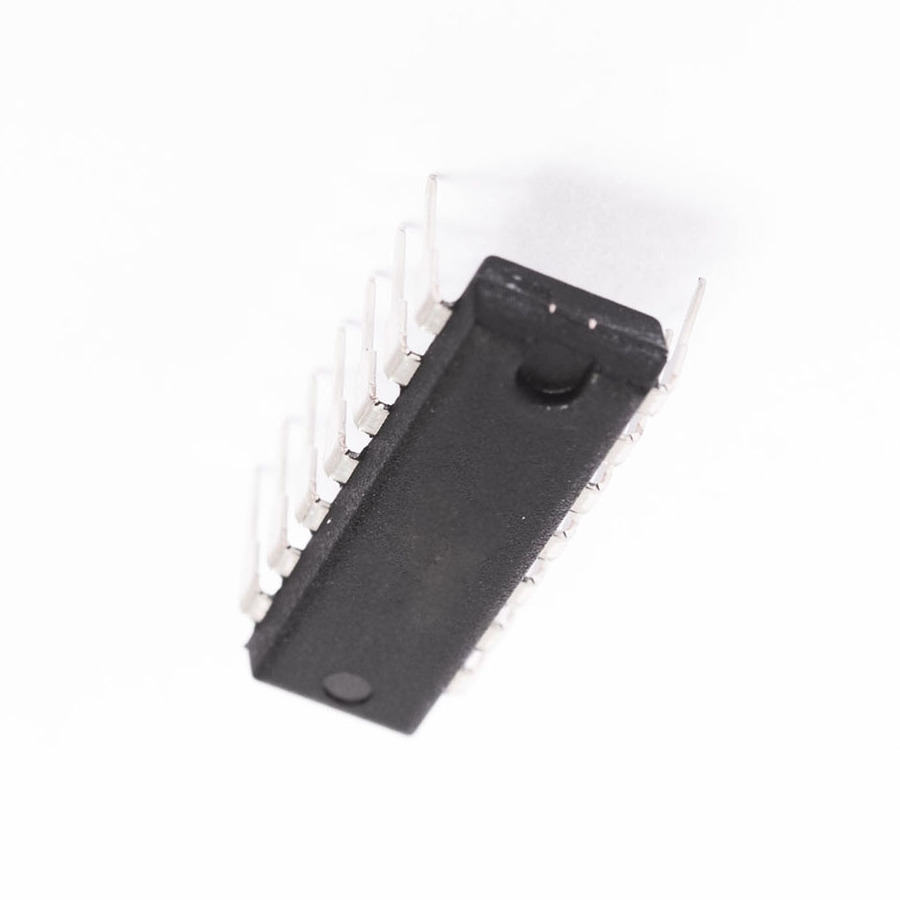

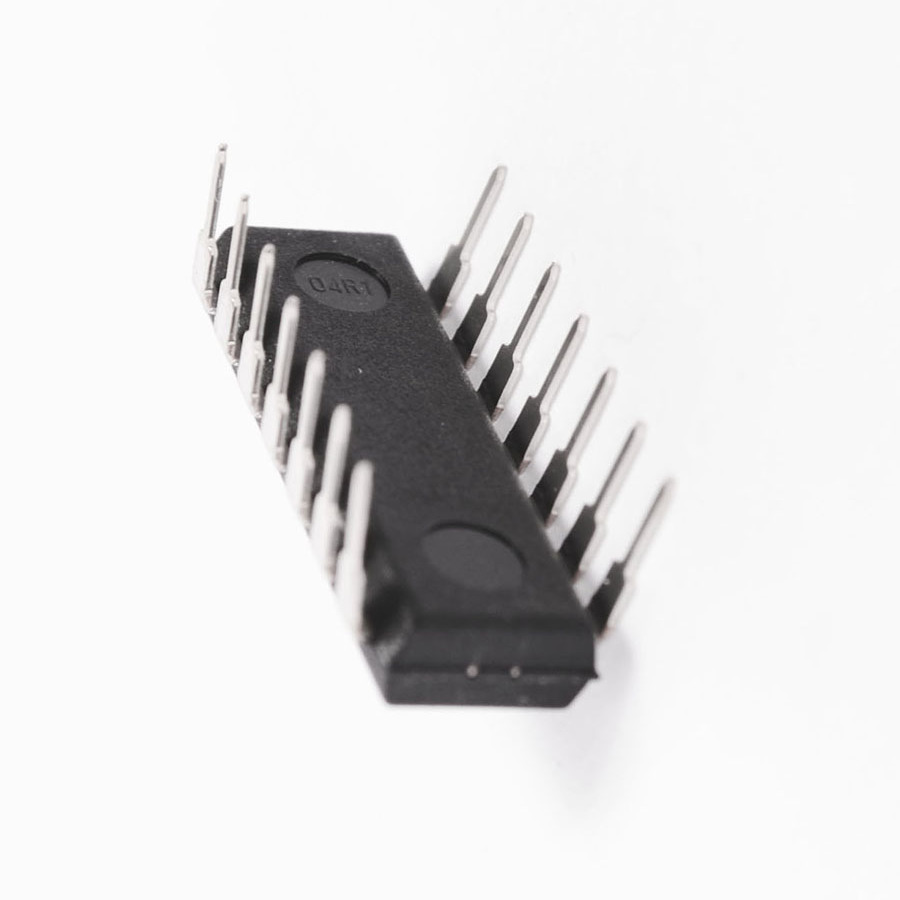

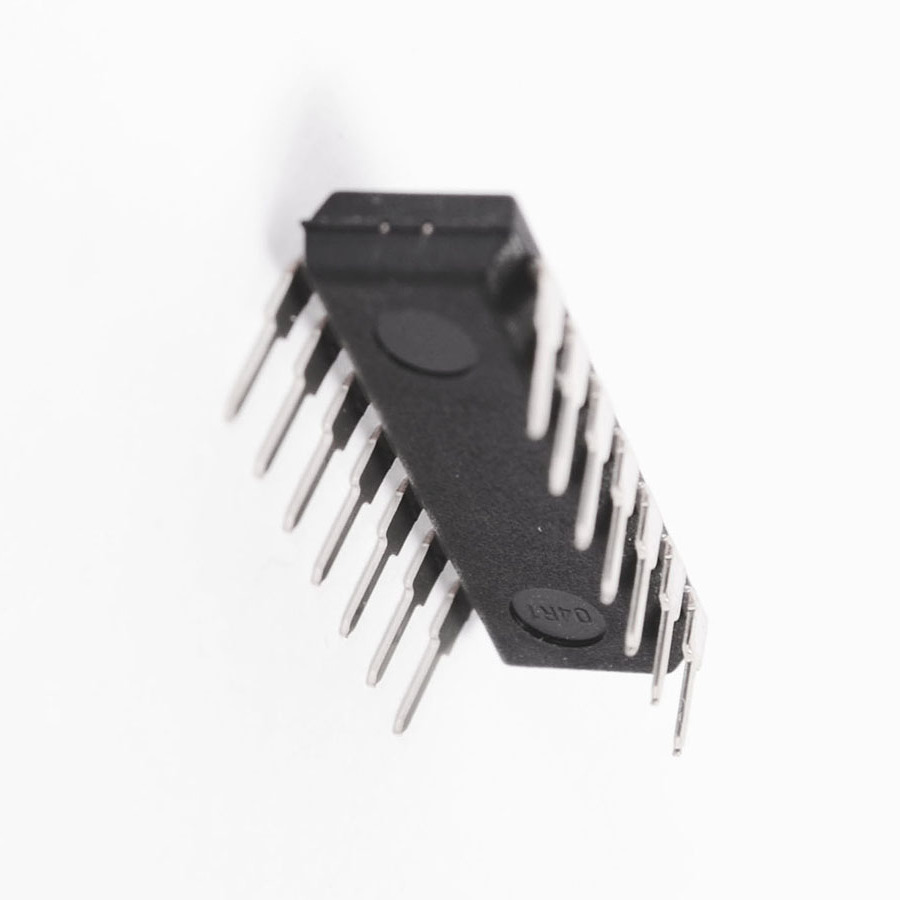

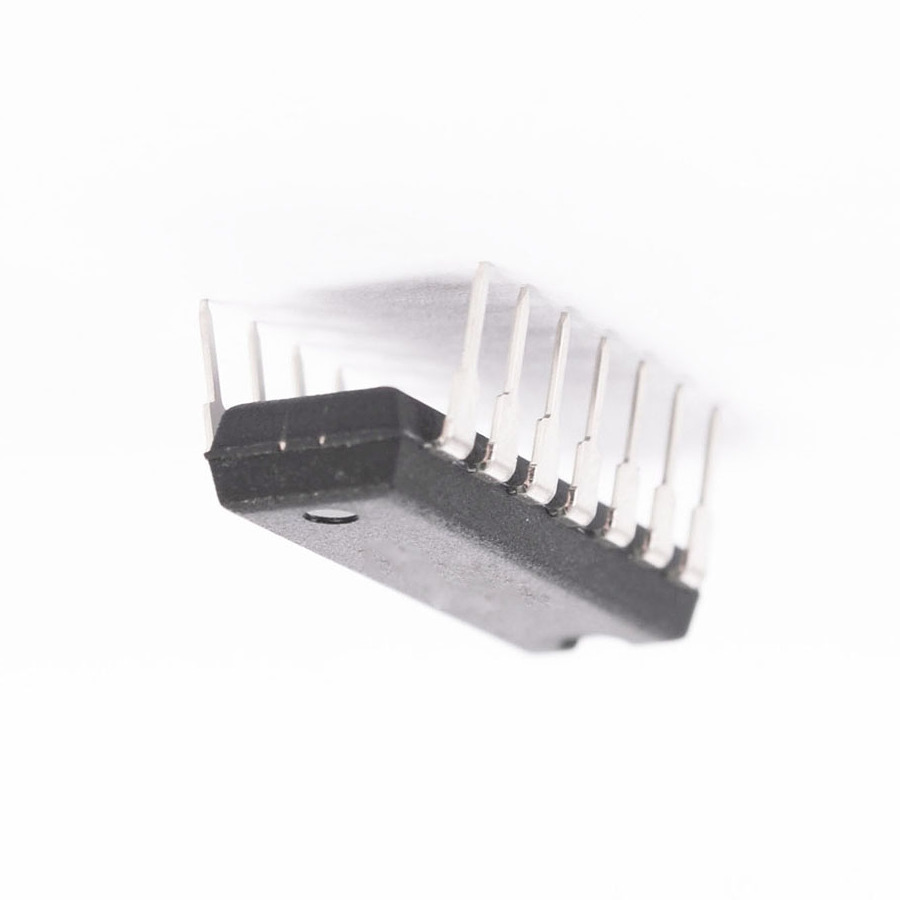

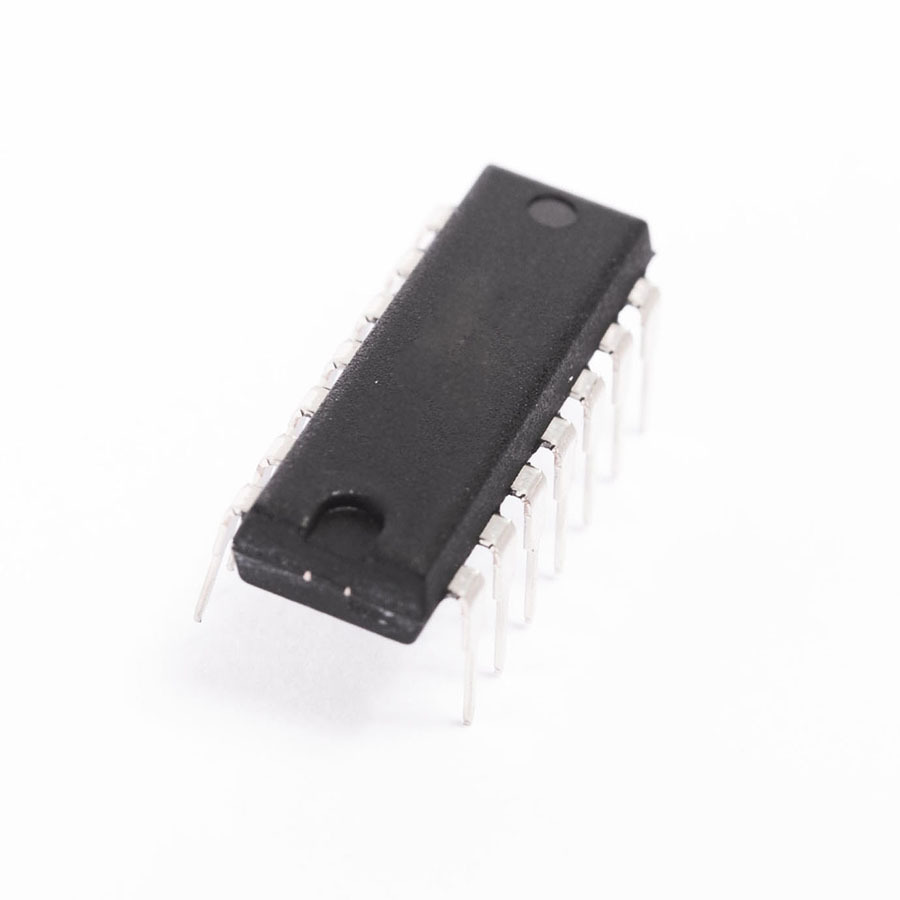

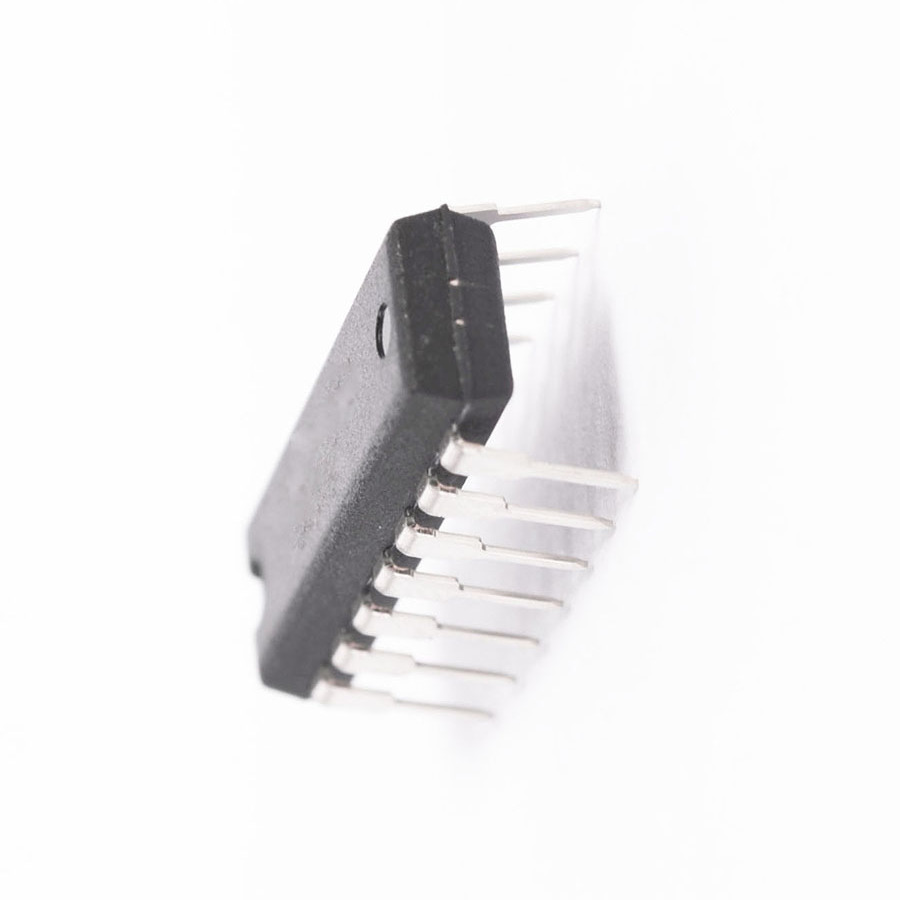

DS3680N Integrated Circuit CASE: DIP14 MAKE: Generic
Product specifications
Type Integrated Circuit
Case DIP14
Manufacturer Texas Instruments
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family Mospec Semiconductor
Output Config Open-Emit.
VOL Max. 2.1
Outp Transis. Ion Max. 50m
PD Max. (W) 1.3
tPD Max. (S) 10u
Tech. TTL Integrated Circuit
Logic Funct. Inv/Noninv
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
@Iol (A) 50m
Pinout Equivalence Number 14-212
Surface Mounted Yes/No NO
SKU 169395
