DS3686N

DS3686N

SKU: DS3686N

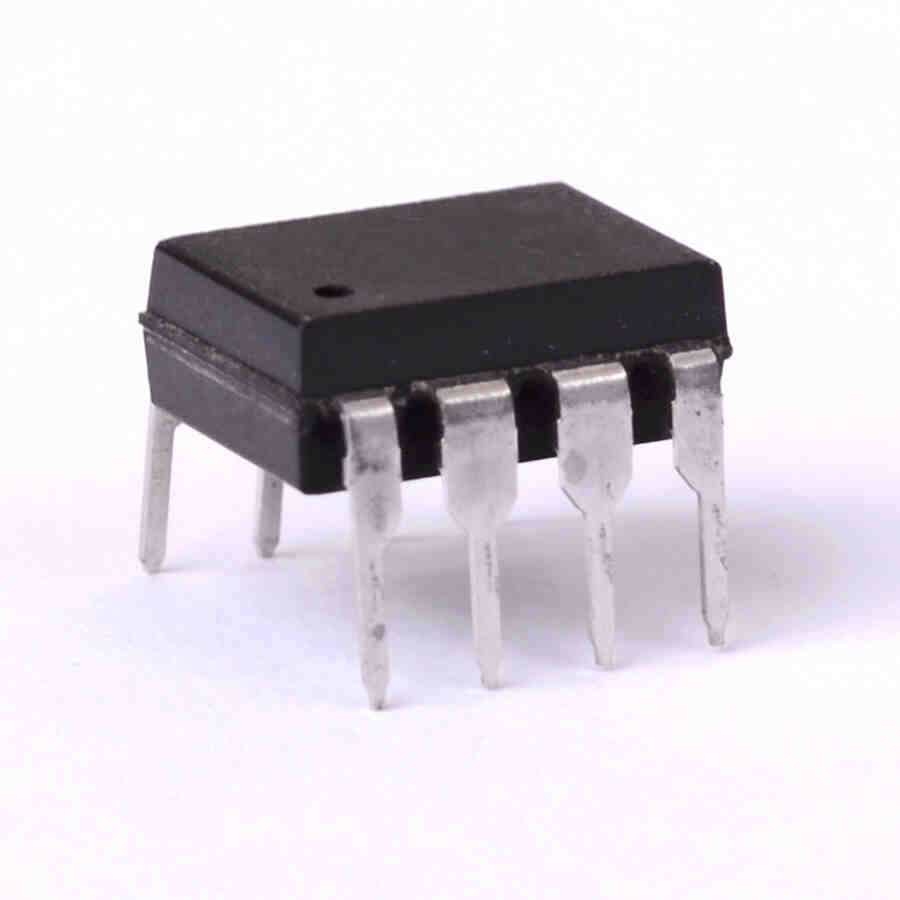

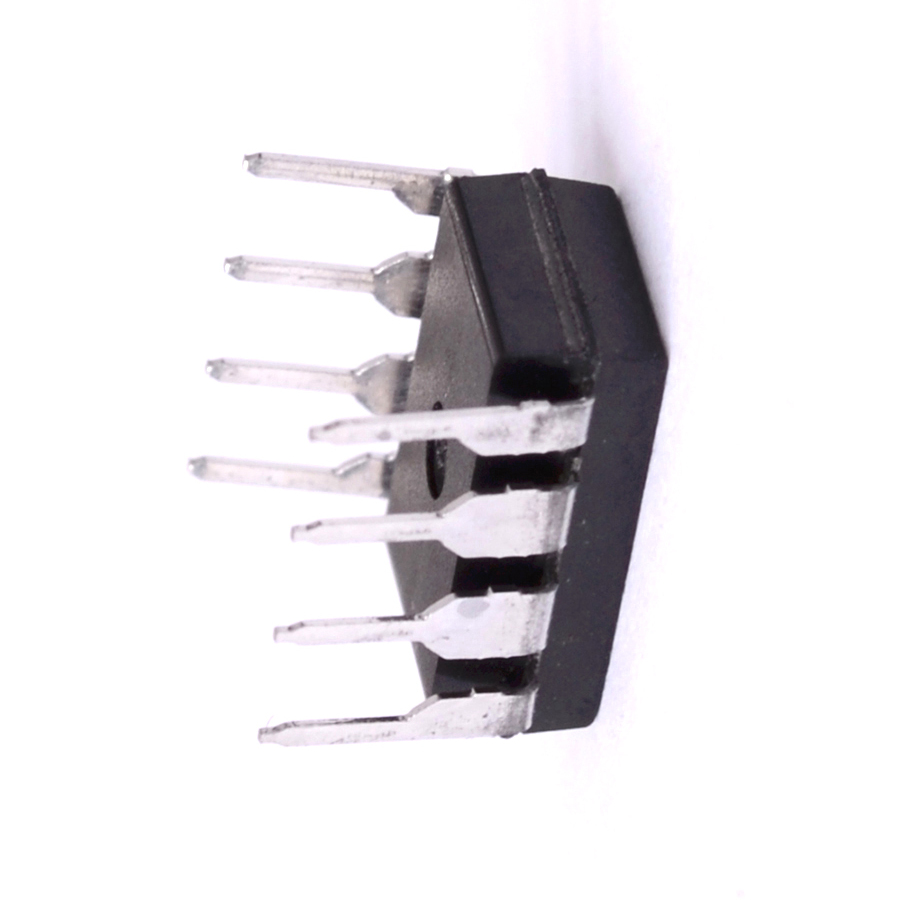

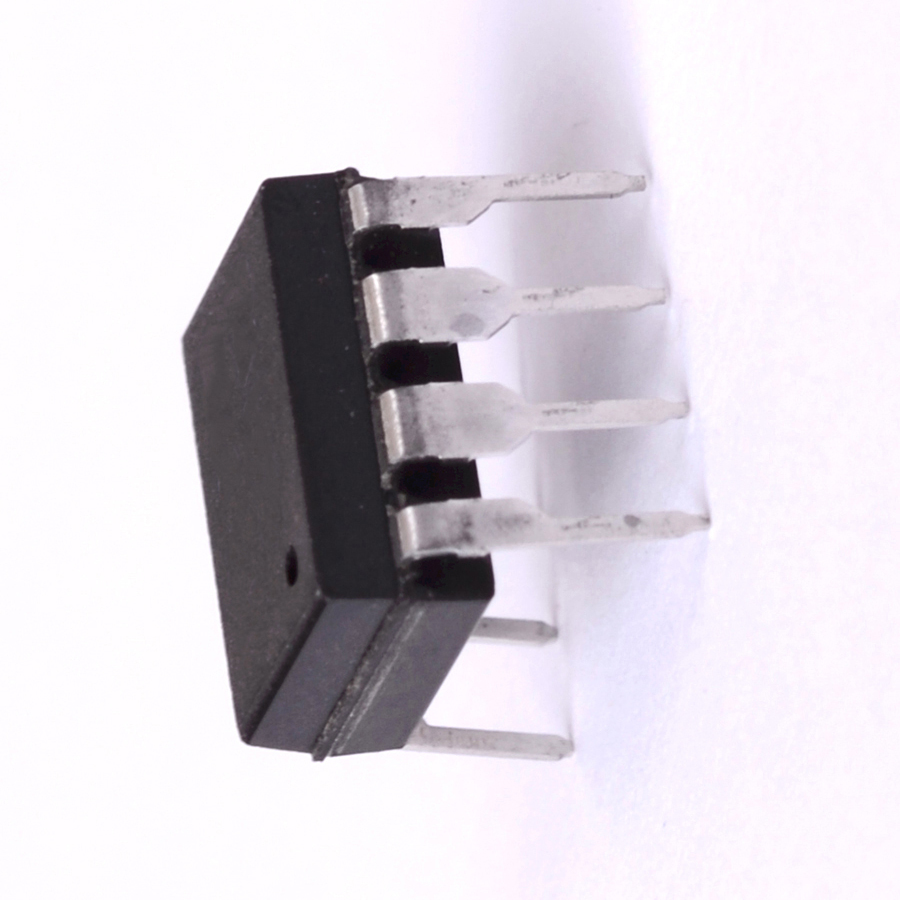

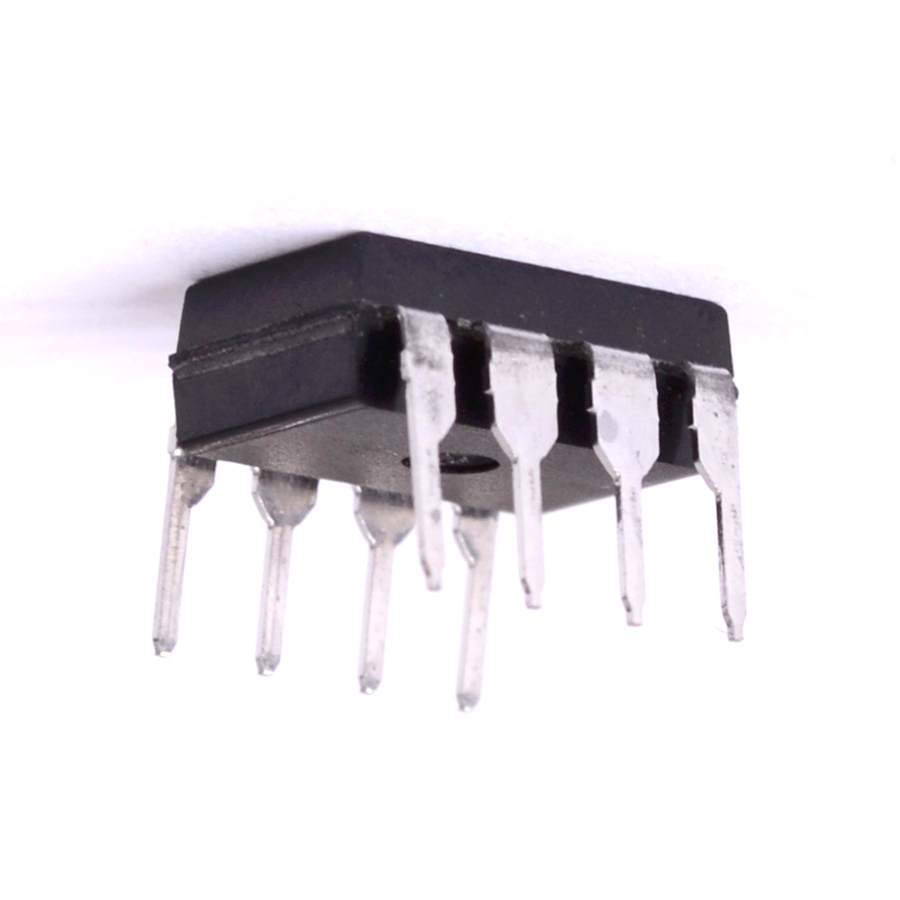

DS3686N Integrated Circuit CASE: DIP8 MAKE: National Semiconductor - NSC
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case DIP8
Manufacturer National Semiconductor - NSC
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family C/PMOS,D/T
Output Config Open-Coll.
VOL Max. 1.1
Outp Transis. Ion Max. 300m
PD Max. (W) 140m
tPD Max. (S) 1.0u
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 56
@Iol (A) 300m
Pinout Equivalence Number 8-39
No. of Pins 8
Surface Mounted Yes/No NO
SKU 169396
