DS3695J

DS3695J

SKU: DS3695J

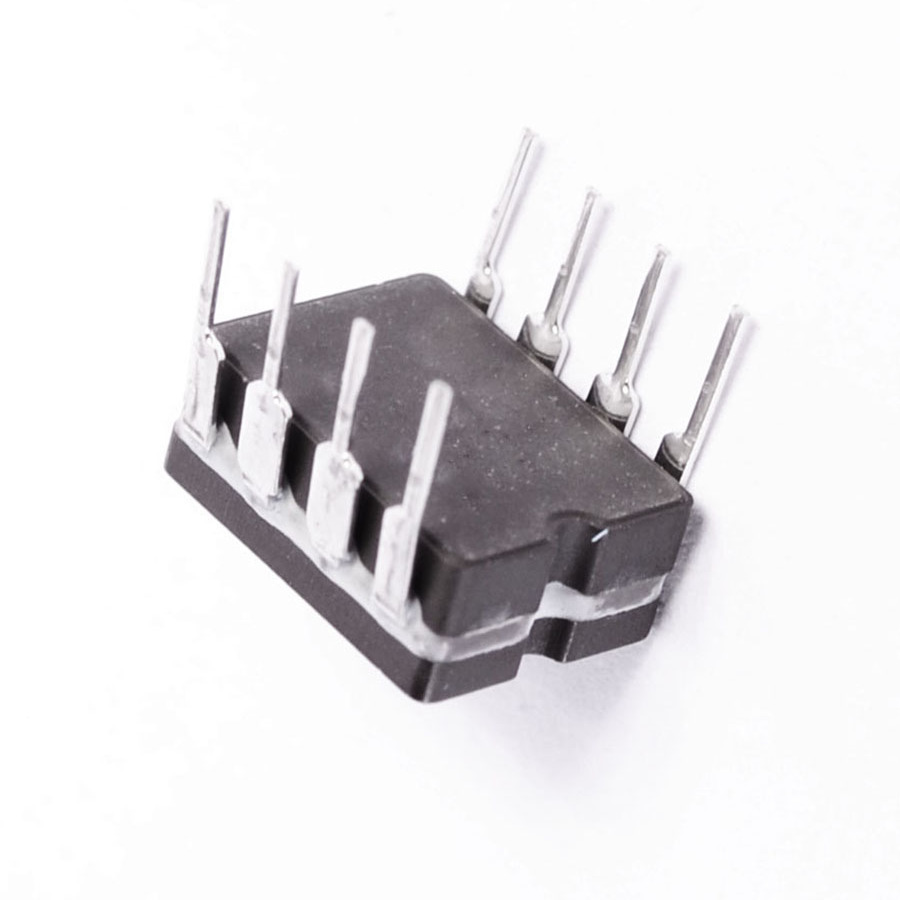

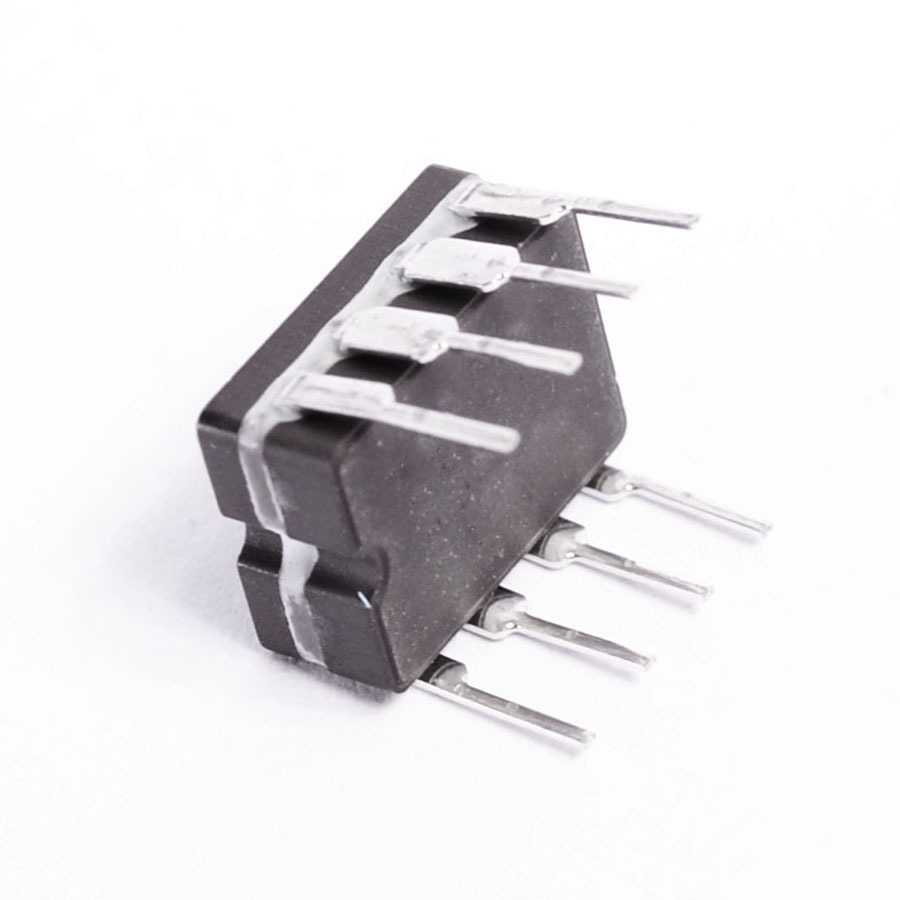

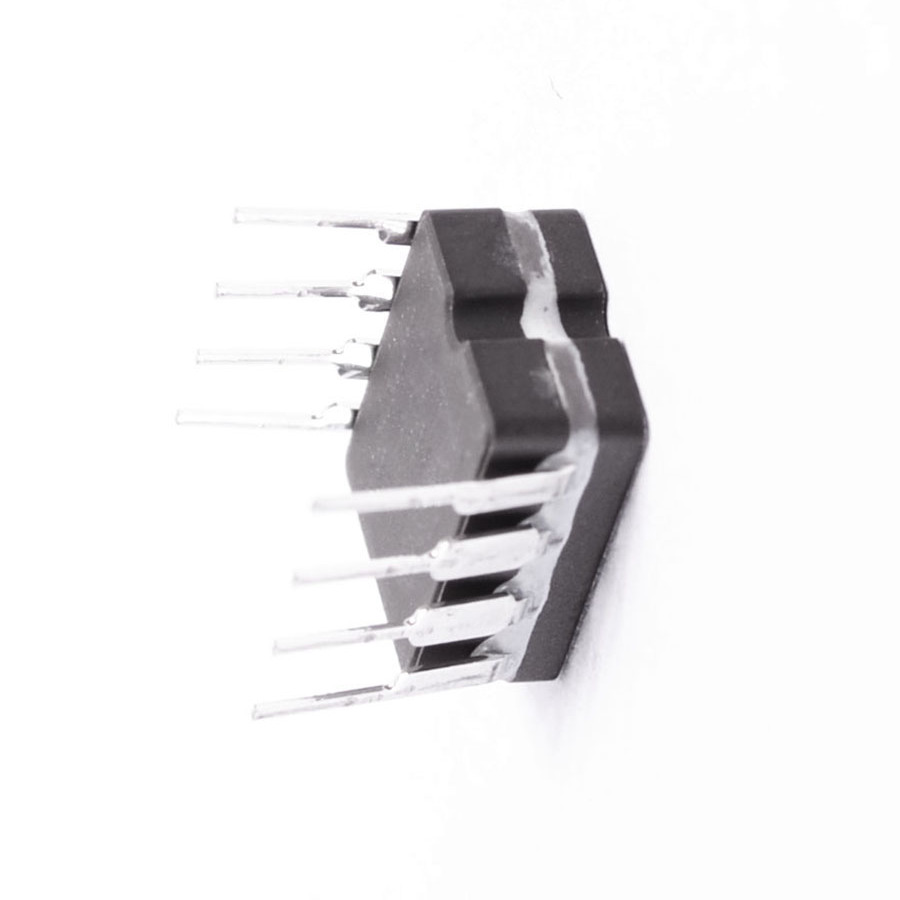

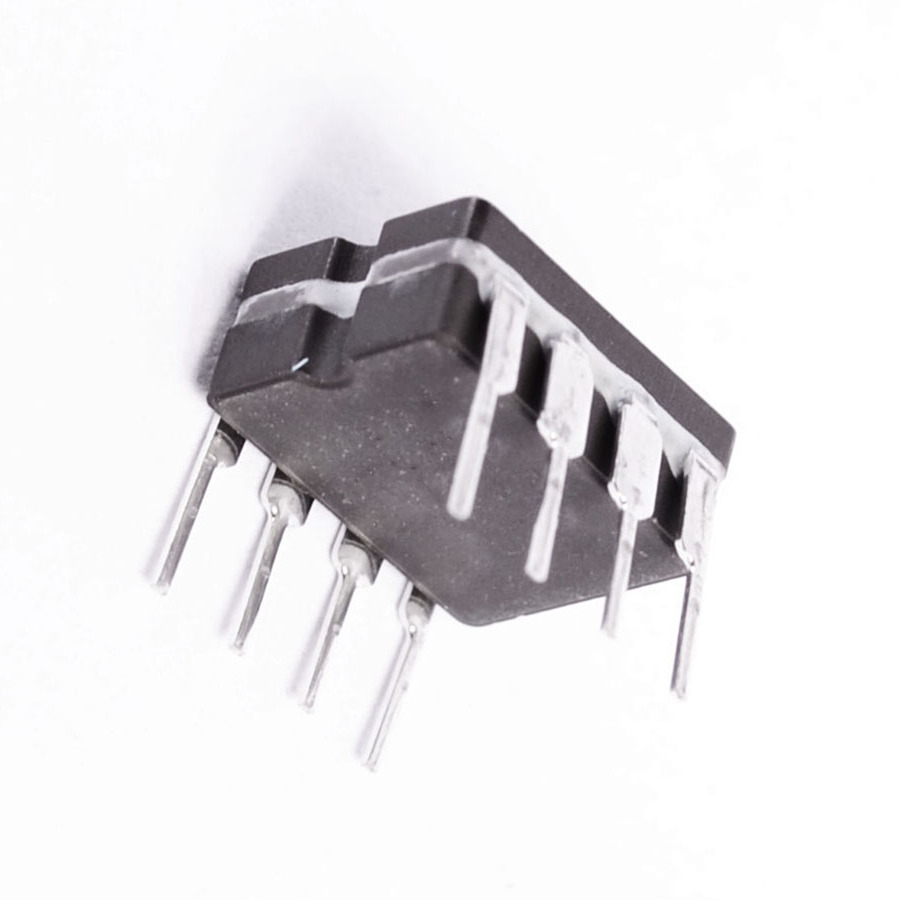

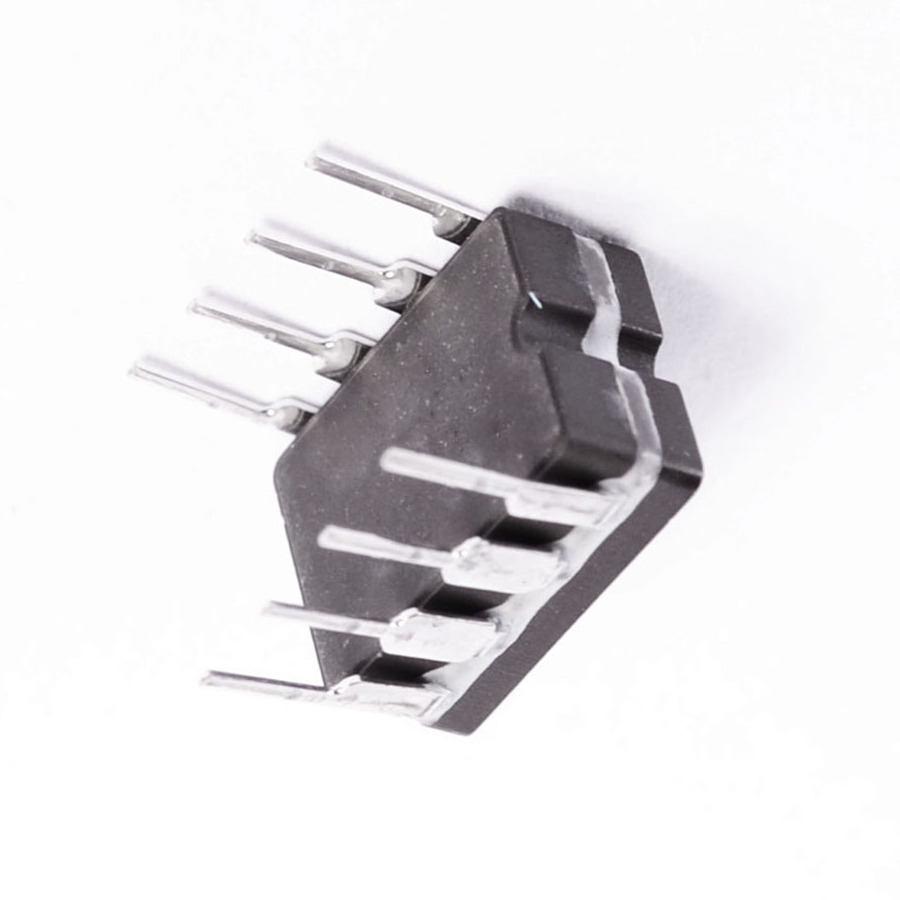

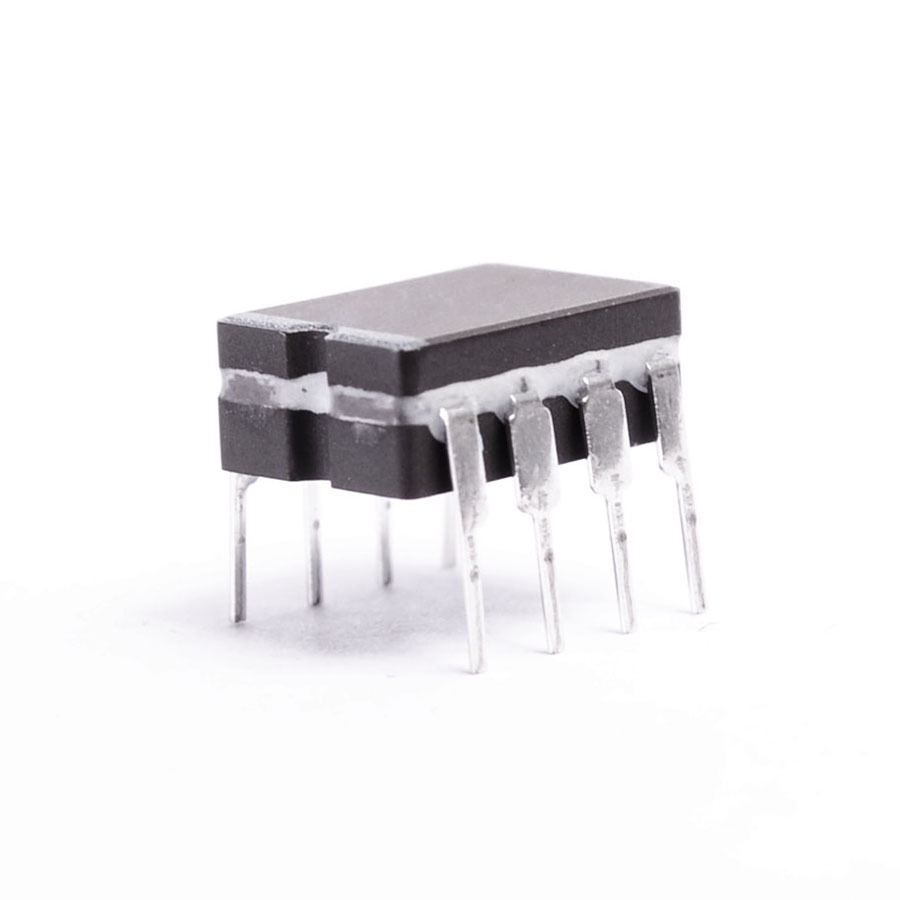

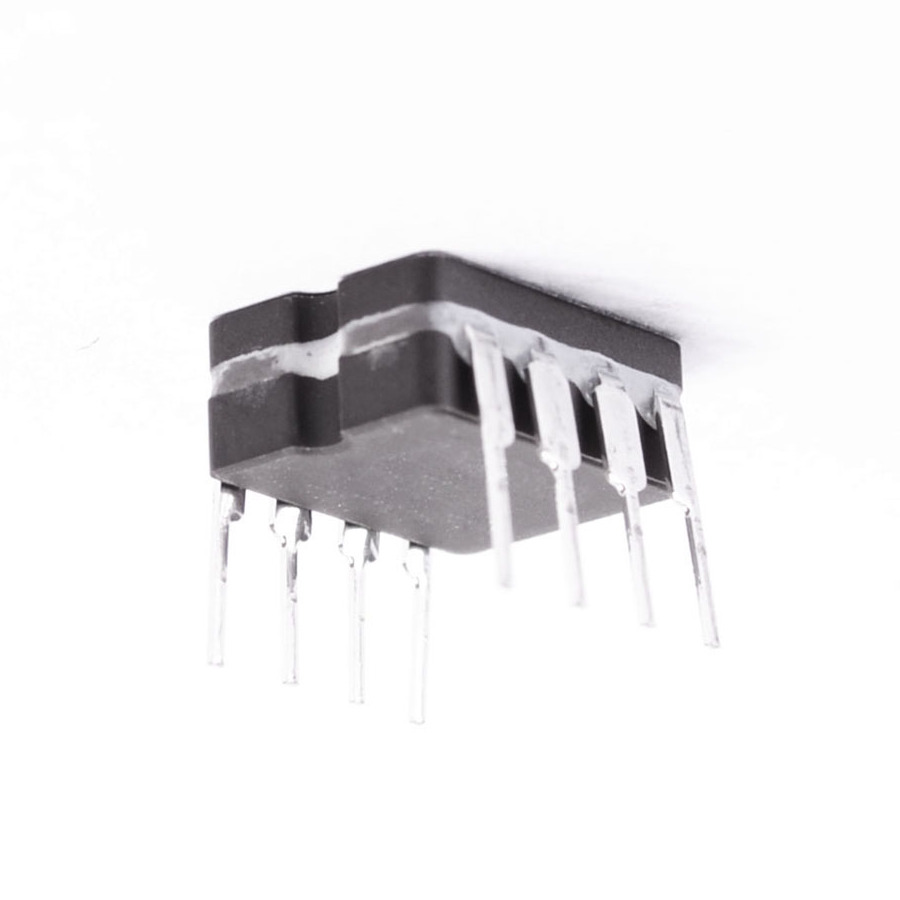

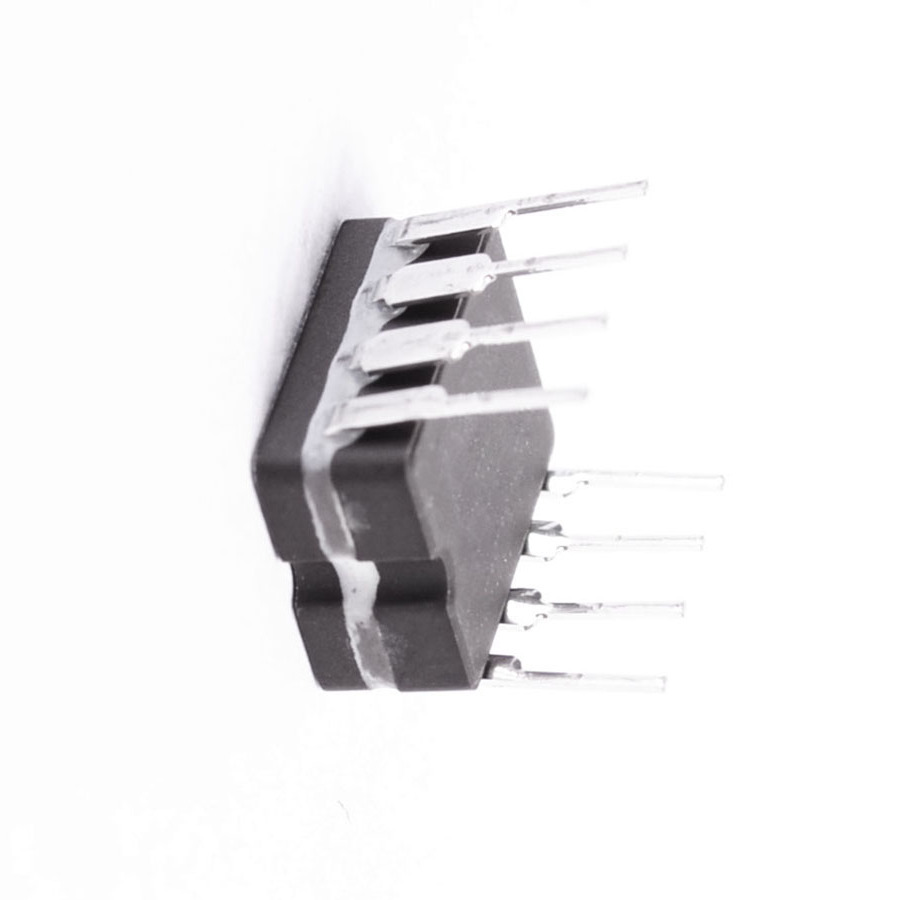

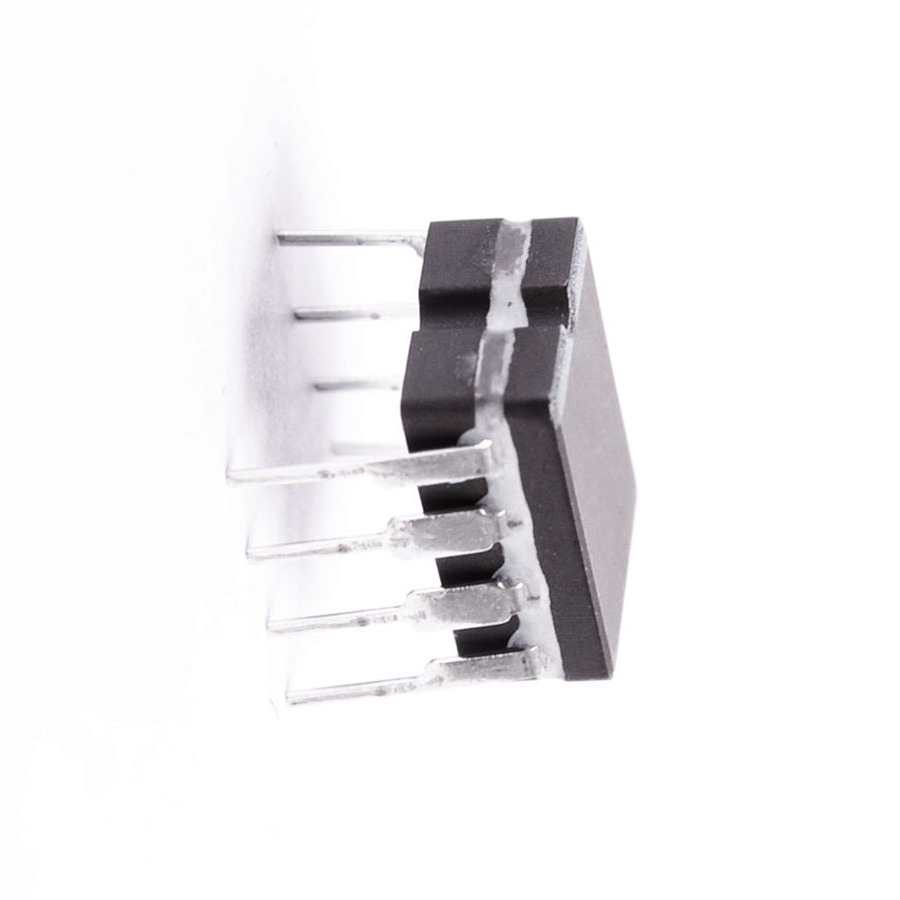

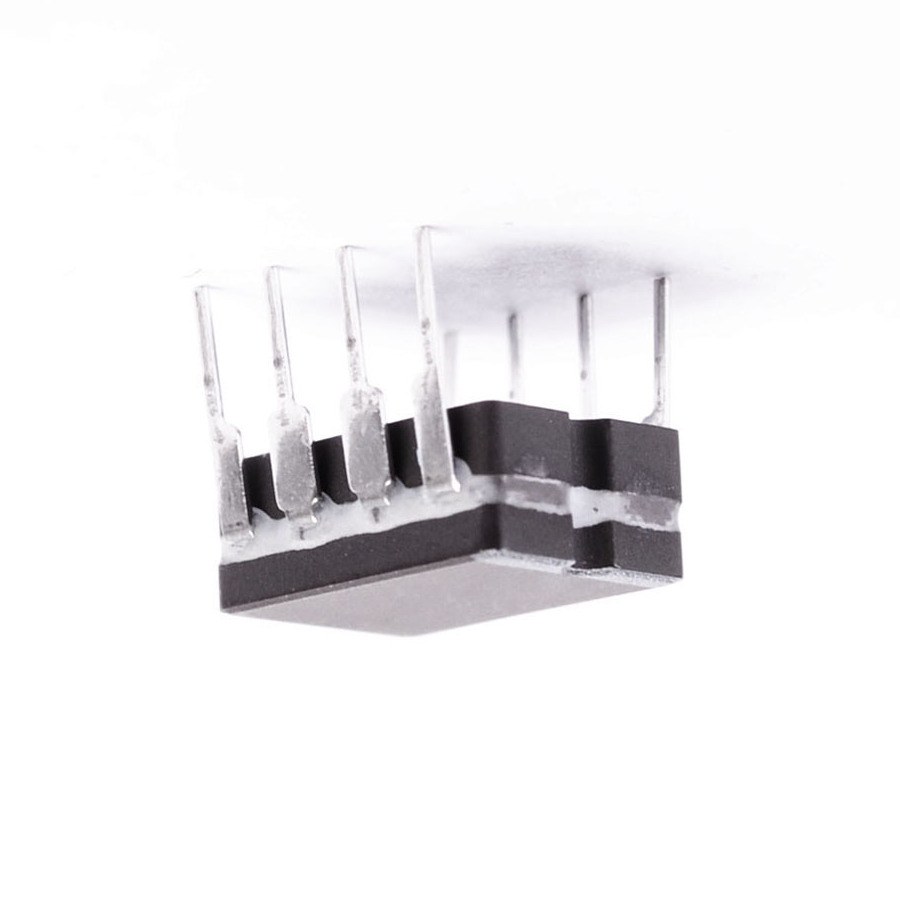

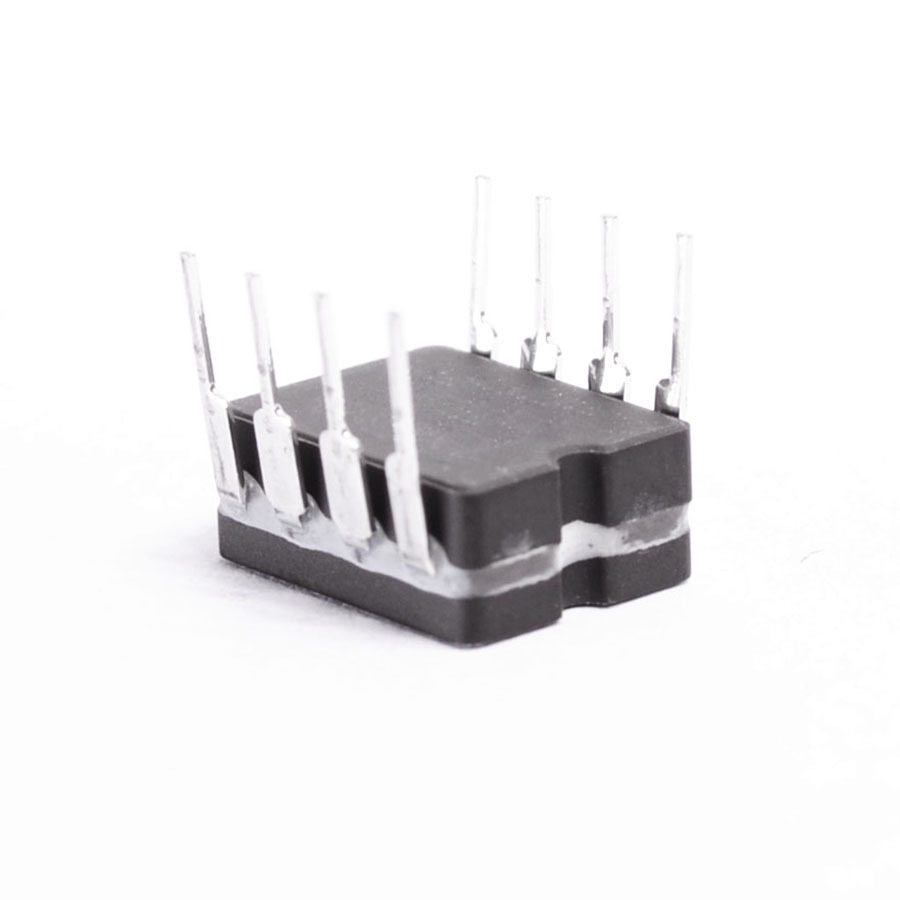

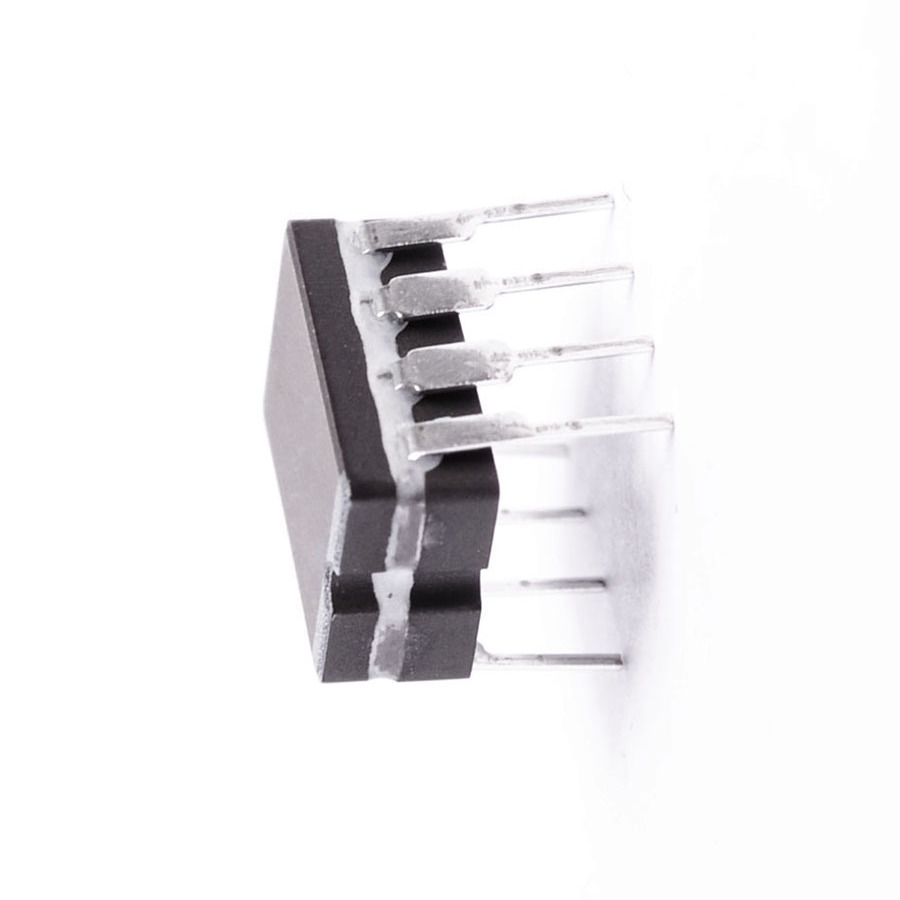

DS3695J Integrated Circuit CASE: DIC8 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer National Semiconductor - NSC
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Differenti
tPD Max. (S) 15n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 8.0m
VOL Max. (Drvr) 0.45
VOL Max. (Rcvr) 0.45
VOH Min (Rcvr) 2.4
Pinout Equivalence Number 8-46
No. of Pins 8
Surface Mounted Yes/No NO
SKU 970683
