Home / Semiconductors / DS3696AM

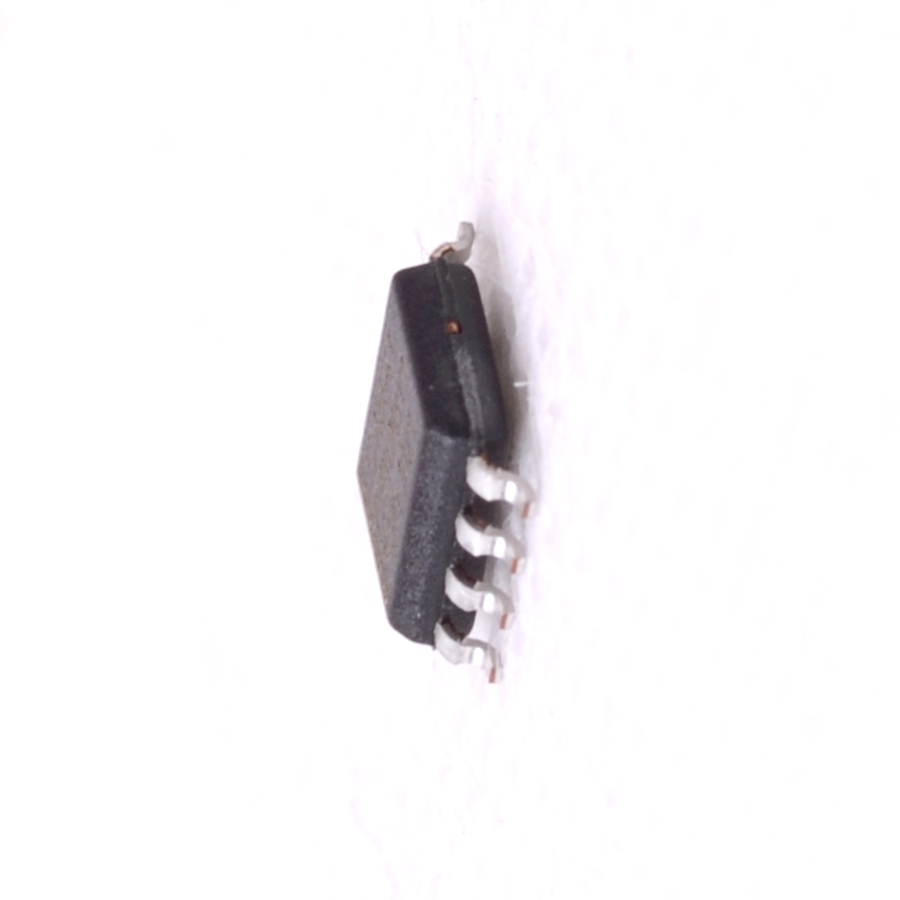

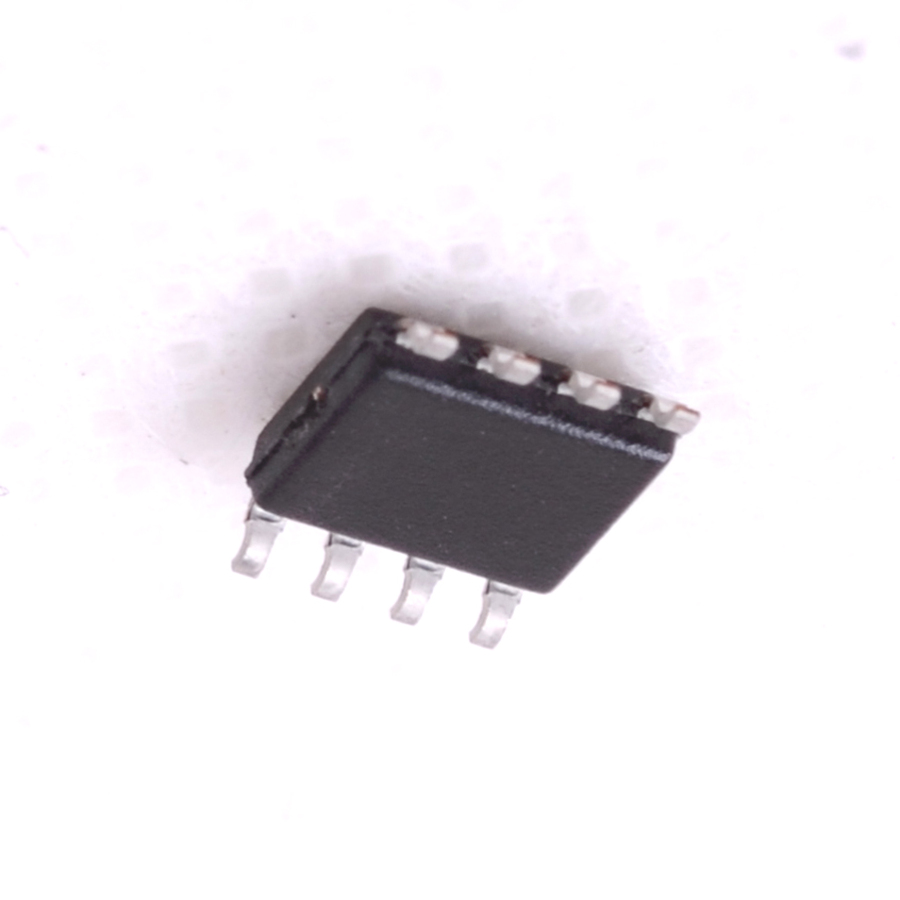

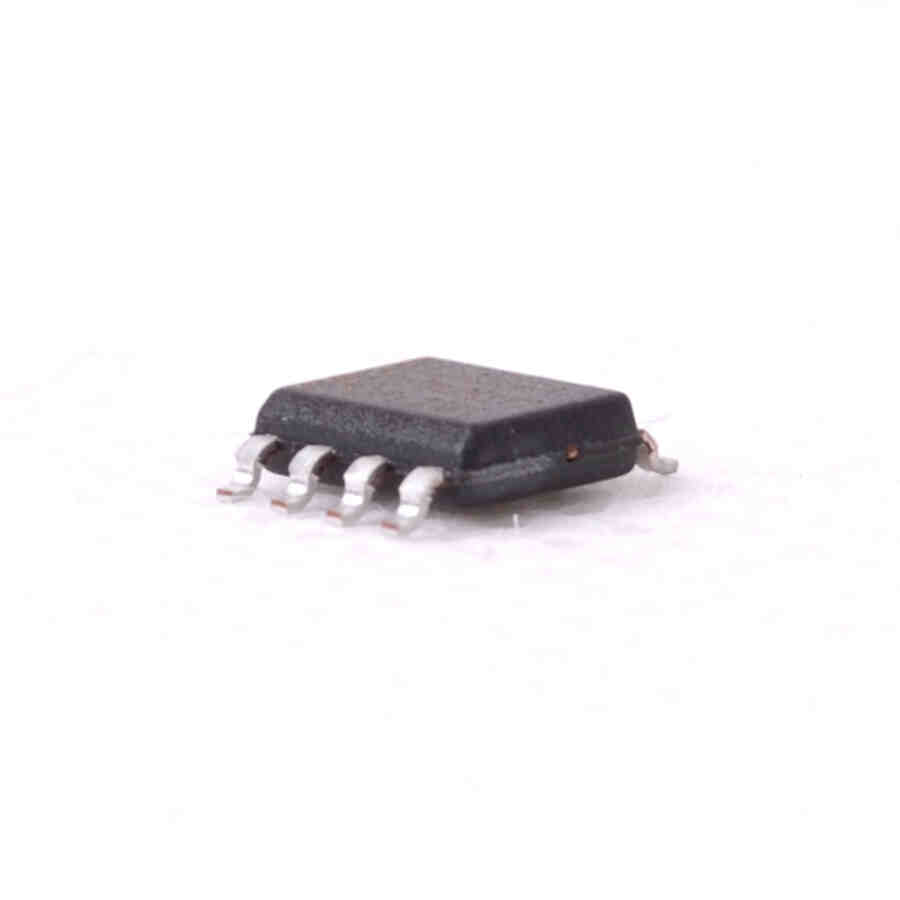

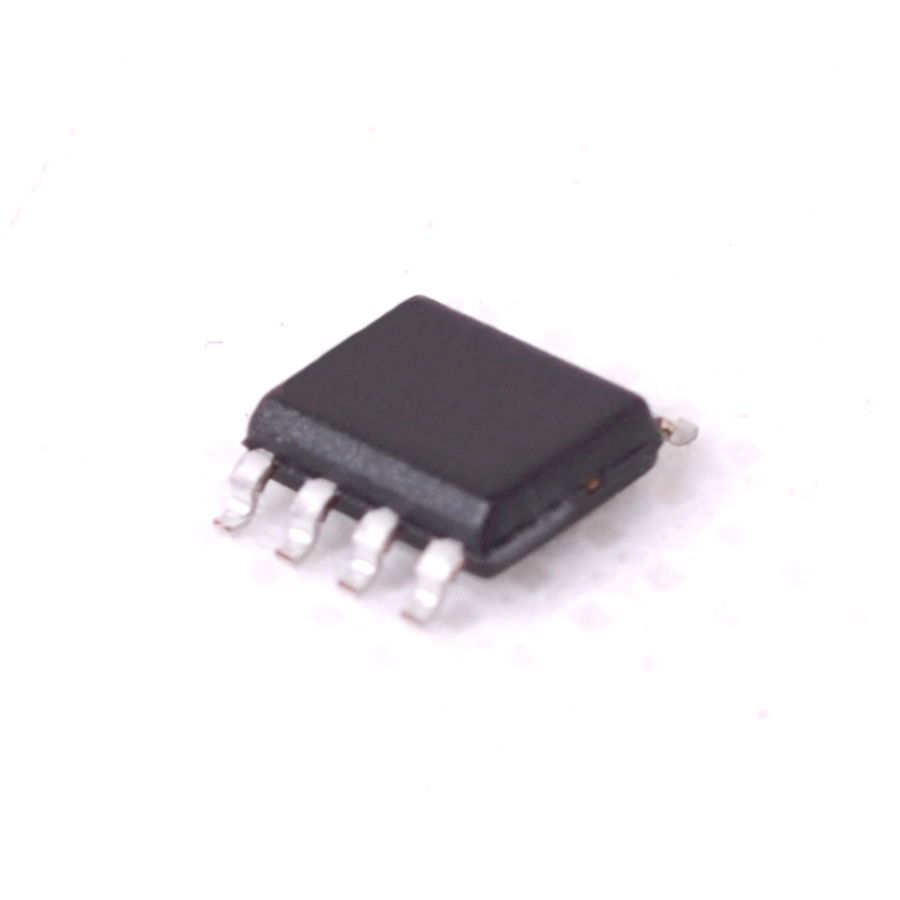

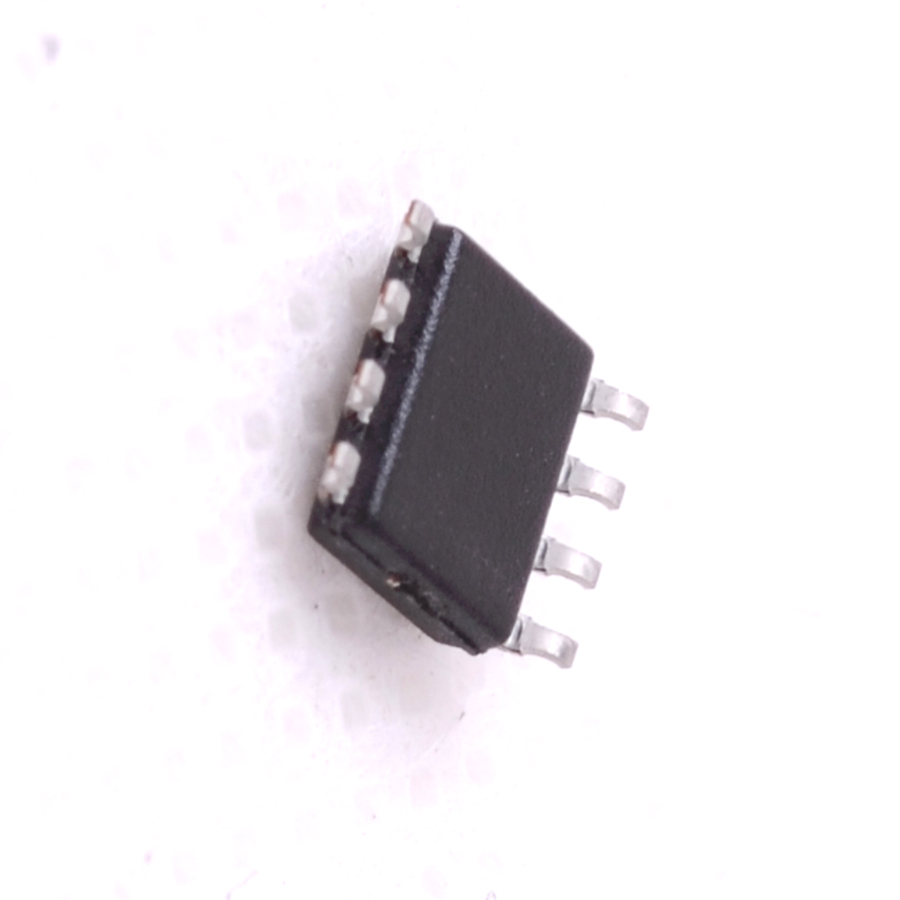

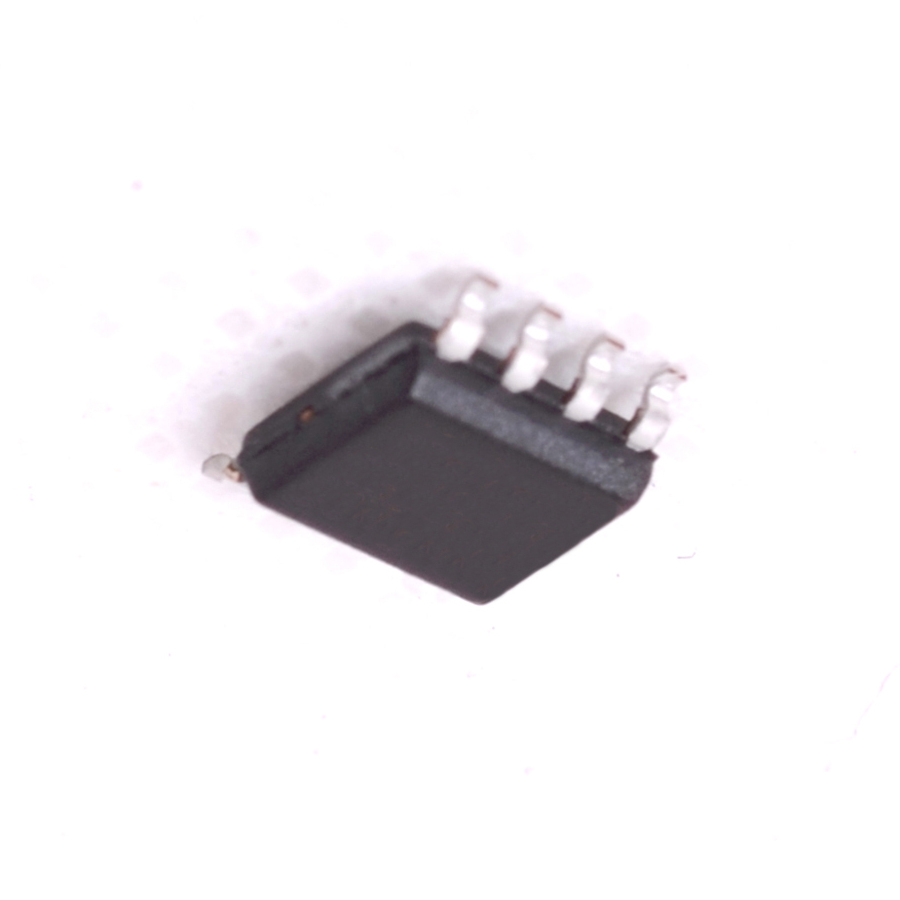

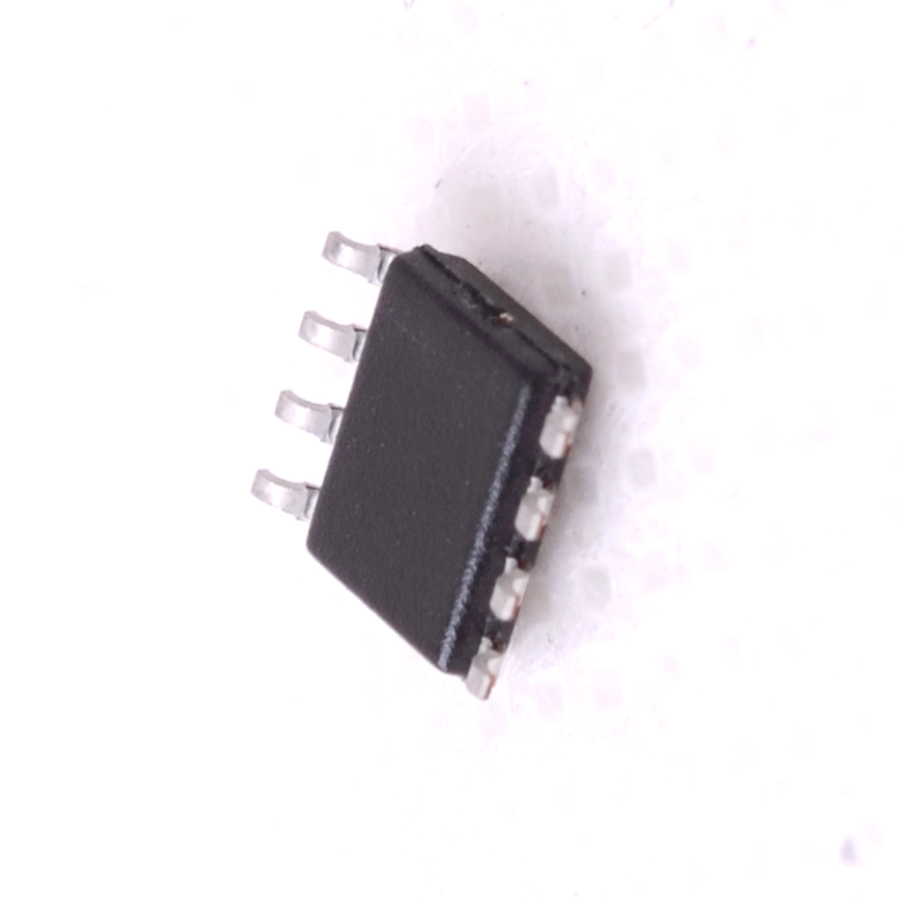

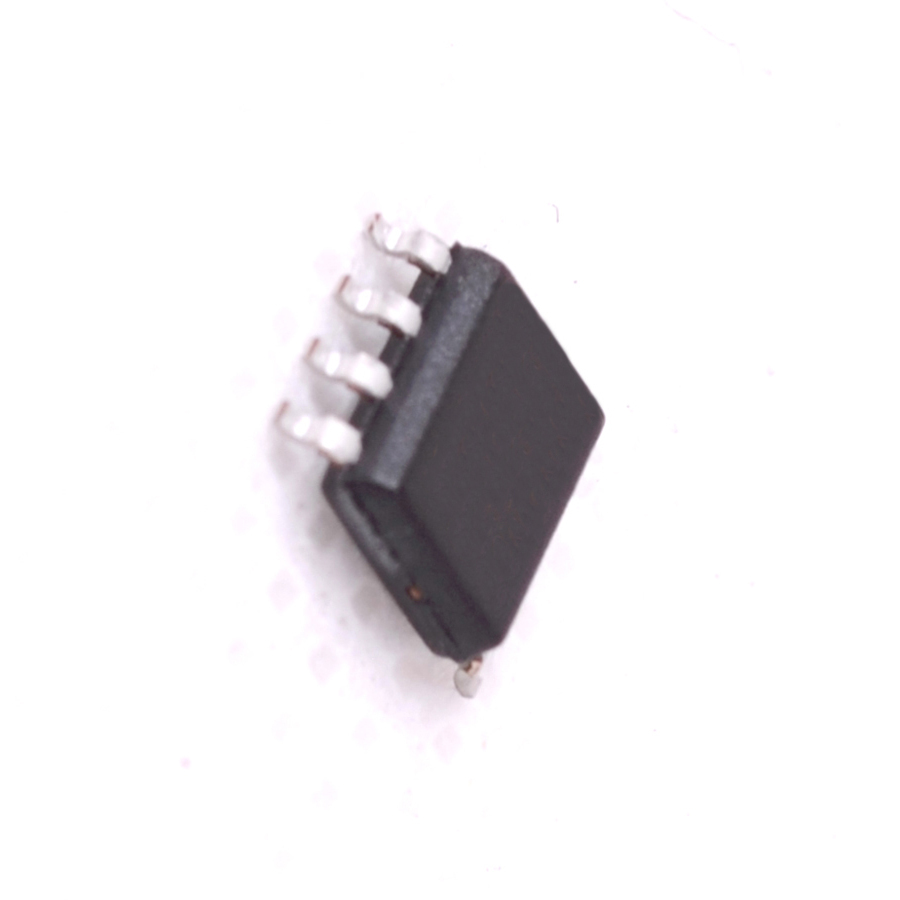

DS3696AM

DS3696AM

SKU: DS3696AM

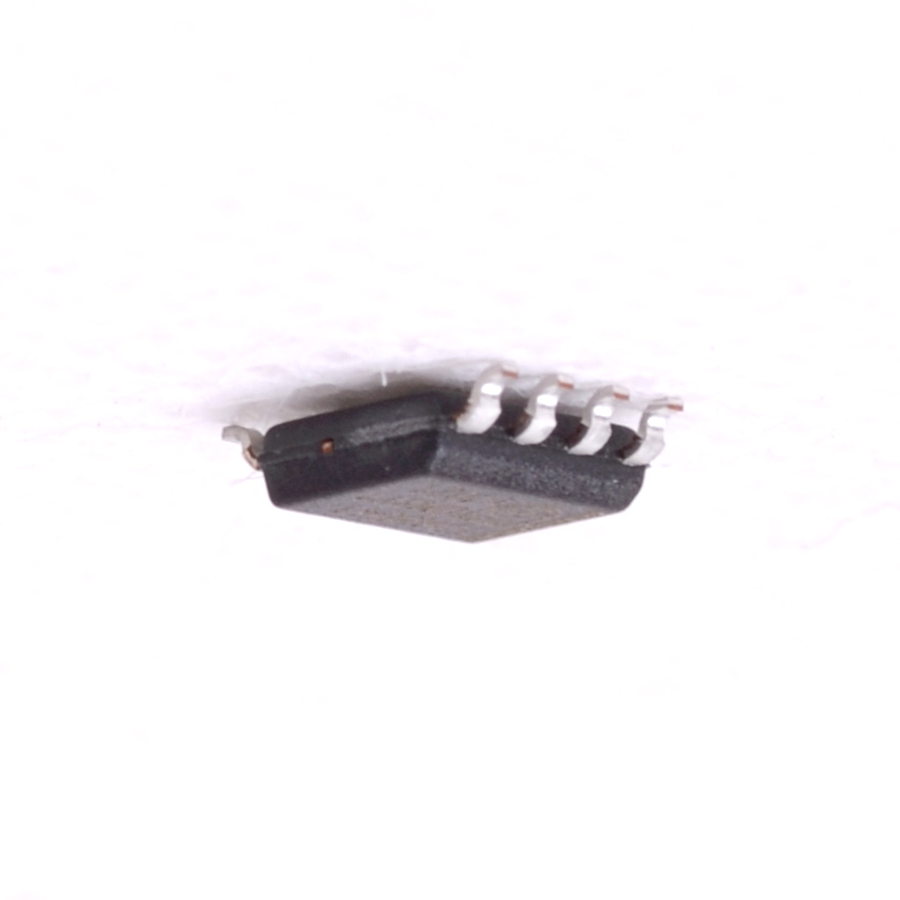

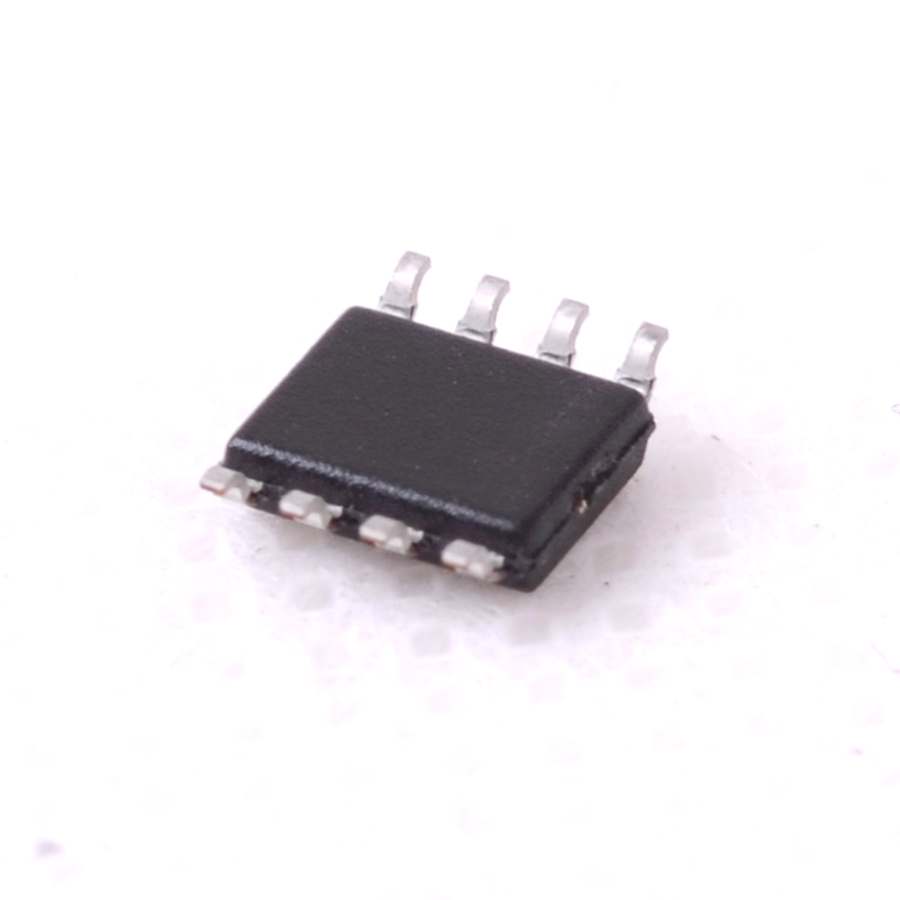

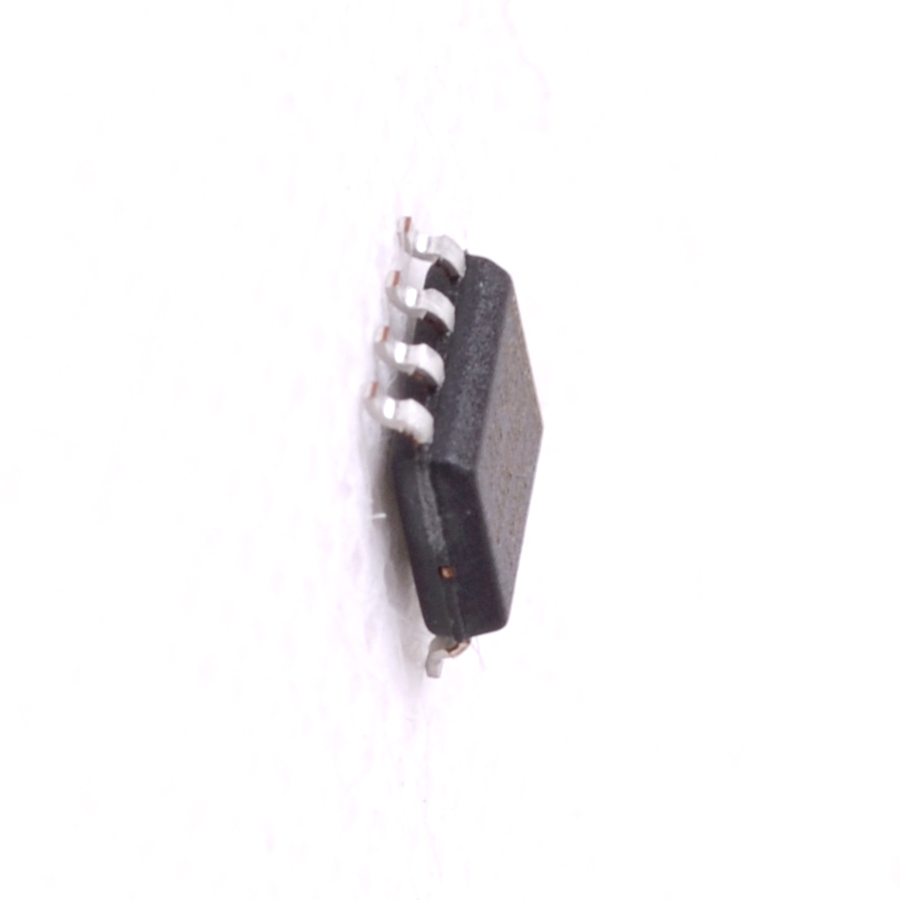

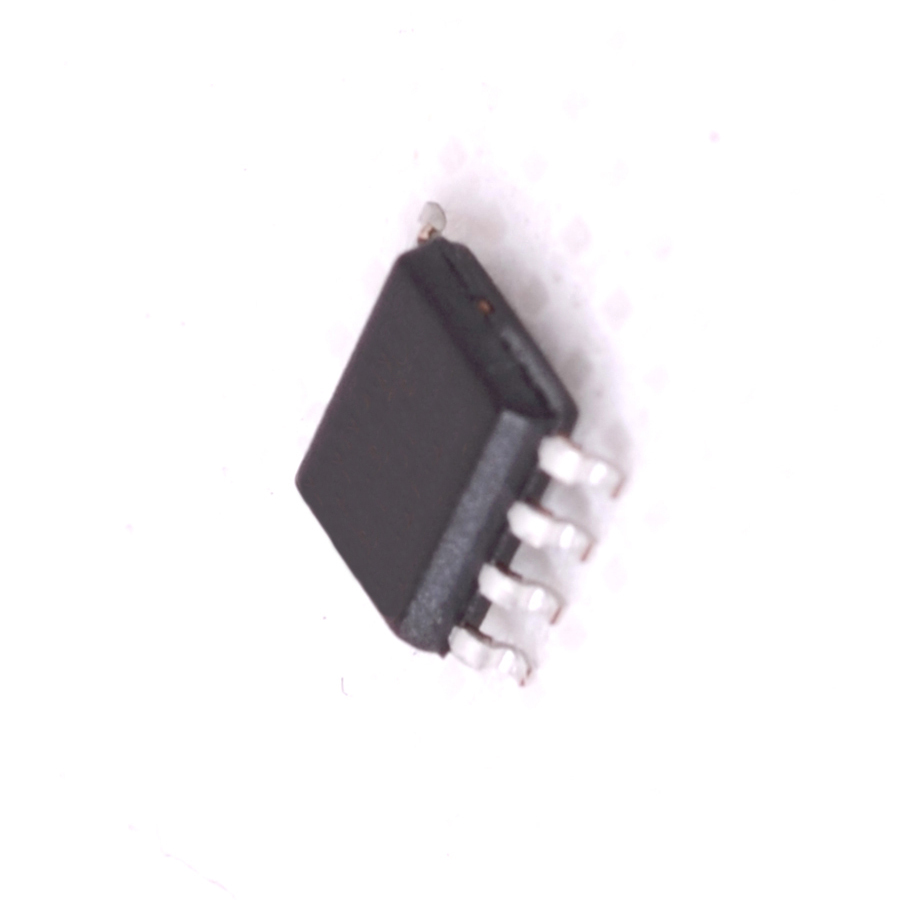

DS3696AM Semiconductor CASE: SOP8 MAKE: National Semiconductor - NSC
Datasheet
DS3696AM Datasheet
Product specifications
Type Semiconductor
Case SOP8
Manufacturer National Semiconductor - NSC
Mode I/O D or S Differenti
tPD Max. (S) 42n
Nom. Pos. Supp 5.0
Tech. Bipolar Semiconductor
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 16m
VOL Max. (Drvr) 0.5
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 2.4
Pinout Equivalence Number 8-365
No. of Pins 8
Surface Mounted Yes/No YES
SKU 970639
