DS75451M

DS75451M

SKU: DS75451M

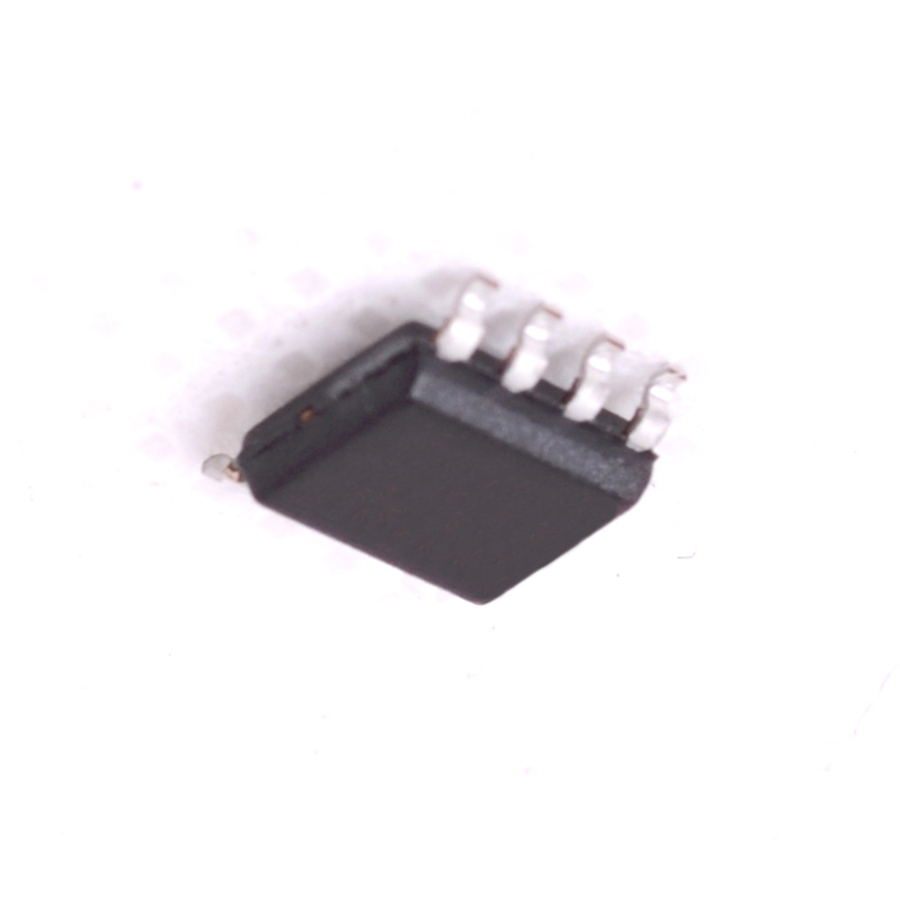

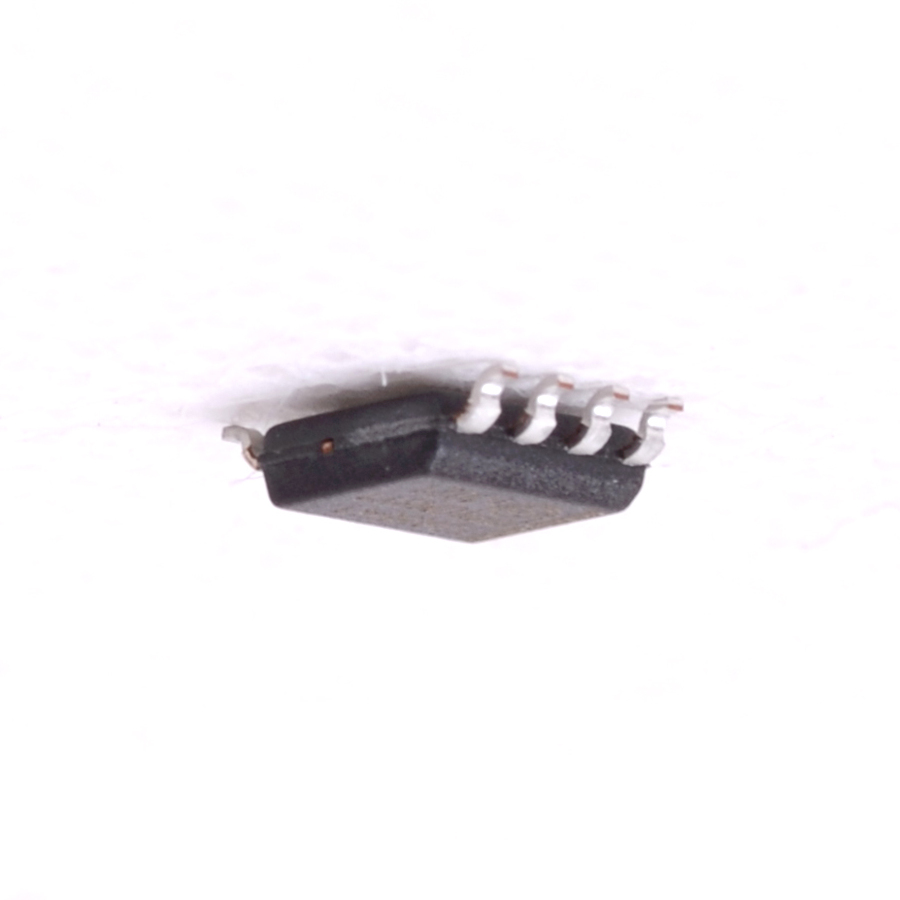

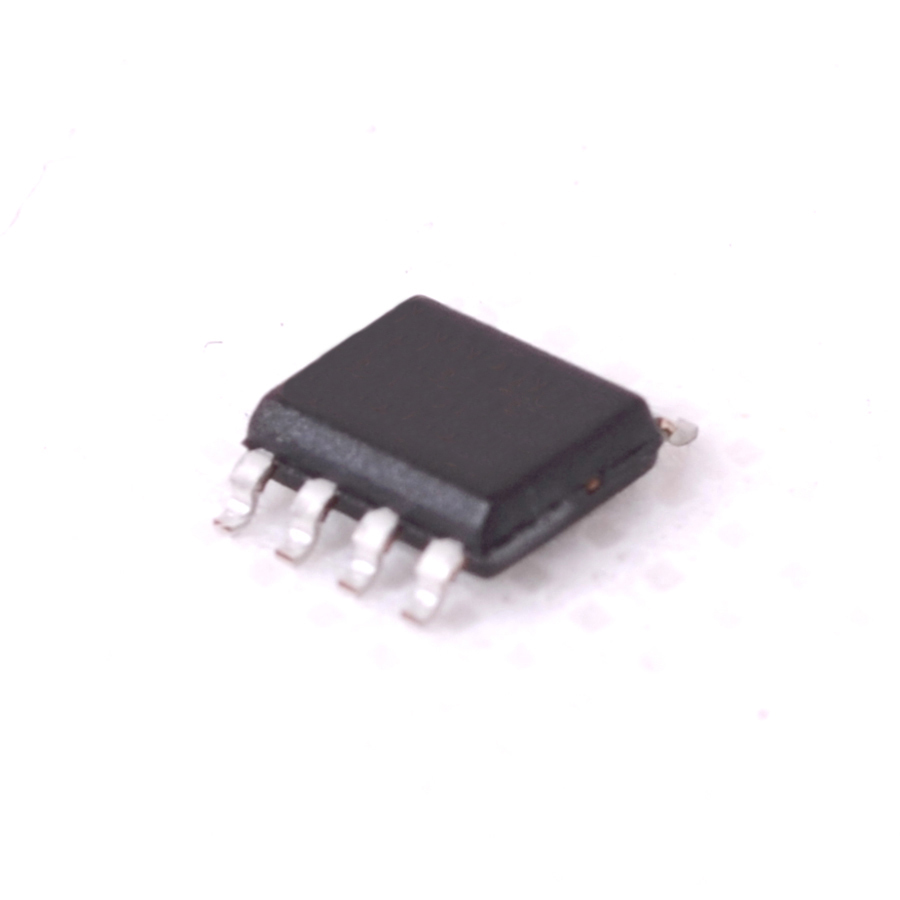

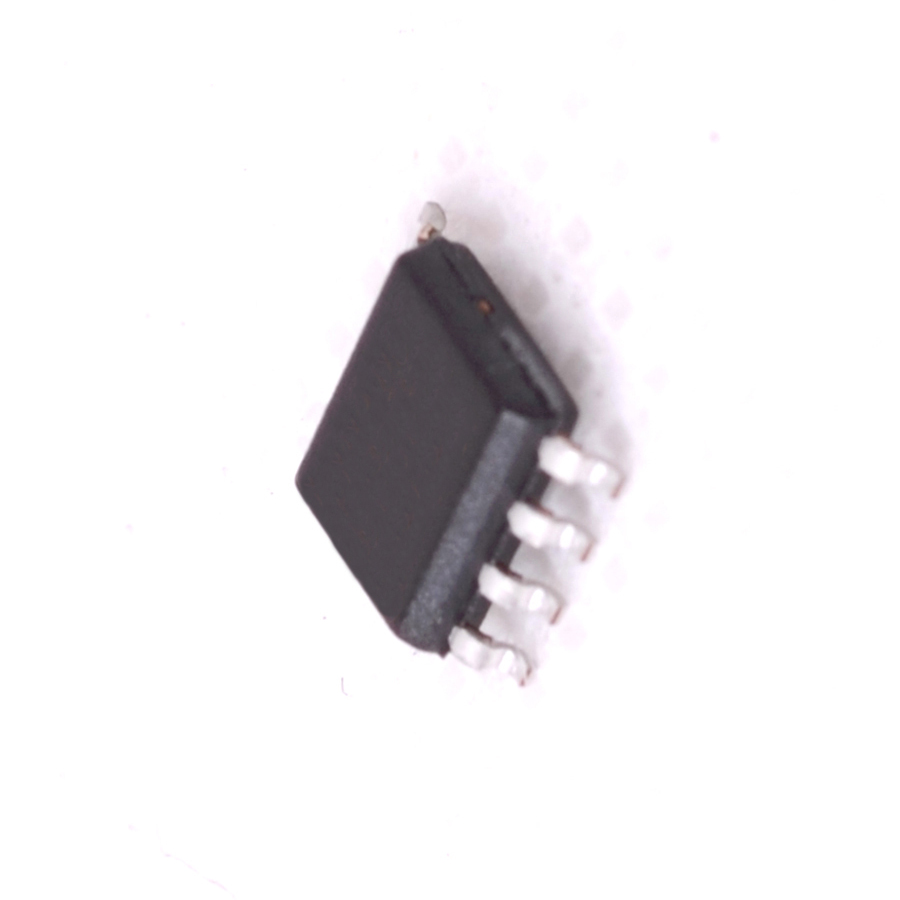

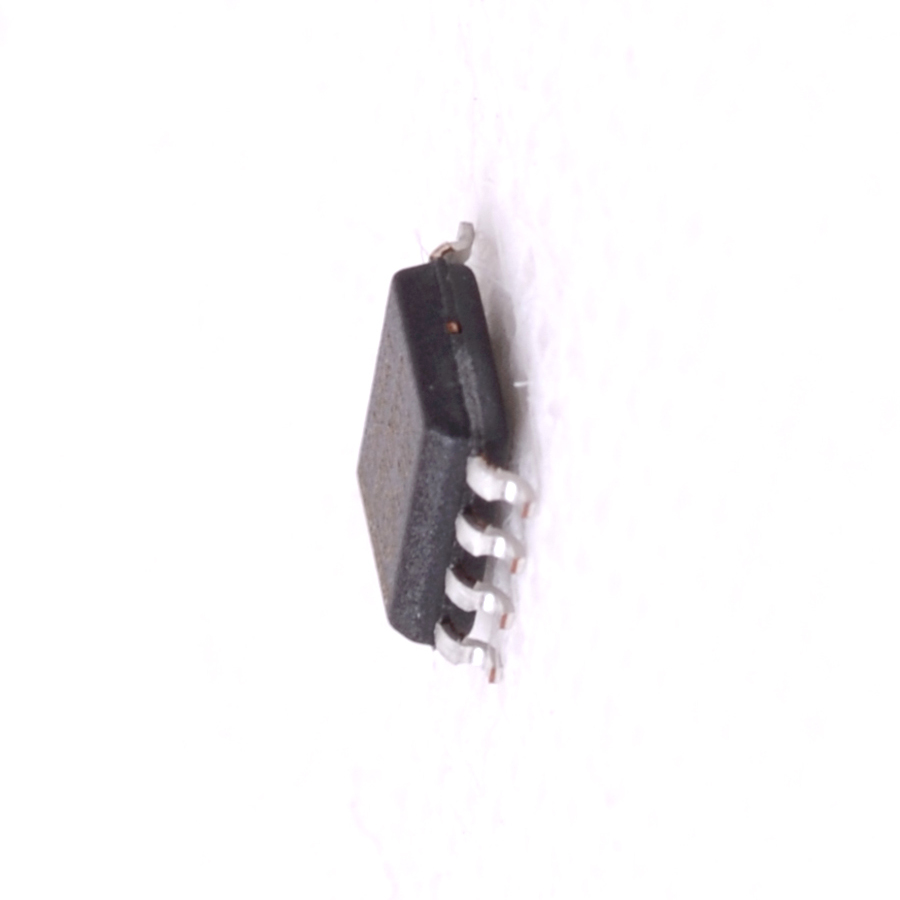

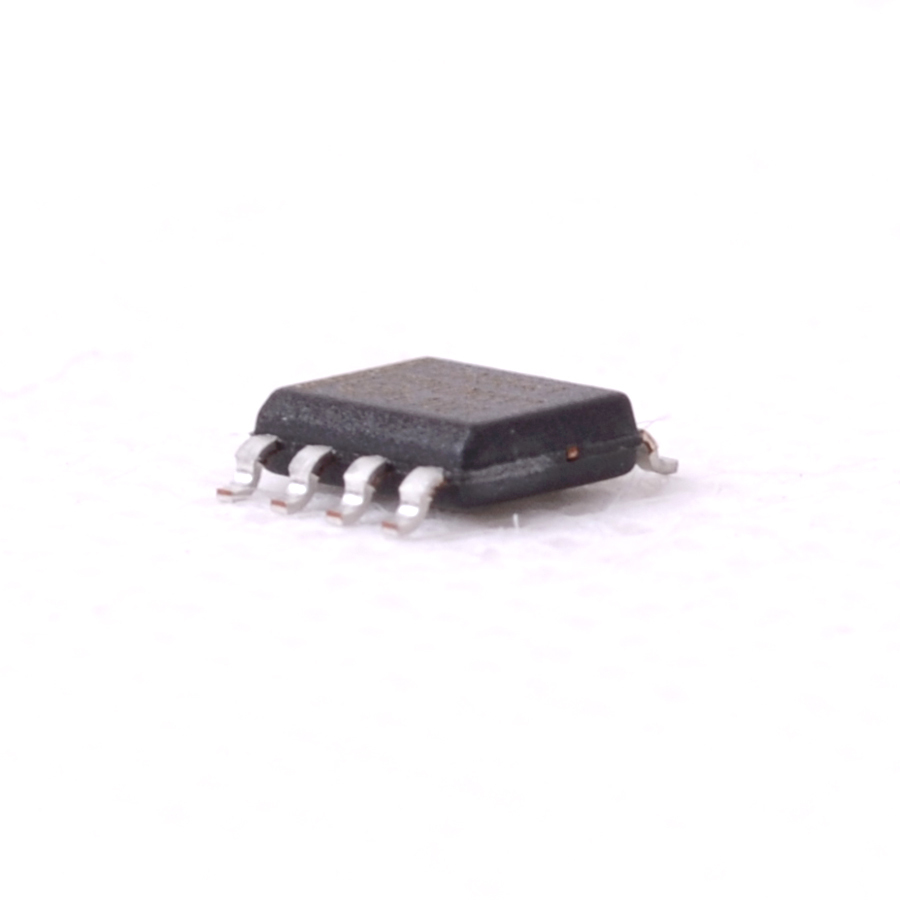

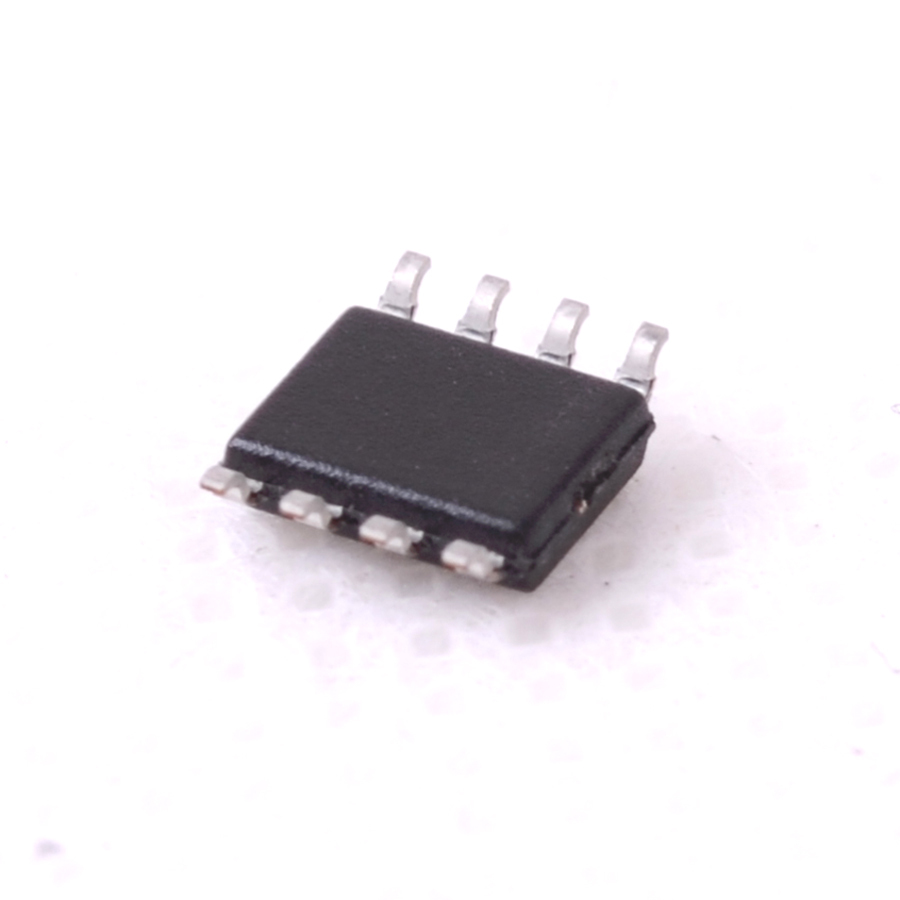

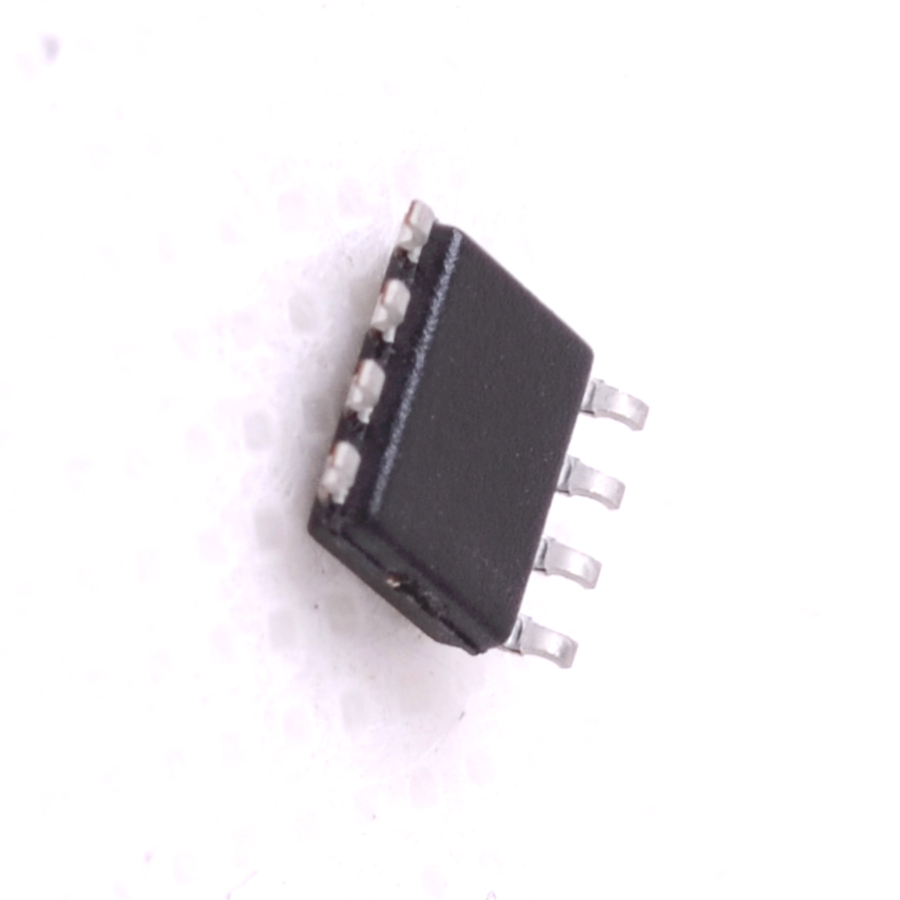

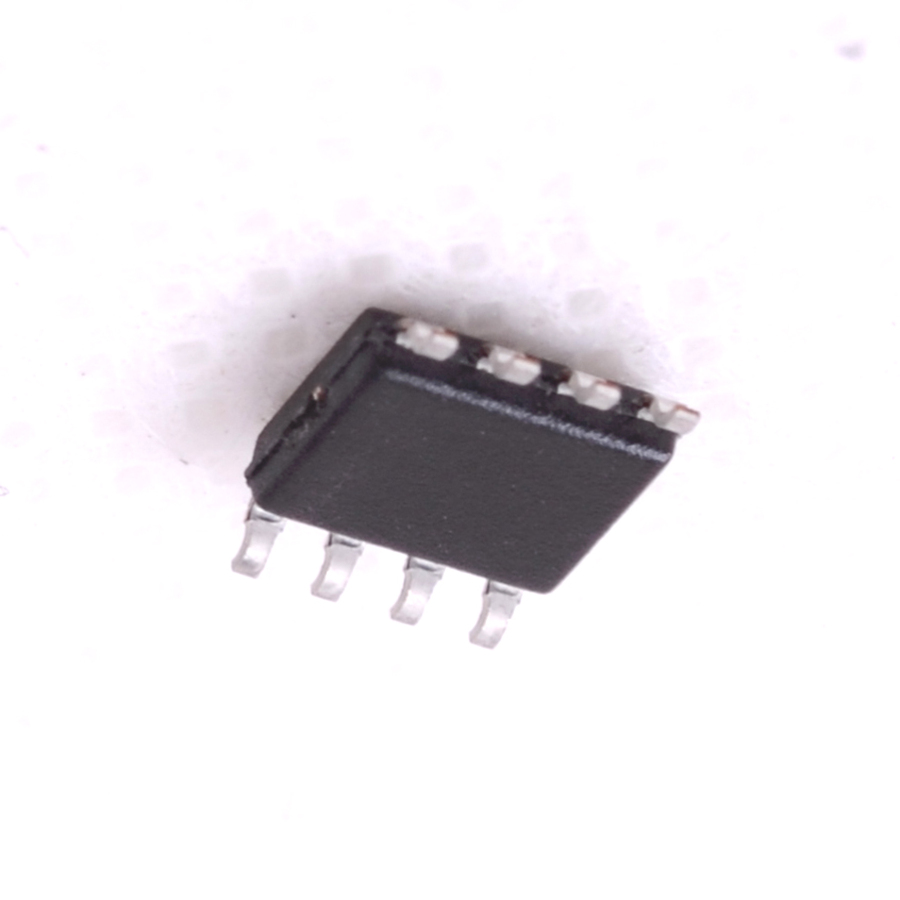

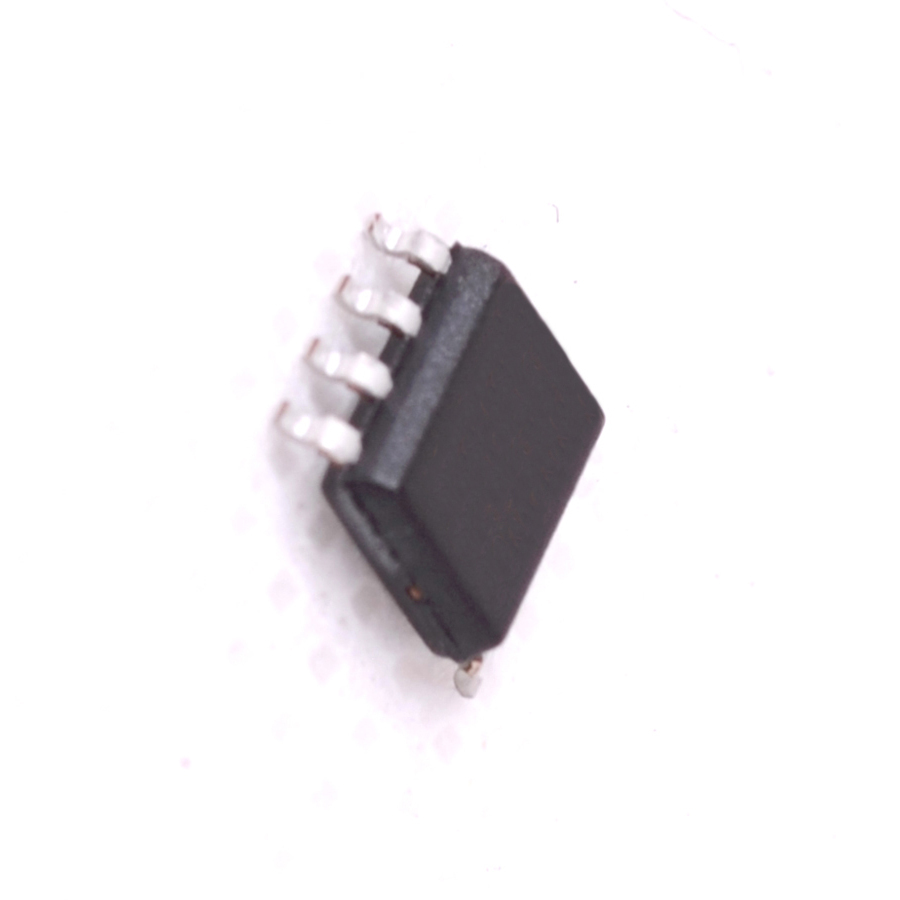

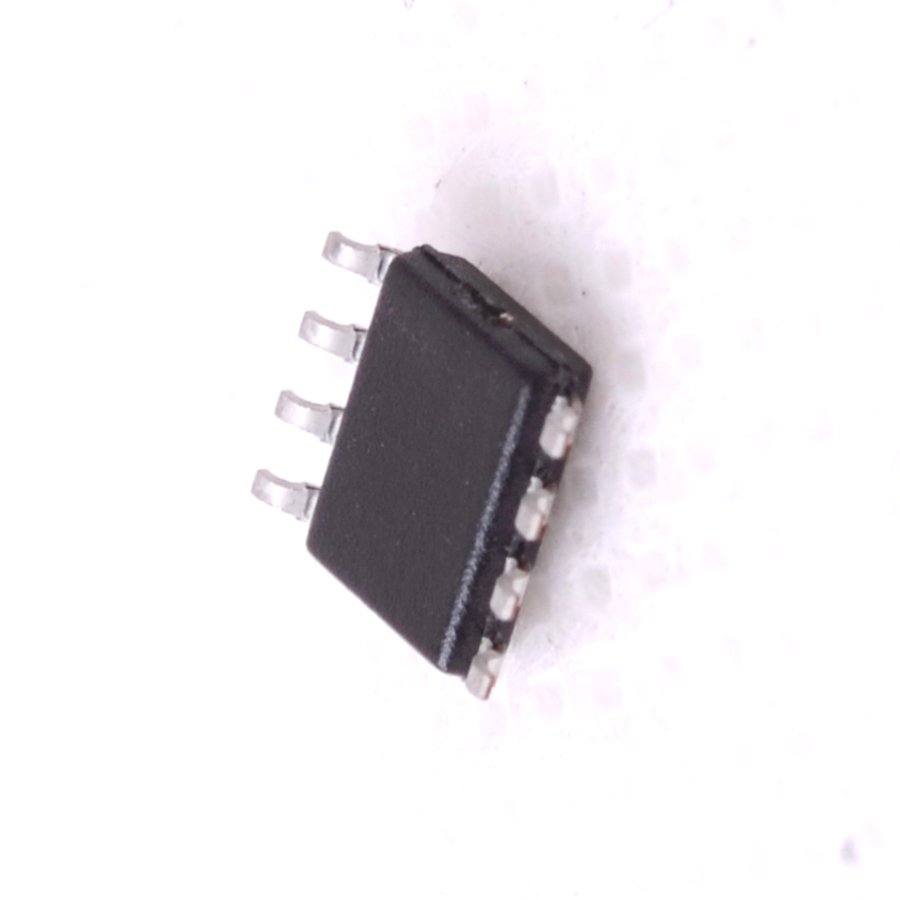

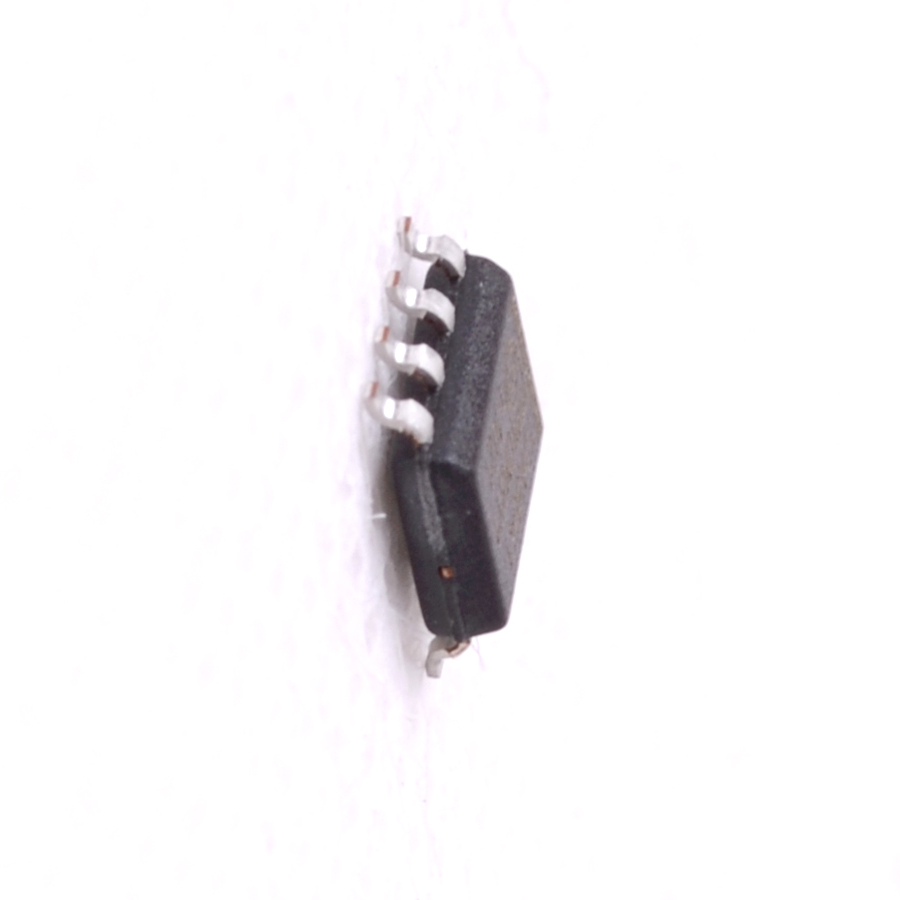

DS75451M Integrated Circuit CASE: SOP8 MAKE: National Semiconductor - NSC
Datasheet
DS75451M Datasheet
Product specifications
Type Integrated Circuit
Case SOP8
Manufacturer National Semiconductor - NSC
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 300m
PD Max. (W) 632m
tPD Max. (S) 30n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. AND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 30
@Iol (A) 300m
Pinout Equivalence Number 8-50
No. of Pins 8
Surface Mounted Yes/No YES
SKU 169567
