DS78LS120J

DS78LS120J

SKU: DS78LS120J

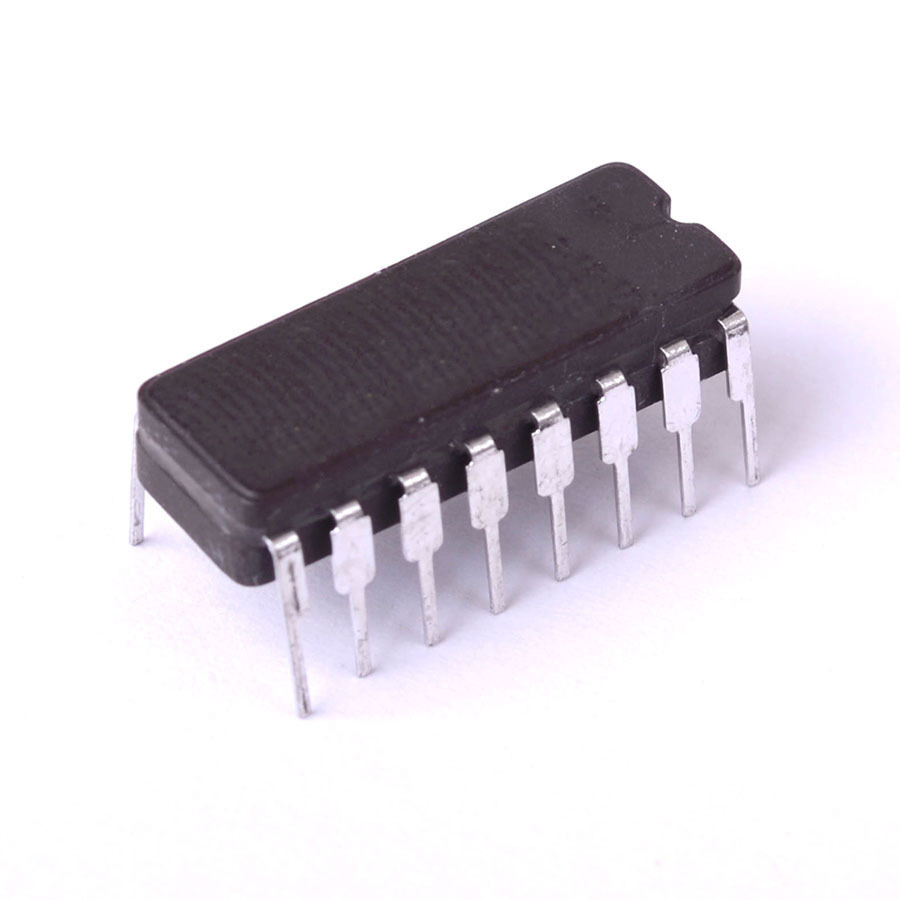

DS78LS120J Integrated Circuit CASE: DIC16 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case DIC16
Manufacturer National Semiconductor - NSC
Ckts Per Dev. 2
Inp Thrshld Hi (V) .20
Inp Thrshld Lo (V) -.20
VOL (loaded) Max. 0.5
VOH Min. 2.5
VOL Max. 0.5
PD Max. (W) 1.4
tPD Max. (S) 60n
Nom. Neg Supp 0.0
Nom. Pos. Supp 7.0*
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@Iol (A) 4.0m
Pinout Equivalence Number 16-439
Surface Mounted Yes/No NO
SKU 969920
